Полуавтоматический Гидравлический трубогибочный станок для автомобильных выхлопных труб гибочный стальных новый дизайн
3 000,00-6 000,00 $

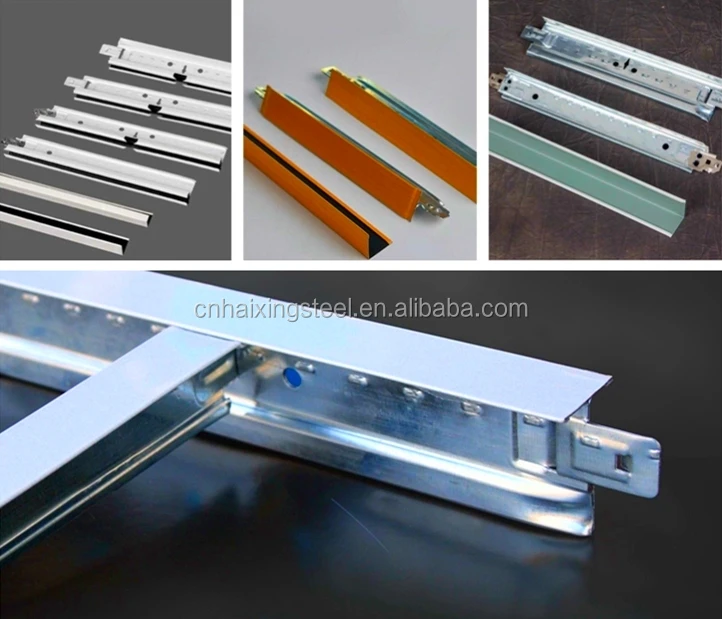

T образная машина для изготовления металлических стержней
- Категория: >>>
- Поставщик: Tianjin Haixing Imp & Exp Co. Ltd.Tianjin Ltd.
Сохранить в закладки 1601281317299:
Описание и отзывы
Характеристики
Product Description

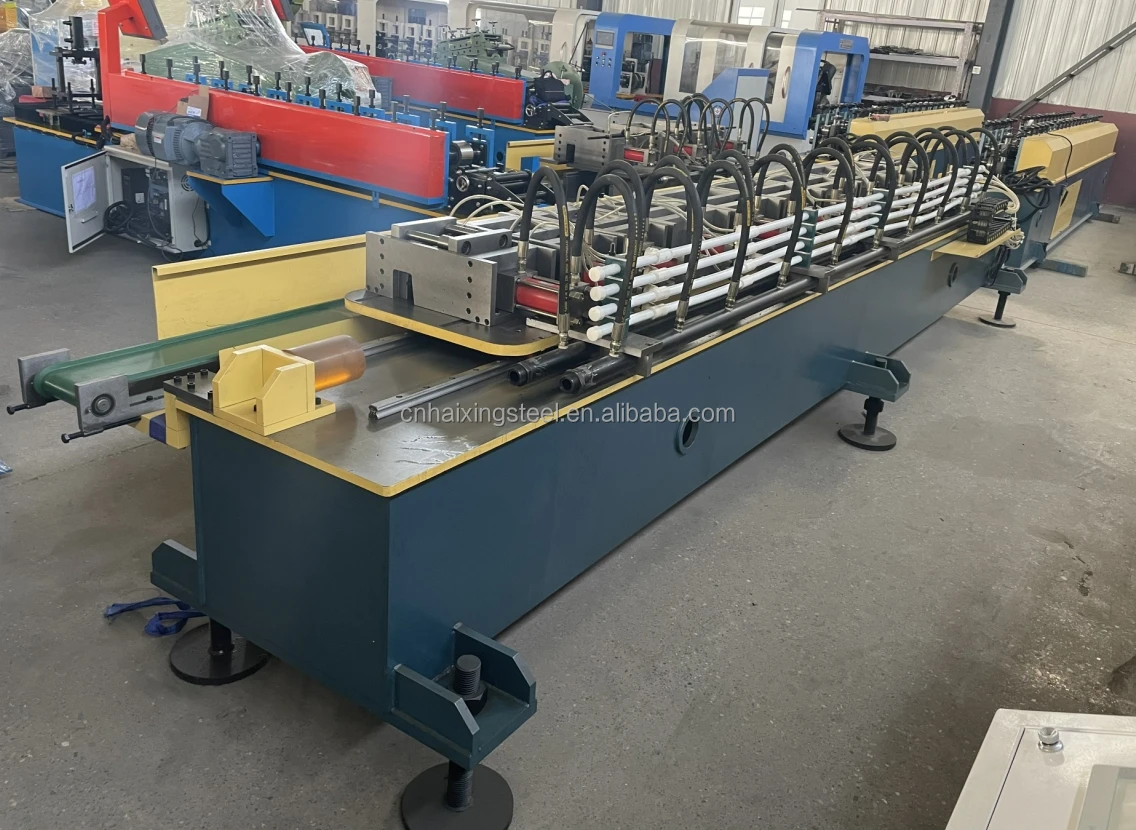

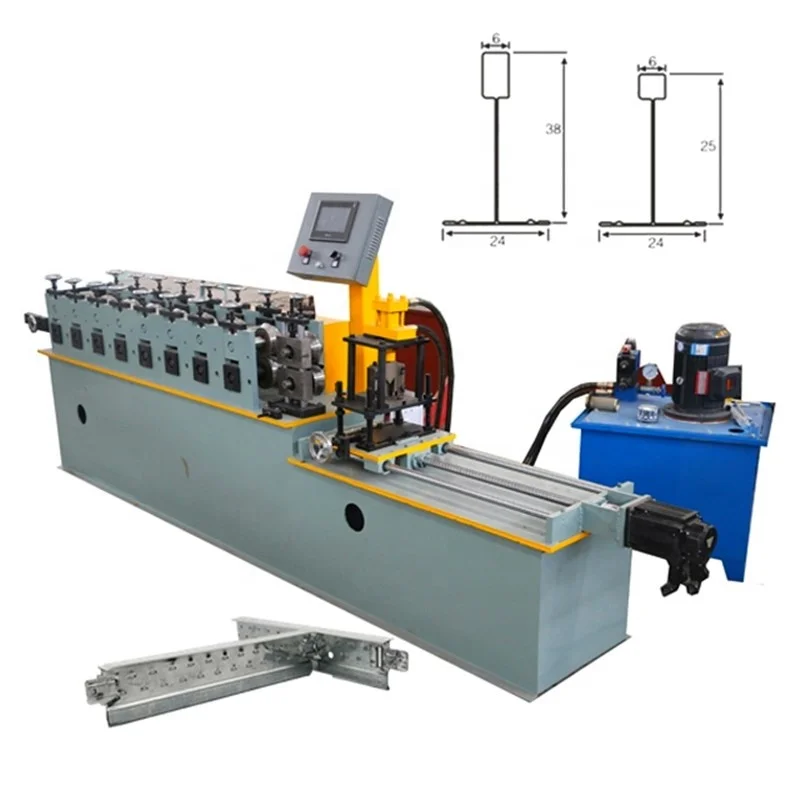

About structure roll forming ceiling t grid making machine for ceilings

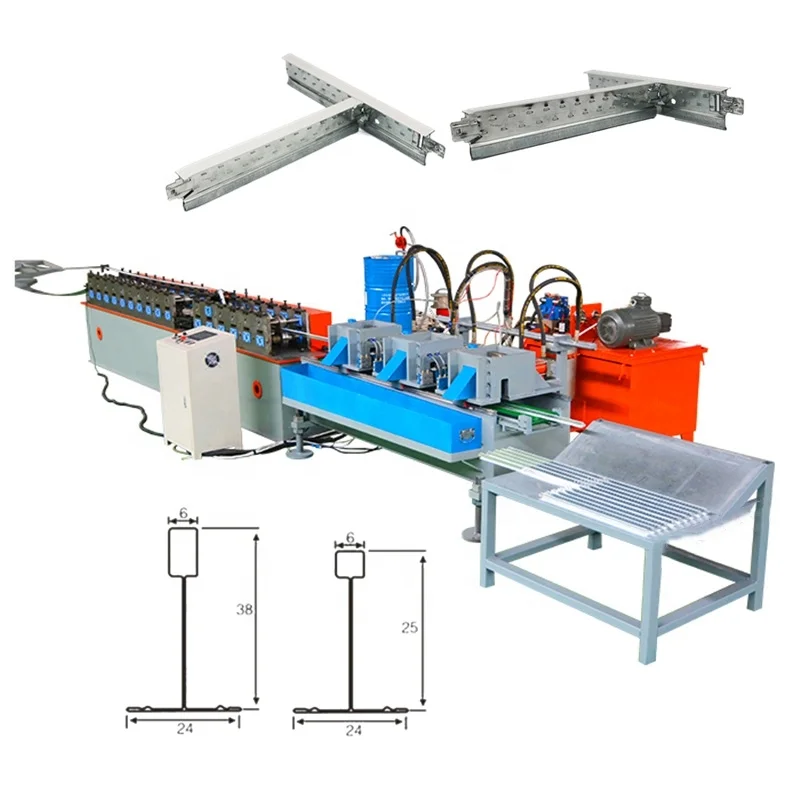

HAIXING automatic high speed interchangeable steel T bar roll forming machine could be used to make Main T and cross T.
Main T bar: equiped with inverter motor, producing in line speed: 30M per minute. Hydraulic automatic punching and cutting machine linked with main forming machine,punching and cutting automatically. Two heads and middle holes are punched and cut-off at the same time after forming.
Cross T bar: equiped with both inverter and servo motor producing in line speed: 30M per minute. Main machine with constant speed,it is traced by the servo trace system, automatic tracing the speed of the main machine, punching and cutting automatically. Two heads and middle hole are punched and cut-off at the same time after forming.
Main T bar: equiped with inverter motor, producing in line speed: 30M per minute. Hydraulic automatic punching and cutting machine linked with main forming machine,punching and cutting automatically. Two heads and middle holes are punched and cut-off at the same time after forming.
Cross T bar: equiped with both inverter and servo motor producing in line speed: 30M per minute. Main machine with constant speed,it is traced by the servo trace system, automatic tracing the speed of the main machine, punching and cutting automatically. Two heads and middle hole are punched and cut-off at the same time after forming.
No. | structure roll forming ceiling t grid making machine for ceilings | ||
1 | Suitable to process | Color alu-zinc steel strips | |
2 | Roller | 16Rows plus leveling device | |
3 | Dimensions | 6.8*1*1.5m | |
4 | Motor Power | 7.5Kw | |

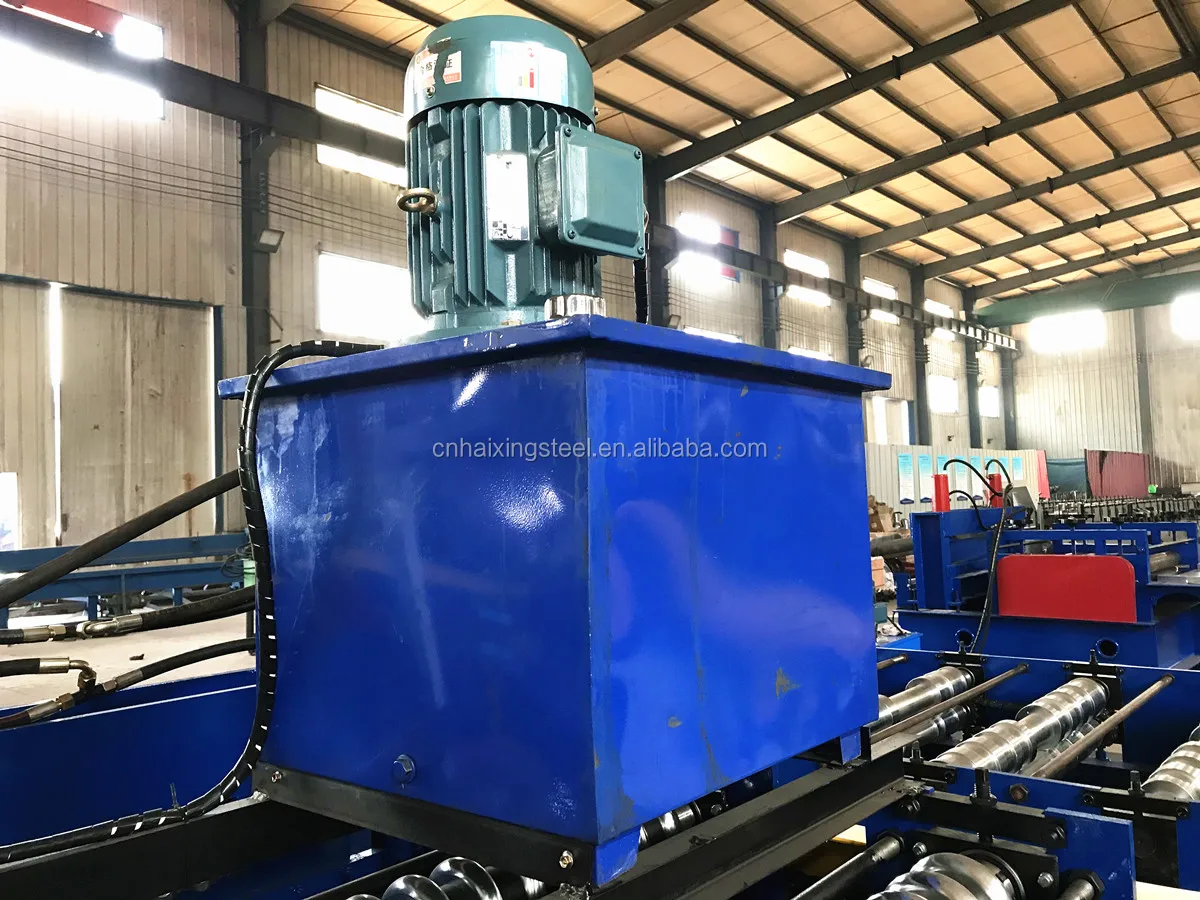

5 | Pump Station Motor | 5.5Kw.Lichao Brand | |
6 | Thickness of the plate | 0.18-0.25mm | |
7 | Productivity | 25-30m/min | |
8 | Material of the cutting mold | SKD11 with hardness quenched treatment 56-58º | |
9 | Diameter of the roller | Φ50mm | |
10 | Weight | About 3600kgs | |
11 | Main structure of the machine | Square steel frame | |
12 | Processing precision | Within 1.0mm | |
13 | Side panel of machine | 25mm | |
14 | Chain Wheel and Cycle Chain | 1 Inch | |
15 | Voltage | 380V 50Hz 3phases or as customer's need | |
16 | Control system | PLC control (Delta) | |
17 | Frequency system | Delta | |
18 | Drive mode | Gear driver | |
19 | Touch screen | Delta | |
20 | Rolling materials | Cr12, Quenching, hardness HRC56-82º | |
21 | Length Tolerance | ±2mm | |
Details Images
Manual decoiler
Coils inner diameter 450-550（mm)
Coils outside diameter 1500(mm)
Max can put max 700kgs
Coils inner diameter 450-550（mm)
Coils outside diameter 1500(mm)
Max can put max 700kgs
Please refer to the equipment regulation to know the function of locate angle iron.

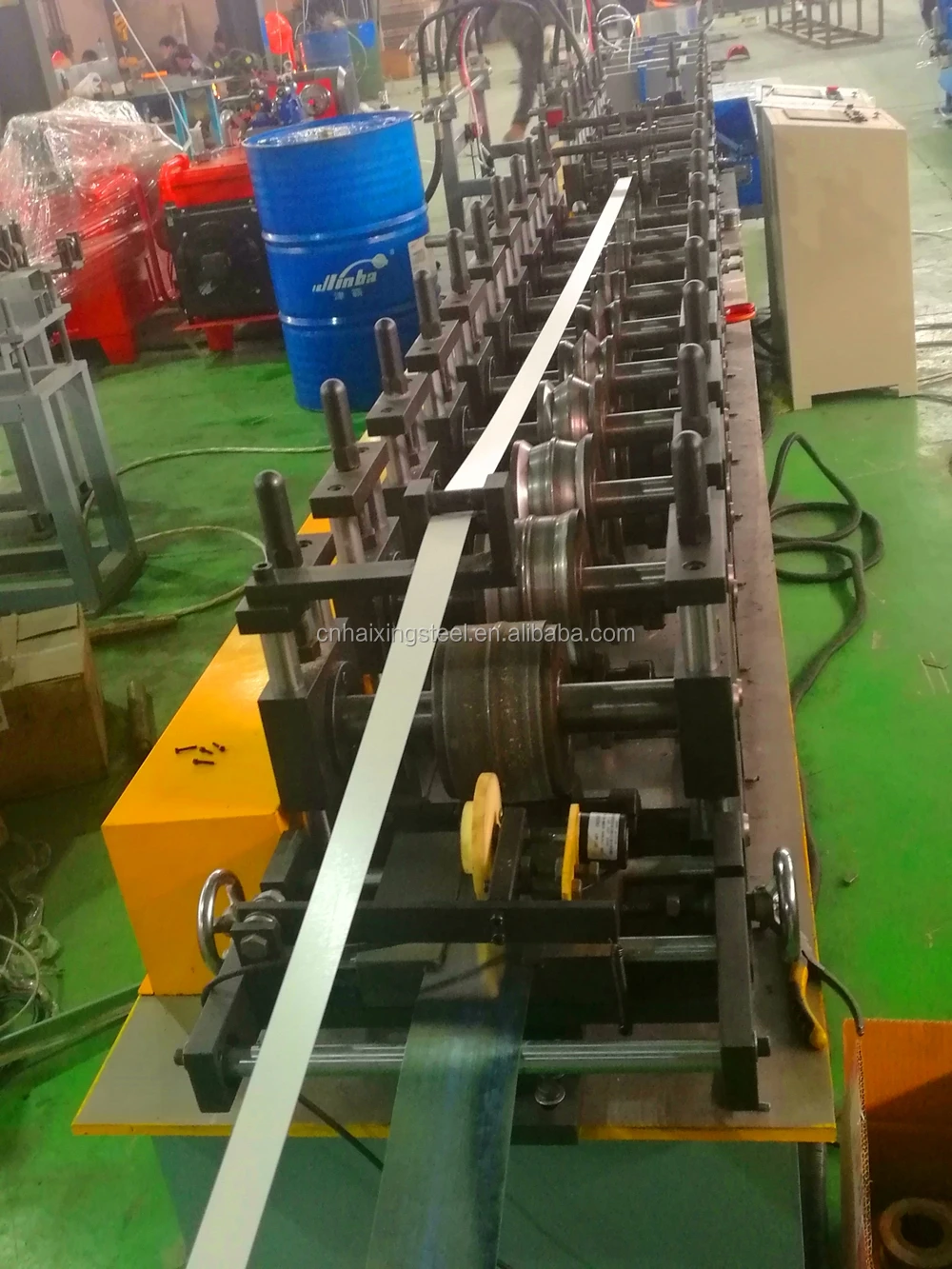

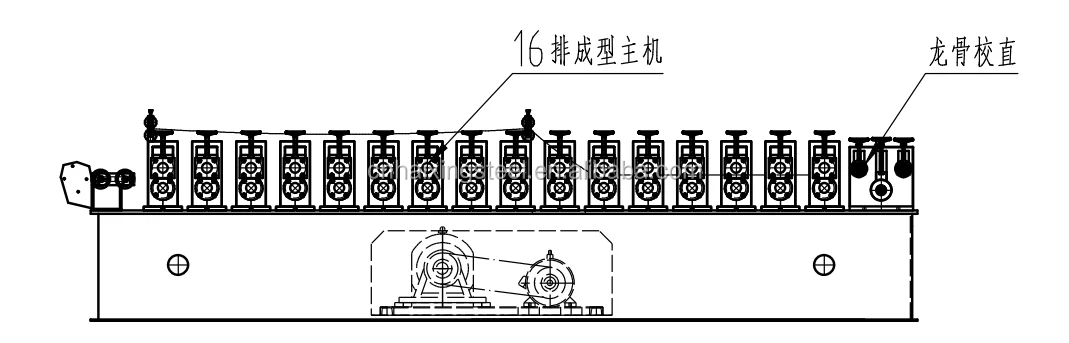

Name: Main rollers
Roller materials: Cr12, Quenching, hardness HRC56-82º
Roller numbers:16 rows
Axis number :32 Pieces
Transmission: gear drive
Side wall: Thickness 25mm
Material of the shaft :45# forged steel
Main machine frame flat: Thickness 16mm ,precision finish
Feed positioning: manual positioning, flexible at both ends

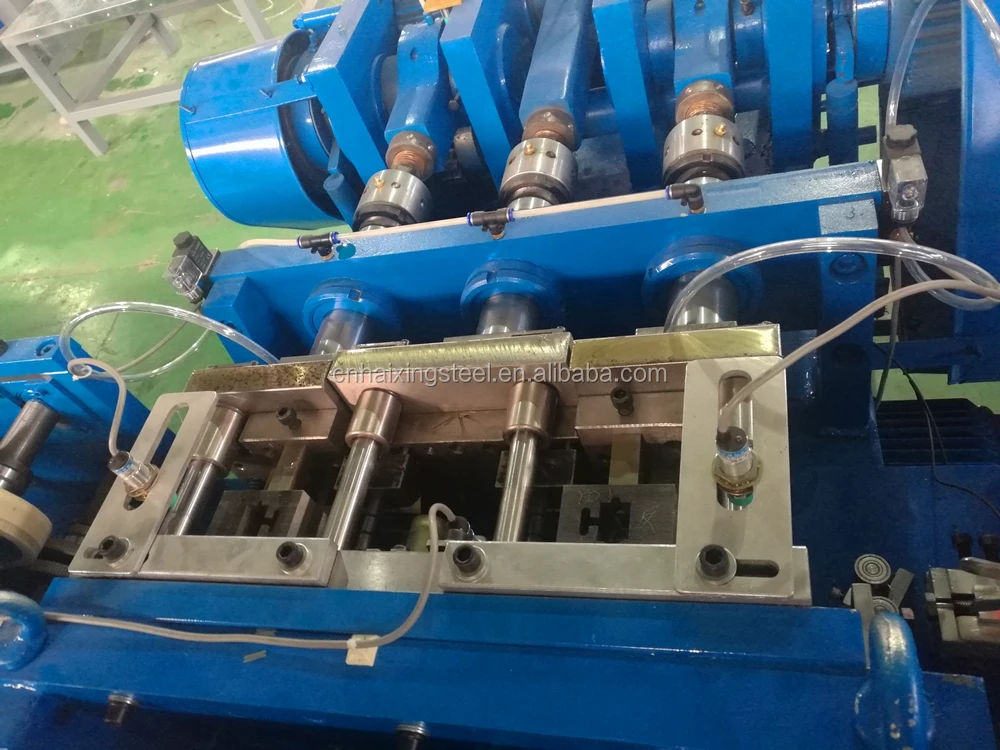

Cutting :Hydraulic cutting
Mold materials :SKD11 with hardness quenched treatment 56-58º
Roller numbers:16 rows
Axis number :32 Pieces
Transmission: gear drive
Side wall: Thickness 25mm
Material of the shaft :45# forged steel
Main machine frame flat: Thickness 16mm ,precision finish
Feed positioning: manual positioning, flexible at both ends
Cutting :Hydraulic cutting
Mold materials :SKD11 with hardness quenched treatment 56-58º
Touch Screen:Delta
Frequency system:Delta
Chinese/English and Russian Or Spanish
Name: Motor driver
Main motor size :7.5Kw
Brand: The famous brand from Jermany or according to customer's need
Material of blades: Cr12,quenching treatment
2 pieces 3meters

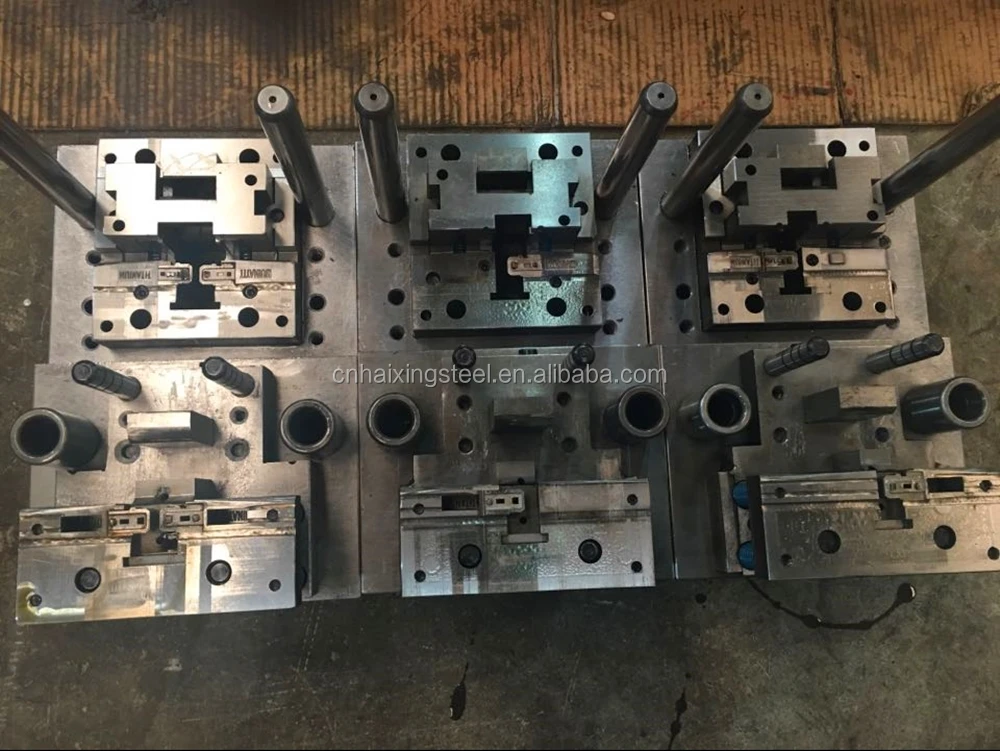

Total 5 sets molds (2sets for hit head mold and 3sets pouch mold)
Mold materials :SKD11 with hardness quenched treatment 56-58º
Production Flow
structure roll forming ceiling t grid making machine for ceilings working flows as follow :
Passive Decoiler | 1Set |
Feeding Platform with Pre-cutter | 1Set |
Roll Forming Machine | 1Set |
PLC Control System | 1Set |
Hydraulic Cutting System | 1Set |

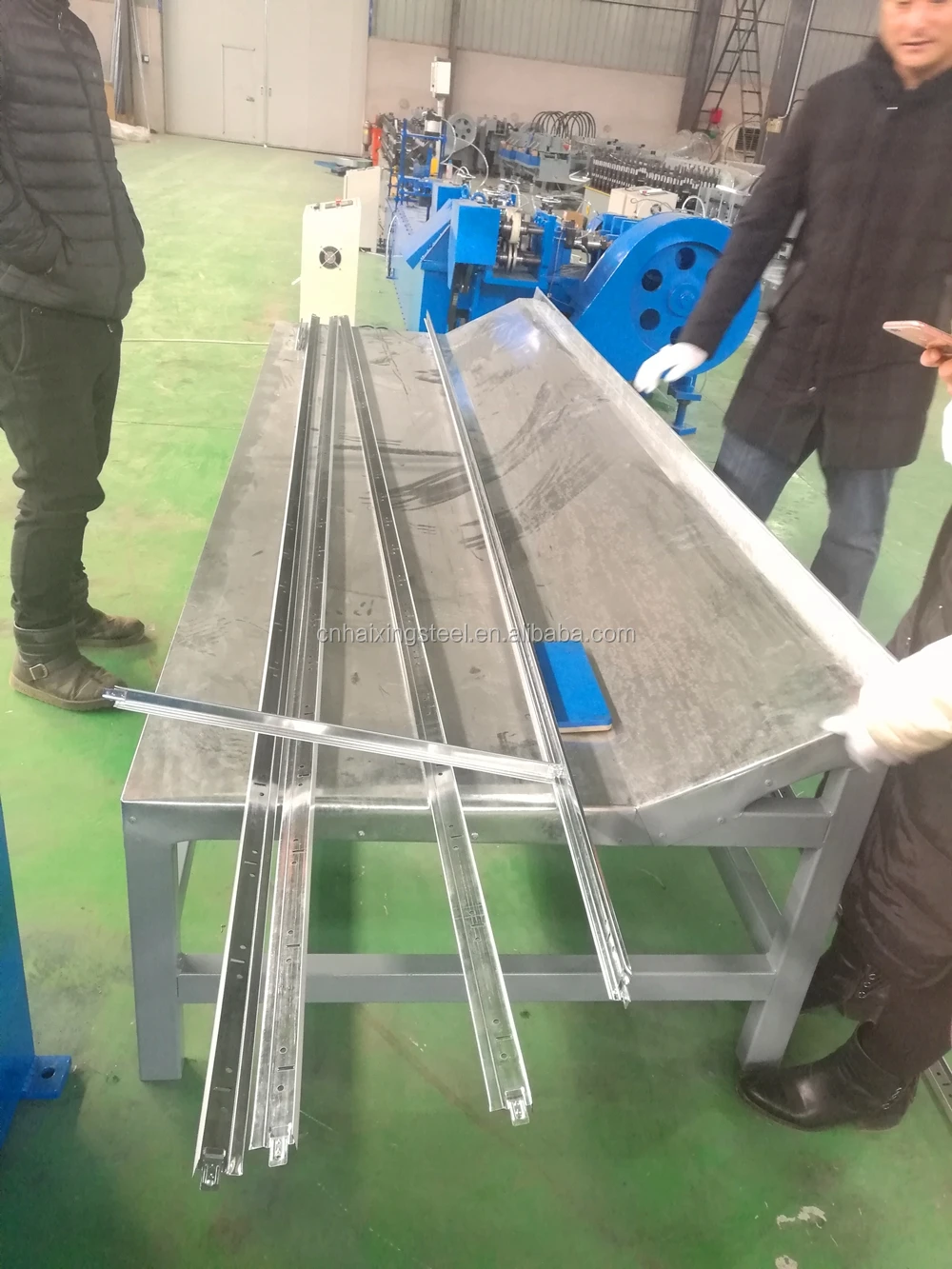

Exit Rack for roofing production | 2Pieces 3Meters |
Spare parts | One carton box |
Packing&Shipping
structure roll forming ceiling t grid making machine for ceilings export standard packages details
- 2.This producing line is maintained free of charge for 24 months.When the machine is used in China,we will install and debug the machine for free;if it is used at abroad,we will send the professional technician to debug.Buyers should take all the fees for technicians travelling abroad.
- 3.All the parts in the roll forming machine is free to maintain all the life,if in 24 months our company bear the cost for
exchanged the broken part like the new parts cost and express cost,if more than 24 month,we also free to maintain the broken parts ,but for send the new parts,the buyer need bear the express cost.
- 4.When ship the roll forming machine,We will also send one set CD and specification(Chinese and English) to you with the machine,they can teach you how to operater the machines.
We are Tianjin Haixing is a professional cold roll forming machine manufacturer.We have been focusing on this field more than 28 years.
Our equipments include R72/R101,galvateja-ternium roof roll forming machine,losacero/floor deck roll forming machine,automatic decoiler,shutter door roll forming machine,light keel roll forming machine,purlin machine,gutter roll forming machine,leveling and sliting machine,and other related construction equipment.
Looking forward to more cooperation with new and old friends .We will do our best support you !
Our equipments include R72/R101,galvateja-ternium roof roll forming machine,losacero/floor deck roll forming machine,automatic decoiler,shutter door roll forming machine,light keel roll forming machine,purlin machine,gutter roll forming machine,leveling and sliting machine,and other related construction equipment.
Looking forward to more cooperation with new and old friends .We will do our best support you !
Q:Are you manufacturer?
A:Yes,we are manufacturer for cold roll forming machine over 28 years.
Q: if you can accept OEM? Design and manufacture according our photo.
A: Yes, we can accept OEM,we owned expert engineer team, and use famous brand components according your demands.
Q:What's the warrany for our machine?
A: we provide 2years guarantee and provide lifetime technical support.
Q:How many workers is needed for the machine operation ？
A: One worker is engough, the machine use automatic PLC control system.
A:Yes,we are manufacturer for cold roll forming machine over 28 years.
Q: if you can accept OEM? Design and manufacture according our photo.
A: Yes, we can accept OEM,we owned expert engineer team, and use famous brand components according your demands.
Q:What's the warrany for our machine?
A: we provide 2years guarantee and provide lifetime technical support.
Q:How many workers is needed for the machine operation ？
A: One worker is engough, the machine use automatic PLC control system.
Q.Can you be responsible for transport?
A.Yes,we owned expert export team, we can arrangement for you to your destination port or address.
A.Yes,we owned expert export team, we can arrangement for you to your destination port or address.
Q:What service can you provide before order?
A:About the pre-sale service, We provide professional solutions according your demands, such as design, technical parameter, delivery flow etc. at the same time, we can supply invitation letter for your visit our factory and know more our factory.
A:About the pre-sale service, We provide professional solutions according your demands, such as design, technical parameter, delivery flow etc. at the same time, we can supply invitation letter for your visit our factory and know more our factory.
Q: What is the after- sale service?
A: we will supply lifetime technical support and supply quick-wear parts within 2 years.
A: we will supply lifetime technical support and supply quick-wear parts within 2 years.
Q: What's the delivery time?
A: 25 days after deposit receipt your payment
Q: Installation and training
a.If buyers visit our factory and check the R BPR AG roof panel roll forming machine, we will teach you how to install and use the
machine, and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, we could go abroad to guide you for free, but you should pay the
Transportation and accommodation expenses.
A: 25 days after deposit receipt your payment
Q: Installation and training
a.If buyers visit our factory and check the R BPR AG roof panel roll forming machine, we will teach you how to install and use the
machine, and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, we could go abroad to guide you for free, but you should pay the
Transportation and accommodation expenses.
Q:what can you buy from us?
Roof & Wall Roll Forming Machine,Floor Deck Roll Forming Machine,Light Steel Keel Roll Forming Machine,CZ Purlin Roll Forming Machine,Leveling Slitting Roll Forming Machine and other related machine.
Roof & Wall Roll Forming Machine,Floor Deck Roll Forming Machine,Light Steel Keel Roll Forming Machine,CZ Purlin Roll Forming Machine,Leveling Slitting Roll Forming Machine and other related machine.
