200 Ton Top Brand All Terrain Crane XCA200G8 1Lifting Height 90 m Mobile Truck for Sale

200 Ton Top Brand All Terrain Crane XCA200G8 1Lifting Height 90 m Mobile Truck for Sale

Категория: >>>
Поставщик: Richmchn Machinery Engineering (Shanghai) Co. Ltd.Richmchn Ltd.

Цена:415 000,00-430 000,00 $*

Количество:

В избранное

Описание и отзывы

Характеристики

Company Introduction Video

Contact Way

Amber Zhou
Sales Manager

Whats app/Mobile:+86 18282218368

Email:Amber(@)richmchn.com

Products Description

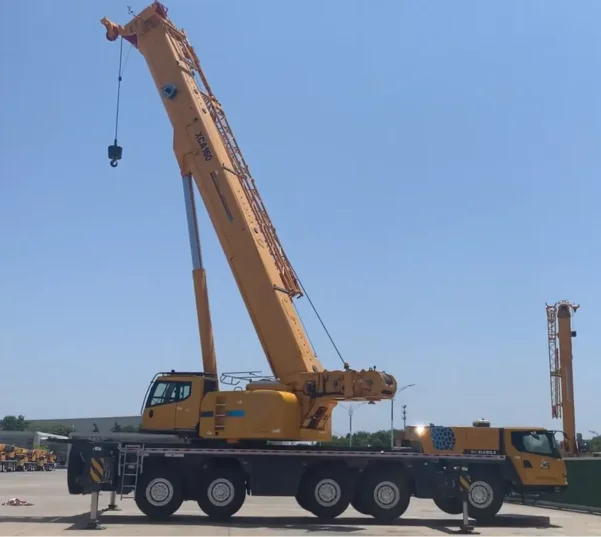

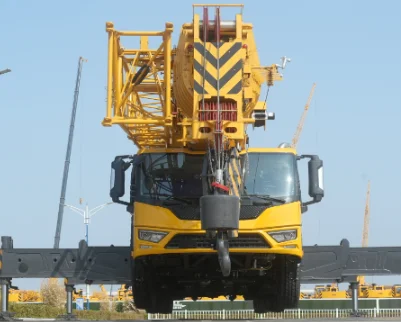

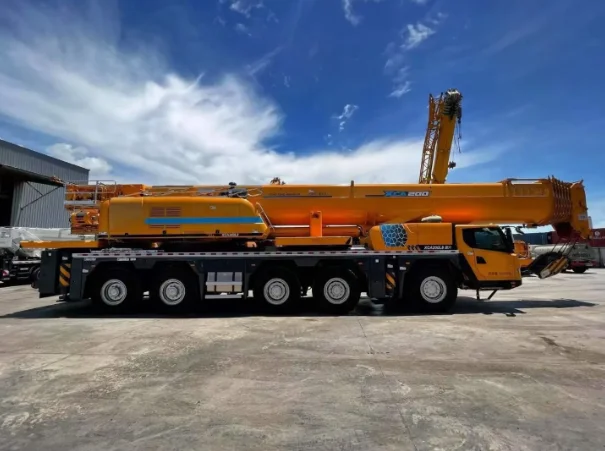

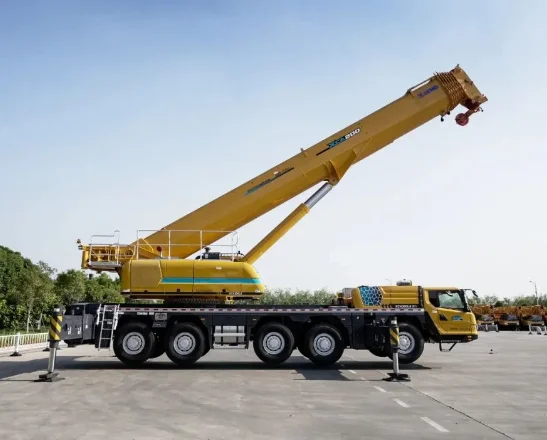

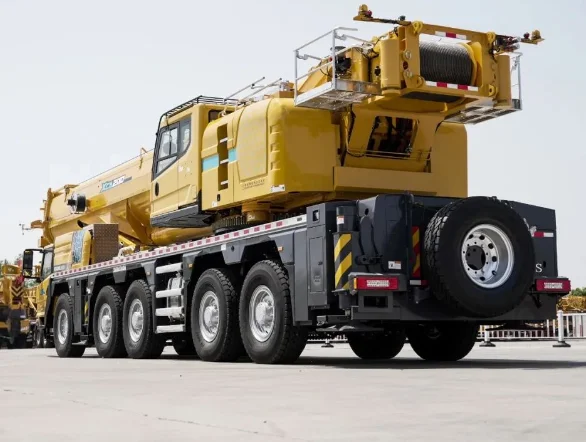

XCA200G8-1 Excellence All Terrain Cranes

Eight-section main boom 90m, fixed jib 18.5m, main boom + jib maximum boom length 118.5m; Twin-engine configuration, new generation of electro-hydraulic energy-saving control technology: operating fuel consumption reduced by more than 30%.

Heavy-load transfer: can carry 30t counterweight, all outrigger pads and side-mounted jib;

Full-action wireless remote control: single-person operation, can realize the disassembly and assembly of counterweight, outrigger pads and jib.

Frame

TOP designs, manufactures, anti-torsion box structure, and manufactures high-strength steel. Outriggers

4 legs, H-shaped arrangement, using two-stage horizontal legs, horizontal telescopic and vertical telescopic are controlled by hydraulics, both sides of the chassis are equipped with lights and speed control buttons, the outrigger cylinders are equipped with one-way valves, and the vertical legs are equipped with two-way hydraulic locks.Foot disc size: 600mm×600mmMaximum lifting leg reaction: front leg 740kN, rear leg 1020kN

Engine

WP10.5H460E62, inline six-cylinder water-cooled electronically controlled diesel engine, manufactured by Weichai, rated power 338kW/1900rpm, maximum torque 2100Nm/1000-1400rpm, maximum reference torque: 2256N.m;Fuel tank volume: 592L; Urea tank volume: 34.3L, displacement: 10.52L

Hydraulic system

The variable piston pump is connected to the engine power take-off through the transmission shaft, which is used to control the heat dissipation hydraulic system, steering and outrigger, and suspension hydraulic system to meet the independent heat dissipation, rear steering, outrigger and suspension applications. Gearbox Fast automatic mechanical transmission with retarding brake, 12 forward gears, 2 reverse gears. Transfer case Mechanical transfer case with high and low gears, equipped with an emergency steering pump.

Safety devices

Reversing image, ABS, outrigger pressure detection, axle load detection, etc.

Axle

High-strength double-reduction axle, equipped with dual-circuit pneumatic disc brakes, 2, 4, 5 three-axle drive, drive steering form: 10×6×10.

Suspension

All axles adopt oil and gas suspension system, which has good shock absorption effect, and has functions such as automatic leveling, suspension lifting, and elastic rigidity conversion. Suspension cylinder stroke:-100mm~+150mm.

Tyre

10 tires, 1 spare tire, each axle is equipped with a single tire, large bearing capacity. Tire specifications: 385/95R25

Brake

Service brakes: Dual-circuit pneumatic disc brakes that act on all wheels.Parking brake: exhaust spring disc brake, acting on 2-5 axle wheels.Auxiliary braking: engine braking, transmission retarding braking, safe and reliable, prolonging the service life of brake pads.

Steering

Full-axle steering, 1~2 axes are mechanical and hydraulic power steering, 3~5 axes are electro-hydraulic control steering, which can adapt to the requirements of various working conditions and realize a variety of steering modes.

Cab

The new steel structure luxury full-width cab is equipped with electric lifting glass, electrically adjustable rearview mirror, multi-function steering wheel, main driver airbag seat, co-driver row sleeper, new combined center console with arc shape, large-screen color LCD monitor, radio, fire extinguisher, air conditioning and reversing image.

Product Parameters

Whole length	15500	(mm)
Full width of the whole machine	2980	(mm)
Whole machine high	3930	(mm)
Wheelbase	2650+1650+2500+1650	(mm)
Tread	2590	(mm)
General quality of running state	55000	(kg)
Axle load	12000×3+9500×2	(kg)
Engine rated power	361.1/1800	(kw/(r/min))
Engine rated torque	2200/1300	(N.m/(r/min))
Engine model (get off)	—	-
Engine rated power	—	(kw/(r/min))
Engine rated torque	—	(N.m/(r/min))
Maximum travel speed	84	(km/h)
Minimum stable running speed	1~1.5	(km/h)
Minimum turning diameter	18.5	(m)
Minimum turning diameter	22.5	(m)
Maximum climb	67	(%)
Minimum ground clearance	280	(mm)
Approach angle	18	(°)
Departure angle	14	(°)
Maximum rated total weight	220	(t)
Minimum rating	3	(m)
Maximum lifting torque of the basic arm	7393	(kN·m)
Turning radius	5030	(mm)
