Токарный станок с ЧПУ фрезерный осью Y TCK56yx500 TCK56yx1500 5 осевой Наклонный токарный цена
1 653 169,50 ₽ - 1 983 803,40 ₽

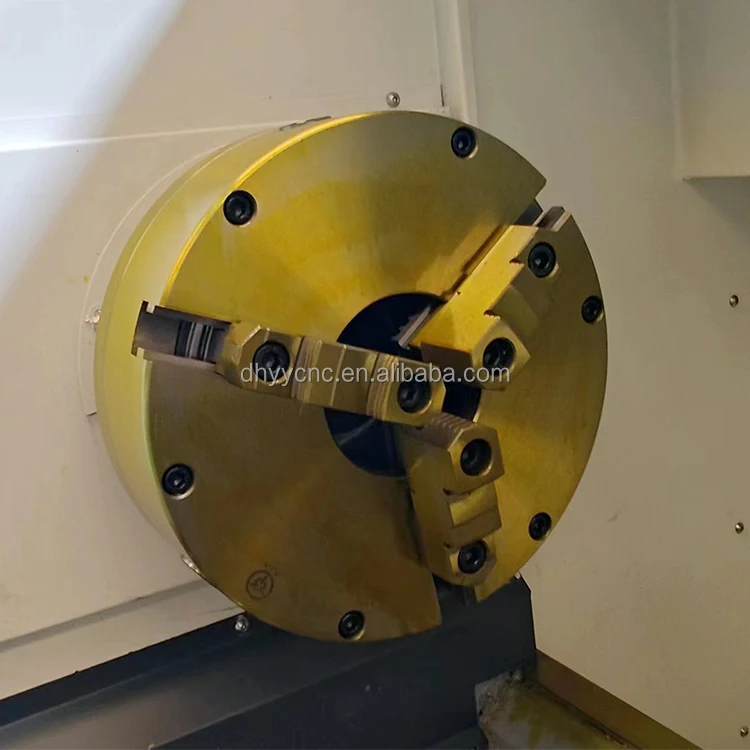

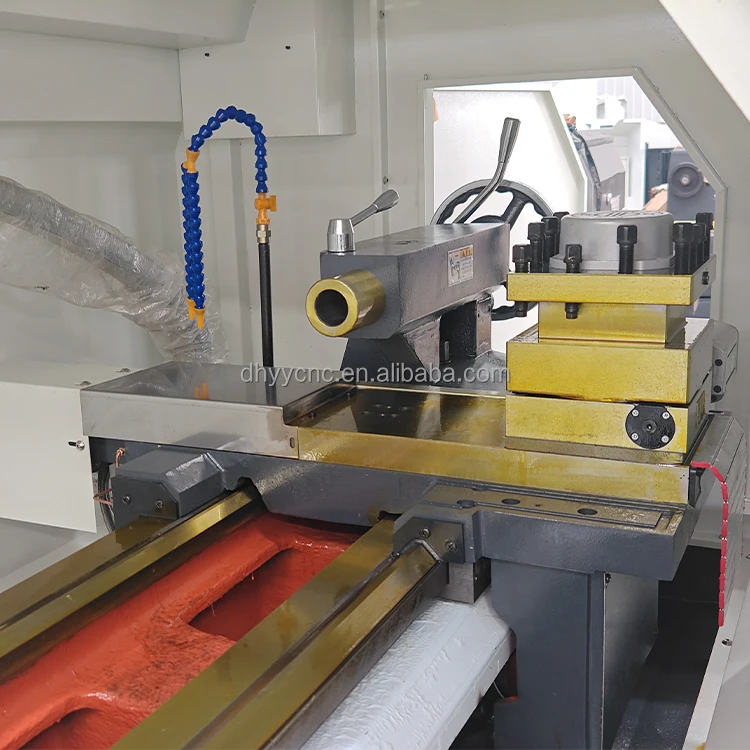

CK6160 токарный станок с ЧПУ подходит для различных внутренних отверстий круговая поверхность диск и другие
- Категория: >>>
- Поставщик: Shandong Dehai Yaoyang Cnc Machine Tool Co. Ltd.
Сохранить в закладки 1601281508872:
Описание и отзывы
Характеристики
Products Description

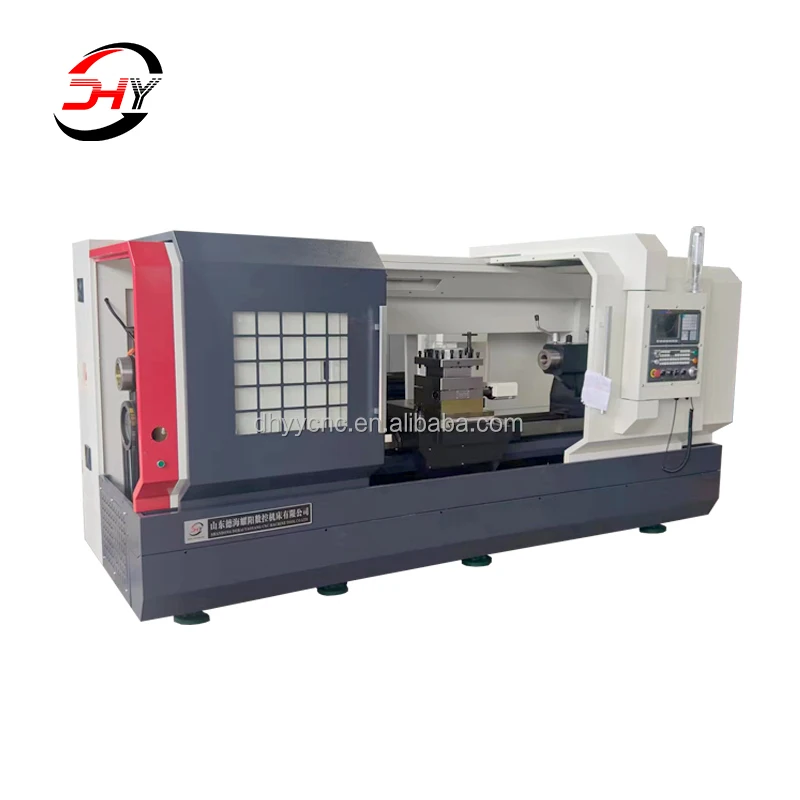

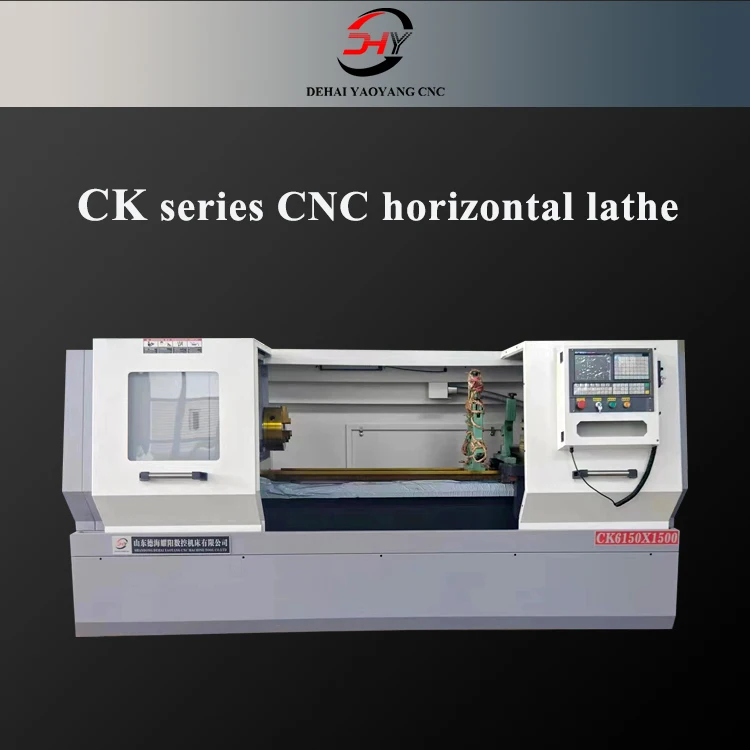

CK series CNC flat bed lathe
1. Machine tool processing objects and uses:
It can process shafts and pipe parts; shaft (or disk) parts with complex geometric shapes, various sizes and high precision requirements. Machining of cylindrical, conical, stepped, spherical and other types of rotary surface parts. Processing various metric and imperial internal and external threads. In addition to turning, it can also be used for drilling, expanding, reaming and boring.
2. Features of the machine tool:
1) Mechanical, electrical and hydraulic integration and modular design, reasonable layout, compact structure, pleasant operation and convenient maintenance.

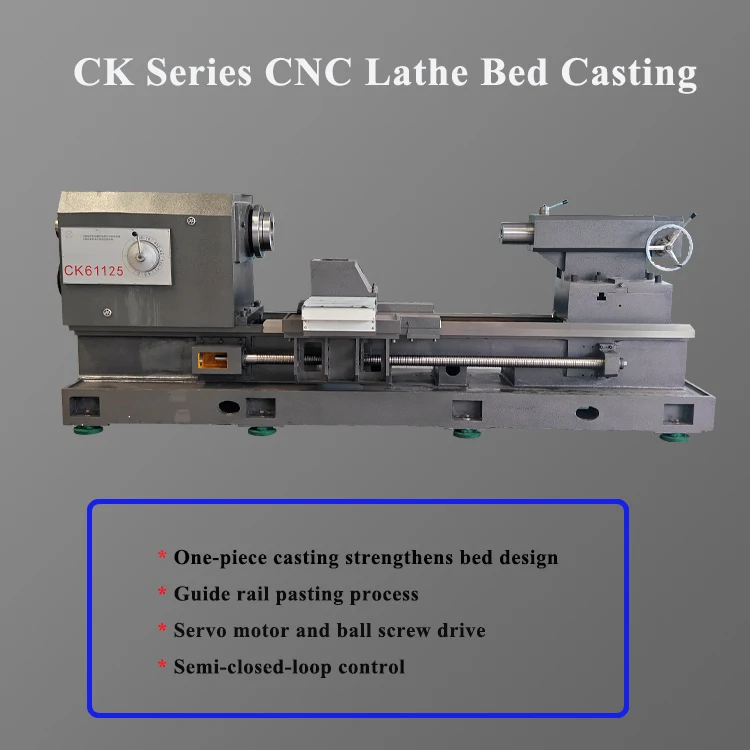

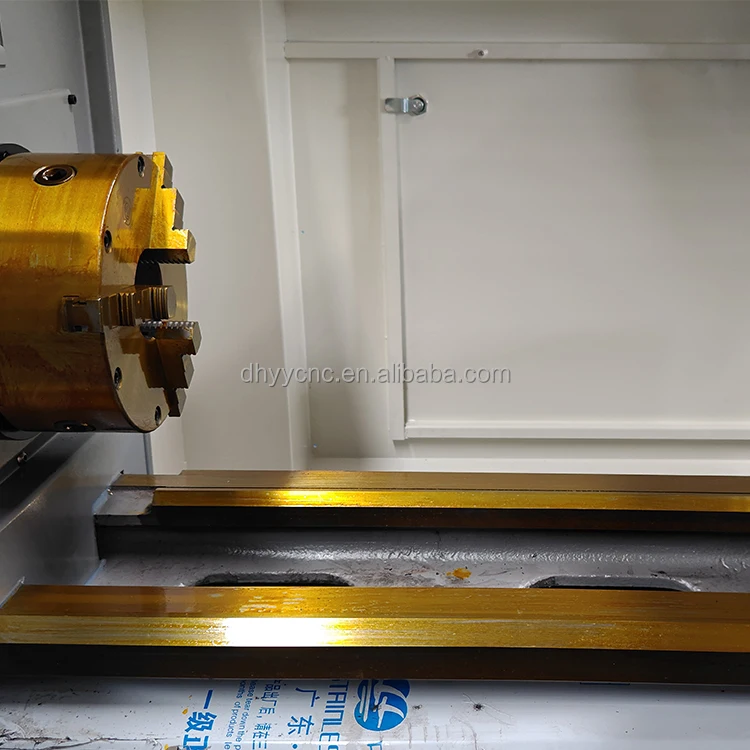

2) It adopts reinforced bed and integral bed foot, and the guide rail is pasted with plastic, which has the characteristics of good rigidity and high processing precision.
3) The main shaft adopts domestic famous brand bearings, and is equipped with an external separate lubrication system. The screw bearing adopts high-precision matched screw bearings, which have high precision and long service life.

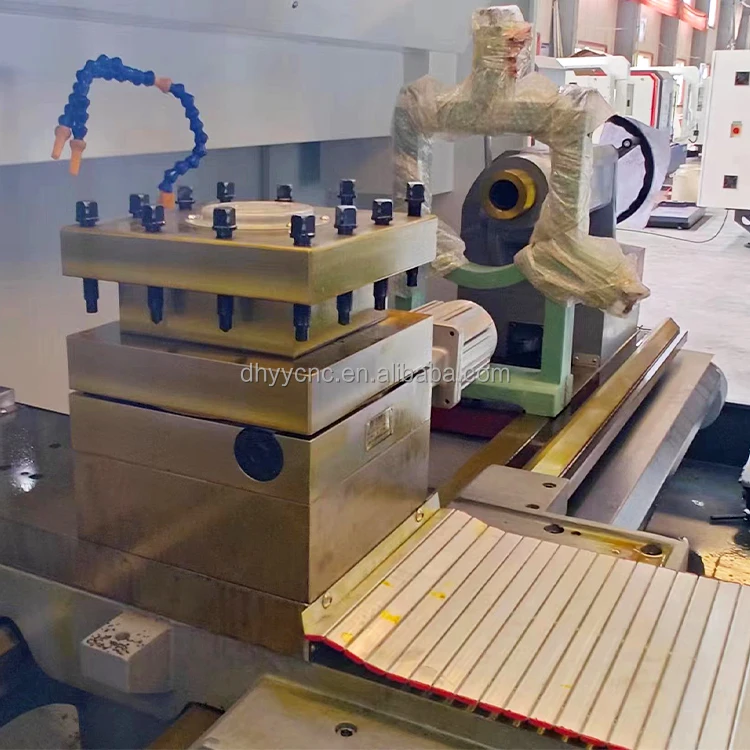

4) It adopts Chinese brand tool holder, which has good rigidity and high precision.
5) Automatic centralized lubrication device, sufficient and reliable lubrication, automatic control of lubrication cycle.
6) AC servo motor is adopted, with high positioning accuracy and stable and reliable performance.
7) The special motor and frequency converter for the spindle are used to realize three-speed stepless speed regulation with a wide range of speed changes. Stepless speed change and constant linear speed cutting can be realized in each gear. Closed protection design, no water leakage, no oil leakage, beautiful appearance.
It can process shafts and pipe parts; shaft (or disk) parts with complex geometric shapes, various sizes and high precision requirements. Machining of cylindrical, conical, stepped, spherical and other types of rotary surface parts. Processing various metric and imperial internal and external threads. In addition to turning, it can also be used for drilling, expanding, reaming and boring.
2. Features of the machine tool:
1) Mechanical, electrical and hydraulic integration and modular design, reasonable layout, compact structure, pleasant operation and convenient maintenance.
2) It adopts reinforced bed and integral bed foot, and the guide rail is pasted with plastic, which has the characteristics of good rigidity and high processing precision.
3) The main shaft adopts domestic famous brand bearings, and is equipped with an external separate lubrication system. The screw bearing adopts high-precision matched screw bearings, which have high precision and long service life.
4) It adopts Chinese brand tool holder, which has good rigidity and high precision.
5) Automatic centralized lubrication device, sufficient and reliable lubrication, automatic control of lubrication cycle.
6) AC servo motor is adopted, with high positioning accuracy and stable and reliable performance.
7) The special motor and frequency converter for the spindle are used to realize three-speed stepless speed regulation with a wide range of speed changes. Stepless speed change and constant linear speed cutting can be realized in each gear. Closed protection design, no water leakage, no oil leakage, beautiful appearance.
SPECIFICATIONS | Units | CK6136 | CK6140 | CK6150 | CK6160 | CK6180 | ||||
Swing over bed | mm | 360 | 400 | 500 | 630 | 800 | ||||
Swing over cross slide | mm | 190 | 210 | 260 | 320 | 480 | ||||
Distance between centers | mm | 750/1000/1500/2000 | ||||||||
Spindle bore | mm | 56 | 56 | 82 | 105 | 105/130 | ||||
Spindle nose type | A2-5 | A2-6 | A2-8 | A2-11 | A2-11 | |||||
Spindle speed steps | Manual 2 steps/stepless | Manual 3steps/stepless | Manual 3 steps/stepless | Manual 4 steps/stepless | Manual 4steps/stepless | |||||
Spindle speed range | rpm | 50-1600 | 50-1600 | 150-1400 | 30-835 | 30-835 | ||||
Turret/tool post | Electric 4position | |||||||||
Tool size | mm | 20*20 | 25*25 | 25*25 | 25*25 | 25*25 | ||||
X axis travel | mm | 200 | 220 | 260 | 320 | 410 | ||||
Z axis travel | mm | 750/1000/1500/2000 | ||||||||
X axis rapid traverse | mm/min | 6000 | 6000 | 6000 | 6000 | 6000 | ||||
Z axis rapid traverse | mm/min | 8000 | 8000 | 8000 | 8000 | 8000 | ||||
Tailstock quill diameter | mm | 65 | 65 | 65 | 65 | 65 | ||||
Tailstock quill taper | MT4 | MT4 | MT5 | MT6 | MT6 | |||||
Tailstock quill travel | mm | 130 | 130 | 130 | 130 | 130 | ||||
Main motor power | kw | 5.5 | 5.5 | 7.5 | 11 | 11 | ||||
Coolant motor power | kw | 0.09 | 0.09 | 0.09 | 0.125 | 0.125 | ||||
Weight for 750 | kg | 1600 | 1700 | 2300 | 3000 | 4100 | ||||
Weight for 1000 | kg | 1700 | 1800 | 2600 | 3300 | 4600 | ||||
Weight for 1500 | kg | 1800 | 1900 | 2900 | 4000 | 5000 | ||||
Weight for 2000 | kg | 1900 | 2000 | 3300 | 4500 | 5500 | ||||
Dimension for 750 | mm | 2200*1600*1700 | 2200*1650*1700 | 2200*1700*1750 | 2200*1750*1800 | 2200*1800*1850 | ||||
Dimension for 1000 | mm | 2500*1600*1700 | 2500*1650*1700 | 2500*1700*1750 | 2500*1750*1800 | 2500*1800*1850 | ||||
Dimension for 1500 | mm | 3000*1600*1700 | 3000*1650*1700 | 3000*1700*1750 | 3000*1750*1800 | 3000*1800*1850 | ||||
Dimension for 2000 | mm | 3500*1600*1700 | 3500*1650*1700 | 3500*1700*1750 | 3500*1750*1800 | 3500*1800*1850 | ||||
1. What is your MOQ and warranty?
A: The minimum order quantity is one set, the warranty period is one year, and lifetime technical support is provided.
2. What is the delivery time?
A: The production period of the machine is generally about 30 working days.
3. What is the packaging of the machine?
A: The standard packaging of the machine is an iron pallet and a plastic film wooden box.
4. How to choose the most suitable machine?
A: Please let us know your processing needs or machine parameters, we can choose the best model for you, or you can choose the exact model yourself. You can also send us product drawings and our engineers will make reasonable recommendations.
5. What are your trade terms?
A: FOB, CFR, CIF or other terms are all acceptable.
6. What are the payment terms?
A: T/T, 30% down payment when ordering, 70% balance before shipment.
7.Are you a manufacturer or trader?
A: We are a manufacturer, we have more than 5 engineers to provide you with technical support, we do not sell machines that we do not produce.
Похожие товары
Токарные и фрезерные станки с ЧПУ осью Y Tck56-500 5-осевой наклонной токарные цена
1 410 704,64 ₽ - 1 741 338,54 ₽
Токарный станок с ЧПУ TCK50A/TCK56/TCK40A добавлением оси Y центр станка для резьбы токарный
1 080 070,74 ₽ - 1 741 338,54 ₽

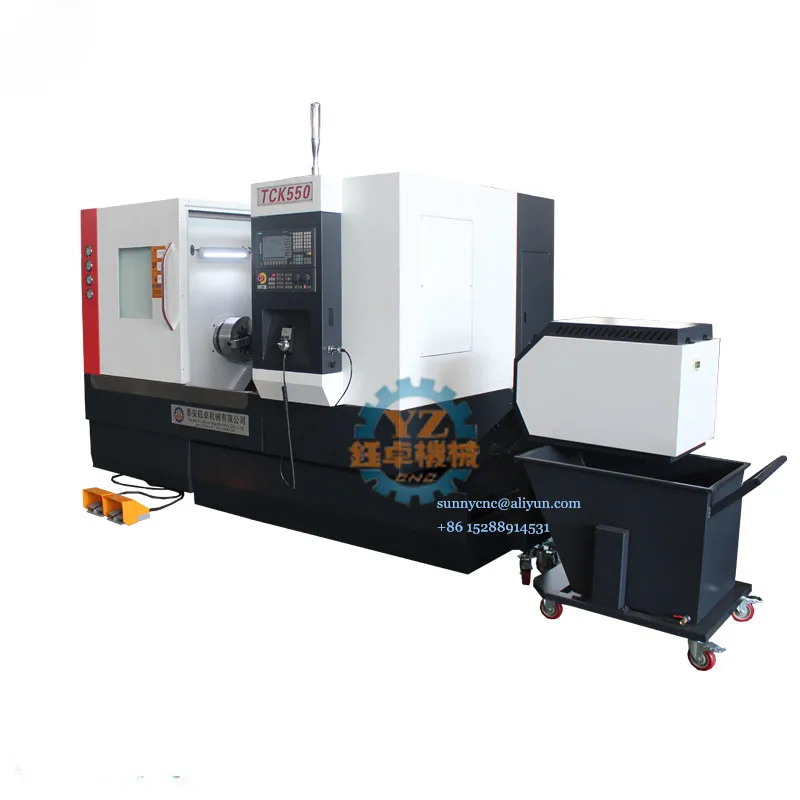

TCK550 токарный центр с ЧПУ живой оснасткой башни и оси Y
Токарный станок с ЧПУ Tck56 большим отверстием
1 410 704,64 ₽ - 1 741 338,54 ₽
CK61125 с живыми инструментами ТОКАРНЫЙ И ФРЕЗЕРНЫЙ гидравлический стационарный токарный станок ЧПУ siemens 828D
2 975 705,10 ₽ - 3 306 339,00 ₽

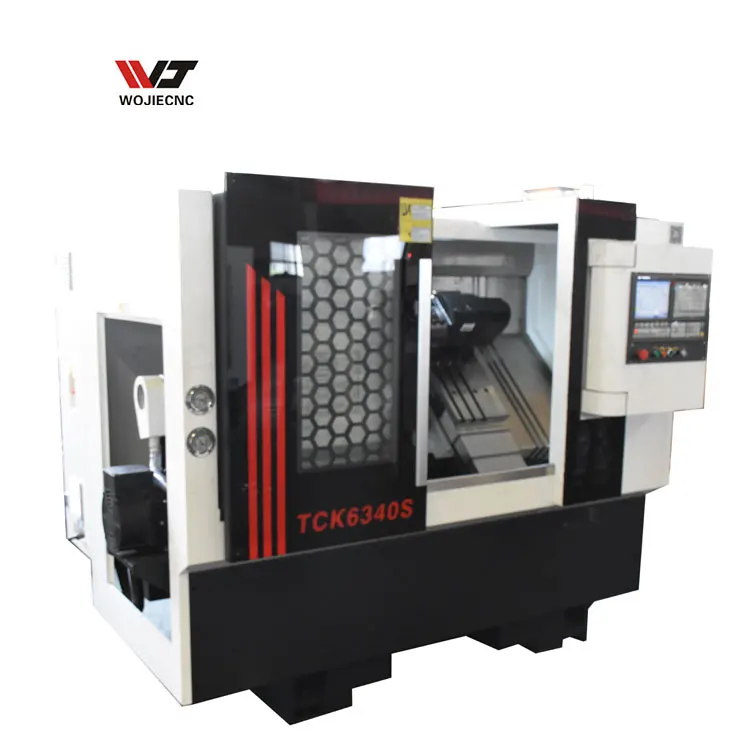

TCK6340S Китай 3 оси 4 наклонной кровати типа токарный станок с ЧПУ центр y живым инструментом
