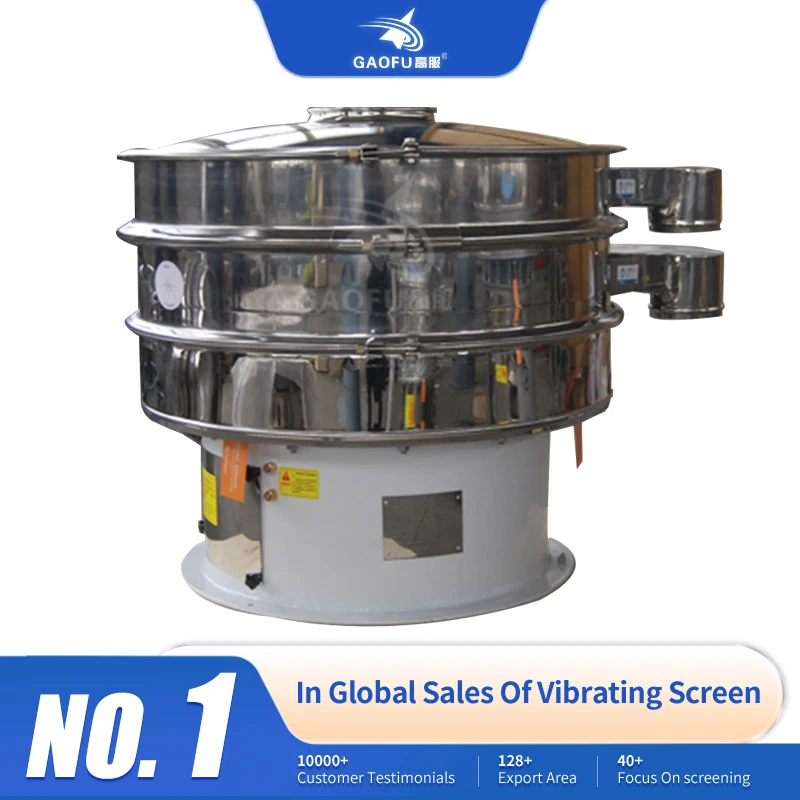

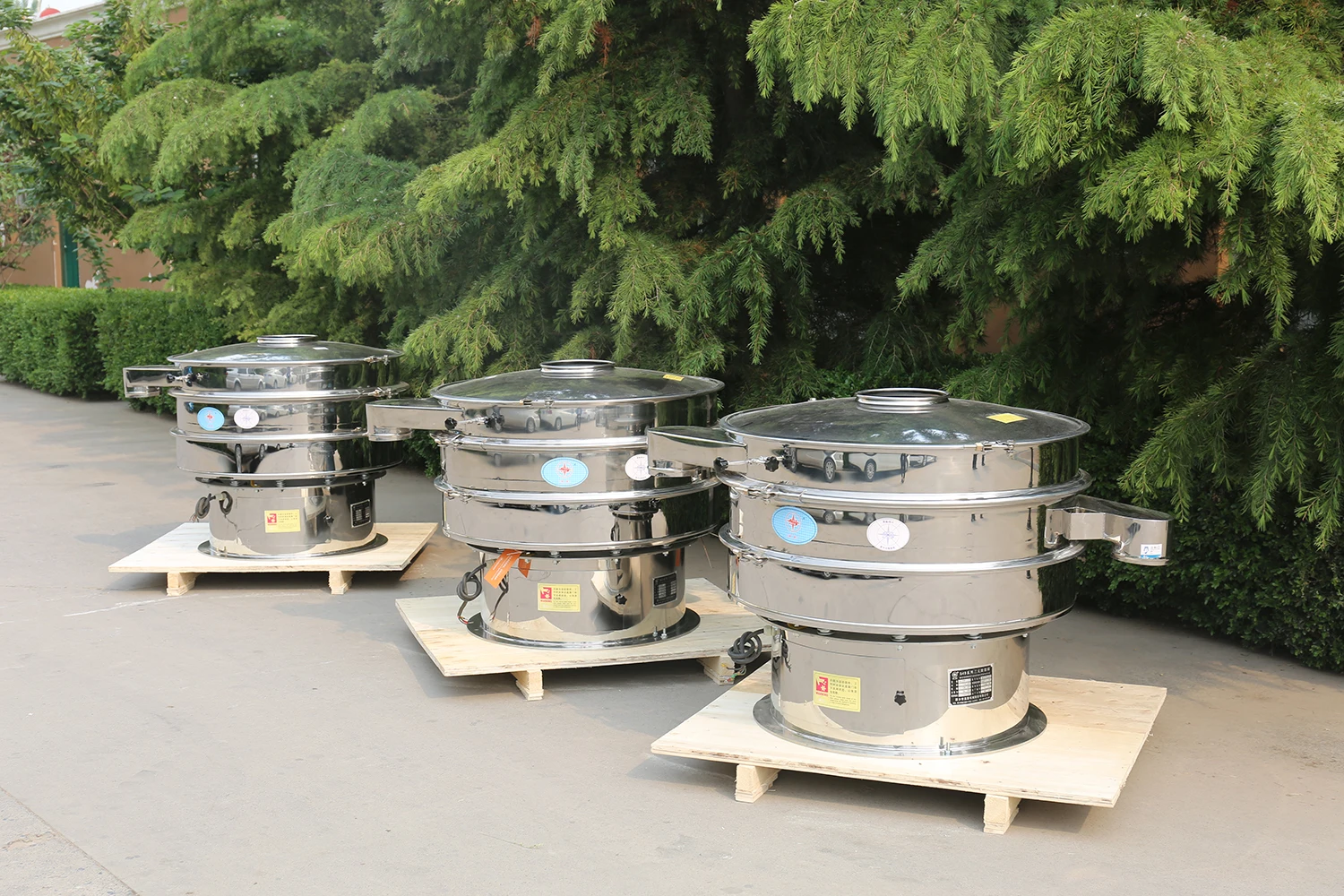

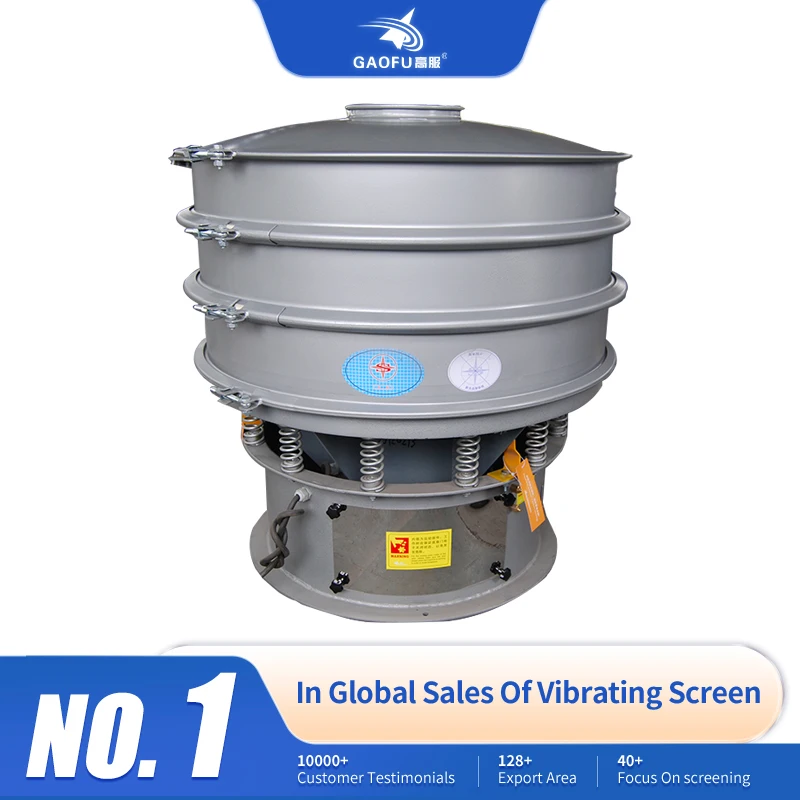

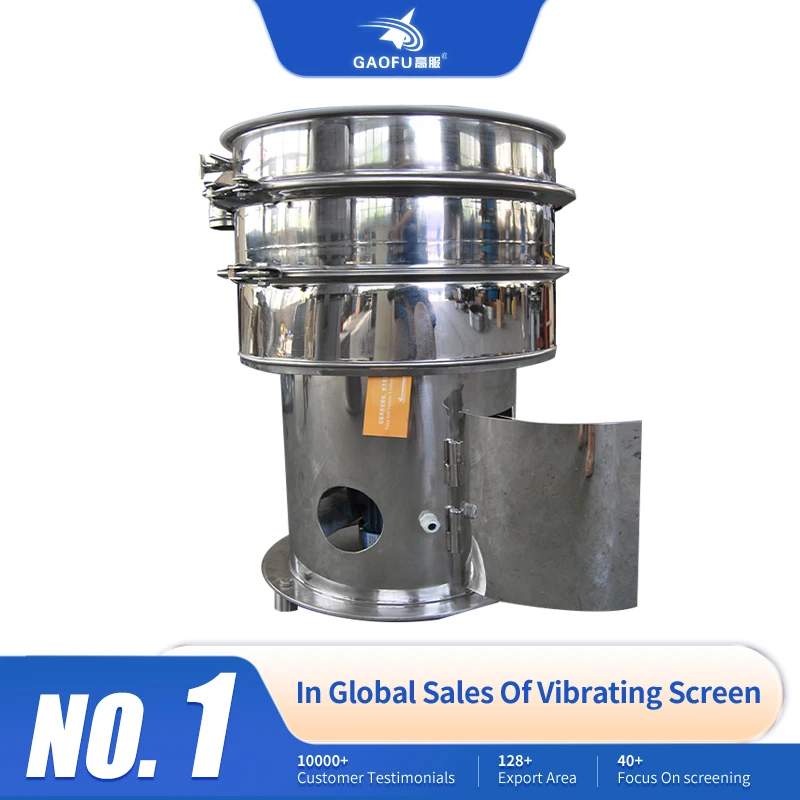

Китайский производитель передвижное вибрационное сито 2 слойное 3 х выходное вращающееся для просеивания катализатора
- Категория: >>>
- Поставщик: Xinxiang Gaofu Machinery Co. Ltd.
Сохранить в закладки 1601281617386:
Описание и отзывы
Характеристики
Product Description
WORKING PRINCIPLE:
Rotary vibrating screen uses a vertical motor as the excitation source, and eccentric weights are installed at the upper and lower ends of the motor. Convert the rotating motion of the motor into horizontal, vertical, and inclined three-dimensional motion, and then transfer this motion to the screen surface. Adjust the angle of the upper and lower ends. The trajectory of the material on the screen surface can be changed.
Rotary vibrating screen uses a vertical motor as the excitation source, and eccentric weights are installed at the upper and lower ends of the motor. Convert the rotating motion of the motor into horizontal, vertical, and inclined three-dimensional motion, and then transfer this motion to the screen surface. Adjust the angle of the upper and lower ends. The trajectory of the material on the screen surface can be changed.
Model | Effective diameter (mm) | Effective sieving area (m2) | Screen mesh | Layer | Powder (kw) | ||
Vibration motor | Common motor | ||||||
S49-400 | Φ340 | 0.0907 | 2-500 | 1-5 | 0.18 | -- | |
S49-600 | Φ540 | 0.2289 | 0.25 | 0.75 | |||
S49-800 | Φ730 | 0.4183 | 0.55 | 1.1 | |||
S49-1000 | Φ900 | 0.6359 | 1.1 | 1.5 | |||
S49-1200 | Φ1100 | 0.9490 | 1.1 | 1.5 | |||
S49-1500 | Φ1400 | 1.5386 | 1.5 | 2.2 | |||
S49-1800 | Φ1700 | 2.2687 | 4 | 3.0 | |||
S49-2000 | Φ1886 | 2.7922 | 4 | 3.0 | |||
Note:
Due to the wide range of our products, we cannot list all product pictures and corresponding product parameters. If you have other needs, please communicate with me. We can provide supplementary information and technical support.
CONTACT US
Due to the wide range of our products, we cannot list all product pictures and corresponding product parameters. If you have other needs, please communicate with me. We can provide supplementary information and technical support.
CONTACT US
Customer feedback
1 GRADING
One to five layers of screens can be installed, and two to six levels of sorting can be performed at the same time.
2 REMOVE IMPURITIES
Impurities and coarse materials are automatically discharged.
One to five layers of screens can be installed, and two to six levels of sorting can be performed at the same time.
2 REMOVE IMPURITIES
Impurities and coarse materials are automatically discharged.
3 FILTER
Particles, powders, and slurries are filtered to 500 mesh or
0.02mm.
Particles, powders, and slurries are filtered to 500 mesh or
0.02mm.
Applicable industries：
1. Chemical industry
Resin, paint, industrial medicine, cosmetics, etc.2. Food industry
Powdered sugar, starch, salt, rice flour, milk powder, soy milk, egg powder, soy sauce, fruit juice, etc.
Powdered sugar, starch, salt, rice flour, milk powder, soy milk, egg powder, soy sauce, fruit juice, etc.
3. Metallurgy & mining
Aluminum powder, lead powder, copper powder, ore,alloy powder, Electrode powder, electromagnetic materials, grinding powder, refractory materials, kaolin, heavy calcium carbonate, quartz sand, etc.
4. Other industries
Waste oil, wastewater, dyeing and finishing wastewater, papermaking, additives, etc.
Aluminum powder, lead powder, copper powder, ore,alloy powder, Electrode powder, electromagnetic materials, grinding powder, refractory materials, kaolin, heavy calcium carbonate, quartz sand, etc.
4. Other industries
Waste oil, wastewater, dyeing and finishing wastewater, papermaking, additives, etc.
Type selection:
1. Selected according to the specific screening needs.
2. Recommended according to industry standards.
3. Recommended according to material characteristics.
4. Recommended according to customer cases and screening experience.
1. Selected according to the specific screening needs.
2. Recommended according to industry standards.
3. Recommended according to material characteristics.
4. Recommended according to customer cases and screening experience.
ODM & OEM
Customization options:
1. Screen material: stainless steel, perforated plate, polyurethane.
2. Screen frame type: bonded grid, letter grid, flange grid, C-type frame.
3. Customized inner coating: Teflon, mirror, sandblasting, brushed.
4. Machine material: Stainless steel 314/306, carbon steel.
5. Machine color: blue, red, yellow, white...
Customization options:
1. Screen material: stainless steel, perforated plate, polyurethane.
2. Screen frame type: bonded grid, letter grid, flange grid, C-type frame.
3. Customized inner coating: Teflon, mirror, sandblasting, brushed.
4. Machine material: Stainless steel 314/306, carbon steel.
5. Machine color: blue, red, yellow, white...
RELATED PRODUCTS
Xinxiang Gaofu Machinery Co., Ltd.
Company Profile
Xinxiang Gaofu Machinery Co., LTD was founded in 1982, the company made shareholding reform in 2015. The company covers an area of 60,000 square meters, and a building area of 46,000 square meters, registered capital of Chinese Yuan 51.46 million and 400 employees.
Xinxiang Gaofu Machinery Co., LTD was founded in 1982, the company made shareholding reform in 2015. The company covers an area of 60,000 square meters, and a building area of 46,000 square meters, registered capital of Chinese Yuan 51.46 million and 400 employees.
In 2017, the company brand “GAOFU ®" is identified as “China well-known trademark" by the Trademark Office of The State Administration For Industry and Commerce. Gaofu company also owns three “Henan Province Famous Trademark", is a provincial “High Technology Expertise”, “Henan Technical Small and Medium Enterprises”, “Enterprise of Observing Contract and Value Credit”. The company has science and technology achievement award issued by the Ministry of Industry and Information Technology of The Republic of China, and hundreds of various patents.
1 INTELLIGENT MANUFACTURING :
Vertical and horizontal integration is based on the information management system to realizes the interconnection and interoperability of CNC automation of manufacturing systems such as manufacturing, products, workshops, and warehouses.
High-end intelligent equipment based on computer numerical control machine tools, robots, etc. for production and testing.
Pay attention to the improvement of safety production capacity, the improvement of production equipment capacity, and strictly control every link of quality management.
2 INTELLIGENT FACTORY :Vertical and horizontal integration is based on the information management system to realizes the interconnection and interoperability of CNC automation of manufacturing systems such as manufacturing, products, workshops, and warehouses.
The factory strictly implements the "6S" management model, improves the information construction of the workshop, and improves the production management ability.
FAQ
Xinxiang Gaofu Machinery Co.,Ltd.
Q1: Industry application
A: Our vibrating screen machines are widely used in food, medicine, chemical industry, metallurgy, mining, ceramics, plastics, electromagnetic materials, thermoelectricity, building materials and other industries.
Q2: Guaranteed
A: The whole machine is guaranteed for one year, and the core accessories are guaranteed for three months. After receiving the goods, if you have any quality problems, please contact us in time.
Q3: After-sale service
A: If there is any installation or test machine problem, provide remote online guidance or on-site service.
Q4: Shipping Method and Shipping Time
A: 1. By air port to port: about 7days depends on port.
A: Our vibrating screen machines are widely used in food, medicine, chemical industry, metallurgy, mining, ceramics, plastics, electromagnetic materials, thermoelectricity, building materials and other industries.
Q2: Guaranteed
A: The whole machine is guaranteed for one year, and the core accessories are guaranteed for three months. After receiving the goods, if you have any quality problems, please contact us in time.
Q3: After-sale service
A: If there is any installation or test machine problem, provide remote online guidance or on-site service.
Q4: Shipping Method and Shipping Time
A: 1. By air port to port: about 7days depends on port.
2. By sea port to port: about 20-35 days.
Q5: Where is Xinxiang Gaofu Machinery? Is it possible to visit your factory?
A: Our company is located in Xinxiang City, Henan province, a very famous vibrating screen city in China. The city is near by Zhengzhou Airport, it only take one and half hour from Zhengzhou Airport, welcome to visit our company !
Q5: Where is Xinxiang Gaofu Machinery? Is it possible to visit your factory?
A: Our company is located in Xinxiang City, Henan province, a very famous vibrating screen city in China. The city is near by Zhengzhou Airport, it only take one and half hour from Zhengzhou Airport, welcome to visit our company !
