12v постоянного тока до 220v 230v Инвертор 600W 1000W 1500W 2000W 2500W 3000W 4000W 5000W 6000W солнечный инвертор 12В/24В/48В в переменный ток 110V 220V 230V Off Grid Pure
57 213,86-69 928,05 ₽
Luxpower SNA 6000 DC инвертор переменного тока Вт солнечной панели новый солнечные энергетические системы
- Категория: >>>
- Поставщик: Sunlink (xiamen) New Energy Technology Co. Ltd.Sunlink Ltd.
Сохранить в закладки 1601281637215:
Описание и отзывы
Характеристики

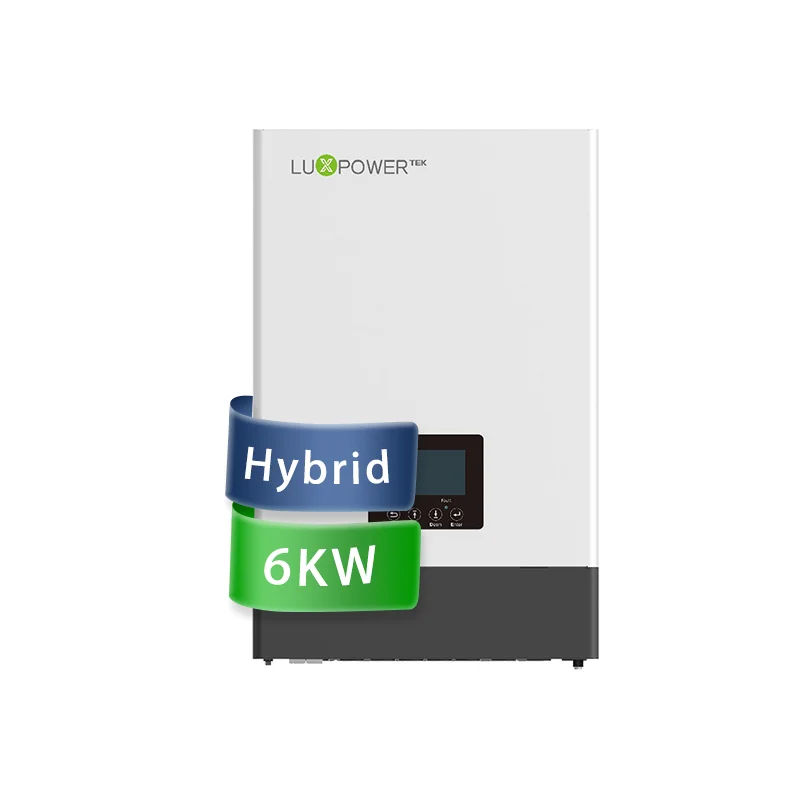

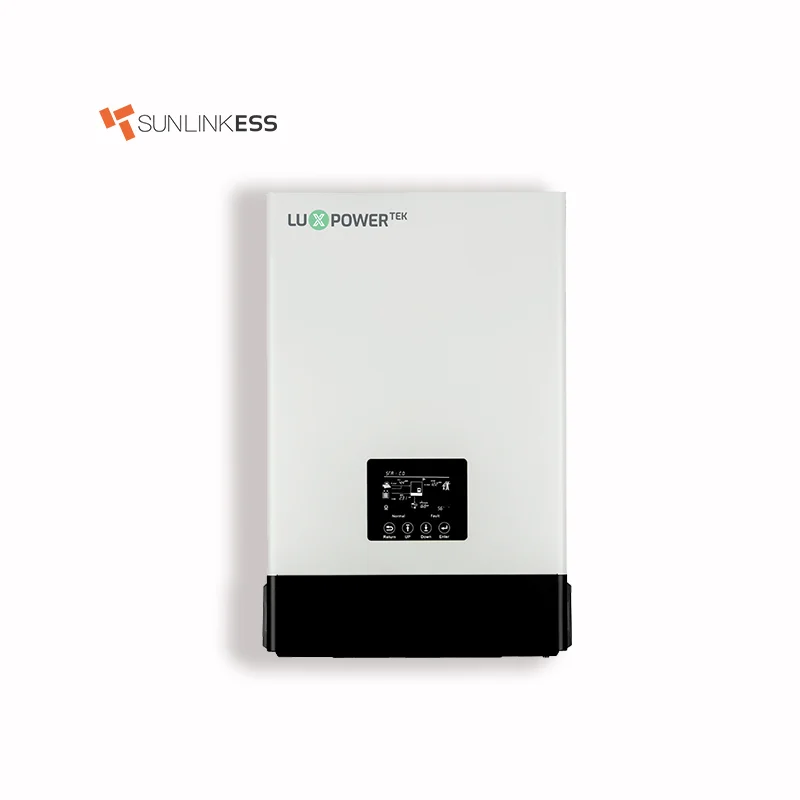

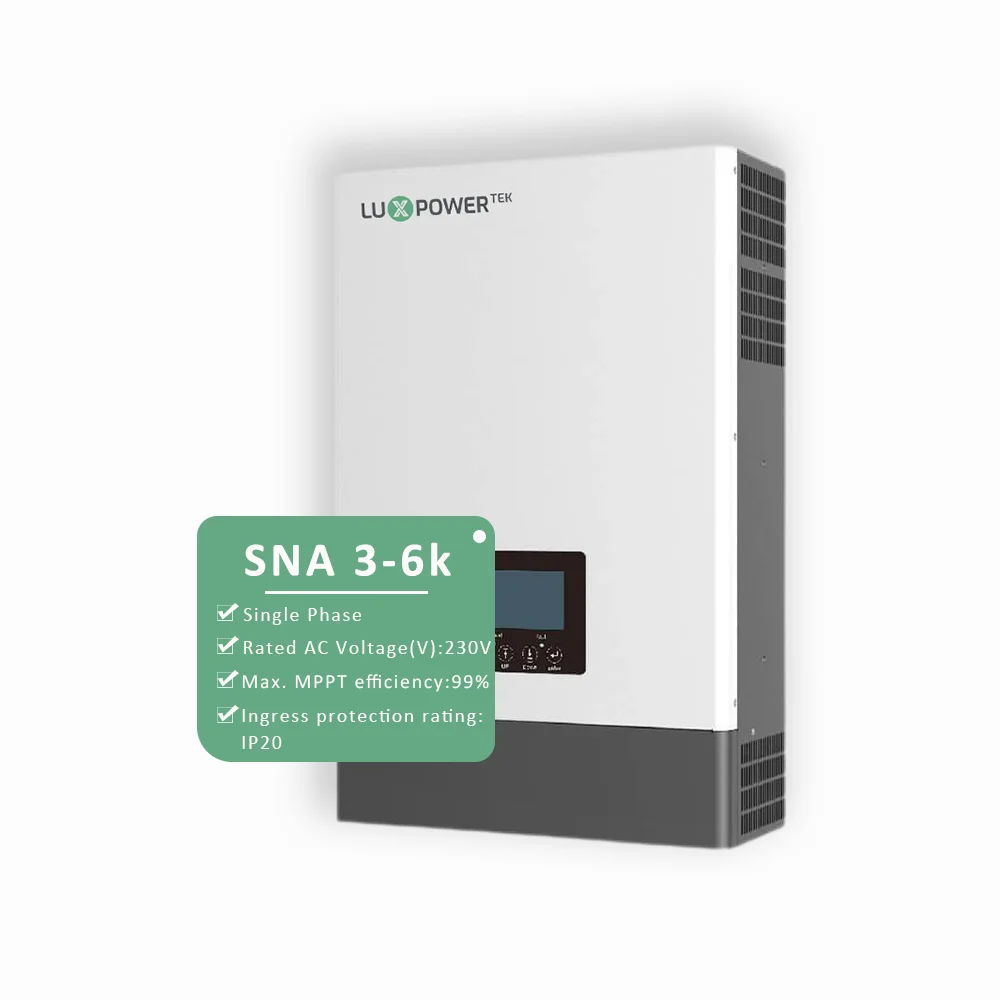

Luxpower SNA 6000 DC AC Power Inverter 6000W Solar Panel Inverter New-Solar Energy Systems
Product Introduction
Luxpower SNA 6000 DC AC Power Inverter 6000W Solar Panel Inverter New-Solar Energy Systems
- Applicable for pure off grid inverter/backup power/self-consumption/ongrid situation.
- Integrated with 2 MPPT solar charge controllers, MPPT ranges 120V~385V.
- Rated power SNA5000WPV/5KW, SNA 6000 WPV/6KW, power factor 1.
- Be able to run with or without battery in ongrid and offgrid mode.
- With separated generator input interface, able to control generator remotely.
- Solar and utility grid can power loads at the same time.
- With integrated advanced parallel function, up to 16pcs max paralleling.
- Support CAN/RS485 for Li-ion battery BMS communication.
- WIFI/GPRS remote monitoring , setting and firmware update, support website, free IOS/Android APP.
Monitor Your Solar System On-the-Go
Keep tabs on your solar system wherever you are with our Monitoring App. Stay informed about energy usage, system performance, and make adjustments effortlessly, all from the convenience of your smart phone.
Product Paramenters
INPUT (PV DC) | SNA 3000W | SNA 4000W | SNA 5000W | SNA 6000W | ||||
Max. PV array power(W) | 6000 (3000/3000) | 8000 (4000/4000) | 8000 (4000/4000) | 8000 (4000/4000) | ||||
Rated PV input voltage(V) | 320 | |||||||
Number of independent MPPT inputs | 2 | |||||||
PV input voltage range(V) | 100~480 | |||||||
MPPT voltage range(V) | 120~385 | |||||||
Start-up voltage(V) | 100 | |||||||
Max. PV input current per MPPT(A) | 17/17 | |||||||
Max. PV short-circuit current input per MPPT(A) | 25/25 | |||||||
Battery | ||||||||
Compatible battery type | Lithium-ion/Lead-Acid | |||||||
Rated battery voltage(V) | 48 | |||||||
Battery voltage range(V) | 38.4~60 | |||||||
Max. charging/discharging current(A) | 70 | 90 | 110 | 140 | ||||
Max. discharging/discharging power(W) | 3000 | 4000 | 5000 | 6000 | ||||
Recomand capacity of battery per inverter | >100AH | >200AH | >200AH | >200AH | ||||
Grid | ||||||||
Rated AC voltage(V) | 230 | |||||||
Rated AC frequency(Hz) | 50/60 | |||||||
Rated AC output current(A) | 13.5 | 17.5 | 22 | 26.5 | ||||
Rated AC output power(W) | 3000 | 4000 | 5000 | 6000 | ||||
Max. AC intput current(A) | 26 | 35 | 35 | 39.5 | ||||
Max. AC intput power(W) | 6000 | 8000 | 8000 | 9000 | ||||
UPS | ||||||||
Rated output power(W) | 3000 | 4000 | 5000 | 6000 | ||||
Rated output voltage(V) | 230 | |||||||
Rated output current(A) | 13.5 | 17.5 | 22 | 26.5 | ||||
Rated output frequency(Hz) | 50/60 | |||||||
Surge power, duration | 2Pn, <2S | |||||||
Switching time | <15ms@Single/ <30ms@Parallel | |||||||
Wave form | Sine wave | |||||||
THDV | 3% | |||||||
Efficiency | ||||||||
Max. MPPT efficiency | 0.99 | |||||||
Max. efficiency | 0.93 | |||||||
Max. charging efficiency | 0.93 | |||||||
Max. discharging efficiency | 0.93 | |||||||

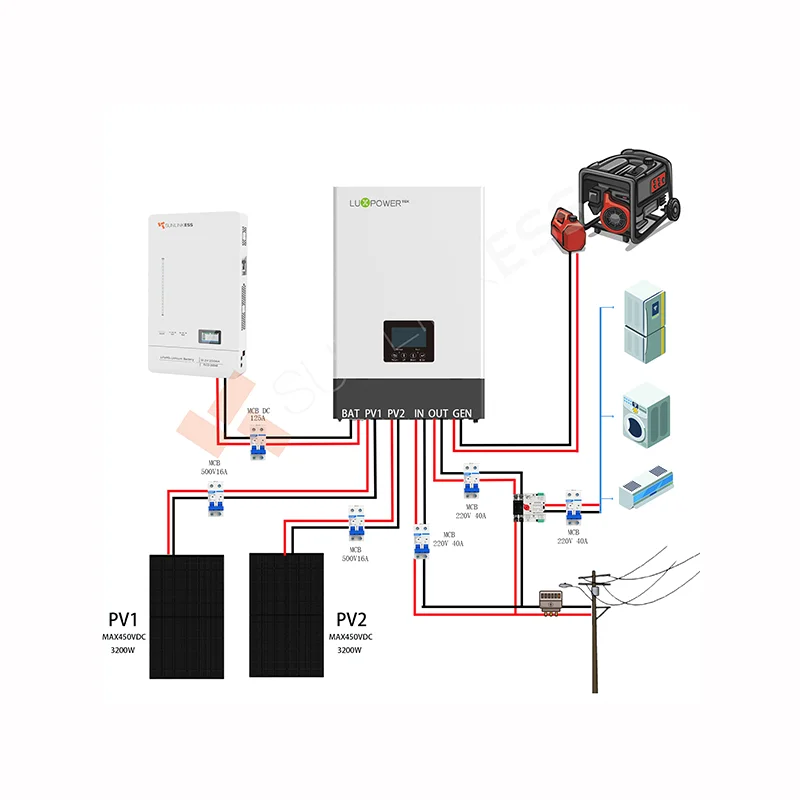

Installation Instructions

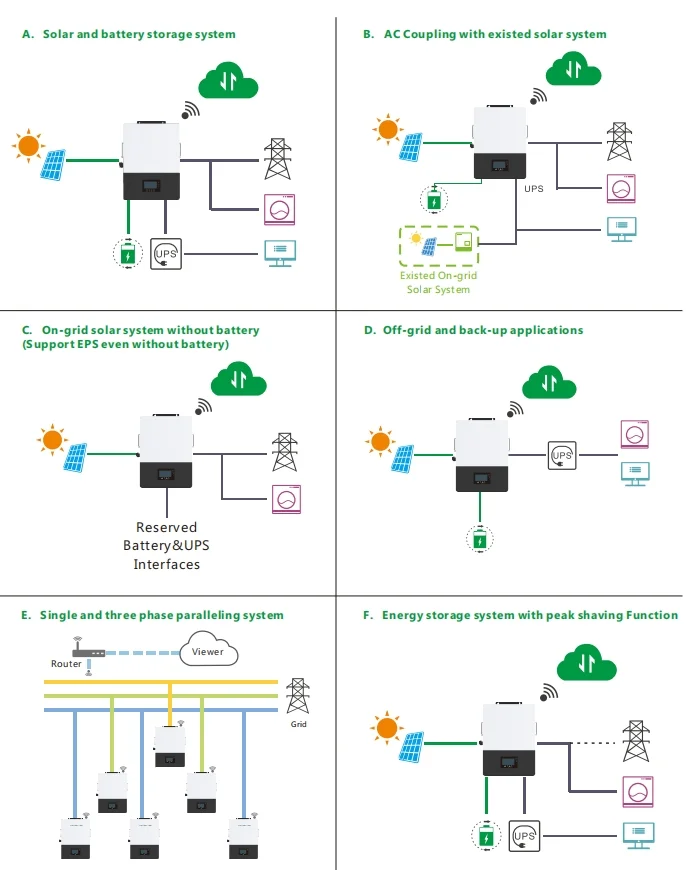

Off Grid Inverter Application
Solutions
Lux power has stepped even futher to bringing power to every home, with or without grid power.
ECO Hybrid SNA 3-5K is now available for homes looking for steady power supply.
Inquire your local distributor, re-organize your power at home. No more blackouts.
Off Grid Inverter Working Modes
SNA5000 serial off grid inverter can support the dc to dc converter system to work as a backup power or a replacement of diesel generator. Since the inverter support paralleling function, the capacity of system can range from 3kW to 80kW. The inverter support DC DC converter working modes.
Pure Off-grid working mode: Working as a traditional off grid inverters, can set output to utility first, battery first or solar first.
Hybrid working mode: Working as a DC DC converter hybrid, support solar and utility jointly take the load, can set to self consumption mode or charge priority mode.
Pure Off-grid working mode: Working as a traditional off grid inverters, can set output to utility first, battery first or solar first.
Hybrid working mode: Working as a DC DC converter hybrid, support solar and utility jointly take the load, can set to self consumption mode or charge priority mode.
Product Packaging
Before installation, please inspect the unit. Be sure that nothing inside the package is damaged.
You should have received the following items in the package:
You should have received the following items in the package:
FAQ
1. What is your MOQ (Minimum Order Quantity)?
Sample order for testing is acceptable. You can choose to place just one piece for testing.
2. What is the warranty term of your product?
Our standard warranty term is 5 years.
Besides, warranty is extending available according to customers' requirements.
3. What about the lead time of bulk order?
It depends on the order quantity. Normally, the lead time is around 30 days.
4. What is the payment term of the order?
T/T 30% as deposit, T/T 70% before shipment, other payment terms can be discussed according to the order quantity.
Sample order for testing is acceptable. You can choose to place just one piece for testing.
2. What is the warranty term of your product?
Our standard warranty term is 5 years.
Besides, warranty is extending available according to customers' requirements.
3. What about the lead time of bulk order?
It depends on the order quantity. Normally, the lead time is around 30 days.
4. What is the payment term of the order?
T/T 30% as deposit, T/T 70% before shipment, other payment terms can be discussed according to the order quantity.
