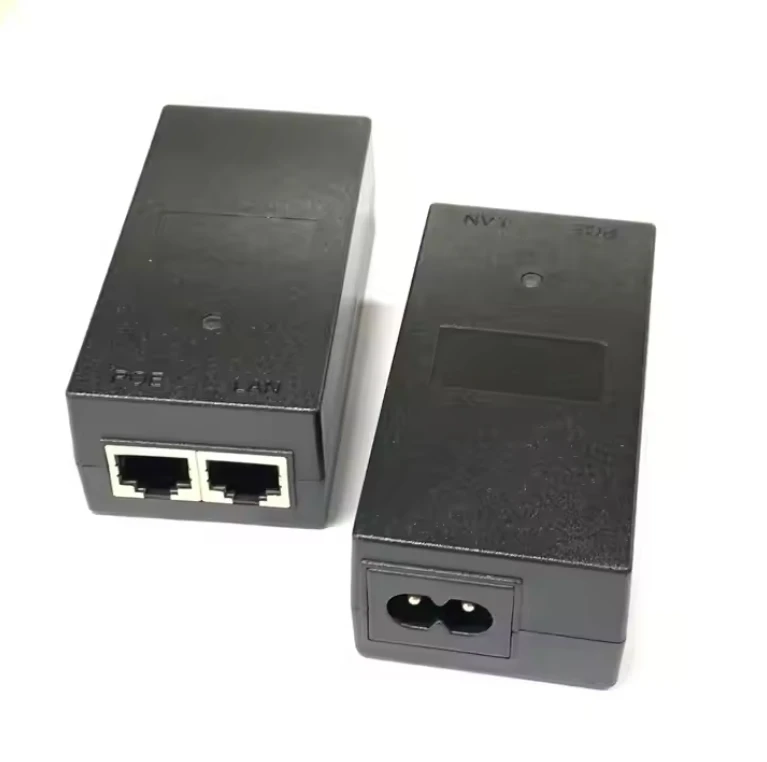

15 Вт Пассивный PoE инжектор 15VDC 1A DC/DC адаптер 1000 Мбит/с гигабитный коммутатор Ethernet Voip телефон CCTV камера источник питания
- Категория: >>>
- Поставщик: Foshan Shunde Great Power Supply Co. Ltd.
Сохранить в закладки 1601281745837:
Описание и отзывы
Характеристики
Product Description
Model Number | GRT-POE20-150100A-DC |
Input Voltage | 41-57Vdc |
Input Current | 1.5A max. |

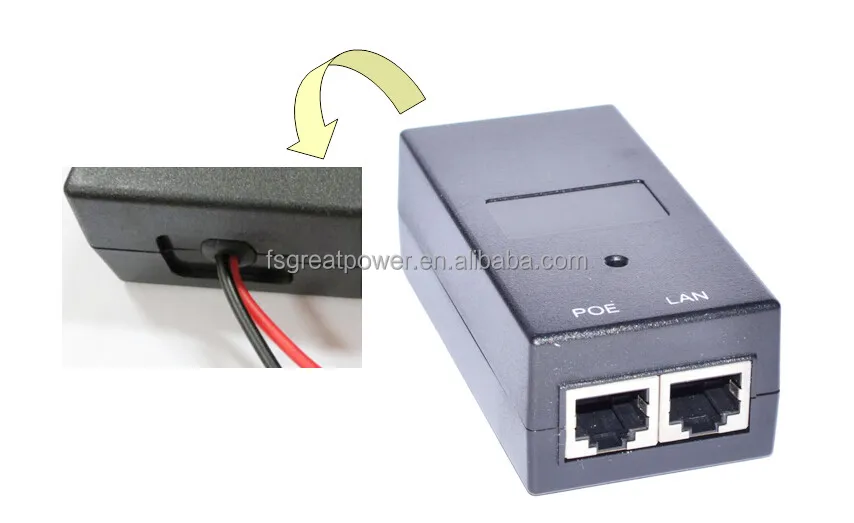

Input Inlet | 2* power wires |
Output Voltage / Power | 15VDC 1A 15W |

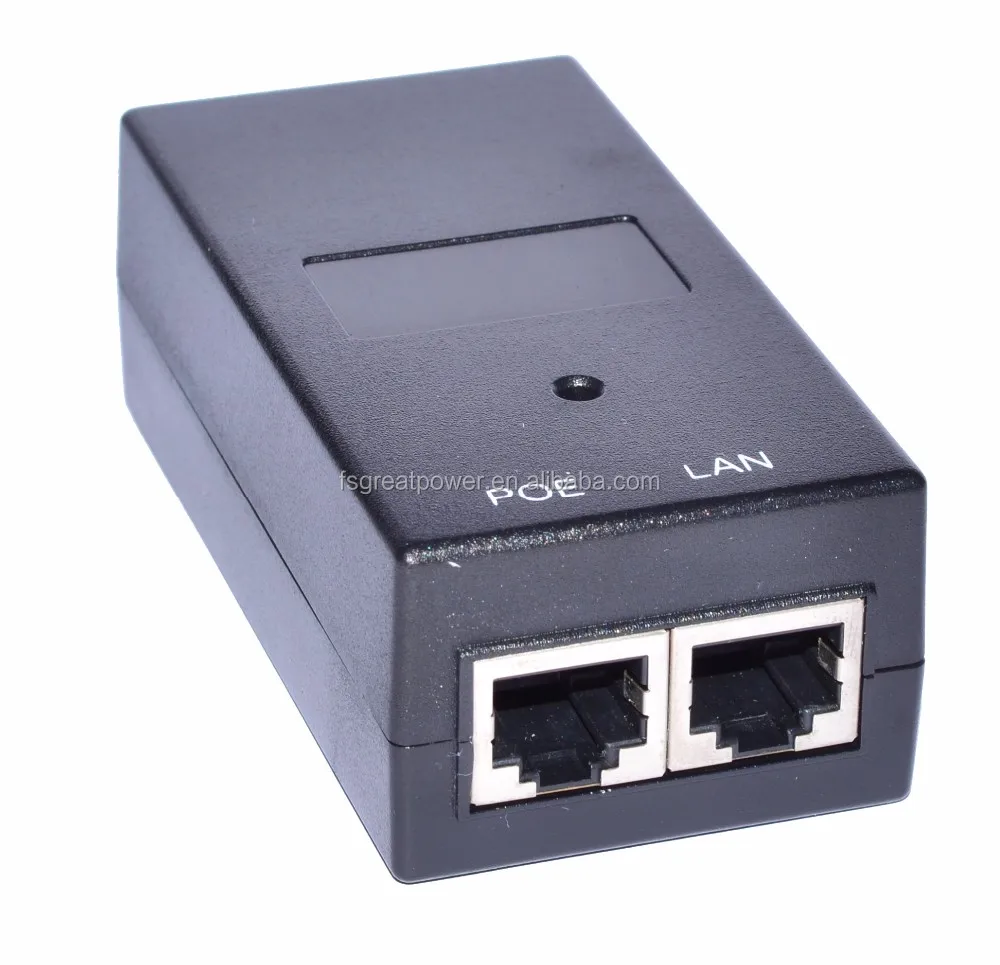

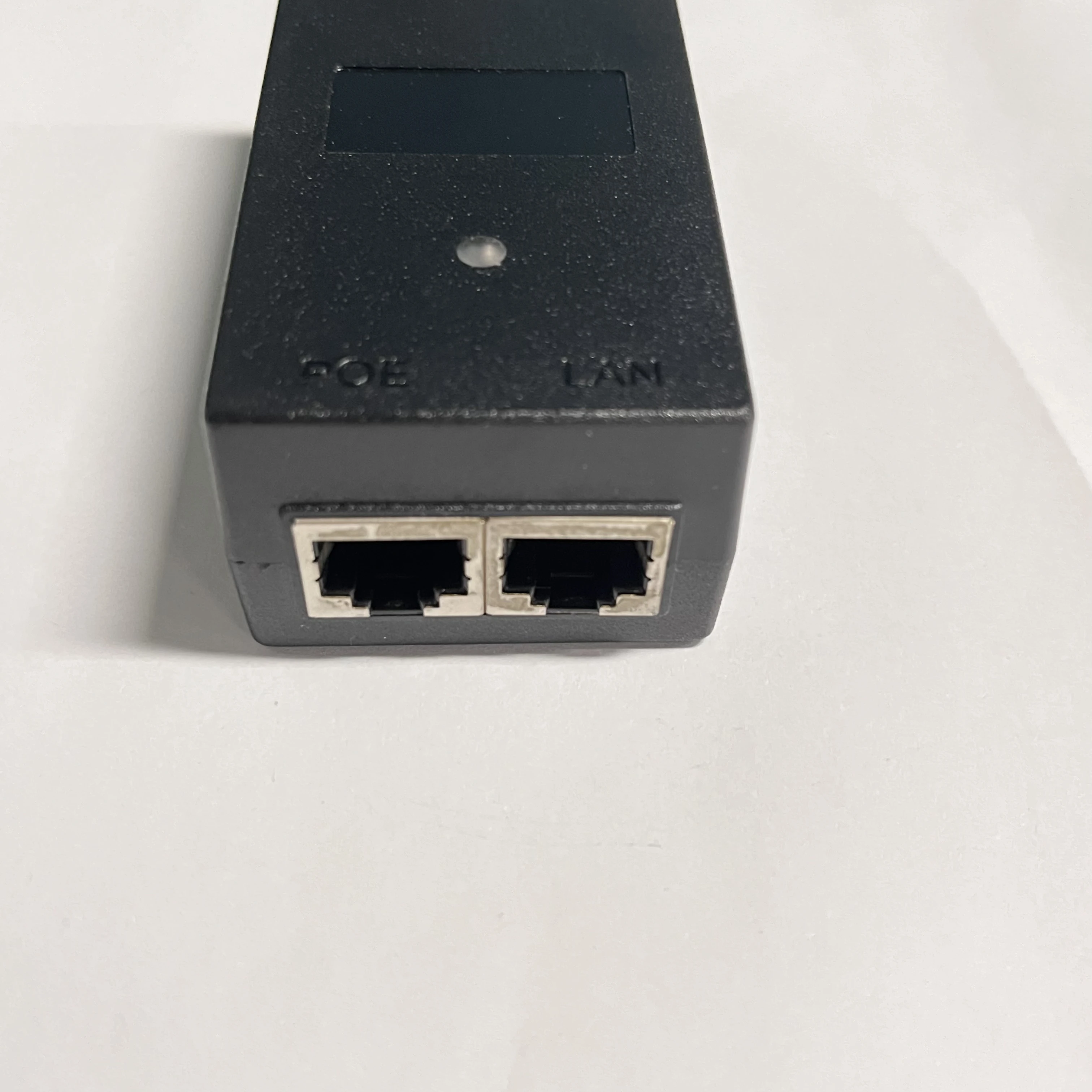

Output type | Single outputa 1*RJ45 connector ---POE 1*RJ45 connector ----LAN |
Ethernet speed Pin assignment | 10/100Mbps Mega Ethernet Midspan or Endspan |
Network Protocol (IEEE802.3) | Non-compliance |
Material | Plastic |
Approval | CE/ROHS/FC |
Warranty | 3 year |
Output Ripple | 1% Max |
Efficiency | ≥84%, Meets Level 6 |
Response Time | <1ns |
Combined Load Regualtion | ±3% |
Combined Line Regualtion | ±5% |
LED indicator | Power on, Green (With Plastic enclosure) |
Operating Temp | 0 to 40℃ (32 to 104℉) |
Storage Temp | (-)20 to 85 ℃ ( -22 to 158 ℉) |
Operating Humidity | 10~ 90% Non condensing |
Shipment | By Sea or By Air Express: DHL/UPS/TNT/FEDEX ect |
Package | Inner white box + Outer box |
Carton Size: | 460*390*200mm (L*W*H) |
Qty/ Carton | 50-100pcs |
Product performance description
* Support long distance for data, upto 100meters
* Data and Power passed by the ethernet cable
* Full protection:Overload/Over current/ Over voltage/ Short circuit
* Application: IP Phone, Voip Phone, Wireless Networks Access Points, IP print servers, Blue tooth access points , Security
Cameras, smart door systerm and more
* Data and Power passed by the ethernet cable
* Full protection:Overload/Over current/ Over voltage/ Short circuit
* Application: IP Phone, Voip Phone, Wireless Networks Access Points, IP print servers, Blue tooth access points , Security
Cameras, smart door systerm and more
Packing&Shipping
*.Standard Package: PE bag+ Inner box + Outer carton;the The buyer shall pay for the extra cost if caused by the special
requirements
*. Shipment: By air, By Sea, By train, By Express and more
requirements
*. Shipment: By air, By Sea, By train, By Express and more
Company Introduction
* GRT established in 2007, is the manufacturer who specialized in research and development, production, sales, service as one. GRTis located in Shunde(the Kingdom of Home-Appliance), owns several Senior professional engineers, to research, develop and design kinds of power supplies and provide various customized solutions.
*.All items is with 2% output accuracy and compliance with international standard.
*.Owns license of Importing and Exporting and Pass kinds of international approvals like as UL, GS,TUV,CCC,CE, FCC,ROHS,ERP,PSE,CB,SAA ect, suitable for the global markets.
*.Owns license of Importing and Exporting and Pass kinds of international approvals like as UL, GS,TUV,CCC,CE, FCC,ROHS,ERP,PSE,CB,SAA ect, suitable for the global markets.
*.Owns ISO9001:2015 and kinds of advanced machines for production and testing.
*.Two Green workshops, owns 9pcs production lines, monthly output upto 880K
*.Two Green workshops, owns 9pcs production lines, monthly output upto 880K
Our Services & Strength
*. Offer OEM service, accept print your own logo and special requirements for package and others
*. Experienced Technical team, to provide kinds of solutions
*. Provided authorized certifications
*. 100% Full Burn-In Testing, strictly inspect and control during production
*. Experienced Technical team, to provide kinds of solutions
*. Provided authorized certifications
*. 100% Full Burn-In Testing, strictly inspect and control during production
FAQ
1:.MOQ 1Kas the the first order, 500nos is acceptable, but the following will be 1K
2.Sample term
*Common sample:2pcs are free offered, the buyer shall pay for the shipping cost and Tax; Leadtime within
*. Special Sample: the buyer shall pay for the sample cost, shipping cost, Tax, R&D cost (if caused)
Leadtime will be confirmed when the project starting
3. Mass production
20-35 working days, from the day got the confirmed order and payment
4. Shipment
By Sea, By Air, By Train, By Express ect
5.Payment: T/T in advance, L/C
2.Sample term
*Common sample:2pcs are free offered, the buyer shall pay for the shipping cost and Tax; Leadtime within
*. Special Sample: the buyer shall pay for the sample cost, shipping cost, Tax, R&D cost (if caused)
Leadtime will be confirmed when the project starting
3. Mass production
20-35 working days, from the day got the confirmed order and payment
4. Shipment
By Sea, By Air, By Train, By Express ect
5.Payment: T/T in advance, L/C
Похожие товары
гигабитный PoE инжектор 24Vdc 0.5A 12W адаптер пассивный сплиттер для камеры CCTV / коммутатор IP-телефон
Промышленный модуль маршрутизатора PoE 100/1000 м проводной сети POE 48 В Стандартный гигабитный коммутатор Ethernet PCB
2 861,83 ₽ - 3 519,72 ₽

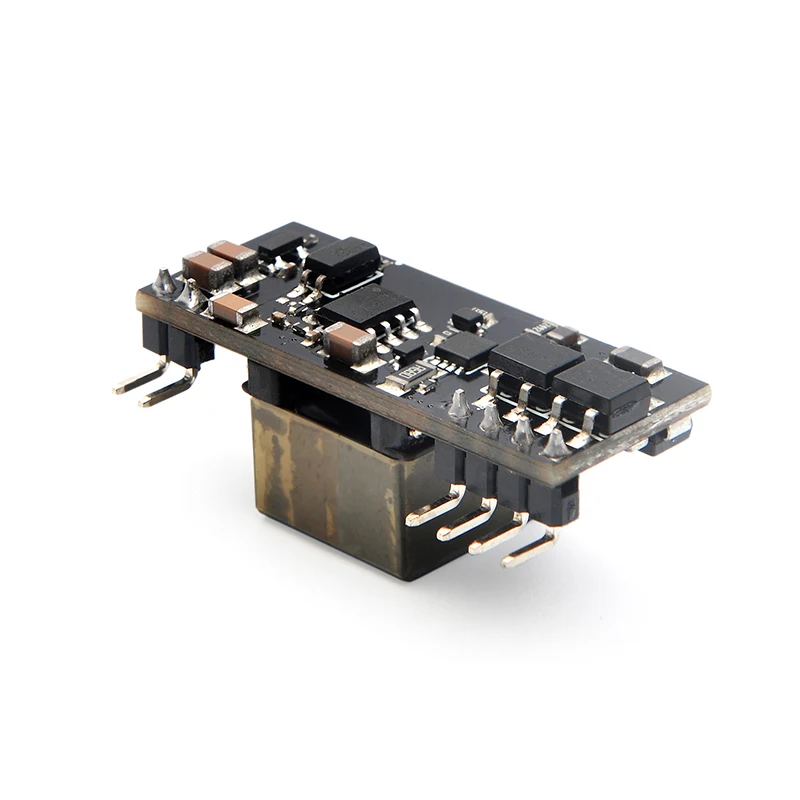

Высококачественный модуль ethernet 1500 В Высоковольтная изоляция 5 2.4A POE плата SDAPO DP1435-5V
