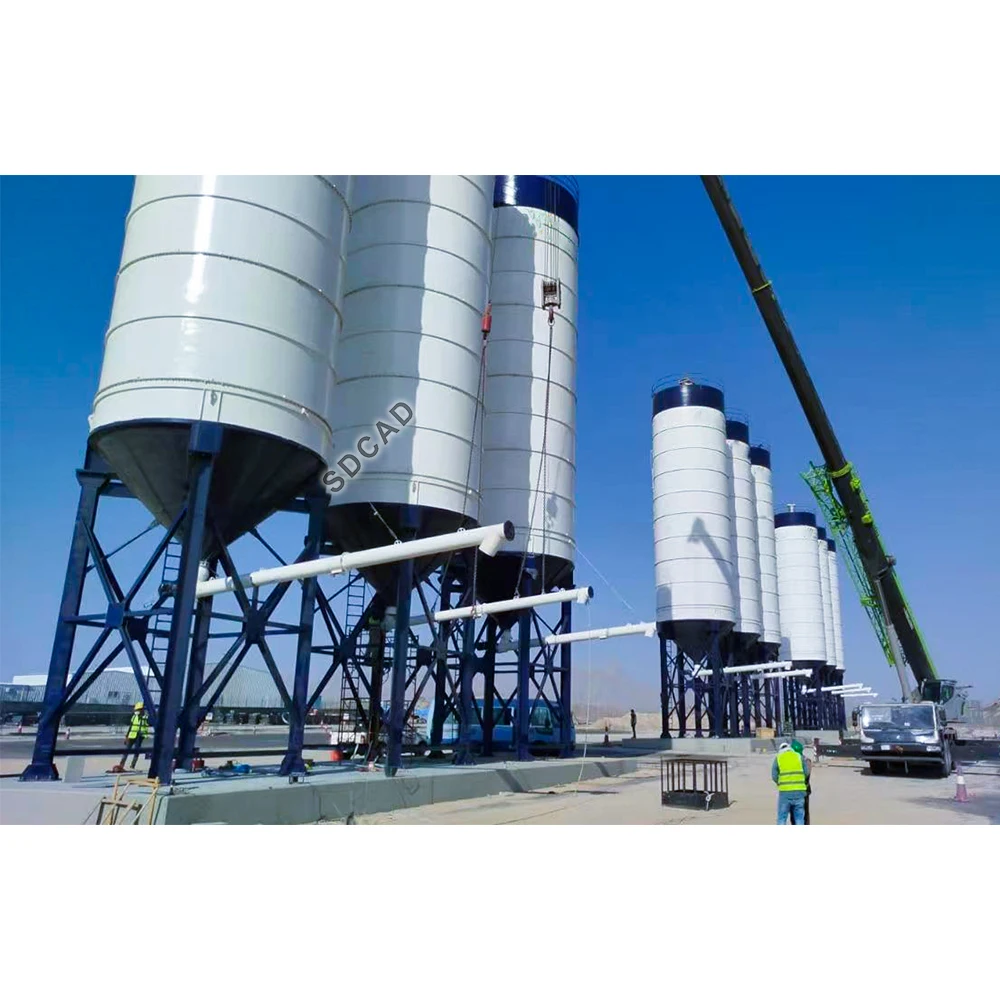

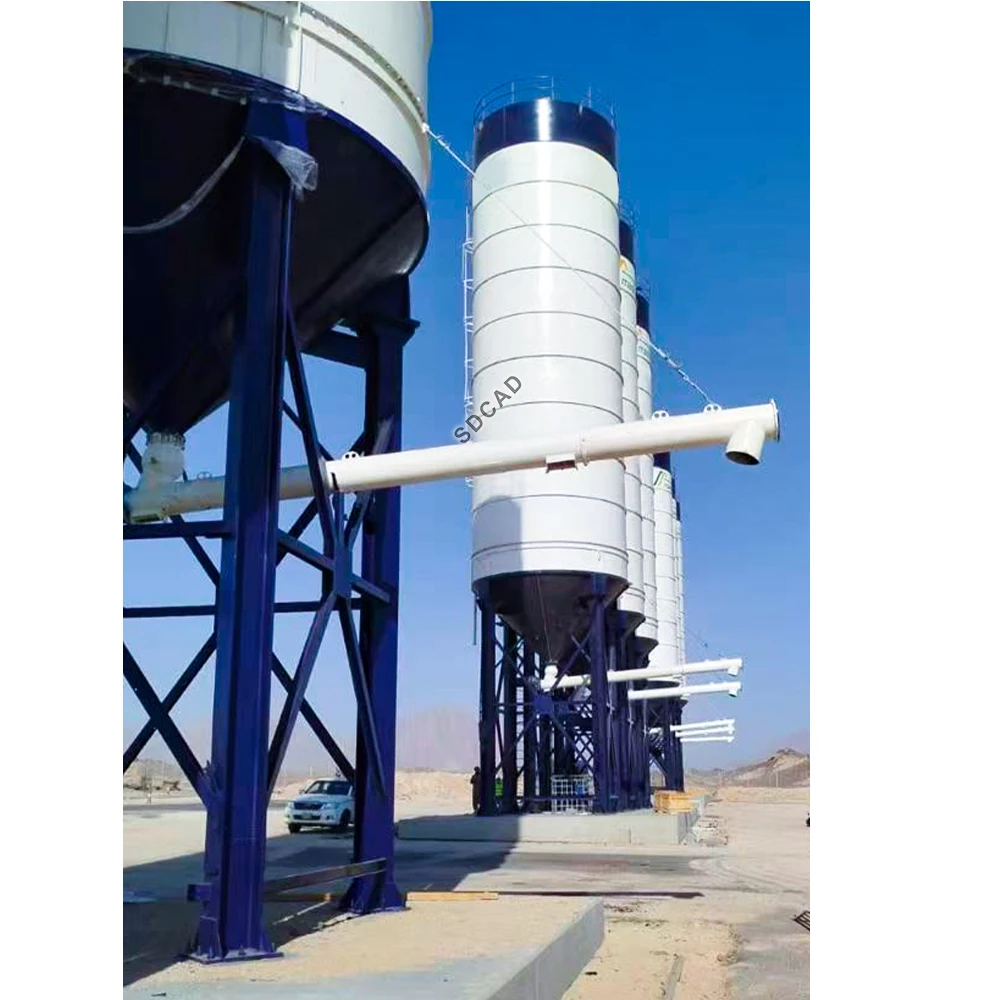

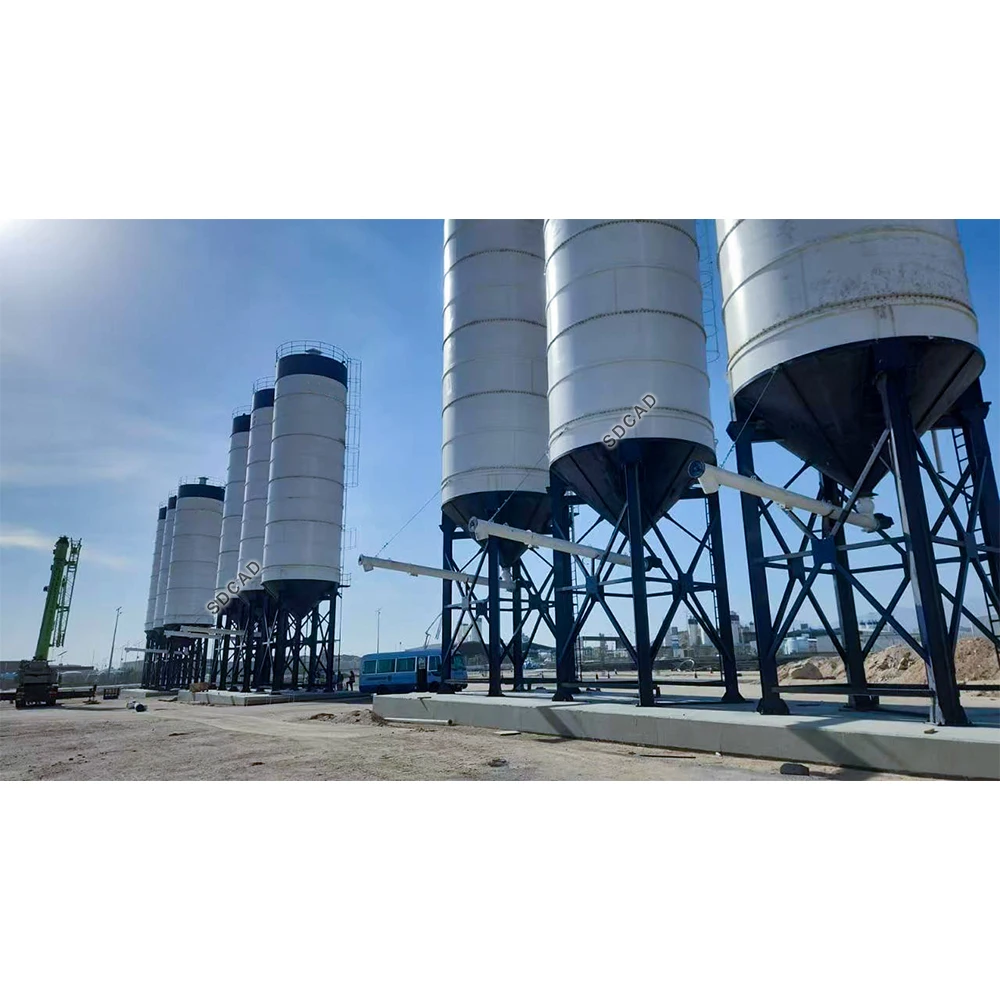

Механические конвейеры могут использоваться для силосной загрузки с больших разгрузочных станций вертикального раствора цементных силосов
- Категория: >>>
- Поставщик: Shandong Cad Industry Machinery Equipment Co. Ltd.Shandong Ltd.
Сохранить в закладки 1601281919754:
Описание и отзывы
Характеристики
Product Overview
Big Bag Discharging and Silo Loading
Silo loading systems connected to big bag discharging stations are used for discharging raw materials from FIBC bags and fill them to storage silos. Silo loading can be done by mechanical conveyors or pneumatic conveying systems.
Silo loading systems connected to big bag discharging stations are used for discharging raw materials from FIBC bags and fill them to storage silos. Silo loading can be done by mechanical conveyors or pneumatic conveying systems.

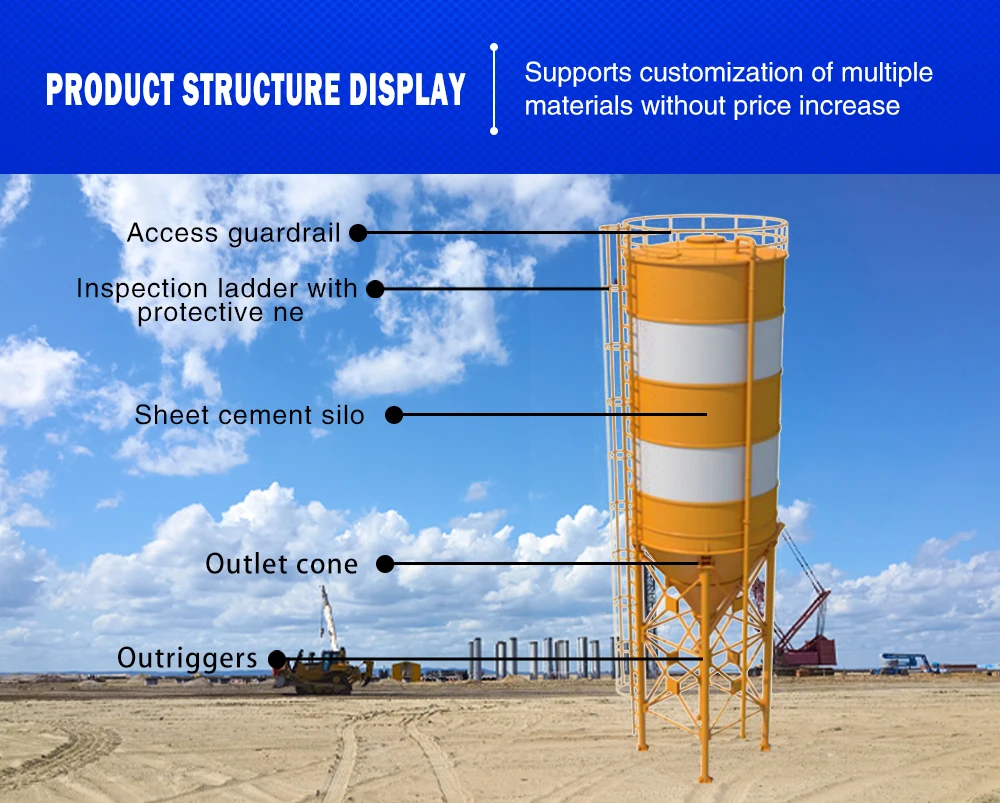

Main Components of Silos

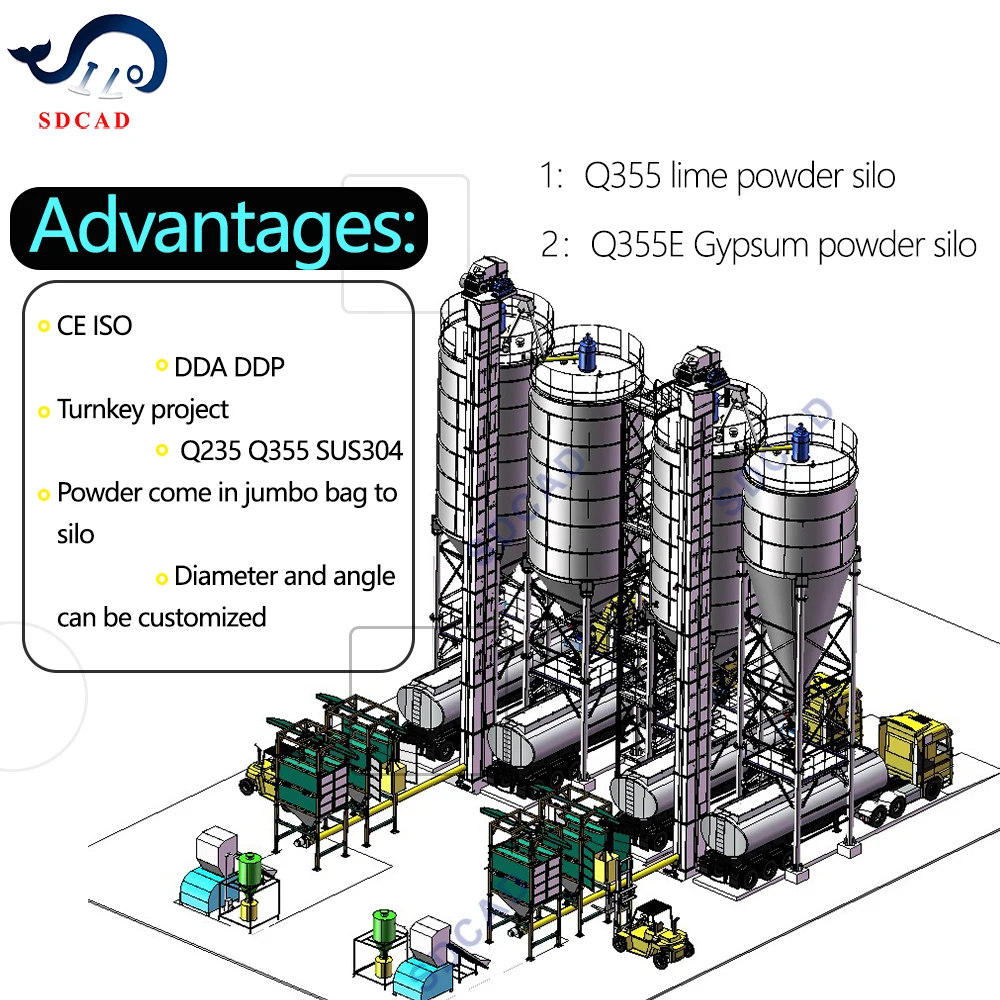

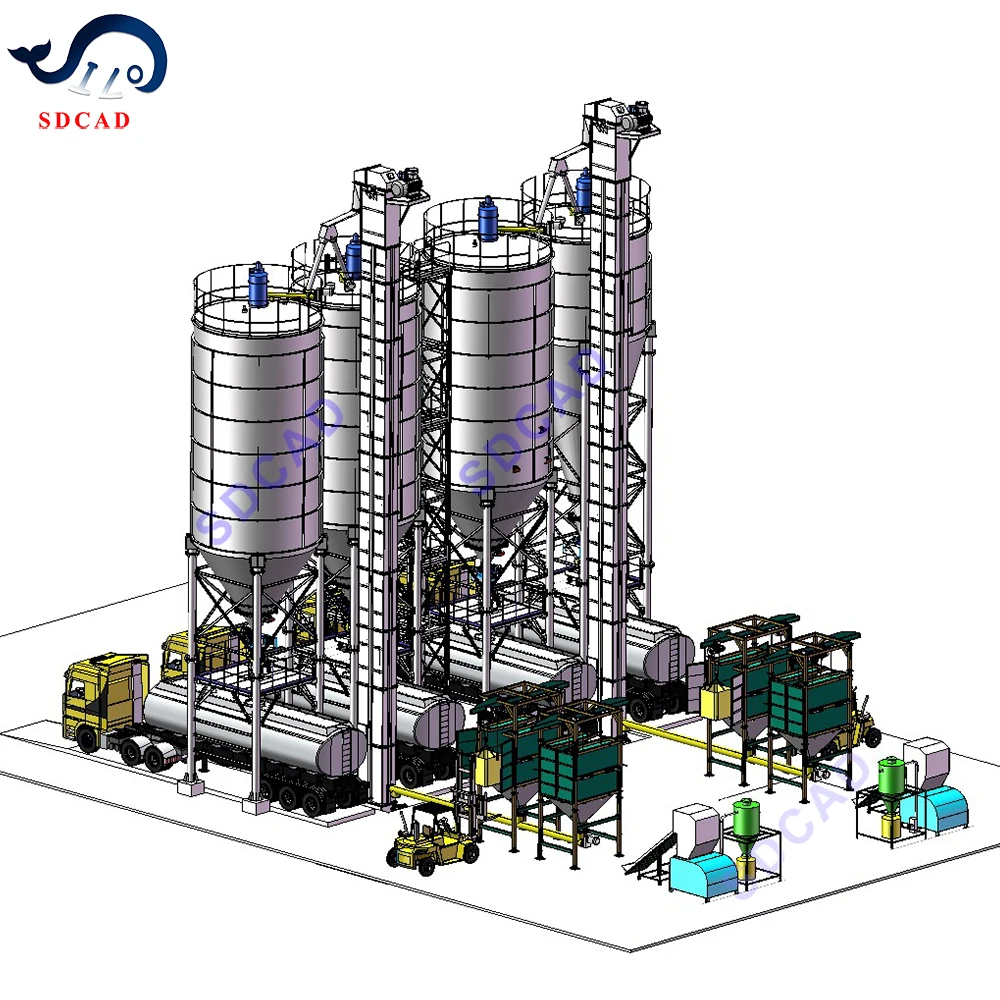

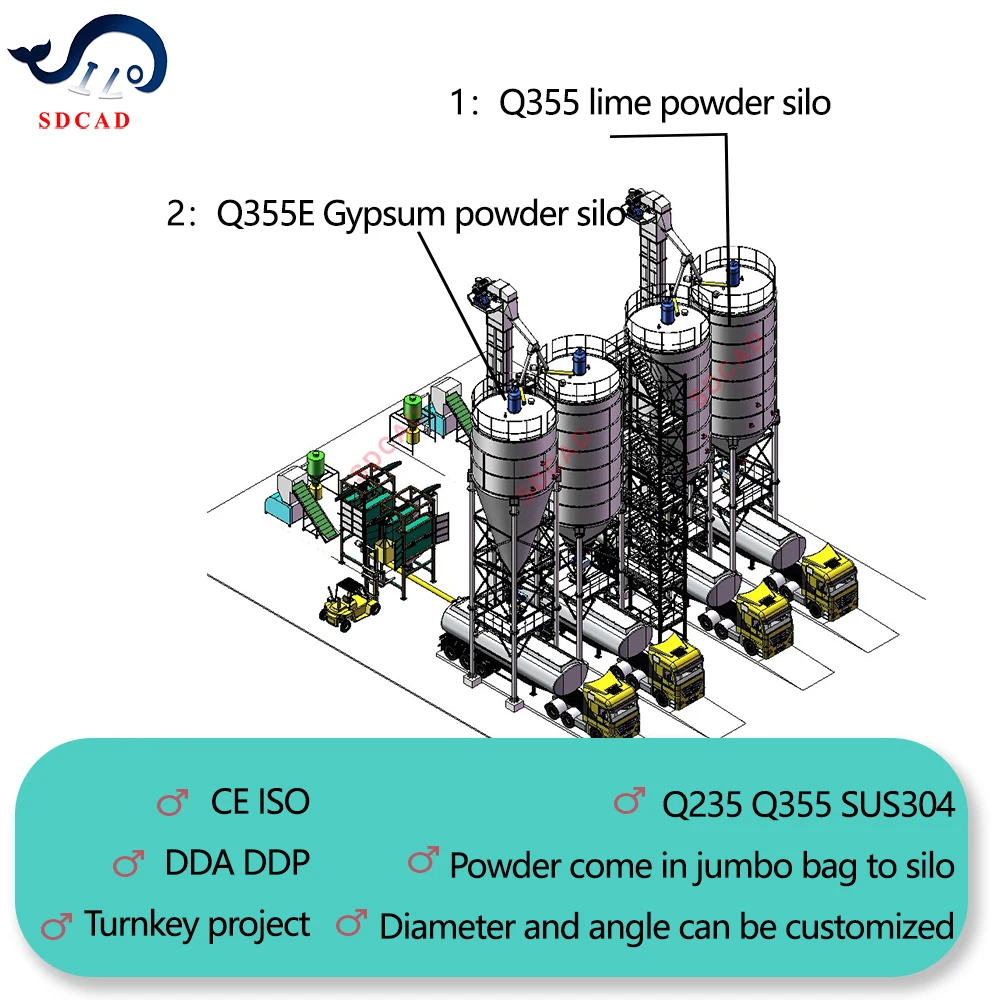

Silo Loading With jumbo bag unpacking machine and pneumatic conveyor system
Material come with jumbo bag
Pneumatic conveying systems installed after bulk bag discharge units transfer the bulk material through conveying pipelines to fill silos. This configuration is useful in applications where high transfer rates and long conveying distances are needed. In production lines where raw materials are stored in warehouses far from storage silos, big bag discharge stations can be installed closed to warehouses and pneumatic conveying systems are used to fill silos from long distances. This design prevents extreme use of forklifts and cranes for bulk material transfer in production site and increases overall efficiency.Pneumatic transfer systems used for silo loading utilize blower pumps or compressors. Motor power, pipeline diameter, equipment selection depends on type of bulk material, transfer distance, silo height and transfer capacity. Level sensors, jet filters and other equipment are installed on storage silos to properly run silo filling system.
Mechanical Conveying Systems For Silo Loading

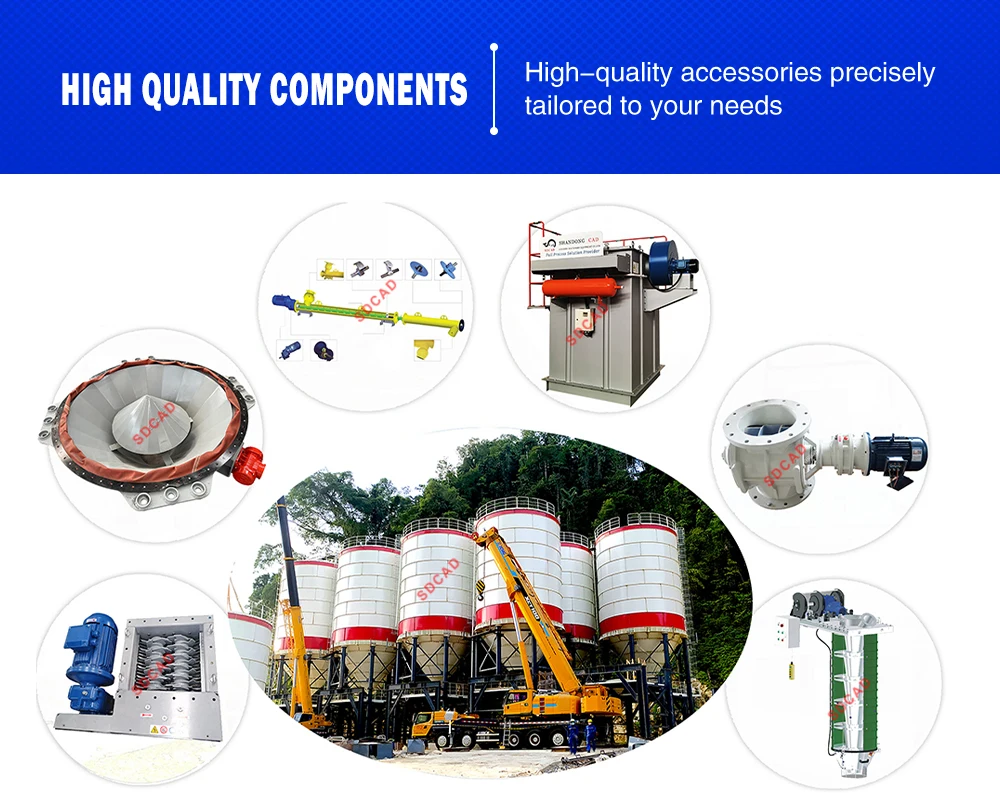

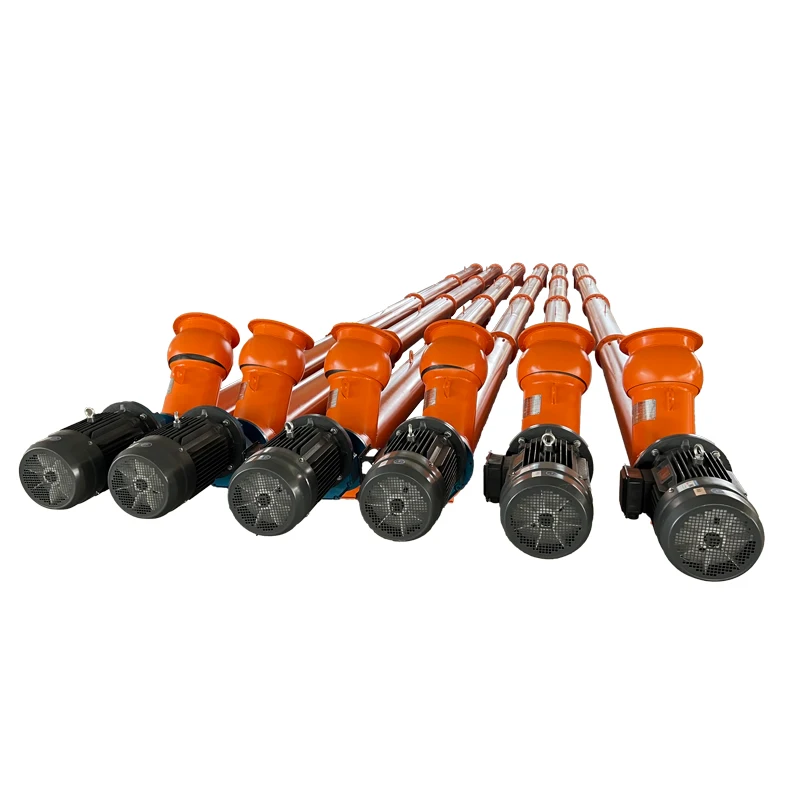

Mechanical conveyors can be used for silo loading from big bag discharge stations. Screw feeders, bucket elevators, rotary valves or chain conveyors are connected to big bag discharge stations to fill silos. Conveying equipment selection directly depends on conveying distance, height, transferred material and capacity. Bucket elevators are preferred for high silos. Screw feeders are preferred for shorter silos and short distances. Big bag discharge system can be installed on top of silo for faster filling. In this case rotary valve or butterfly valve are better choices which provide simple flow control. Dust collection systems may be needed depending on dust content of bulk solid. During silo loading, air content in the silo escapes to the atmosphere and carries some amount of dust together. Having vacuum fan and jet filter, dust collectors prevent any dust emission to the environment. Collected dust is sent back to the silo and product loss is prevented.
Mechanical Conveying Systems For Silo Loading
Mechanical conveyors can be used for silo loading from big bag discharge stations. Screw feeders, bucket elevators, rotary valves or chain conveyors are connected to big bag discharge stations to fill silos. Conveying equipment selection directly depends on conveying distance, height, transferred material and capacity. Bucket elevators are preferred for high silos. Screw feeders are preferred for shorter silos and short distances. Big bag discharge system can be installed on top of silo for faster filling. In this case rotary valve or butterfly valve are better choices which provide simple flow control. Dust collection systems may be needed depending on dust content of bulk solid. During silo loading, air content in the silo escapes to the atmosphere and carries some amount of dust together. Having vacuum fan and jet filter, dust collectors prevent any dust emission to the environment. Collected dust is sent back to the silo and product loss is prevented.

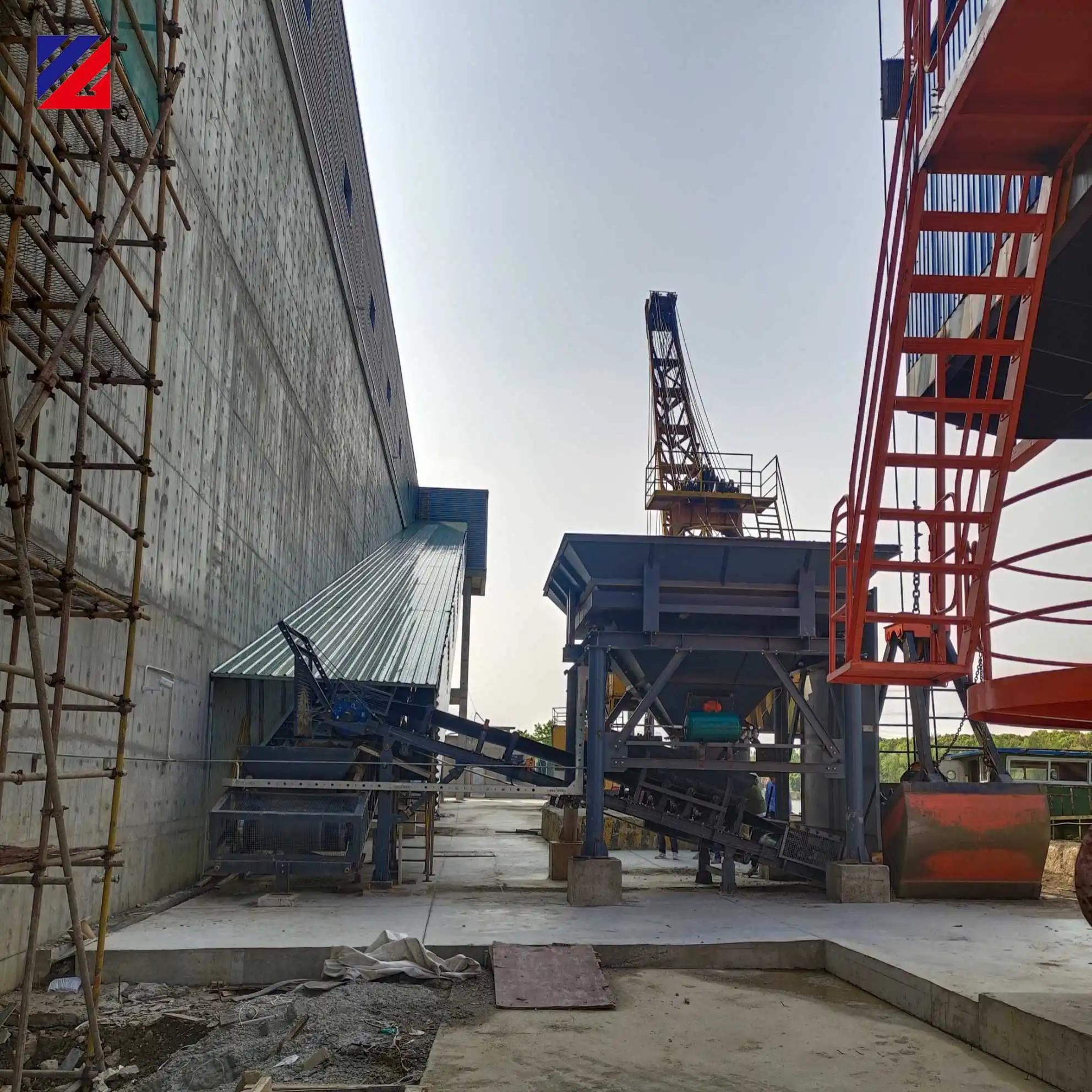

BIG BAG/BAG PNEUMATIC CEMENT FEEDING SYSTEM
Cement material supplied with big bags or bags can be transferred into cement silos by means of SDCAD Big Bag/Bag Pneumatic Cement Feeding System.
SDCAD Big Bag/Bag Pneumatic Cement Feeding System consists of bag unpacking machine ,screw conveyor ,bucket elevator and control panel.
This feeding system, which has a capacity of 15 tons/hour(capacity can be customized ) is equipped with one 2 tons crane to lift the big bags and dispatch into the feeding hopper.
The complete set of SDCAD Big Bag/Bag Pneumatic Cement Feeding System fits into 1 unit 40'0T container and thus it can be easily transported to overseas countries.
SDCAD Big Bag/Bag Pneumatic Cement Feeding System consists of bag unpacking machine ,screw conveyor ,bucket elevator and control panel.
This feeding system, which has a capacity of 15 tons/hour(capacity can be customized ) is equipped with one 2 tons crane to lift the big bags and dispatch into the feeding hopper.
The complete set of SDCAD Big Bag/Bag Pneumatic Cement Feeding System fits into 1 unit 40'0T container and thus it can be easily transported to overseas countries.
Product Specification
Volume | Diameter | Silo body height | Discharge height | Pieces each layer | Weight |
50t | 3160mm | 4260mm | Design Customization | 4 | 4.5T |
100t | 3160mm | 8700mm | Design Customization | 4 | 6T |
150t | 3600mm | 13000mm | Design Customization | 4 | 9T |
200t | 4000mm | 11360mm | Design Customization | 5 | 12T |
200t | 4500mm | 8700mm | Design Customization | 6 | 12T |
300t | 5300mm | 8700mm | Design Customization | 8 | 17T |
500t | 6800mm | 7300mm | Design Customization | 8 | 21T |
600t | 6800mm | 8700mm | Design Customization | 8 | 28T |
800t | 8000mm | 10100mm | Design Customization | 10 | 43T |
1000t- 2000t | 8000mm | 13200mm | Design Customization | 10 | 56T |
