XZ4016 высокое качество сверлильный и фрезерный станок 16 мм Многофункциональный
- Категория: >>>
- Поставщик: Wuxi Mingxu Machinery Equipment Co. Ltd.Wuxi Ltd.
Сохранить в закладки 1601282110383:
Описание и отзывы
Характеристики
XZ4016 FOB To Shanghai Port Price:
XZS4020 FOB To Shanghai Port Price:
Specializing in manufacturing drilling machines for 60 years, there are about 200 drilling machine models with complete quality.The company has the right to run its own export business, and its sales network covers more than 20 provinces, cities and autonomous regions in China, and is exported to many countries in Europe, America, Southeast Asia and other places. "Quality first, customer first" is the company's business purpose, and "manufacturing quality drilling machines to continuously meet customer needs" is the company's eternal goal.
XZS4020 FOB To Shanghai Port Price:
Specializing in manufacturing drilling machines for 60 years, there are about 200 drilling machine models with complete quality.The company has the right to run its own export business, and its sales network covers more than 20 provinces, cities and autonomous regions in China, and is exported to many countries in Europe, America, Southeast Asia and other places. "Quality first, customer first" is the company's business purpose, and "manufacturing quality drilling machines to continuously meet customer needs" is the company's eternal goal.
Products Description
Product Paramenters
Model | XZ4016 | XZS4020 |
Max. Drilling capacity(mm) | 16 | 20 |
Max. Horizontal milling diameter(mm) | 40 | 50 |
Max. Veitical milling Capacity(mm) | 8 | 12 |
Max. tapping capacity(mm) | - | M14/M10 |
Max. horizontal grinding wheel diameter(mm) | - | - |
Max. Spindle travel(mm) | 110 | 110 |
Morse taper of spindle nose(mm) | MT.2 | MT.2 |
Spindle speeds(r/min) | 300-400-550-800- 1200-1800-2450-3150 | 300-400-550-800- 1200-1800-2450-3150 |
Distance from spindle axis to column surface(mm) | 198 | 198 |
Size of worktable(mm) | 450×160 | 550×200 |
Max. Spindle travel(mm) | 380×140 | 360×160 |
Distance from spindle nose to worktable(mm) | 150-320 | 200-375 |
Motor(kw) | 0.55(6 poles) | 0.55(6 poles) |
G.W/N.W(kg) | 170/140 | 238/218 |
Ship measurement（cm） | 90*73*91.5 | 100*78*103.5 |
ZXMST7032(Z)/ZXMST7040(Z)
Model | ||||||
Max. Drilling capacity(mm) | 25 | 31.5 | 40 | |||
Max. Horizontal milling diameter(mm) | 63 | 80 | 100 | |||
Max. Veitical milling Capacity(mm) | 13 | 18 | 20 | |||
Max. tapping capacity(mm) | M16/M12 | M18/M14 | M20/M16 | |||
Max. horizontal grinding wheel diameter(mm) | - | 100 | 150 | |||
Max. Spindle travel(mm) | 110 | 110 | 110 | |||
Morse taper of spindle nose(mm) | MT.3 | MT.3 | MT.4 | |||
Spindle speeds(r/min) | 300-400-550-800-1200-1800-2450-3150 | 216-340-494-550-712-770-1100-1680-2730 | 216-340-494-550-712-770-1100-1680-2730 | |||
Distance from spindle axis to column surface(mm) | 192.5 | 235 | 235 | |||
Size of worktable(mm) | 500*200 | 730*210 | 730*210 | |||
Max. Spindle travel(mm) | 360*160 | 480*230（410*230） | 480*230（410*230） | |||
Distance from spindle nose to worktable(mm) | 290-465 | 218-568 | 218-568 | |||
Motor(kw) | 0.75(6 poles） | 1.1 | 1.5 | |||
G.W/N.W(kg) | 245/225 | 420/350 | 440/370 | |||
Ship measurement（cm） | 78*100*103.5 | 100*78*103.5 | 98*106*121.5 | |||
Z-Automatic feeding of worktable | ||||||
Model | ||||
Max. Drilling capacity(mm) | 40/28 | 45/28 | ||
Max. Horizontal milling diameter(mm) | 80 | 80 | ||
Max. Veitical milling Capacity(mm) | 28 | 28 | ||
Max. tapping capacity(mm) | M24/M20 | M24/M20 | ||
Max. horizontal grinding wheel diameter(mm) | - | - | ||
Max. Spindle travel(mm) | 120 | 120 | ||
Morse taper of spindle nose(mm) | MT.4 | MT.4 | ||
Spindle speeds(r/min) | 95-170-280-540-960-1600 | 95-170-280-540-960-1600 | ||
Distance from spindle axis to column surface(mm) | 260 | 260 | ||
Size of worktable(mm) | 730*210 | 820-240 | ||
Max. Spindle travel(mm) | 550*180(410*180) | 550-220(490*220) | ||
Distance from spindle nose to worktable(mm) | 90-445 | 0-475 | ||
Motor(kw) | 1.1 | 1.1 | ||
G.W/N.W(kg) | 430/360 | 440/370 | ||
Ship measurement（cm） | 108*81*121.5 | 108*81*116.5 | ||
Z-Automatic feeding of worktable | ||||
Model | ||
Max. Drilling capacity(mm) | 50/45 | |
Max. Horizontal milling diameter(mm) | 100 | |
Max. Veitical milling Capacity(mm) | 32 | |
Max. tapping capacity(mm) | M30 | |
Max. Spindle travel(mm) | Manual 150/automatic 120 | |
Morse taper of spindle nose(mm) | MT.4 | |
Spindle speeds(r/min) | 70-150-260-370-825-1430 (45-100-170-245-550-950) | |
Spindle feed range(mm/min) | 0-125 (stepless speed regulation) | |
Distance from spindle axis to column surface(mm) | 325 | |
Size of worktable(mm) | 900*260 | |
Max. Spindle travel(mm) | 550*270(450*270) | |
Distance from spindle nose to worktable(mm) | 45-480 | |
Motor(kw) | 2.2(2.2/1.5) | |
G.W/N.W(kg) | 900/800 | |
Ship measurement（cm） | 145*135*210 | |
Z- Table automatic feed X- Travel coordinates digital display S- Two-speed motor | ||
Company Profile
Is a domestic enterprise specializing in the production of drilling machine series products. It is the director unit of cmtba Drilling and Boring Machine Branch, and the member unit of Drilling and Boring Machine Industry Standardization Technical Committee.
The company has nearly 120 employees, including 40 engineers and technicians, and has more than 200 sets of general-purpose mechanical processing and inspection equipment. The main products produced by the company are: desktop drilling machine, vertical drilling machine, milling drilling machine, tapping machine, dual-purpose drilling and tapping machine, radial drilling machine, universal tool grinder, numerical control drilling machine, numerical control milling machine, vertical machining center, deep hole drill, axial press and so on. With an annual output of more than 20,000 series drilling machines, we can design and customize all kinds of precise, efficient and special machine tools according to users' needs, and provide integrated drilling and processing solutions. The company has always paid attention to product quality and the development of new products, always adhered to the production concept of "innovation and refinement, pursuit of perfection", constantly introduced and absorbed advanced technology and equipment, and actively explored modern management mode. The company has passed the ISO 9001:2008 international quality management system certification.
The company has nearly 120 employees, including 40 engineers and technicians, and has more than 200 sets of general-purpose mechanical processing and inspection equipment. The main products produced by the company are: desktop drilling machine, vertical drilling machine, milling drilling machine, tapping machine, dual-purpose drilling and tapping machine, radial drilling machine, universal tool grinder, numerical control drilling machine, numerical control milling machine, vertical machining center, deep hole drill, axial press and so on. With an annual output of more than 20,000 series drilling machines, we can design and customize all kinds of precise, efficient and special machine tools according to users' needs, and provide integrated drilling and processing solutions. The company has always paid attention to product quality and the development of new products, always adhered to the production concept of "innovation and refinement, pursuit of perfection", constantly introduced and absorbed advanced technology and equipment, and actively explored modern management mode. The company has passed the ISO 9001:2008 international quality management system certification.
Product packaging
FAQ
1. Who are we?
A:Wuxi Mingxu Machinery Equipment Co., Ltd. was restructured from Wuxi Machinery Equipment Co., Ltd. Mainly produces and sells mechanical equipment, forging equipment, grinders, machining centers, hot die forging equipment, CNC machine tools, lathes, milling machines, machine tool parts and so on.
2.What is the package of the machines?
A: The machines standard packed by iron pallets with steel box ,high quality package to reduce the risk of damage during delivery.
3.What is your MOQ of this item?
A: Our MOQ is one set.
4.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
5.When is the delivery time?
A: Conventional Machines, we will deliver then within 20 working days after receiving your deposit. If some special machines will be longer, please contact us for details. According to the delivery date at that time, we will give you a reply accordingly.
6. What is the payment Terms ?
A : Alibaba or T/T ,30% initial payment when order ,70% balance payment before shipment ;
7.What kind of trade terms can you do ?
A:EXW,FOB,CFR,CIF,Etc.
8.What is Trade Assurance?
A:Trade Assurance is a free service by Alibaba .com that's designed to help create trust between buyers
and suppliers.Trade Assurance helps buyers in the event of shipping and quality-related dispute.
9.Dose Trade Assurance charge fees?
A: No.Trade Assurance is free for both buyers and suppliers.
A:Wuxi Mingxu Machinery Equipment Co., Ltd. was restructured from Wuxi Machinery Equipment Co., Ltd. Mainly produces and sells mechanical equipment, forging equipment, grinders, machining centers, hot die forging equipment, CNC machine tools, lathes, milling machines, machine tool parts and so on.
2.What is the package of the machines?
A: The machines standard packed by iron pallets with steel box ,high quality package to reduce the risk of damage during delivery.
3.What is your MOQ of this item?
A: Our MOQ is one set.
4.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
5.When is the delivery time?
A: Conventional Machines, we will deliver then within 20 working days after receiving your deposit. If some special machines will be longer, please contact us for details. According to the delivery date at that time, we will give you a reply accordingly.
6. What is the payment Terms ?
A : Alibaba or T/T ,30% initial payment when order ,70% balance payment before shipment ;
7.What kind of trade terms can you do ?
A:EXW,FOB,CFR,CIF,Etc.
8.What is Trade Assurance?
A:Trade Assurance is a free service by Alibaba .com that's designed to help create trust between buyers
and suppliers.Trade Assurance helps buyers in the event of shipping and quality-related dispute.
9.Dose Trade Assurance charge fees?
A: No.Trade Assurance is free for both buyers and suppliers.
Recommend Products
Похожие товары
28 мм Mag дрель Power pagnetic dill
JSBESTECH ZJ4120 mini bench drill press drilling machine
Мини-дрель
29 104,60-33 761,34 ₽

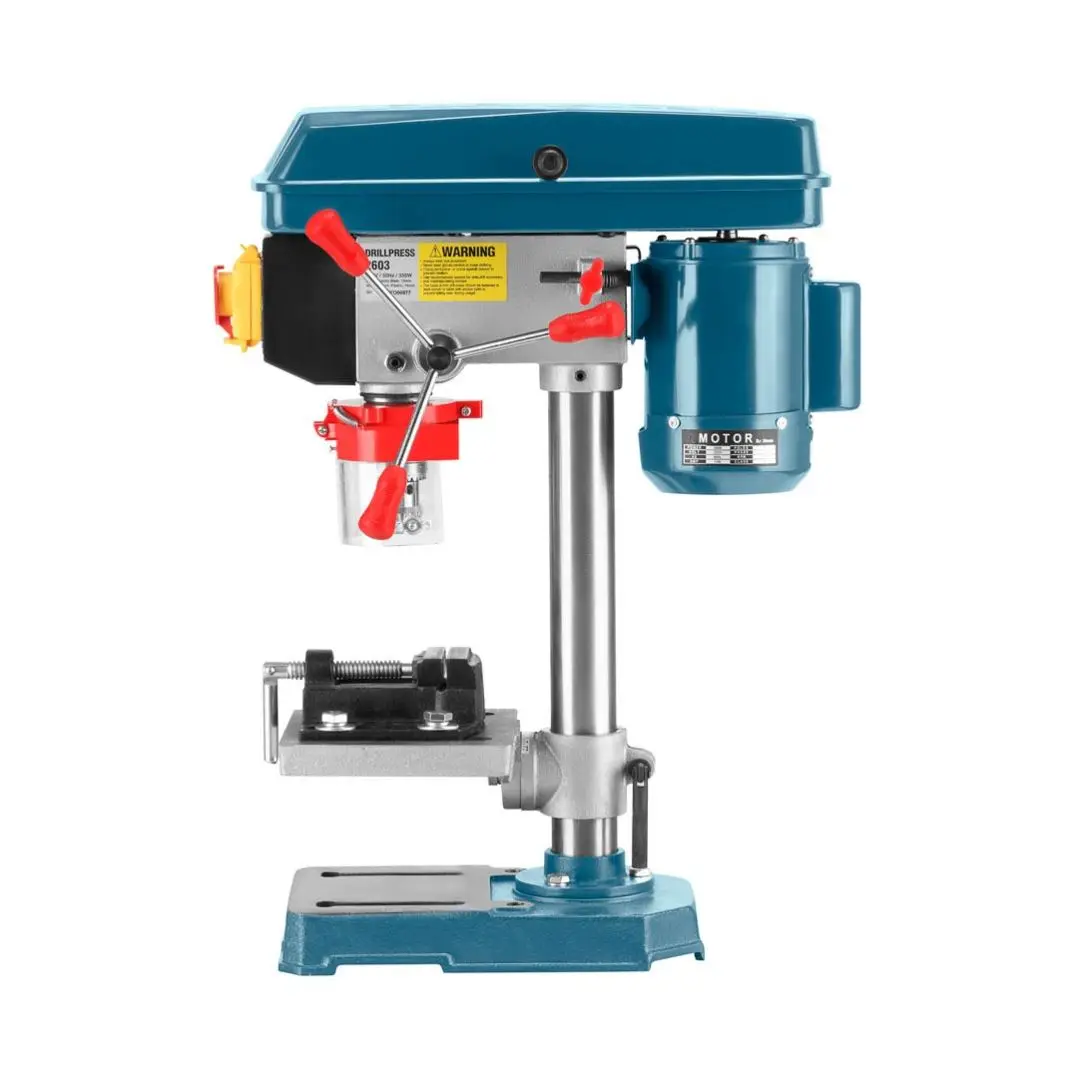

Ronix 2603 модель от производителя железное основание сверлильный пресс электроинструмент 350 Вт 13 мм станок
