Автоматическая система измерения бака ATG Датчик Дистанционная контроля топлива
53 966,87-59 067,04 ₽
Система Atg беспроводной цифровой дистанционный монитор системы контроля топлива/топливная станция масляный бак насос управления
- Категория: >>>
- Поставщик: Henan Sinotech Intelligent Control Technology Co. Ltd.Henan Ltd.
Сохранить в закладки 1601282111137:
Описание и отзывы
Характеристики

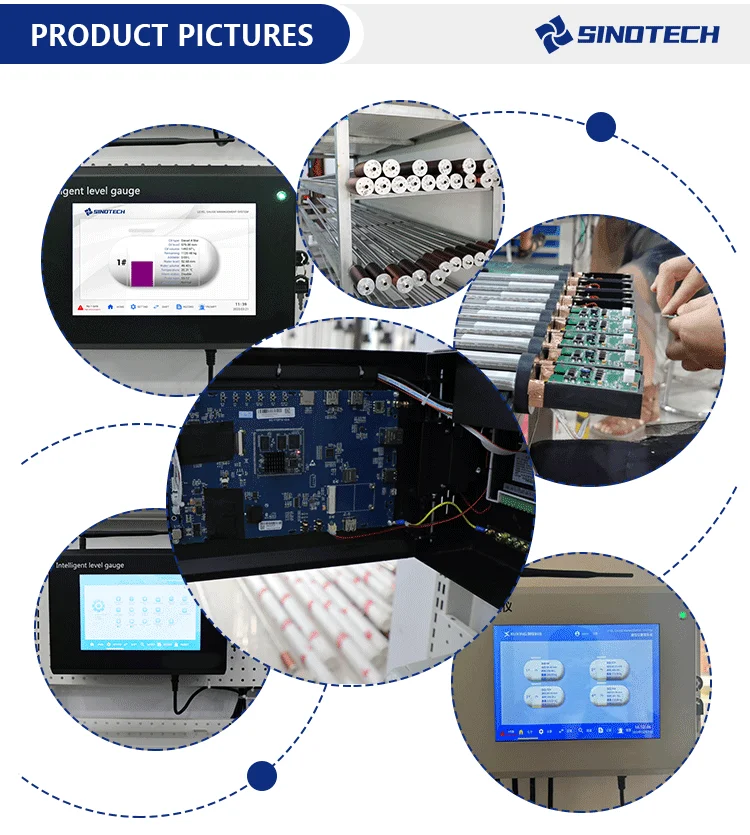

SINOTECH Automatic Tank Gauge System consists of two parts: the Smart Level Meter and the Smart Magnetic Level Probe.

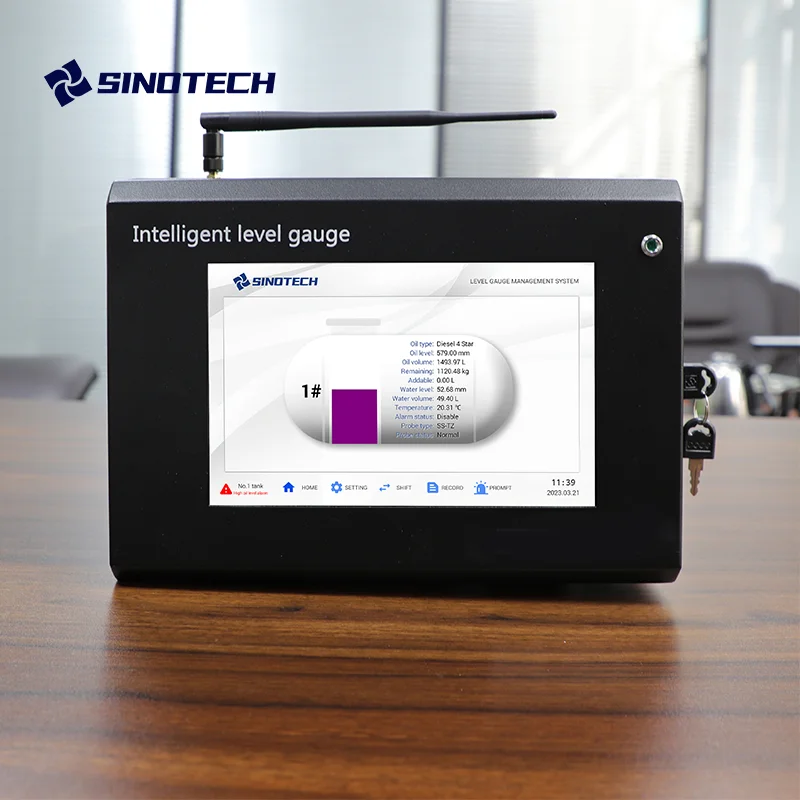

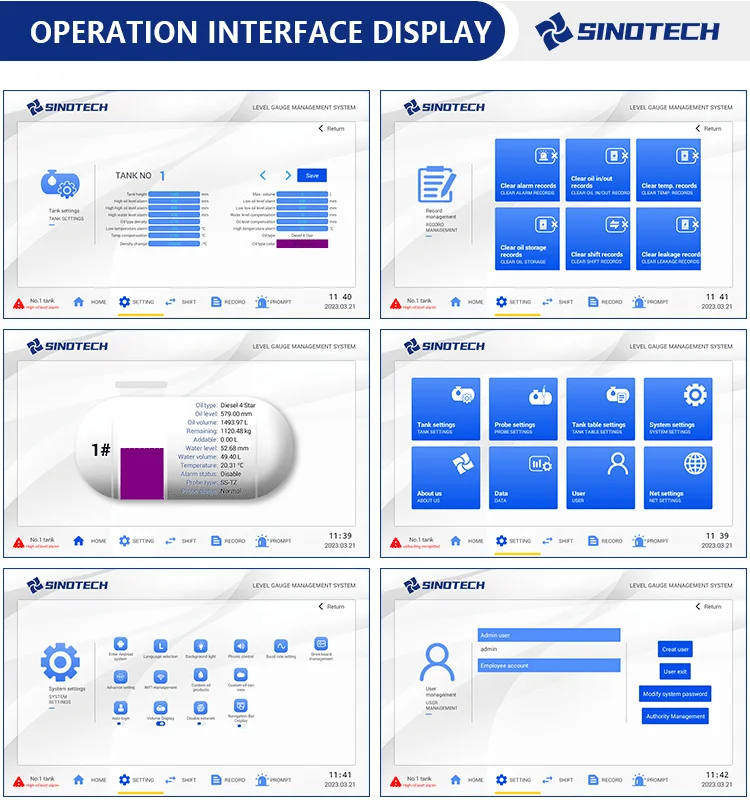

It adopts 10.1 inch colour capacitive touch screen, man-machine interaction, more convenient, faster; interface using standard RS232 and RS485 industrial field bus mode, support for external sound and light alarm, optional printing function, can be connected to expand the overflow valve module, and can be controlled remotely by mobile phone. The whole system performance is more reliable and stable, longer life, with simple operation, easy to use and maintenance and other significant features.
It adopts 10.1 inch colour capacitive touch screen, man-machine interaction, more convenient, faster; interface using standard RS232 and RS485 industrial field bus mode, support for external sound and light alarm, optional printing function, can be connected to expand the overflow valve module, and can be controlled remotely by mobile phone. The whole system performance is more reliable and stable, longer life, with simple operation, easy to use and maintenance and other significant features.
Smart console | ||
Screen size | 10 inch colorful LCD touch screen | |
Input voltage | AC220V±15% | |
System working voltage | 5VDC, 24VDC | |
Working environment temperature range | -0℃ ~ 55℃ | |
Relative humidity | 40% ~ 85% | |
Atmospheric pressure | 86kPa ~ 106kPa | |

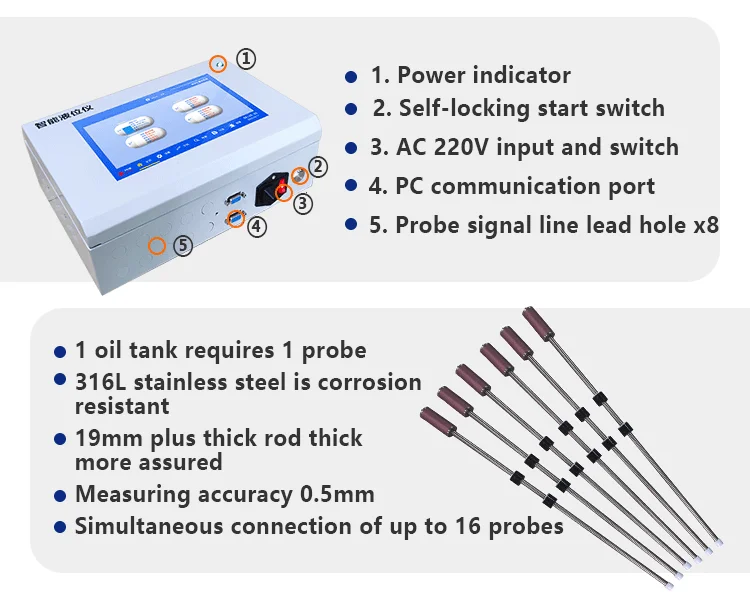

Communication serial ports | 2 RS232 connects to printer, computer, Modem or GSM module and 1 RS485 for probe | |
Explosion proof grade | [Ex ia Ga]IIA | |
Smart magnetostrictive probe | ||
Measuring range | 500mm～6000mm | |
Output mode | RS-485 Maximum communication distance 1200 m | |
Power supply | 24VDC | |
Maximum communication distance | 1200m | |
Product power consumption | ≤ 60mA | |
Operating temperature | -30℃～+60℃ | |
Measurement accuracy | ±0.5mm | |
Repeated accuracy | ±0.2mm | |
Temperature measuring point | 5 | |
Temperature sensor resolution | 0.0625℃ | |
Upper blind area | 90mm | |
Lower blind area | 50mm | |
Explosion protection sign | [Ex ia Ga]IIA/Ex ia IIA T5 Ga | |
Applicable medium | gasoline, kerosene, diesel, light oil, heavy oil, and crude alcohol mixture | |
Protection class | IP67 | |
Product Features
1. Real-time monitoring of tank data, high and low oil level alarms
2. Built-in voice alarm, can be connected to external sound and light alarms
3. Support background management system, support mobile phone and computer remote control.
4. The system automatically generates oil leakage test records, alarm records, oil intake records, oil storage records and can be printed.
5. can be expanded to prevent overflow valve control module
6. Support WiFi and 4G network
7. With oil tank working status dialogue box, display more humane.
8. Support LOGO customisation and brand OEM.
2. Built-in voice alarm, can be connected to external sound and light alarms
3. Support background management system, support mobile phone and computer remote control.
4. The system automatically generates oil leakage test records, alarm records, oil intake records, oil storage records and can be printed.
5. can be expanded to prevent overflow valve control module
6. Support WiFi and 4G network
7. With oil tank working status dialogue box, display more humane.
8. Support LOGO customisation and brand OEM.
Our Advantages

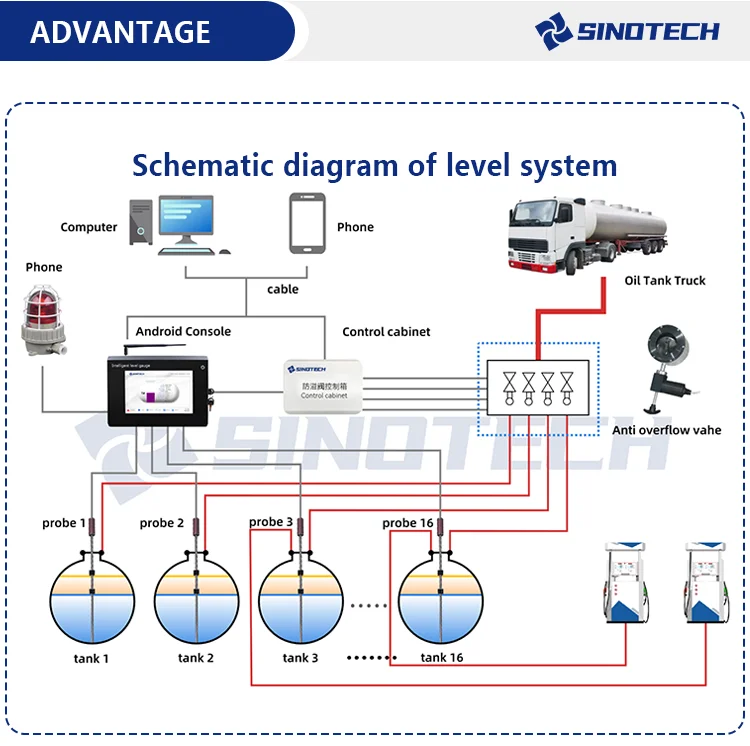

1. The system supports up to 16 tanks, each tank can be switched to the detailed data display mode, more comprehensive data.
1. The system supports up to 16 tanks, each tank can be switched to the detailed data display mode, more comprehensive data.
2. The man-machine interface adopts 10.1 inch colour capacitive touch screen, android system interface is more user-friendly.
Company Profile
Henan Sinotech Intelligent Control Technology Co., Ltd. located in Zhengzhou City, Henan Province, China, is a leading manufacturer of petroleum equipment and energy equipment in China.. Our products include fuel dispensers,containerized mobile refueling equipment, tank level gauges, gas station management systems, fuel dispenser accessories, gas station piping and so on.
Sinotech has been involved in the fuel dispenser industry since 2000. After 24 years of development, Sinotech has established a sales network in Africa, the Middle East, Asia and South America, and has earned a good reputation for its high-quality products and fast and convenient service. Our goal is to provide comprehensive solutions to petroleum retail end users worldwide.
FAQ
FAQ
Q1: Are you a trading company or a manufacturer?A: We are a professional manufacturer with more than 20 years history, our factory is located in Zhengzhou City, Henan Province.
Q2:What kind of products do you produce?
A: We produce professional fuel dispensers, mobile fuel dispensers, automatic tank gauge systems, pumps, flow meters, nozzles,pipes and other one-stop service for gas station construction.
Q3:Are your fuel dispensers easy to operate?
A: Yes, each fuel dispenser is equipped with an instruction manual to help guide you to the correct operation and future maintenance.
Q4: Can your company accept my customized requirements?
A: Sure. We can customize the fuel dispenser and its accessories according to your needs and make logos for you.We have provided customized service for 120+ customers.
Q5:What can we do if I encounter problems and need technical advice?
A:Please tell us in detail about the problems you encounter, we have professional technical team to help you solve the problems.
Q6: Does your company have offices abroad?
A: Yes. We have offices in Africa, Southeast Asia, the Middle East and elsewhere. Please feel free to contact us if you need anything.
Q7: How long is our delivery time?
A: If we have stock, it usually takes 7-14 days, if you need customized products, it will take 15-25 days, depending on the situation.
Q8: How do we get a quick quote?
A: Please send us an inquiry or leave us a message with your specifications and detailed requirements, such as product quantity,number of nozzles, gasoline type, application, when you need it, who you are supplying it for and so on. The more specifications,the faster the feedback.Please leave your wsp number and email address if convenient, our team will contact you as soon as possible!
Похожие товары
Зеленая светлая машина для подбора силоса низкозатратная дробилка сельскохозяйственная дизельная подборщика
213 495,30-296 521,25 ₽
Небольшой механический Цифровой Расход топлива качество дизельный расходомер
Высокоточное Дистанционное оборудование для измерения уровня топлива система мониторинга автозаправочной станции подземный счетчик топливного бака
65 234,68 ₽

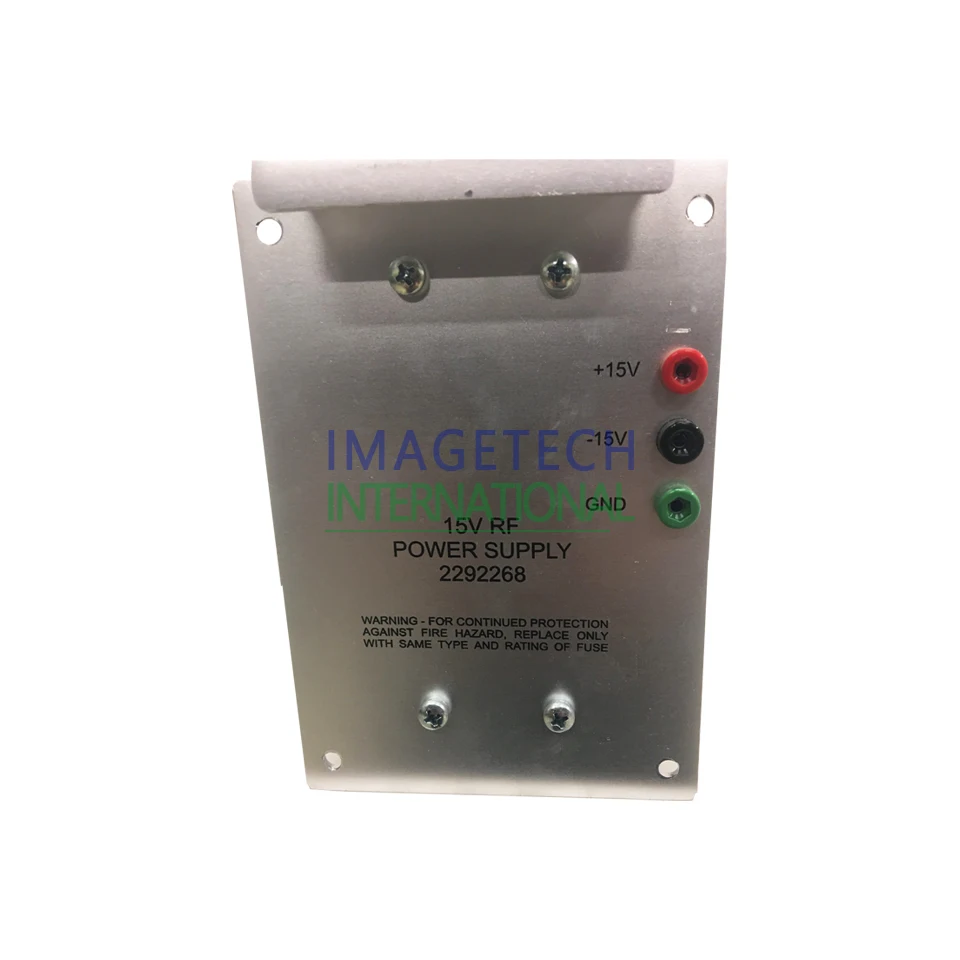

GE закрытый MRI 2292268 15 В RF модуль питания

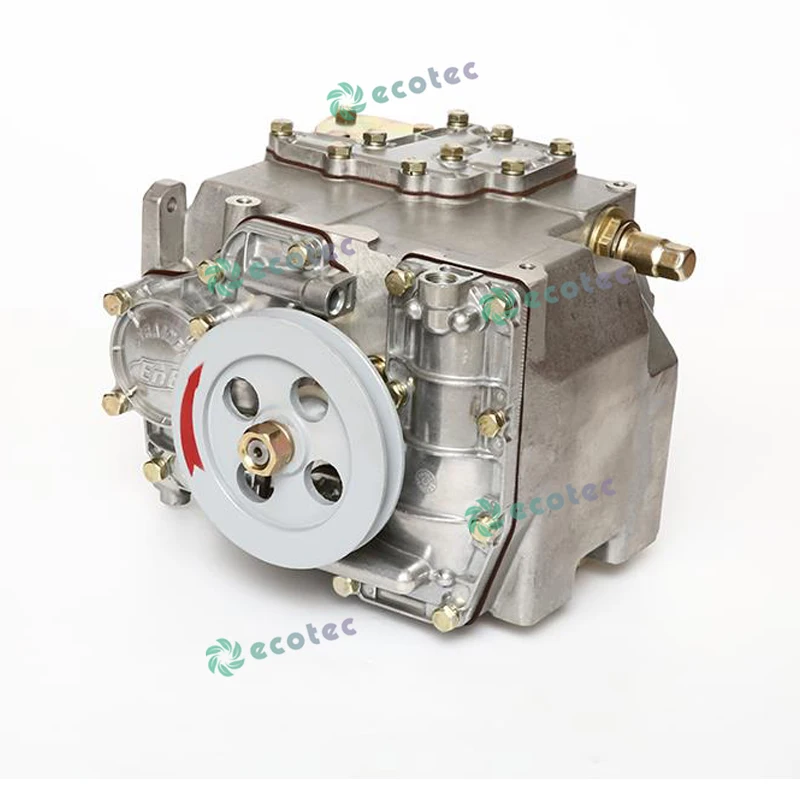

Ecotec Tatsuno насос с шестеренчатым насосом топливные насосы для дозатора топлива нефтяной станции
