Тип упаковки Блок кондиционирования воздуха компьютерная комната Серверная прецизионный Кондиционер dx
424 313,51 ₽ - 551 056,50 ₽
Высокоточный блок кондиционирования воздуха для серверной комнаты
- Категория: >>>
- Поставщик: Hairf Network Power Beijing Co. Ltd.
Сохранить в закладки 1601282195432:
Описание и отзывы
Характеристики
Details Images
Industory Customization
Hairf precision computer room air conditioners have all kinds of product lines to accommodate users' varied demands.They are not only environmentallly friendly but also energy efficient.
1.Precision air-conditioner adopts modular design and redundancy standby feature,users can have compatible options of various specifications to decide the system package most suitable to themselves without the trouble of site renovations.
2.precision air cooling ststem adopts advanced microprocessor controller,which has fast response,high precision and good reliability.The temperature control accuracy can reach +/-1℃,and the relative humidity control accuracy can reach +/-3% RH,which can meet the environmental temperature and humidity requirements of various precision instruments room.
3.precision air conditioning units adopt a simple button-type operation and have a self-checking test system,which can monitor the working status and fault performance of the system and remotely,and can notify the operator through the alarm device.
Model:HADR/HAUR 0201 0251 0261 0271 0301 0351 0401 0451
Cooling capacity(1) kw 21.2 23.2 26.8 27.3 31.5 35.6 41.2 45.1
Air flow m3/h 6530 7050 7280 8500 9200 10000 11000 13000
EER 3.72 3.60 3.60 3.75 3.71 3.71 3.71 3.68
SHR 0.98 0.98 0.96 0.98 0.99 0.98 0.97 0.96
Compressor
Type Scroll
Capacity kw 5.2 5.5 5.9 6.2 7.4 8.3 9.3 10.1
Quantitynr 1 1 1 1 1 1 1 1
Finned coll evaporator
Frontal suface m2 0.8 0.8 0.8 1.4 1.4 1.4 1.7 1.7
Geometry mm 25X21.65
Type of fins Hydrophilic
FIn pitch mm 1.8
Fan section
Type Centrifugal fan
Quantity nr 1 1 1 1 1 1 2 2
Absorbed current A 2.5 2.5 2.8 3.2 3.5 4.1 4.4 4.9
Absorbed power W 1050 1100 1200 1300 1320 2000 2150 2400
AESP Max Speed(2) Pa 360 360 360 380 380 355 355 355
Air flter
Grade G4
Overall surface m2 5.8 5.8 5.8 6.5 6.5 6.5 7.8 7.8
Fire reslstance class 1
Electrical heaters
Total heating capaclty kw 5 5 5 5 5 5 5 5
Quantity nr 2 2 2 2 2 2 2 2
Material PTC
Humidifier Capacty Kg/h 8-13 8-13 8-13 8-13 8-13 8-13 8-13 8-13
Absorbed power kw 6 6 6 6 6 6 6 6
Dimension&Weight
Height mm 1998 1998 1998 1998 1998 1998 1998 1998
Length mm 1000 1000 1000 1000 1000 1000 1750 1750
Depth mm 795 795 795 795 795 795 795 795
Welght kg 375 385 393 450 490 590 595 610
Sound level Sound pressure lel(3 ) db(A ) 52 53 53 55 56.5 58 60 60
Products Description

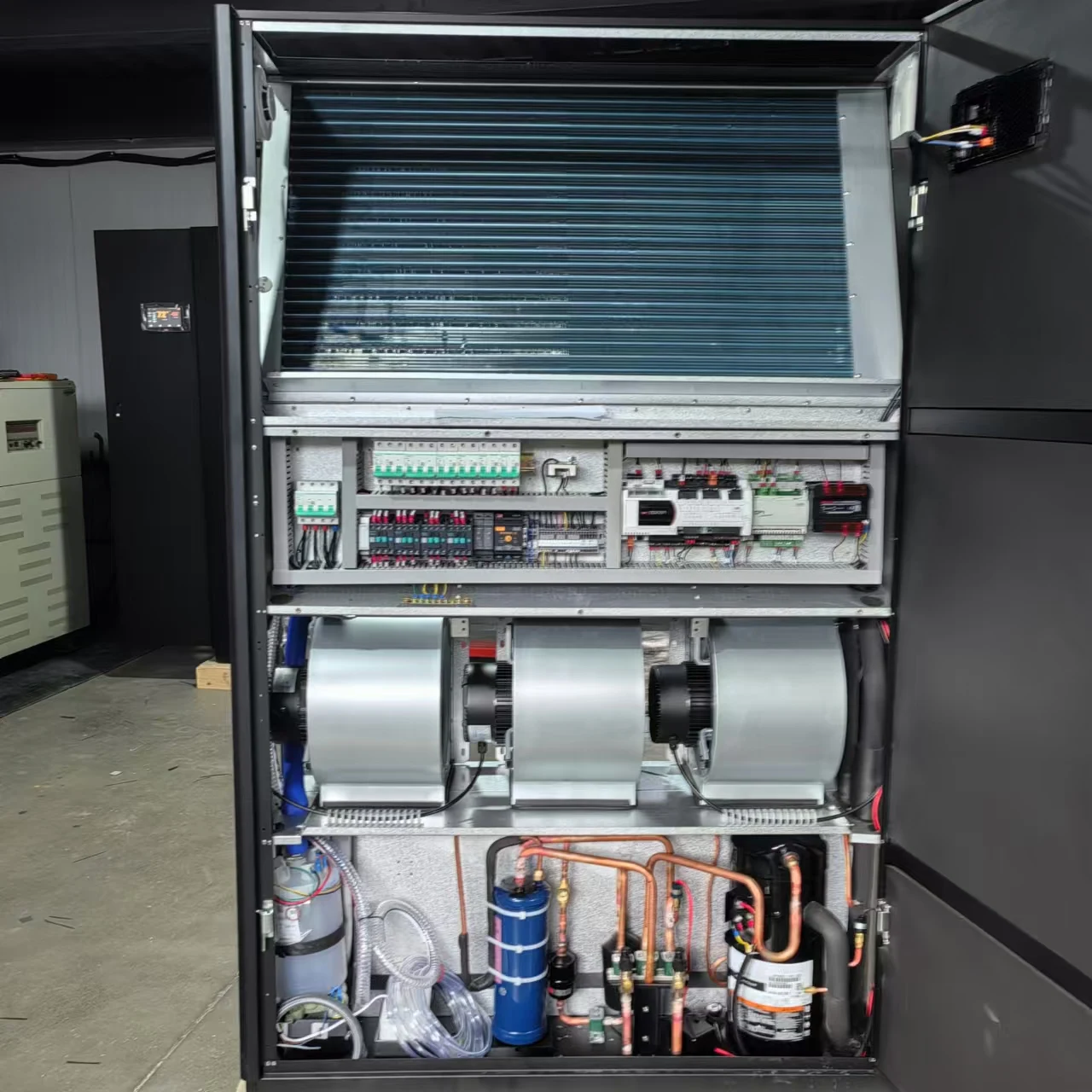

Components:
scroll compressor
The core power of the unit is from Copeland hermetic scroll compressor that guarantees the high efficiency ,low noise and the long life of the unit.
Heater
An electric heater with perfect overheat protection function and ionization resistance, able to meet environmental requirements of the small heat-load machine rooms for base stations in cold arctic-alpine area.
Indoor fan
A blow fan adopts direct drive centrifugal fan with backward curved blades, the range of static pressure can be adjusted from 0 to 400pa, realizing the continuous operation of 365 days* 24 hours, 10 years’ average life.
Humidifier
An internationally advanced electrode steam humidification system under which the amount of humidification and water inflow and outflow are all controlled by computer, the auto cleaning program for the humidifier cylinder ensure normal humidification effciency of the clinder.
Filter
Air filter which is EU4 standard which is metallic bracket filtering the dust and particulate effectively by air circulation , then purifying the air environment of telecom room.
Expansion Valve
.Expansion valve adopts advanced thermal expansion valves with strong reliability and stability and can precisely control the supply of refrigerant. In order to achieve the reduction of energy consumption for refrigeration equipment, we employ advanced electronic expansion valves in high-performance precision air conditioning units to realize less energy
consumption.
consumption.
High quanlity Controller
It strictly complies with CE and IEC standards and is empowered with advanced electric control technology and able to work under a power source of 380V±20%. In addition, it is installed with a power supply protection module, enabling it to make a selection of
protective value in a range of 380V±50%. When voltage goes beyond the selected range, it will automatically protect the unit. While the voltage becomes normal, it will automatically restart the unit.
protective value in a range of 380V±50%. When voltage goes beyond the selected range, it will automatically protect the unit. While the voltage becomes normal, it will automatically restart the unit.
Evaporator
An efficient evaporator made from quality material with advanced professional technology and featuring large heat exchange area and the realization of higher sensible heat factor of precision air conditioning unit.
one fan:
two fan:
Condenser
With an enclosure of anti-corrosion alloy that ensures service life and appearance of the is elaborately designed and able to satisfy the environmental protection requirements on noise, and a fan speed regulator that controls the rotating speed under different temperature and ensures sound operating effect and energy saving.
Product packaging
FAQ
1.who are we
we are based in beijing ,china,start from 2005,sell to southeast asia(50.00%),Mid East(20.00%),Central America（20.00%),Africa(10.00%).There are total about 501-100 people in our office.
2.how can we guarantee quality?
Always a pre-production sampie before mass production;
Always final inspection bofore shipment.
3.what can you buy from us?
precision air conditioner,data center solution,UPS uninterruptible power supply,STS static transfer switch.
4.why should you buy from us not from other suppliers?
Hairf ,with more than 30 years' research and manufactur experience in server room equipment field,have world class labs,inspection equipment & computer room key equipment line.Now our product range includes precision air conditioner & data center solution.
5.what services can we provide?
Accepted Delivery Terms:FOB,CIF,DDP,Express Delivery;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type:T/T,L/C;
Language Spoken:English,Chinese;
After-sales Service:Overseas support available.
Official website:www.hairf.com
Company Overview
HAIRF
Hairf, with more than 30 years' R&D and manufacturing experience in serverroom equipment field,depends on world class labs and inspection and production equipment,not only can provides specialized products for meeting the exact requirement of user's job site, but also provides a perfect total solution for server room,rely on our complete production line of critical equipment used in server room.
Our professional system engineer and international sales and service team are alltrough the world in Mexico, Russia, Pakistan, China, Philippines, Singapore,Kazakhstan, to ensure we can provides 24 hours service to more than fifty countries around the world.Till now we have set up offices in 22 cities such as Beijing, Shanghai, Guangzhou, Shenzhen, Chengdu,Xran,Wuhan,Zhengzhou,Fuzhou,Harbin,Hohhot to provide speedy technical support, installation, commisioning, maintenance and other after sales service.
Production Process
PROFESSIONAL TEAM
ACCURATE CONTROL
Certifications
Trade Capacity
Trade Shows
Main Markets&product(s)
Main Markets | Total Revenue(%) | Main Product(s) |
Southeast Asia | 50.00% | - |
Mid East | 20.00% | - |
Central America | 20.00% | - |
Africa | 10.00% | - |
Trade Ability
Language Spoken | English, Chinese, Spanish, German, Russian, Italian |
No. of Employees in Trade Department | 6-10 People |
Average Lead Time | 25 |
Total Annual Revenue | Above US$100 Million |
Business Terms
Accepted Delivery Terms | FOB, CIF, DDP, Express Delivery |
Accepted Payment Currency | USD, EUR |
Accepted payment methods | T/T, L/C |
Nearest Port | Shanghai, Beijing, Shenzhen |
