Энергосберегающая гибридная система производства солнечной энергии 8 кВт/10 кВт/12 кВт полный комплект монокристаллического кремниевого инвертора мощностью 3 50
3 560,00-4 250,00 $
Полная солнечная энергетическая система Sunpal полный комплект 50 кВт 60 80 100 коммерческая гибридная хранения солнечной энергии
- Категория: >>>
- Поставщик: Sunpal Solar Co. Ltd.Sunpal Ltd.
Сохранить в закладки 1601282224304:
Описание и отзывы
Характеристики
Products Description
Our latest hybrid system is redefining commercial and industrial energy solutions:
• Adaptable for various scenarios, including micro-grids
• Robust off-grid performance with 150% overload capacity
• Enhanced DC capabilities for maximized solar input
• Durable design with IP66 protection, no derating up to 50°C
• User-friendly remote monitoring for seamless operation
LIGHTING YOUR OFF-GRID SCENARIO
150% off-grid overload capacity, carry inductive load easily GEN port design, suitable for DG or extra solar system input
Specifications
Datasheet | WIT 50K-HU | WIT 63K-HU | WIT 75K-HU | WIT 100K-HU | ||||
Max. recommended PV power(for module STC) | 109.2kW | 124.8kW | 156kW | 156kW | ||||
Start voltage | 195V | |||||||
Max. input voltage | 1100V | |||||||
Max. operating voltage | 1000V | |||||||
MPPT nominal voltage/range | 550V,180V~800V | |||||||
Max. input current per MPP tracker | 32A | |||||||
Max. short-circuit current per MPP tracker | 40A | |||||||
No. of PV strings per MPP tracker | 2 | |||||||
No. of MPP trackers | 7 | 8 | 10 | 10 | ||||
Output Data(AC) | ||||||||
AC nominal power | 50kW | 63kW | 75kW | 100kW | ||||
Max. AC apparent power | 55kVA | 69.3kVA | 82.5kVA | 110kVA | ||||
Nominal AC voltage/range | 380/400/415V,-15%~+10% | |||||||
Nominal AC grid frequency/range | 50/60Hz,45-55Hz/55-65Hz | |||||||
Max. output current | 83.3A | 105A | 125A | 166.7A | ||||
Adjustable power factor | -1…+1 | |||||||
THDi | <3% | |||||||
AC grid connection type | 3P3W+PE/3P4W+PE | |||||||
Input Data(AC) | ||||||||
AC nominal power | 50kW/100kW | 63kW/126kW | 75kW/150kW | 100kW/200kW | ||||
Max. AC apparent power | 55kVA/100kVA | 69.3kVA/126kVA | 82.5kVA/150kVA | 110kVA/200kVA | ||||
Nominal AC voltage/range | 380/400/415V,-15%~+10% | |||||||
Nominal AC grid frequency/range | 50/60Hz,45-55Hz/55-65Hz | |||||||
Max. input current | 83.3A/151.5A | 105A/190.9A | 125A/227.3A | 166.7A/303A | ||||
Battery Data (DC) | ||||||||
Continuous charging and discharging power | 56.7kW | 71.4kW | 85.1kW | 113.5kW | ||||
Battery voltage range | 600-1000V (for 3P3W) / 680-1000V (for 3P4W) | |||||||
Recommended battery voltage | 768V | |||||||
Max charging and discharging current | 83.3A | 105A | 125A | 167A | ||||
BMS communication | RS485/CAN | |||||||
Backup Power (AC)* | ||||||||
Rated AC output power | 50kW | 63kW | 75kW | 100kW | ||||
Max. AC apparent power | 60kVA | 75.6kVA | 90kVA | 120kVA | ||||
Rated AC output voltage | 220V/230V/240V(L-N),380V/400V/415V(L-L) | |||||||
Nominal AC output frequency | 50/60 Hz | |||||||
Load connection | 3P3W+PE/3P4W+PE | |||||||
Max. output current | 90.9A | 114.5A | 136.4A | 181.8A | ||||
THDv | <3% (Linear load) | |||||||
Load unbalance | 100% three-phase unbalanced | |||||||
Overload capacity | ≤110%: Continues; 110%~120%: 10min; >120%: 200ms | |||||||
On/off grid transfer time | ≤20ms | |||||||
Max. efficiency | 98.2% | |||||||
Resilient and Stable Power
With an in-built Uninterrupted Power Supply (UPS) and black start system, the WIT 50-199K HU ensures that critical appliances remain operational when there is no grid power available. In addition, the 100% unbalanced output equalises the power output across all 3 phases, even if the loads connected to each phase are different. This prevents power tripping or overheating of appliances due to load imbalances. Next, to provide greater power stability, the 110% continuous AC overloading function enables the inverter to handle a continuous load that exceeds nominal capacity by up to 10%. With users’ and installers’ safety in mind, there is type 2 SPD on the DC and AC side, which shuts off the system when there is overvoltage or electric surges.
High Yield
With multiple MPPTs, the WIT 50-100K HU ensures optimal power generation even in challenging conditions, such as partial shading or varying panel orientations. Featuring a high DC/AC ratio of up to 2.0, this inverter maximises energy output by efficiently handling larger capacities of DC input compared to AC output. Not to mention, this commercial storage inverter has a maximum efficiency of up to 98%, which converts almost all solar energy into usable electricity. As such, this inverter is about to deliver a high level of energy output for our commercial and industrial users.
High Flexibility
Scalable up to 300kW, this commercial storage inverter provides businesses with ample flexibility to meet their evolving energy needs. Designed with compatibility in mind, the WIT 50-100K HU supports both Lithium and Lead-acid batteries, catering to varying energy storage preferences and requirements. In addition, the remote-control function allows businesses to effortlessly manage, monitor, and adjust power generation and storage parameters, enhancing system performance and resource allocation. With a remote control function and expandable battery capacity, the WIT 50-100K HU offers businesses a flexible and convenient solution to manage power consumption and production effectively.
With an in-built Uninterrupted Power Supply (UPS) and black start system, the WIT 50-199K HU ensures that critical appliances remain operational when there is no grid power available. In addition, the 100% unbalanced output equalises the power output across all 3 phases, even if the loads connected to each phase are different. This prevents power tripping or overheating of appliances due to load imbalances. Next, to provide greater power stability, the 110% continuous AC overloading function enables the inverter to handle a continuous load that exceeds nominal capacity by up to 10%. With users’ and installers’ safety in mind, there is type 2 SPD on the DC and AC side, which shuts off the system when there is overvoltage or electric surges.
High Yield
With multiple MPPTs, the WIT 50-100K HU ensures optimal power generation even in challenging conditions, such as partial shading or varying panel orientations. Featuring a high DC/AC ratio of up to 2.0, this inverter maximises energy output by efficiently handling larger capacities of DC input compared to AC output. Not to mention, this commercial storage inverter has a maximum efficiency of up to 98%, which converts almost all solar energy into usable electricity. As such, this inverter is about to deliver a high level of energy output for our commercial and industrial users.
High Flexibility
Scalable up to 300kW, this commercial storage inverter provides businesses with ample flexibility to meet their evolving energy needs. Designed with compatibility in mind, the WIT 50-100K HU supports both Lithium and Lead-acid batteries, catering to varying energy storage preferences and requirements. In addition, the remote-control function allows businesses to effortlessly manage, monitor, and adjust power generation and storage parameters, enhancing system performance and resource allocation. With a remote control function and expandable battery capacity, the WIT 50-100K HU offers businesses a flexible and convenient solution to manage power consumption and production effectively.
Resilient
The APX Commercial battery is built to be resilient against harsh weather conditions with its wide temperature range of -10°C ~ 50°C and IP66 Design. The wide temperature range allows the inverter to operate at the same level of efficiency and performance even in extreme weather conditions. In addition, the IP66 ingress protection provides the solar battery protection against dust and water. For users who live in challenging environments, the ingress ensures that the battery is operational even in the event of heavy rain or dusty environments.
Safe & Reliable
With an LFP chemical structure, in-built modular energy optimiser, fuse + aerosol protection, and soft start mechanism, the APX commercial battery can provide a high level of safety and reliability for commercial and industrial customers. The LFP battery has excellent thermal stability and a stable chemical structure which prevents the battery system from overheating and lowers the chance of internal short circuits, leading to a smoother battery operation. To further lower the chances of fire hazard caused by overheating, the fuse and aerosol protection provide additional fire suppression ability to mitigate against thermal runaway. Not to mention, the built-in optimiser monitors and regulates the voltage level, which ensures that the battery system is operating within safety limits. Lastly, the soft start mechanism increases the voltage and current level slowly when starting the system, preventing the system from being damaged and overheated due to overcurrent.
Expansion Flexibility
Users can easily mix and match with another battery system thanks to the APX Commercial battery's ability to accommodate mixed packs of new and old batches of batteries from different battery suppliers. The APX Commercial battery can also be incorporated with other APX batteries with different SoCs. This versatility enables businesses to scale their energy storage system in response to changing needs, allowing for future system upgrades.
Plug & Play
Mixing and matching the APX commercial battery with other energy storage systems is uncomplicated due to the plug-and-play capability of the battery system. The APX Commercial Battery can be easily integrated with most battery systems without the need for complex wiring and configuration. This seamless integration streamlines and accelerates the installation process.
The APX Commercial battery is built to be resilient against harsh weather conditions with its wide temperature range of -10°C ~ 50°C and IP66 Design. The wide temperature range allows the inverter to operate at the same level of efficiency and performance even in extreme weather conditions. In addition, the IP66 ingress protection provides the solar battery protection against dust and water. For users who live in challenging environments, the ingress ensures that the battery is operational even in the event of heavy rain or dusty environments.
Safe & Reliable
With an LFP chemical structure, in-built modular energy optimiser, fuse + aerosol protection, and soft start mechanism, the APX commercial battery can provide a high level of safety and reliability for commercial and industrial customers. The LFP battery has excellent thermal stability and a stable chemical structure which prevents the battery system from overheating and lowers the chance of internal short circuits, leading to a smoother battery operation. To further lower the chances of fire hazard caused by overheating, the fuse and aerosol protection provide additional fire suppression ability to mitigate against thermal runaway. Not to mention, the built-in optimiser monitors and regulates the voltage level, which ensures that the battery system is operating within safety limits. Lastly, the soft start mechanism increases the voltage and current level slowly when starting the system, preventing the system from being damaged and overheated due to overcurrent.
Expansion Flexibility
Users can easily mix and match with another battery system thanks to the APX Commercial battery's ability to accommodate mixed packs of new and old batches of batteries from different battery suppliers. The APX Commercial battery can also be incorporated with other APX batteries with different SoCs. This versatility enables businesses to scale their energy storage system in response to changing needs, allowing for future system upgrades.
Plug & Play
Mixing and matching the APX commercial battery with other energy storage systems is uncomplicated due to the plug-and-play capability of the battery system. The APX Commercial Battery can be easily integrated with most battery systems without the need for complex wiring and configuration. This seamless integration streamlines and accelerates the installation process.

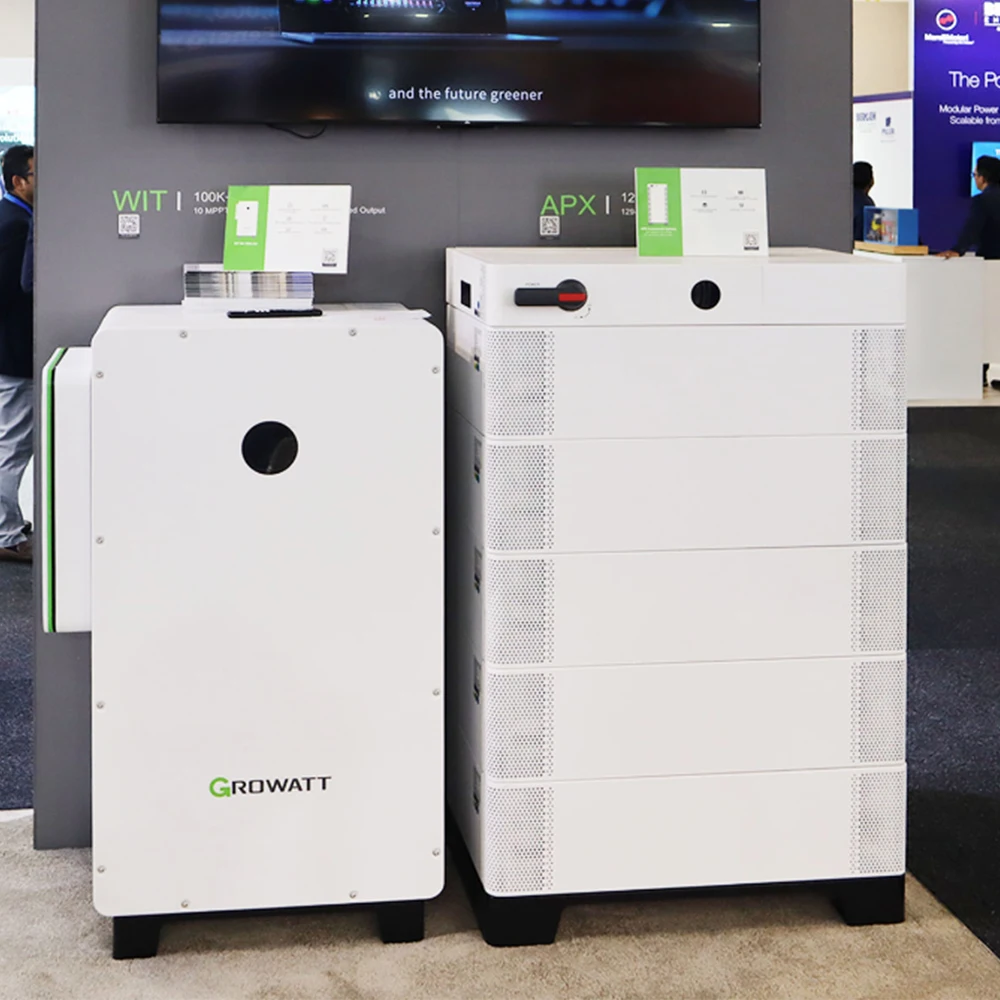

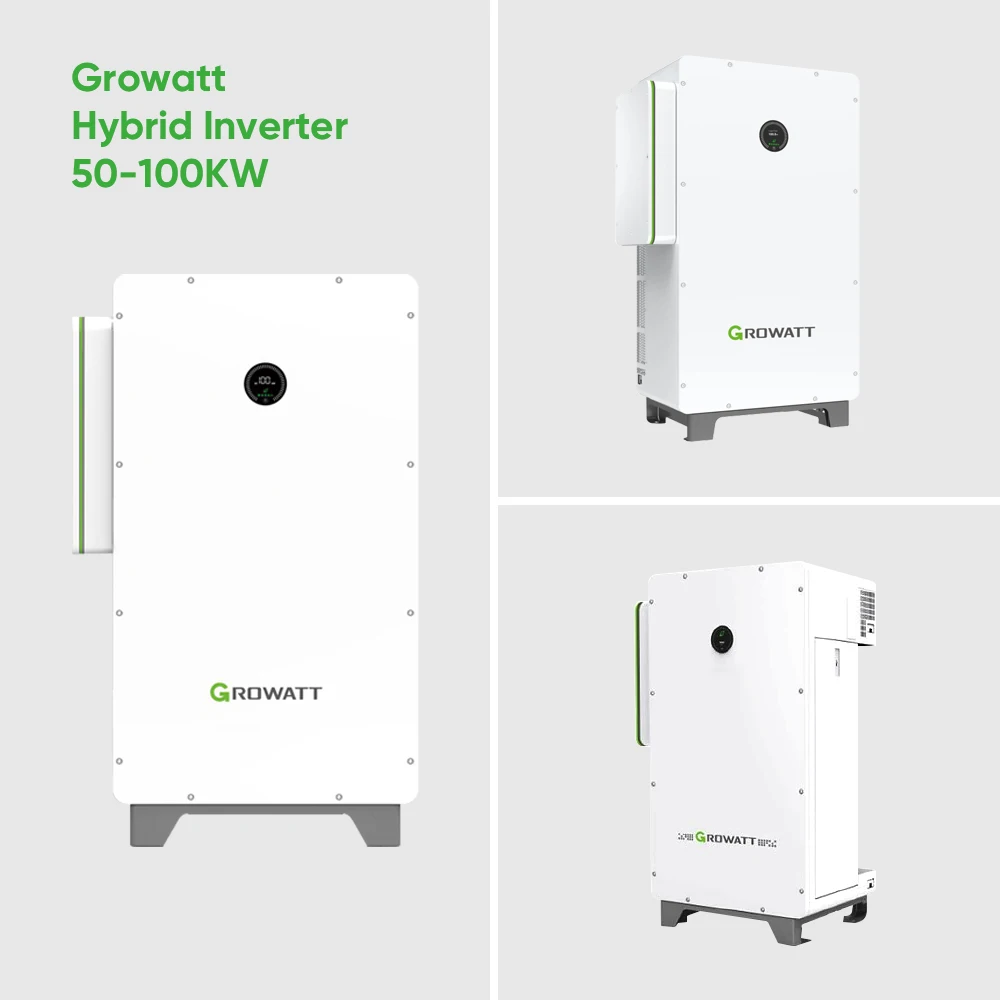

Product Picture

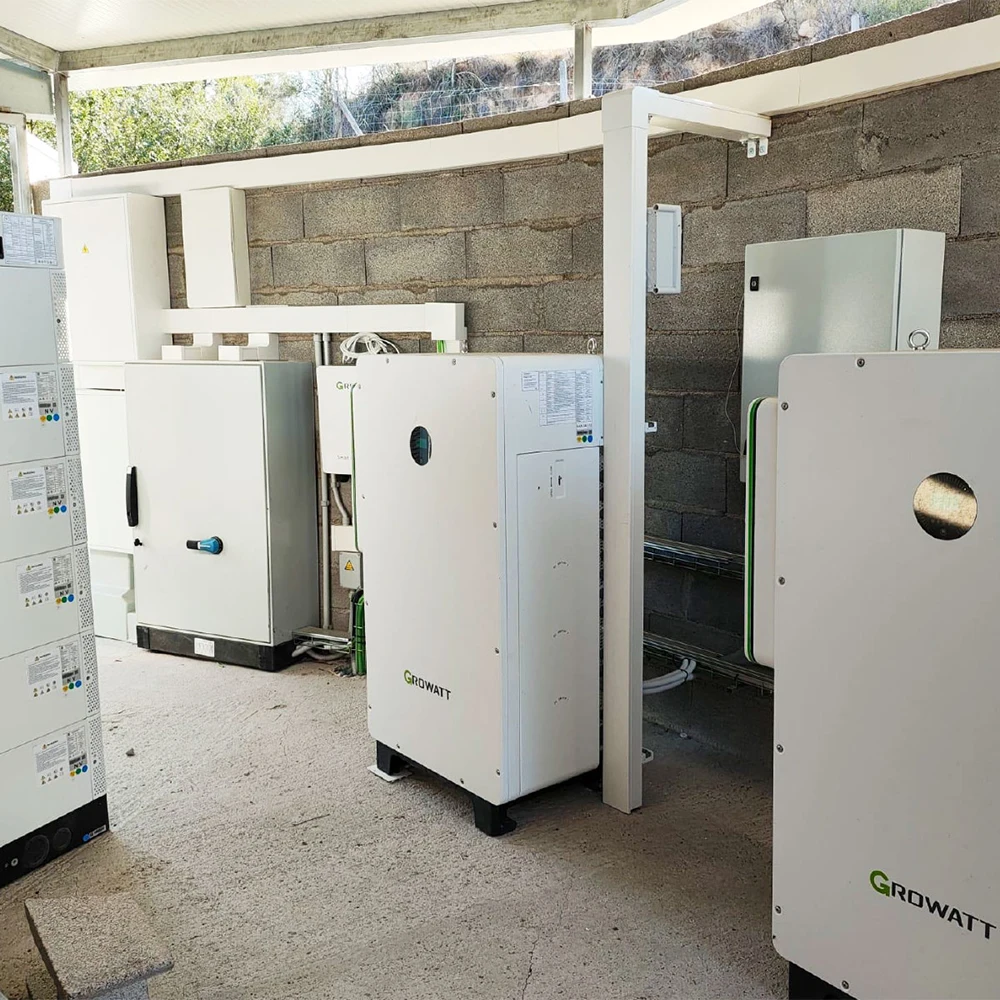

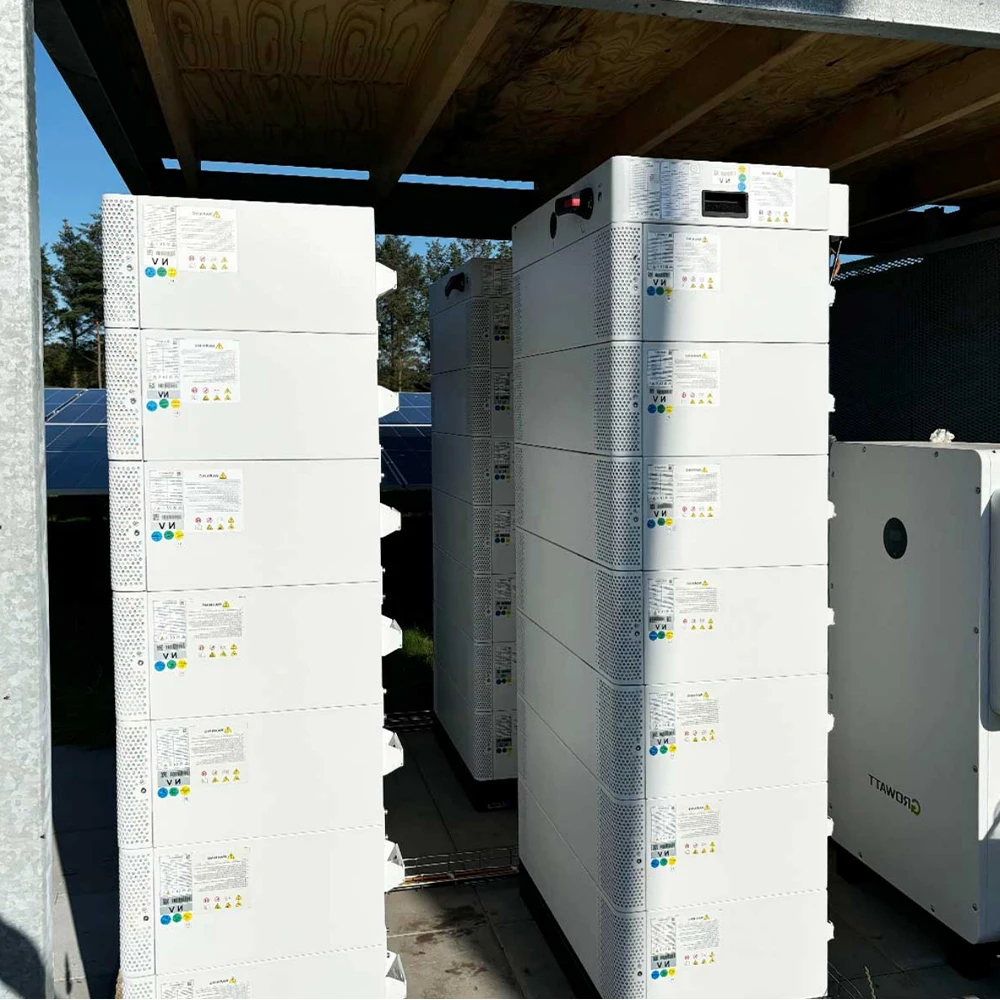

Project Case
A sunny day is certainly a happy day for this business in Perth, Western Australia as it’s now able to turn sunshine into ‘money’ to significantly reduce its electricity bills with its new investment in a 90kW rooftop solar plant. The project is completed by the team from Construct Perth. Way to go!
On the vast beautiful farm of Sup. Central, Brazil, a solar PV plant was installed by Demanda Energias Renováveis, helping to reduce electricity bills and make full use of the bright sunlight there. This solar energy system, having a capacity of 495 kW. Now with the whole system running, it will provide green energy for the farmer and help build a greener Brazil.
Product packaging
Certifications
Sunpal not only have set up the global service network, but also supports 7*24h remote service
Our hybrid inverter products are internationally tested and certified. All products are of high quality and competitive price, and we can also assist in certifying related products.
In addition to providing customers with standard energy storage inverter products, we offer customized solutions and OEM services.
About Us
Company overview
Established in 2008, Sunpal is an solar panel and lithium battery manufacturer, one stop solar system supplier. We focus on four application scenarios: residential energy storage, C&I energy storage, microgrid, and grid-side energy storage, providing customers with customized solutions, and ODM services. Our products have passed CGC, CE, TUV, UL, NRS certifications and the certifications in North America, the UK, Germany, Italy, Poland, Pakistan, South Africa, Australia, and other regions.
FAQ
Is Sunpal a trading company or factory?
Sunpal is a old brand for power and solar products since 1998. Sunpal 100% is factory, which mainly produce solar panel and lithium battery, and we have several brother factories for different products.Our main products covers: off grid/hybrid solar inverter, Pv module, Lithium battery and storage system. We can offer one stop shopping for solar system and related products.
How to get after-sales tech support?
If you meet any problems with Sunpal product(s), please refer to the user manual to check and confirmfirst if your operation and setting according to instructions. lf still can not solve your problem, please offer additional information below and send an email to Sunpal Support Team . Please remember it is very important you supply as much relevant information as possible, including:A clear photo of the S/N label(model name + serial number) Clear description of the problemRelevant details and frequency of theproblem (if applicable) Current condition of the product: can it DC start with battery? Any error code onscreen?Background information (lnverter): AC source (utility or generator)? battery capacity? approx load level and type? any solar input? Background information (Solar Charger): solar panel electrical specification? PV configuration? system voltage? supplemental photos/screenshot or videos relevant tothe issue Where the product was purchased Once sufficient data is gathered your case will be forwarded to our technical team for consult, and a solution will be provided to you as soon as possible. Please note our regular office hours
Похожие товары
Панель солнечных батарей для теплиц
0,11 $

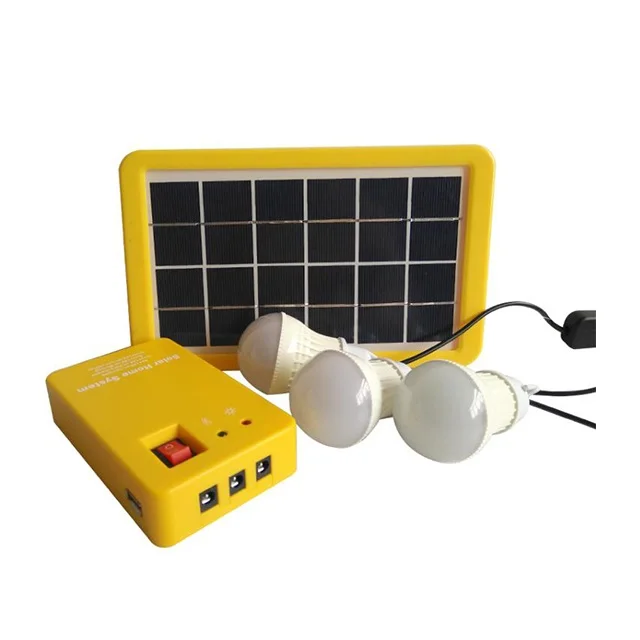

ESG портативный 3 2 V 7 6 4 5 W 6.5Ah аккумулятор мини-комплект генератора системы солнечной энергии
9,85-11,80 $
Новые продукты 20 шт. 10 6
0,35-0,80 $

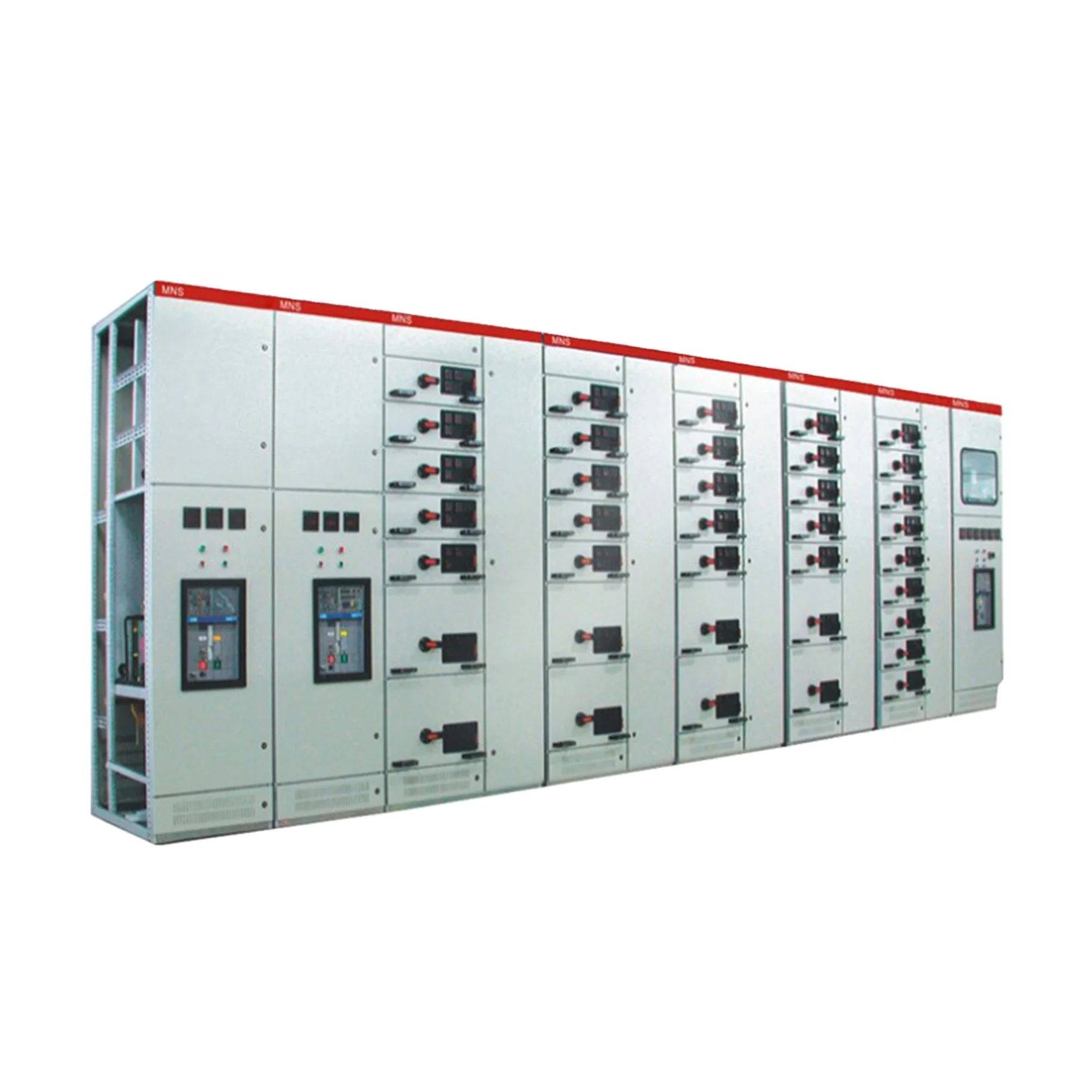

24kV шкаф распределительный механизм трехфазный промышленный электрический

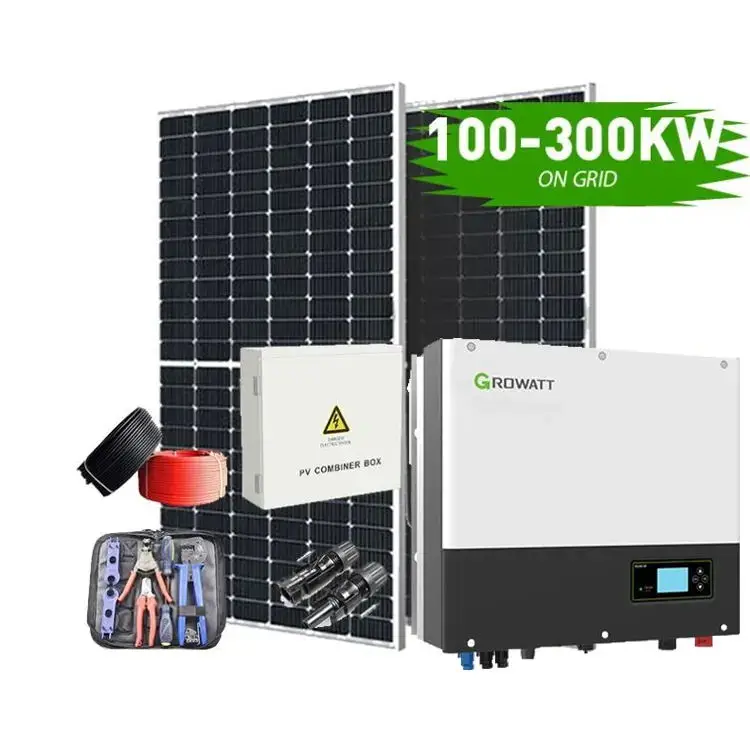

Солнечные энергетические системы 10 кВт для промышленности автономная солнечная энергетическая система 100 солнечные 30 полный комплект
0,25-0,30 $

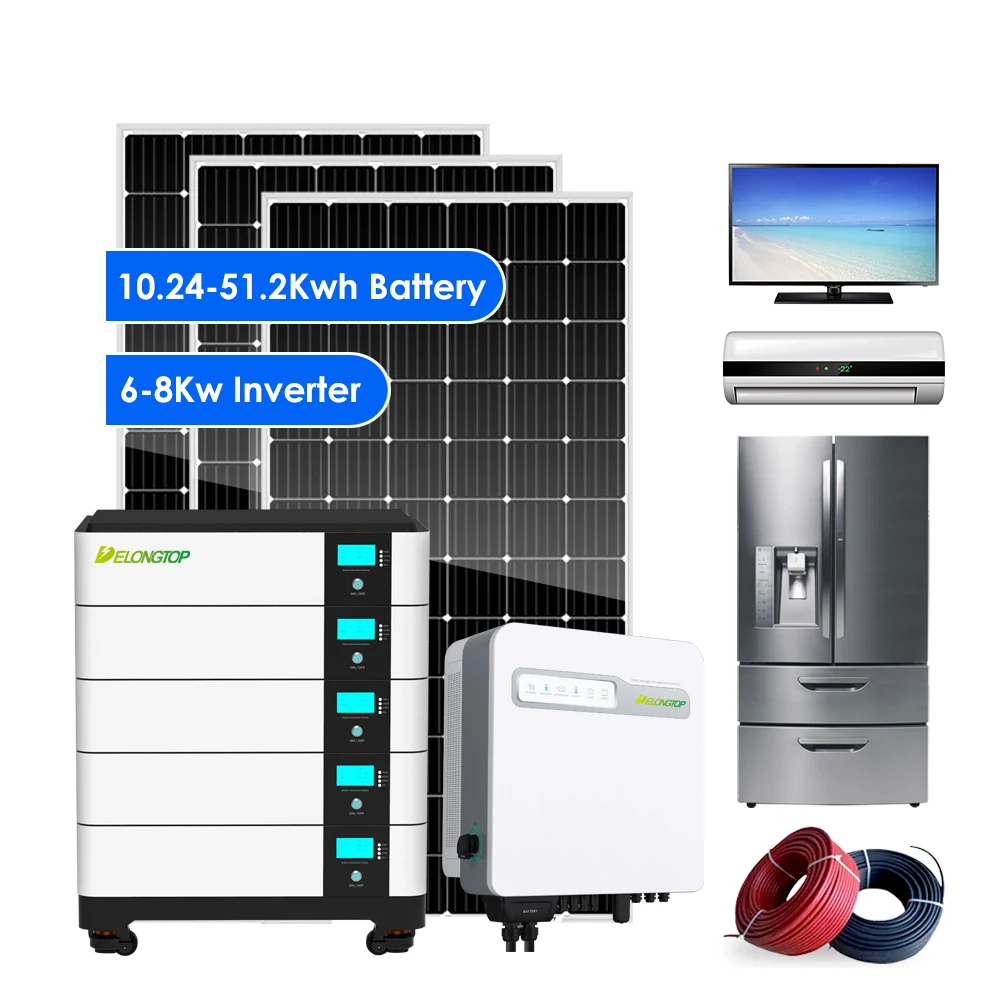

BMS 16s 48 В система резервного питания lifepo4 5 кВт 10 pv автономная солнечной энергии аккумуляторная батарея для домашнего использования
