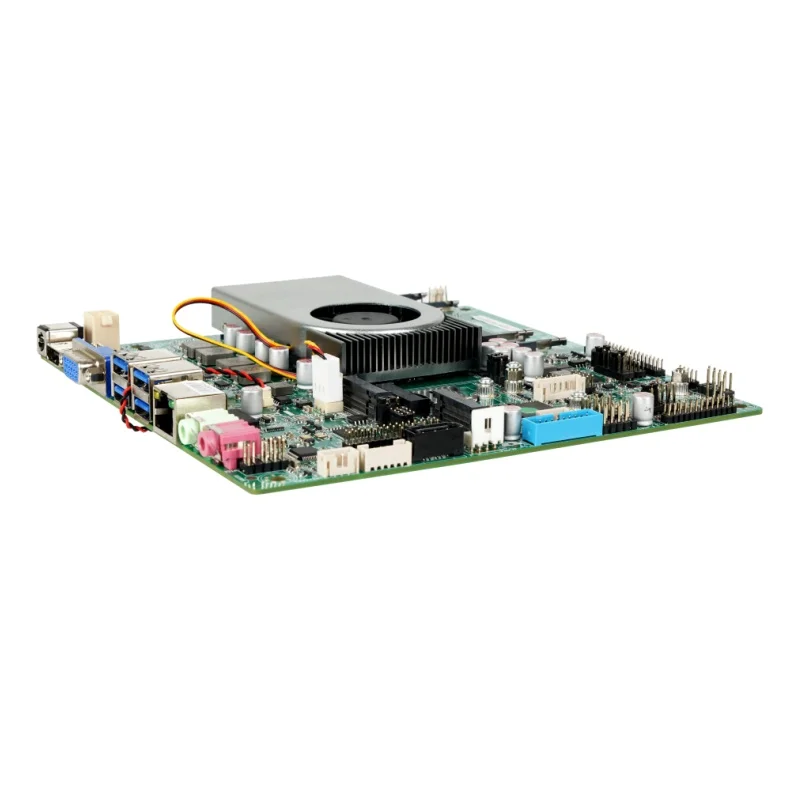

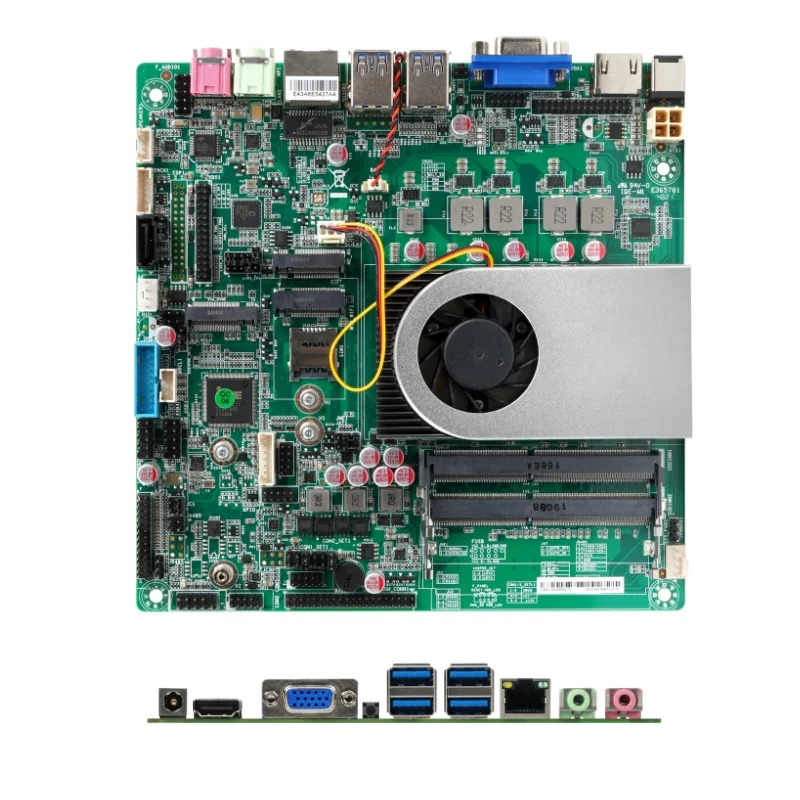

Трехлетняя гарантия Промышленная материнская плата mini itx Intel 10 го поколения I5 10210U 2 * SO DIMM DDR4 HD VGA LVDS/EDP три дисплея 6 COM
- Категория: >>>
- Поставщик: Shenzhen Caixun Intelligent Technology Co. Ltd.
Сохранить в закладки 1601282466824:
Описание и отзывы
Характеристики
Product Description
Specification
Motherboard size | -ITX 170mmX170 mm |
CPU | - Intel® 8th Gen Whiskeylake & 10th Gen Cometlake-U processors |
Memory | - Onboard 2 260Pin DDR4 SO-DIMM memory slots - Single memory supports up to 32GB |
Expansion slots | -Support 1*M.2 A Key ( support Wifi + Bluetooth module ) - 1* M.2 B Key (supports 3G/4G modules, 5G module is optional) |
storage | - 1* M.2 M Key supports NVME PCIeX4/SATA adaptive - 1*SATA |

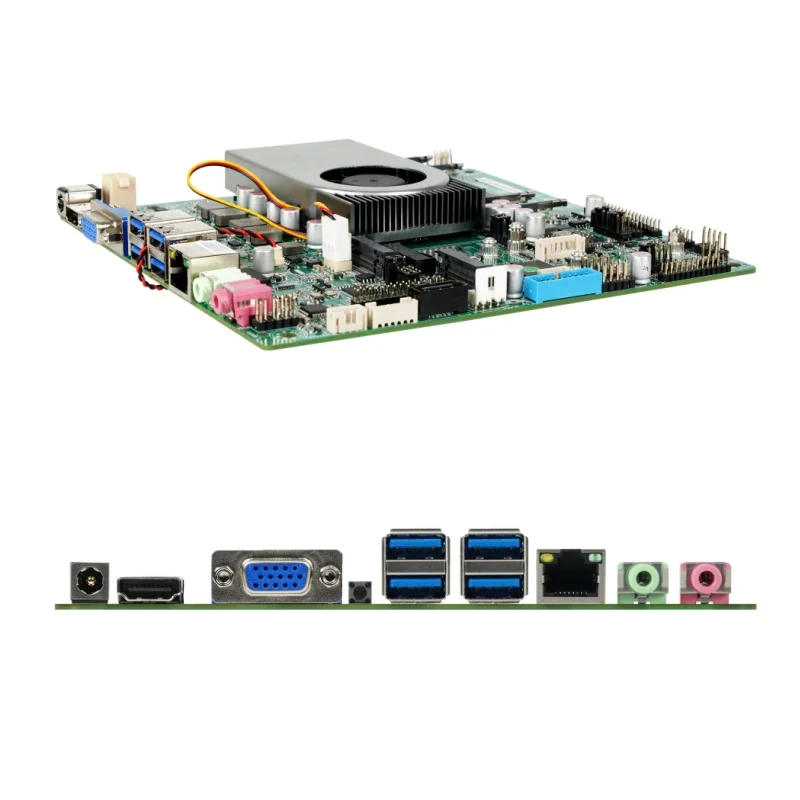

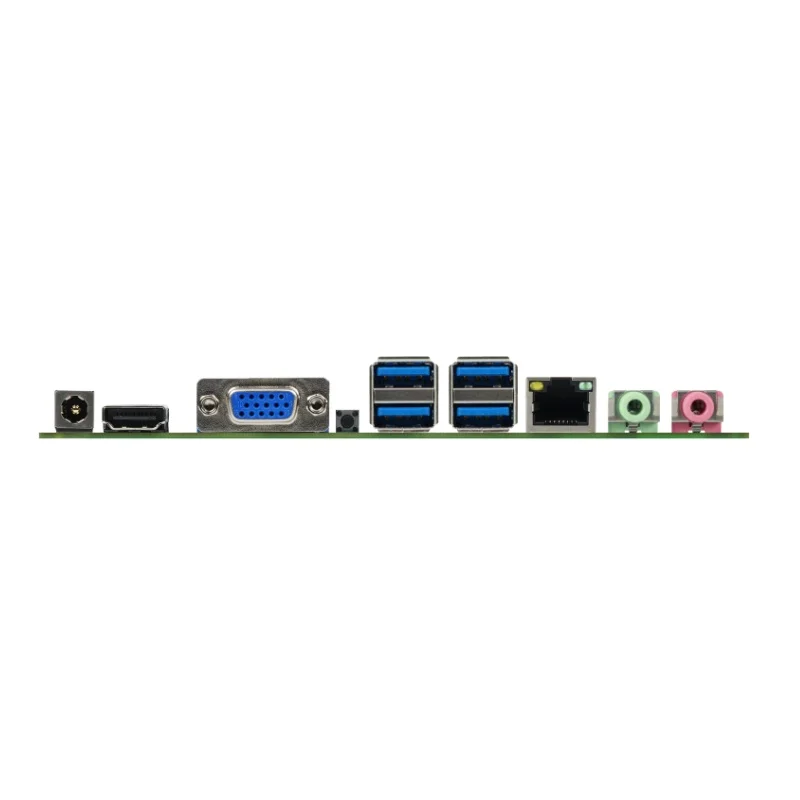

Backplane interface | - 1 x DC port - 1 x HDMI port - 1 x VGA port - 1 x CLR_CMOS button - 2 x USB3.2 Gen2 ports ( 10Gbps) - 2 x USB 3.2 Gen2 ports ( 10Gbps) - 1 x LAN port - 1 x HP_OUT port - 1 x MIC_IN port |
Built-in interface | - 1 x F-AUDIO pin - 1 x SP EAKER pin - 1 x INCN pin - 1 x SATA connector - 1 x SATA_PWR pin - 1 x LVDS/EDP1 pin (choose one of the two functions) - 1 x BKCL header - 1 x F_USB1 pin (can be expanded to 2 * USB3.2 Gen1 ) - 2 x F_USB 2.0 pins (can be expanded to 4*USB2.0 ) - 1 x PS2 pin - 1 x DEBUG pin - 1 x GPIO header - 1 x LPT pin - 1 x F_PANEL pin - 2 x COM pins (COM1 supports RS485 , optional COM2 supports RS485 / RS422 ) - 1 x COM_CONN pin - 1 x CFAN pin - 1 x SYS_FAN header - 1 x JVGA header - 1 x EDP2 pin (this pin has no function by default) - 1 x ATX _IN pin |
BIOS | - AMI BIOS |
Power Management | -Supports advanced power management ACPI -Supports network wake-up S3, S4, S5, supports power-on, etc. |
show | - Support three displays synchronous and asynchronous |
Backlight adjustment | Display configuration and backlight adjustment method: a. Display configuration : LVDS+HDMI+VGA Backlight adjustment mode: LVDS can support system /hardware adjustment, and the adjustment mode can be selected through the jumper cap. b. Display configuration: LVDS +EDP2+VGA (does not support EDP2 single display) Backlight adjustment method: LVDS can support system /hardware adjustment (selected by jumper); EDP2 is adjusted under the system . c. Display configuration: E DP1+EDP2+VGA (does not support E DP2 single display) Backlight adjustment method : E DP1 and E DP2 are adjusted synchronously under the system d. Display Configuration: E DP1+HDMI+VGA Backlight adjustment method : EDP1 is adjusted under the system. |
network | - 1 x Realtek 8111H/8111G Gigabit Ethernet |
Audio | - HS-100B audio decoding controller ; integrated amplifier 2.2W@4Ω max It is recommended that customers connect 3 W/ 4 Ω speakers , 1.2 W/ 8 Ω speakers or 1.5 W/ 8 Ω speakers. |
I/O Chip | -ITE878 6 EI |
powered by | - 4 PIN ATX / DC 12V power supply |
Work Environment | -Working temperature: 0 ℃ ~60 ℃ -Ambient humidity: 0%~95% |
operating system | Windows 10/ Windows 11 / Linux |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
FAQ
Q1. Can I get a sample for testing?
Re: Yes of course you can. After paid for sample cost and shipping, we will delivery it according to your request.
Q2. What's your MOQ?
Re: MOQ 1 set.
Q3. Can you provide OEM/ODM service? How much do I need to pay for your OEM service?
Re: Yes we can. The charges for OEM service depends on the different level of customize. the process of customization is
following:
1) provide your specific requirement.
2) our design engineer draw the design draft.
3) you confirm the design draft.
4) we start produce it.
Q4. Can you print my logo on the mini computer ?
Re: Yes, we can silkscreen logo on computer case, silkscreen logo need extra fee and laser logo is free(just have one color:white)
MOQ is 1 unit.
Q5. Can your device work 24h*7 days? And what about the temperature range it can operate in?
Re: Yes it can be working in 24h*7 days, working temperature range 0°C~50°C.
Q6. Can this computer support 2 monitors?
Re: Yes, it support 2 monitors display via 1 HDMI and 1 VGA.
Q7. What is the lead time of your products?
Re: Sample order within 1~3 business days . Bulk order within 3~15 business days ( depends on order qty) ,we will test the model
to insure the quality before shipping.
Q8. What payment method do you accept?
Re: We accept L/C,Paypal, Western Union, T/T,
Q9. How will you delivery the device to me?
Re: Via DHL /Fedex / UPS / EMS by default, or send it to you according to your request.
Q10.What's the warranty?
Re: 3 year warranty. After expired warranty and sent back to our company, we will still try our best to repair for you without
repair cost (except change new accessories).
Re: Yes of course you can. After paid for sample cost and shipping, we will delivery it according to your request.
Q2. What's your MOQ?
Re: MOQ 1 set.
Q3. Can you provide OEM/ODM service? How much do I need to pay for your OEM service?
Re: Yes we can. The charges for OEM service depends on the different level of customize. the process of customization is
following:
1) provide your specific requirement.
2) our design engineer draw the design draft.
3) you confirm the design draft.
4) we start produce it.
Q4. Can you print my logo on the mini computer ?
Re: Yes, we can silkscreen logo on computer case, silkscreen logo need extra fee and laser logo is free(just have one color:white)
MOQ is 1 unit.
Q5. Can your device work 24h*7 days? And what about the temperature range it can operate in?
Re: Yes it can be working in 24h*7 days, working temperature range 0°C~50°C.
Q6. Can this computer support 2 monitors?
Re: Yes, it support 2 monitors display via 1 HDMI and 1 VGA.
Q7. What is the lead time of your products?
Re: Sample order within 1~3 business days . Bulk order within 3~15 business days ( depends on order qty) ,we will test the model
to insure the quality before shipping.
Q8. What payment method do you accept?
Re: We accept L/C,Paypal, Western Union, T/T,
Q9. How will you delivery the device to me?
Re: Via DHL /Fedex / UPS / EMS by default, or send it to you according to your request.
Q10.What's the warranty?
Re: 3 year warranty. After expired warranty and sent back to our company, we will still try our best to repair for you without
repair cost (except change new accessories).
Похожие товары

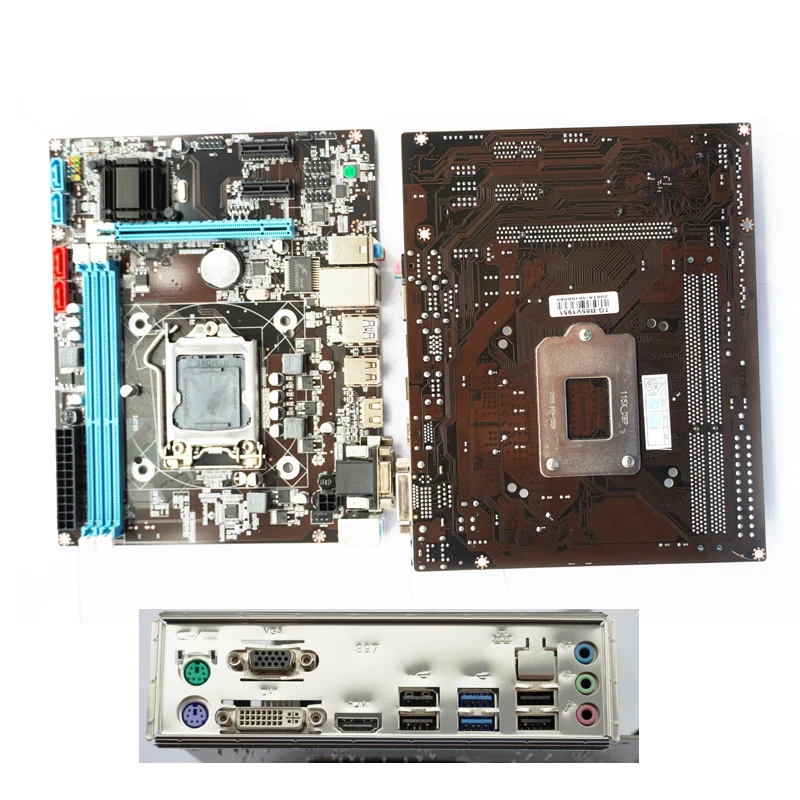

Китайский завод прямых продаж H110 мини itx материнская плата LGA 1151 разъем ddr4 слот Поддержка i3 i5 i7
Компьютер на любом транспортном средстве напрямую с фабрики Hm65 настольный компьютер материнская плата I3 I5 I7 2018
16 8 см X 21 материнская плата для asus h81m-a 1150 ddr3 h81 система
Красочные lga 1150 V2.0 h81 pro btc добыча eth Intel Core материнская плата
Заводская цена Новые поступления socket 1150 b85 plus материнская плата

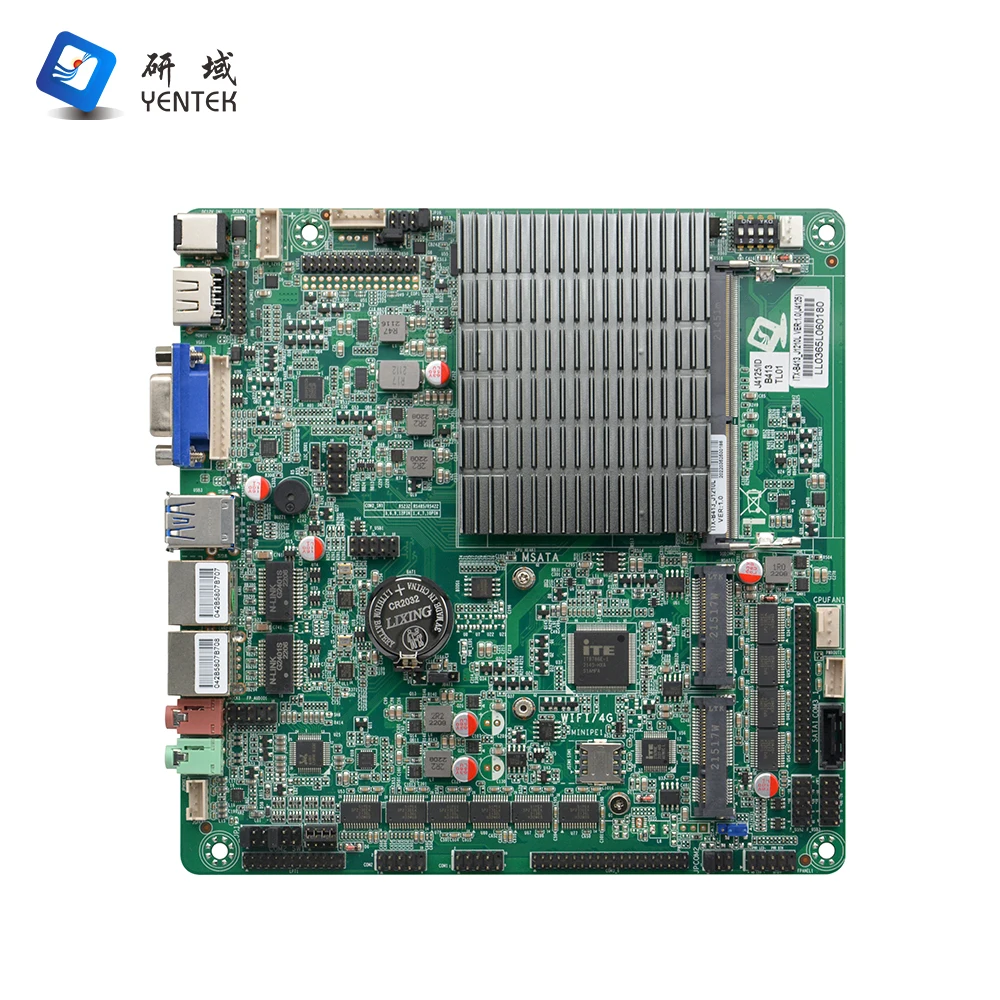

Материнская плата с процессором Intel Celeron J4125 четырехъядерный процессор DDR4 VGA HD LVDS 2 LAN 10 RS232 COM Встроенная mini itx

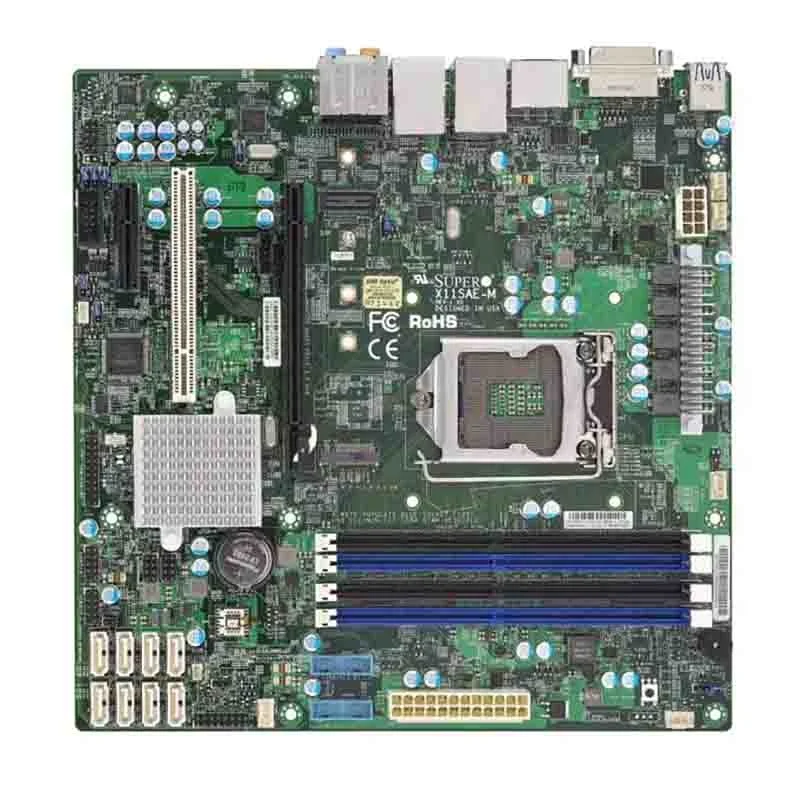

Оригинальная новая Серверная материнская плата для SUPERMICRO X11SAE-M
