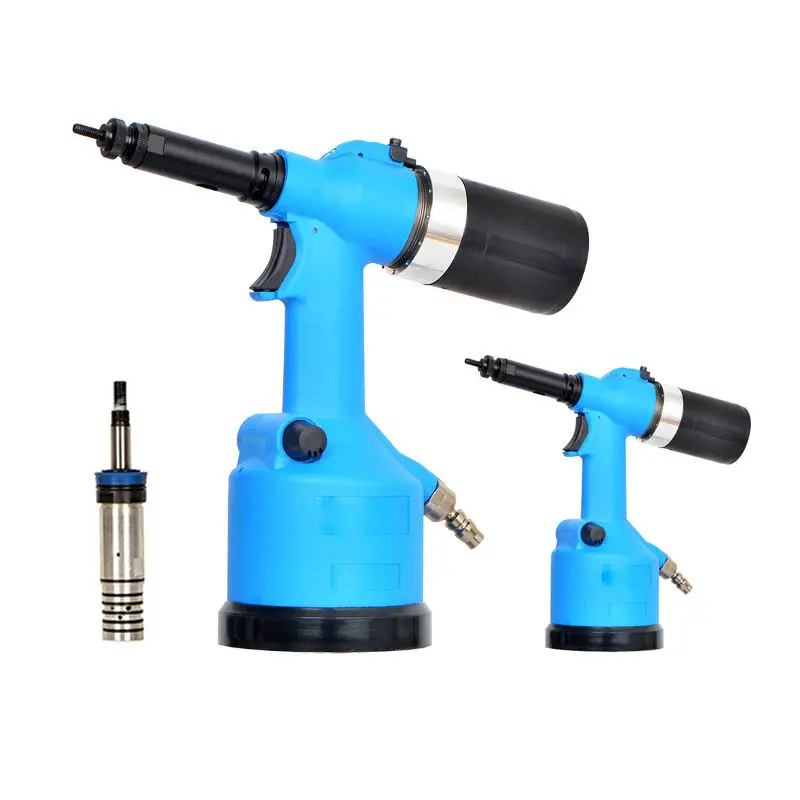

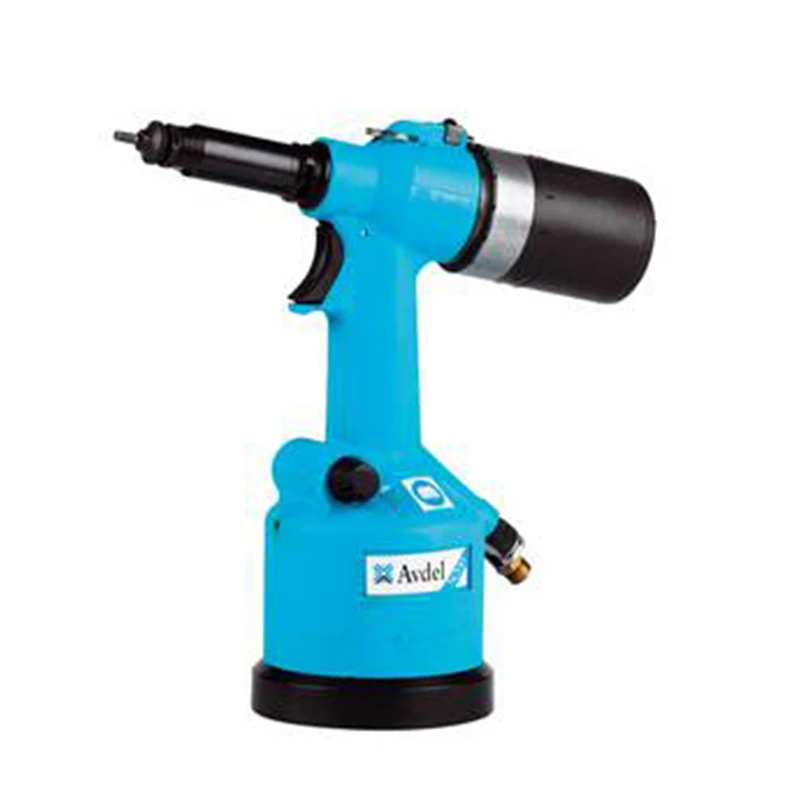

Пневматический пневматический пистолет
101,82-169,69 ₽
Новый высококачественный пневматический заклепки из нержавеющей стали 2 4 мм/3 мм/4 0 8 мм
- Категория: >>>
- Поставщик: Suzhou Rivmate Import & Export Co. ltd.Suzhou ltd.
Сохранить в закладки 1601282489006:
Описание и отзывы
Характеристики
Products Description
Versatile Riveting, One Tool for All!

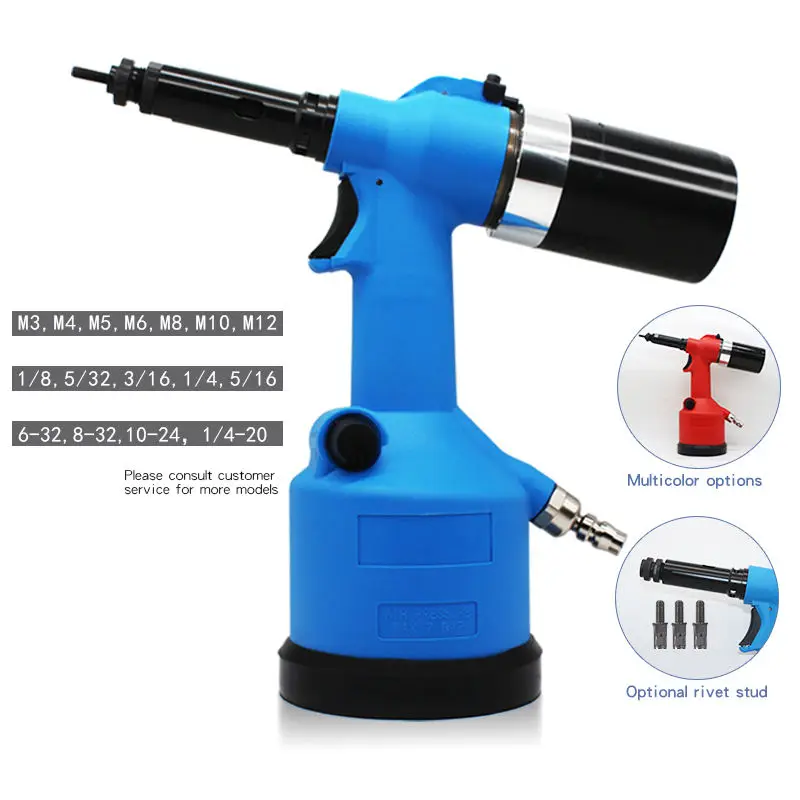

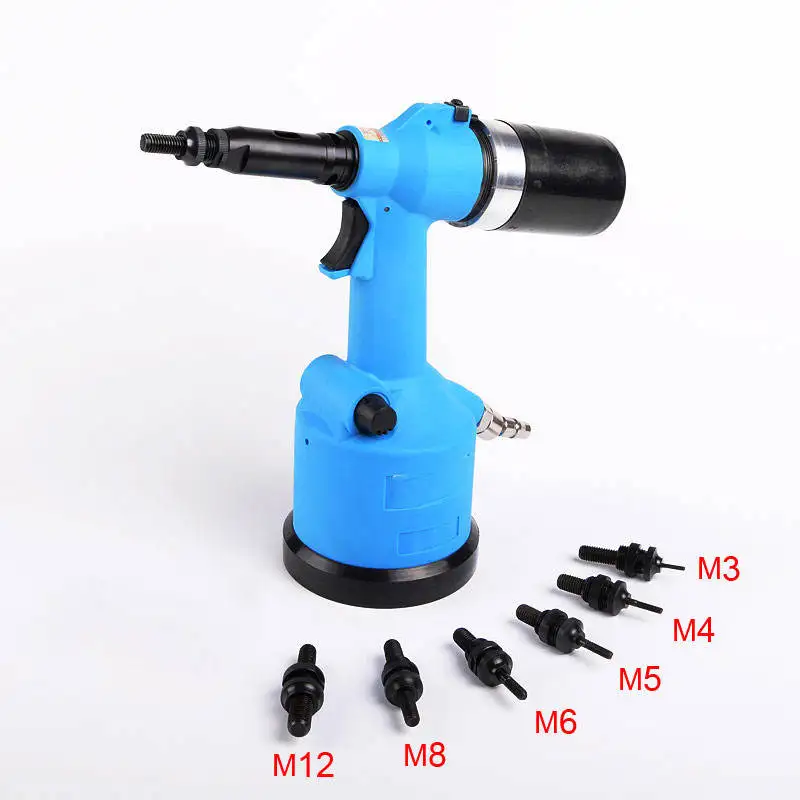

Facing diverse riveting tasks, our pneumatic air riveter comes with 13 different heads, catering to M3-M12 and various imperial sizes. Whether it's thin sheets or thick pipes, it handles them all with ease.
With an impressive pulling force, our heavy duty air hydraulic rivet gun excels in the repair and assembly of large equipment such as automobiles and ships, effortlessly managing high-strength operations.
The 3000rpm high-speed motor significantly enhances riveting speed and work efficiency. The quick-release air valve design allows the cylinder to return rapidly, enabling continuous high-speed riveting operations, saving your valuable time.
While ensuring work efficiency, our low-noise hydraulic air rivet tool kit allows you to work in a comfortable environment,reducing noise interference, protecting your hearing health, and helping you focus more on your tasks.
Advantage:
1, One tool to complete the work of nuts from #6-32, #8-32, #10-24, 1/4-20, 5/16-18, 3/8-16, 1/2-13, 7 sizes nuts. Nuts including stainless steel, steel, aluminum, copper and other materials can be applied.
2. Fully automatic tool, from installing the nut, to pulling the nut, and pushing out, only one key is needed.
3. Very durable, the nut can be pulled more than 1.8 million times in its entire life. (excluding wear parts)
4. If you are a professional and need to deal with all kinds of heavy-duty work, you need one.
Tips:

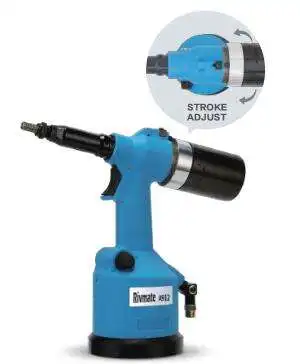

1. It's best to do some testing on scrap to adjust the stroke to get the desired nuts result. Start with a short stroke setting
and work your way up until the nut is properly tightened. When the nut pull stroke is set too long, you may strip the threads on the mandrel.
2. The direction of pulling the nut should be perpendicular to the plate, so as not to damage the pull rod and get a good pulling nut effect.
Note:
1. During replays nose-piece, for safety, be sure to turn off the air source first .
2. After installing the gun head, please test the air pressure and tools to be normal before starting the formal operation.
Safety User Guide：
In order to enable you to use this tool correctly and not to be harmed at work, please read the following items carefully and
strictly implement them before use.
1. The maximum air pressure used cannot exceed 7bar, or the maximum pressure required in the instructions.
2. When not in use, changing tool accessories or performing maintenance, please turn off the air source and disconnect the tool from the air source connector.
3. When operating the tool, do not wear gloves, shin guards, or loose clothing, and keep a certain distance from the body and the tool.
4. Do not directly touch the rotating shaft to avoid injury to your hands or other parts of the body by tools. Wear gloves to
protect your hands during operation.
5. Non-professionals cannot modify the tool structure by themselves, or replace parts from other manufacturers.
6. Do not leave excessively long gas lines in walkways or work areas, which could cause staff to trip and slip.
1, One tool to complete the work of nuts from #6-32, #8-32, #10-24, 1/4-20, 5/16-18, 3/8-16, 1/2-13, 7 sizes nuts. Nuts including stainless steel, steel, aluminum, copper and other materials can be applied.
2. Fully automatic tool, from installing the nut, to pulling the nut, and pushing out, only one key is needed.
3. Very durable, the nut can be pulled more than 1.8 million times in its entire life. (excluding wear parts)
4. If you are a professional and need to deal with all kinds of heavy-duty work, you need one.
Tips:
1. It's best to do some testing on scrap to adjust the stroke to get the desired nuts result. Start with a short stroke setting
and work your way up until the nut is properly tightened. When the nut pull stroke is set too long, you may strip the threads on the mandrel.
2. The direction of pulling the nut should be perpendicular to the plate, so as not to damage the pull rod and get a good pulling nut effect.
Note:
1. During replays nose-piece, for safety, be sure to turn off the air source first .
2. After installing the gun head, please test the air pressure and tools to be normal before starting the formal operation.
Safety User Guide：
In order to enable you to use this tool correctly and not to be harmed at work, please read the following items carefully and
strictly implement them before use.
1. The maximum air pressure used cannot exceed 7bar, or the maximum pressure required in the instructions.
2. When not in use, changing tool accessories or performing maintenance, please turn off the air source and disconnect the tool from the air source connector.
3. When operating the tool, do not wear gloves, shin guards, or loose clothing, and keep a certain distance from the body and the tool.
4. Do not directly touch the rotating shaft to avoid injury to your hands or other parts of the body by tools. Wear gloves to
protect your hands during operation.
5. Non-professionals cannot modify the tool structure by themselves, or replace parts from other manufacturers.
6. Do not leave excessively long gas lines in walkways or work areas, which could cause staff to trip and slip.
Specification

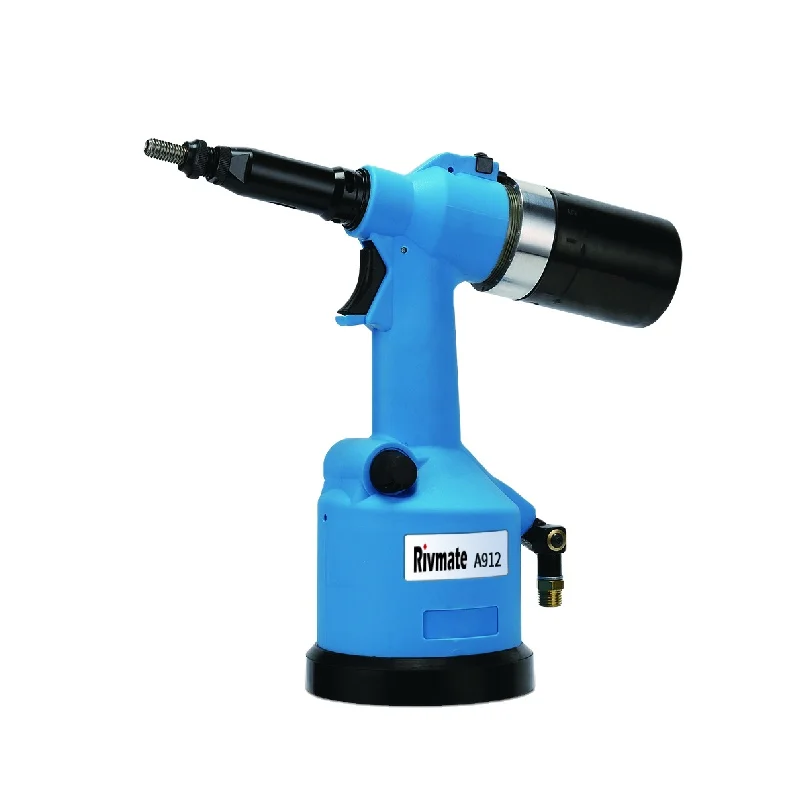

Name | Pneumatic Rivet nut tool |
Pull Force | >19.1KN |
Stroke | 7mm |
Standard Pressure | 0.55MPA |
Used/Air Pressure | 0.5-0.7 MPa |
Air Consumption | 4.6 liters |
Motor Speed | 200 RPM |
Vibration | 2.5m/s² |
Noise Level | <75dB(A) |
Weight | 2.2kg |
(L*H*W*)Size | 280 x 250 x 115cm |
Rivet Nut Material | All Materials |
Rivet Nut Specification | M3-M12(1/8''-1/2'') |
Recommend Products
Packing & Delivery
Company Profile
Jiangsu Washen Fastener Manufacture Co., Ltd is a High-Tech fastener factory that supplies rivets & solutions to Automobile, Mid/High Voltage Cabinets and Home Appliance industries. We have introduced 85 sets imported multi-station machines and 6 sets laser selecting machines。 Our factory manufactures 400 million pieces of structural rivets and automobile blind rivets ,1 billion standard blind rivets annually now.
Our Laboratory is equipped with Measuring Projector, Tensile & Shear Machines, Hardness Testing Set ,Vision Measuring System, Destructive Testing Machine, Profilometer, Thickness Testing Machine and Salt Spray Testing Machine so that we can meet the automobile industry, electrical cabinet industry’s strict requirement by providing fast & accurate testing data. We choose top-ranking domestic suppliers as partners, from material selecting, manufacturing, till shipment are all strictly monitored and recorded according to IATF 16949:2016 management system. We follow ISO, DIN7337, IFI114, HUCK and Avdel standard, and also we candesign and produce according to customer requirement.
Certifications
FAQ
1. When is the delivery time?
Delivery will occur between 15 and 20 days from order date. Faster delivery time can be arranged if
needed.
needed.
2. Do you have any MOQ limit?
Yes it depends on the products’ size and production process.
3. What’s your payment method?
Paypal, T/T, L/C, Western Unions, are available.
Paypal, T/T, L/C, Western Unions, are available.
Похожие товары

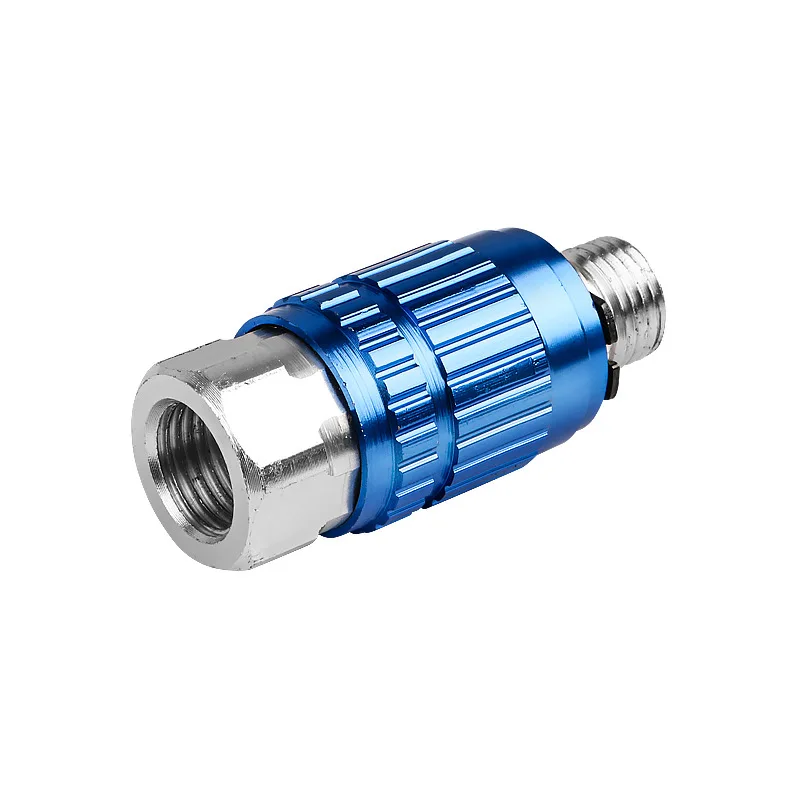

Профессиональный воздушный фильтр регулятор распылитель аксессуары
147,07-169,69 ₽
AVDEL 74200 пневматическая гайковерт
215 051,77-238 921,27 ₽
Прямая Продажа с завода небольшой пневматический пистолет пневматические инструменты большой набор динамометрических ключей
9 955,06-11 199,44 ₽
Профессиональный пневматический молоток
Инструмент для заклепок Hemlock 4 8-6 мм Гидравлический пневматический клепальник
21 949,77-33 769,13 ₽

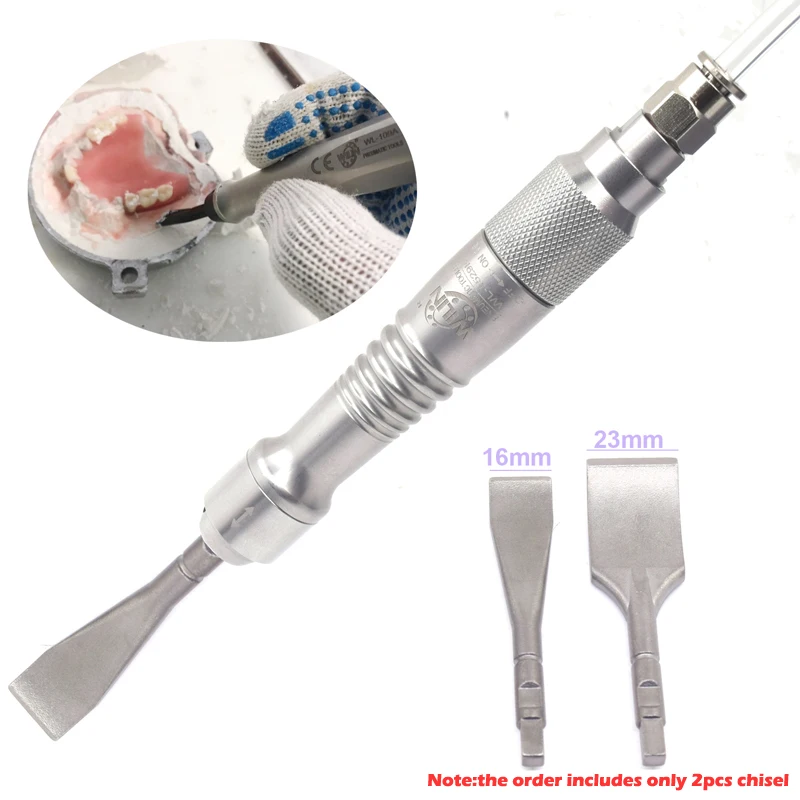

Пневматический нож из нержавеющей стали
