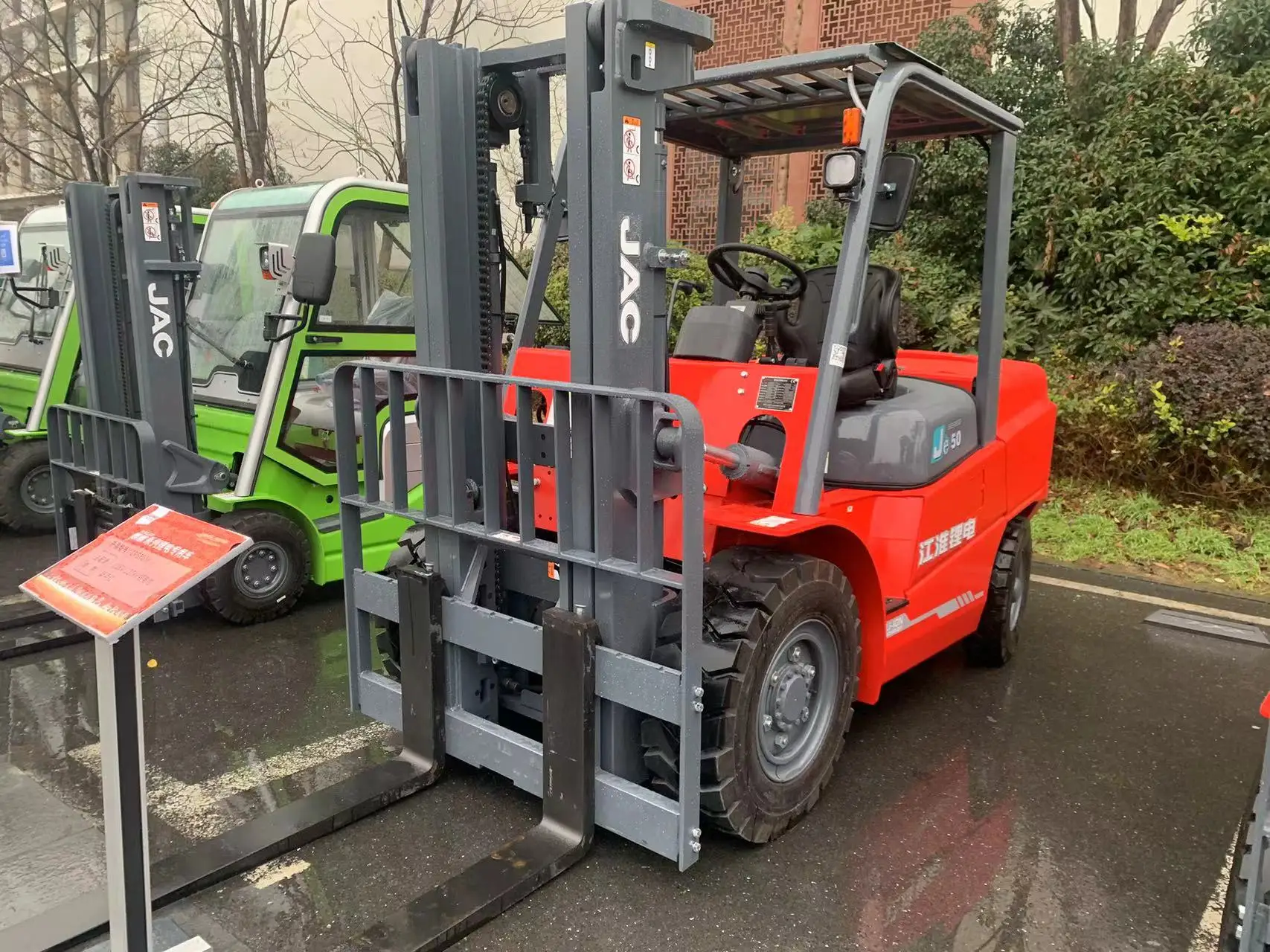

Вилочный Погрузчик Электрический 5 тонн 3 тонное подъемное оборудование с 4500 мм 3 ступенчатой свободной подъемной мачтой и вилкой длиной 1220
- Категория: >>>
- Поставщик: Hebei Fanbang Mechanical Equipment Sales Co. Ltd.
Сохранить в закладки 1601282835630:
Описание и отзывы
Характеристики
Product Description
We are professional in forklift
Low center of gravity counterweight, stability reaches 1.53;
The length of the forklift is reduced by 50-85mm, and the turning radius is smaller.
The ground clearance is increased to 170mm for better passability
The combination of large-angle integrally cast steering axle, tapered roller bearings and large tires is suitable for high-intensity working conditions.
AC asynchronous aluminum shell motor, heat dissipation performance improved by 10%;
Large speed ratio reduction gearbox, the driving speed is increased by 15%, the full load lifting speed is increased by 6%, and the gradeability is 15%.
All series are equipped with battery heating as standard, making it worry-free to use in cold weather
The standard dual pedals are more in line with traditional driving habits.
Specification
CPD20 | CPD25 | CPD30 | CPD35 | ||
Power type | lithium battery | lithium battery | lithium battery | lithium battery | |
Rated load | kg | 2000 | 2500 | 3000 | 3500 |
Lifting height | mm | 3000-6000 | 3000-6000 | 3000-6000 | 3000-6000 |
Fork size | mm | 1070×125×45 | 1070×125×45 | 1220×125×45 | 1070×125×45 |
Min turning radius | mm | 2500 | 2500 | 2680 | 2680 |
Min right angle stacking channel width | mm | 3965 | 3965 | 4150 | 4150 |
Min right angle channel width | mm | 2700 | 2700 | 2880 | 2880 |
Height of roof protection frame | mm | 2060 | 2060 | 2090 | 2090 |
Seat to roof frame height | mm | 1010 | 1010 | 1010 | 1010 |
overall length（No fork） | mm | 2540 | 2540 | 2709 | 2724 |
Full width | mm | 1160 | 1160 | 1210 | 1210 |
Standard gantry height | mm | 1995 | 1995 | 2075 | 2075 |
tyre（front wheel） | 7.00-12-12PR | 7.00-12-12PR | 28×9-15-14PR | 28×9-15-14PR | |
tyre（rear wheel） | 6.00-9-10PR | 6.00-9-10PR | 6.50-10-10PR | 6.50-10-10PR | |
self weight | kg | 3360 | 3730 | 4360 | 4760 |
lithium battery | Voltage | 80/115/156V | 80/115/156V | 80/115/156V | 80/115/156V |
lithium battery | battery capacity | 150AH-350AH | 150AH-350AH | 230AH-350AH | 230AH-350AH |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile

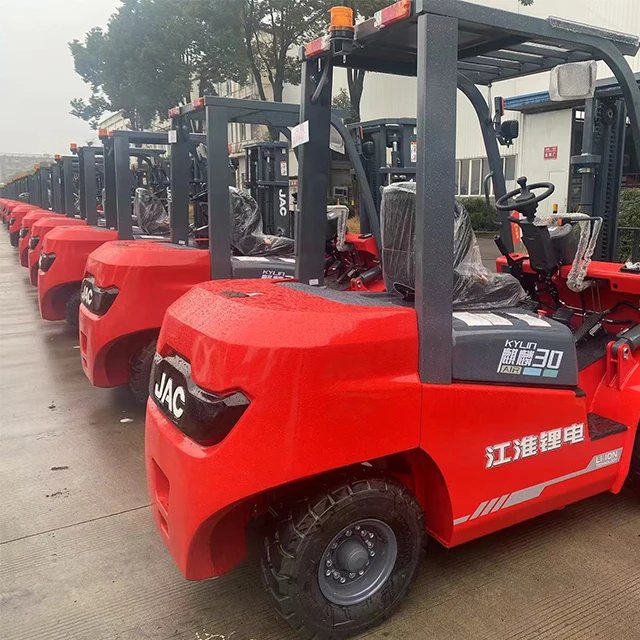

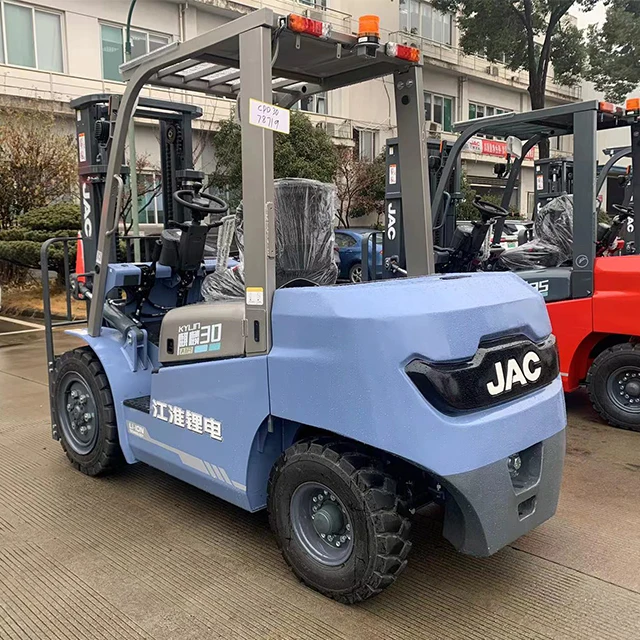

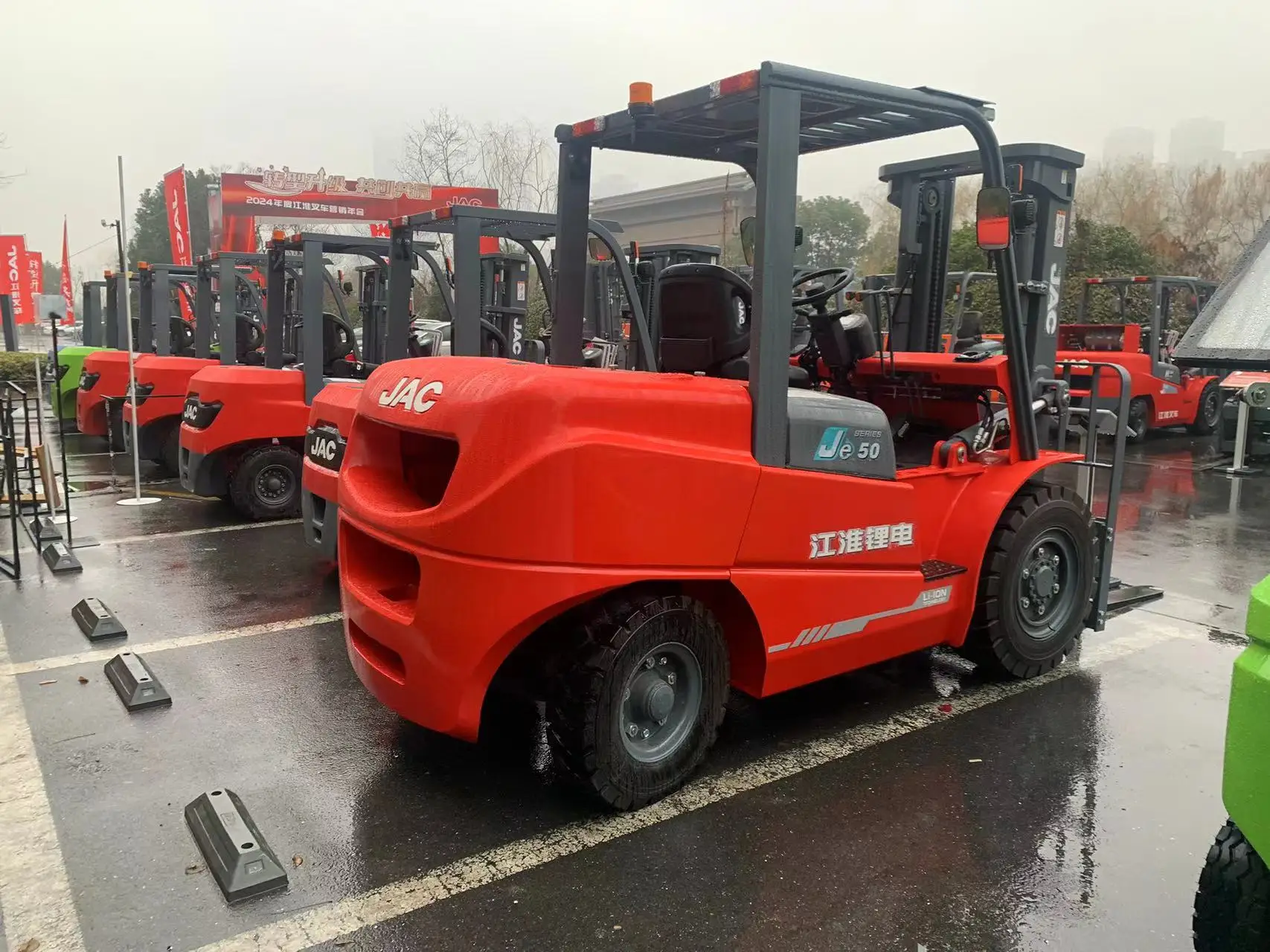

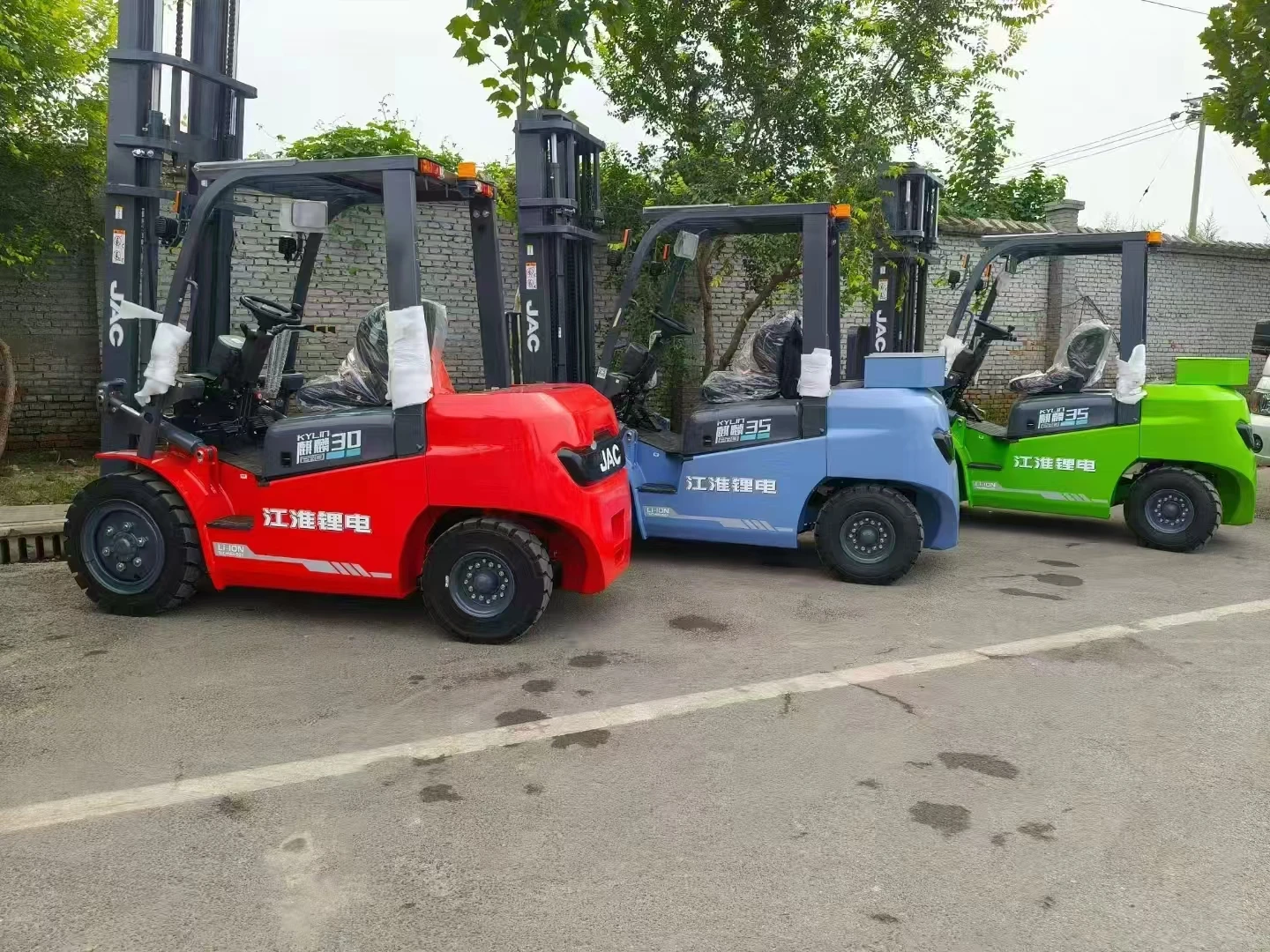

Customer Photos
Five year old customers have been using JAC.\\uD83D\\uDC4D
FAQ
1.What Certificate do you have?
All of our products with CE certificate. Some of our products meets the EPA requirements.
2.How long is the warranty of your products?
1 year or 2000 hours for the whole vehicle. Battery 5 years or 10000 hours from the date of B/L, which comes first.
3. What payment terms do you accept?
Normally 30% T/T in advance as deposit, balance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.
4.Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 10 days.
5.What can I get from cooperating ?
a. Unique products, with customized service, meet CE standard.
b. Timely production and delivery, time is money.
c. You can check the production progress on line at any time. We also provide you a loading video before shipment.
6.Can you customize and design as the clients' requirement?
We will try its best to meet all kinds of clients' special requirements. However, All the customizing and refit should be
implemented safely and scientifically.The colors can be painted as client's need.
All of our products with CE certificate. Some of our products meets the EPA requirements.
2.How long is the warranty of your products?
1 year or 2000 hours for the whole vehicle. Battery 5 years or 10000 hours from the date of B/L, which comes first.
3. What payment terms do you accept?
Normally 30% T/T in advance as deposit, balance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.
4.Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 10 days.
5.What can I get from cooperating ?
a. Unique products, with customized service, meet CE standard.
b. Timely production and delivery, time is money.
c. You can check the production progress on line at any time. We also provide you a loading video before shipment.
6.Can you customize and design as the clients' requirement?
We will try its best to meet all kinds of clients' special requirements. However, All the customizing and refit should be
implemented safely and scientifically.The colors can be painted as client's need.
Похожие товары
Шины P99.Aboluo 500-8
5 179,94 ₽ - 6 722,89 ₽
Шины P96.Aboluo 500-8
5 179,94 ₽ - 6 722,89 ₽

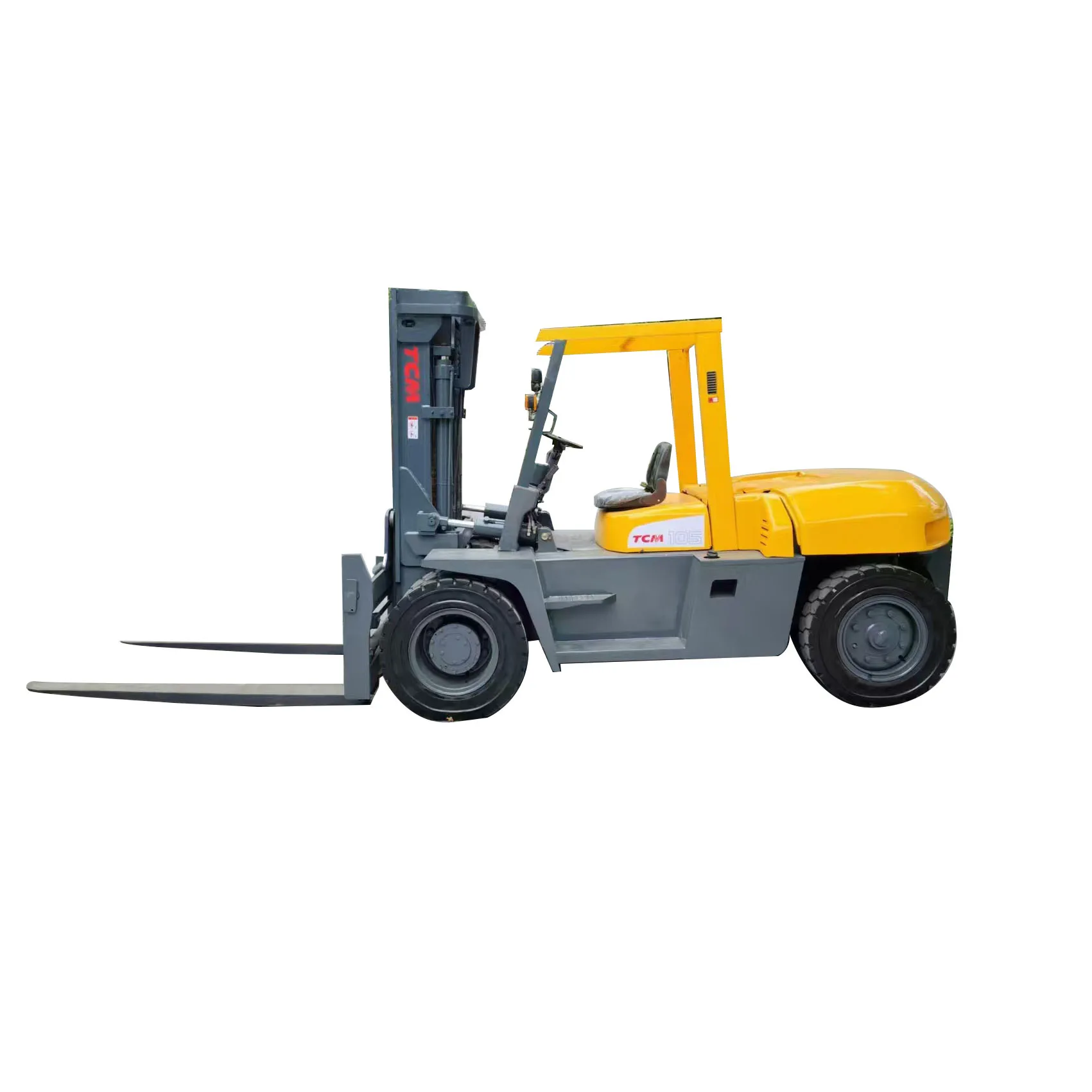

Высококачественный дизельный вилочный погрузчик Tcm 10 5 Тонн Подержанный оригинальный Fd105 с двигателем Isuzu и вилочным позиционером
991 901,70 ₽ - 1 102 113,00 ₽

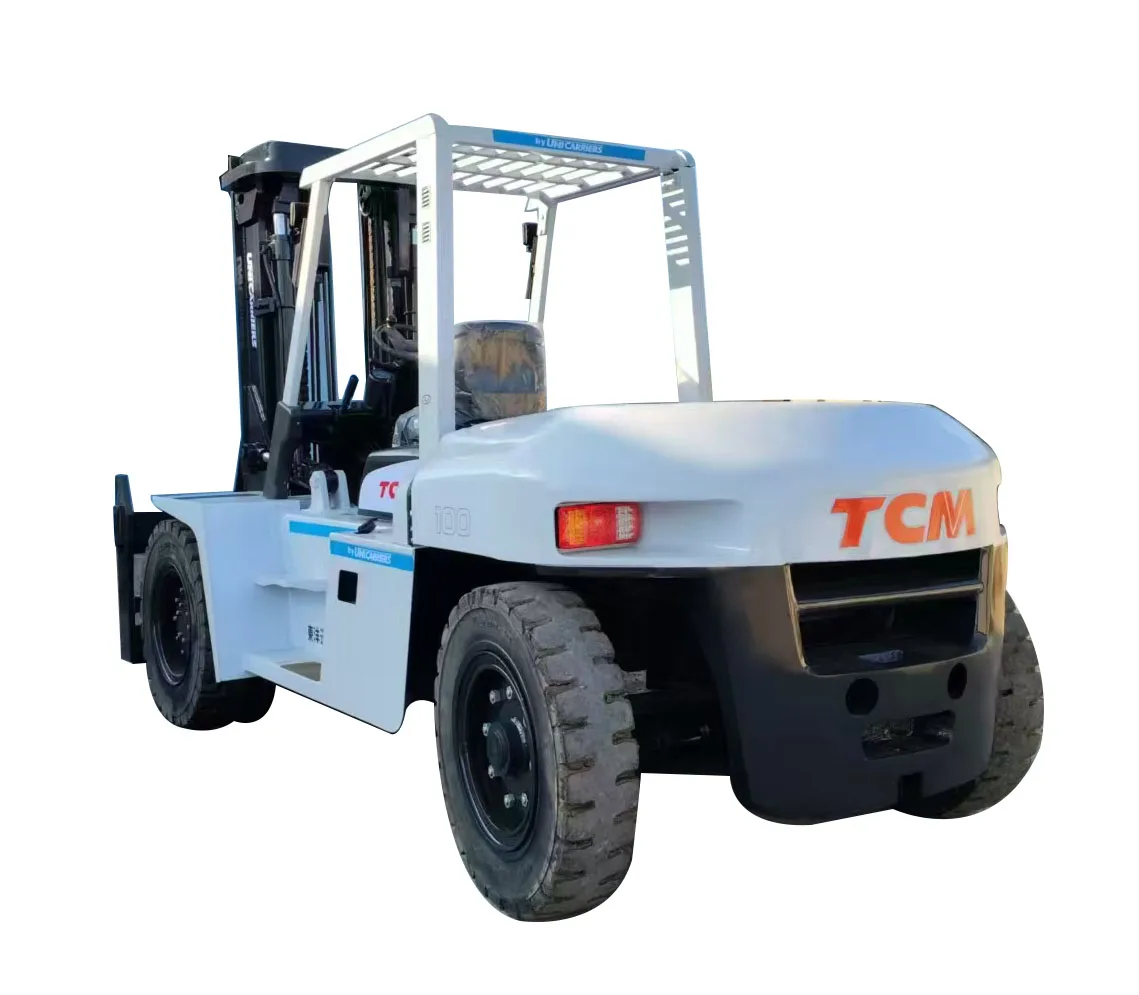

Мощный дизельный вилочный погрузчик Tcm 10 тонн с вилочным позиционером Подержанный Fd100 Komatsu Toyota Heli 3ton вилочные погрузчики
936 796,05 ₽ - 1 047 007,35 ₽
HELI вилочный погрузчик 2 5 3 4 7 8 тонн низкая цена небольшой montacargas Китай дизельный хорошего качества
793 521,36 ₽ - 804 542,49 ₽

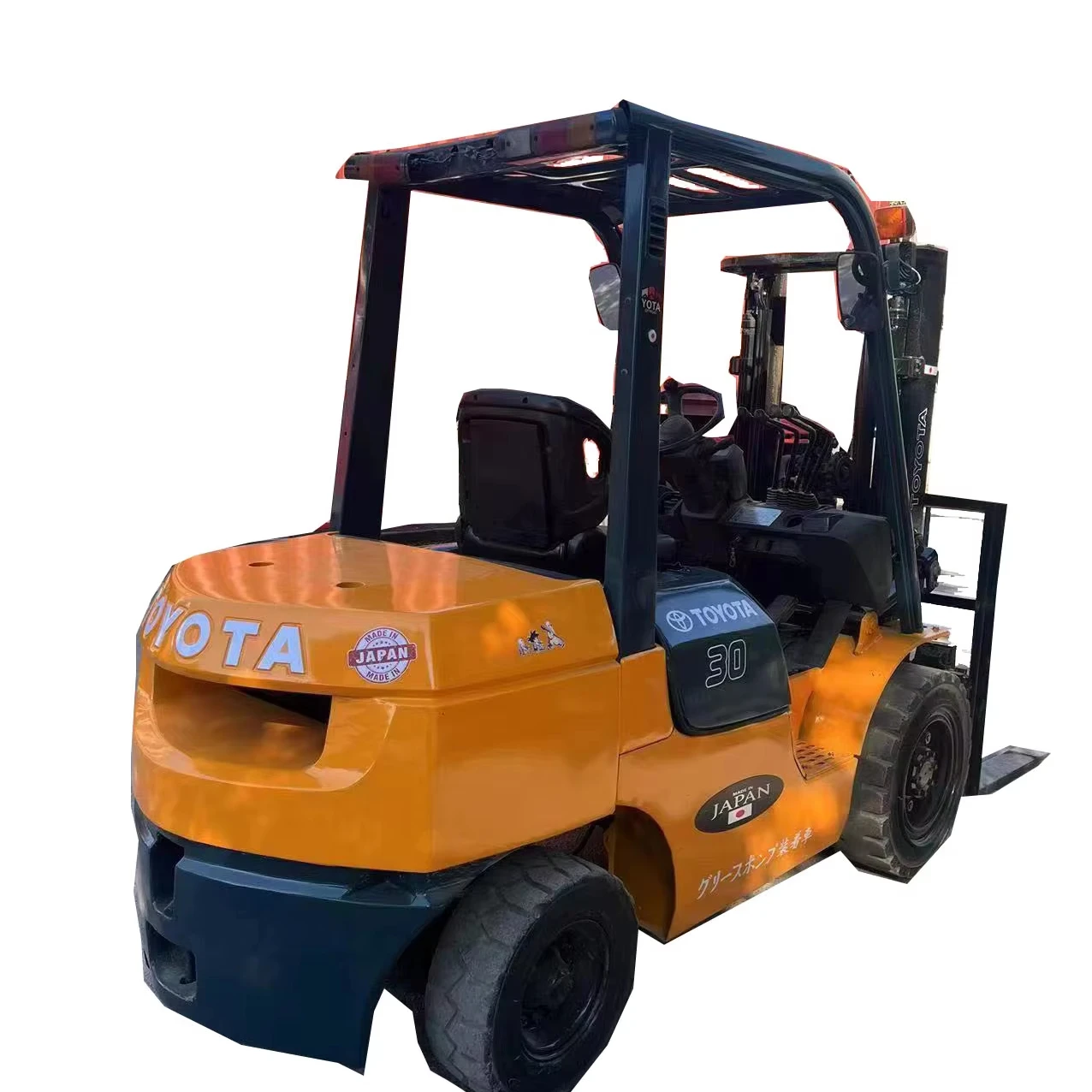

Высокое качество 4 колеса 3 м TOYOTA 3-тонный сервисный тормоз заводская цена дизельный боковой переключатель вилочный погрузчик для продажи
220 422,60 ₽ - 275 528,25 ₽

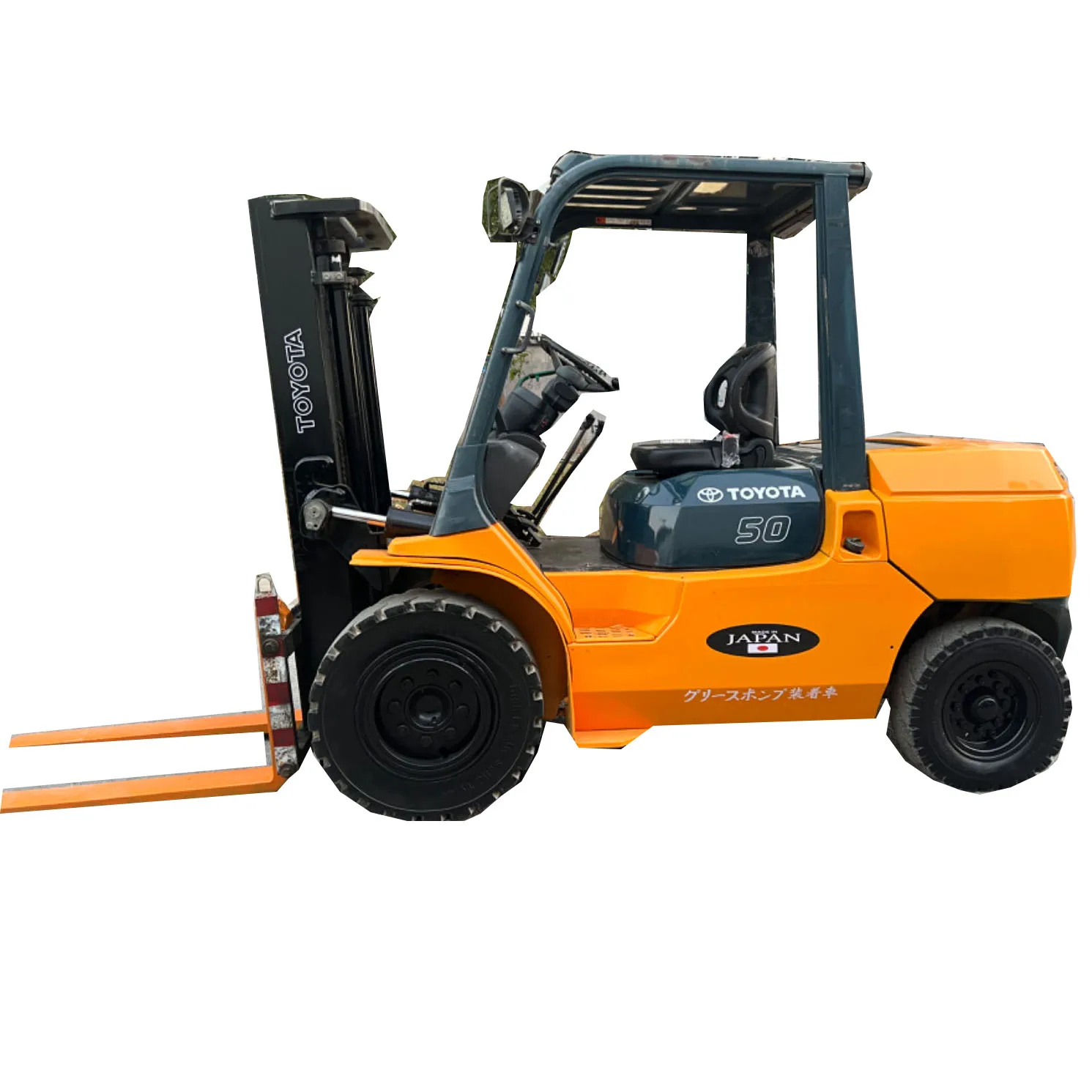

Бесплатная доставка TOYOTA50 5TON вилочный погрузчик внедорожник 4WD 4x4 Вездеходный дизельный цена для продажи
