ET104S0M N15 Оригинальный 10 4 дюймов 800*600 оптовая продажа ЖК дисплей для промышленных планшетов и медицинских панелей
- Категория: >>>
- Поставщик: Hangzhou Chuanbao Electronic Technology Co. Ltd.
Сохранить в закладки 1601282955348:
Описание и отзывы
Характеристики
Product Description
ET104S0M-N15 is a 10.4" a-Si TFT-LCD module product from BOE. It is equipped with WLED backlight, no backlight driver, and no touch. The operating temperature of this product is -20 ~ 70°C, the storage temperature is -30 ~ 80°C, and the vibration resistance is 1.5G (14.7 m/s²). Its typical features are: white LED backlight, flip-chip terminal, 6/8-bit grayscale optional, and matte surface. This model is recommended for industrial, healthcare and other products. According to the product specification with version number Rev.0 released by BOE on January 21, 2022, the display resolution of ET104S0M-N15 is 800(RGB)×600 (SVGA), the aspect ratio is 4:3 (width:height), and the pixels are arranged in RGB vertical strips. Its display area size is 211.2 (width) × 158.4 (height) mm, the appearance size is 236 (width) × 176.9 (height) × 5.9 (thickness) mm, the visible size is 215.0 (width) × 162.0 (height) mm, the surface treatment is matte (Haze 25%), and the net weight of the product is 300g (Max.). In terms of backlight, this product uses a 6S4P WLED side-entry light source (top), the service life of the light source is 30K hours, and the backlight driver is not included. ET104S0M-N15 uses an LVDS (1 ch, 6/8-bit) signal interface, a total of 20 pins, terminal connection, and the screen drive voltage is 3.3V (Typ.). Its typical vertical refresh rate Fv is 60Hz.
Specification
Item | Value |
Type | TFT |
Display Size | 10.4 inch |
Supplier Type | lcd panel |
Place of Origin | China |
Brand Name | BOE |
Resolution | 800(RGB)×600, SVGA, 96PPI |
Model Number | ET104S0M-N15 |
Body Size | 236×176.9×5.9 mm (H×V×D) |
Panel type | Liquid crystal glass, a-Si TFT-LCD |
Frequency | 60Hz |
Screen voltage displacement | 3.3 (Typ.) |
Signal interface | LVDS (1 ch, 6/8-bit) , terminal , 20 pins |

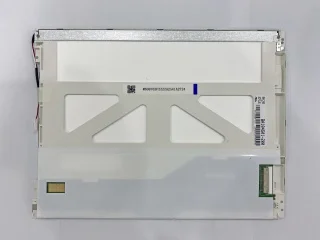

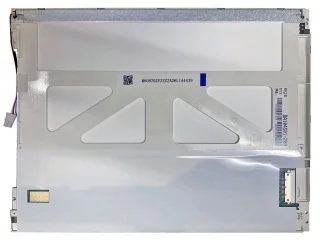

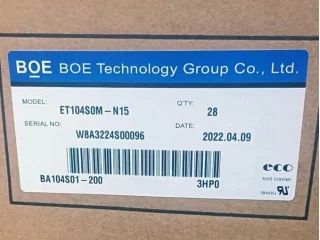

Product photos
Packing & Delivery
Standard export packing
Other Hot Sale Models
Application
Our products can be used in PC, TV, digital signage, industrial, medical, conference etc.
Company Profile
Hangzhou Chuanbao Electronic Technology Co., Ltd. mainly operates services: electronic products, computer software and hardware,LCD displays, household appliances, office supplies, intelligent equipment, communication equipment, monitoring equipment technology development, technical consultation, technical services and achievement transfer; Computer Network Engineering; Wholesale, retail: computer software and hardware; LCD display; Household appliances; office supplies; smart devices; communication equipment; monitoring equipment, etc. The registered capital of the company is RMB1,000,000, our company's office address is located in the largest city in Zhejiang Province, the paradise on earth Hangzhou, we have the best products and professional sales and technical team, the company is developing rapidly, we provide customers with the best products, good technical support, sound after-sales service!
FAQ
1.What Brand do you have?
4.What is the warranty period of the product?
Re:We mainly provide BOE brand products. If customers have any needs, you can communicate with us. We will try our best to provide you with other electronic components and accessories with higher quality and lower price
2.What’s your products condition?
Re: Brand New,A grade,Original Package.
3.what’s your MOQ of your products?
Re: According different products,1pcs or 1 box .
4.What is the warranty period of the product?
Re:According to different products, our warranty time is 1 - 3 years.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Похожие товары
Популярное Надувное водное игровое оборудование буксируемая лодка надувная летающая
Оптовая продажа креативные поделки режущие виниловые наклейки самоклеящиеся глитеры голографические
146,59 ₽ - 275,53 ₽
Профессиональные очки для подводного плавания с трубкой и большими линзами оборудование фридайвинга Набор
770,38 ₽ - 942,31 ₽
RST дождевой полупрозрачный зонт из ПВХ/ЭВА
209,41 ₽ - 242,47 ₽
Dx51d класс 0 39 мм с цветным покрытием предварительно окрашенная стальная катушка
58 301,78 ₽ - 66 016,57 ₽

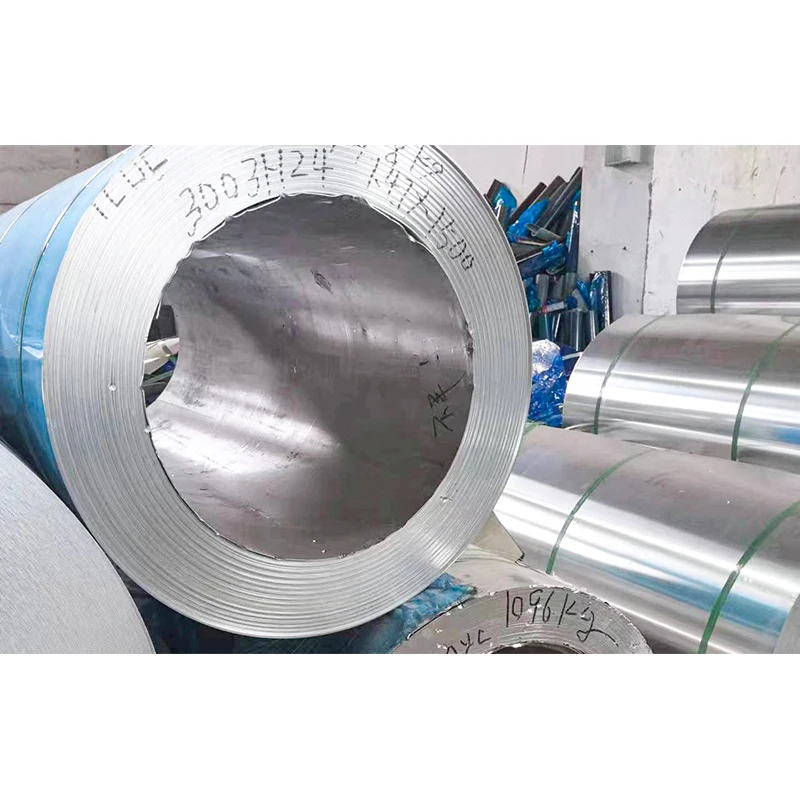

OEM/ODM 1 серия 3 5 матовая алюминиевая катушка/лист разного
