Двухбалочный козловой кран с резиновым шкалом для подъема 40 футов или 20 контейнер в порту
55 600,00-56 000,00 $
Контейнер грузоподъемности 40 т с двигателем
- Категория: >>>
- Поставщик: Henan Huasui Heavy Industry Machinery Equipment Co. Ltd.Henan Ltd.
Сохранить в закладки 1601282966605:
Описание и отзывы
Характеристики
Products Description
40T Capacity Straddle Carrier Shipping Container with Motor Engine is a kind of lifting equipment used in container ports and logistics parks. It is mainly used for container loading, unloading, handling and stacking operations in the yard.
It is supported by pneumatic rubber tires and is usually powered by a diesel generator set, but can also be powered by a cable drum, lithium battery, etc. It consists of trolley mechanism, trolley assembly, gantry, power system, and a special container spreader. As it adopts rubber tyres as the support and movement, it has high flexibility and can move freely in a wide range without the need of track laying.

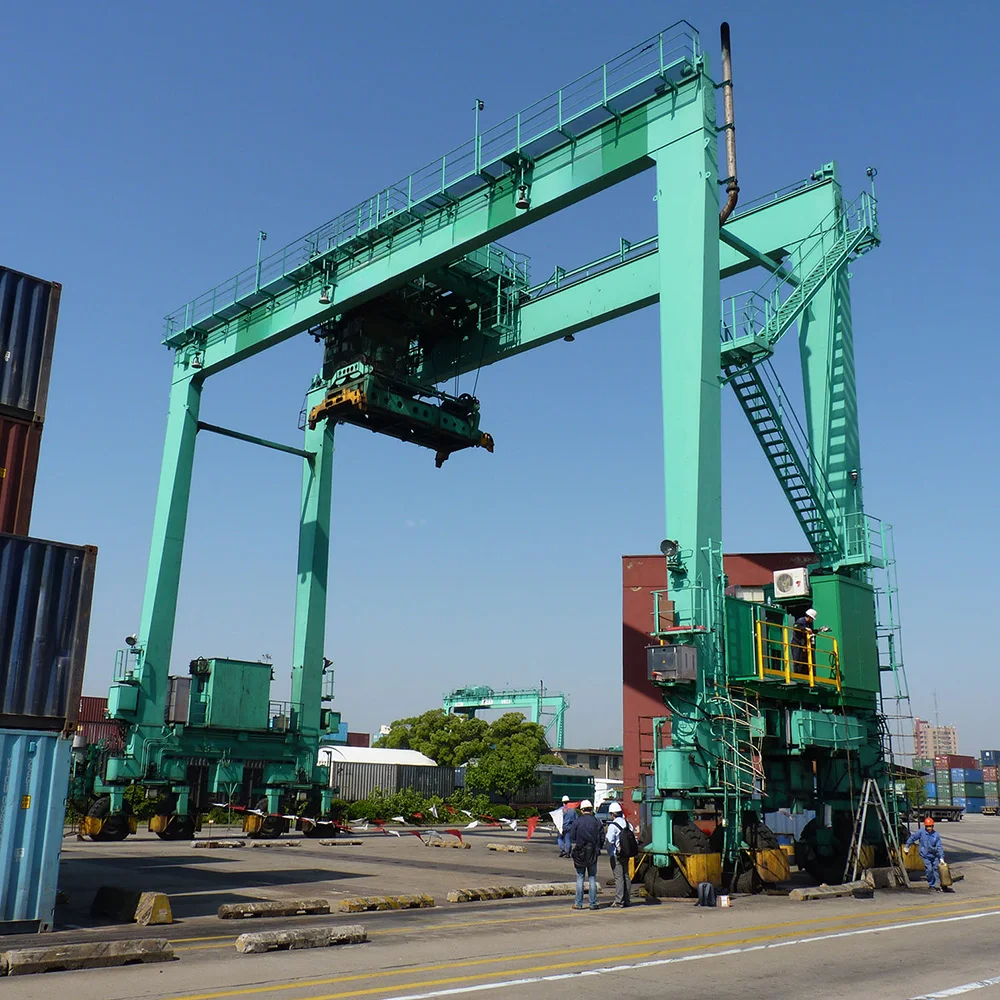

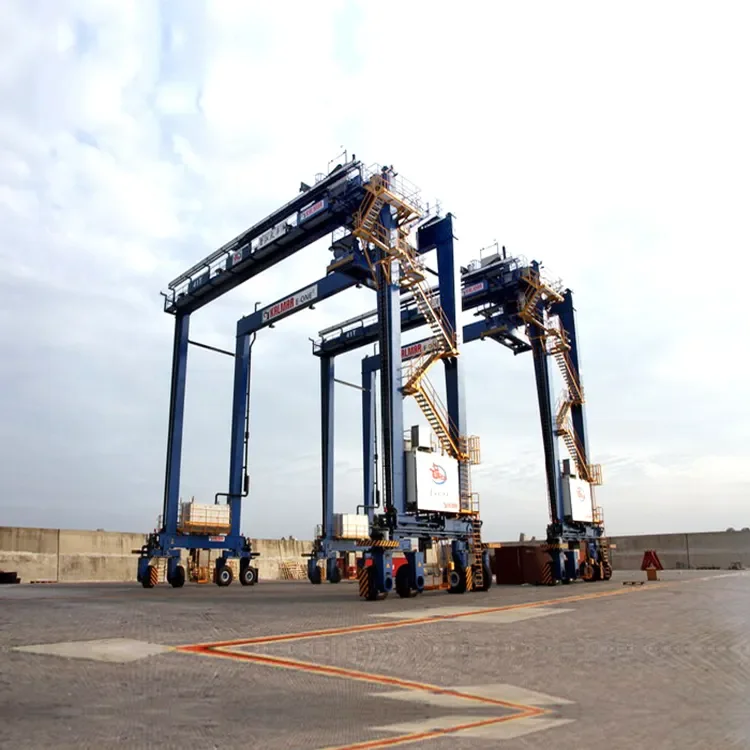

Rubber tyred gantry crane has various functions, high efficiency, stable and reliable, wide operating range and good maneuverability. The rubber tyred gantry crane is less sensitive to uneven ground and is easy to use, maintain and repair. Its most important feature is that it can travel straight, horizontally, turn 0-90 degrees and rotate in place.
It is supported by pneumatic rubber tires and is usually powered by a diesel generator set, but can also be powered by a cable drum, lithium battery, etc. It consists of trolley mechanism, trolley assembly, gantry, power system, and a special container spreader. As it adopts rubber tyres as the support and movement, it has high flexibility and can move freely in a wide range without the need of track laying.
Rubber tyred gantry crane has various functions, high efficiency, stable and reliable, wide operating range and good maneuverability. The rubber tyred gantry crane is less sensitive to uneven ground and is easy to use, maintain and repair. Its most important feature is that it can travel straight, horizontally, turn 0-90 degrees and rotate in place.
Features
As there is no need to lay tracks, the tyre crane is able to travel freely in the yard with high adaptability.
Efficient Operation
It can lift, move and place containers of various sizes,and operate quickly to improve operational efficiency.
Space Saving
Higher containers can be stacked, making full use of vertical space and increasing storage density in the yard.
Low Maintenance Cost
Compared with rail cranes, tyre cranes have lower maintenance and operating costs.
Main Parts
Main Beam and Outriggers
Consist of a sturdy steel structure with the main beam spanning between two outriggers equipped with rubber tyres underneath the outriggers to provide stable support
Rubber Tyres
A number of rubber tyres are arranged at the bottom of the outriggers, which can achieve a variety of movement modes such as straight line, traverse and inclined trav
Lifting Mechanism
Comprising wire ropes, reels and spreaders for lifting, lowering or moving containers horizontally.
Electric Motor or Diesel Engine
Provides power, and some of the equipment can also be equipped with a hybrid system to reduce energy consumption.
Technical Parameter
Item | Parameter | Parameter | |
Load Capacity | 30-65T | 30-65T | |
Span | 23-35m | ||
Lifting Height | 20-30m | ||
Lifting Speed | No load | 24 metres/min - 30 metres/min | |
Full load | 12 m/min - 18 m/min | ||
Horizontal Travelling Speed | 20 km/h - 25 km/h | ||
Lateral Travel Speed | 40 m /min - 50 m /min | ||
Power Type | Diesel-powered, hybrid, electric | ||
Number of Tyres | 8-16 | ||
Control Mode | Manual control, remote control, automated control | ||
Operating Temperature Range | -20°C - 50°C | ||
Application

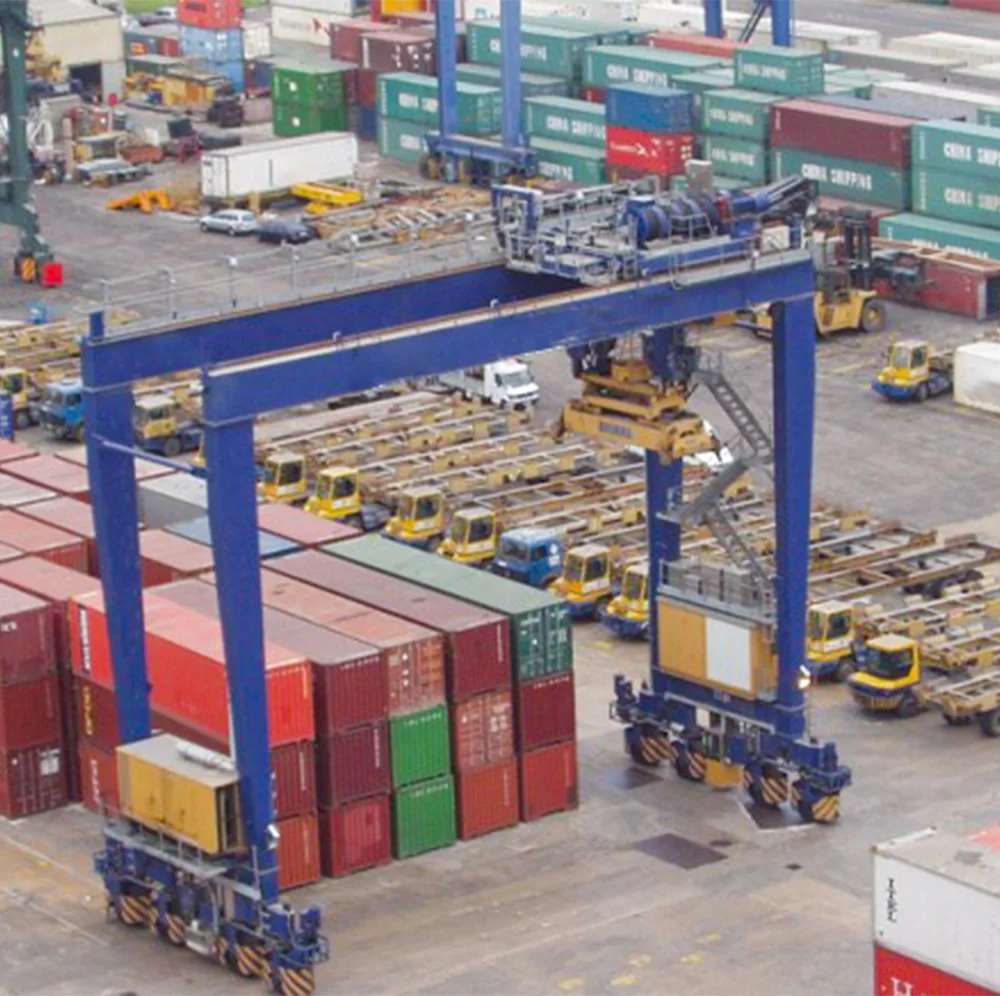

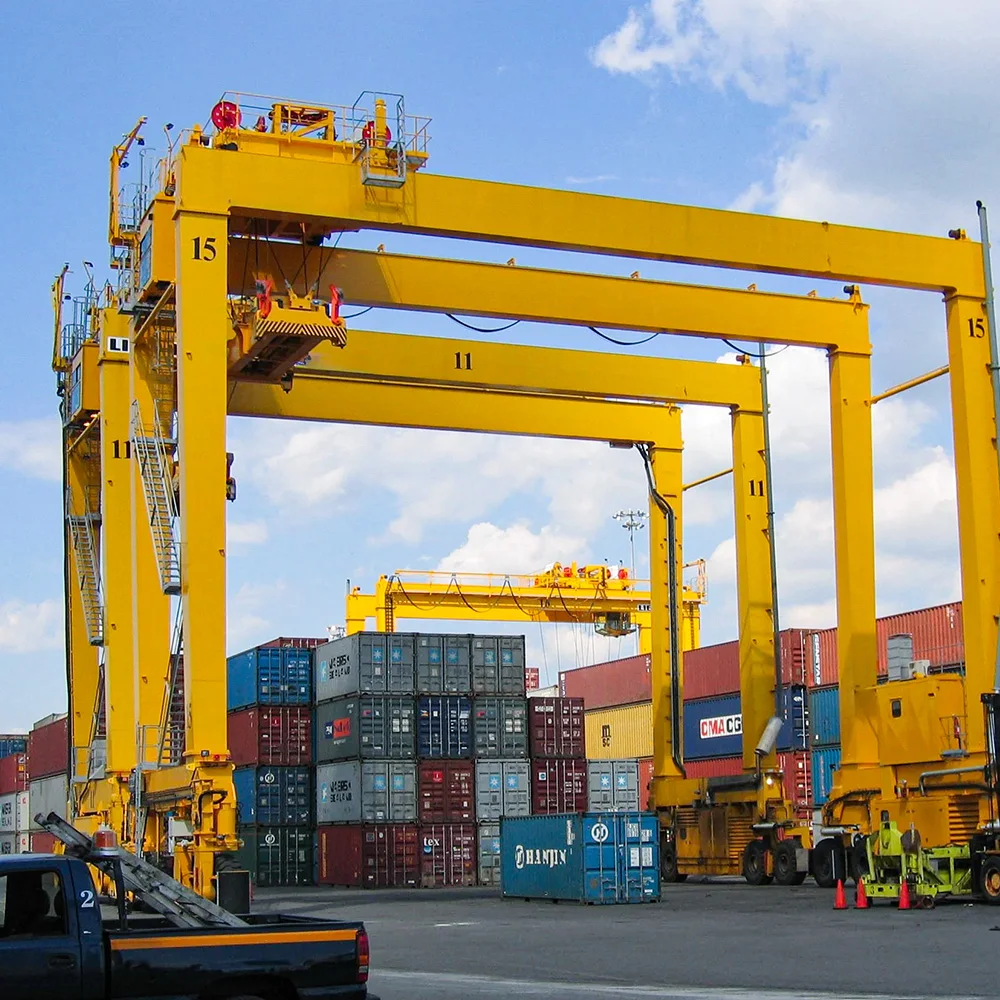

Container Yard
In container yard, used for sorting, stacking and transferring the unloaded containers.
Intermodal Yards
Transfer containers between different modes of transport in intermodal facilities
Logistics Park
Suitable for container handling operations in large logistics parks.
Recommend Products
About Our Factory
VR
Henan Huasui Heavy Industry Machinery Equipment Co., Ltd. was established in 1998 as a leading manufacturer of bridge construction lifting equipment. Our company has participated in numerous major road and bridge construction projects in China, where we have gained invaluable technical knowledge and experience. This has enabled us to develop a highly skilled engineering and installation service team. In response to market demand for general lifting equipment in the second decade of the 21st century, Huasui has established a brand-new factory and equipment. The company is committed to providing excellent products and one-stop service to more customers.
Through the integration of technology and optimization of manufacturing process, Huasui has gained a firm foothold in the manufacturing of overhead cranes, gantry cranes, wire rope electric hoists, straddle carriers and beam launcher in compliance with FEM standards.
Packing & Delivery
Похожие товары

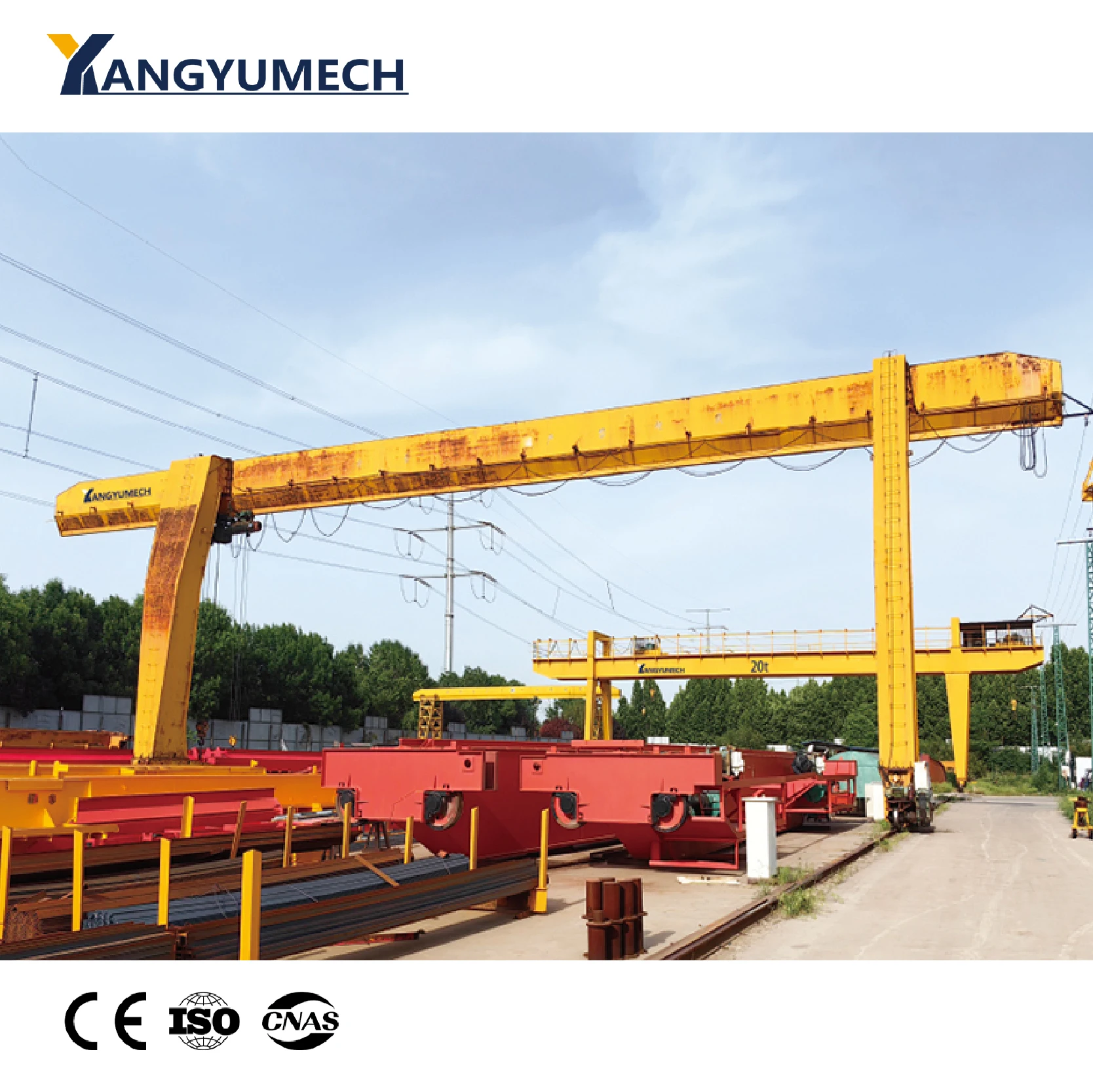

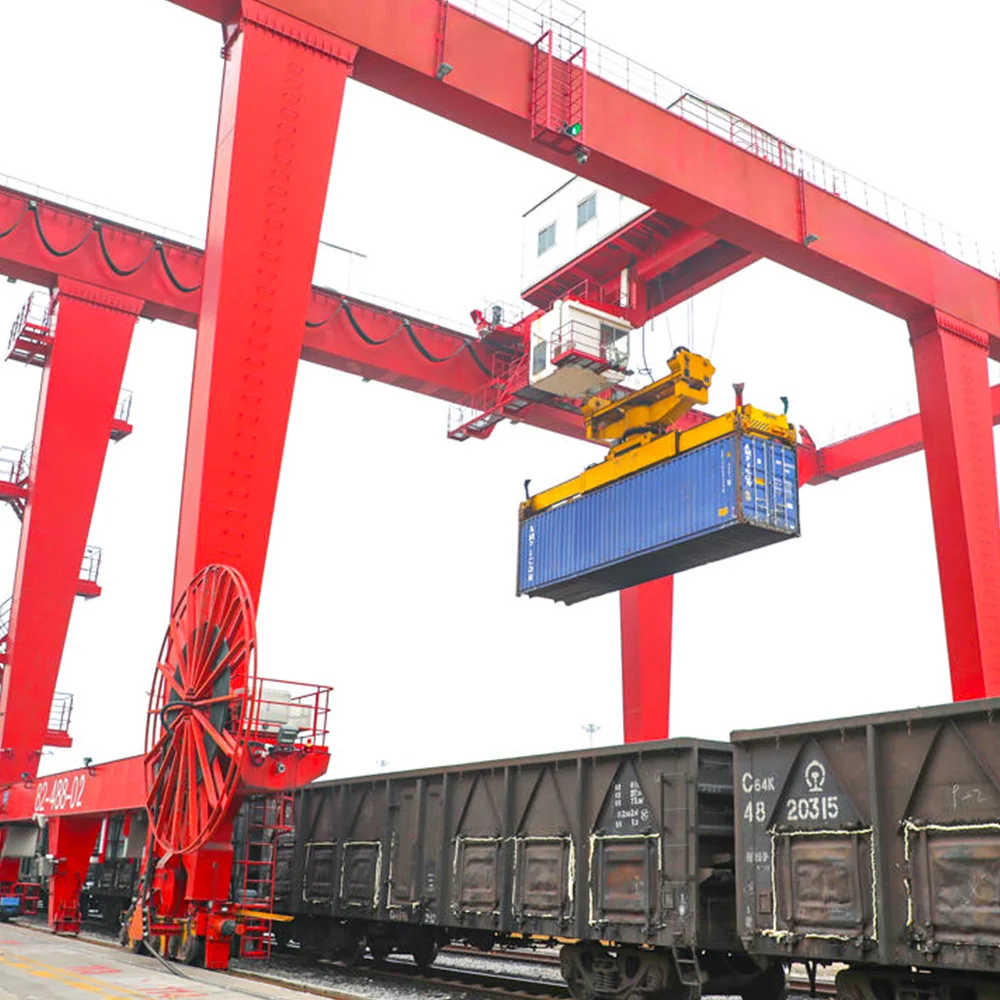

RMG модель 20 тонн 30 40 рельс монтируемый козловой кран для перевозки контейнеров с использованием продажи A8
30 000,00 $
Лидер продаж 25 тонн 30 однобалочный балочный пульт дистанционного управления Электрический рельсовый мобильный козловой кран сделано в Китае

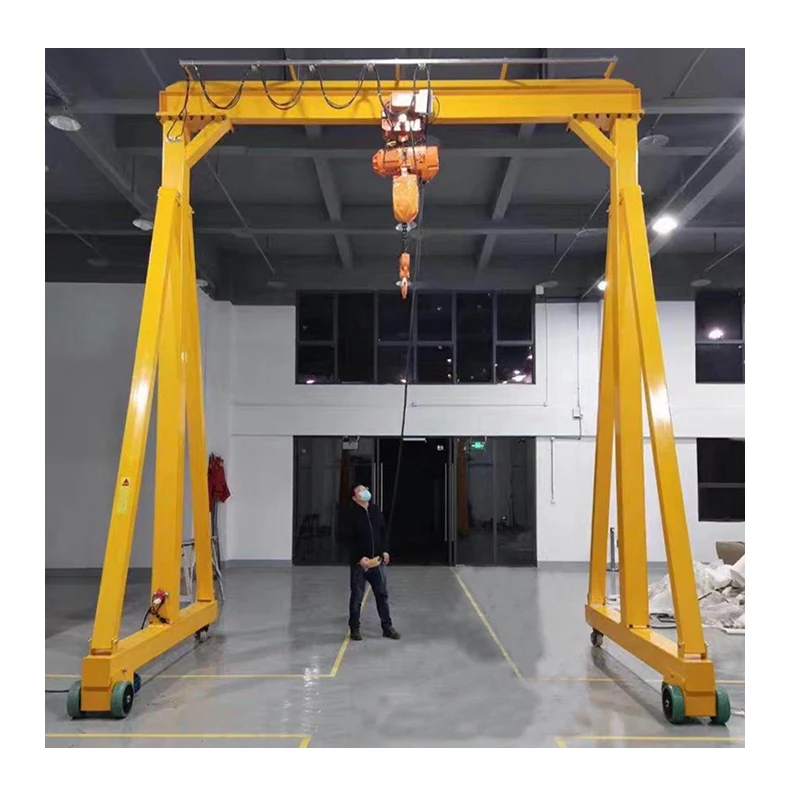

Регулируемый небольшой портативный мини башенный кран дешевый мобильный козловой 1ton
1 000,00-3 000,00 $

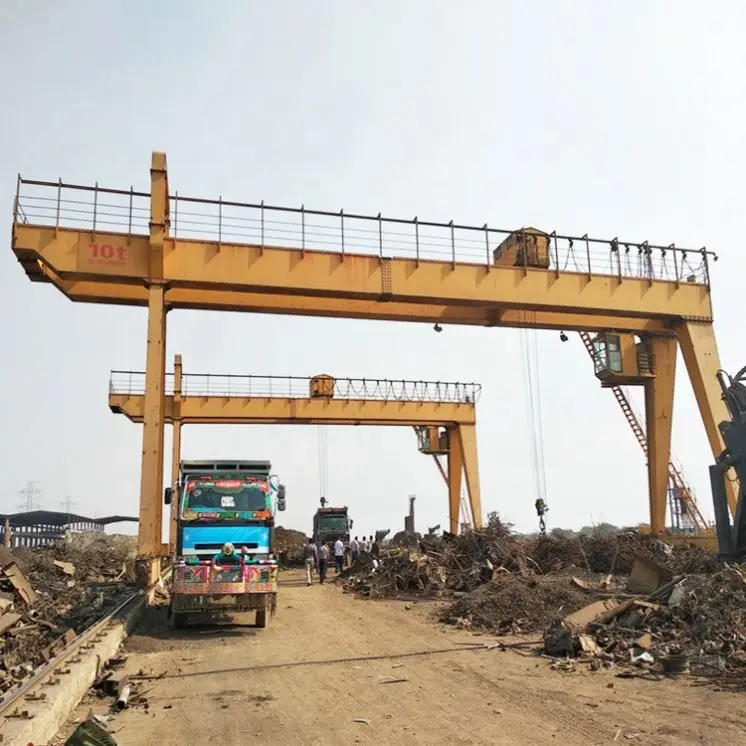

Стальной Завод по переработке лома двухбалочный козловой кран
72 900,00 $
Изготовленный на заводе сверхмощный 500-тонный рельсовый двухбалочный балочный кран с двигателем сделано в Китае
5 500,00 $

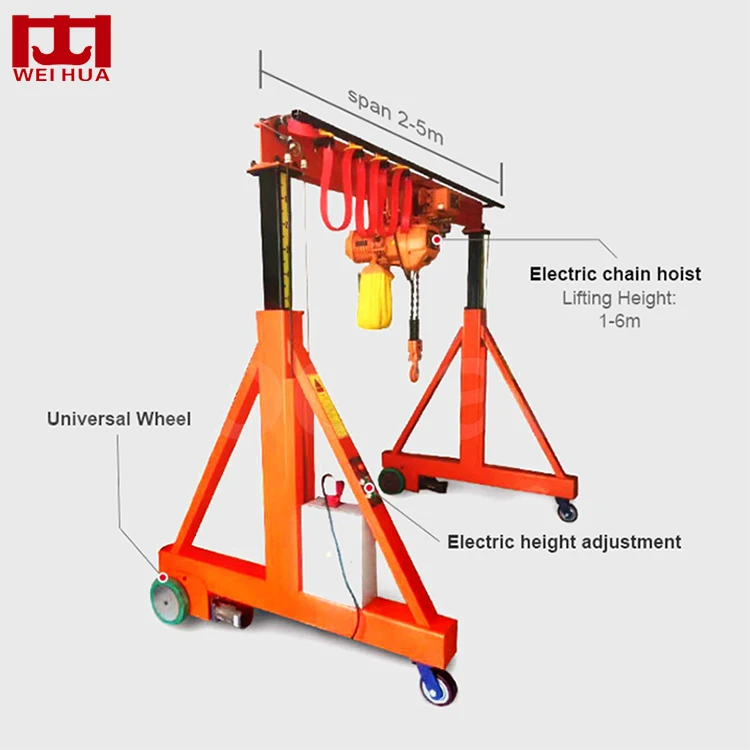

Weihua кран 1 тонна 5 тонны 2 3 портативный маленький козловой цена
