Ace Hygienic Rotor Pump Sanitary Pump Bare Shaft For Meat Gruel, Comminuted Meat, Meat Oil, Edcreamible Oil, Candy, Syrup, Thin
22 Years Of Experience. Fast delivery in 3–7 days. Reasonable Price And Best Service, CE Certificated Products.
Please contact us for the offer.
Video
Products Description
Description:
Rotary lobe pumps are positive-displacement type pumps that use two or more lobes rotating around parallel shafts in the pump’s body to move liquids. They are widely used in the hygienic processing industries, including food & beverage processing
Working Principle of Rotary Lobe Pump:
The Rotary lobe pumps, we also called them lobe rotor pumps. They are one popular transfer pump for conveying the food, beverage, pulp and paper, chemical, pharmaceutical and so on. The rotor lobe pump relies on two synchronously rotating rotors that generate suction (vacuum) at the inlet during the rotation. Thereby sucking in the material to be conveyed. Both rotors split the rotor chamber into different spaces. Then operate in the order of 1-2-3-4. The medium is delivered to the discharge port. In this cycle, the medium (material) is continuously transported out by the source.
Different Kind of Lobe Options for the Rotor Lobe Pump
Product Name: | honey transfer pump food safe for sale | |
Description: | Designed according to 3A standard, widely used for transfer viscous media in the food-processing, cosemtics and pharmaceutical industries. | |
Construction: | Horizontal Ace series, diffirent rotor shapes(single rotro,tri-lobe rotors and butterfly type rotors) | |
Material: | SS304/SS316 | |
Seal Material: | EPDM (Standard, approval) | |
Max. Flow: | 43000Liter/h | |
Max.pressure: | 10bar | |
Speed | 1-1000 rmp | |
Rotor Type: | 2-leaves, 3-leaves, butterfly, signal butterfly | |
Mechanical seal: | SIC/SiC/EPDM(Standard) | |
Motor power: | 0.75kw, 1.1kw, 1.5kw, 2.2kw, 3kw, …22KW | |
Sealing option: | Sanitary single mechanical seal/Double mechanical seal with cooling system | |
Voltage: | 220V, 380V(110-480v) | |
Motor: | ABB, Siemens,Our Domestic Brand,50hz/ 60hz | |
Surface treatment: | Inner polished and Sandblast outside | |
connection: | Clamp, Thread, weld, Flange | |
Availably standard: | DIN, SMS, 3A, RJT, ISO/IDF | |
Operated: | Electic | |
Application scope: | Dairy, food, beverage, pharmacy, cosmetic, etc | |
Packaging Details: | Plywood case | |
Delivery details: | Usually within1-7 days after receiving T/T down payment | |
We can customize the equipment according to customer requirements. | ||
Model: | Capacity (L/100R) | Speed (RPM) | Flow (L/Hour) | Power(kw) |
ACE-3 | 3 | 200-500 | 300-800 | 0.55 |
ACE-6 | 6 | 200-500 | 650-1600 | 0.75 |
ACE-8 | 8 | 200-500 | 850-2160 | 1.5 |
ACE-12 | 12 | 200-500 | 1300-3200 | 2.2 |
ACE-20 | 20 | 200-500 | 2100-5400 | 3 |
ACE-30 | 30 | 200-400 | 3200-6400 | 4 |
ACE-36 | 36 | 200-400 | 3800-7600 | 4 |
ACE-52 | 52 | 200-400 | 5600-11000 | 5.5 |
ACE-66 | 66 | 200-400 | 7100-14000 | 7.5 |
ACE-78 | 78 | 200-400 | 9000-18000 | 7.5 |
ACE-100 | 100 | 200-400 | 11000-22000 | 11 |
ACE-135 | 125 | 200-400 | 15000-30000 | 15 |
ACE-160 | 160 | 200-400 | 17000-34000 | 18.5 |
1.Single Lobed Rotor:
More suitable for conveying media which containing large granular materials. The breaking rate of large granular materials is low. But on other hand it is not popular one for used, Because its pulsation is large and pressure is low, also the volume is small for the space of transferred materials.
2. Two-Lobed Rotor (Butterfly Rotor)
More suitable for conveying media which containing small and medium-size granular materials. The breaking rate to these materials is low and getting slightly pulsating. The volume is a little less than three-lobed rotor for the space of transferred materials.
3.Three-Lobed Rotor
It is widely used one rotor. The volume is bigger than other type of rotors for the space of transferred materials. Also each performance is higher than other rotors. Just it has a certain rate of breakage to the particulate materials on the transport way.
4.Multi-Lobed Rotor(4-12)
The volume is more smaller for the space of transferred materials and breaking rate more higher when the quantity of rotary vane of rotor be increased, . Just the transport way more stable.
More suitable for conveying media which containing large granular materials. The breaking rate of large granular materials is low. But on other hand it is not popular one for used, Because its pulsation is large and pressure is low, also the volume is small for the space of transferred materials.
2. Two-Lobed Rotor (Butterfly Rotor)
More suitable for conveying media which containing small and medium-size granular materials. The breaking rate to these materials is low and getting slightly pulsating. The volume is a little less than three-lobed rotor for the space of transferred materials.
3.Three-Lobed Rotor
It is widely used one rotor. The volume is bigger than other type of rotors for the space of transferred materials. Also each performance is higher than other rotors. Just it has a certain rate of breakage to the particulate materials on the transport way.
4.Multi-Lobed Rotor(4-12)
The volume is more smaller for the space of transferred materials and breaking rate more higher when the quantity of rotary vane of rotor be increased, . Just the transport way more stable.
Character:
1,There Is A Certain Gap Between Rotor And Rotor, No Friction Coefficient,So Pump Have A Long Service Life Time.
2, It Is Easy To Install And Disassemble,And It Is Convenient To Maintain, Clean .There Is Less Wearing Parts.
3, High Efficiency And Energy Saving, Stable Transportation, Low Failure Rate, No Leak Sealing And Low Noise.
4, The Viscosity Of The Transportable Medium Is ≤2000000 Cp, And The Pump Can Transfer Slurry Containing 70% Solids.
5, It Can Transport Gas, Liquid And Solid Three-Phase Mixture Materials.
6, With Vfd, The Flow Can Be Adjusted At Will, And The Pump Can Be Used As A General Metering Pump.
7, If Need,We Can Do The Pump With Heating Jacket.
8, Applicable Temperature: -50 °C -250 °C.
9, Types Of Inlet/Outlet Connection: Flange Joint,Threaded Connection; Quick Connection.
10,Seal Type: Mechanical Seal And Packing Seal.
2, It Is Easy To Install And Disassemble,And It Is Convenient To Maintain, Clean .There Is Less Wearing Parts.
3, High Efficiency And Energy Saving, Stable Transportation, Low Failure Rate, No Leak Sealing And Low Noise.
4, The Viscosity Of The Transportable Medium Is ≤2000000 Cp, And The Pump Can Transfer Slurry Containing 70% Solids.
5, It Can Transport Gas, Liquid And Solid Three-Phase Mixture Materials.
6, With Vfd, The Flow Can Be Adjusted At Will, And The Pump Can Be Used As A General Metering Pump.
7, If Need,We Can Do The Pump With Heating Jacket.
8, Applicable Temperature: -50 °C -250 °C.
9, Types Of Inlet/Outlet Connection: Flange Joint,Threaded Connection; Quick Connection.
10,Seal Type: Mechanical Seal And Packing Seal.
Lobe Pump Scope Of Application:
Dairy Products: Yogurt, Cream, Ice Cream, Cheese And Whey.
Beverages: Beer, Wort, Yeast, Soft Drinks, Fruit Concentrates, Fruit Drinks.
Food: Tomato Sauce, Vegetable Paste, Seasoning, Sweeteners, Yeast Paste, Salad, Meat Emulsion, Edible Oil.
Candy: Syrup, Cream Stuffing, Fruit Purée, Fruit Filling, Pudding, Jam, Jelly, Chocolate.
Cosmetics: Creams And Lotions, Hair Gels, Hair Dyes, Essential Oils.
Drugs: Pill, Extract, Emulsion, Paste.
Chemicals: Fats, Solvents, Resins And Polymers, dyes...
Beverages: Beer, Wort, Yeast, Soft Drinks, Fruit Concentrates, Fruit Drinks.
Food: Tomato Sauce, Vegetable Paste, Seasoning, Sweeteners, Yeast Paste, Salad, Meat Emulsion, Edible Oil.
Candy: Syrup, Cream Stuffing, Fruit Purée, Fruit Filling, Pudding, Jam, Jelly, Chocolate.
Cosmetics: Creams And Lotions, Hair Gels, Hair Dyes, Essential Oils.
Drugs: Pill, Extract, Emulsion, Paste.
Chemicals: Fats, Solvents, Resins And Polymers, dyes...
Details Images
Product packaging
We are experienced in the whole packing and shipping process,and we will be responsible for any damage made during shipping and send clients replacements for free.
Other pumps
Screw pump
Single screw pump is used in all fields widely to feed kind of medium, running at a constant pressure continuously, without pulse
and damage when feeding medium and change the gauging aim through adjusting rotation speed.
and damage when feeding medium and change the gauging aim through adjusting rotation speed.
Homogenization pump
The machine disperses, shears and emulsifiers the material in shortest time, and the diameter range of the particles gets smaller
so that fine and stable produced.
so that fine and stable produced.
Centrifugal pump is a kind of high efficient and economical pump, because it can meet the requirements of health and soft
treatment of products, and has chemical stability, so it is only suitable for most of the health industry.
treatment of products, and has chemical stability, so it is only suitable for most of the health industry.
FAQ
Q | Are you trade or manufacturer? | ||||||
A | We are a factory with an international sales company specialized in support for global distributors. | ||||||
Q | Can you provide instant technical consulting services? | ||||||
A | We are able to discuss technical details and offer suggestions over the phone in English. You can get the answers in minutes, instead of days. | ||||||
Q | What's the difference between Ready-To-Ship and Customized products? | ||||||
A | Some of RTS standard products are in stock and ready to ship in 2-3 days. We can also quick design and make the drawings for customer requirements, then begin the production. | ||||||
Q | What is the payment terms? | ||||||
A | We accept Alibaba Trade Assurance Order, also can T/T and L/C. | ||||||
Q | How to choose the shipment way? | ||||||
A | It is according to the order quantity, delivery time, costs and customs policy etc. (Or decide by customers) | ||||||
Q | How about the after-sales service? | ||||||
A | Fast after-sales support. Our products have a one-year warranty and free permanent consulting services. | ||||||
keyword1
keyword2
keyword3
Contact Us
Похожие товары

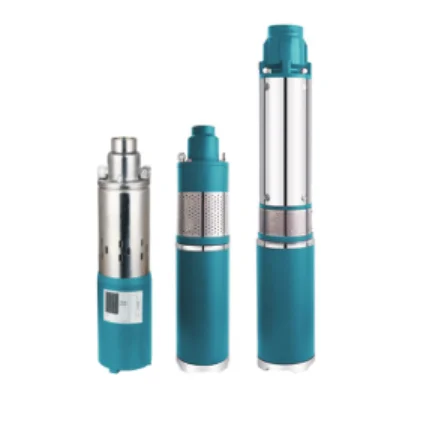

36 В постоянного тока Солнечный погружной скважинный Насос винтовой насос 250 Вт головка 40 м подходит для сельского хозяйства
3 105,97 ₽ - 3 327,83 ₽

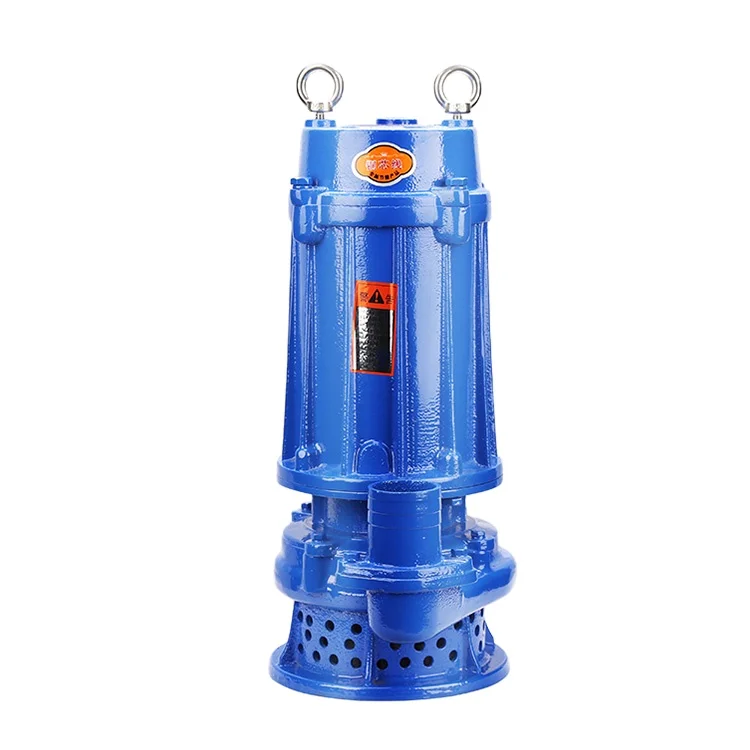

Промышленный погружной канализационный насос с Высокой Головкой QX 380 В для грязной воды
10 870,90 ₽

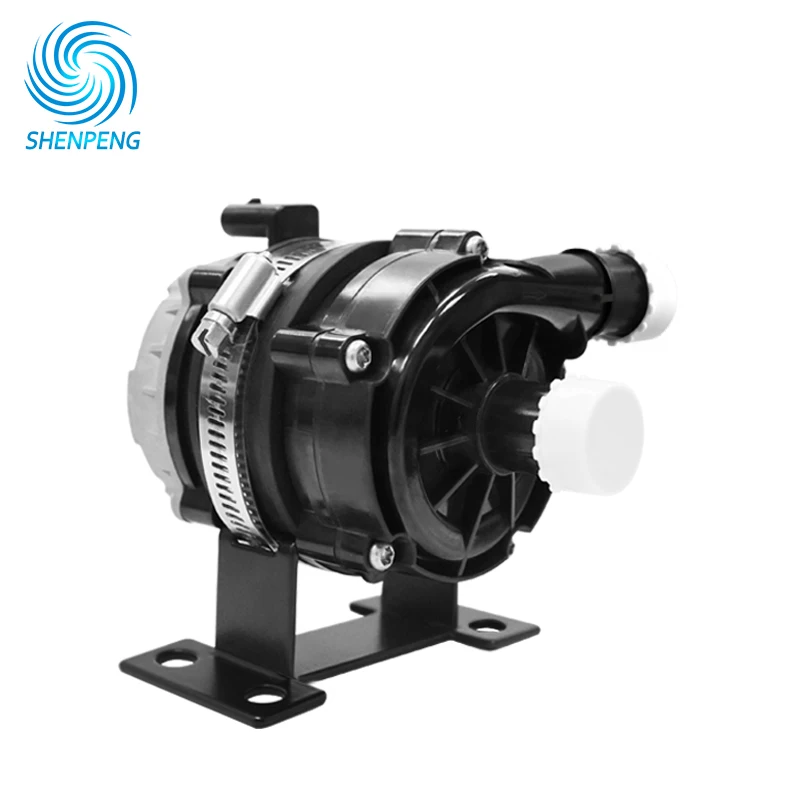

12V 24V автомобильный насос охлаждающей жидкости
6 433,80 ₽ - 8 652,35 ₽
Компактный паровой теплообменник испаритель горячей воды для продажи

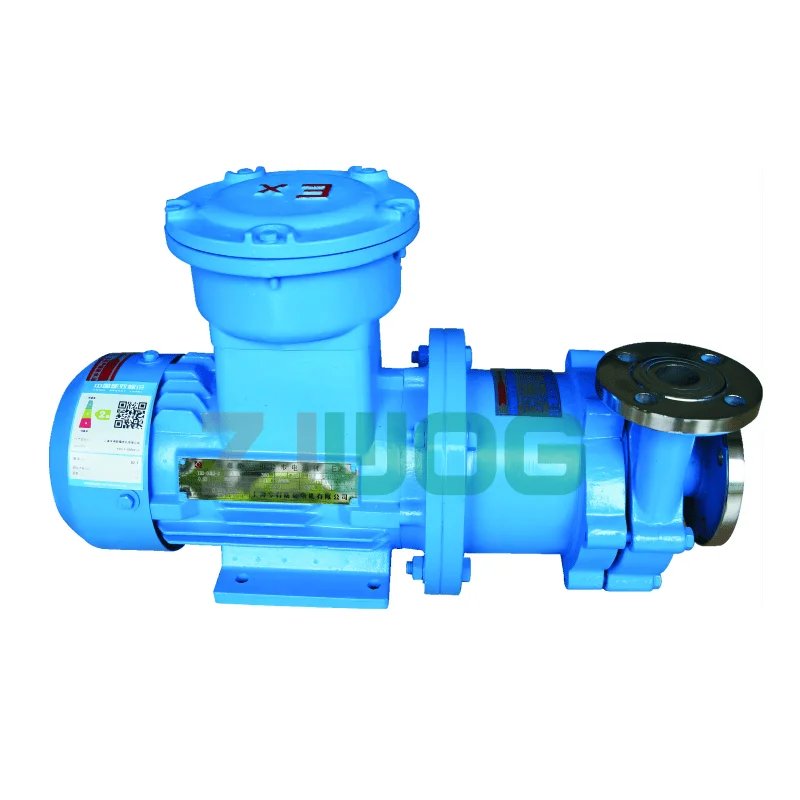

Серия CQ магнитный приводной насос из нержавеющей стали Коррозионностойкий накопительный для химической передачи жидкости
44 371,00 ₽ - 55 463,75 ₽

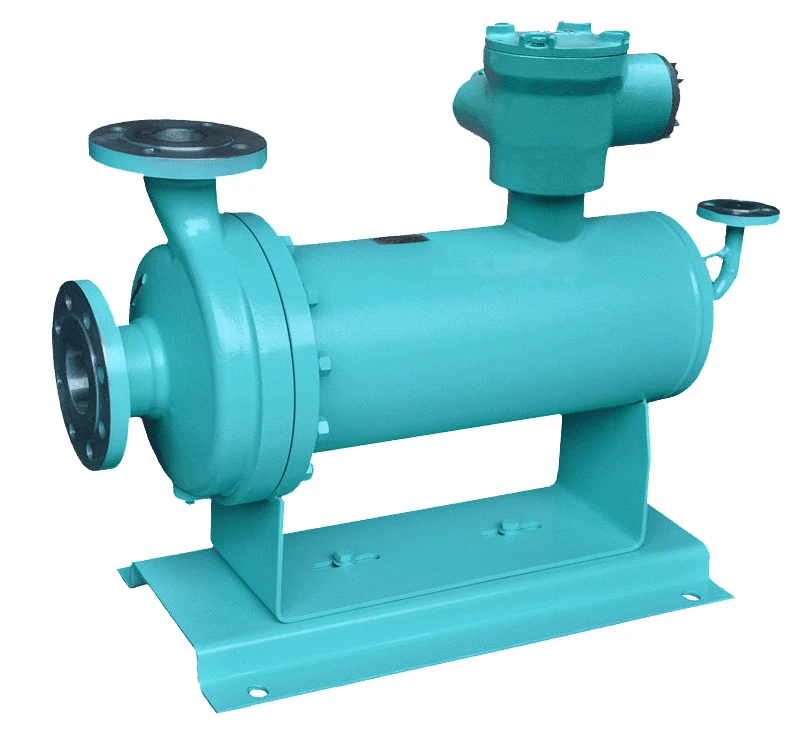

Подгонянная система холодильной промышленности Взрывозащищенная частота аммиака герметичный консервированный моторный насос

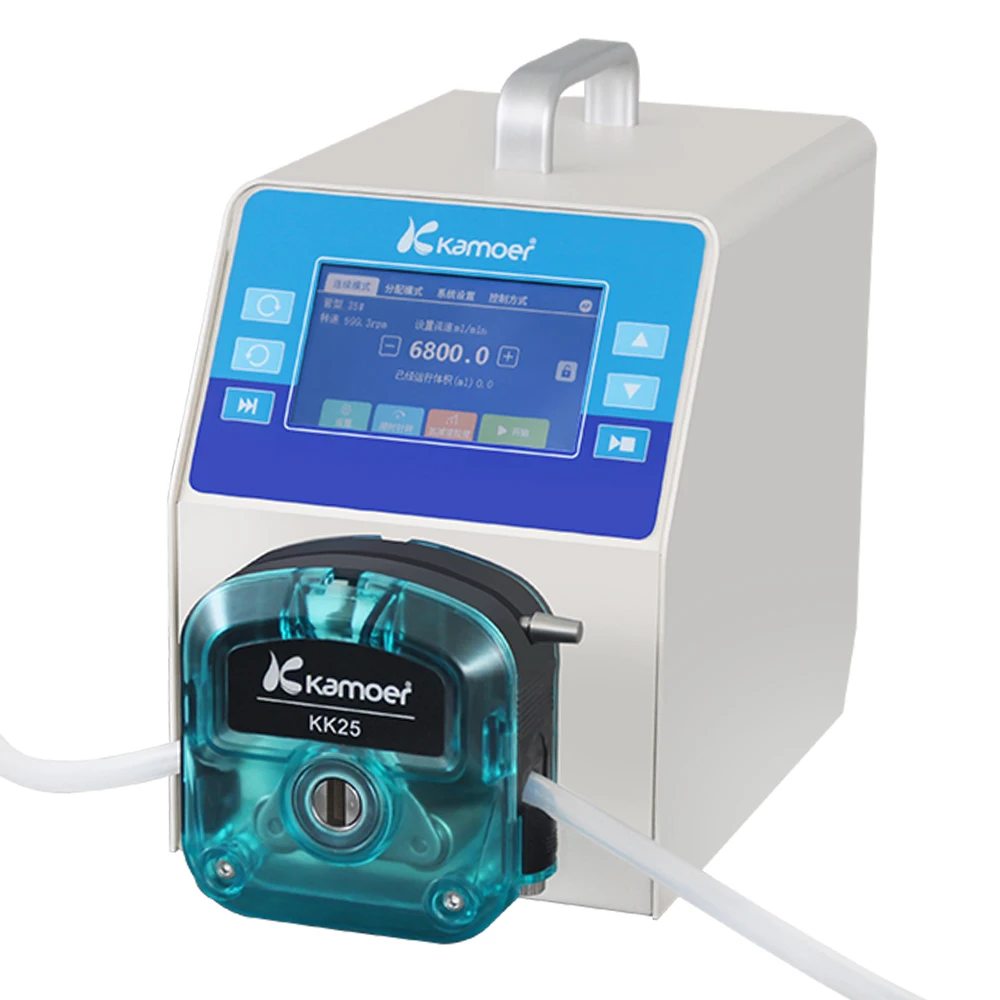

AIP перистальтический насос с большим расходом 240 В переменного тока контролем скорости диспенсер Жидкости Электрический парфюмерный Средний заполняющий
