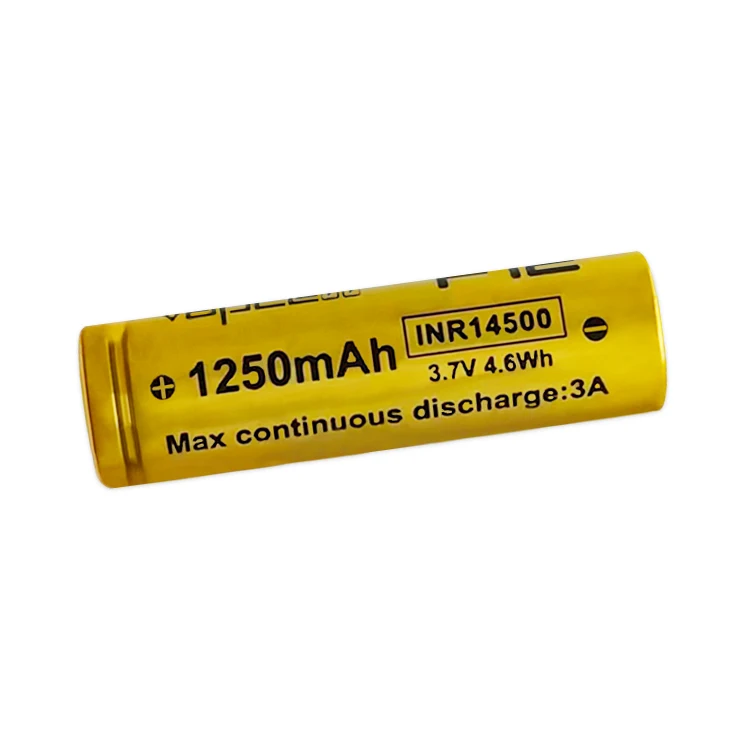

Литий-ионная аккумуляторная батарея Vapcell F12 3A 14500 3 7 v литий-ионная icr14500 1250mAh AA
196,48-231,15 ₽
Сохранить в закладки 1601283136798:

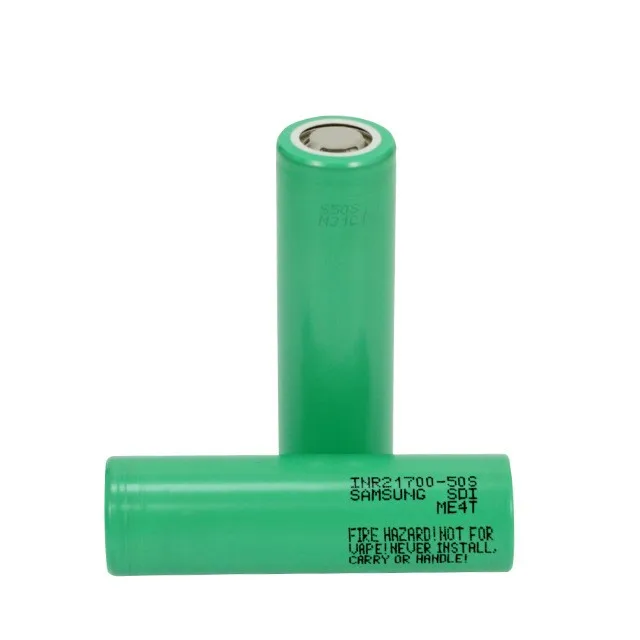

1 Standard discharge Capacity | Typ. 5,000mAh FOR INR21700-50S -Charge: 0.5C(2.5A), 4.20V, 0.05C(250mA) cut-off @ RT -Discharge: 0.2C(1A), 2.5V cut-off @ RT *1C=5.000mA |
2 Rated discharge Capacity | Min 4,800mAh -Charge:1.2C(6A), 4.20V, 0.02C(100mA)cut-off @RT -Discharge: 10A, 2.5V cut-off @ RT |
3 Charging Voltage | 4.2V |
4 Nominal Voltage | 3.60V |
5 Standard charge | CCCV, 6A, 4.20 V, 100mA cut-off |
6 Rated charge | Standard charge: 1,700mA For cycle life : 1,020mA |
7 Charging Time | Standard charge : 150min / 250mA cut-off(@ RT) Rated charge: 100min / 100mA cut-off(@ RT) |
8 Max. Charge Current | 2,000mA (not for cycle life) |
9 Max. Discharge Current | 25A(Without temperature cut) 45A(With 80℃ temperature cut) |
10 Discharge Cut-off Voltage | 2.5V (End of discharge) |
11 Cycle life 1 | ① Capacity ≥ 2,940mAh @ after 250cycles (60% of the standard capacity @ RT) - Charge : 6A, 4.20V, CCCV 100mA cut-off @ RT - Discharge: 25A , 2.5V cut-off @ RT ② Capacity ≥ 2,940mAh @ after 100cycles (60% of the standard capacity @ RT) - Charge : 6A, 4.20V, CCCV 100mA cut-off @ RT - Discharge: 45A, 2.5V cut-off (80℃ cut-off, re-discharge release < 50℃) @ RT |
12 Recovery characteristics | Capacity recovery(after the storage) ≥ 4,320 mAh (90% of the rated capacity @ RT) - Charge : 6A, 4.20V, CCCV 100mA cut-off @ RT - Storage : 30 days (@ 60℃) - Discharge : 10A , 2.5V cut-off @ RT |
13 Cell Weight | 72.0g max |
14 Cell Dimension | Height : Max 70.62mm Diameter : Max 21.25mm |
15 Operating Temperature (*²) | Charge: 0 to 45°C (Ambient) Discharge :-10 to 60°C (Ambient) |
16 Storage Temperature(*³) | 1 year : -20~23°C, 3 months : -20~45°C 1 month : -20~60°C |
