Электрический нагреватель сжатого воздуха взрывозащищенное отопительное оборудование дымового газа

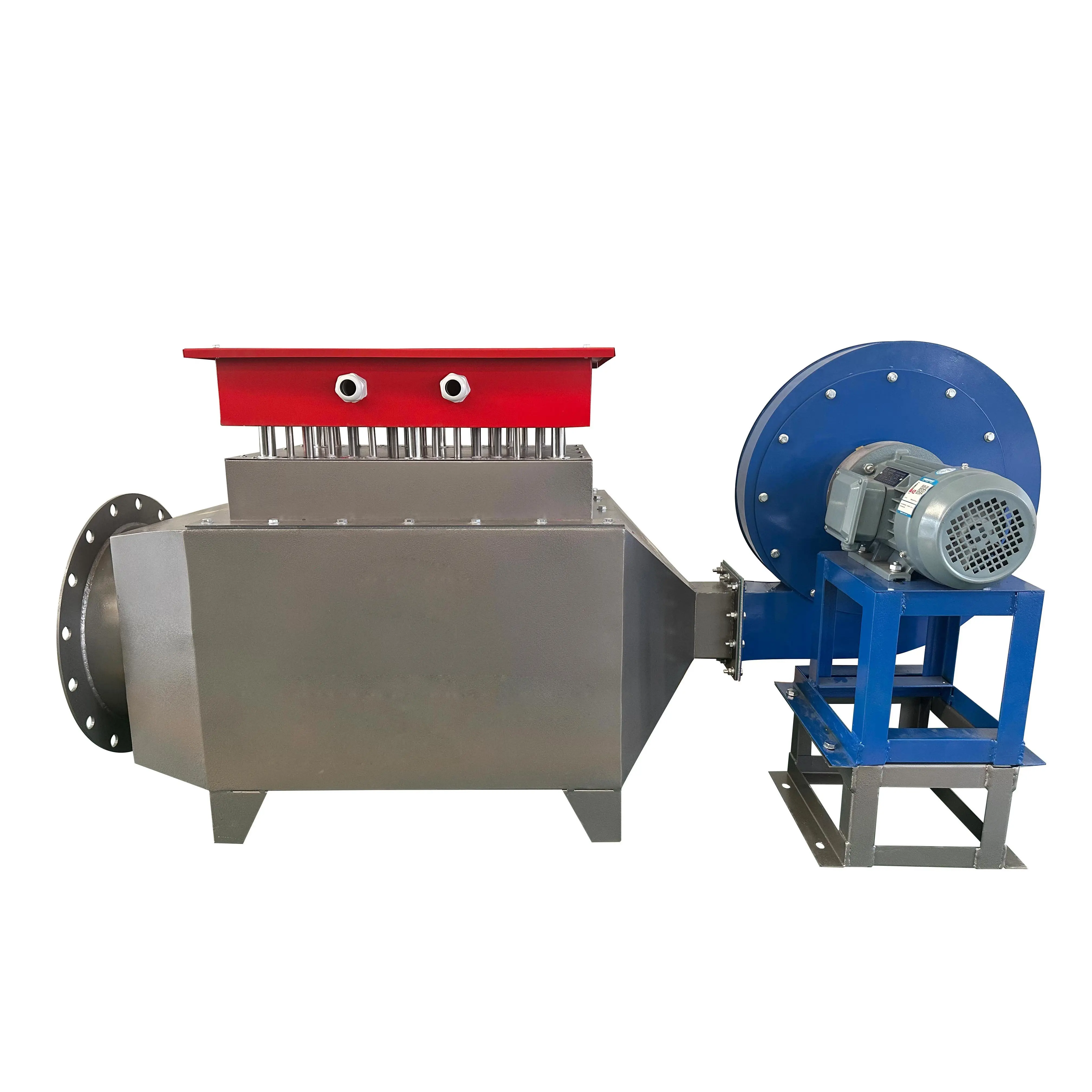

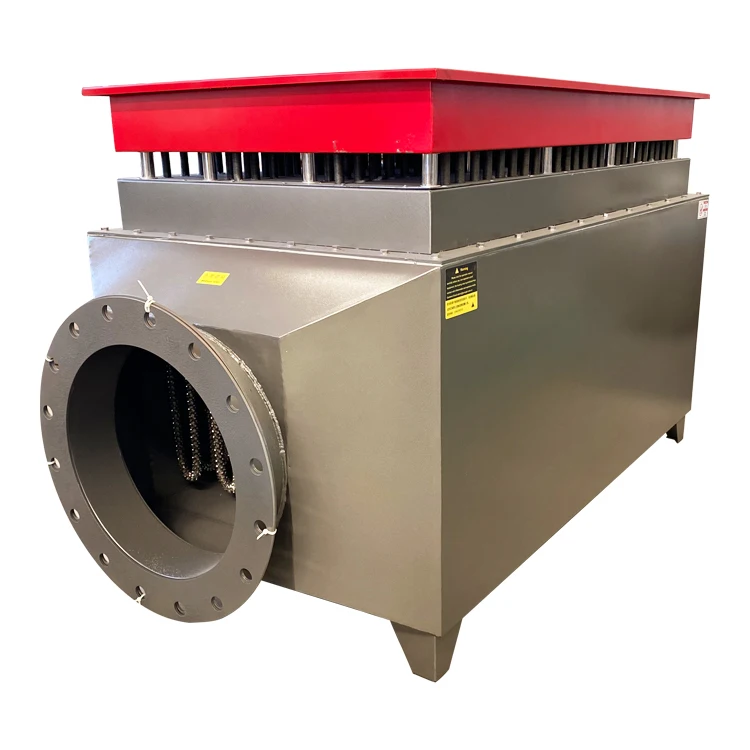

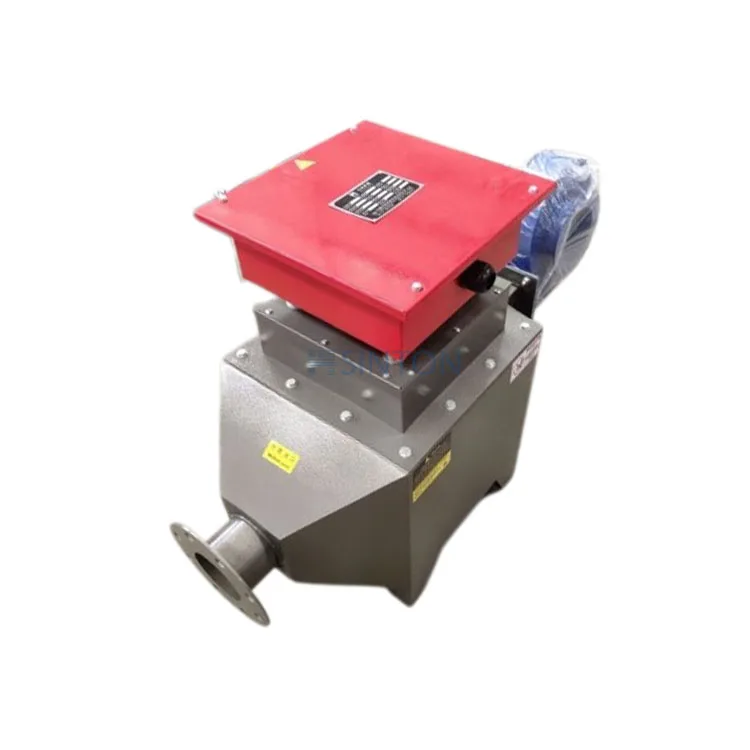

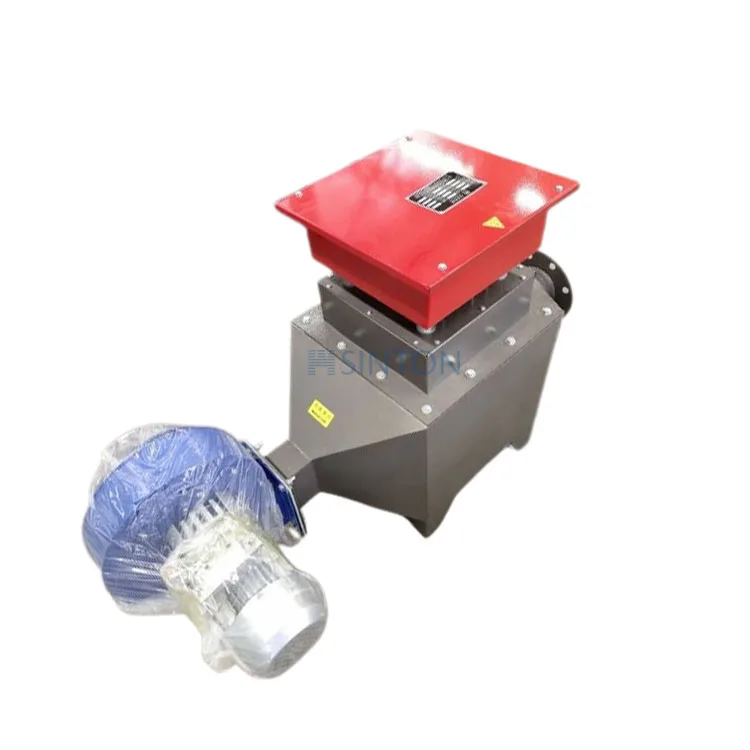

Duct heaters are mainly used for heating air through the duct. There are three types, low temperature, middle temperature and high temperature. The outer stainless steel sheath and construction can reduce the vibrationof heating elements. There is a overheat protector in the terminal box. Air pressure through the duct should not exceed 0.3KG/cm². Or else it is better use recirculation duct heaters. Max temperature of low temperature duct heater is not more than 160 C. Max temperature of middle temperature duct heater is not more than 260 C. Max temperature of high temperature duct heater is not more than 850 C. It has been applied extensively in aerospace industry, weapon industry, chemical industry, and research and manufacturing laboratories in institutions of higher education, etc.

Main Features

1)During heating,air max temperature can reach 850 degree celsius,but the surface temperature of the sheath is just around 50 degree Celsius.
2)Heat efficient is more than 90%
3)Temperature raise rate:10 degree Celsius per second during working
4)The heating element is made of high temperature alloy with good mechanical character
5)Usage time:standard more than 10 years

6)Clean air,small volume

7)Made as client design,2KW~1000KW

8)After reached the max temperature,the working wattages can reduce to half.

Order Guide

Please specify the following when ordering:

Voltage and wattages,  Size of duct sheath,  Inlet size and outlet size,  Temperature required and time,  Flow rate of air and the space’s volume(which will be heated),  Order quantity,  Delivery date

Xingtai Industrial Group process heating systems for customers who are looking for assembled heating solutions. We can provide various heating equipment,such as:Industrial Oven,Air duct heater,Thermal oil heater etc. We continues to innovate and provide customer specific heating solutions.For the customer save cost and improve efficient production requirements.
