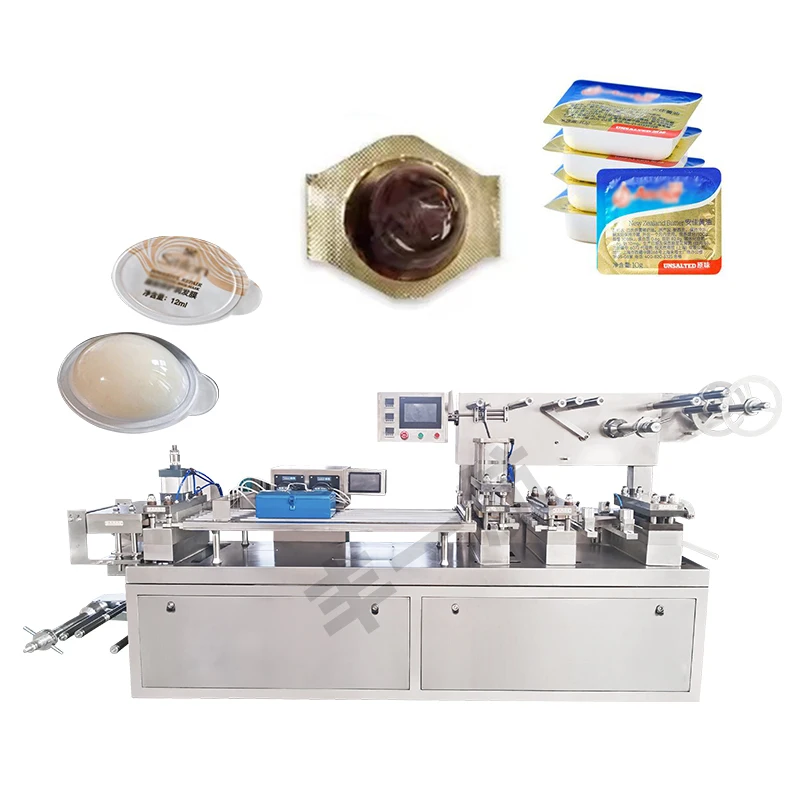

Полностью Автоматическая маленькая блистерная упаковочная машина производитель мини-таблеточная капсула для продажи
606 162,15 ₽ - 2 292 395,04 ₽
Высокоскоростная полностью автоматическая машина для упаковки в блистерную упаковку медового шоколада мини машина жидких блистеров с оливковым маслом
- Категория: >>>
- Поставщик: ZHEJIANG LEADTOP PHARMACEUTICAL MACHINERY CO. LTD
Сохранить в закладки 1601283262136:
Описание и отзывы
Характеристики
Simple Description
DPP-250 Blister Packing Machine
The machine is new product which is improved based on customer’s requirements. It’s suitable for packaging of all kinds of liquid and solid in medium & small Health production factory, hospital preparation lab, food industry, electronic industry, hardware industry, etc. It can protect the material from steam or dust, improve product packing degree, and increase the additional value. The machine is used to produce small quality and many kinds of products.
Technical Data
Model | DPP-88 | DPP-140 | DPP-250 | DPP-320 | |||
Blanking frequency（cutting） | 15-40 | 5-50 | 20-40 | 15-45 | |||
Sheet's quantity of one blanking (sheets) | 1 | 1-4 | 1--6 | 1-8 | |||
Capacity (blisters/min) | 15-35 | 5-200 | 5-200 | 30-720 | |||
Adjustable scope of feed travel (mm) | 10-120 | 10-120 | 30-145 | 10-160 | |||
Max Forming depth (mm) PVC | 120 X 110 X 15 | 160 X 120 X 25 | 255 X 145 X 12 | 350 X 120 X 25 | |||
Capacity of air compressor(m3/min) | ≥0.36 | ≥0.22 | ≥0.22 | ≥0.36 | |||
Power supply | 380V /220V, 30Hz, 5.5kw | ||||||
Size(mm) | 1650*500*1100 | 2450*570*1550 | 4200*650*1650 | 4200*650*1650 | |||
Weight (kg) | 650 | 950 | 1500 | 2200 | |||
Usage
--DPP-88 and DPP-120 blister packaging machines are suitable for small and medium-sized production. The machine is used to produce small quality and many kinds of products.
If you have any questions, please contact us, and we will reply to you as soon as possible and provide you with the best Health production solutions!
--DPP-140, DPP-250 and DPP-350 blister packaging machines are more suitable for medium and large scale production. The machine is used to produce large quality and single product.
If you have any questions, please contact us, and we will reply to you as soon as possible and provide you with the best Health production solutions!
Application
The blister packing machine packing Jam, Oil, Sauce, Candy, Electronic-cigarette, Liquid, Ampoules, injection into aluminum plastic composite panel(ACP) or aluminum plate. The machine is used to produce small quality and many kinds of products.
Features
1. The machine adopts advanced intelligent drive and control technology, and all parts in contact with materials are made of SUS316 stainless steel with strong corrosion resistance
2. The equipment material adopts the combined structure design of carbon steel and aluminum alloy, and the aluminum alloy is hard anodized to improve the corrosion resistance, wear resistance, heat resistance and insulation of aluminum parts.
The film hardness can reach more than hv400 and the thickness can reach dozens or even hundreds μ m. With easy thickness control and high dimensional accuracy, it is widely used in aviation, aerospace, ship and other fields. The use of this material in packaging equipment can greatly improve the service life and stability of packaging machinery.
3. The fuselage adopts split assembly structure, which can be divided into three sections to facilitate users to enter the decorated purification workshop smoothly
4. Switching between aluminum plastic and aluminum can be realized only by changing the mold
5. It has the camera waste removal function (optional) to ensure the integrity of the product
6. There is an independent station for printing batch number and pressing tear line, which can make the batch number more clear and beautiful
7. Ensure the safety of operation, and each station has a visual safety cover
8. Flat plate structure, which can pack oval, square, triangle and other special-shaped items
2. The equipment material adopts the combined structure design of carbon steel and aluminum alloy, and the aluminum alloy is hard anodized to improve the corrosion resistance, wear resistance, heat resistance and insulation of aluminum parts.
The film hardness can reach more than hv400 and the thickness can reach dozens or even hundreds μ m. With easy thickness control and high dimensional accuracy, it is widely used in aviation, aerospace, ship and other fields. The use of this material in packaging equipment can greatly improve the service life and stability of packaging machinery.
3. The fuselage adopts split assembly structure, which can be divided into three sections to facilitate users to enter the decorated purification workshop smoothly
4. Switching between aluminum plastic and aluminum can be realized only by changing the mold
5. It has the camera waste removal function (optional) to ensure the integrity of the product
6. There is an independent station for printing batch number and pressing tear line, which can make the batch number more clear and beautiful
7. Ensure the safety of operation, and each station has a visual safety cover
8. Flat plate structure, which can pack oval, square, triangle and other special-shaped items
Product Details

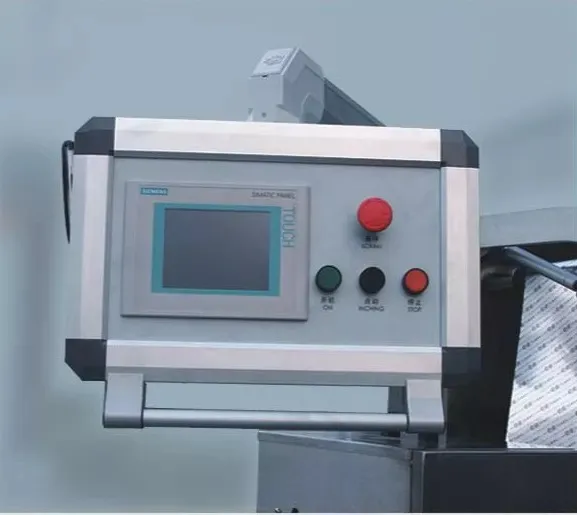

PLC Touch Screen
This machine adopts intelligent driver and PLC Human Computer Interface.(PLC SEMENS)
Adjustable Strock
On the required changes to blister specifications, not to add or replace parts, use of servo motor drive control, its traction strok by the 60-152MM distance adjustable, smooth and accurate implementation of the blister specifications replacement.

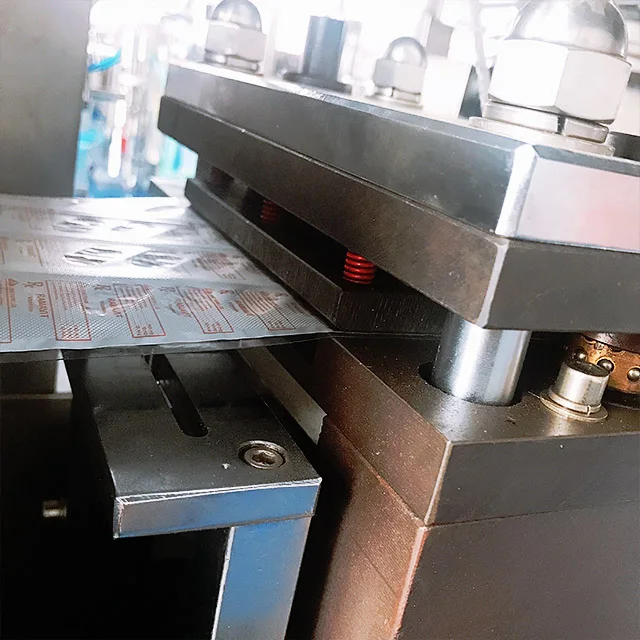

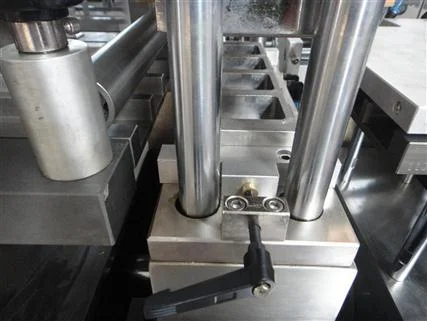

Mould insert position device
Change mould more accurate and facility.

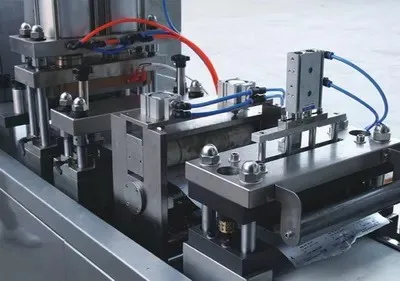

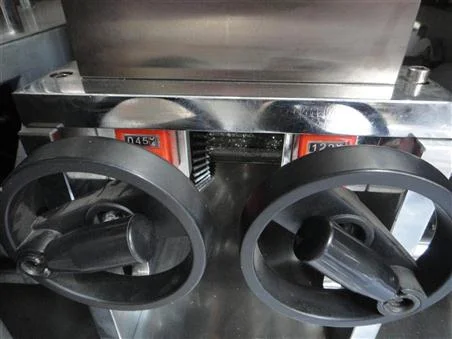

Adjustable station
Forming ,batch ,pressing,cutting ,sealing can be adjust by hand wheel and show the figure ,and the sealing mould as the base point.
Pre Alarm function
Pre alarm for Alu(PVC) foil end and PVC film end,it will show on PLC and remind operator to change material.And with Alu(PVC) fast change device.(with 2 PVC/ALU loading device).
Company Profile
Our Company
- Since year 1996, LTPM CHINA had started manufacturing chemical and food packaging machines such as Ampoule Filling and Sealing Machine, Blister Packaging Machine, Counting and Bottling Line, Cartoning Machine, Bag Packaging Machine, Liquid Filling and Capping Machine etc.
- LTPM CHINA designs different types of packaging lines for customers, including standard or non-standard models.
- LTPM CHINA's machinery = High automation + High precision + More energy saving + Satisfactory warranty and after-sales service + Trusted brand
- LTPM CHINA designs different types of packaging lines for customers, including standard or non-standard models.
- LTPM CHINA's machinery = High automation + High precision + More energy saving + Satisfactory warranty and after-sales service + Trusted brand
Our Certificates
ISO, CE, SGS, BV Certified Company.
Our Machinery Manufacturing Workshop
Imported CNC Machining Centre makes all parts process accurate. Own R&D team with more than 20 years engineering expereince, can customize the equipment and packaging line to your satisfaction.
Our Machinery Manufacturing Workshop
Imported CNC Machining Centre makes all parts process accurate. Own R&D team with more than 20 years engineering expereince, can customize the equipment and packaging line to your satisfaction.
Professional Business Team
Warm, professional business team, careful response to your inquiry, timely response rate of more than 93%, higher than the average level of the industry.
Packing & Shipping
All machine delivery with anti rust spray, film wrapping and Sea shipping affordable wooden box.
FAQ
Q: What price terms you offer?
A: We can offer FOB, FCA, CFR, CIF, EXW and other price terms based on your request.
Q: What payment terms you take?
A: TT, LC, other terms are also workable.
Q: Will you help with installation and stuff training?
A: Yes, we can send our engineers to your place to guide the installation and train your workers if you need, but the buyer should bear our technician's round tickets, accomodation, food and subsidiary USD100/day.
Q: How can I visit your factory?
A: Our factory is located in Ruian city Zhejiang Province. Just let us know your scheduel in advance and we will arrange everything for you!
Any other doubts about our machine, please feel easy to contact with us.
A: We can offer FOB, FCA, CFR, CIF, EXW and other price terms based on your request.
Q: What payment terms you take?
A: TT, LC, other terms are also workable.
Q: Will you help with installation and stuff training?
A: Yes, we can send our engineers to your place to guide the installation and train your workers if you need, but the buyer should bear our technician's round tickets, accomodation, food and subsidiary USD100/day.
Q: How can I visit your factory?
A: Our factory is located in Ruian city Zhejiang Province. Just let us know your scheduel in advance and we will arrange everything for you!
Any other doubts about our machine, please feel easy to contact with us.
Похожие товары
Гарантия качества из нержавеющей стали полностью автоматический томатный соус жидкий блистер упаковочная машина цены
504 767,76 ₽ - 545 545,94 ₽
Кетчуп майонезная блистерная упаковка 20 г
504 767,76 ₽ - 545 545,94 ₽
DPB-260 автоматическая упаковочная машина для кетчупа и варенья
1 708 275,15 ₽ - 1 851 549,84 ₽
Высокочастотный блистерной упаковки машина
Автоматическая машина упаковки волдыря PVC автоматическая
Микро-карта блистер быстрое производство высокочастотная блистерная упаковочная машина для батареи

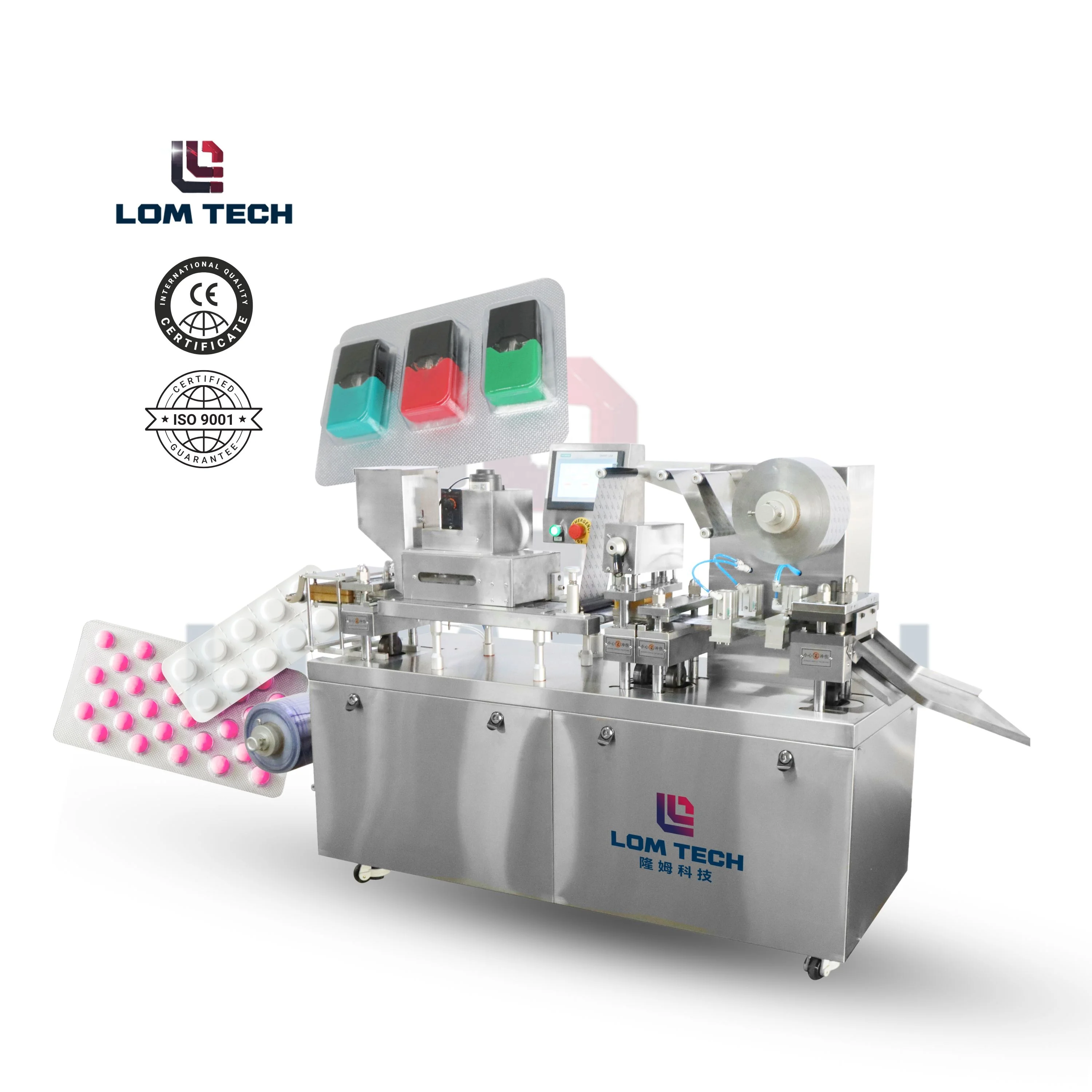

LOM TECH полностью автоматическая маленькая блистерная упаковочная машина производитель мини-таблетка капсула для продажи
