Машина для дробления пластиковых отходов PC800 PE PP цена дробилка пластика промышленный измельчитель
328 429,68 ₽
Small Waste Plastic Cutting Recycling Crusher Granulator Machine
- Категория: >>>
- Поставщик: QINGDAO DAAOTE PLASTIC EXTRUSION MACHINE CO. LTD.
Сохранить в закладки 1601283281147:
Описание и отзывы
Характеристики
Plastic crusher is mainly used to crush all kinds of thermoplastic plastics and rubber, such as plastic profiles, pipes, rods, silk threads, films, waste rubber products. Pellets can be directly used for extrusion and injection molding. Various models can be configured according to users' needs. Large diameter heavy crusher can be used to crush large plastic hollow containers, large pieces of machine head materials, plate materials, etc.
No. | Items | Unit | Data | |||
Main technical data | ||||||
1 | Revolution diameter | mm | 500 | |||
2 | Quantity of rotational blades | pairs | 12 | |||
3 | Quantity of fixed blades | pairs | 4 | |||
4 | Diameter of screen mesh | mm | 80 | |||
5 | Raw material of blade | ------ | 9CrSi | |||
6 | Thickness of blade | mm | 20 | |||
7 | Thickness of main machine steel | mm | 20 | |||
8 | Brand and model of main bearing | ------ | NSK46319(Japan) | |||
9 | Diameter of feeding mouth | mm | 800×500 | |||
10 | Crushing capacity | kg/h | 500KG | |||
11 | MOTOR： | KW | 45KW | |||
12 | Dimension of the crusher | mm | 1700*1040*2350mm | |||
injection blocks, profile, pipe crushing
film , net , straps filament crushring
bottle crushing
we make different kinds design of crushers according to different waste plastic . different plastic need different cutting knife. there are : flat type knife, sheet type knife, paw type knife . the following is introduce you one by one .
1.Performance characteristics of sheet crusher:
The structure of the slice knife is between the claw knife and the flat knife. It is suitable for crushing plastic products and sprue crossings such as ordinary sheets, pipes, profiles, plates and packaging materials.
The general-purpose plastic crusher adopts sealed bearings to keep the bearings running well for a long time; The knife shape design is reasonable, and the product granulation is uniform; The tool holder is heat shrinkable, and the appearance design is beautiful and generous
The structure of the slice knife is between the claw knife and the flat knife. It is suitable for crushing plastic products and sprue crossings such as ordinary sheets, pipes, profiles, plates and packaging materials.
The general-purpose plastic crusher adopts sealed bearings to keep the bearings running well for a long time; The knife shape design is reasonable, and the product granulation is uniform; The tool holder is heat shrinkable, and the appearance design is beautiful and generous
2.Performance characteristics of jaw crusher:
It is suitable for crushing and reusing all kinds of plastics, especially for all kinds of hard plastics (such as material head, shoe last material, etc.). The knife rest is optimized. The claw knife can disperse the hand force, so that the shear force of each knife is increased. It is suitable for crushing thick materials, hard material blocks, material heads, etc; Effectively improve the cutting force and reduce tool wear; With electric control safety design, the box adopts double-layer structure and is filled with sound insulation materials, so that the equipment has good safety, environmental protection, power saving and durability
It is suitable for crushing and reusing all kinds of plastics, especially for all kinds of hard plastics (such as material head, shoe last material, etc.). The knife rest is optimized. The claw knife can disperse the hand force, so that the shear force of each knife is increased. It is suitable for crushing thick materials, hard material blocks, material heads, etc; Effectively improve the cutting force and reduce tool wear; With electric control safety design, the box adopts double-layer structure and is filled with sound insulation materials, so that the equipment has good safety, environmental protection, power saving and durability
3.Performance characteristics of flat knife crusher:
It is suitable for plastic recycling of boxes, thin pipe fittings, blow molded parts, bottles, shells, PE, PP film materials, etc. the flat knife series crusher is easy to operate, and the knife change is simple and fast. The wide structure of the flat knife is suitable for crushing thin-walled and thin-walled products, so as to improve the crushing efficiency; With electric control safety design, the box adopts double-layer structure and is filled with sound insulation materials, so that the equipment has good safety, environmental protection, power saving and durability
It is suitable for plastic recycling of boxes, thin pipe fittings, blow molded parts, bottles, shells, PE, PP film materials, etc. the flat knife series crusher is easy to operate, and the knife change is simple and fast. The wide structure of the flat knife is suitable for crushing thin-walled and thin-walled products, so as to improve the crushing efficiency; With electric control safety design, the box adopts double-layer structure and is filled with sound insulation materials, so that the equipment has good safety, environmental protection, power saving and durability

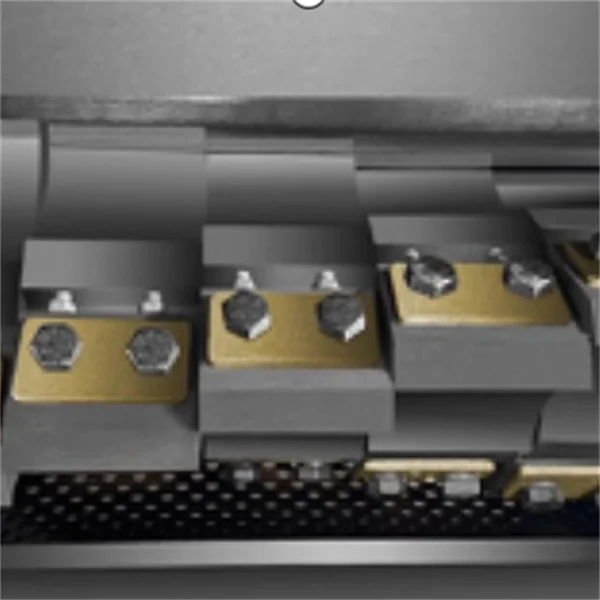

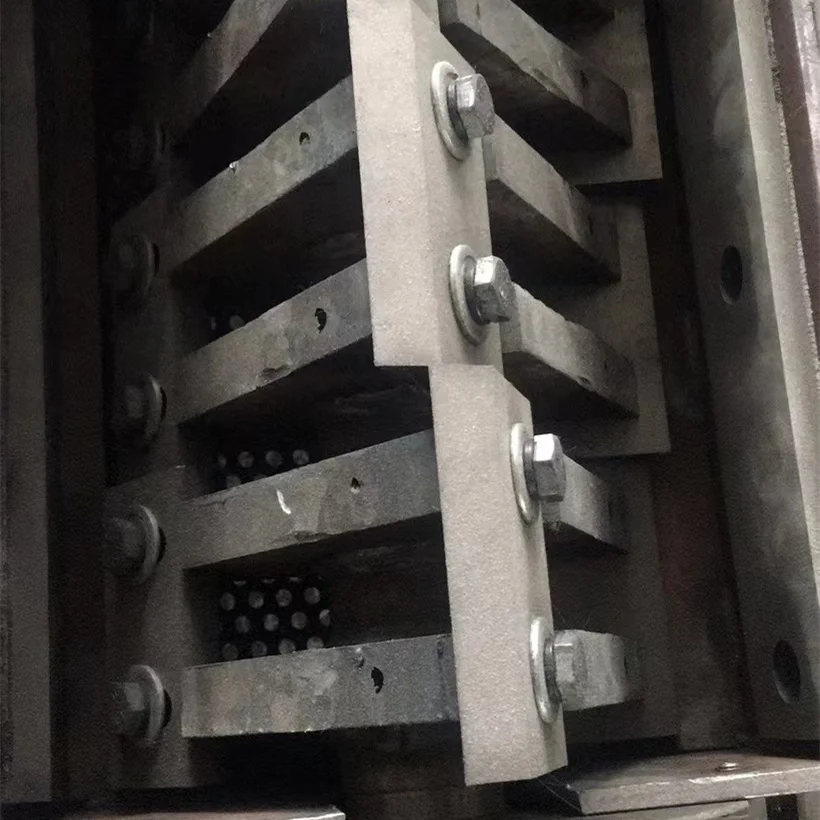

flat knife sheet knife paw knife
What is our advantages
1. The imported special tool steel refined tool is adopted, and the tool clearance can be adjusted, which can be grinded repeatedly and is durable.
2. High strength steel screws are used to fasten the blade and cutter base, with strong bearing capacity.
3. Adopt low-speed and sound insulation treatment, with minimal noise.
4. The motor is equipped with overload protection and power interlock protection devices to double protect the safety of the motor and the operator.
5. The feed hopper adopts optimized design and special rust prevention treatment to avoid leakage and pollution of materials in the crushing process.
6. The separation design, hopper, main body and screen filter base are very easy to disassemble, wash and clean.
7. The perfect design of the discharging device makes it extremely convenient for the operator to clean.
8. Stepped moving knife design, with strong crushing force
9. The heavy-duty bearing and dust-proof device are equipped with sound proof diaphragm to effectively prevent vibration and noise.
10. The small machine is equipped with casters, which makes it easy to move. The mainframe is equipped with adjustable shock feet to reduce noise steadily.
11. Motor overload protection, over force tripping.
12. Disassembly design, easy to maintain.
2. High strength steel screws are used to fasten the blade and cutter base, with strong bearing capacity.
3. Adopt low-speed and sound insulation treatment, with minimal noise.
4. The motor is equipped with overload protection and power interlock protection devices to double protect the safety of the motor and the operator.
5. The feed hopper adopts optimized design and special rust prevention treatment to avoid leakage and pollution of materials in the crushing process.
6. The separation design, hopper, main body and screen filter base are very easy to disassemble, wash and clean.
7. The perfect design of the discharging device makes it extremely convenient for the operator to clean.
8. Stepped moving knife design, with strong crushing force
9. The heavy-duty bearing and dust-proof device are equipped with sound proof diaphragm to effectively prevent vibration and noise.
10. The small machine is equipped with casters, which makes it easy to move. The mainframe is equipped with adjustable shock feet to reduce noise steadily.
11. Motor overload protection, over force tripping.
12. Disassembly design, easy to maintain.
latest design motor
high quality electric parts .
crusher body strong, strong and strong
.
