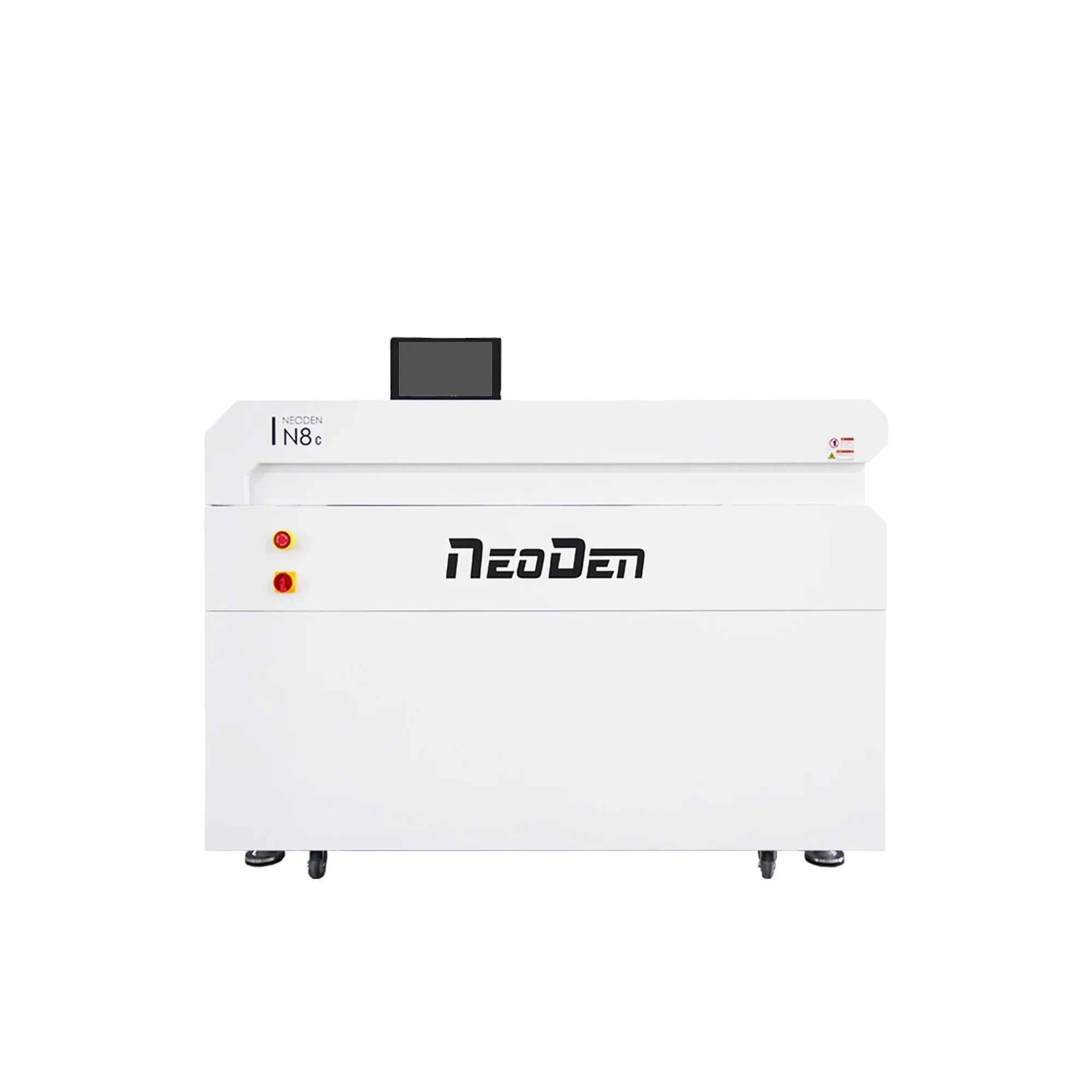

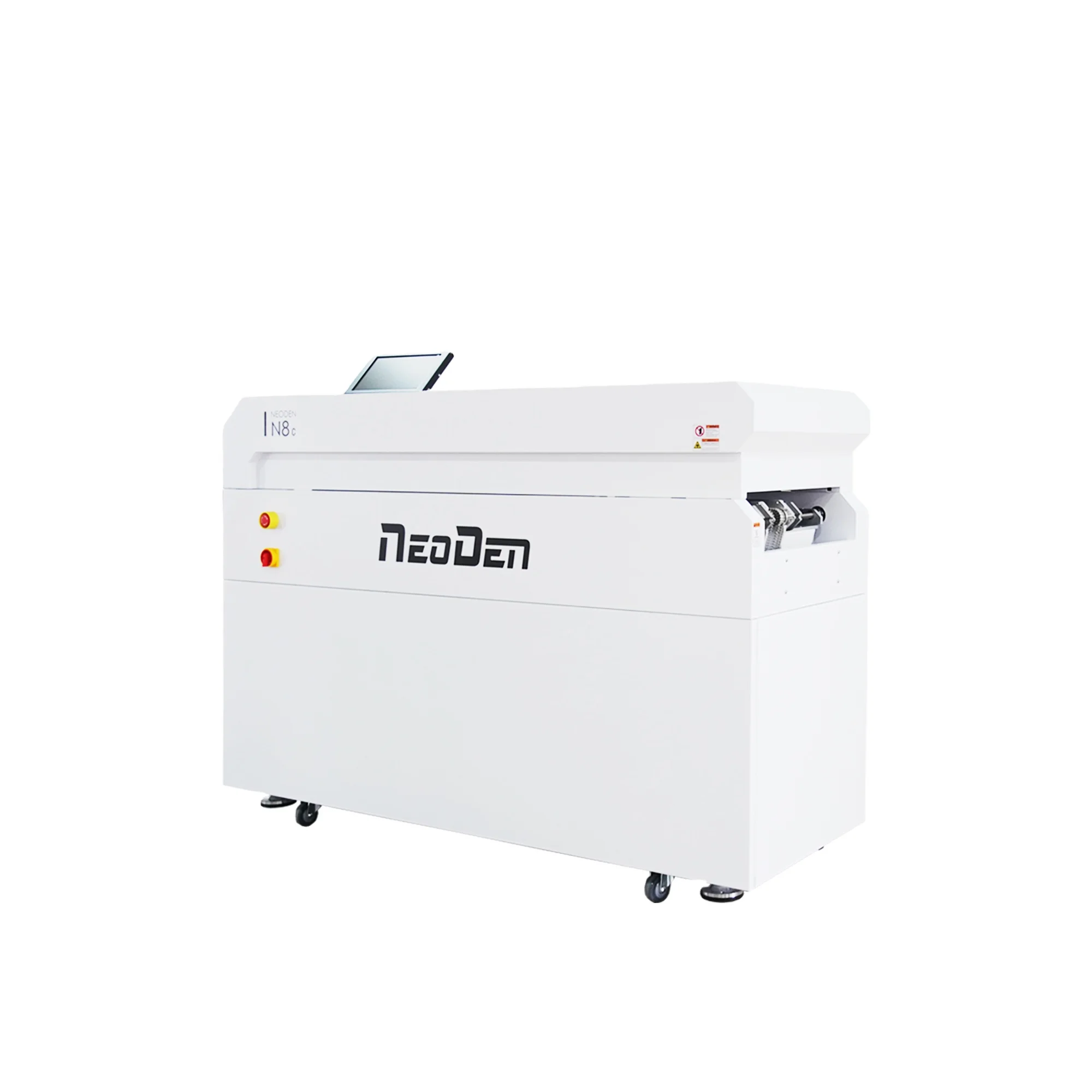

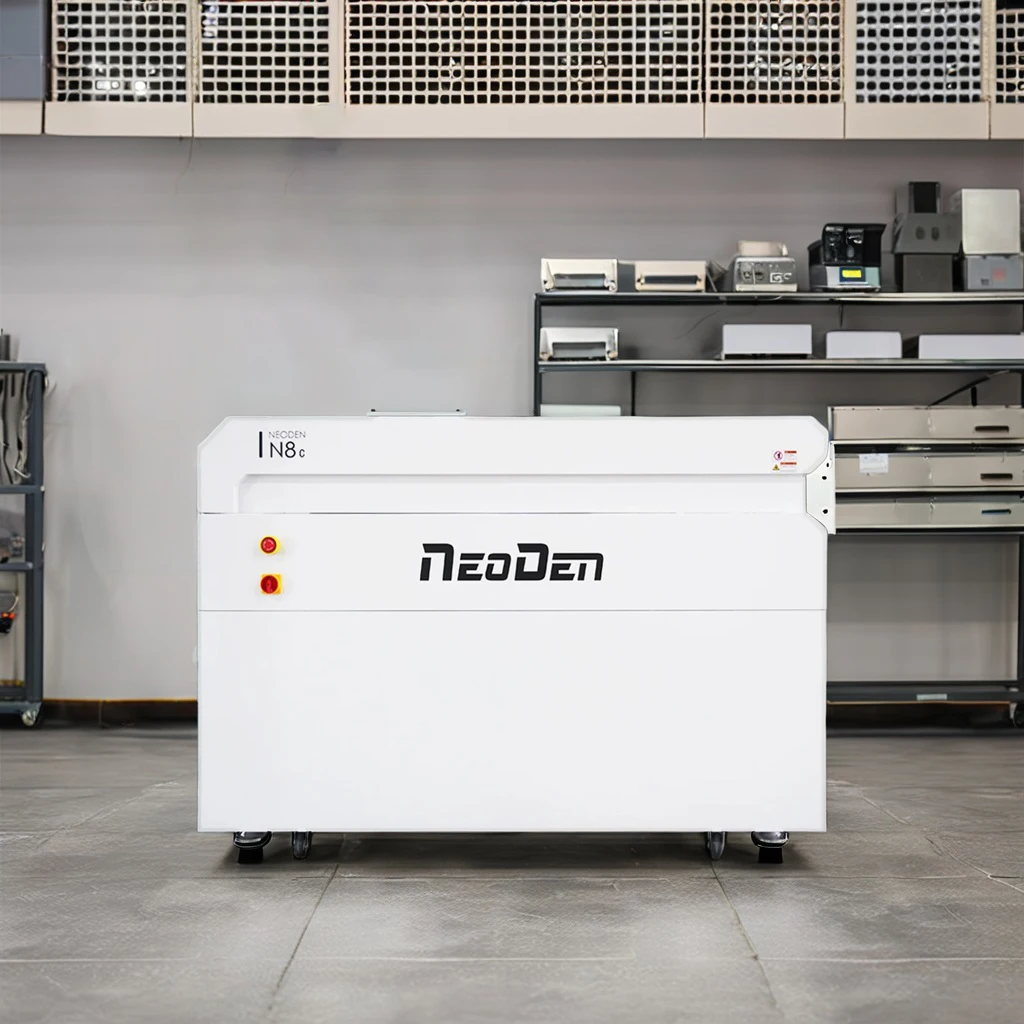

Паяльная станция NeoDen IN8C SMT автоматическая 8 зон
- Категория: >>>
- Поставщик: Zhejiang Neoden Technology Co. Ltd.
Сохранить в закладки 1601283642657:
Описание и отзывы
Характеристики
Products Description
IN8C is a new environmentally friendly, stable performance intelligent automatic orbital reflow soldering.
This reflow solder adopts the exclusive patented design of "even temperature heating plate" design, with excellent soldering performance;
to achieve intelligent temperature control, with high-sensitivity temperature sensor, with stable temperature in the furnace, the characteristics of small horizontal temperature difference;
while using Japan NSK hot air motor bearings and Switzerland imported Heating wire, durable and stable performance.
And through the CE certification, to provide authoritative quality assurance.
Name | IN8C |
Transmission mode | track |
Temperature zones | Up4/Down4 |
Heating mode | Nickel chromium alloy wire and aluminum alloy heating |
Cooling zone | Upper 4 fan |
Speed | 5-60cm/min |
Welding height | Up30MM Down20MM |
Temperature range | Room temperature ~ 300 ℃ |
Heating time | ~20-30 minutes |
Maximum PCB size | 330mm |
Equipment size | L1660*W612*H500（Desktop）L1660*W607*H1075（vertical） |
Starting power | ~3.6KW |
Working power | ~1.5KW |
Voltage | 220V |
Track direction | From left to right |
Weight | 200KG |

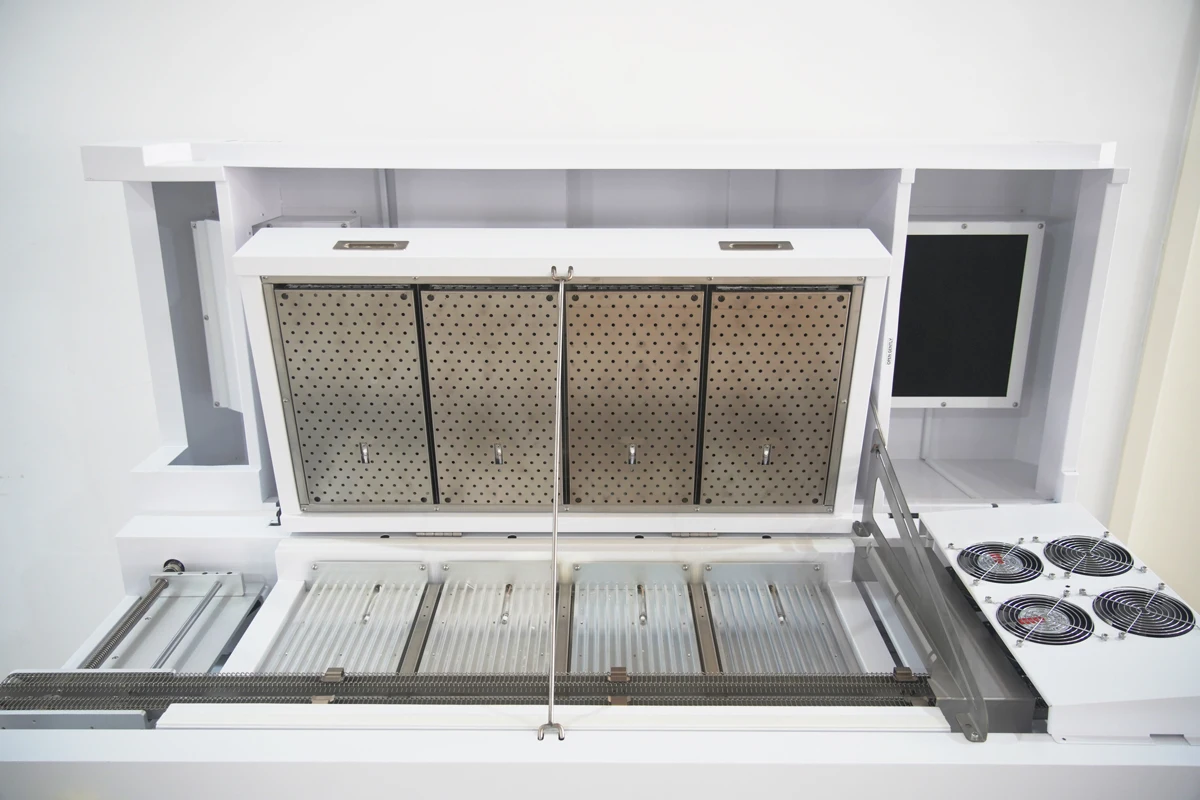

8 temperature zones
Up4/Down4 unique heating module design

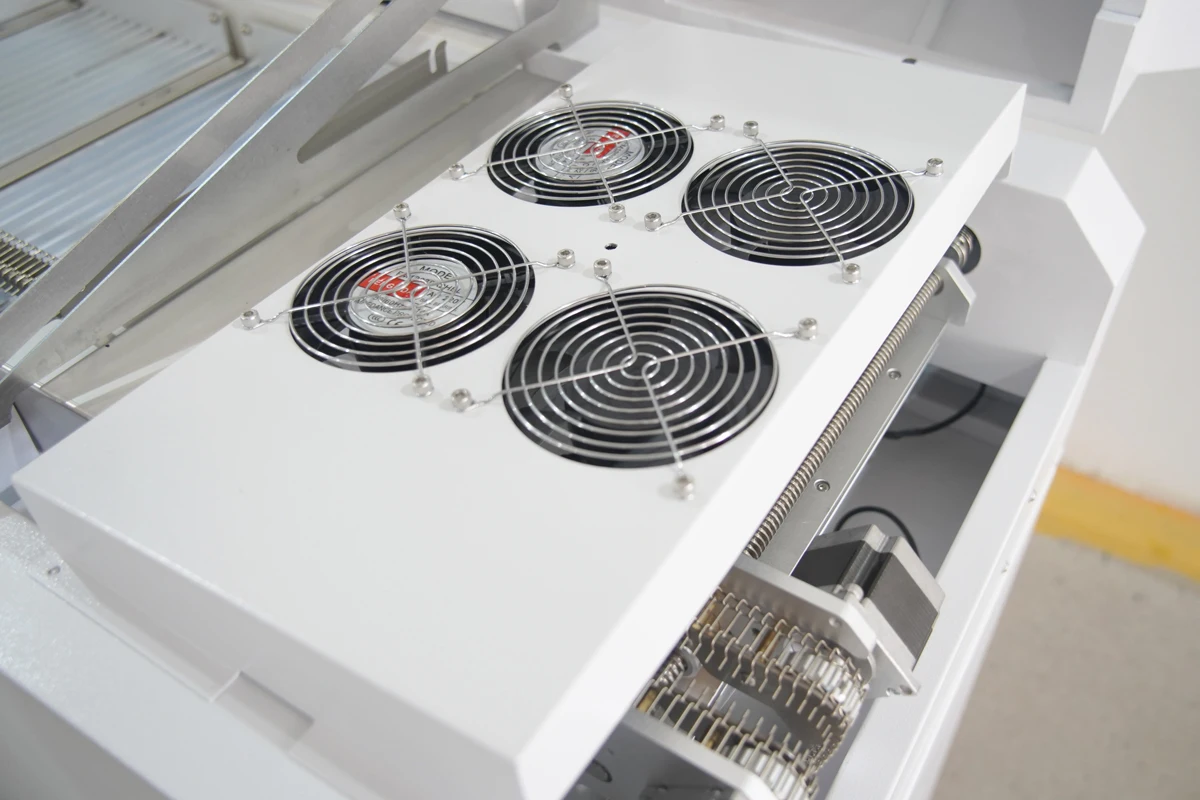

Cooling zones
Independent circulating air design
Isolates the influence of the external environment
Stainless steel B-type mesh belt
Custom-developed track drive motor according to the characteristics of the B-type mesh belt, to ensure uniform speed and long life.
Can store 40 working files
Built-in welding fume filtration system
Effective filtration of harmful gases, beautiful and environmental protection
Operation screen
Concealed screen design is convenient for transportation
Others Features
1. The control system has the characteristics of high integration, timely response, low failure rate, easy maintenance, etc.
2. Hot air convection, excellent welding performance.
3. Intelligent control, high-sensitivity temperature sensor, effective temperature stabilization.
4. Unique 4-way board surface temperature monitoring system, so that the actual operation in a timely and comprehensive feedback data, even for complex electronic products can be effective.
5. Up to 4-way real-time display of PCB board surface welding temperature curve.
6. High-precision profile process to complete the mesh chain wheel, with a unique support structure can effectively reduce the vibration of the PCB board in the reflow area, easily cope with the welding of small devices of the 0201 class and BGA class complex chips.
7. Unique heating plate design effectively ensures uniform cooling after the equipment stops heating, effectively preventing the parts from being damaged by the rapid decrease in temperature and the resulting deformation.
8. The internal temperature box is made of stainless steel, which is environmentally friendly and odorless, and the inner side is equipped with heat insulation cotton to effectively prevent heat loss.
Related Products
About Us
「About NEODEN」
Zhejiang NeoDen Technology Co., Ltd. has been manufacturing and exporting various small pick and place machines since 2010. Taking advantage of our own rich experienced R&D, well trained production, NeoDen wins great reputation from the world wide customers.
With global presence in over 130 countries, the excellent performance, high accuracy and reliability of NeoDen PNP machines make them perfect for R&D, professional prototyping and small to medium batch production. We provide professional solution of one-stop SMT equipment.
In our global Ecosystem, we collaborate with our best partners to deliver a more closing sales service, high professional and efficient technical support.
We believe that great people and partners make NeoDen a great company and that our commitment to Innovation, Diversity and Sustainability ensures that SMT automation is accessible to every hobbyist everywhere.
Payment & Shipping
FAQ
Q1: Do you provide software updates?
For customers who buy our machine, we can offer free upgraded software for you.
Q2: Does our machine need air supply?
We have vacuum pumps inside the machine, it does not need air supply.
Q3: This is the first time I use this kind of machine, is it easy to operate?
We have English user manual and guide video to teach you how to use the machine. If you still have question, pls contact us by email/skype/phone etc for online service.
Q4: How about the warranty?
We have 2 years warranty for NeoDen4, K1830, NeoDen9, In6, IN12 and 1 year for all other models with lifetime after-sale support.
Q5: How can I buy machine from you?
(1) Consult us on line or by e-mail;
(2) Negotiate and confirm the final price, shipping, payment method and other terms;
(3) Send you the proforma invoice and confirm your order;
(4) Make the payment according to the method put on proforma invoice;
(5) We prepare your order in terms of the proforma invoice after confirming your full payment . And 100% quality check before shipping;
(6) Send your order via express or by air or by sea.
For customers who buy our machine, we can offer free upgraded software for you.
Q2: Does our machine need air supply?
We have vacuum pumps inside the machine, it does not need air supply.
Q3: This is the first time I use this kind of machine, is it easy to operate?
We have English user manual and guide video to teach you how to use the machine. If you still have question, pls contact us by email/skype/phone etc for online service.
Q4: How about the warranty?
We have 2 years warranty for NeoDen4, K1830, NeoDen9, In6, IN12 and 1 year for all other models with lifetime after-sale support.
Q5: How can I buy machine from you?
(1) Consult us on line or by e-mail;
(2) Negotiate and confirm the final price, shipping, payment method and other terms;
(3) Send you the proforma invoice and confirm your order;
(4) Make the payment according to the method put on proforma invoice;
(5) We prepare your order in terms of the proforma invoice after confirming your full payment . And 100% quality check before shipping;
(6) Send your order via express or by air or by sea.
If you have any questions, welcome to contact us!
Похожие товары
Промышленная печь S712A SMT оплавильная для сварки паяльной пасты pcb
3 105 970,00 ₽

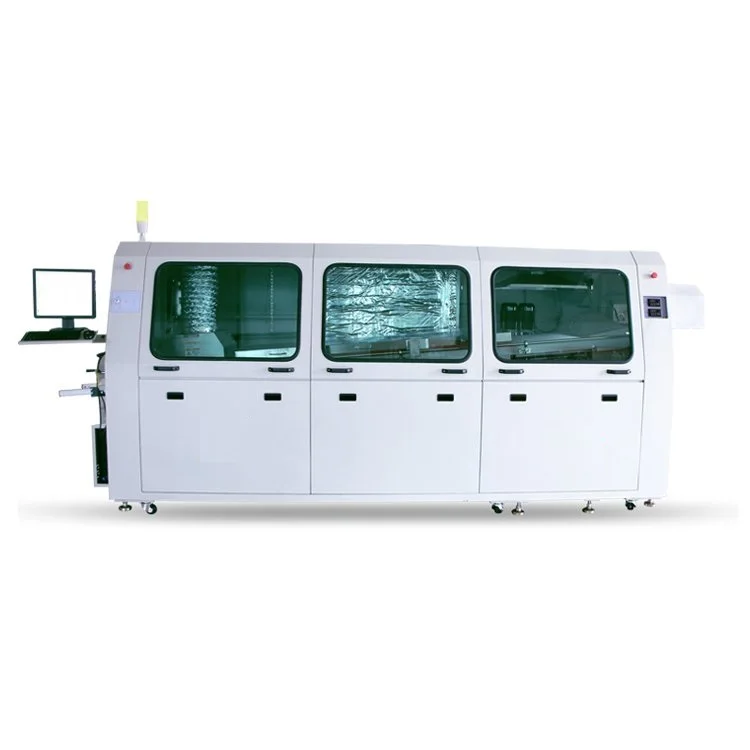

Автоматическая Бессвинцовая паяльная машина волновая
3 105 970,00 ₽

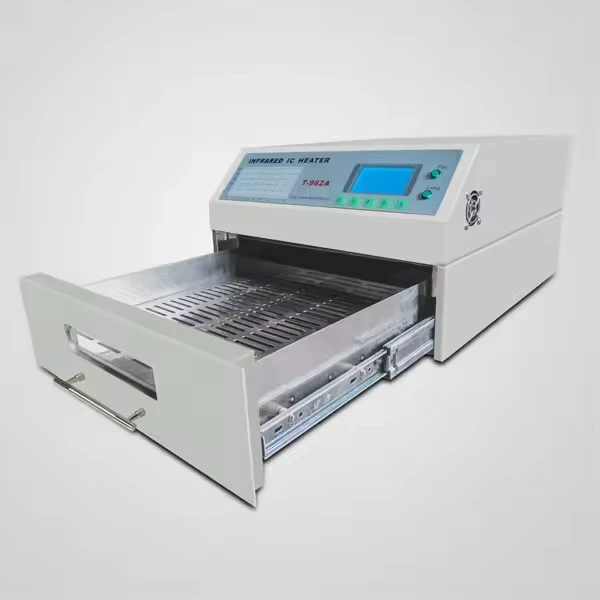

T962A небольшой размер дешевый настольный выдвижной тип автоматическое управление сварочный аппарат Smt Smd IR Reflow духовка машина
