LDPE PP plastic films squeezer machine

Main parameter of plastic squeezer machine:

Model	Capacity (kg/hour)	Motor power (KW)	Screw diameter(mm)	Rotation speed (rpm)	Cutting motor power (KW)	Fan blow power (KW)
KN-250	300	75	250	55	4	5.5
KN-300	500	90	300	55	4	5.5
KN-320	600-700	132	320	55	5.5	7.5
KN-350	800-1000	160	350	55	5.5	7.5

Usage: This is new type film-squeezing machine which is designed by our company. It use squeezing & dehydration principle, after raw material (LDPE agriculture film, LLDPE strength film, and PP woven/big bags, etc) crushing and washed, this squeezer machine can quickly and effectively remove the water. It is easy to increase the subsequent granulating line production capacity.

Advantages of squeezer machine:

1. Low power consumption.

Main motor power between 75-160kw, no need to connection drying pipe system. Compare transitional horizontal dewatering machine + drying pipe system, can save electric consumption 40-50%

2. Small land occupied
3. Low rotation speed, almost no noise
4. Dewatering function is better, final products humidity less than 2%

5. Can greatly increase the subsequent granulating line production capacity

Machine photo	Specification

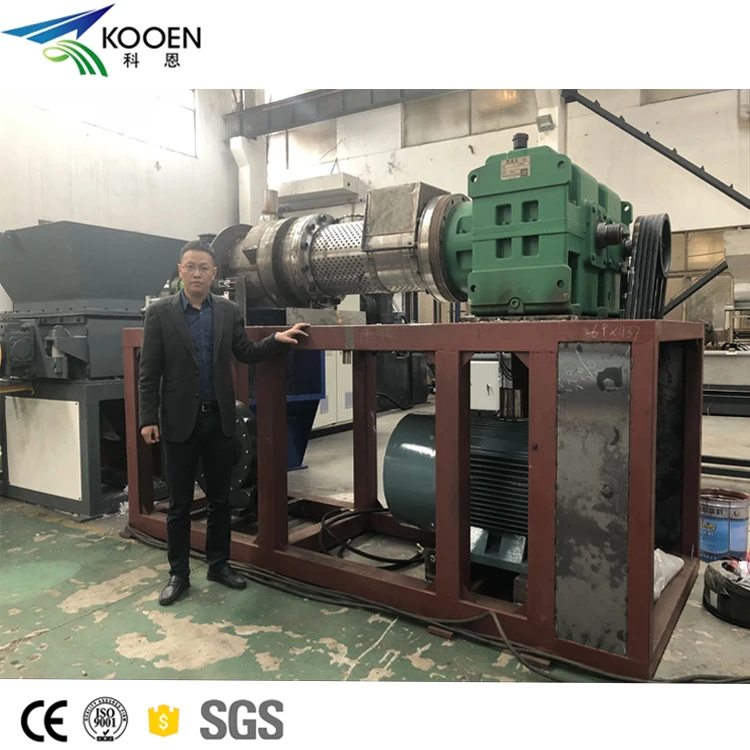

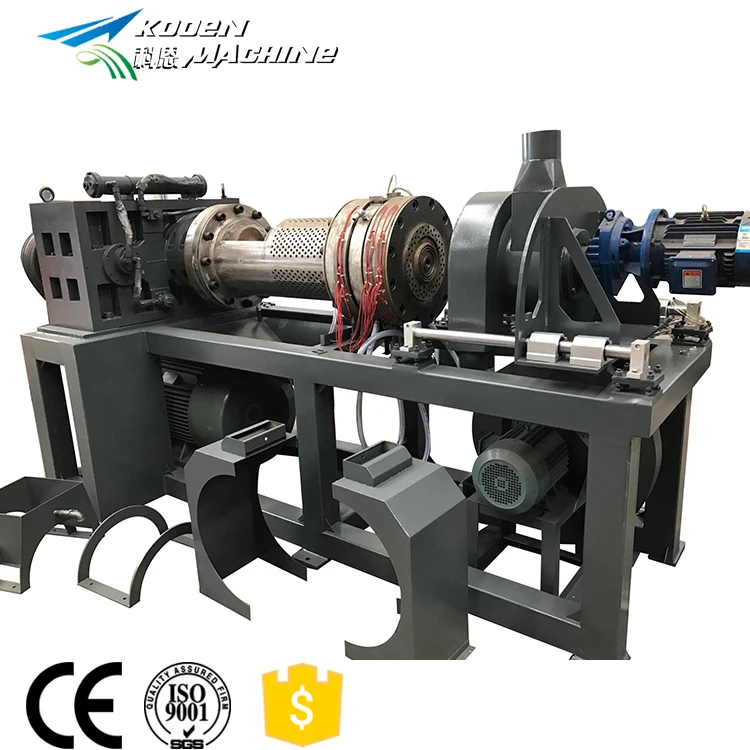

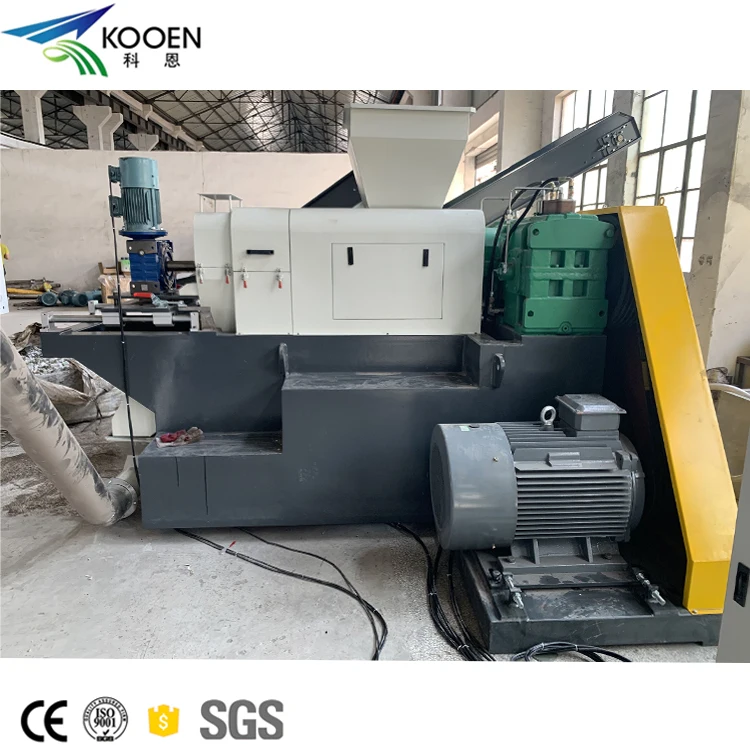

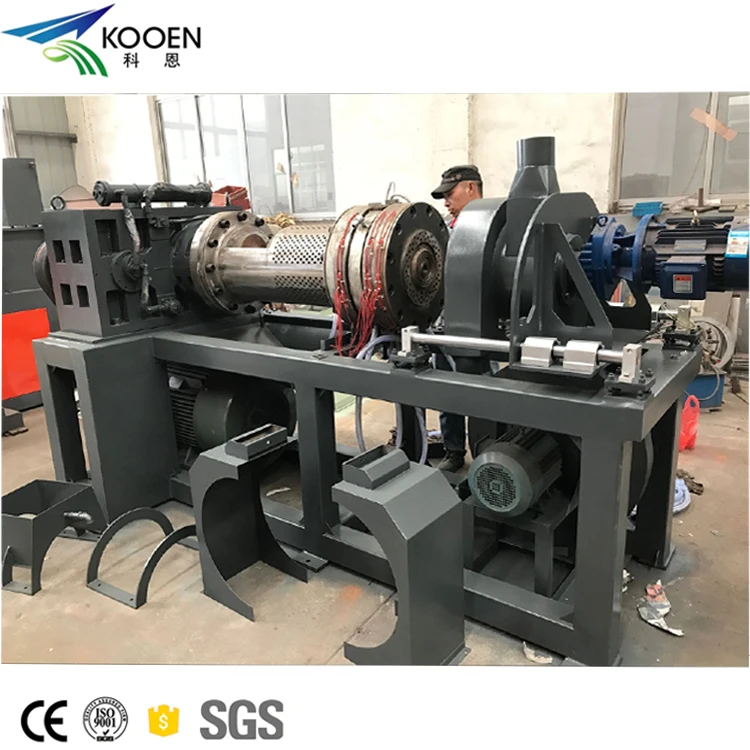

Squeezer machine	Main motor power: 75/90/132/160kw Rotation speed:50rpm Screw diameter: 250/300/320/350mm Cutting motor power:4/5.5kw Cutter rotation speed:380rpm (frequency control by invertor) Pellets size:≥12mm Final production humidity: below 2% Capacity:Around 300-800kg/h
Barrel	Material:38CrMoA1A Nitrified Hardness: HV 740 Nitrified thickness: 0.4-0.6 CNC treatment
Screw	Material:38CrMoAl Nitrified Special design on the screw, suitable for process both PE and PP materials. Hardness: HV ≥ 980 Nitrified thickness: 0.6-0.7 CNC treatment
Mould	Material:38CrMoAl Nitrified CNC treatment die head hole size: 12-18mm (process PE and PP, need exchange the die head plate)
Cutter	Cutting hood material:stainless steel Cutting motor and cutting shaft connect directly Cutting knife quantity:4pieces Blade material: White steel Cutter material:SDK-11 Cutting angle:30° The cover can opening, easy to install/dismount the knives, and easy for maintenance
Driving part	High quality high torque, low noise, hard surface gear box connected with cooling cycling system outside SPC belt driving efficiency Belt quantity:7 pieces
Wind transition + silo	Fan motor power:5.5kw Material of silo: stainless steel Volume of silo: 1M3
Platform Handrail	Big area Platform + Handrail, easy for workers to checking machine working condition, and easy for machine maintenance
Control cabinet	Word famous brand electric components used: ABB invetor Schneider contactor Etc,
