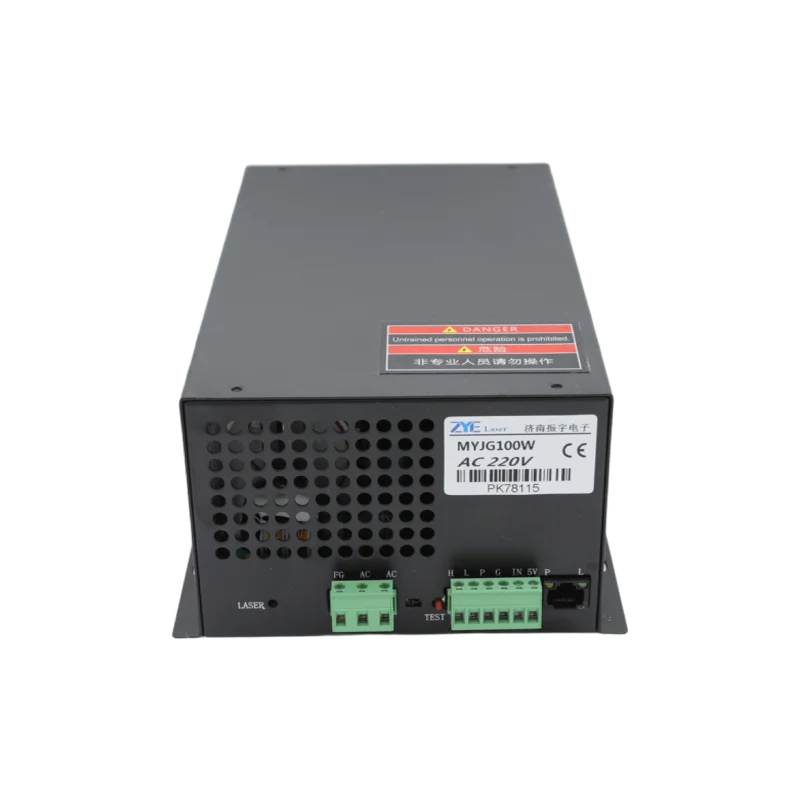

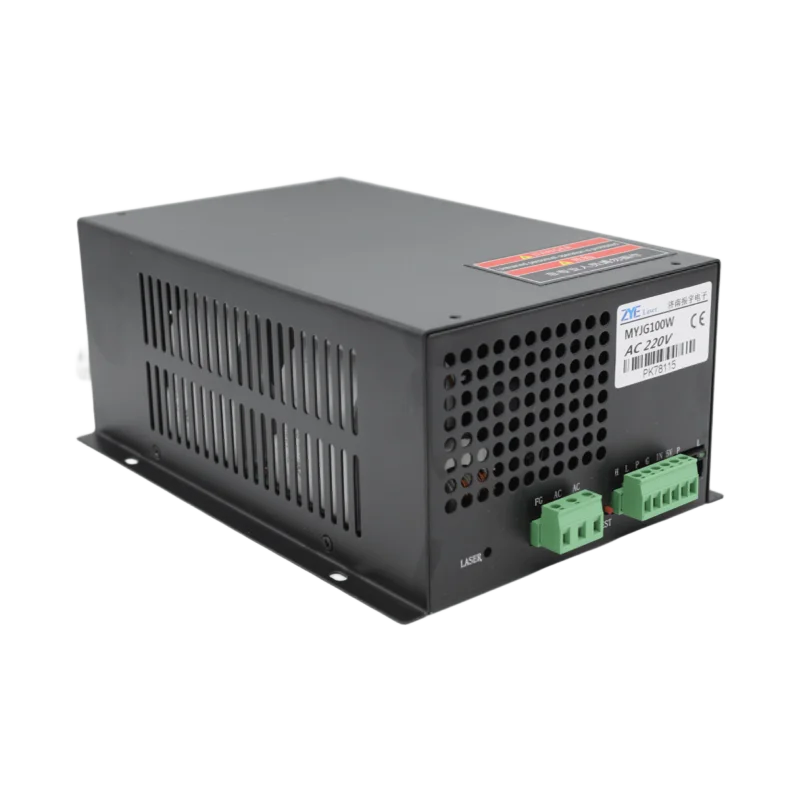

Лазерный источник питания ZYE MYJG серии 100 Вт для деталей станка резки СО2
9 435,29 ₽ - 11 120,16 ₽

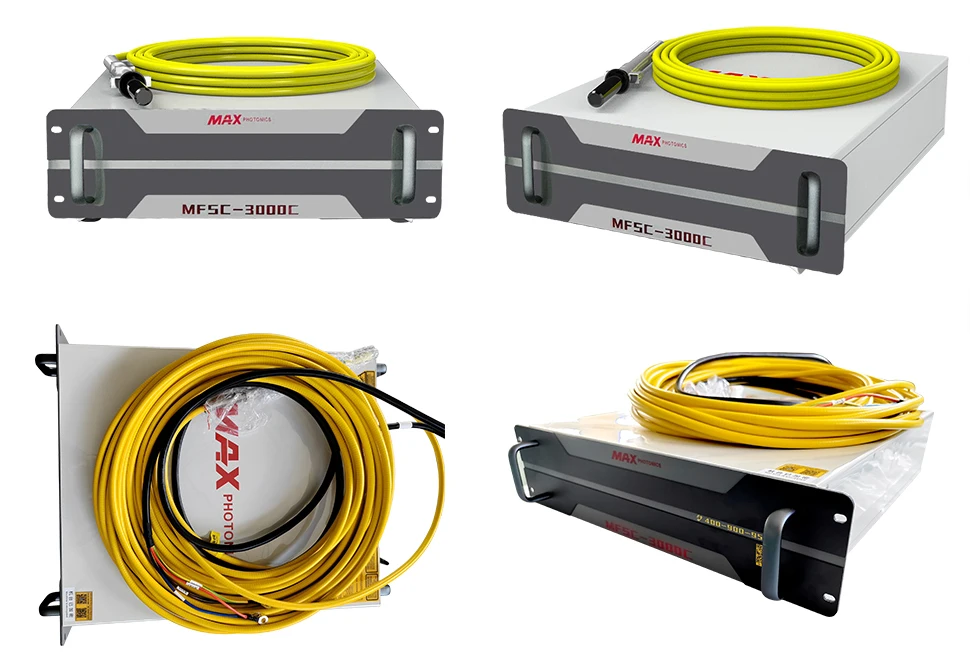

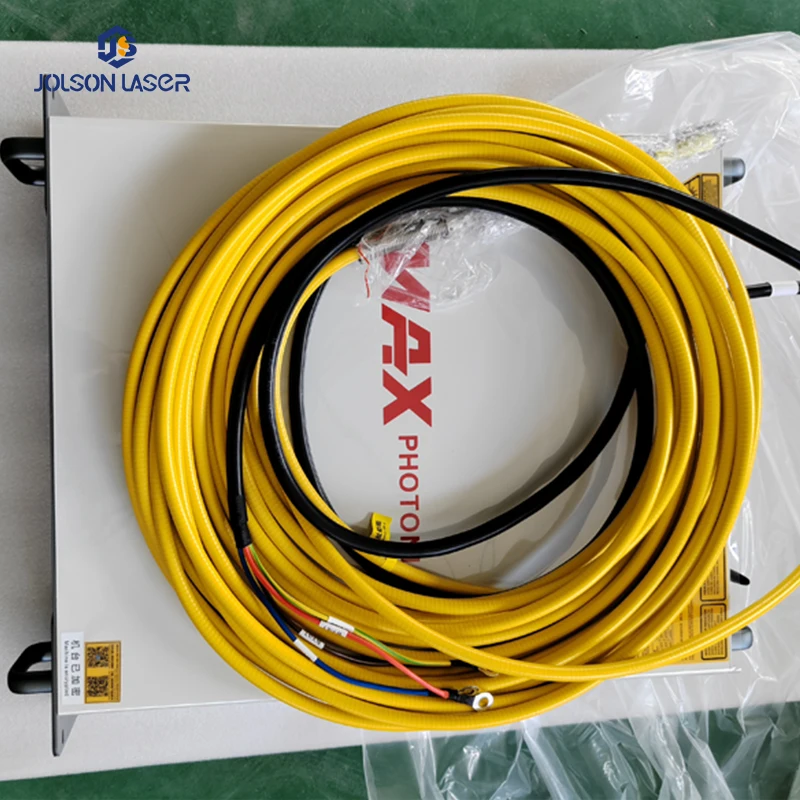

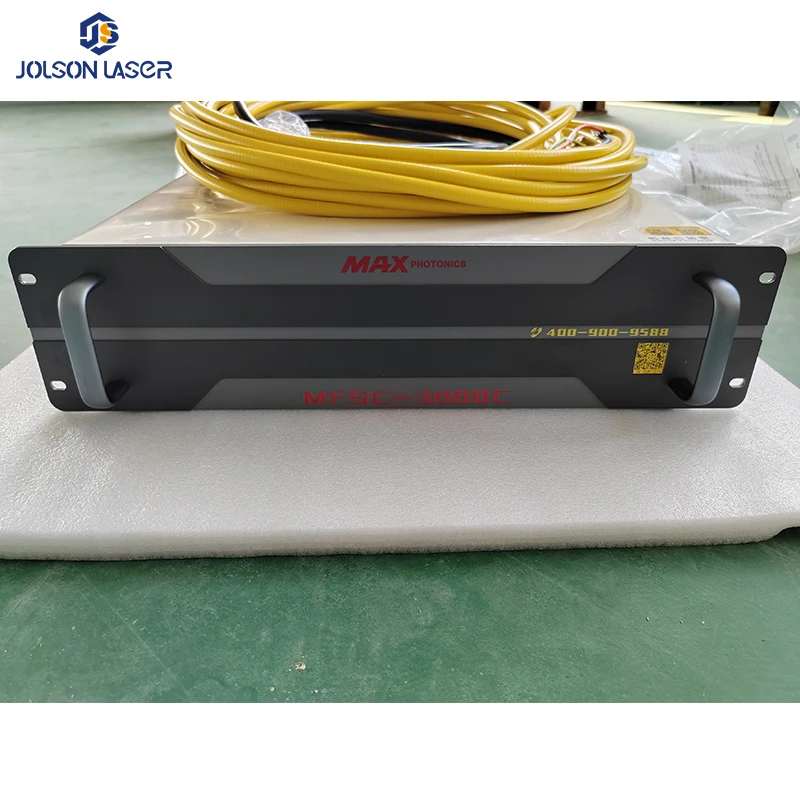

Макс MFSC 3000 лазерный источник для волоконно лазерной резки 3KW лазерные машины
- Категория: >>>
- Поставщик: Shandong Jolson Machinery Co. Ltd.
Сохранить в закладки 1601283879987:
Описание и отзывы
Характеристики
MFSC 1500X Single Module CW Fiber Laser, based on modular design, has excellent beam quality and high stability, which structure is compact and water-cooling. The laser can be adjusted continuously, and the beam is transmitted be fiber and QBH connector, which is ideal for laser cutting, laser welding, etc. The laser is very suitable for system intergration with robot or machine tool, and is widely used for laser cutting, welding, 3D printing, electronics, automobile parts, aerospace, etc.
Models | MFSC-1500X |
Nominal Power | 1500W |
Mode of Operation | CW/Modulated |
Polarization | Random |
Power Tunability | 10 to 100% |
Wavelength | 1080 ± 10 nm |
Power Stability | ±1 % |
Laser Beam Quality, BPP | ≤1.5 mm x mrad (50μm QBH) |
Modulation Frequency | ≤20 kHz |
Preview Red Light Power | 150 μW |
Interface | QBH |
Length | 15m standard, other lengths optional |
Diameter | 50 μm |
Bending Radius | 200 mm |
Supply Voltage | 220VAC (-15% to +10%) Single-phase |
Operating Temperature | +10 to +40℃ |
Storage Temperature | 10 to +60℃ |
Humidity | 10 to 85% |
Cooling Method | Water Cooling |
Cooling Medium | Distilled water/ Glycol Antifreeze |
Dimension | 482.6×800×193mm (W×D×H) |
Weight | 35KG |
The electro-optical conversion efficiency is more than 30%.
The beam quality is good and the power stability is strong.
No adjustment, no maintenance, high stability.
No adjustment, no maintenance, high stability.
Q1：What's cutting material?
A1：For different metals cutting, such as carbon steel, stainless steel, aluminum, etc.
Q2: What's lead time?
A2: lead time: within 3 working days after receive payment.

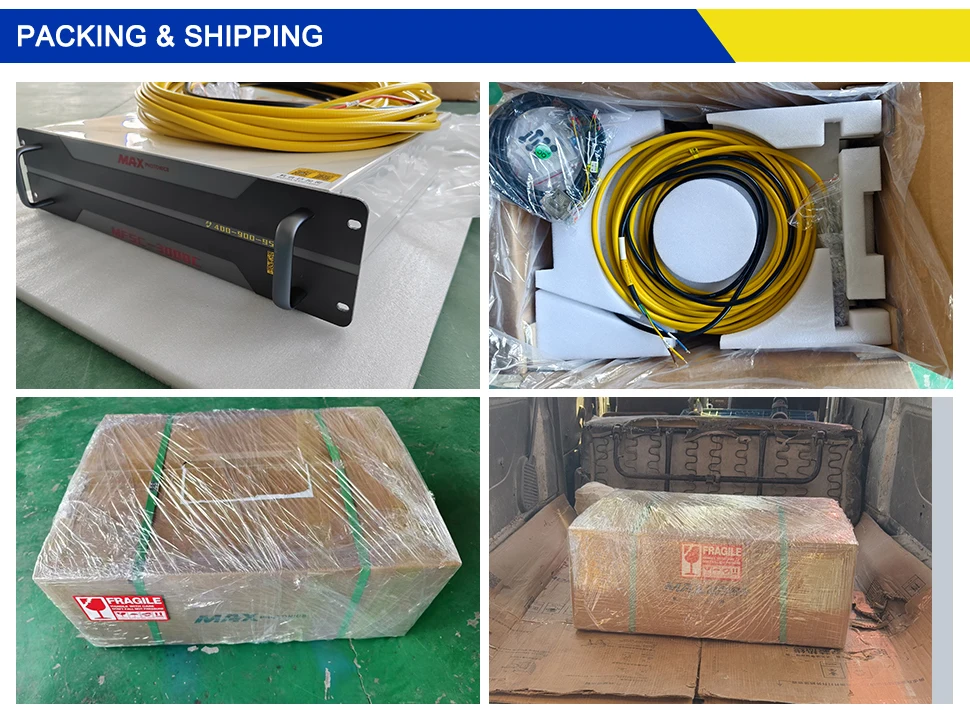

Q3: What's packing method?
A3: packed in plywood case
Q4: What's payment terms?
A4: TT, and payment of credit insurance order.
Q5: Can you provide cutting parameters and manual of MAX1500w?
A5: Yes, we can send cutting parameters and manual to you. So, if you need, please contact us freely.
Q6: How is your warranty?
A6: We provide two years warranty. We also provide free technical support and installation guide.
Q7: Do you have other parts for fiber laser cutting machine assembly?

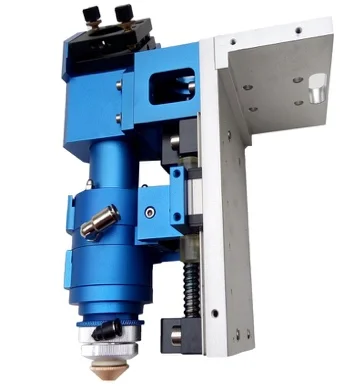

A7: We are trustworthy fiber laser cutting parts supplier. We supply all parts for fiber laser cutting machine, such as laser cutting head, fiber laser cutting control system, chiller, laser protective lens, nozzle, ceramic rings, etc.
Q8: What's your advantage?
A8: We provide free technical support and full laser solutions. Our price is wholesale price.
A1：For different metals cutting, such as carbon steel, stainless steel, aluminum, etc.
Q2: What's lead time?
A2: lead time: within 3 working days after receive payment.
Q3: What's packing method?
A3: packed in plywood case
Q4: What's payment terms?
A4: TT, and payment of credit insurance order.
Q5: Can you provide cutting parameters and manual of MAX1500w?
A5: Yes, we can send cutting parameters and manual to you. So, if you need, please contact us freely.
Q6: How is your warranty?
A6: We provide two years warranty. We also provide free technical support and installation guide.
Q7: Do you have other parts for fiber laser cutting machine assembly?
A7: We are trustworthy fiber laser cutting parts supplier. We supply all parts for fiber laser cutting machine, such as laser cutting head, fiber laser cutting control system, chiller, laser protective lens, nozzle, ceramic rings, etc.
Q8: What's your advantage?
A8: We provide free technical support and full laser solutions. Our price is wholesale price.
Похожие товары

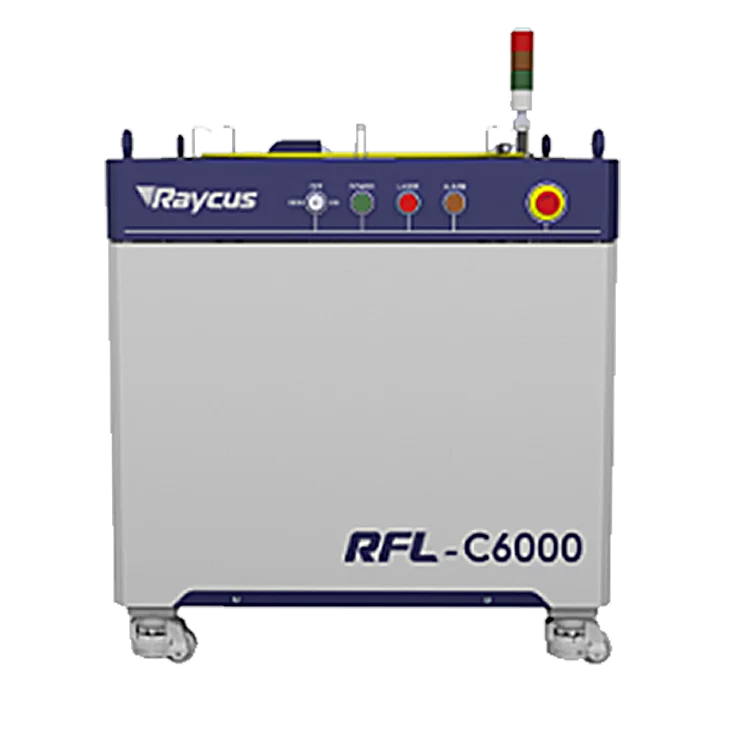

Raycus лазерный источник питания 1000 Вт 1500 2000 3000 4000 6000 волоконный торговля лазер WU XI CYLION
336 974,40 ₽

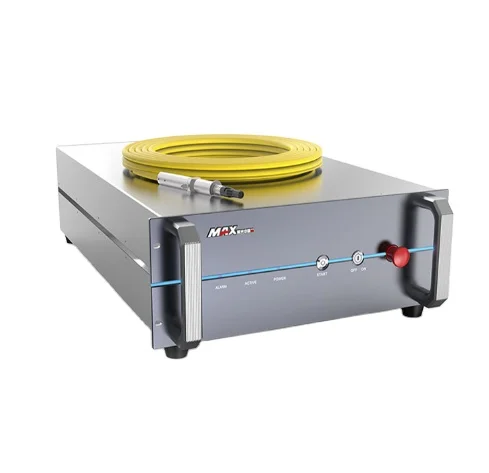

Макс фотоника 1 кВт ~ 3 одномодульный лазерный источник 1000 3000 Вт генератор для волоконно-лазерной резки
CNC LY CO2 Hotspur (100 Вт) DY13 лазерный источник питания для производства гравировального уплотнения и резки
5 616,24 ₽ - 7 301,12 ₽

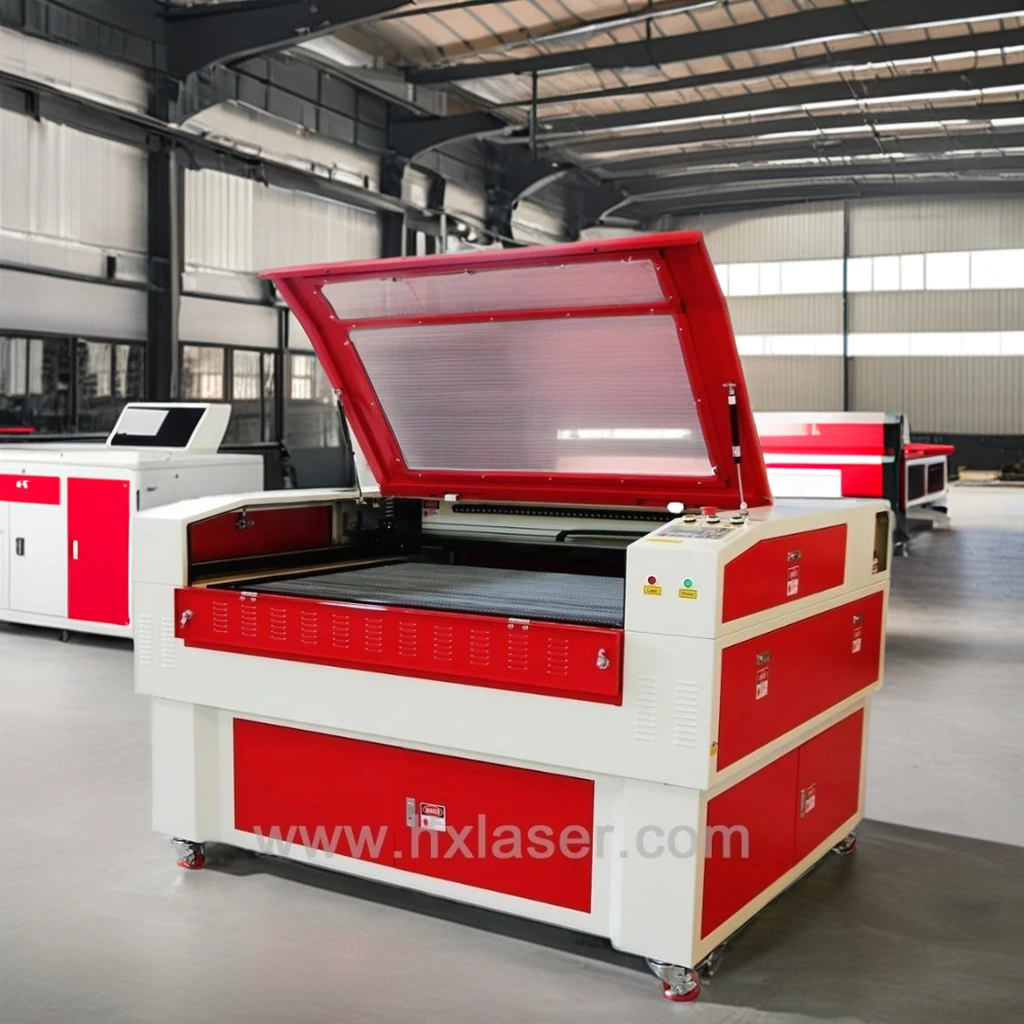

1200x900 100 Вт CO2 лазерная гравировка и резка с поворотным устройством лазерный гравер резак для деталей оборудования
