Product Description
Qingzhou HUAYI series feed silo is made of 275 g/㎡ hot-dip galvanized sheet and all screws are made of 8.8-level high-strength hot-dip galvanized bolts, which are corrosion-resistant, anti-oxidation, high-temperature resistance, high strength, long service life, and can withstand a strong storm.
The feed silo is mainly composed of silo body, silo cover, mounting ladder, and silo legs etc. All parts are produced in strict accordance with drawing design by using advanced laser equipment and precision molds, and then undergo strict quality inspections to make each component more standard, more precise in size, and more convenient to install to ensure easy assembly and use.
Advantages：
1). Silo standard ladder which has a guard railing and is safe and reliable;
2). Firm connection and good sealing performance;
3). High-quality plates, for more than 30-year service life
Model | Diameter | Ton | Wall thickness | Height | Legs | Material |
4.1m³ | Φ1830 | 2.7T | 1.0mm | 3.8m | 4pcs | 275g hot dip galvanizing |
6.5m³ | Φ1830 | 4.2T | 1.0mm | 4.7m | 4pcs | 275g hot dip galvanizing |
8.9m³ | Φ1830 | 5.8T | 1.0mm | 5.6m | 4pcs | 275g hot dip galvanizing |
11.3m³ | Φ1830 | 7.3T | 1.0mm | 6.5m | 4pcs | 275g hot dip galvanizing |
11.6m³ | Φ2750 | 7.5T | 1.0mm | 4.9m | 6pcs | 275g hot dip galvanizing |
17m³ | Φ2750 | 11T | 1.0mm | 5.8m | 6pcs | 275g hot dip galvanizing |
22.4m³ | Φ2750 | 14T | 1.0mm | 6.7m | 6pcs | 275g hot dip galvanizing |
27.8m³ | Φ2750 | 18T | 1.0mm | 7.6m | 6pcs | 275g hot dip galvanizing |
23.5m³ | Φ3670 | 15T | 1.2mm | 5.8m | 8pcs | 275g hot dip galvanizing |
33m³ | Φ3670 | 21.5T | 1.2mm | 6.7m | 8pcs | 275g hot dip galvanizing |
42.5m³ | Φ3670 | 27.5T | 1.2mm | 7.6m | 8pcs | 275g hot dip galvanizing |
52m³ | Φ3670 | 33.5T | 1.2mm | 8.5m | 8pcs | 275g hot dip galvanizing |
Details Images
1.it is made of steel with tension up to 55000,With electroplating coating treatment,275g Zinc coating.which increase the strength and service life.
2.The corrugated steel can ensure accurate and consistent match during installation.
3.The weight and thickness of zinc coating have strict requirements, which meet the requirements of field use with good corrosion resistance, external main material line.
2.The corrugated steel can ensure accurate and consistent match during installation.
3.The weight and thickness of zinc coating have strict requirements, which meet the requirements of field use with good corrosion resistance, external main material line.
Silo Inlet Cover & Automatic Opening Control
2. With Our Specially Designed Automatic
Elastic Torsion Spring Control Structure,
Customers Can Open and Closed the Top
Cover Easily and Safe
Elastic Torsion Spring Control Structure,
Customers Can Open and Closed the Top
Cover Easily and Safe
1. Constructed with Hot-galvanized corrugated
steel plate, Which Can Reduce The Silo
Inside Condensation & Moisture.
2. ZN-Coat thickness≥275 g/m² ;
3. Out ring cover with film which avoid scratch
during transit.
3. Sealing glue is added between the ring
sheets to prevent water entering the silo to
avoid feed mildew.
steel plate, Which Can Reduce The Silo
Inside Condensation & Moisture.
2. ZN-Coat thickness≥275 g/m² ;
3. Out ring cover with film which avoid scratch
during transit.
3. Sealing glue is added between the ring
sheets to prevent water entering the silo to
avoid feed mildew.
1. Different Types of Bottom Hopper (Both
Plastic & Iron Type Can Be Choose) with
different auger boots (Both Single or Double
Exits Boots Can Be Choose).
2. Use High Strength Plastic, fastened Strongly
and Sealed, Non-Friable More Secure and
Durable.
3. Auger Tranparent Hopper;
Chain Feed Transport Hopper;
Hot Dip Galvanizing Hopper.
Plastic & Iron Type Can Be Choose) with
different auger boots (Both Single or Double
Exits Boots Can Be Choose).
2. Use High Strength Plastic, fastened Strongly
and Sealed, Non-Friable More Secure and
Durable.
3. Auger Tranparent Hopper;
Chain Feed Transport Hopper;
Hot Dip Galvanizing Hopper.
The Windows Are Made of Plastic Injection
Molding, with Strong Pressure Resistance
and Good Light Transmittance, Making It
Easy to Check the Feed Delivery Condition in
the Silo Clearly.
Molding, with Strong Pressure Resistance
and Good Light Transmittance, Making It
Easy to Check the Feed Delivery Condition in
the Silo Clearly.

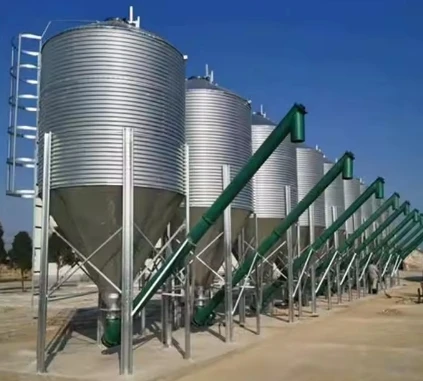

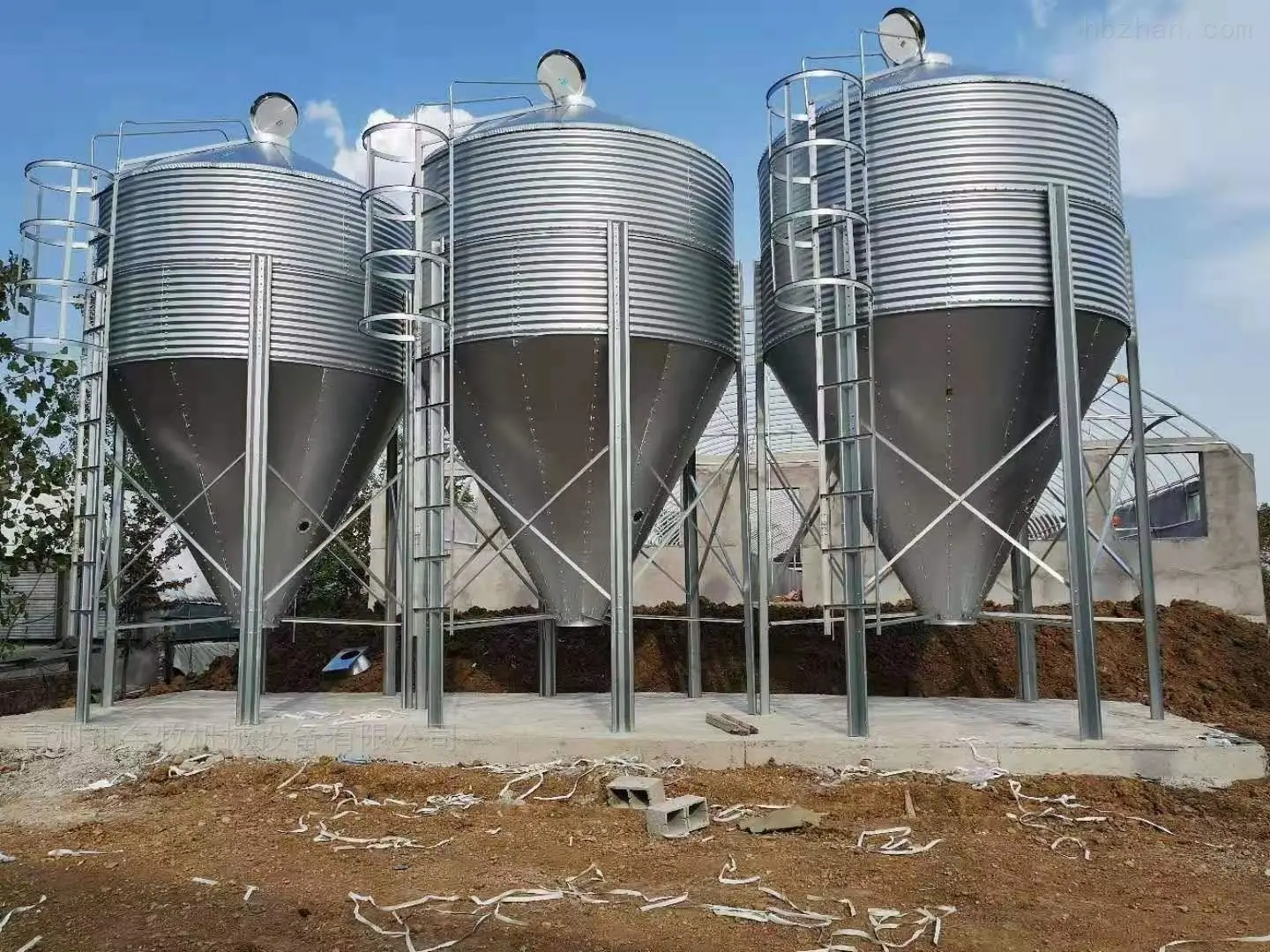

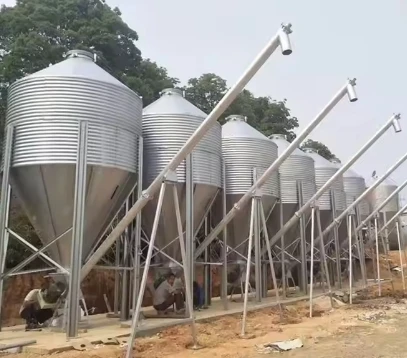

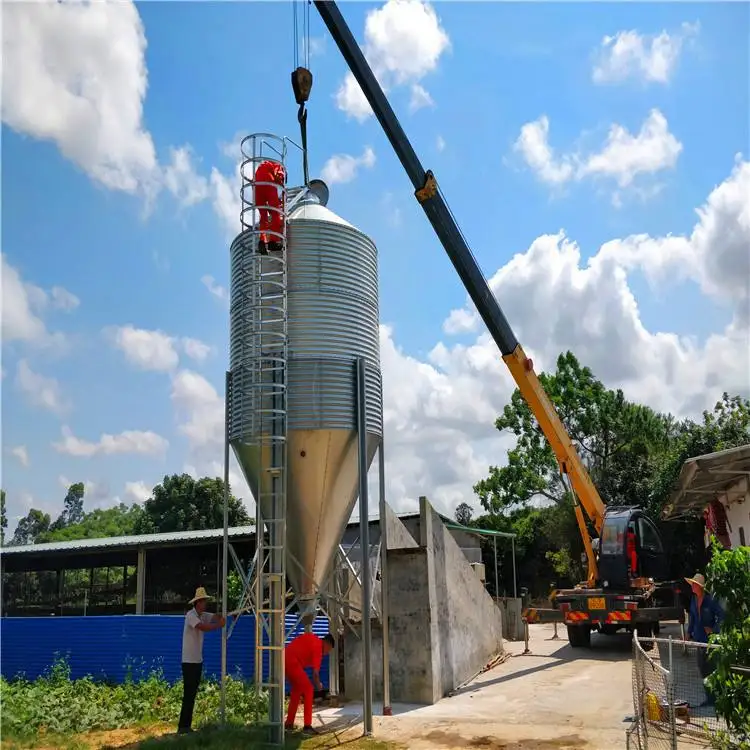

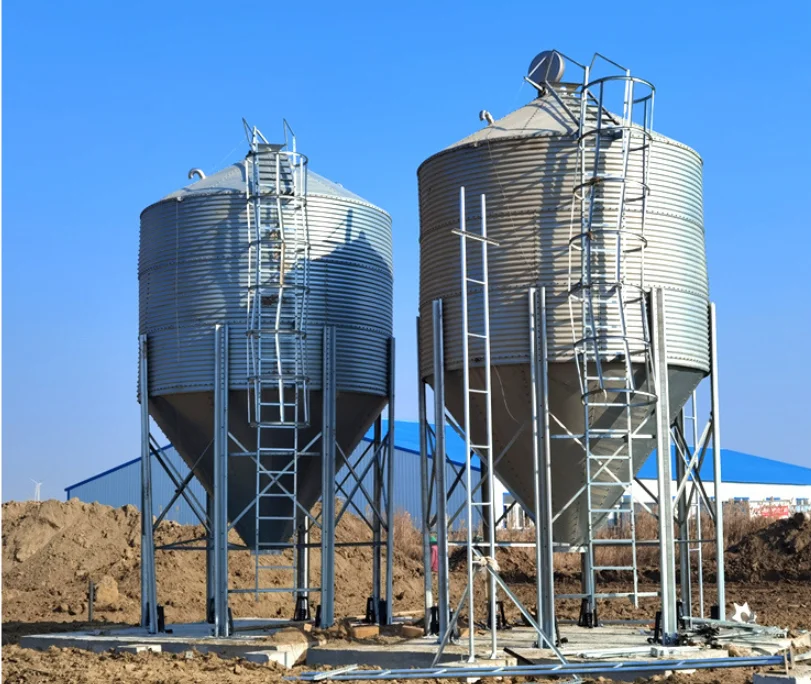

Case Display
Company Profile
WHY CHOSE US?
HUA YI Temperature Control Equipment Co., Ltd. is a company specializing in the design and development of temperature control equipment. We are committed to the scientific and technological development of ventilation and refrigeration equipment, heating equipment and livestock machinery. We produce six series of "Huayi" brand products with more than 20 specifications, including evaporative cooling pads, poultry and greenhouse exhaust fans, circulating fans,axial flow fans, heaters,water coolers,etc.which are widely used in agriculture, greenhouse, animal husbandry and other industries. Huayi has a professional international trade team, complete testing equipment and strong technical advantages, integrating R&D, production, sales and maintenance services. At the same time, we provide OEM or ODM services for customers.Huayi has laid the foundation for cooperation with customers with excellent products, low prices and considerate services. The series of products have served all walks of life in the world, and have been exported to Asia, Africa, North America, including the United States, India, Vietnam, the Philippines,Thailand and othercountries. We will recommend our best products to more countries and develop more distributors in many countries around the world. We are honored to with more international friends develop our glorious business.
Professional Trustworthy
The products of our company have been granted certificates such as CE,ISO and the company has been passed the approved mark and test reports. We have authoritative and well-known brands ”HUAYI''
Transportation packaging
Our services
Pre-sales service
* Accept OEM & ODM, support custom products according to customer's requirement.
* partners both at home and abroad contact and visit our factory.
* give you professional suggestion, according to different market and products for new customers.
* partners both at home and abroad contact and visit our factory.
* give you professional suggestion, according to different market and products for new customers.
After-sales service
* All enquires will be valued and replied within 2 hours.
* Good package to protect the products.
* We return and exchange the products if the quality problems caused by manufacturing.
Shipping＆Payment
If the order is not large, we can send it to you by express delivery, such as TNT, DHL, UPS or EMS.
If the order volume is large we will recommend you to use air or sea transportation through the designated freight forwarder. We also have long-term cooperative agents.
Q1. Are you a factory or trading company?
A1:We are a professional and acomprehensive poultry farm equpment supplier integrating
R&D, production and sales founded on 2015. OEM and ODM are welcomed.
R&D, production and sales founded on 2015. OEM and ODM are welcomed.
Q2. What payment methods do you accept?
A2:We accept T/T,Paypal, LC,Western Union and we will try our best to meet your needs If you have special requirements.
Q3:What about the delivery time?
A3: Usually for sample order 3-5 days, for mass order 15-20 days,but If you need it urgently, it can be completed within 15 days after receiving your payment.
Q4:Do you provide free sample?
A4:Yes, we can provide free sample . You only need to take the express fee. If you are satisfied with our samples and order again, we will return the last sample freight.
Q5.May I visit your factory?
A5:Sure, welcome any time. We can also pick you up at airport and station. We welcome partners both at home and abroad contact and visit us.
Q6: Can you guarantee your quality?
A6: Of course. We have more than 10 years experiences in this filed. We have powerful team, special design, skillful production, fastidious materials ,exquisite workmanship as well as strict QC. we puta high value on our reputation.
Q7: How do you ensure my right if I’m going to place the order?
A7: Customers are recommended to place the order online through Alibaba to ensure your side of right as much as possible. Besides, 12 months FREE GUARANTEE,never need to worry about the after-sale service,we will always be here to support your business!
Похожие товары
Китайский Стальной фермерский силос для кормового шнека
54 483,12 ₽ - 55 033,45 ₽
Кормушки для животных односторонние 6 сосков автоматическая кормушка молока ягненка
1 442,06 ₽ - 2 107,63 ₽
Доильный аппарат для кормления поросенков двухсторонний 10 сосков постоянная температура автоматическая кормушка свиного молока из нержавеющей стали со звуком
12 202,03 ₽
Утолщенная пластиковая 9L ягненка для молока бочонок фидера многофункциональный Двусторонняя 12 соски изображающие пятачка Детские сеять козье молоко подающий инструмент
1 651,01 ₽ - 1 871,14 ₽
8 л пищевое пластиковое ведро для кормления телят/ягнят в паре с 1 соской
341,21 ₽ - 407,25 ₽
Автоматическое ведро для кормления ягненка с соском двухсторонняя соломенная кормушка молока 12 сосками овечьей козьей свиньи
902,55 ₽ - 1 078,66 ₽

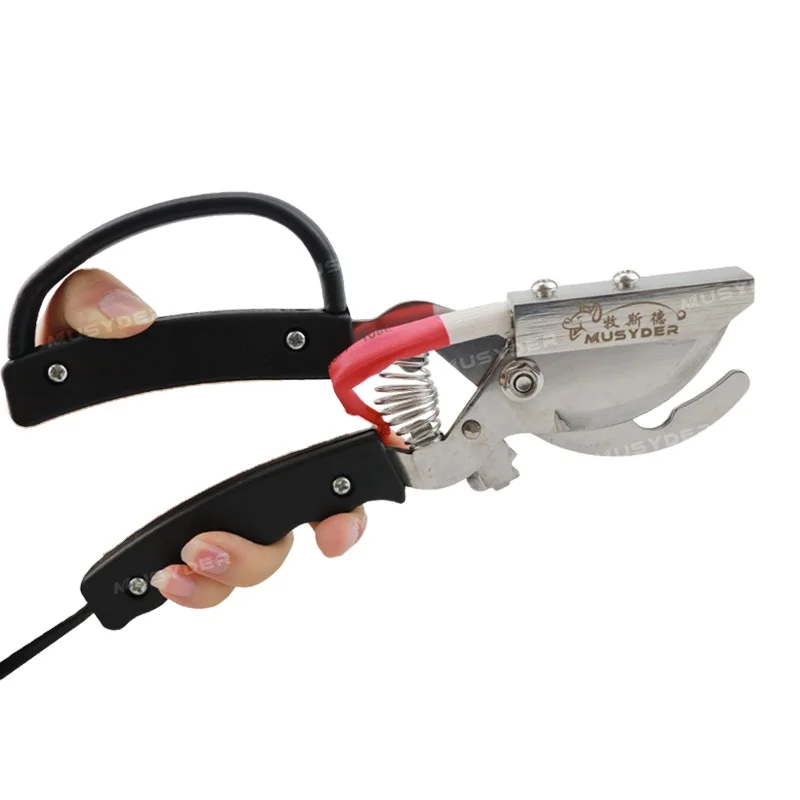

Ветеринарный инструмент из нержавеющей стали для поросят/ягненка Электрические плоскогубцы резки тепла хвостовой резак/зажим животных
