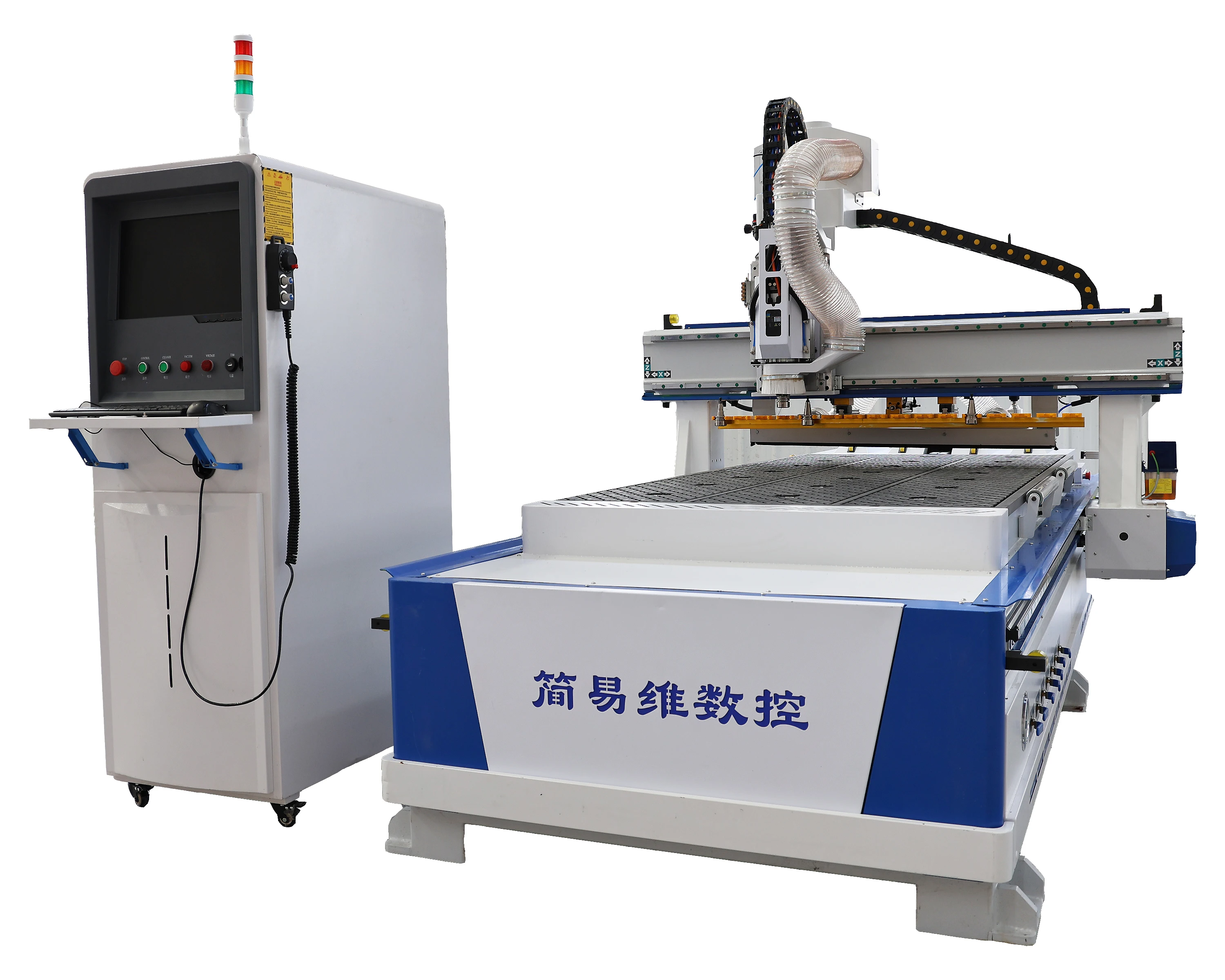

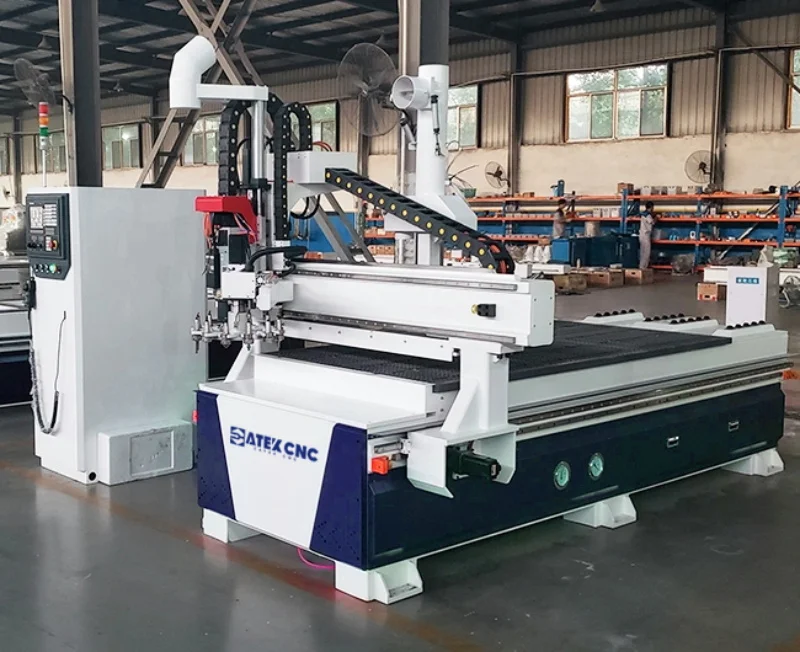

JYW-F16-1328 высокий уровень безопасности тяга к дереву маршрутизатор с ЧПУ для металлообрабатывающей промышленности
1 386 593,75 ₽
Станок с ЧПУ для резьбы по дереву 3 оси
- Категория: >>>
- Поставщик: Jinan Catek CNC Machinery Co. Ltd
Сохранить в закладки 1601284097098:
Описание и отзывы
Характеристики
Recommend Products
Products Description
Product Paramenters
XYZ working stroke/processing size | 1300*2500*200mm |
Bracket | Thickened brackets, steel beams |
Bed frame | Machining center processing bed (heavy-duty bed) |
Spindle power | Changsheng HQD 9KW high-power and air-cooled tool change spindle |
Drive mode | DORNA 1.5KW servo motor drive (Z-axis brake motor) |
Spindle speed | 6000-24000r/m |
Mesa | Vacuum suction table with 6 partitions and 24 well positions |
Transmission mode | XY axis high-precision ground helical gear transmission + Z-axis high-precision TBI screw transmission |
Slideway | Taiwan HIWIN high precision 30 linear square rail |
Device cable | pure copper cable |
Vacuuming way | 3KW double barrel vacuum cleaner |
Vacuum pump | 7.5KW water-cooled vacuum pump |
Control system | Taiwan Baoyuan Control System |
Lubrication system | Oil filling and maintenance system |
Working voltage | AC380V/50/60HZ |
Engraving instructions | Standard G code, u00, mmg, plt |
Position | 4+2 positioning cylinder |
Push material | Pushing cylinder device |
Security system | All photoelectric limits of XYZ three-axis |
Locating Accuracy | ±0.02mm |
Max woking speed | 18000mm/min |
Tool magazine | 8/12/16 Carrousel type change tool magazine |
Machine weight | 2600KG |
Reducer | Japan Xinbao reducer |
Sample display
Here are some samples of machine-processed wood, aluminum, acrylic, and PVC. The machine can be applied to various materials, such as wood, density board, fiberboard, acrylic, PVC, foam, resin, PTFE board, and other materials. In addition, There are also some soft metals that can be processed, such as copper, aluminum, etc.
Details Images
High-power 9KW automatic tool changing spindle SITAO porcelain bearing 24000R/M

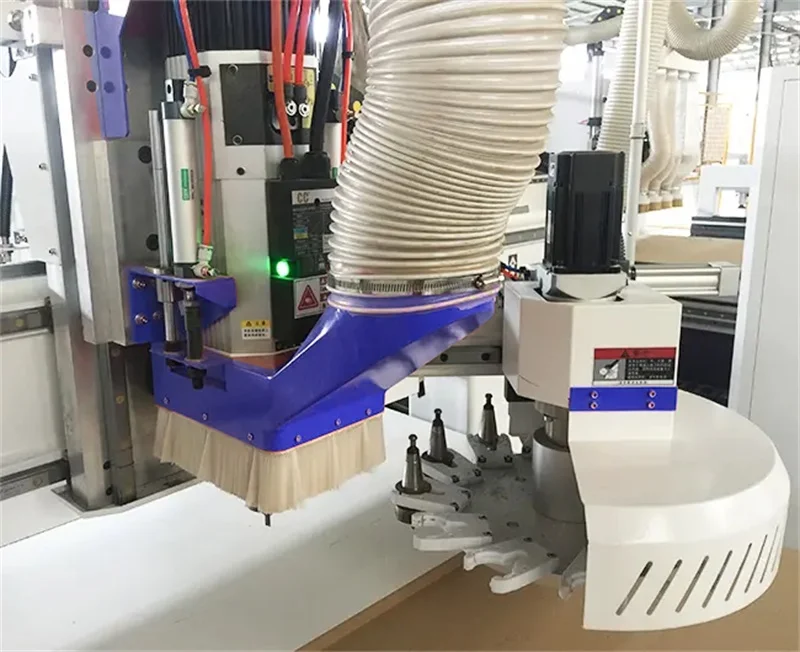

Carrousel type tool change，Support automatic switching of 8/12/16 knives
The automatic tool setter can save tool setting time and it is simple & easy to use
4+2 positioning cylinder, the plate is in place in one step and load more easier
Taiwan HIWIN slider, Slideway, TBI high-precision ball screw
External pulse handwheel operation makes tool setting more convenient and precise
Four 6KW high-power air-cooled spindles with fully automatic switching, it will saving tool changing time and improving efficiency
One Ordinary water-cooled spindles require adding water and manual tool change, which is a waste of time and has low efficiency
The 12-zone vacuum adsorption table can independently control the zones and is equipped with a 7.5KW vacuum pump, making loading more convenient
Ordinary aluminum alloy profile counter tops are fixed with pressure plate screws which is inefficient and wastes time
Equipped with a 1.5KW high-power DORNA motor and a Japanese Xinbao reducer, which has greater torque, faster movement and higher precision
Using ordinary stepper motors has low torque, slow speed, low precision, and easy loss of steps
The whole machine uses a heavy-duty bed, integrated gantry, high-temperature annealing treatment, and an independent control cabinet, which has strong anti-interference ability and is more stable to use
Ordinary iron square tube welding machine bed has low overall strength, light weight, slow processing speed and low efficiency
Company Profile
Jinan Catek CNC Machinery Co., Ltd
Catekcnc is a foreign trade subsidiary of Lingrui located in China Jinan, Shandong Province. Lingrui CNC was established in 2006 with atotal investment of 300 million RMB. Since 2006 our company has been deeply cultivating the Chinese market for 17 years and cooperating with well-known factories in China and OEM manufacturing for many foreign trade companies around the world. In 2023,Lingruin invested in the development of the foreign trade market and established Ruisheng CNC committed to providing the mostfavorable and practical digital control equipment to the world.
The company has 12 large-scale production workshops with total area of 100000 square meters. The company's main production equipment adopts world-renowned enterprise brands, and heat treatment processes of the equipment are at the world's leading level. Key components with the overall structure of the bed and the connecting shaft are all self-developed which is effectively ensuring product quality.
The company's products mainly cover various CNC equipment such as CNC woodworking lathes, CNC carving machines, CNC woodworking machining centers, laser fiber cutting machines, CNC marking machines, etc., which are applied in various industries such as wood, stone, metal, synthetic chemical materials, etc. Whether in manufacturing, construction, handicrafts, advertising, or other fields, our mechanical equipment help customers achieve outstanding achievements. We work closely with our customers listening to their voices and needs, constantly innovating and improving to ensure that our products are always at the forefront of the industry.
Our company has 1500+ professional assembly technicians, 300+ professional after-sales teams and 300+ professional sales teams.Our company has a diversified product composition and production equipment in various fields. No matter what your needs are, we can meet with all your needs.
Customer Photos
The company has been deeply rooted in China for more than 17 years, serving more than 10000 domestic customers. Factories are involved in various industries and customer satisfaction is 100%. It has become a well-known CNC brand in China. Whether you are a CNC novice or an expert CATEKCNC can meet your any requirements.
As a senior OEM factory has cooperated with many well-known foreign trade companies and shipped equipment to more than 100 countries and regions around the world
FAQ
1.Are you a factory or a trading company?
We are a factory with an export license.
2.Can you do OEM?
Yes, We have been cooperating with many trading companies and OEM manufacturing for few years.
3. What is after-sales service?
We have 17 years of after-sales service experience. No matter what problems your machine has we will respond within 10 minutes and solve them within 2 hours. The entire machine comes with a 3-year warranty and technical support is provided through phone, email, WhatsApp, and Skype
4.How to choose the appropriate machine?
You can tell us about the material, size, and machine function requirements of the workpiece. We can recommend the most suitable machine based on our experience.
5.Do you have installation and equipment debugging services?
Yes, we do. The machine has been installed and debugged before leaving the factory. After receiving the machine, you can use it directly. We provide a complete and free operation manual and instructional video and as well as we can also have our technical personnel go to your country to install and debug the machine.
6.Can the machine be customized according to my requirements?
Yes,customization is possible. We have a professional team with professional experience. Our goal is to satisfy our customers.
7. Can I process a sample video to confirm the machine's functionality?
Yes you only need to provide drawings or photos, and we can provide you with free processing samples and recording videos.
8. What are the payment methods?
There are two payment methods.
(1) T/T refers to international bank transfers. 50% deposit, then we start to produce machines for you. 50% before shipment convenient and fast.
(2) Alibaba Secure Payment. Reliable and secure, Alibaba will charge a handling fee.
or if you have other payment methods, we can also consider them
We are a factory with an export license.
2.Can you do OEM?
Yes, We have been cooperating with many trading companies and OEM manufacturing for few years.
3. What is after-sales service?
We have 17 years of after-sales service experience. No matter what problems your machine has we will respond within 10 minutes and solve them within 2 hours. The entire machine comes with a 3-year warranty and technical support is provided through phone, email, WhatsApp, and Skype
4.How to choose the appropriate machine?
You can tell us about the material, size, and machine function requirements of the workpiece. We can recommend the most suitable machine based on our experience.
5.Do you have installation and equipment debugging services?
Yes, we do. The machine has been installed and debugged before leaving the factory. After receiving the machine, you can use it directly. We provide a complete and free operation manual and instructional video and as well as we can also have our technical personnel go to your country to install and debug the machine.
6.Can the machine be customized according to my requirements?
Yes,customization is possible. We have a professional team with professional experience. Our goal is to satisfy our customers.
7. Can I process a sample video to confirm the machine's functionality?
Yes you only need to provide drawings or photos, and we can provide you with free processing samples and recording videos.
8. What are the payment methods?
There are two payment methods.
(1) T/T refers to international bank transfers. 50% deposit, then we start to produce machines for you. 50% before shipment convenient and fast.
(2) Alibaba Secure Payment. Reliable and secure, Alibaba will charge a handling fee.
or if you have other payment methods, we can also consider them
Похожие товары

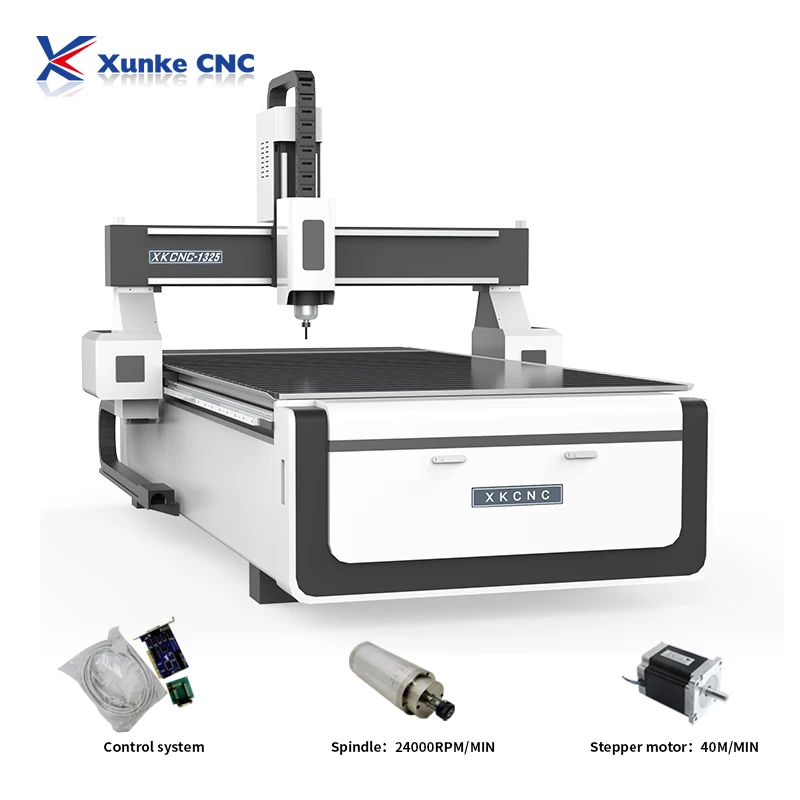

Xunke популярный ЧПУ древесный маршрутизатор 3 оси торговля 1325 древесина МДФ пластик ПВХ акрил Китай системы для деревообработки
177 484,00 ₽ - 199 669,50 ₽

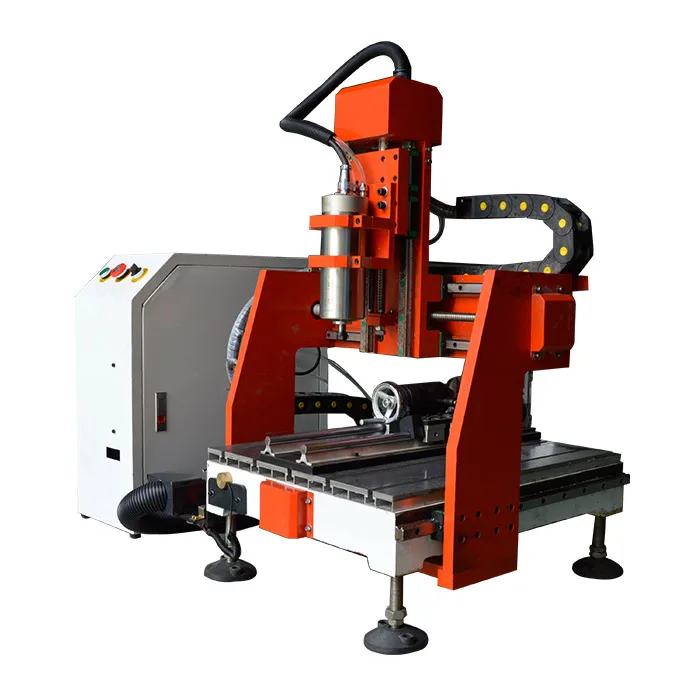

Небольшая машина 3030 мини-миниатюрная гравировальная для резьбы по дереву фрезерный станок с ЧПУ алюминиевый металлообрабатывающий
166 391,25 ₽ - 199 669,50 ₽

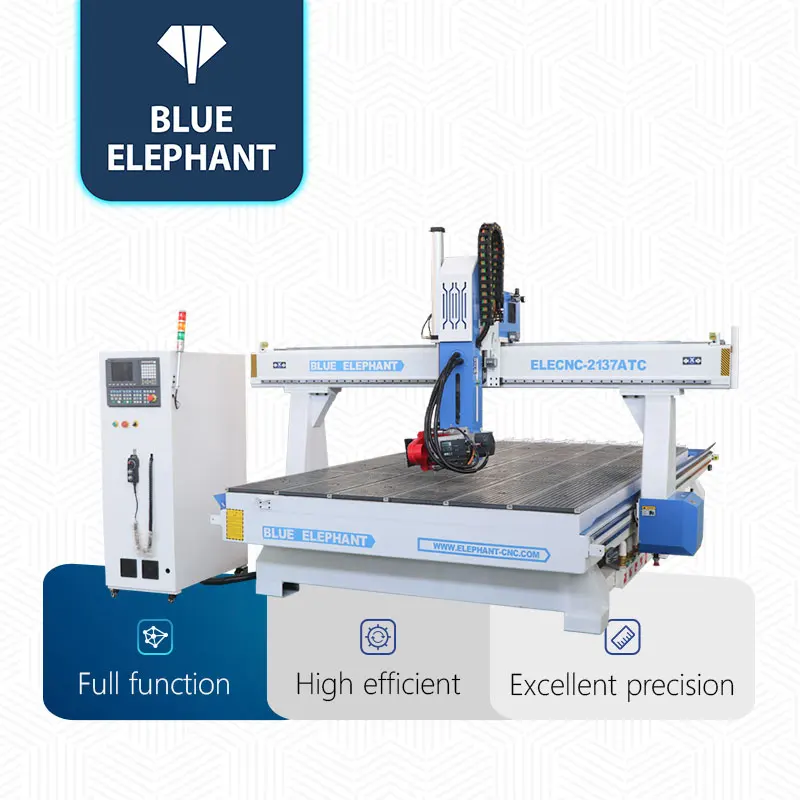

Отличный дизайн 2137 ATC 4 оси CNC маршрутизатор резьба 3D гравировальный станок по дереву для продажи
876 327,25 ₽ - 1 874 674,75 ₽
27% скидка Китайский небольшой гравировальный станок трехосный компьютерный высокое качество и дешевая э
55 463,75 ₽
Горячая распродажа! Деревянный сверлильный станок с ЧПУ для дверей и окон 4 головками
277 318,75 ₽ - 332 782,50 ₽
27% скидка лодка пресс-форм 4-осевой 5-осевой фрезерный станок с ЧПУ по дереву пены

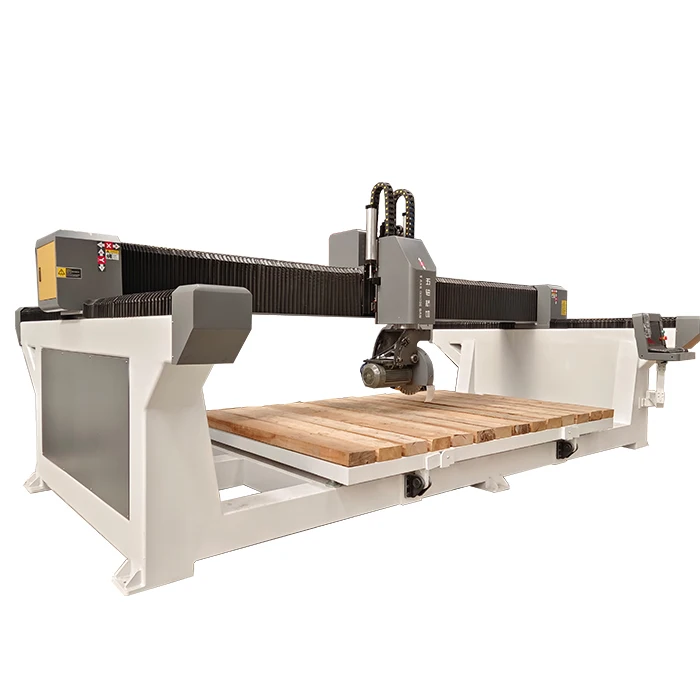

32% скидка! 5-осевая мостовая машина для резки камня CNC
