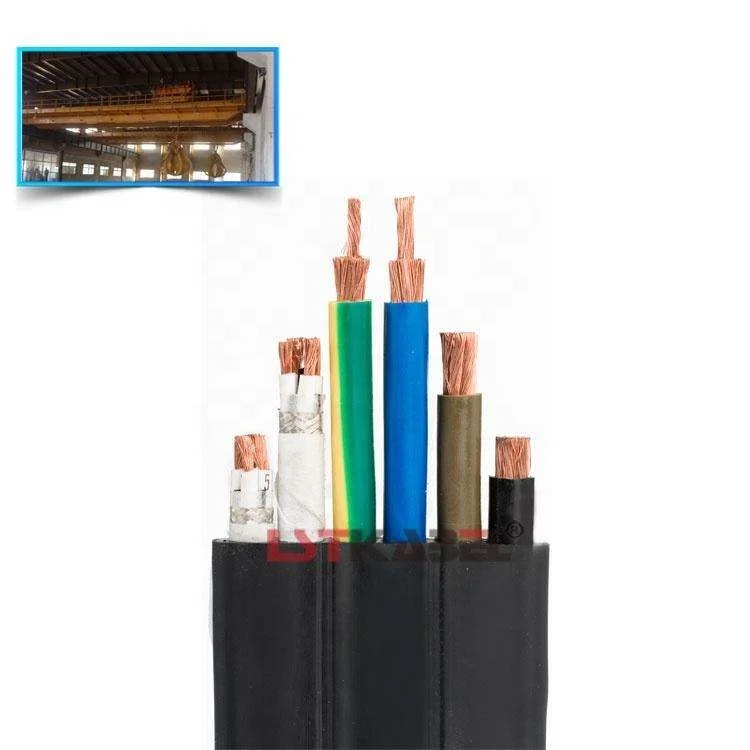

Гибкие кабели для плоского крана LSKABEL

Сохранить в закладки 1601284295701:


Цена:*

Количество:

  • В избранное

Описание и отзывы

Характеристики


Packaging and delivery







Packaging Details

The cables can be packaged by coil or plastic reel or wooden drum or carton box and pallet or customer's request according to the type and quantity.



Port

Shanghai



Selling Units:

Single item



Single package size:

100X1.5X1.5 cm



Single gross weight:

1.500 kg






Supply Ability




Supply Ability

10000 Kilometers per Month







Overview

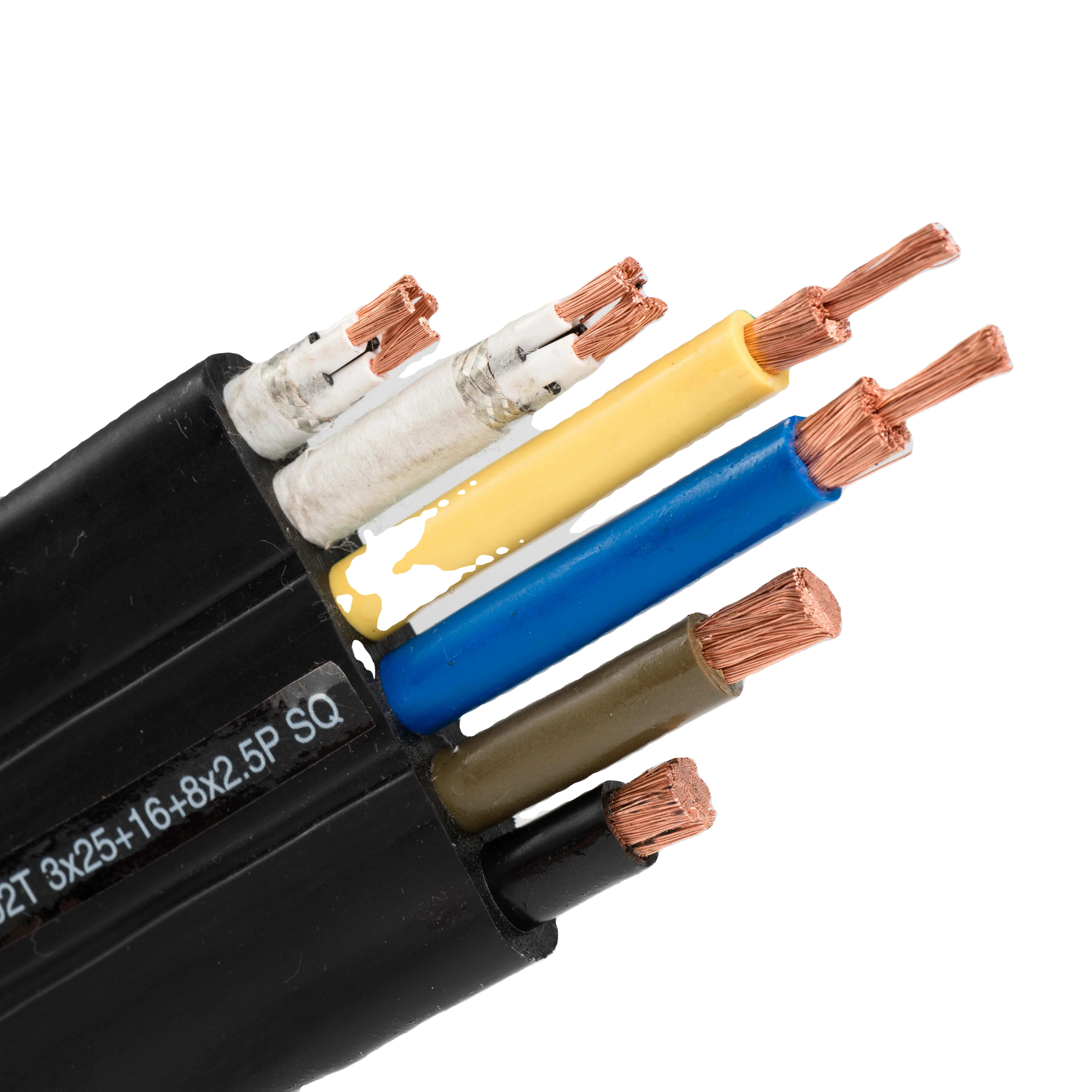

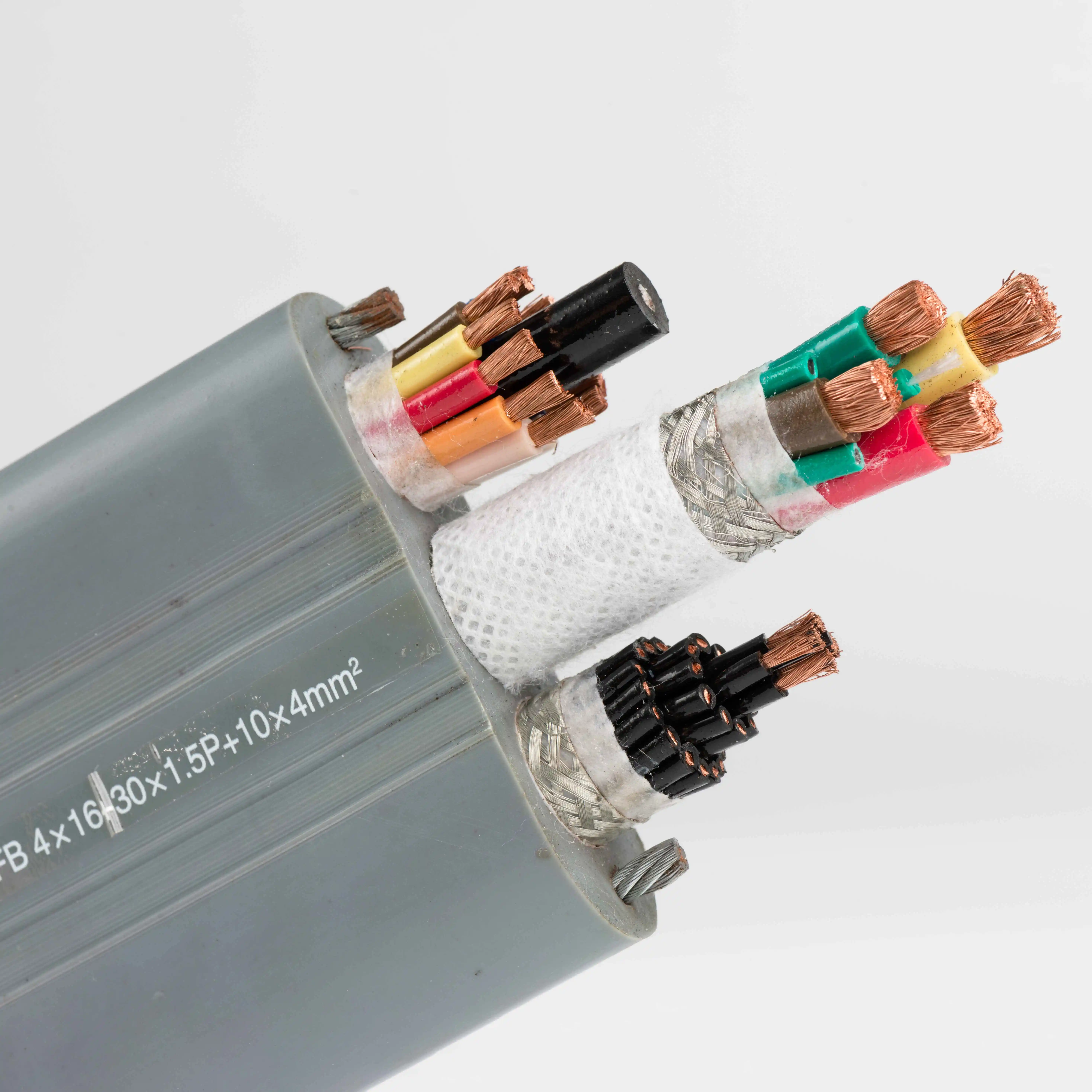

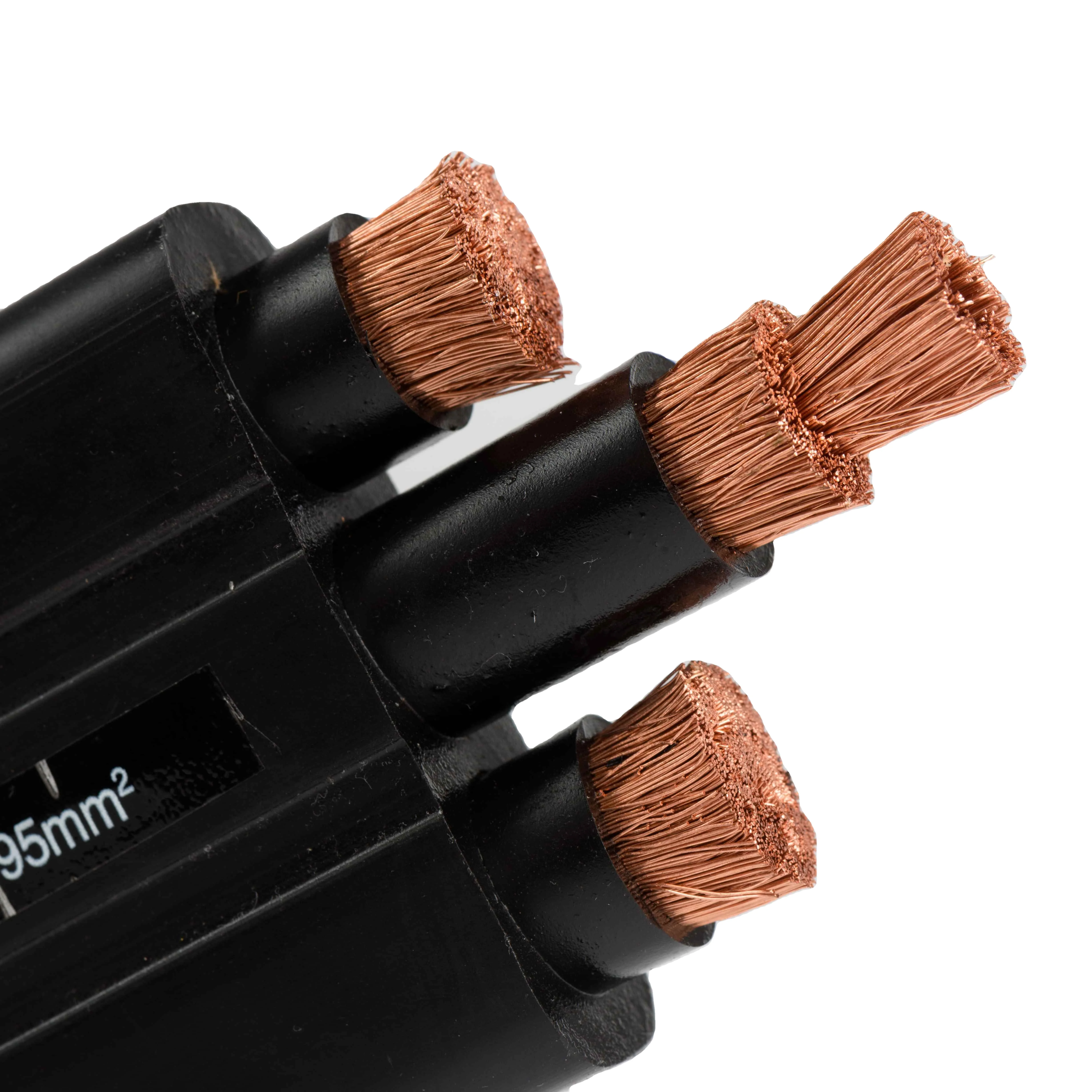

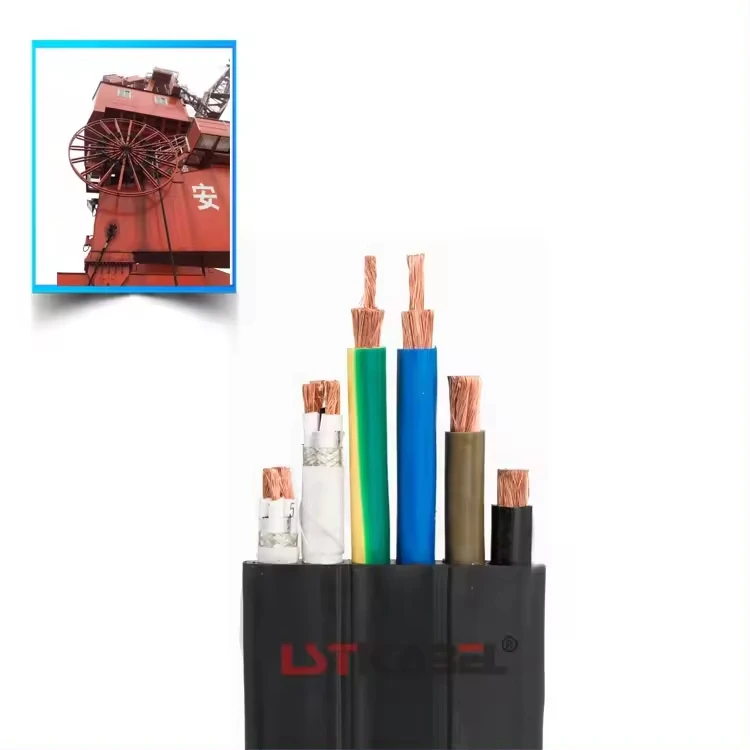

 LSKABEL Flat Crane Cable Flexibility Cables High Flexible Festoon Cable







Overview

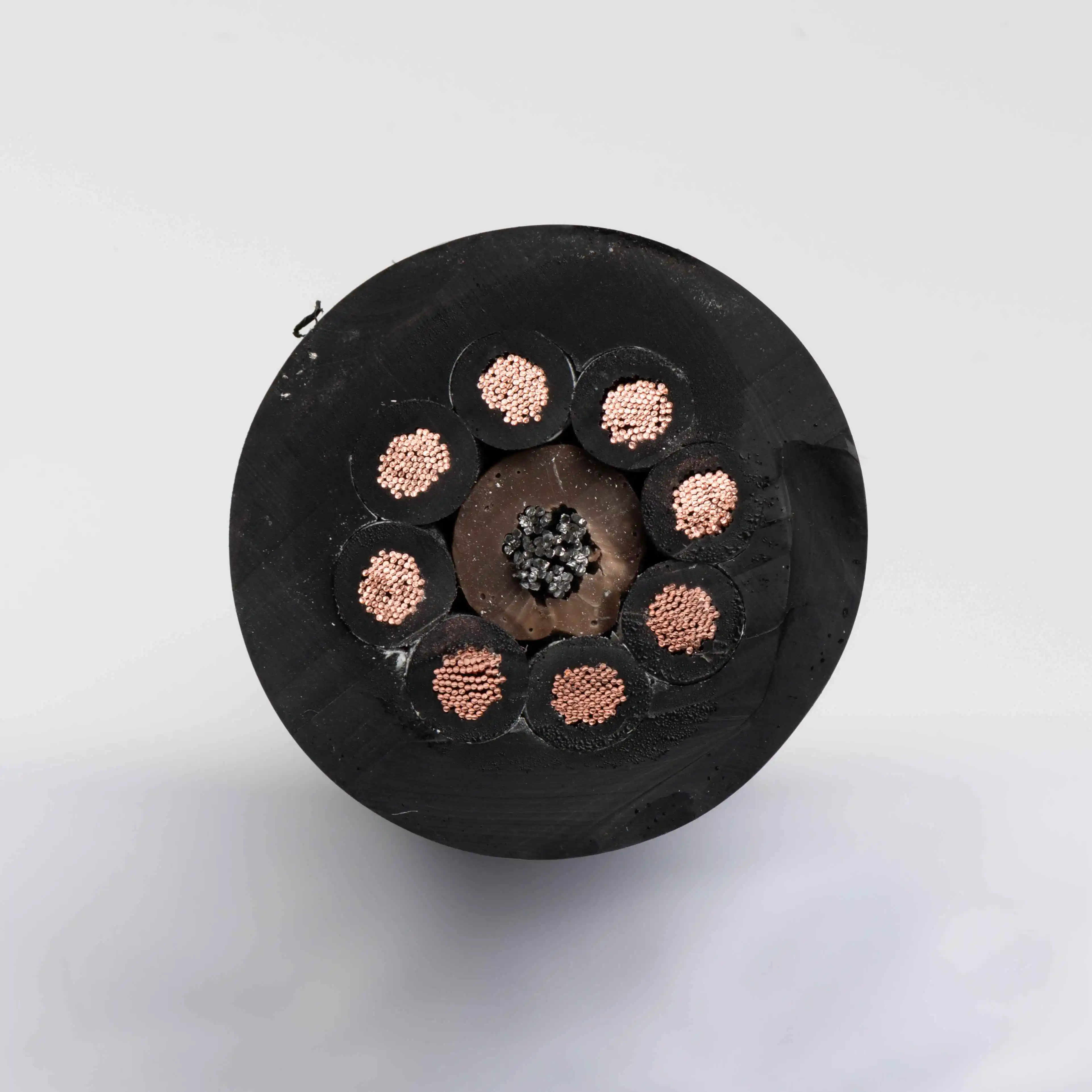

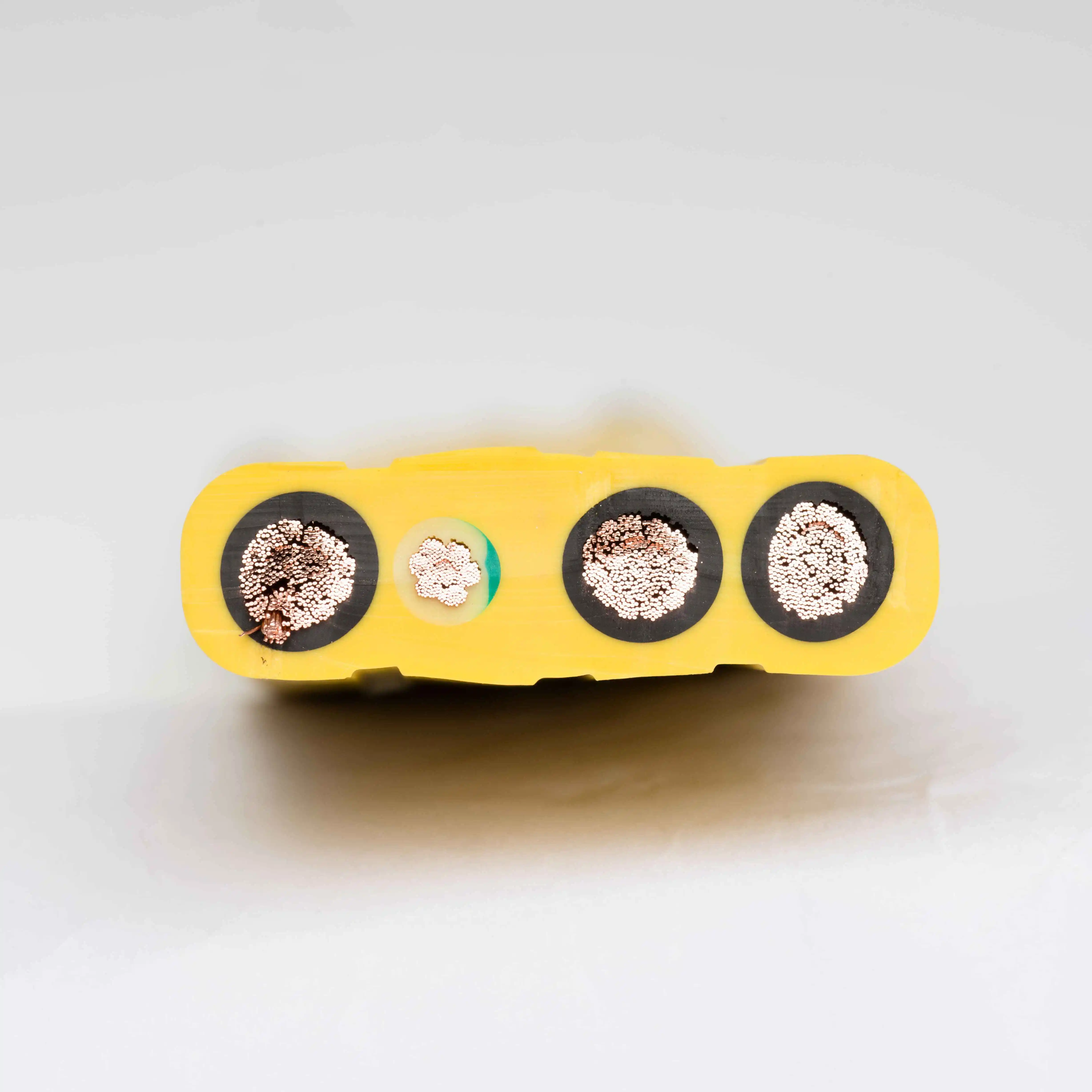

Material&Structure



Conductor:


Bare copper, VDE 0295/IEC60228 class 6


Insulation:


Rubber


Shield


Multi-strands spiral braiding made of tinned copper wires(optional)


Reinforce:


Galvanized steel rope(optional)


Sheath:


Rubber/TPU(optional)


Special Structure:


single shield/twin-shield/tinned copper braid,twisted


Technical data



Mini. bend radius:


10 x Thickness of cable


Voltage:


450/750V


Test Voltage:


2500V


Temperature range:


-30℃-90℃


Flexible


Yes


Oil resistance


Yes


Flame retardant


Yes(optional)


Resistant to weak Acids and alkalis


Yes


Features

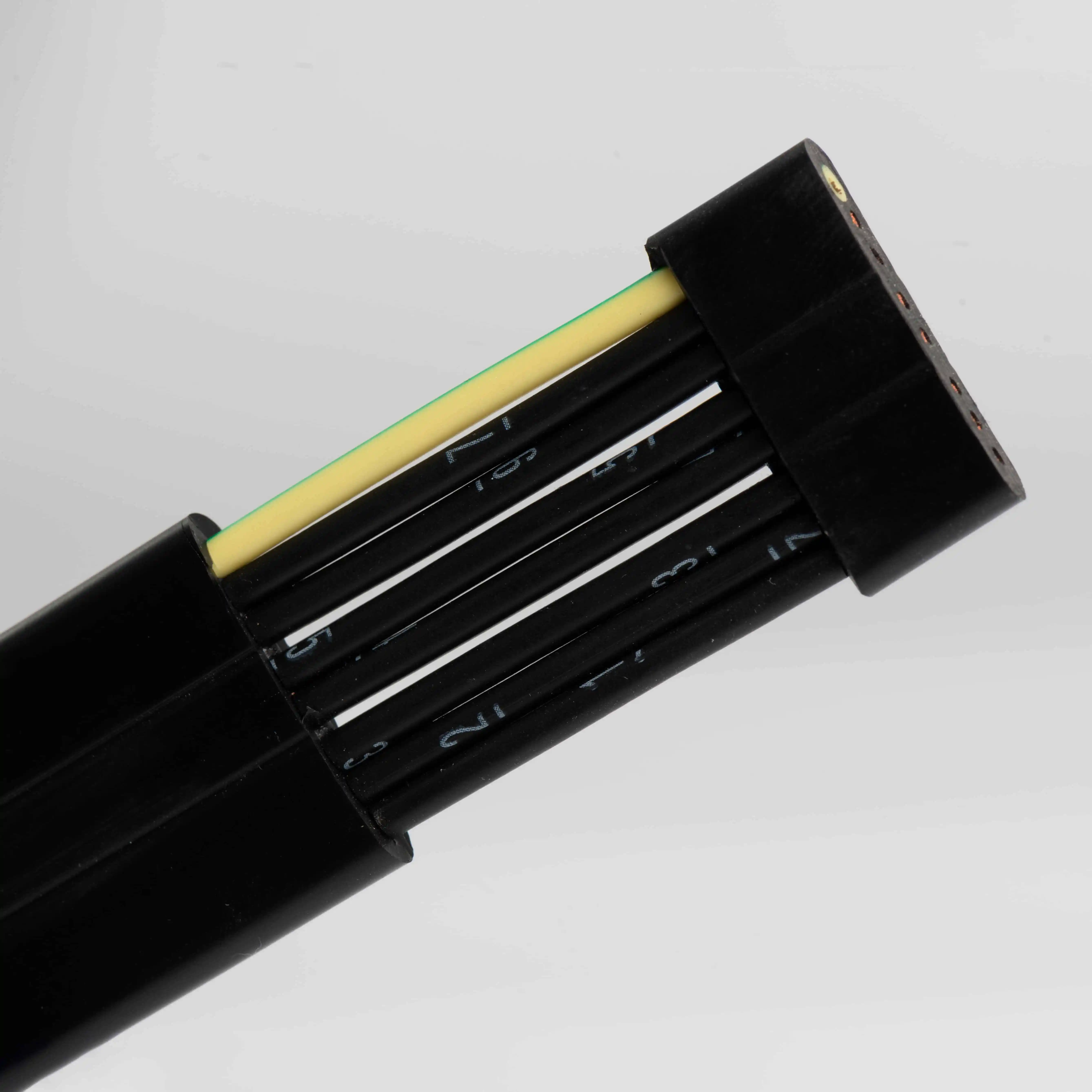

Core:


black with numerals plus green-yellow ground wire


Core Identification


Core: black with numerals plus green-yellow ground wire
Sheath: As request


Sheath Color:


black or gray or on request

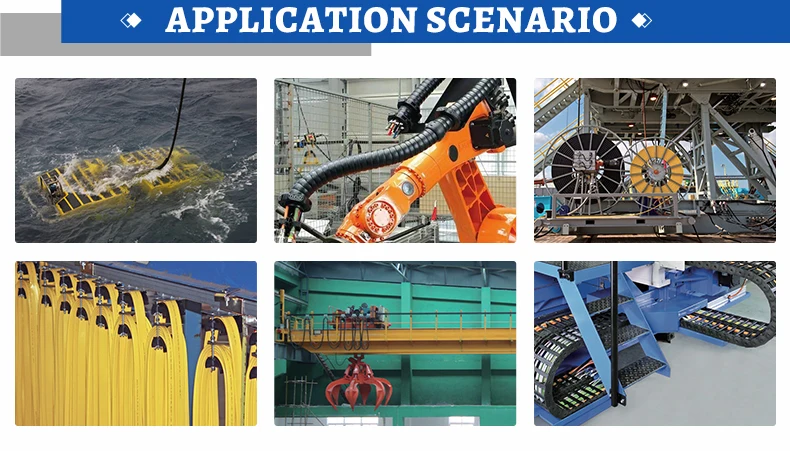

Applications


Reel/festoon/towline/Drag Chains/Track Cable/drag chain servo cable/BASKET SPREADER/chain cable/data communication cable/
crane/conveyor/EMC/Motor/equipment/Electric


Others:


Flexible,Abrasion resistance,Tension resistance,Oil resistance,UV-resistance, Flame retardant, fire resistance, Acid
/Alkali/Alkalis/chemical resistance,Low Temperatures


Seawater/Underwater/Safety High Bending









Application

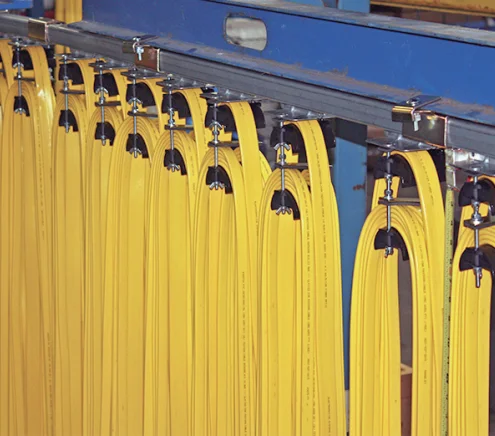

Flexible low voltage power and control cable, for use on festoon systems and for connecting moveable parts of machine tools, material handling equipment
