Большой размер 100 ватт лазерная гравировка металла маркировочное оборудование пескоструйная машина
687 750,50 ₽ - 1 125 914,13 ₽
Большой рабочий формат Заводская цена мини лазерный принтер surface 3d кристалл гравировальный станок для украшения хрустальный куб
- Категория: >>>
- Поставщик: Wuhan Crystal 3d Laser Technology Co. Ltd.
Сохранить в закладки 1601284472240:
Описание и отзывы
Характеристики
Product Overview

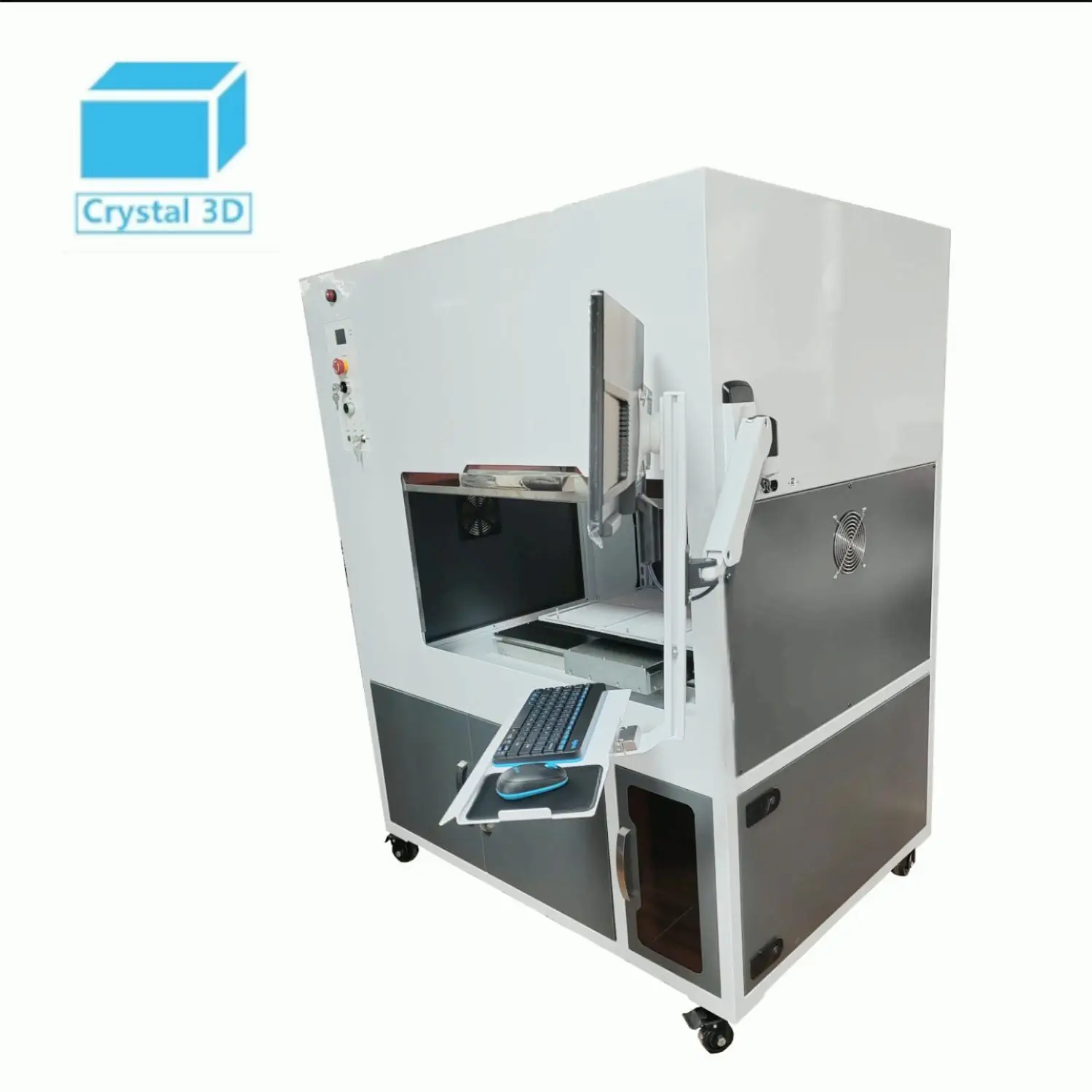

What is 3D Crystal laser engraving machine
The 3D crystal laser subsurface engraving machine, usually also be called as 3D Laser machine, Crystal laser machine, 3D crystal Engraver, which is a special kind laser machine used for make 3d laser images or 2d images into crystals, this kind unique and attractive crystal gifts, the engraved image will not get fade forever, so, it’s a new and great business in most countries of world.

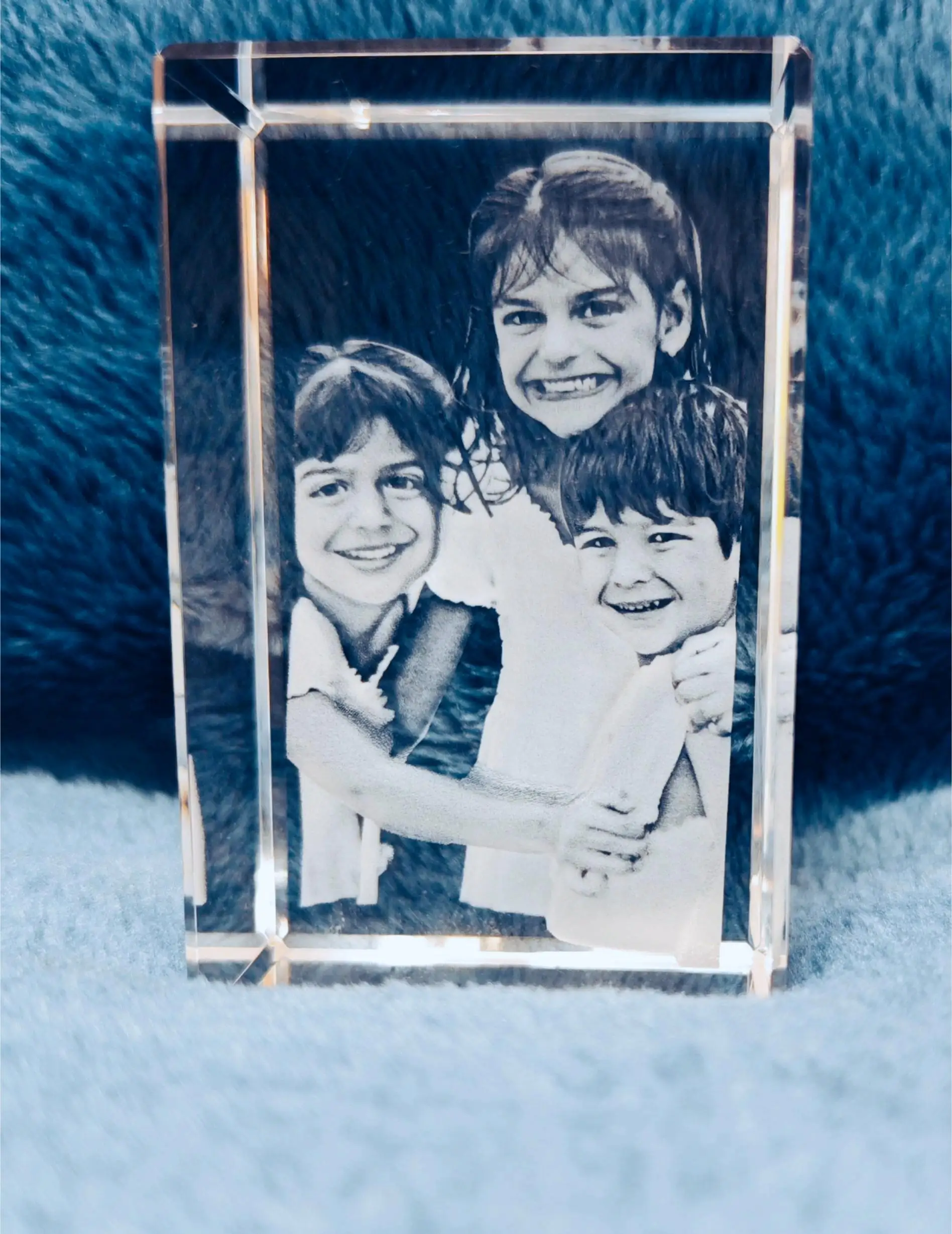

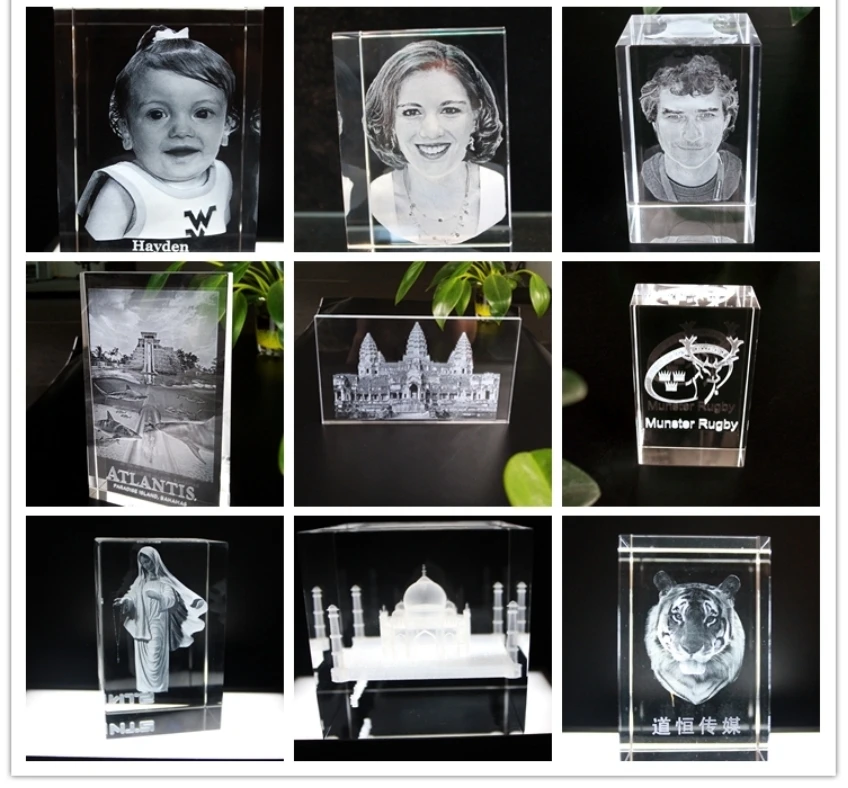

Our Hight quality samples Show:
PRODUCT SPECIFICATIONS
Model | 3D Laser Box Drone | 3D Laser Box Rocket | |
Max engraving size (mm) | 400*300*120 | 400*600*120 | |
Max crystal size (mm) | 400*300*120 | 400*600*120 | |
No tilling area | 200*200 circle | 200*200 circle | |
Laser Type | Diode pumped Nd:YAG, 532nmgreen laser; 4000Hz | ||
Laser Frequency | 4000 Hz | 4000Hz | |
Motors | Japan Motor | Japan Motor | |
Pulse width | ≤6ns | ||
Engraving Speed | Maximum: 3500 points/s; 200000dots per minute | ||
Diameter of a point | 10-20μm | ||
Repeated location accuracy | ＜10μm | ||
Continuous work time | >24 hours | ||
Cooling | Air Cooling | ||
Diode laser module life | ＞20000 hours | ||
Power consumption | ＜800W | ||
Electrical connection | Single 220V or 120V (+/-10%); 50Hz or 60Hz | ||
Bulk engraving ability | Yes | Yes | |
File Format | RMD | RMD | |
Operation demands | Room temperature:5--35℃ ;room humidity :＜70% no condensation | ||
Net Weight | 160 Kg | 240Kg | |
Machine Size (L*W*H)(mm) | 900*750*1080 | 910*730*1650 | |
Warranty | 3 Years for whole machine, 1 Year for LD | ||
Advantages for this machine | 1. Whole machine use special best spare parts from Abroad 2. With free Cockpit3d software to make easy and perfect 3d point cloud file. 3. Machine with longest warranty in Market as its high stability and our professional services 4. Long time warranty for machine can support you long term business Big engraving area without tilling, which can engrave big file file without split the file into small blocks to engrave. The normal machines which you see in market only can make 50x80mm, but our area up to 200mm. | ||
PRODUCT CONFIGURATION
Machine detail inside Key spare parts
1.Special customized Laser box by our Laser Lab, with 24 hours experienced Laser team, we keep research and develop own technology on Diode Green laser box for our own machines, we adopt the top quality LD, YSG, Q switch for optic parts, and we build in our own Special air cooling part, which is the smallest laser Box in China but with the lowest Pulse width to make the high resolution Engraving. Besides own use, we also offer OEM Laser Box to Other companies of Laser Boxes.
Advanced Japan Motors and Drivers
2.Use advanced Japan servo motors to make sure the high stability for moving, all our high level machines use Fuji Tech drivers and motos. Which can use around 10 years or more.
Advaced Power Supply
3. Famous Brand Meanwell Power supply
Advanced Ball Screw
4.High quality Hiwin Ball screw with special anti-dust cover, which is more good for protect the parts from heavy dust, and can make the life longer.
Why Choose Us
When you are searching a machine from internet, there are so many machines in the market, which must make you confused, and also the big price difference make you confusing, special for the first time to buy a new machine to start business, How to choose a machine for start a business, and most important to find a machine to make the business got excellent, the machine is very important, when you get a machine which can’t engrave out a good quality products, you will not get the good market and not easy to earn money, and a poor quality machine also make you fail even not start, as you may can’t use it since you receive it.how to get a most suitable machines for your business, there are so many different factors, what kind machine we should use, you can choose through below ways:
1.Find a machine which can give you HD engraving quality
All the machines in the market will engrave image into crystals, but no other suppliers will tell a new customers what is split engraving when your image is big than 50x80cm, they will not tell you there also have another kind HD engraving. We adopt own technology which can engrave big image as High resolution. Which you can see amazing compare others.
1.Find a machine which can give you HD engraving quality
All the machines in the market will engrave image into crystals, but no other suppliers will tell a new customers what is split engraving when your image is big than 50x80cm, they will not tell you there also have another kind HD engraving. We adopt own technology which can engrave big image as High resolution. Which you can see amazing compare others.
2.Follow a big leader in this industry and use the same machines as theirs
With the technology of crystal engraving since year of 2000, we always keep our concern on the command of customer, and improve or customized our machines for customer request, which make our machine more friendly for customers, as the improve idea are all come from the end user, if you want make same excellent gifts like them, our machine is the best choice.
With the technology of crystal engraving since year of 2000, we always keep our concern on the command of customer, and improve or customized our machines for customer request, which make our machine more friendly for customers, as the improve idea are all come from the end user, if you want make same excellent gifts like them, our machine is the best choice.
A. 3Dcrystal.com
333
2. Artpix3d
3. 3D Innovation
Successful Project
Other customers around the world
About US
Our Services
A.Free pre-sales technical question support before order.
B.Free sample test if need, and buyer pay the courier cost.
C.English User manual and videos together with machine.
D.Free Online video training when you receive the machine.
E.24 hours / 7 days online technical support.
F.Long after-sales services,36 months for machine warranty and one year for LD(consumable part)
B.Free sample test if need, and buyer pay the courier cost.
C.English User manual and videos together with machine.
D.Free Online video training when you receive the machine.
E.24 hours / 7 days online technical support.
F.Long after-sales services,36 months for machine warranty and one year for LD(consumable part)
Certifications
Contact Us
Wuhan Crystal 3D Laser Technology Co Ltd
Contact: Fiona / Sales Manager
MP:0086 18986128754
Tel:0086-27 87404847
Fax:0086-27 87404847-806
Email: sales@crystal3dlaser.com
Whatsapp:008618986128754
WeChat:18986128754
QQ: 245520736
Contact: Fiona / Sales Manager
MP:0086 18986128754
Tel:0086-27 87404847
Fax:0086-27 87404847-806
Email: sales@crystal3dlaser.com
Whatsapp:008618986128754
WeChat:18986128754
QQ: 245520736
