HENGKO 316L нержавеющая сталь VCR прокладка Фильтр Спеченный пористый металл

HENGKO 316L нержавеющая сталь VCR прокладка Фильтр Спеченный пористый металл

Категория: >>>
Поставщик: Hengko Technology Co. Ltd.

Цена:4 108,63 ₽ - 4 451,01 ₽*

Количество:

В избранное

Описание и отзывы

Характеристики

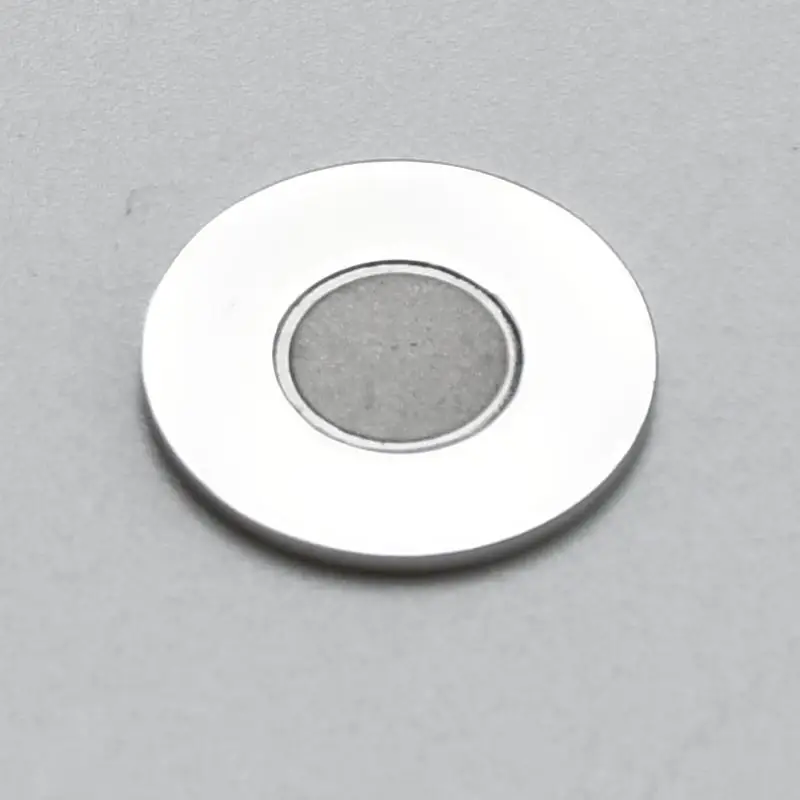

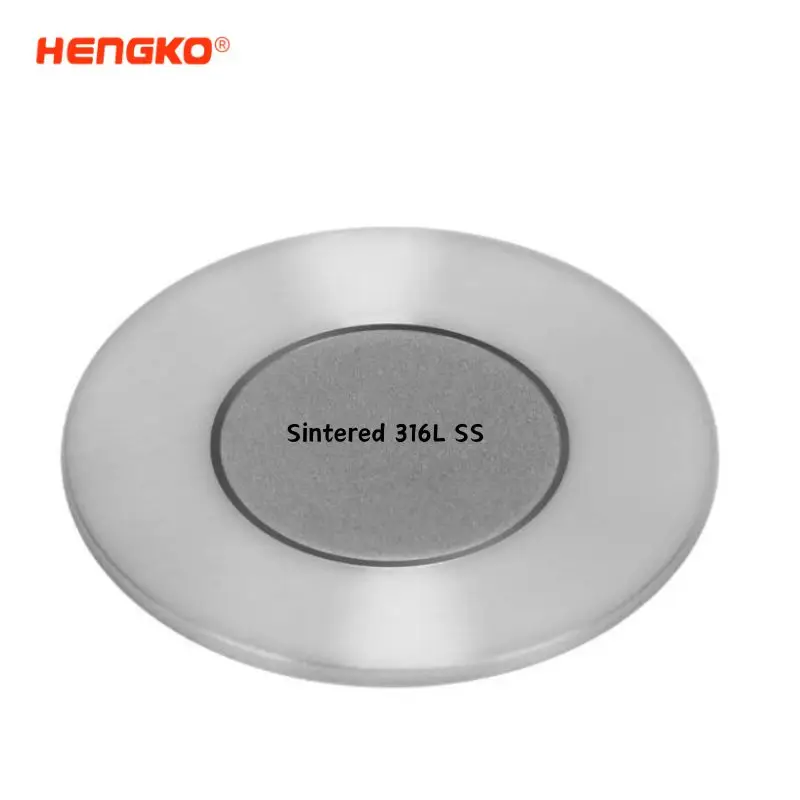

316L Stainless Steel Sintered Metal Micro-Porous VCR Gasket Filter

<< If you have any other questions, Please click here to leave your question, we will reply you ASAP >>

Product description

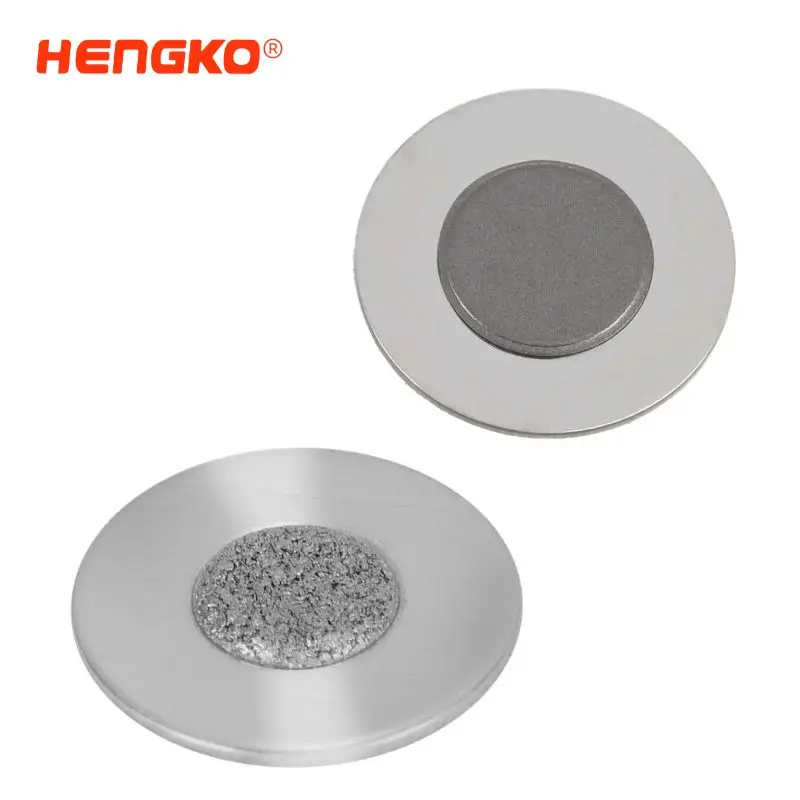

Porous Metal Gasket Filter for Semiconductor Applications

A Reliable Solution for Protecting Precision Gas Systems:
1) Designed specifically for semiconductor gas distribution systems, this all-metal filter offers seamless compatibility with 1/4", 3/8", and 1/2" VCR standard gasket interfaces.
2) The gasket-style design ensures easy installation, making it an essential protective barrier for MFC (Mass Flow Controller) modules, precision valves, and pressure regulators.
3) Capable of withstanding temperatures up to 400°C, the Porous Metal Gasket Filter effectively blocks particle intrusion,safeguarding sensitive gas components.
4) By preventing contamination-related leaks, it extends equipment lifespan and reduces maintenance costs.
5) Available in both low-pressure and high-pressure models, this filter can be retrofitted into existing piping systems,providing a cost-effective solution for protecting precision equipment from contamination.

Chat Now ！

Specification
Technical Parameter	Details

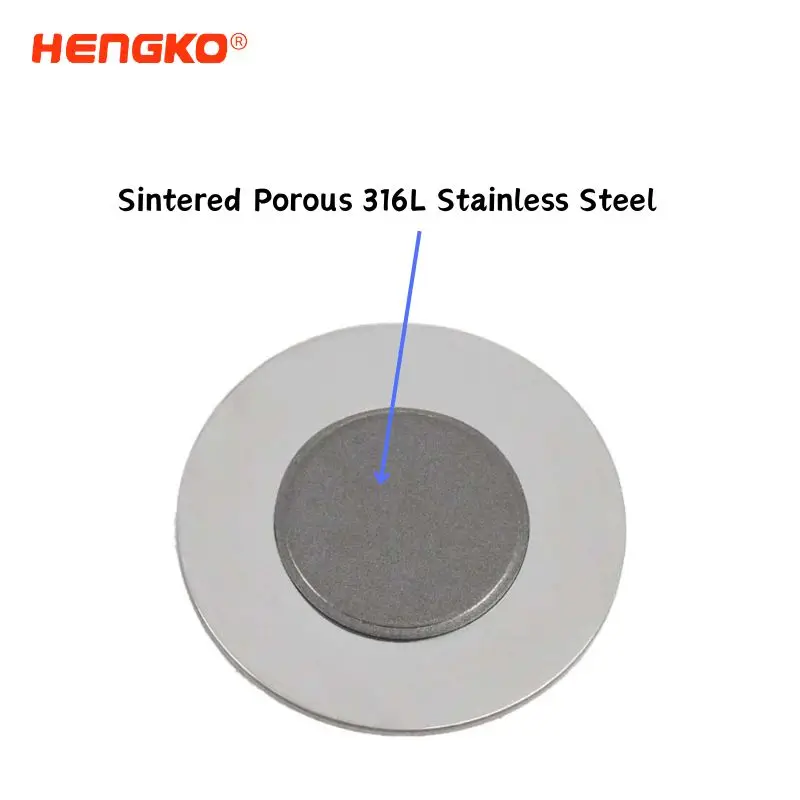

Filter Material	Sintered 316L stainless steel powder
Housing/Gasket Material	316L stainless steel
Surface Finish (Exterior)	Ra ≤ 1.6μm
Surface Finish (Interior)	Polished + electropolished, Ra ≤ 0.2μm
Maximum Operating Temperature	400°C
Particle Retention Efficiency	≥99.9999999% (9 LRV) @ 100 slpm (based on MPPS, for all particles)
Particle Size Capture	≥0.3μm
Compatible Sizes	1/4’’, 3/8’’, and 1/2’’ VCR standard gasket interfaces
Application	Semiconductor gas distribution systems, MFC modules, precision valves, and pressure regulators
Available Models	Low-pressure and high-pressure versions

Product Features
Material	Entirely constructed from 316L stainless steel
Installation	Can be used as a surface-sealing filter, eliminating the need for additional work such as cutting or welding pipes for installation
Durability	Resistant to high temperature, high pressure, and corrosion

Please send us the size or drawing ！

Applications of Porous Stainless Steel VCR Gasket Filter

※ Semiconductor Manufacturing
※ Pharmaceutical and Biotech Industries
※ Aerospace and High-Tech Manufacturing

※ Chemical Processing

※ Laboratory and Research Facilities
※ High-Purity Gas Distribution
※ Cryogenic Gas Systems
※ Oil and Gas Industry

Chat Now ！

Key Benefits for Applications:
*High-temperature and high-pressure resistance allows the filter to function reliably in extreme conditions.
*Corrosion resistance of 316L stainless steel ensures long service life, even in chemically aggressive environments.
*Convenient installation without the need for additional cutting or welding makes it easy to retrofit into existing systems.

Chat Now ！

Exhibition

Company Introduction

HENGKO Technology Co., Ltd., established in 2001, is professional manufacturer engaged in the research, development, production, sale and service of temperature and humidity devices and porous metal products. Our product range includes sintered metal filter, temperature and humidity sensor, temperature and humidity controller, dew point sensor, data logger, air diffuser and sensor housing. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss customers' requirements and ensure full customer satisfaction. We look forward to forming a stable and extensive strategic partnership with friends from all walks of life and create a better future together.

Certificate

Certificatate by CE, ISO9001, FCC, ROSH etc. Patents 30+

Shiping & Payment

<< Contact us for cheaper shipping >>

FAQ

Q1. Are you manufacturer or trading company?

--We are direct manufacturer specializing in porous sintered metal filters.

Q2. What’s the delivery time ?
--Normal model 7-10 work days because we have ability to do the stock. For big order, it takes about 10-15 work days.

Q3. What is your MOQ?
-- Usually, it is 100PCS, but if we have other orders together, can help you with small QTY also.

Q4. What payment ways available?
-- Western Union, Paypal , T/T , Credit Card , online bank transfer, RMB , etc.

Q5. If sample first possible?
-- Sure, usually we have certain QTY of free samples, if not, we'll charge accordingly.

Q6. We have design, can you produce?
--Yes, welcome!

Q7. Which market do you already sell?
--We already ship to Europe, Middle East, Asia, South America , Afria, North America etc.
