LPG Laboratory pear juice coffee spray dryer centrifugal drying machine for milk detergent powder
Products Description

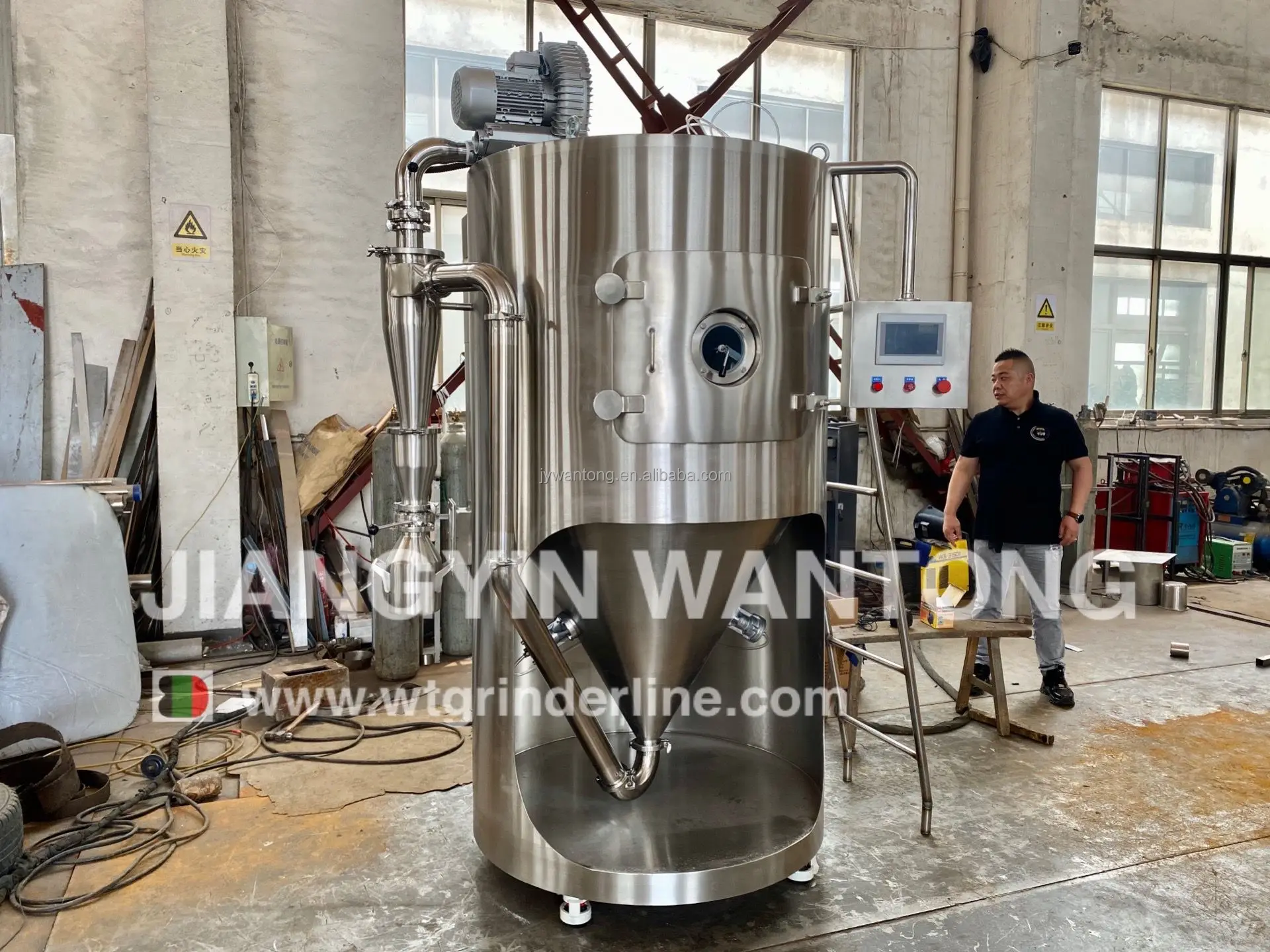

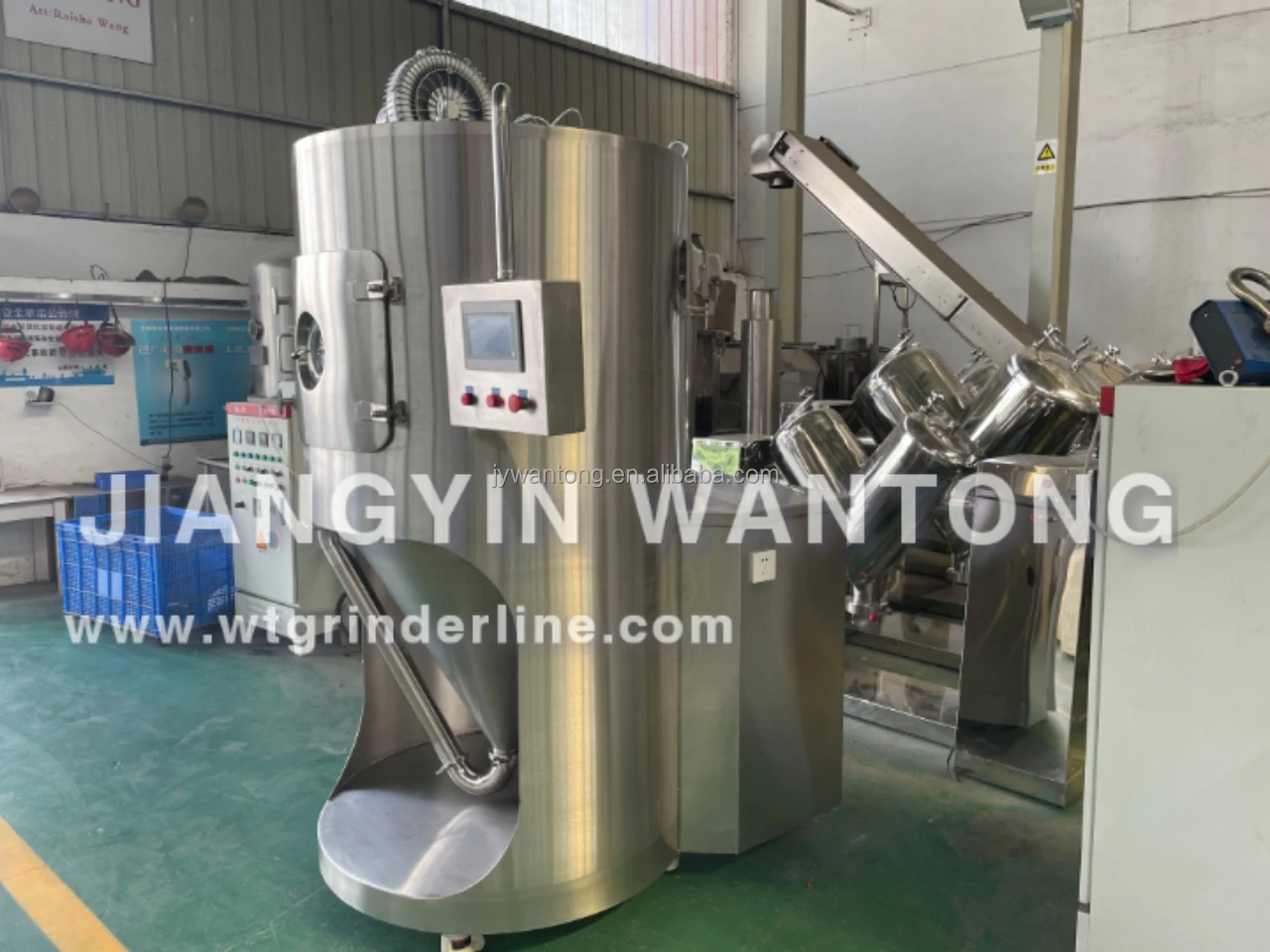

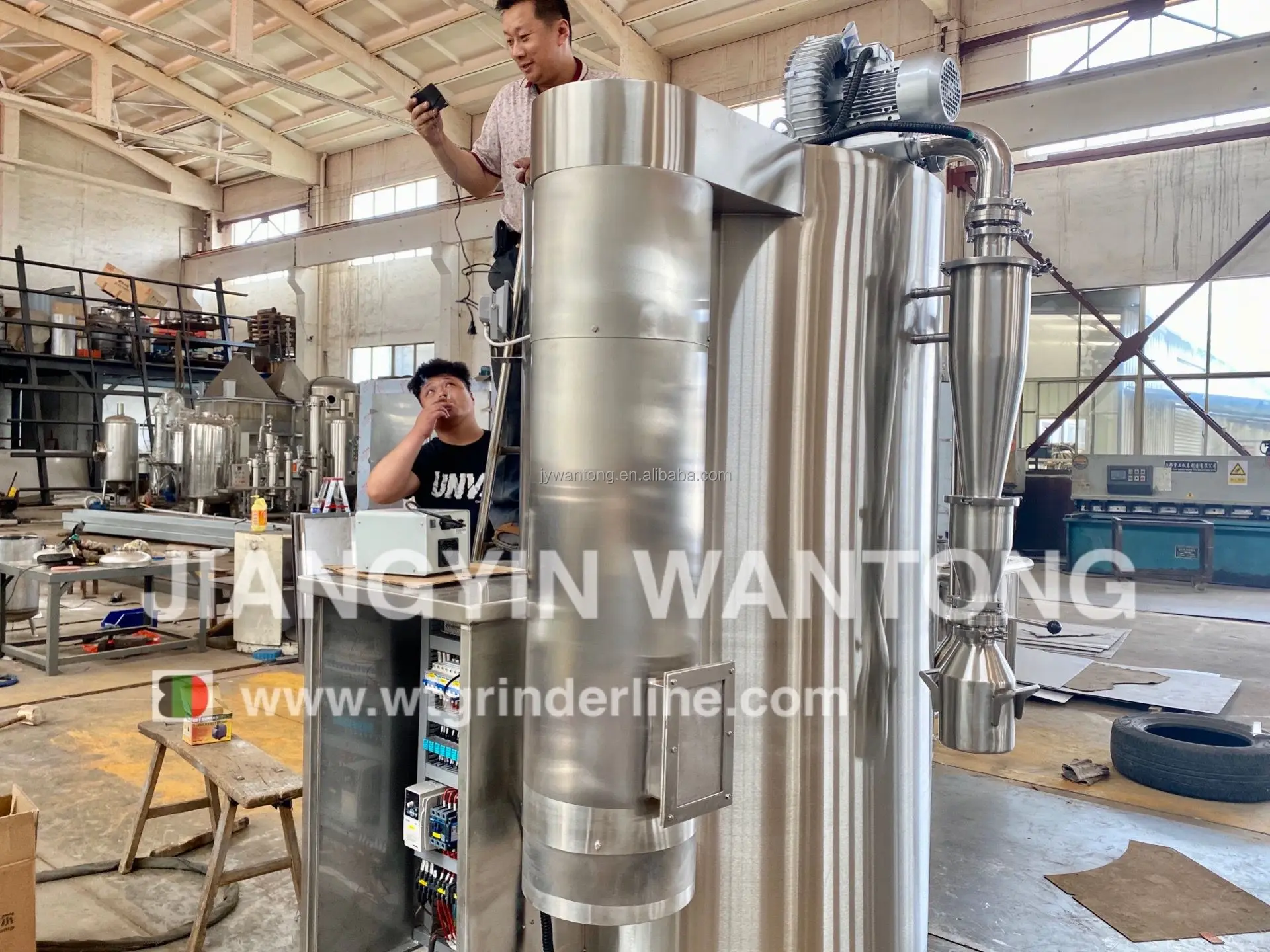

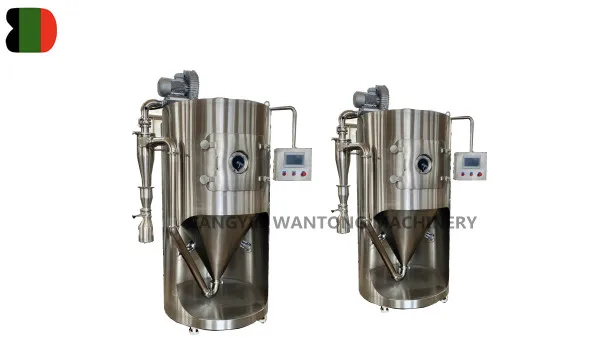

LPG Spray Dryer
Centrifuge spray dryer is a kind of continuous atmospheric dryer.Use pneumatic or electric atomization device to make liquid high-speed centrifugal spray as fog droplet, make these fog droplet contact with the hot air in the drying chamber and instantaneous drying.
Characteristic
1.Stainless steel material, arc corner design and polyester powder coated shell, prevents corrosion of acidity and alkaline air effectively.
2. Imported Schneider electrical components which is more stability.
3. PLC control system, make your research more easier and efficient.
4. Build in oil-free air compressor, without any noise.
5. Self-priming peristaltic pump, avoid secondary pollution, make sure whole process conducted steady and smoothly.
6. Narrow size distribution, more than 95% of the dry powders are in the same range of particles.
7. Innovative tower wall purging device, improves the material recycling rate.
8. High speed of drying, after spraying of the material liquid, the surface area of material will be increased greatly, make your research more efficient.
9. In the hot-air flow, 95%~98% of water can be evaporated at a moment. You can finish material drying only in several seconds.
10. Especially suitable for drying the heat sensitive materials, after drying, there's no need for smashing and sorting, so as to reduce the operation procedures and save your time.
2. Imported Schneider electrical components which is more stability.
3. PLC control system, make your research more easier and efficient.
4. Build in oil-free air compressor, without any noise.
5. Self-priming peristaltic pump, avoid secondary pollution, make sure whole process conducted steady and smoothly.
6. Narrow size distribution, more than 95% of the dry powders are in the same range of particles.
7. Innovative tower wall purging device, improves the material recycling rate.
8. High speed of drying, after spraying of the material liquid, the surface area of material will be increased greatly, make your research more efficient.
9. In the hot-air flow, 95%~98% of water can be evaporated at a moment. You can finish material drying only in several seconds.
10. Especially suitable for drying the heat sensitive materials, after drying, there's no need for smashing and sorting, so as to reduce the operation procedures and save your time.
Product Paramenters
Model | 5 | 25 | 50 | 150 | 200-5000 | ||||
Inlet temperature | 140℃~ 350℃ automatic control | 30℃~ 300℃ | 30℃~ 300℃ | ||||||
Outlet temperature | 80℃~ 90℃ | ||||||||
Max.evaporated amount of moisture(kg/h) | 5 | 5025 | 50 | 150 | 200-5000 | ||||
Drving form of centrifugai nozzie | Compressed airdrive | Mechanical drive | 15000mL/H | ||||||
Revolution(r.p.m) | 25000 | 18000 | 18000 | 15000 | 8000~15000 | ||||
Diameter of atomizing disk(mm) | 50 | 120 | 120 | 150 | 180~240 | ||||
Heat source | Electricity | Sleam/Electricity | Sleam/Electricity/Oilfuel/Hotaitfurnace | ||||||
Max.power of electric heater(kw) | 9 | 36 | 72 | 99 | |||||
Overall dimensions(LWH)(m) | 1.8x0.93x2.2 | 3x2.7x4.26 | 3.5x3.5x4.8 | 5.5x4x7 | Affirm it in accordance withpractical conditions | ||||
Recovery rate of dry powder(%) | ≥95 | ||||||||
