Products Description
Parameter | APM-S102 | |
Round container | ||
Printing diameter | 20-100mm | |
Printing length | 20-300mm | |
Max.printing speed | 4000pcs/h | |
Oval container | ||
Printing width | 25-120mm | |
Printing length | 25-300mm | |
Max.printing speed | 5000pcs/h | |
Square container | ||
Printing length | 100-200mm | |
Printing width | 40-100mm | |
Max.printing speed | 4000pcs/h | |
Machine dimension | 1908*1000*1500mm | |
Power | 380V,3P,50/60Hz | |
Air supply | 5-7bar | |
General Description

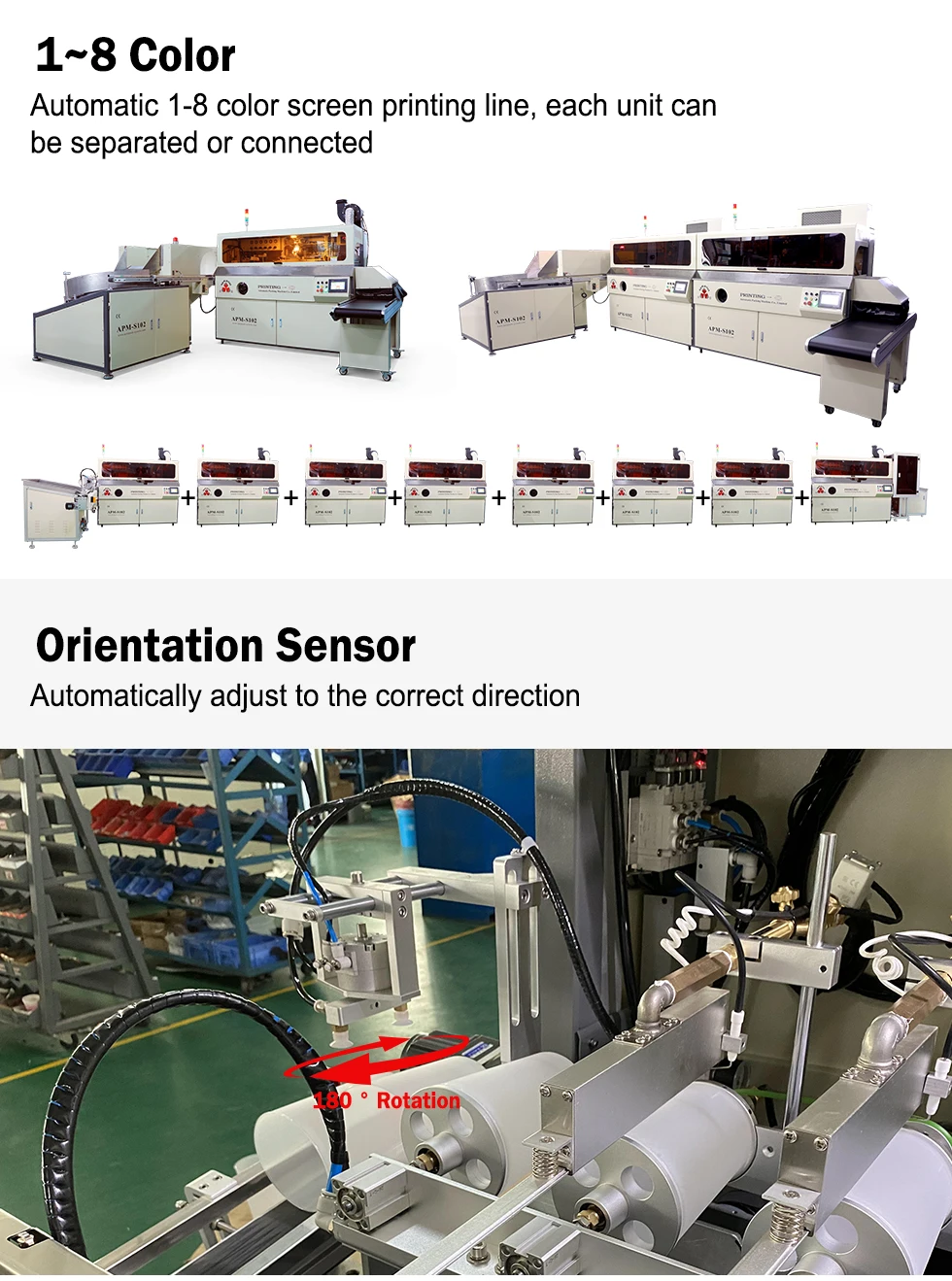

Automatic 1-8 color screen printing line, each unit can be separated or connected;

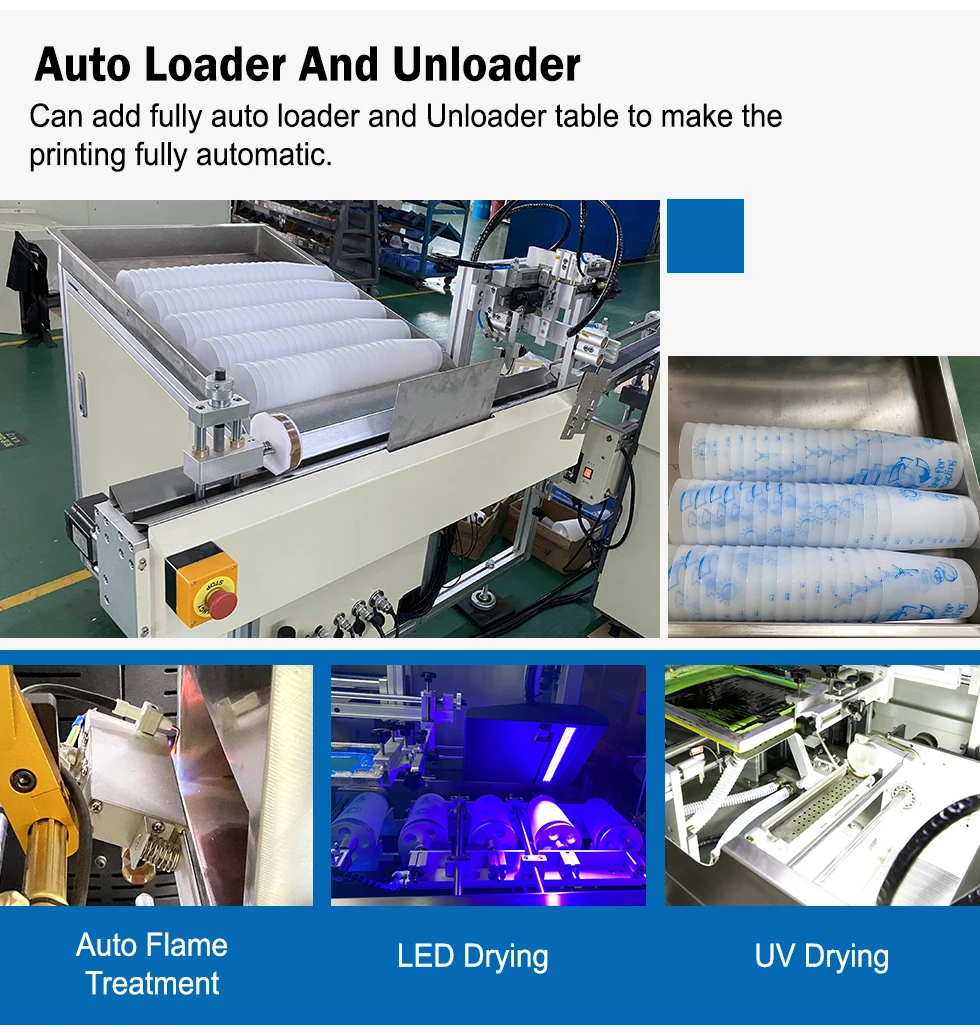

Automatic loading system with belt and vacuum robot(bowl feeder and hopper optional;
Auto flame treatment;
Perfect transmission system. It passes over the bottles fast and smooth;
Automatic 180 degree rotation for oval and square bottles;
Quick and easy change over from one product to another;
LED UV curing system with longer life time and energy saving,electric UV system optional;
Reliable PLC control with touch screen display;
Promise of quality SMC pneumatic parts and Panasonic, Schneider Electric parts. Other brands optional;
Automatic unloading.
Automatic loading system with belt and vacuum robot(bowl feeder and hopper optional;
Auto flame treatment;
Perfect transmission system. It passes over the bottles fast and smooth;
Automatic 180 degree rotation for oval and square bottles;
Quick and easy change over from one product to another;
LED UV curing system with longer life time and energy saving,electric UV system optional;
Reliable PLC control with touch screen display;
Promise of quality SMC pneumatic parts and Panasonic, Schneider Electric parts. Other brands optional;
Automatic unloading.
Procedure
Auto loading onto belt——flame treatment——printing——UV drying —— next color printing and drying——auto unloading
Applications
Application
The APM-S102 is designed for multi-color decoration of cylindrical/ova/square/plastic glass bottles,cups,hard tubes at high production speeds. It is suitable for glass and plastic containers printing with UV ink. Need registration point for multi-color cylindrical bottle printing.Reliability and speed make the S102 ideal for off-line or in-line 24/7 production.
Recommend Products
Auto Screen Printing Machine
Automatic Hot Stamping Machine
Offset printer
Assembly machine
Customer praise
Company Profile
APM is a top supplier of high-quality automatic screen，printing machine, hot stamping machine, dry offset printing machine, labelling machine, pad printer, automatic assembly and accessories. All machines are built according to CE .
We have customers all over the world, such as the United States, Canada, Mexico, Russia, France, Spain, Portugal, Bulgaria, Italy, Brazil, Dominican Republic, Colombia, Australia, Algeria, Turkey, Saudi Arabia, India, Malaysia, Vietnam, South Korea, Thailand, Kazakhstan, Uzbekistan and so on.
Exhibition pictures
FAQ
Q: How do I get a quotation?
A: Send us an inquiry with specific details like material, size, color, etc.
Q: How do I order?
A: Send an inquiry through Alibaba or our website, our sales team will provide a quotation. If accepted, we'll sign a sales
contract, you fulfill payment, and we start production.
Q: Is the price final?
A: The price shown is for ranking rules only. Contact us for the latest price based on your requirements.
Q: Can we print samples to check quality?
A: Yes.
Q: Is there operation training?
A: Yes, we offer free training and overseas machine repair by our engineers.
Q: How long is the warranty?
A: One year plus lifelong technical support.
Q: What accessories are included?
A: The machine comes with most accessories. You'll need to prepare an air compressor and power supply as indicated on the nameplate.
Q: How do I install and operate the machine? Do you offer training?
A: Yes, we provide videos and manuals for installation and operation. We offer online guidance from our technicians.
Q: Do you have CE certification for machines sold in Europe?
A: Yes, we have CE certificates for all machines.
Q: What payment methods do you accept?
A: We accept TT/LC/PAYPAL/Western Union. Other terms can be discussed.
For technical support, contact us anytime.
A: Send us an inquiry with specific details like material, size, color, etc.
Q: How do I order?
A: Send an inquiry through Alibaba or our website, our sales team will provide a quotation. If accepted, we'll sign a sales
contract, you fulfill payment, and we start production.
Q: Is the price final?
A: The price shown is for ranking rules only. Contact us for the latest price based on your requirements.
Q: Can we print samples to check quality?
A: Yes.
Q: Is there operation training?
A: Yes, we offer free training and overseas machine repair by our engineers.
Q: How long is the warranty?
A: One year plus lifelong technical support.
Q: What accessories are included?
A: The machine comes with most accessories. You'll need to prepare an air compressor and power supply as indicated on the nameplate.
Q: How do I install and operate the machine? Do you offer training?
A: Yes, we provide videos and manuals for installation and operation. We offer online guidance from our technicians.
Q: Do you have CE certification for machines sold in Europe?
A: Yes, we have CE certificates for all machines.
Q: What payment methods do you accept?
A: We accept TT/LC/PAYPAL/Western Union. Other terms can be discussed.
For technical support, contact us anytime.
