Product Description

Overview

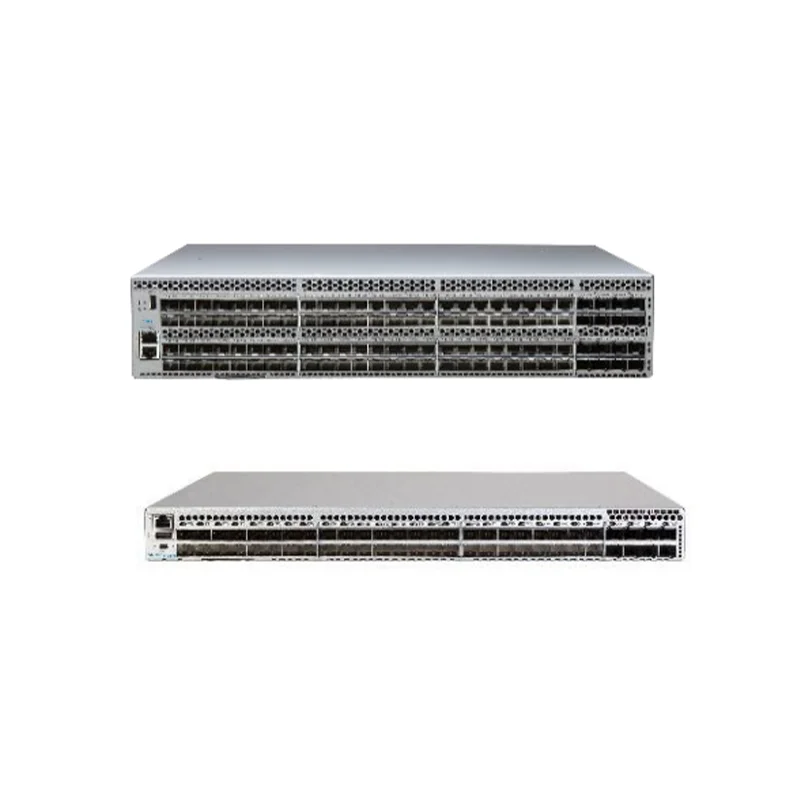

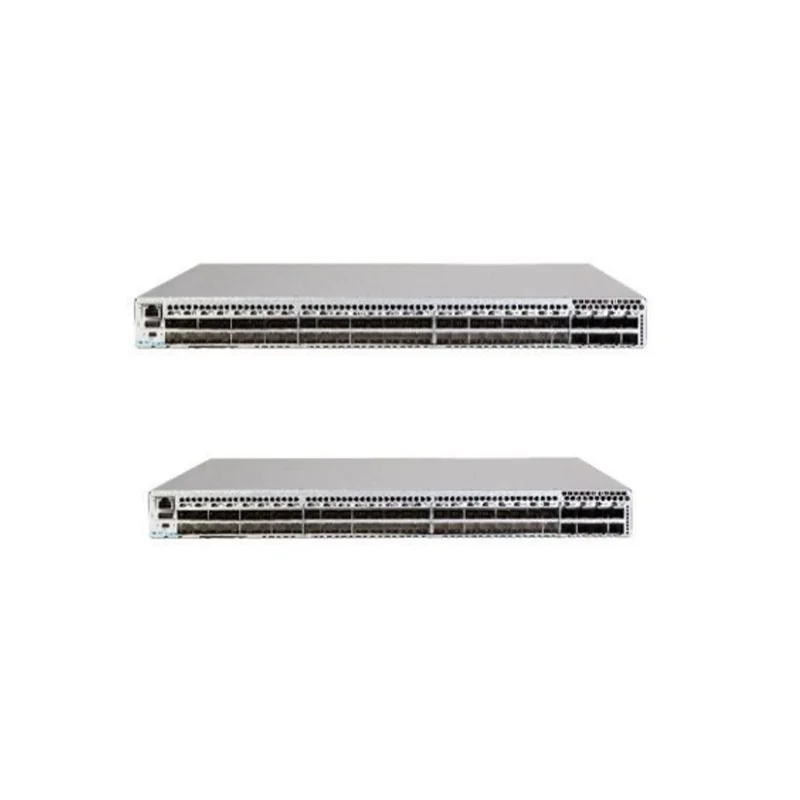

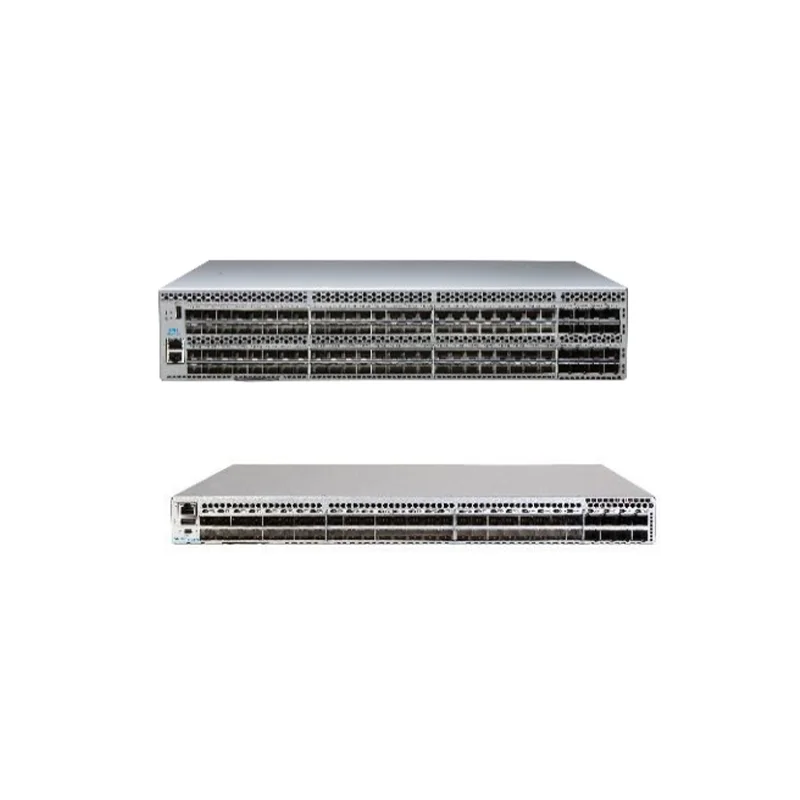

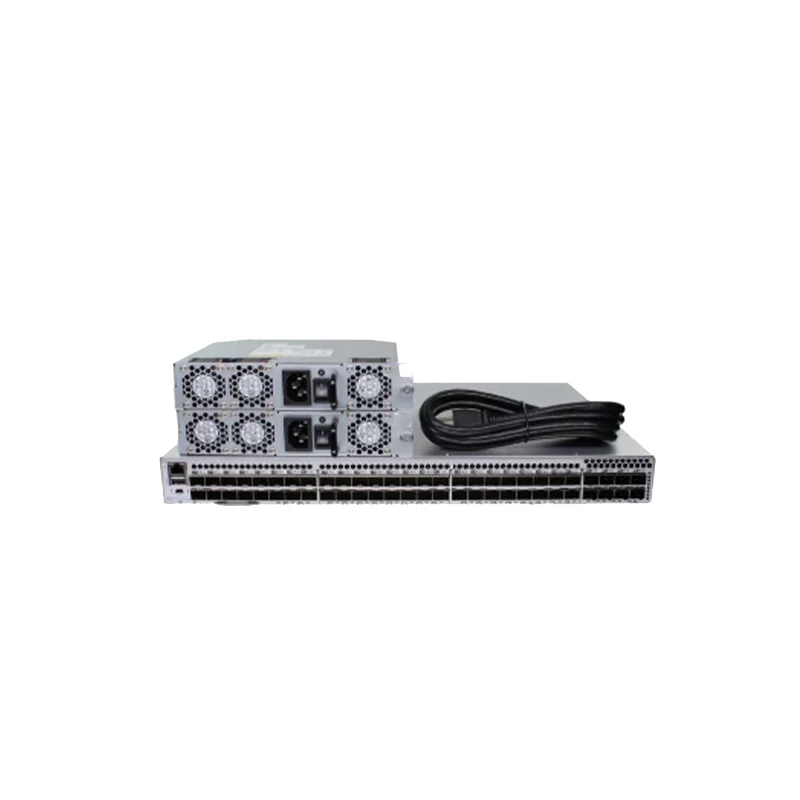

The Connectrix B-Series 64Gb/s DS-7700B family of Fibre Channel SAN switches support data growth, demanding workloads and data-center consolidation. The Connectrix DS-7720B platforms are built for maximum flexibility, scalability and ease of use.

Specification

Product Name	DS-7700B
Fibre Channel ports	64 ports (48 64G SFP+ ports, plus 8 2x64G SFP-DD ports), each supporting E_Ports, F_Ports,M_Ports, D_Ports, and EX_Ports. 24-port base configuration; additional ports are enabled with three 8-port SFP+ PODs (Ports on Demand),plus a 16-port SFP-DD POD (8 2x64G SFP-DD transceivers), scaling the switch from 24 ports to 64 ports.
Performance	Fibre Channel: 8.5Gb/s line speed, full duplex; 10.53Gb/s line speed, full duplex; 14.025Gb/s line speed, full duplex; 28.05Gb/s line speed, full duplex; 57.8Gb/s line speed, full duplex; auto-sensing of 8, 10, 16, 32, and 64G port speeds. 10G optionally programmable to fixed-port speed.
Aggregate bandwidth	4.096Tb/s
Port types	D_Port (ClearLink® Diagnostic Port), E_Port, EX_Port, F_Port, M_Port; optional port-type control Access Gateway mode: F_Port and NPIV-enabled N_Port
Media types	64Gb/s: hot-pluggable SFP+, LC connector; 64Gb/s SWL 32Gb/s: hot-pluggable SFP+, LC connector; 32Gb/s SWL, LWL 10 km, ELWL 25 km 10Gb/s: hot-pluggable SFP+, LC connector; 10Gb/s SWL, LWL 10 km 2x64G FC SFP-DD SN connectors: SWL
Security	DH-CHAP (between switches and end devices); FCAP switch authentication; HTTPS; IP filtering;LDAP with IPv6; OpenLDAP; Port Binding; RADIUS; TACACS+; user-defined Role-Based Access Control (RBAC); Secure Boot; Secure Copy (SCP); Secure Syslog; SFTP; SSH v2; SSL; Switch Binding; Trusted Switch
Management access	10/100/1000Mb/s Ethernet (RJ-45), port and serial console port (mini-USB)
Diagnostics	Active Support Connectivity (ASC) and Brocade Support Link (BSL); built-in flow generator; ClearLink optics and cable diagnostics, including electrical/optical loopback, link traffic/latency/distance; Fabric Performance Impact Monitoring (FPI); flow mirroring; Forward Error Correction (FEC); frame viewer; IO Insight for SCSI and NVMe monitoring; Monitoring and Alerting Policy Suite (MAPS); nondisruptive daemon restart; optics health monitoring; POST and embedded online/offline diagnostics, including environmental monitoring, FCping, and Pathinfo (FC traceroute); power monitoring; RAStrace logging; Rolling Reboot Detection (RRD); Syslog/Audit Log; VM Insight

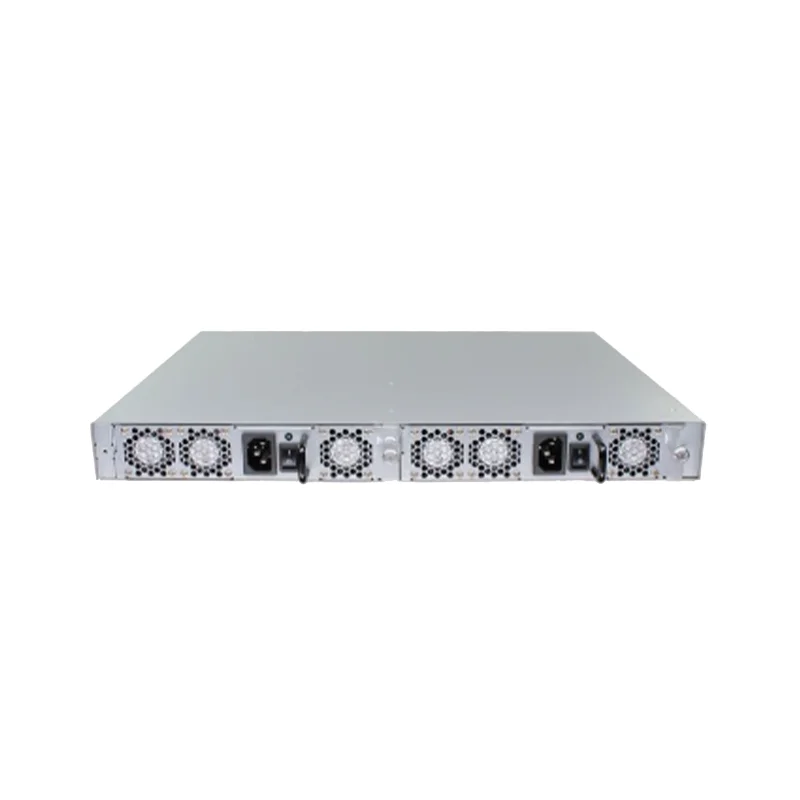

Power supply	Dual, hot-swappable redundant power supplies with integrated system cooling fans. 80 Plus Gold.
