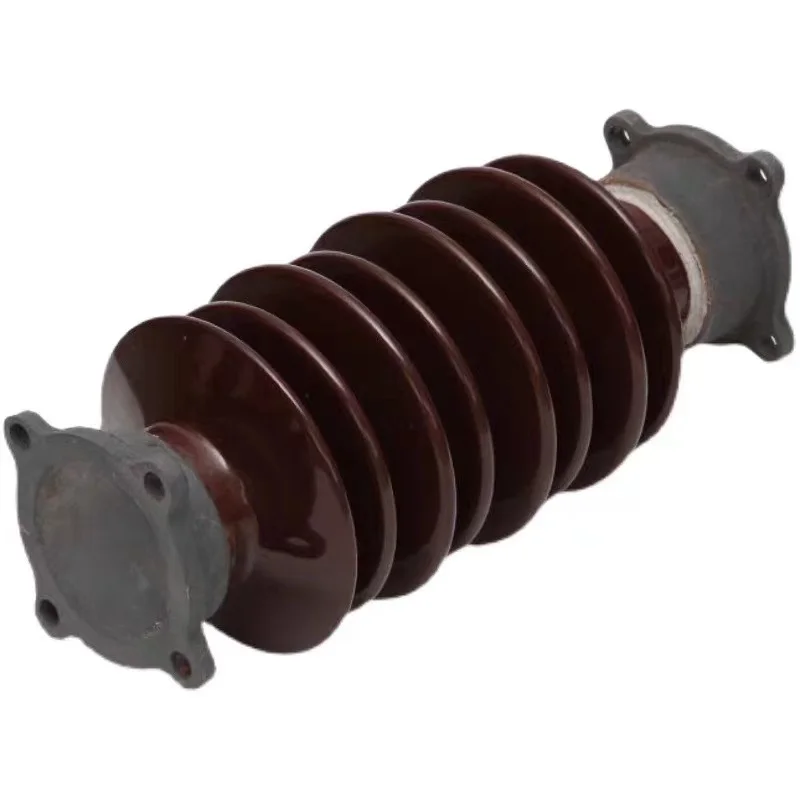

Высоковольтный изолятор втулки для трансформатора керамическая изоляционная втулка
244,05 ₽ - 332,79 ₽
Высокопроизводительная графеновая термопрокладка для электроники охлаждающий высококачественный теплоотвод
- Категория: >>>
- Поставщик: Shenzhen Dongsen Industrial Technology Co. Ltd.
Сохранить в закладки 1601284735073:
Описание и отзывы
Характеристики
Product Description

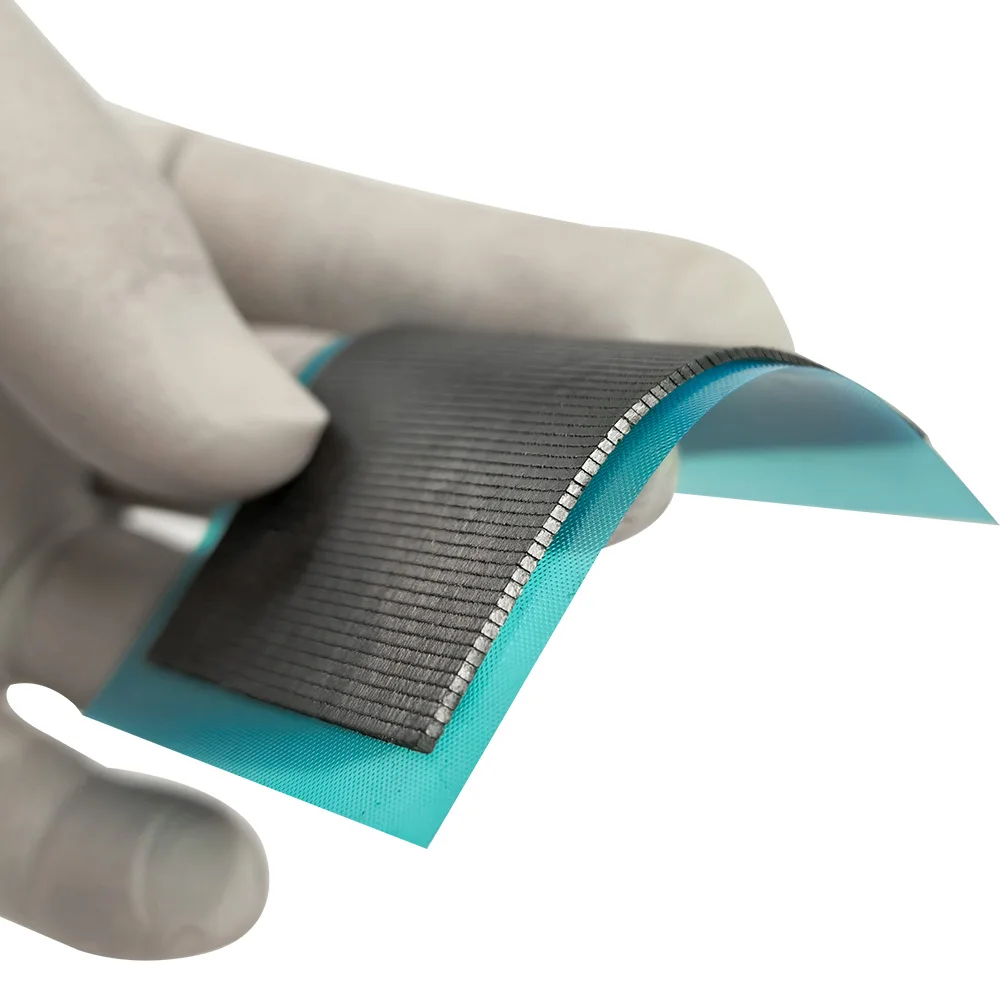

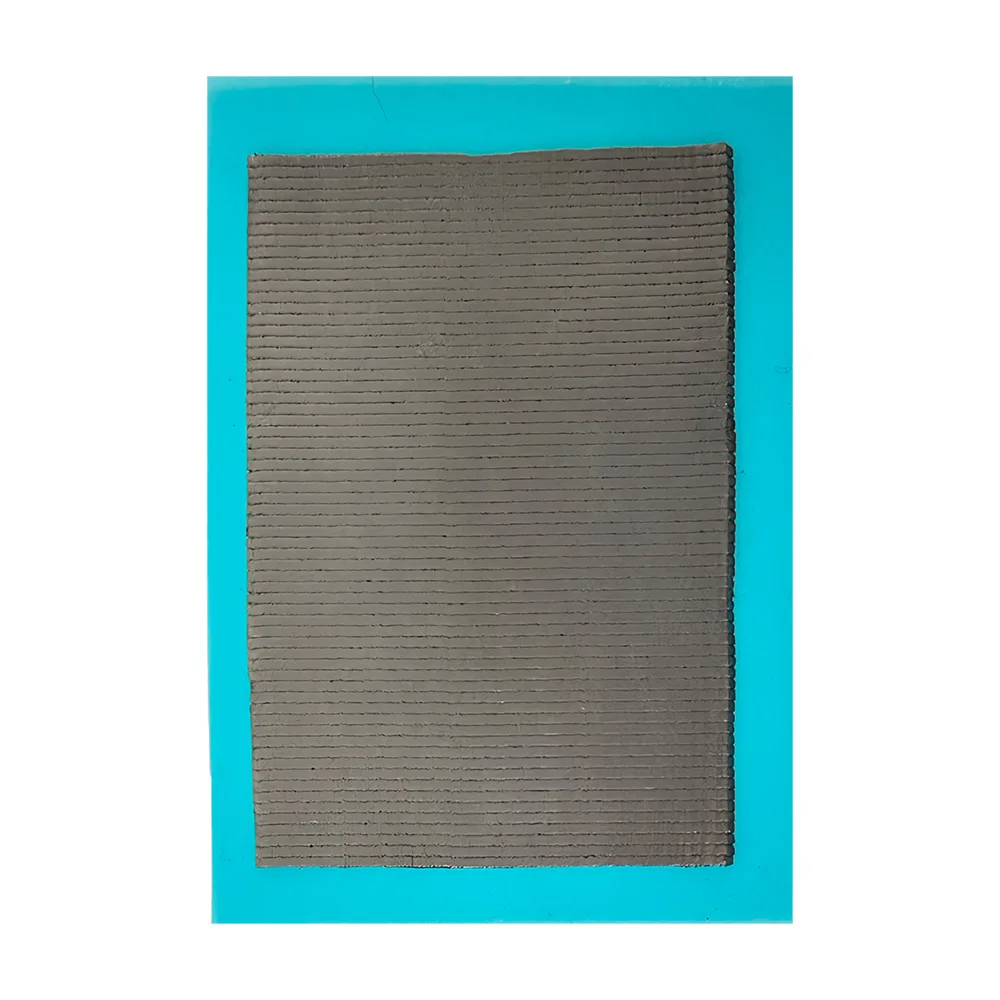

Graphene Thermal Pad
Product Overview
The Graphene Thermal Pad is a cutting-edge heat dissipation solution designed with advanced graphene-silicone composite materials. It combines the excellent thermal conductivity of graphene with the flexibility of silicone, providing superior heat transfer, low contact thermal resistance, high compressibility, and high-temperature tolerance. This product stands as the only one in the market that can match the thermal performance of liquid metal thermal pads. The Graphene Thermal Pad is highly effective in managing heat dissipation for a wide range of electronic devices, including mobile devices, PCs, TVs, communication equipment, automotive electronics, and industrial applications.
Features
Exceptional Thermal Conductivity
The Graphene Thermal Pad boasts an outstanding thermal conductivity ranging from 20W/m·k to 30W/m·k, enabling rapid and efficient heat transfer from the heat source to the heat sink, significantly improving thermal management efficiency.
Low Contact Thermal Resistance
Unlike traditional thermal materials, which suffer from interface thermal resistance, the Graphene Thermal Pad eliminates these obstacles, ensuring that heat can be transferred without any resistance between the heat source and the thermal sink.
Wide Temperature Range
The product works within a temperature range from -50°C to 150°C, making it ideal for both high- and low-temperature environments. It is perfect for use in extreme conditions where traditional materials may fail.
Shock Absorption & Protection
The material provides excellent shock absorption, reducing the potential for damage from physical impacts. This feature is especially useful in protecting sensitive components from mechanical stress.

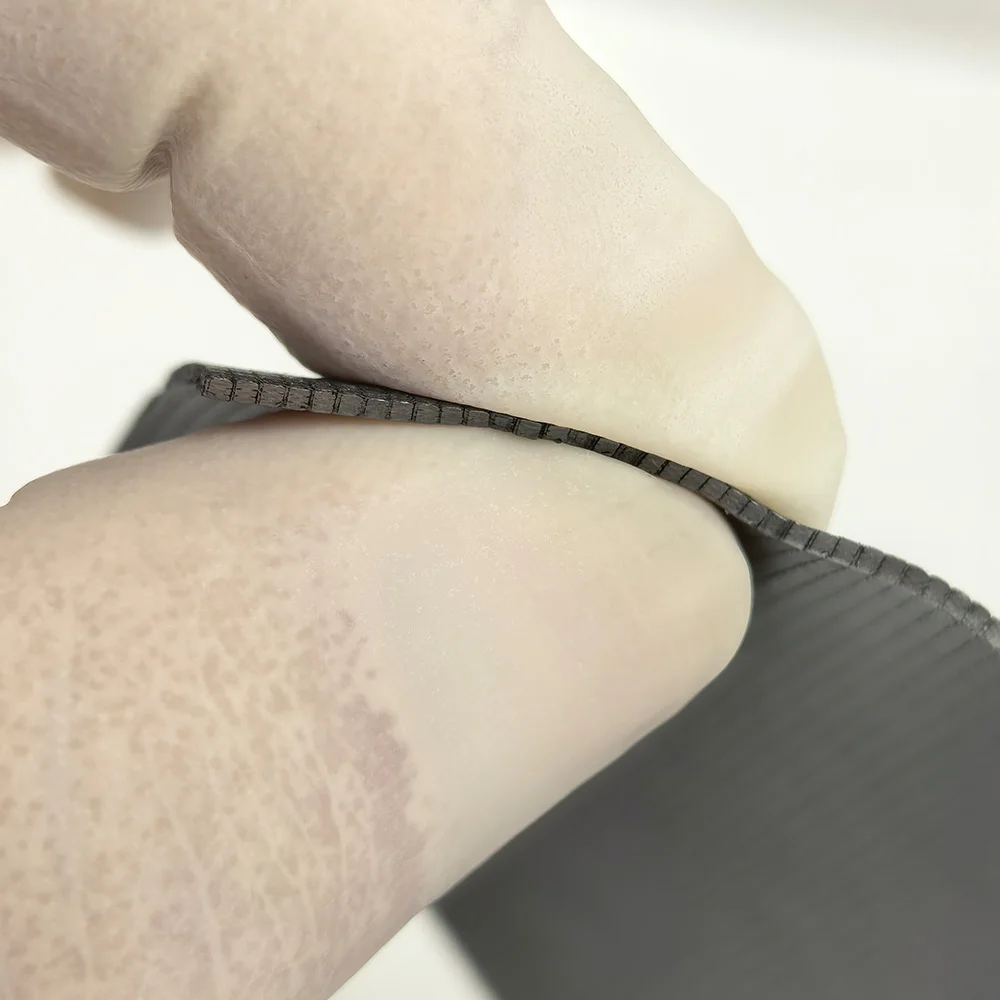

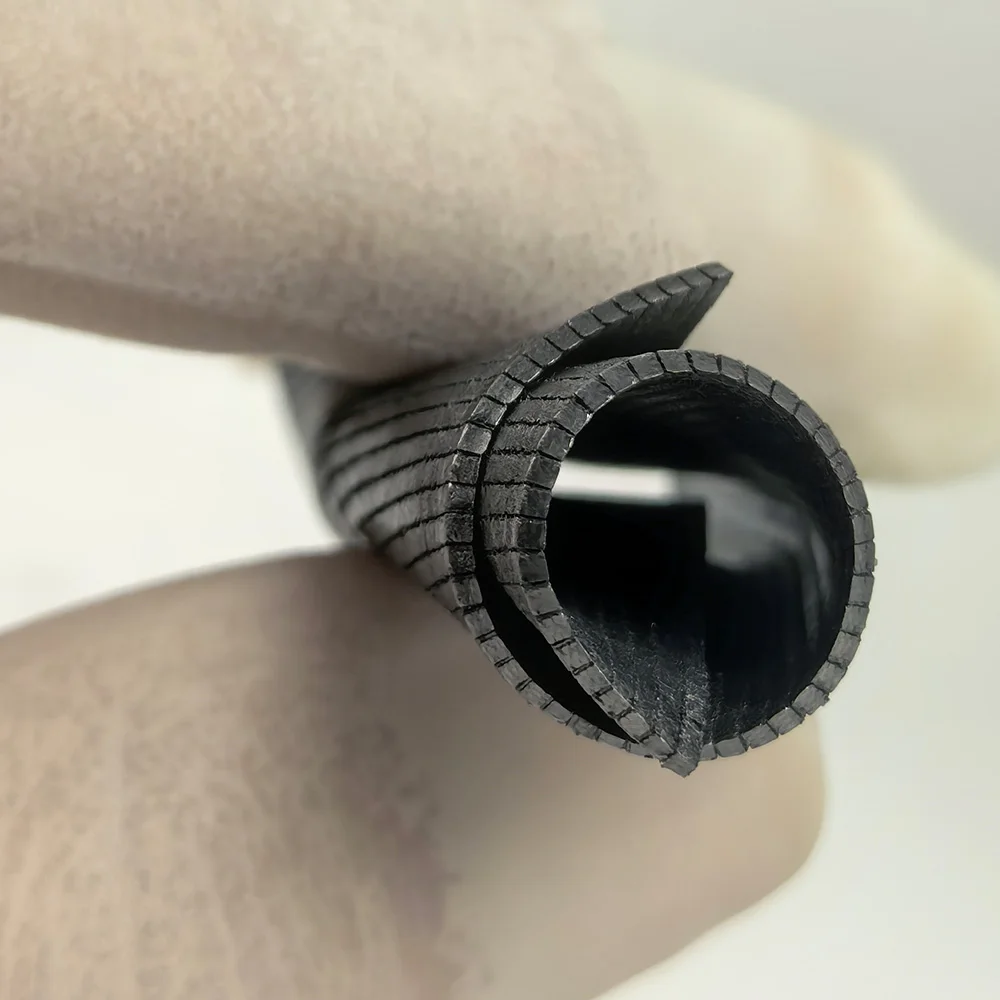

High Compression Ratio & Excellent Adaptability
With a high compression ratio, the thermal pad can easily adapt to uneven or irregular surfaces, ensuring maximum contact with the
components to improve heat dissipation.
components to improve heat dissipation.
Optimized Z-Axis Thermal Transfer
Graphene’s unique properties enable an optimized thermal transfer path in the Z-axis direction, significantly improving vertical
heat dissipation. This leads to more efficient heat transfer and better thermal management.
heat dissipation. This leads to more efficient heat transfer and better thermal management.
Environmentally Friendly & Safe
The Graphene Thermal Pad is ROHS 2.0 compliant and free from harmful substances, making it environmentally safe. It also meets the UL-94 V-0 flammability standard, providing excellent fire-resistant properties in case of overheating or short circuits.
Application
1. Mobile Devices
Smartphones, tablets, and laptops generate significant heat during heavy usage. The Graphene Thermal Pad provides excellent thermal management, preventing thermal throttling and ensuring stable performance during high-load operations.
2. TVs and PCs
High-performance TVs and personal computers, especially gaming PCs and workstations, often experience overheating due to prolonged usage. The Graphene Thermal Pad helps regulate temperature, keeping devices running efficiently without the risk of thermal failure.
3. Wireless Base Stations & Communication Equipment
In wireless base stations, routers, and communication devices, efficient heat dissipation is essential for maintaining signal integrity and device longevity. The Graphene Thermal Pad ensures that heat is managed effectively, allowing for continuous operation in high-demand environments.
4. Automotive Electronics
With the increasing use of electronics in vehicles, ensuring that car electronics are properly cooled is vital. The Graphene Thermal Pad performs well in the automotive sector, handling the high thermal output of various automotive electronics and ensuring their reliability under extreme conditions.
5. Industrial Electronics & Servers
Industrial-grade electronic equipment and servers often run at high power levels, generating significant heat. The Graphene Thermal Pad is the ideal solution for these environments, effectively managing heat and preventing system failures caused by overheating.
Smartphones, tablets, and laptops generate significant heat during heavy usage. The Graphene Thermal Pad provides excellent thermal management, preventing thermal throttling and ensuring stable performance during high-load operations.
2. TVs and PCs
High-performance TVs and personal computers, especially gaming PCs and workstations, often experience overheating due to prolonged usage. The Graphene Thermal Pad helps regulate temperature, keeping devices running efficiently without the risk of thermal failure.
3. Wireless Base Stations & Communication Equipment
In wireless base stations, routers, and communication devices, efficient heat dissipation is essential for maintaining signal integrity and device longevity. The Graphene Thermal Pad ensures that heat is managed effectively, allowing for continuous operation in high-demand environments.
4. Automotive Electronics
With the increasing use of electronics in vehicles, ensuring that car electronics are properly cooled is vital. The Graphene Thermal Pad performs well in the automotive sector, handling the high thermal output of various automotive electronics and ensuring their reliability under extreme conditions.
5. Industrial Electronics & Servers
Industrial-grade electronic equipment and servers often run at high power levels, generating significant heat. The Graphene Thermal Pad is the ideal solution for these environments, effectively managing heat and preventing system failures caused by overheating.

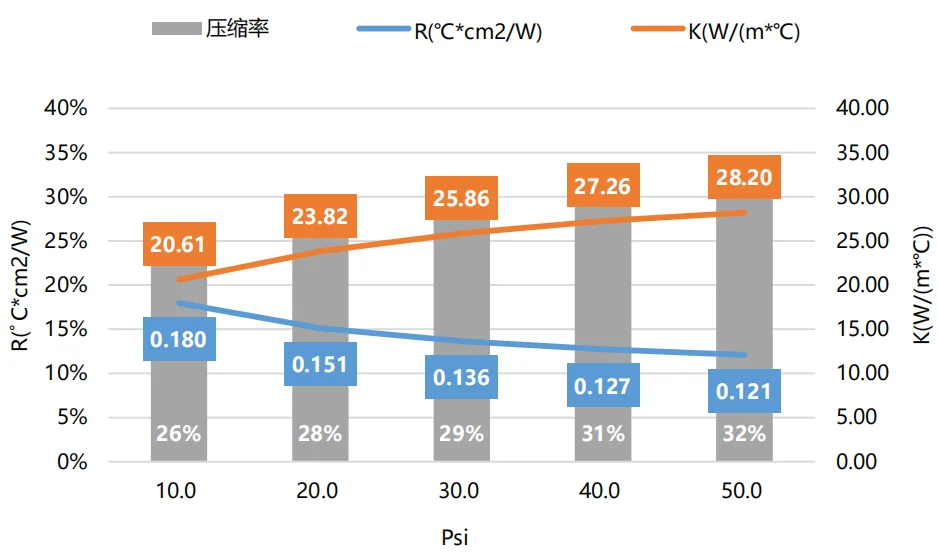

Physical Properties
Model | GT-VTS-Series | Reference standards | ||||||||
Product Features | Silicone composite material | - | ||||||||
Composition | Graphene, Silicone | - | ||||||||
Appearance | Gray-black sheet | Visual inspection | ||||||||
Thickness | 0.3 | 0.5 | 1 | 1.5 | 2 | ASTM D374 | ||||
Size | 40*60 | 40*134 | 40*134 | 40*134 | 40*134 | |||||
Thermal Conductivity | ≥20W | ≥20W | ≥25W | ≥25W | ≥30W | ASTM D5470 | ||||
Compression Ratio | ≥15 | ≥20 | ≥30 | ≥30 | ≥30 | - | ||||
Volume Resistivity | 8~30 | ASTM D257 | ||||||||
Operating Temperature Range | -50~150℃ | - | ||||||||
Corrosiveness | 无 | - | ||||||||
Environmental Standards | ROHS 2.0 | - | ||||||||
Flammability Rating | V-0 | UL-94 | ||||||||
Packaging and Storage Recommendations
* Store the Graphene Thermal Pads in a cool, dry place, away from direct sunlight and high temperatures.
* Ensure that the product is clean before use to avoid contaminants affecting the thermal interface.
* Handle with care to avoid physical damage to the material, ensuring optimal thermal performance.
* Ensure that the product is clean before use to avoid contaminants affecting the thermal interface.
* Handle with care to avoid physical damage to the material, ensuring optimal thermal performance.
Conclusion
The Graphene Thermal Pad is the ideal solution for effective heat management across a wide range of electronic devices. Its high thermal conductivity, low contact thermal resistance, and wide operating temperature range make it a reliable and efficient choice for mobile devices, computers, communication equipment, automotive electronics, and industrial systems. Whether you are looking to improve the thermal performance of your devices or extend their operational life, the Graphene Thermal Pad will help you achieve superior results.
Company Intriduction
Shenzhen Dongsen Industrial Technology Co., Ltd. was established in 2019, located in Guangdong Province, China, with a registered capital of 5 million RMB. We operate two R&D Center in China and Japan, along with two production bases in Guangdong Province, China. With over 200 employees boasting 14 years of industry experience in research, development, and production, we specialize in manufacturing and selling thermal conductive materials such as thermal conductive silicone pads, thermal grease, thermal double-sided adhesive tape, thermal potting compound, thermal gel, thermal copper foil, copper foil tape, graphite sheets, and thermal ceramic sheets. Additionally, we offer customized die-cutting services for various products. We have been providing OEM
customization services for major global thermal material brands for an extended period. Our clientele includes major players in industries such as new energy vehicles, computers, power supplies, LED lighting, 3C electronics, network communications, electro mechanical equipment, instrumentation, and consumer electronics. Our factory is certified under ISO9001, ISO14001, and IATF16949 systems, and our products hold authoritative certifications from third-party testing institutions like UL and SGS, ensuring compliance with requirements such as REACH\\ROHS. We are globally recognized as a leading provider of thermal management solutions.
We are committed to meeting customer needs by delivering high-quality products and providing fast and flexible services to maximize customer value. Through our dedication, we have established strong partnerships with major new energy vehicle manufacturers, telecommunications companies, leading smartphone brands, and professional equipment manufacturers worldwide, enabling us to serve customers globally.
customization services for major global thermal material brands for an extended period. Our clientele includes major players in industries such as new energy vehicles, computers, power supplies, LED lighting, 3C electronics, network communications, electro mechanical equipment, instrumentation, and consumer electronics. Our factory is certified under ISO9001, ISO14001, and IATF16949 systems, and our products hold authoritative certifications from third-party testing institutions like UL and SGS, ensuring compliance with requirements such as REACH\\ROHS. We are globally recognized as a leading provider of thermal management solutions.
We are committed to meeting customer needs by delivering high-quality products and providing fast and flexible services to maximize customer value. Through our dedication, we have established strong partnerships with major new energy vehicle manufacturers, telecommunications companies, leading smartphone brands, and professional equipment manufacturers worldwide, enabling us to serve customers globally.
Packaging & Shipping
FAQ
1.Are you manufacturer or trade company?
-We are manufacturer which specilized in thermal silicone pad、thermal paste、thermal tape and EMI material with more than 15 years export experence.
2. Can I buy samples placing orders?
-Yes.Please feel free to contact us.
3.What is your lead time?
-It depends on the order quantity and the season you place the order. -Usually we can ship within 7-15 days for small quantity, and about 30 days for large quantity.
4.What is your payment term?
-T/T, Western Union, MoneyGram, and Paypal. This is negotiable.
5.What is the shipping method?
-It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect). Please confirm with us before placing orders.
Похожие товары

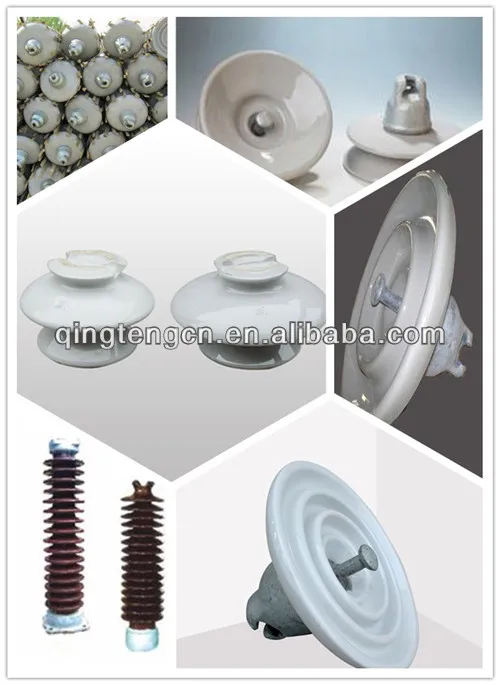

горячая продажа электрических керамических изоляторов для линий передачи

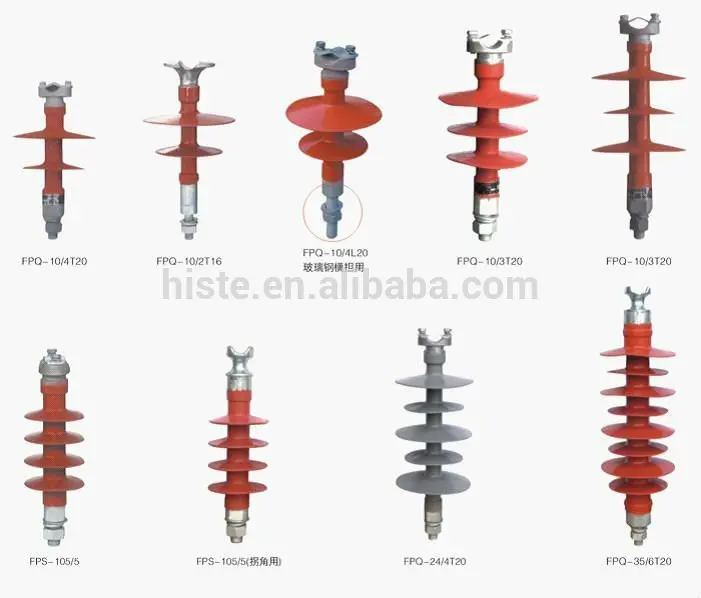

66kv Композитный Изолятор электрический штифт изолятор 210kn
Надежное качество 33кв полимер Pin изолятор

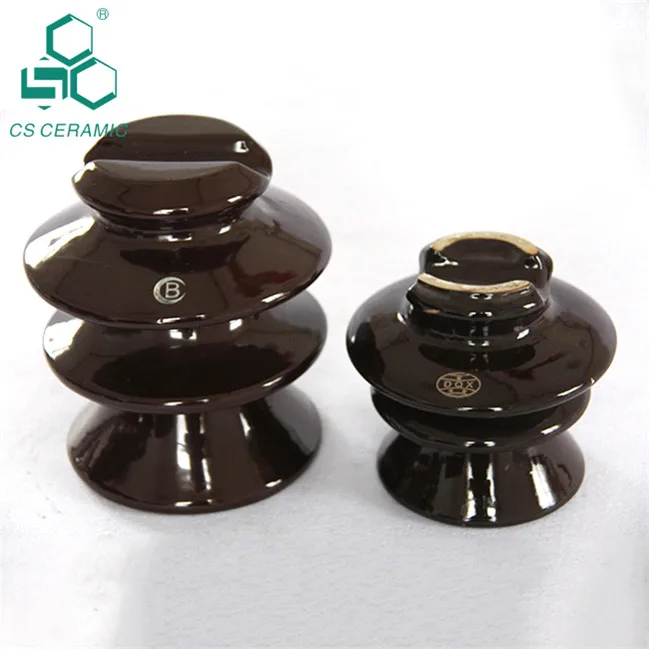

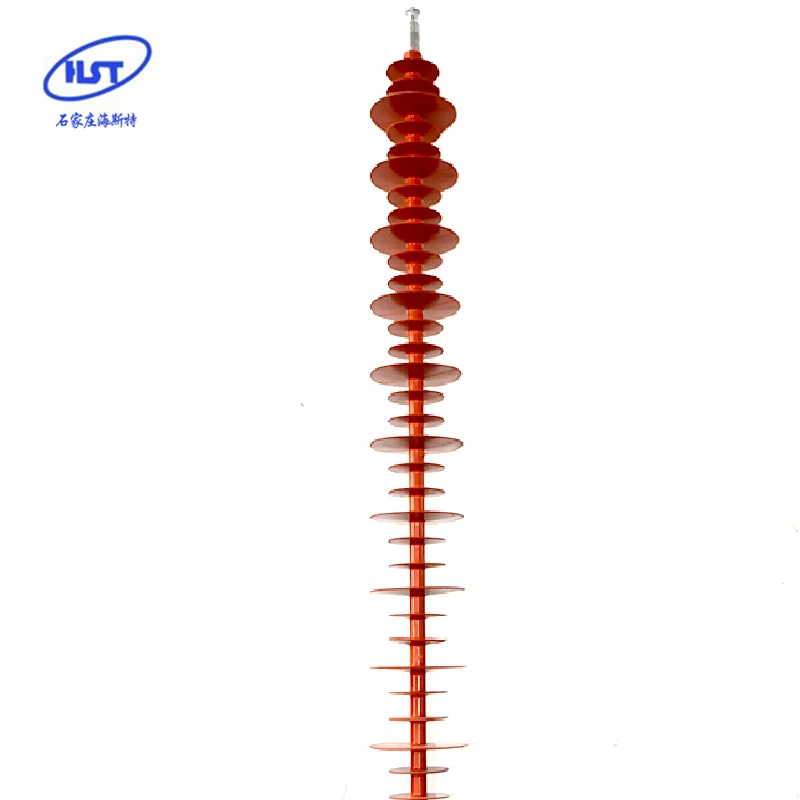

Композитный pin изолятор

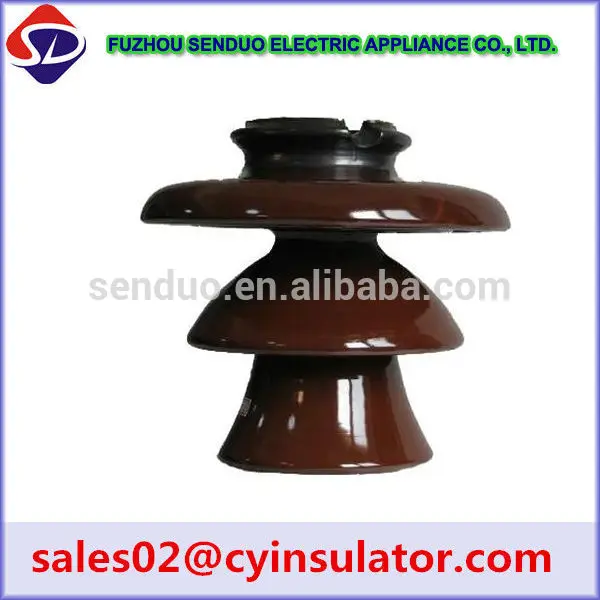

Изолятор Тип Pin 15kv изолятор цена производителя
