Женская машина для окантовки одеял оптовая продажа трехигольная швейная с пятью линейками прямым приводом RN W500A

Описание и отзывы

Характеристики

Guangzhou Oren Sewing Machine Co., Ltd.

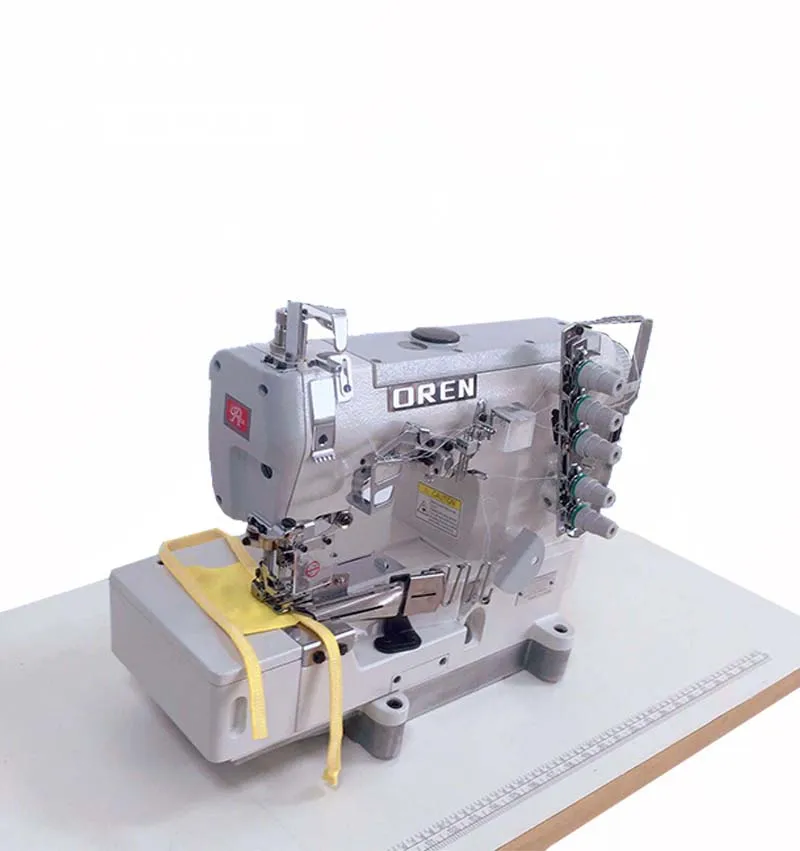

Three needle and five thread  Knitting clothing Baby clothes  T-shirts underwear sewing machine  RN-W500A

Basic information:

Product Application:

      High speed stretch stitch is also known as special sewing machine. The stitch it sews is chain stitch.
The stitches are mostly used for rolling collar, hemming, folding, stretching seam, stitching seam and trimming of knitted garments.

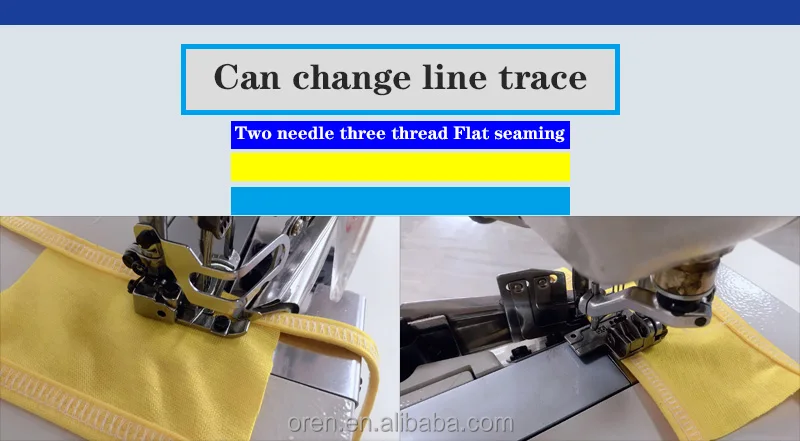

In recent years, the styles of garments have changed a lot, and the stretcher sewing machine is often used for decorative stitching, and the stitching styles of stretcher sewing machine vary a lot, such as three stitches and four stitches (407 stitches) can be changed to two stitches and three stitches (406 stitches).
It can also be changed from two-needle and three-thread stretcher to two-needle and four-thread stretcher or three-needle and five-thread stretcher (602 or 605 stitches). In order to better understand the use of stretcher sewing machine, the following study is made from the transmission power of stretcher sewing machine, the design of machine head, the change of stitches and other aspects, which will give full play to the use of stretcher sewing machine.
First, the transmission power system of the stretcher sewing machine
Because the stretcher sewing machine is mostly used for sewing knitted fabrics, so most of the sewing material is conveyed by two groups of feeding teeth before and after the transmission power, this kind of transmission power is the two groups of feeding teeth are in relative independence.
Two groups of feeding teeth before and after can be adjusted to synchronous conveying action, or fast, slow respectively.
When sewing elastic knitting fabric and thin knitting fabric, on the second floor can adjust feed than differential tooth feed speed, feed rate and feed tooth feed speed is slower than the differential tooth feed speed, the right to adjust the feeding teeth with differential feeding speed, can relieve after sewing cloth stretched and shrinkage deformation, make it beautiful.
Second, the design of the head type
The design of the head type of the stretcher sewing machine is mostly the high platform type device. In order to meet the production purposes of various sewing processes, the head type design also has the round mouth around the arm type, the round mouth out the arm type, the round mouth into the arm type and so on.
High platform type stretcher head can be used to sew the plane cutting pieces with long seam marks.
The round tip arm type is designed for sewing the edge of cuff piping or folding.
Round mouth out arm type is used for sewing the seams of tubular parts, such as sleeve bottom side seams and pants side seams.
The round mouth into the arm type is designed for the production of sewing underpants seam;
In addition, the high platform head can be equipped with a bevel design to cooperate with the sewing of different shapes of the cut pieces.

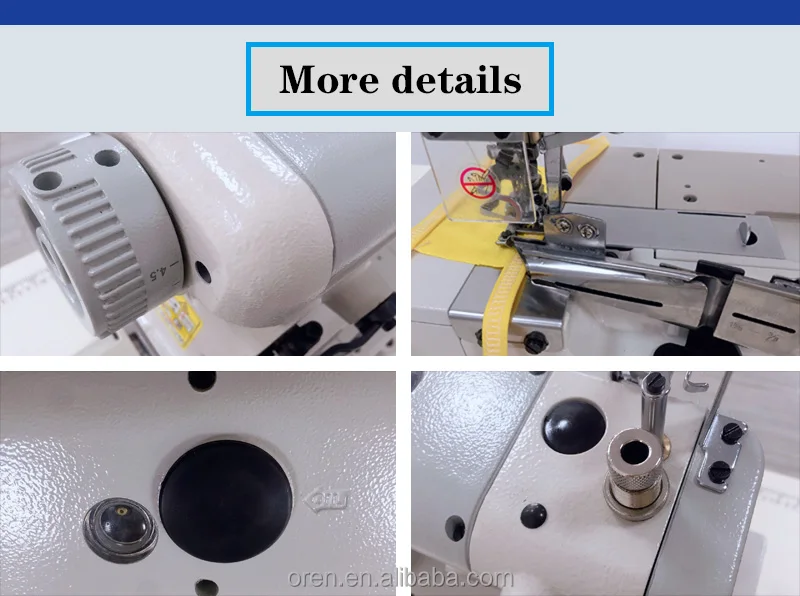

Some of the design on the right side of the head of the stretcher sewing machine has a sewing accessory (sewing assistant) installation position.
For example, when applied to the operation procedure of piping, the stitching attachment can be connected to the right side of the needle plate.

Main technical parameters:

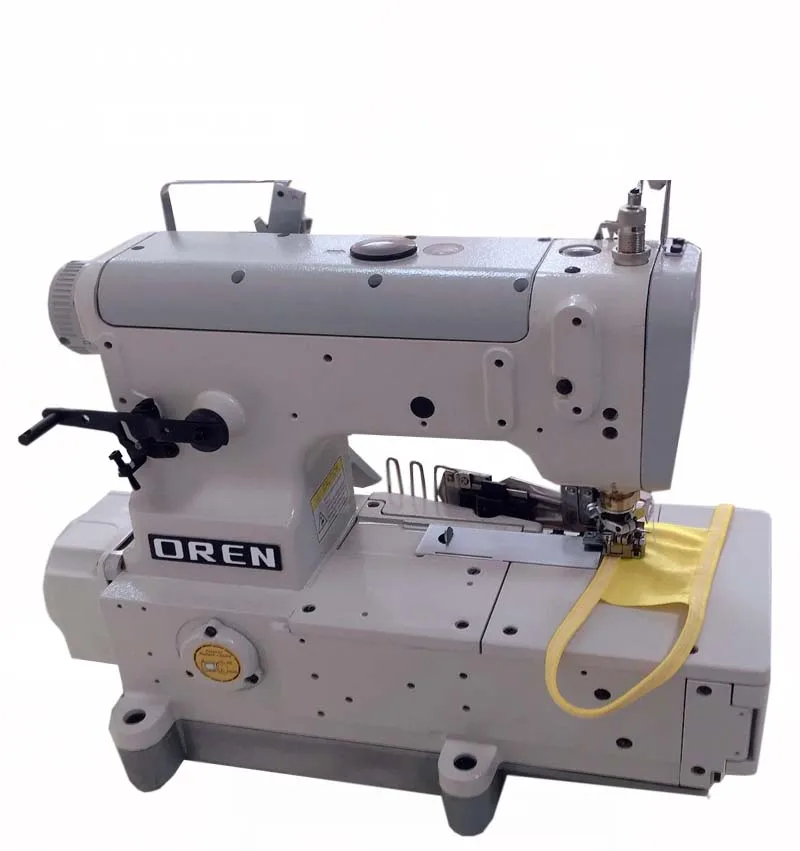

Product photos:

Quality Assurance:

      Market is the lifeline of enterprise development, a successful business, perfect marketing system is the enterprise the root of the existence, therefore, to strengthen the enterprise internal management and external image propaganda, on the basis of we have been committed to the development and management of market, establish a kind of can adapt to the modern market economy and the marketing pattern, and efforts from product development, quality management to do the right things after-sales service and so on each link, make our customers can get better products and services.

      All the company's equipment have clearly priced, and have three quality guarantees (3 days for return, 7 days for replacement, 1 year for use --- back to the factory for life free maintaining) let you buy it happy! Rest assured!

Products features:

      People need maintenance, machines need lubrication. The special machine lubricant developed by OREN co., LTD. of Japan can make the machine run at a high speed of 5000 RPM for more than 4 hours with a drop. It has good lubricity and stability. Because the product is a variety of natural plant extracts of non-ionic surfactant, so in high temperature resistance and rust resistance is absolutely unparalleled other oil, in addition; We also focus on solving the machine equipment for a long time to add oil on the surface of the clean, will not produce leakage and appearance corrosion, yellow, fall off and other phenomena, make it more environmental protection, health. It is especially suitable for the special requirements of external dripping of special machines and equipment. Parts in the process of using in high speed, the physical properties caused by the friction heat, part of the machine components can produce inefficient operation or jammed, affect the normal operation of the equipment, therefore, this product USES natural plant extract inactive lubricant, with dynamic system static, heat energy for power, restrain coefficient of friction, make impeded or stuck running the machine components immediately returned to normal. Eliminate the high - speed operation of the mechanical properties of heat and noise problems.

After-sales service:

      24 hours after-sales service, leave us a message or give us a call at any time.

CEO words:

      Precious cooperation, Honesty OREN: Let us work together to create an influential industrial sewing machine and accessories trading platform; Build a friendship bridge between manufacturers and customers!

 Company information:

      Guangzhou OREN Sewing Machine Co., LTD, established in January 27, 2007, is a professional manufacturer engaged in the research, development, production, sale and service of CNC sewing machine, four needle six line sewing machine, mattress edge machine, computer embroidery machine, fancy sewing machine, etc. The company takes "serving the masses, facilitating the people" as its service purpose, takes "honest business, facilitating the people and benefiting the people" as its management purpose, takes "convenient, affordable and reassuring" as its management concept, and takes "loyalty to duty, honesty, integrity and overall situation" as its management cadres' code of conduct, and establishes "enthusiasm, sincerity and unity". "The dedication" of the OREN spirit, to solve the worries of customers. We are located in Left side of No. 1 FangShi Memorial Archway, Jiang-ren-san Road, Renhe Town, Baiyun District, Guangzhou City with convenient transportation access. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. In recent years, our company has introduced a series of advanced equipment including CNC lathe, milling machine. In addition, we have obtained an export license, a certificate of origin and a certificate of inspection certificates. Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Europe, America, Southeast Asia, Africa and so on. We also welcome O E M and O D M orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements

About Oren special machinery lubricating oil series explanation:

       The product is extracted from natural plants, colorless transparent liquid, no irritating odor to human body, skin without any harm, more for environmental protection, health, longer life, suitable for electronic drive, CNC machine tools, precision transmission and other high-end mechanical equipment high lubrication and maintenance.
