Products Description
KWS circular saw blade multi-rip cut saw

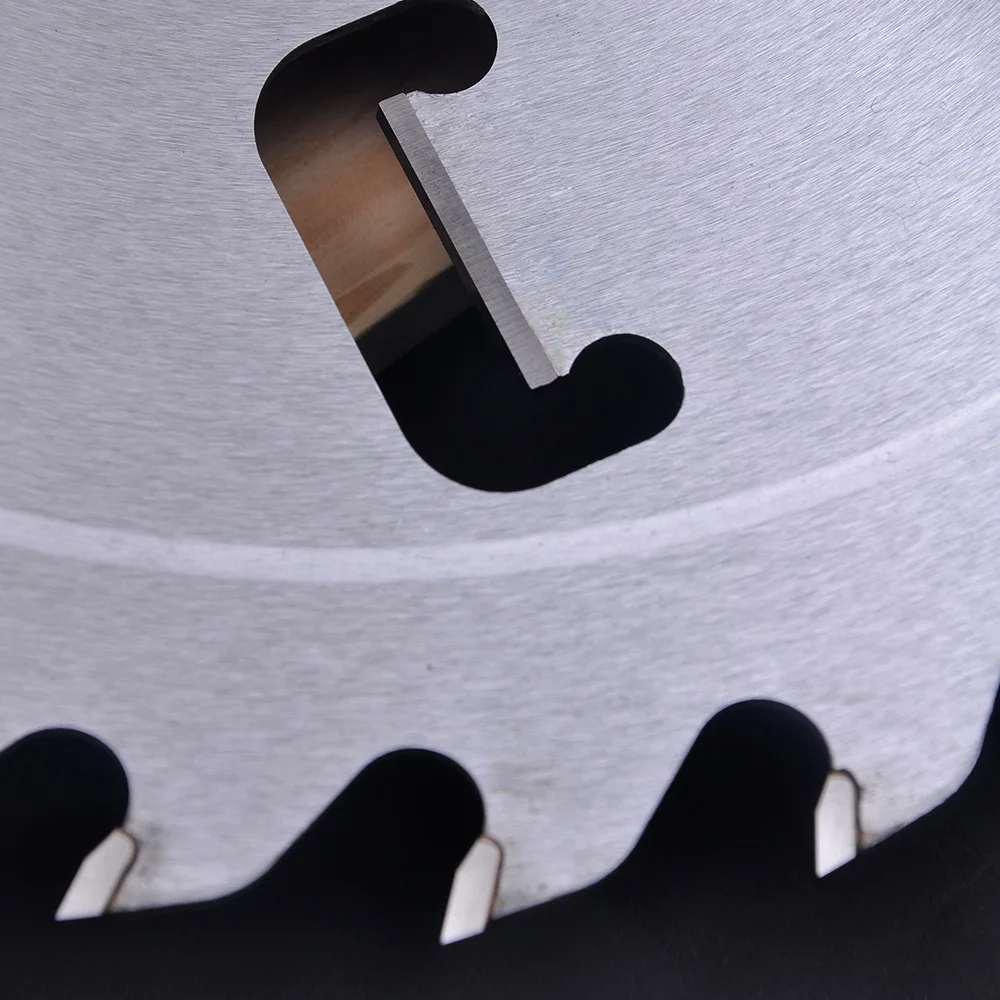

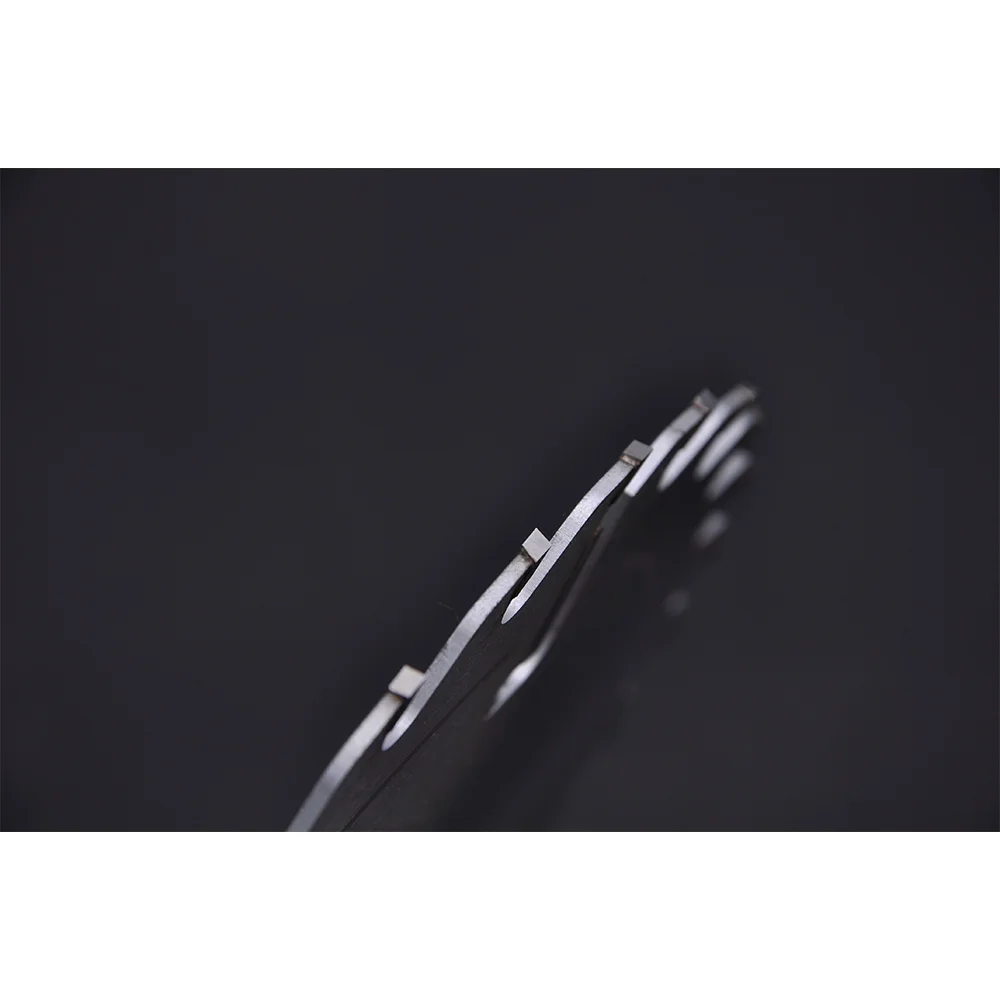

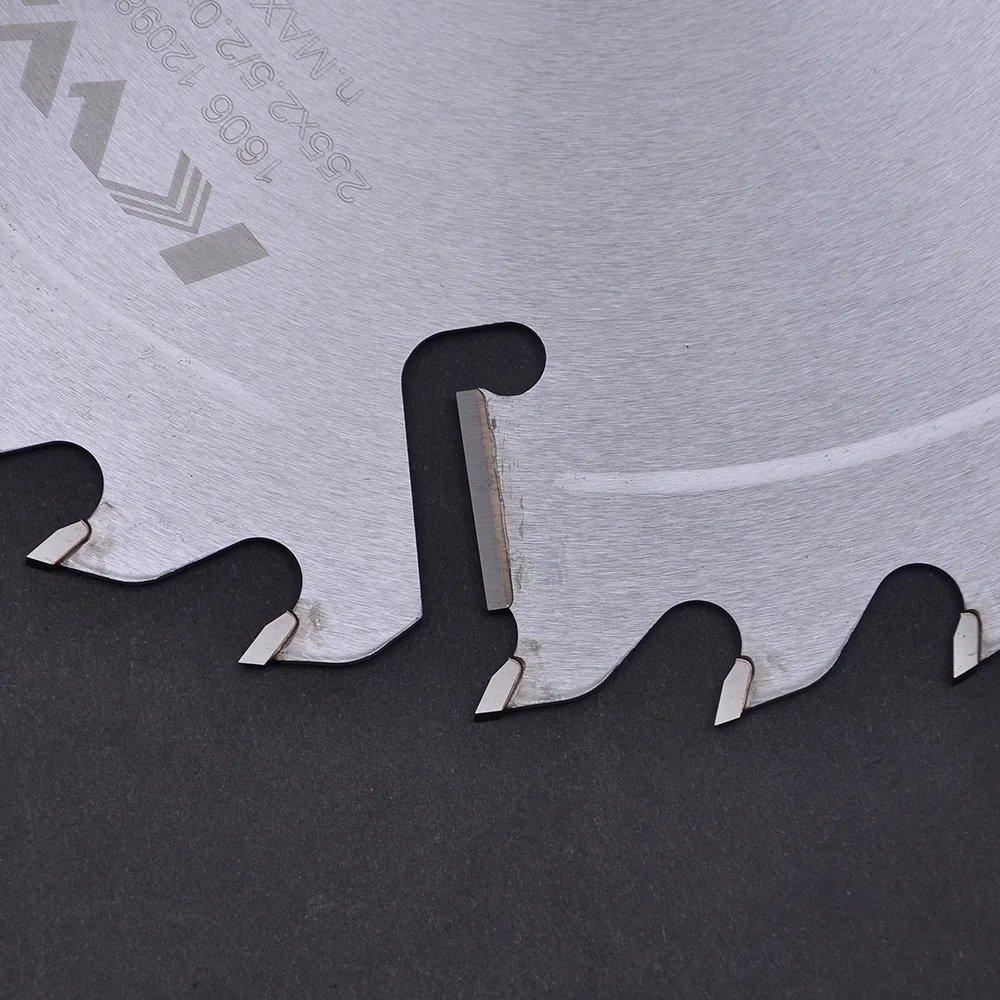

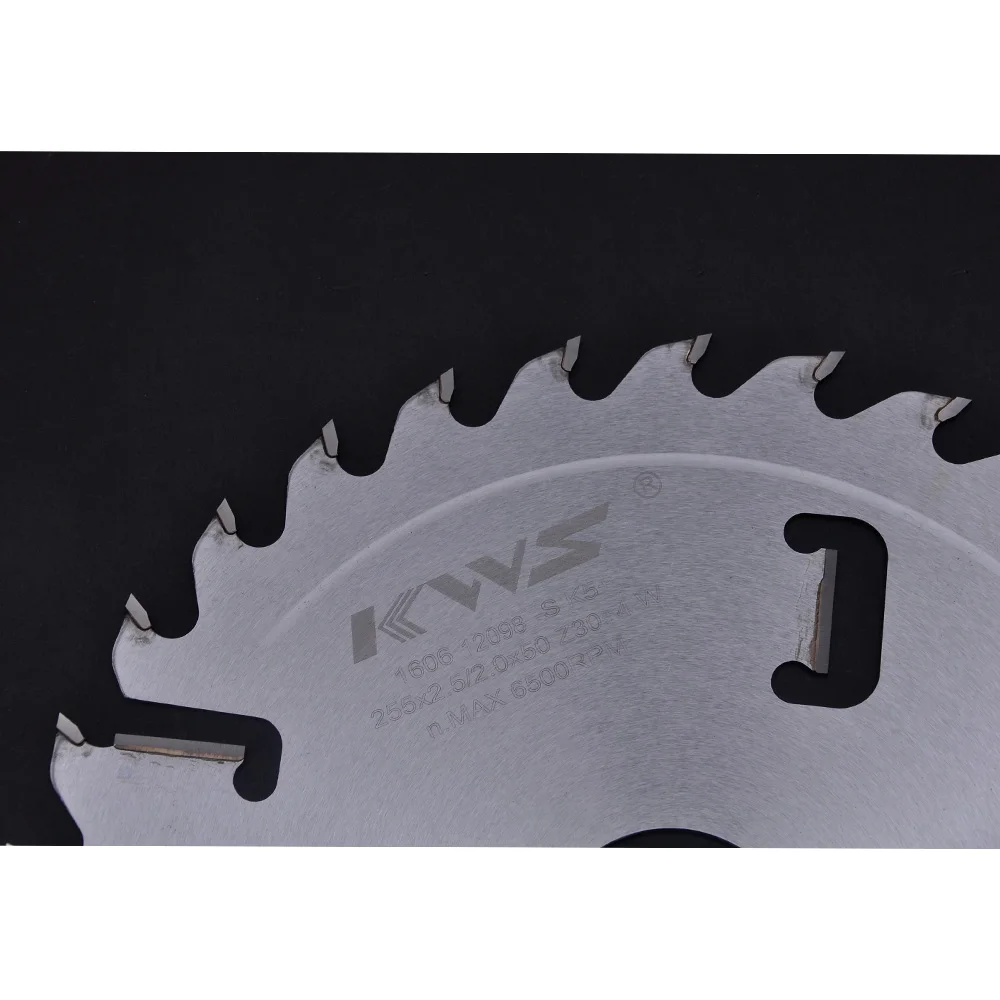

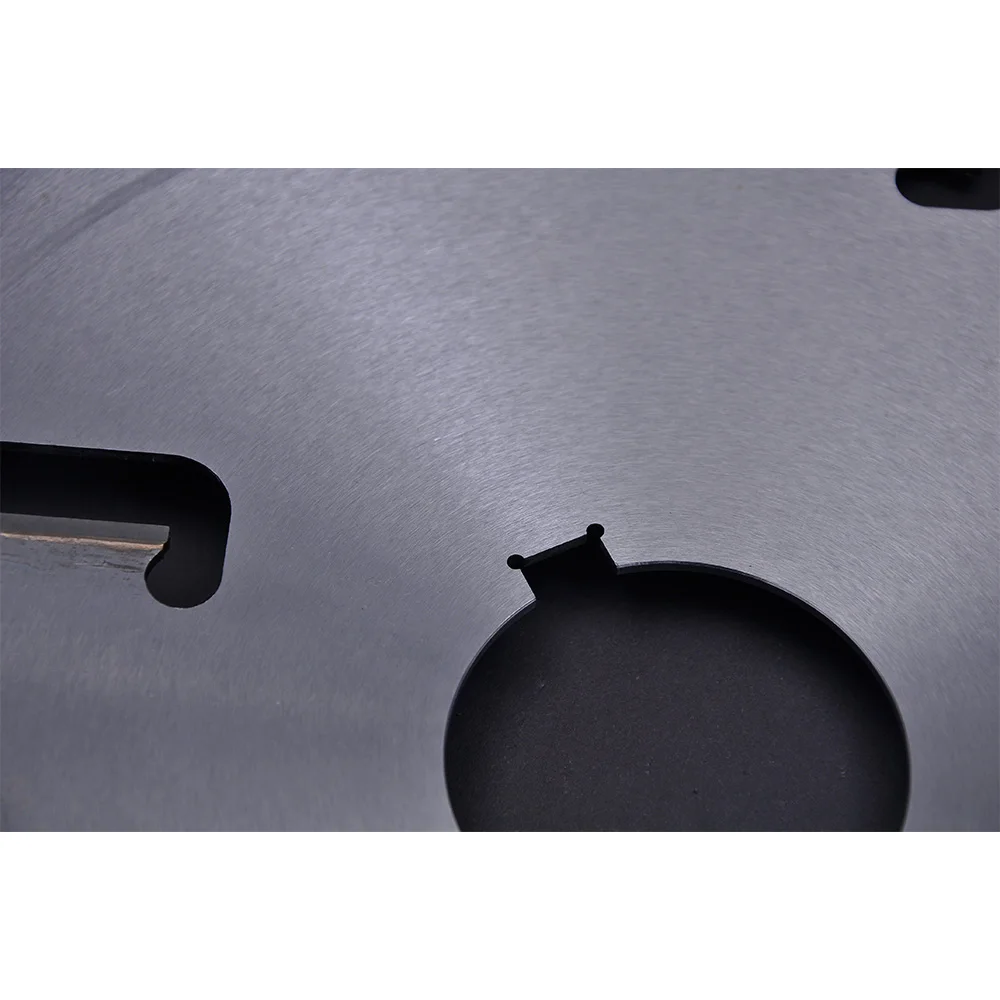

Germany imported steel plate, after tempering heat treatment, the disk body is stable and not easy to deform. Ceratizit imported alloys, sandwiches of copper and silver, and automatic CNC welding and grinding machine make the cutter head sharper and more durable. The alternate top bevel tooth design can reduce the resistance, so that the sawing more labor-saving. The inner hole of the center is chamfered, which makes it easier to loading and unloading the saw blade and makes it more beautiful. The wiper can scrape off the grease and moisture in the wood to avoid burning the material due to excessive grease on the saw blade, thereby increasing the life of the saw blade. At the same time, the design of the raker makes the heat dissipation effect better and it is not easy to burn the body. This saw blade is suitable for multi-rip cutting of log and square wood with stable use and high yield.ITEM | DESCRIPTION |
Brand | KWS |
Product name | KWS circular saw blade multi-rip cut saw |
Cutter head | Ceratizti carbide |
Steel body | Germany steel plate |
Application | Log, circular/square wood |
Workplace | Lumber mill, furniture factory |
Certificates | ISO9001,ISO18001,ISO45001,SGS,TUV |
Product Advantages
1. Left and right tooth design, optimized cutting angle makes cutting more sharp and smooth.
2. Surface anti-rust treatment to effectively remove glue and sawdust.
3. The scraper blocks the finger-contact of the wood with the saw blade, reducing friction.
4. High-grade saw body provides stable cutting performance and good heat resistance.
5. The plastic protection ring prevents the teeth of the saw blade from being damaged during the movement.
2. Surface anti-rust treatment to effectively remove glue and sawdust.
3. The scraper blocks the finger-contact of the wood with the saw blade, reducing friction.
4. High-grade saw body provides stable cutting performance and good heat resistance.
5. The plastic protection ring prevents the teeth of the saw blade from being damaged during the movement.
Size Information
Diameter(mm) | Center Hole(mm) | Thickness(mm) | Tooth | Key Way |
150 | 45 | 2.2/1.7 | 24+3T | 4*8 |
160 | 50 | 2.5/2.0 | 24+3T | 5*10 |
180 | 50 | 2.5/2.0 | 24+3T | 5*10 |
205 | 50 | 2.5/2.0 | 30+3T | 5*10 |
230 | 40 | 2.2/1.7 | 30+3T | 6*12 |
230 | 40 | 2.5/2.0 | 30+3T | 5*10 |
230 | 45 | 2.2/1.7 | 30+3T | 4*8 |
230 | 50 | 2.5/2.0 | 30+3T | 5*10 |
255 | 50 | 2.5/2.0 | 30+4T | 5*10 |
305 | 50 | 3.0/2.4 | 36+4T | 5*10 |
305 | 70 | 3.0/2.4 | 36+4T | 7*21 |
355 | 60 | 3.2/2.5 | 36+4T | 7*14 |
405 | 60 | 3.4/2.7 | 36+6T | 6*12 |
Company introduction
Chengdu Yibai Technology Co., Ltd. is a manufacturing enterprise of cutting tools，Which is located in Chengdu China. With‘K W S’ as its well-known brand, Yibai has been devoting itself into R & D on P C D saw blades, T C T saw blades, cold saw blades, finger joint cutters, drill bits, router bits and spiral cutter heads, producing industrial grade cutting tools for furniture, doors and windows, bearings, gears, and auto parts. Since established in 2 0 0 2, it has introduced multiple automated production lines from Germany, owned over 400 automation equipment, like Mitsubishi laser cutting machine, Gerling automatic welding machine, Gerling tension measuring machine , Vollmer CNC grinding machine and CNC machining center .
The company is sticks to work with well-knownsuppliers to provide first-rate row materials: Germany Hugo steel plates, Ceratizit Carbide, Umicore solder. All of its production is inspected by a professional technical team with Zeiss microscope, cobalt-magnetism measuring instrument and YSK-IV Coercimeter.
Manufacturing Procedure
Exhibition Gallery
FAQ
1. What terms of payment are acceptable?
A: Normally we accept L/C, T/T and Western Union.
2. How about the delivery time?
A: Normally 3-5 days after receiving deposit, but according to the quantity.
3. What about the minimum order quantity?
A: The MOQ is 1 pc.
4. Can you provide free samples?
A: You can request some samples for testing after confirming our price, but please pay for samples and freight.
5. Do you accept OEM orders?
A: Yes, OEM and customization are available, and we also provide label printing service.
Our Service
Pre-sale service
Free pre-sale consultation: We offer free pre-sale consultation.
Sample service: Sample service are provided before official order.
In-sale service
Technical support: We provide product technical advice to dealers and users.
Customer requirement confirm: Confirm user requirements and provide complete solutions for users.
After-sale service
24-hour response service: Any notice from the customer will be answered within 24 hours.
Logistics service: Stock products will be delivered within 3 working days, and customized products will be given priority.
Product resharpening service: Our resharpening service is not limited to our company's products.
