Product Description

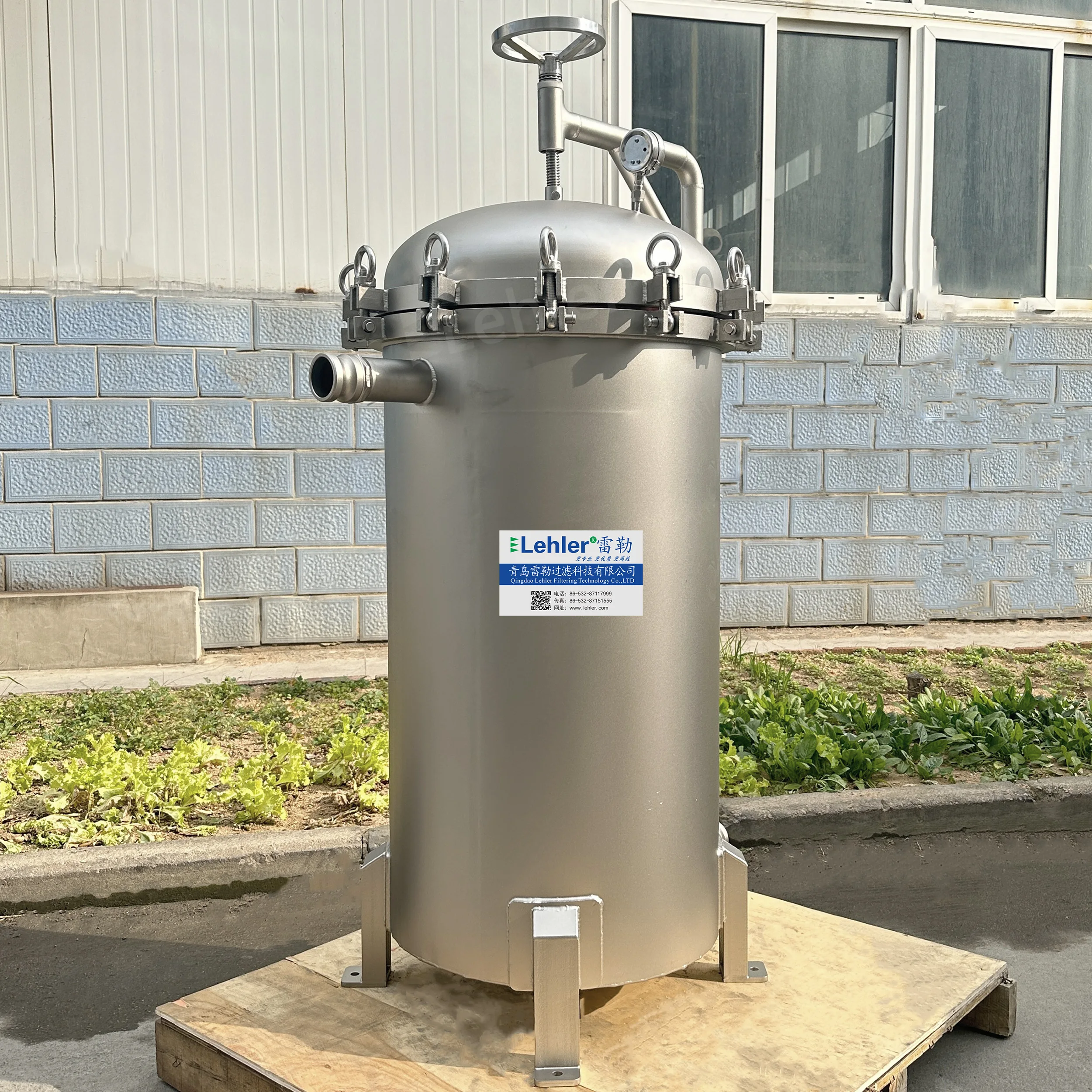

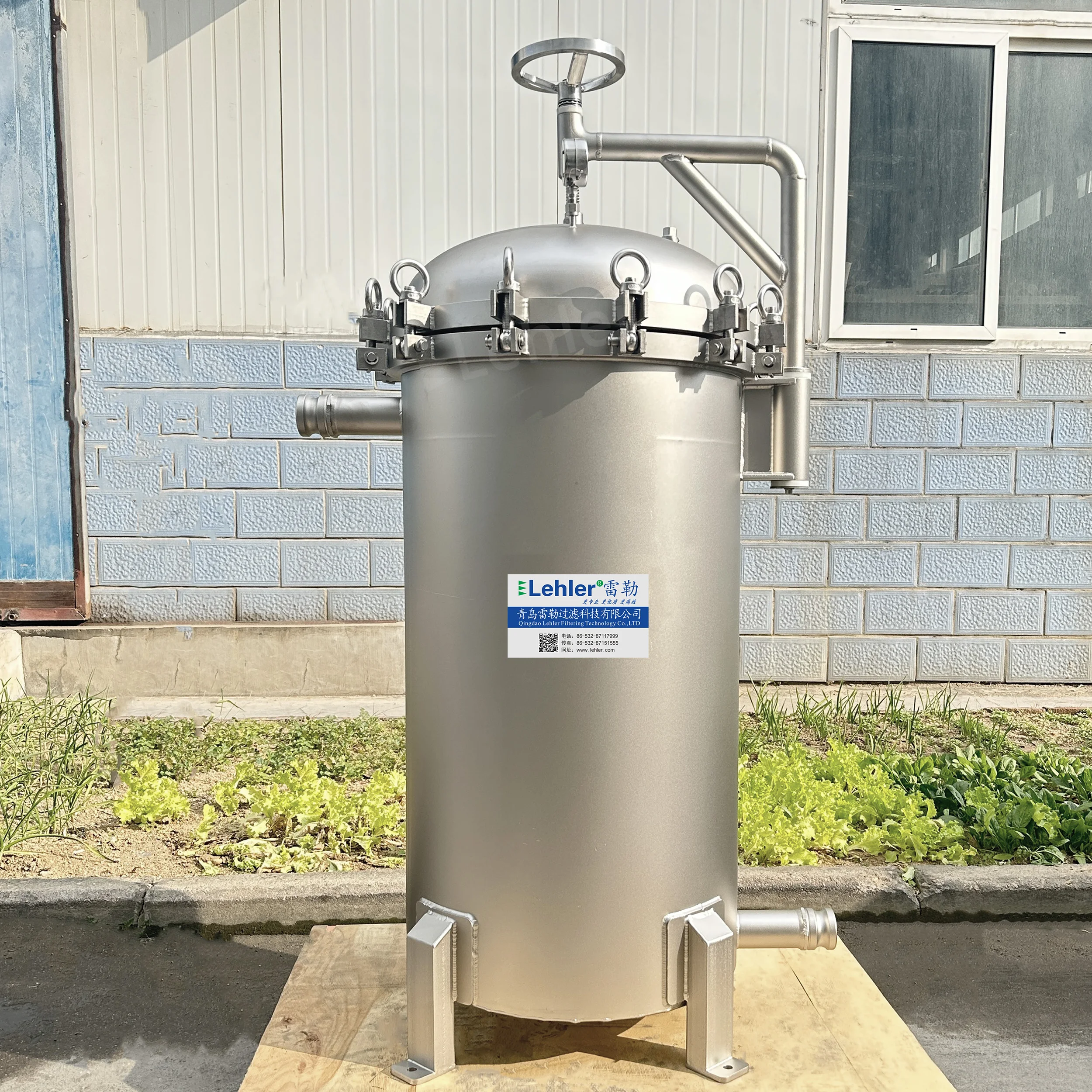

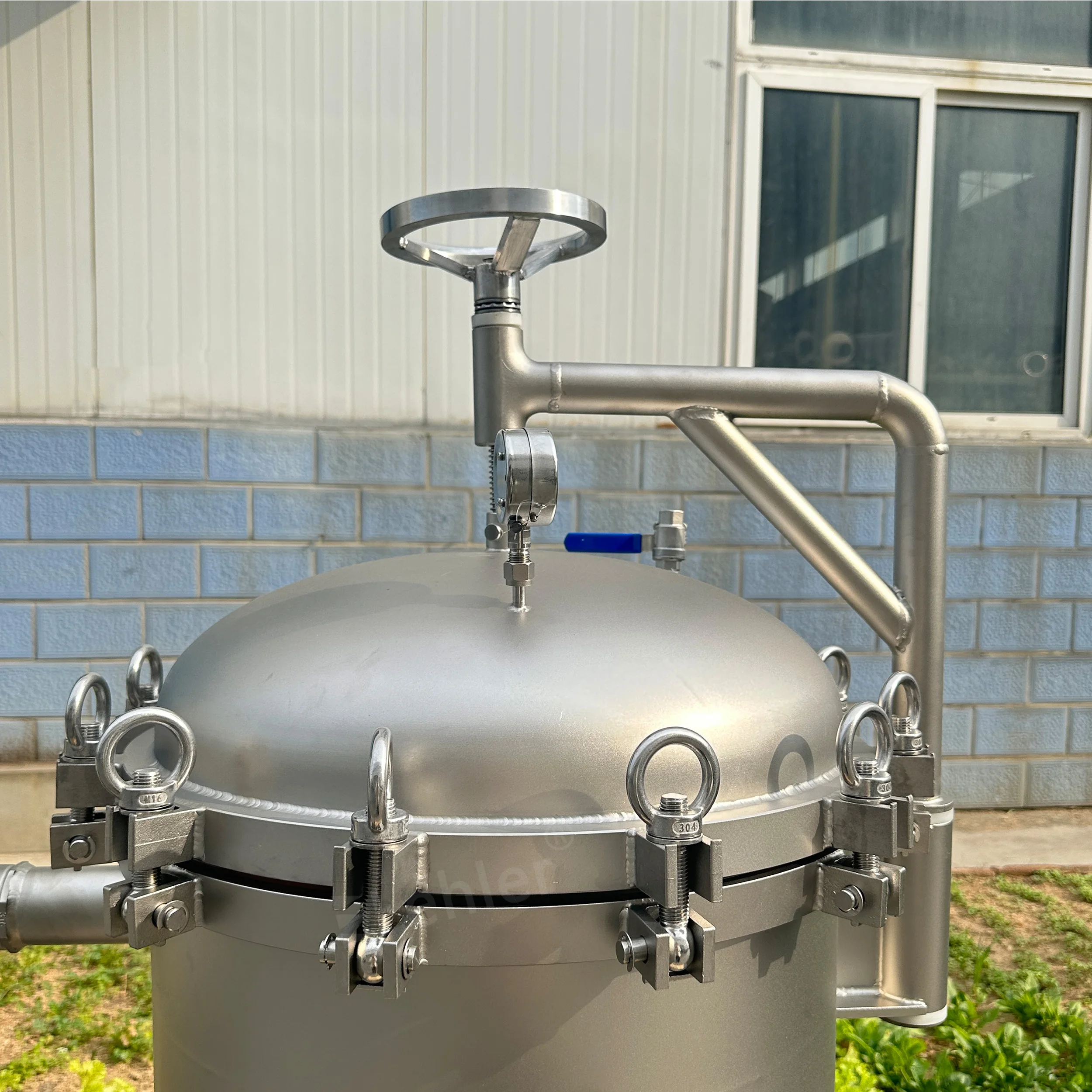

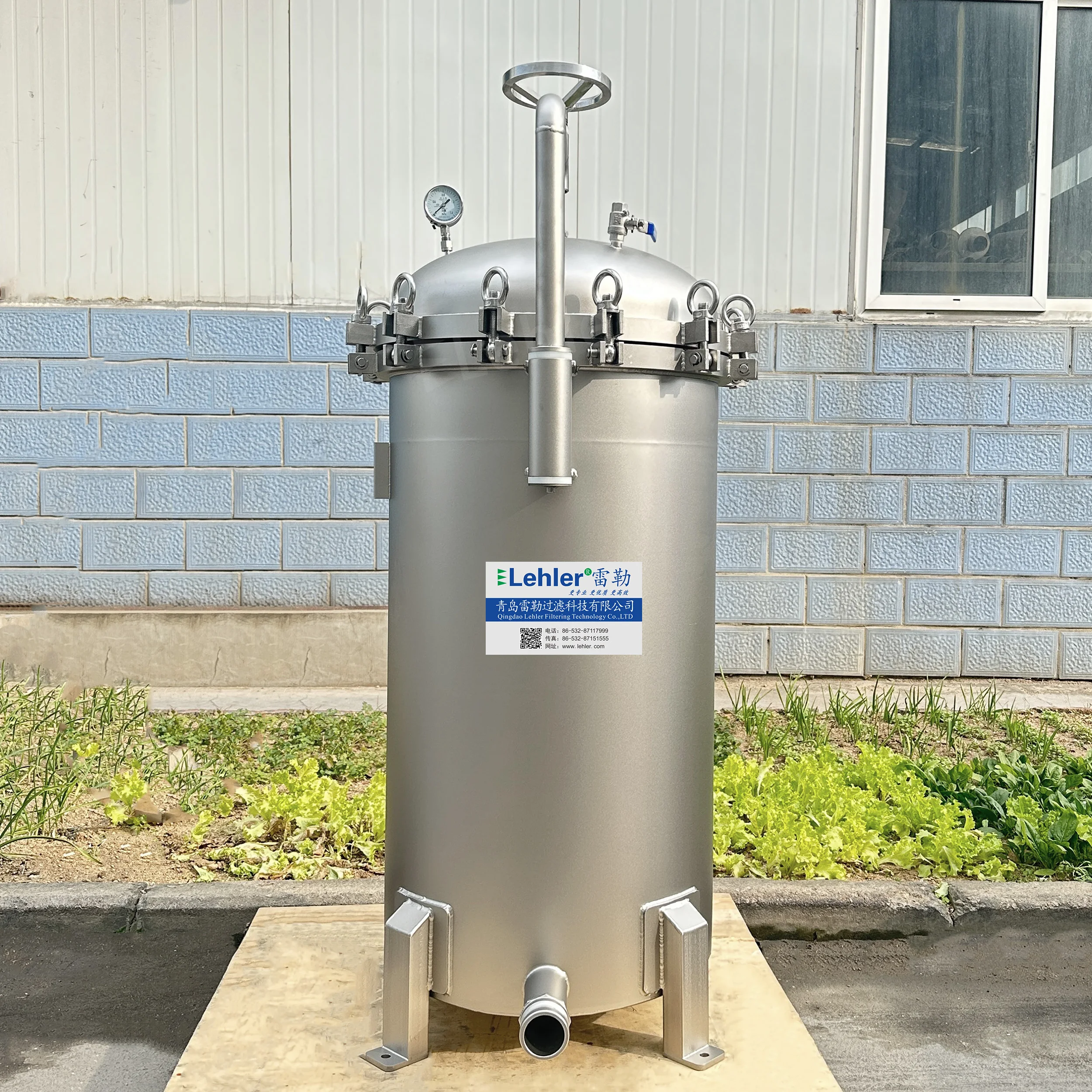

Multi Bag Filter
Lehler multi bag filter is suitable for large flow filtration,with quick opeaning design,it is very convenient to disassemble and replace the filter bags.It is suitable for occasions where needs a long time on the filter bag.The heating jacket design can meet high tempreture liquid filtration process.It can maintain or increase the temperature of the fluid,prevent the fluid from solidification,inprove the filtration speed of viscous liquid.
Working principle
The liquid enters from the side or lower inlet of the filter bag.The filter bag is expanded due to the impact of the liquid and the uniform pressure surface.The liquid material is evenly distributed on the inner surface of the whole filter bag.The filtered liquid passing through the filter bag and flow into the pipeline.The particle impurities are intercepted in the filter bag.
Technical Features & Advantages
Simple design structure：easy to disassemble, low operating cost, convenient operation
Quick-opening filter design,easy to operate,saves time and effort
All stainless steel structure:various materials, corrosion and rust prevention
High flow rate,variously materials( PP needle felt/PE needle felt/nylon/polyester)
Productive Process
Specification
Product Model | Equipment Diameter | Equipment Height | Thickness | Filter Area | ||||
LFE-MD2 | 350mm | 1000mm | 4mm | 0.5 | ||||
LFE-MD3 | 450mm | 1000mm | 6mm | 0.7 | ||||
LFE-MD4 | 550mm | 1000mm | 6mm | 1.0 | ||||
LFE-MD5 | 650mm | 1000mm | 6mm | 0.16 | ||||
LFE-MD12 | 1000mm | 1000mm | 6mm | 3.0 | ||||
LFE-MD24 | 1200mm | 1200mm | 6mm | 6.0 | ||||
Can Be Customized | ||||||||
Note: There may be some errors due to manual measurement and different measurement data of production batches.
This specification sheet is for reference only,please contact sales for specific filter sizes.
Application
Quality Control & Delivery
Quality Control
Product Delivery
Plywood Case for Exporting Package
Exhibition
Certifications
Company Profile
Qingdao Lehler Filtering Technology Co., Ltd. is a national high-tech "The new special expertise" type of enterprise.
Lehler has passed the GB/T 19001-2016 quality management system, GB/T 24001-2016 environment management system,GB/T 45001-2020 occupational health management system certification,Eu CE certification.Lehler to perfect production technology research and development, pre-sales and after-sales service system to provide customers with "reduce costs, increase benefits" filtration solutions.
Lehler has passed the GB/T 19001-2016 quality management system, GB/T 24001-2016 environment management system,GB/T 45001-2020 occupational health management system certification,Eu CE certification.Lehler to perfect production technology research and development, pre-sales and after-sales service system to provide customers with "reduce costs, increase benefits" filtration solutions.
FAQ
1.Q: How can I choose the most suitable filter equipment? ?
2.Q: Can you offer video demonstrations illustrating the product's operation?
A: Absolutly, we can provide the working principle video, as well as the real photos
3.Q: Do you facilitate live video consultations to inspect the factory in real-time?
A: Surely. We can show our warehouse, machining workshop, assembly workshop, inspection and packing workshop via video call.And we welcome you to visit our factory at site at any time.
4. Q:What are our advantages compared to others?
A: Ⅰ. Never shirk responsibility, to solve problems at the first time.
Ⅱ. The source of raw materials is well-known manufacturers,
ensuring the quality of steel.
Ⅲ. Various material: Hastelloy C276, Ti alloy, Monel 400 alloy, Super duplex stainless steel 2507,
duplex stainless steel 2205, SS904L, SS321, SS316H, SS316T, SS316L, SS304L, SS304
Ⅳ.Complete machining equipment and strong
processing capabilities, ensuring machining accuracy.
5.Q:What is the warranty period?
A: After-sale service: The warranty period is 12 months. Meantime, we provide free online technical support. The technical response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.
A: Please tell me the working condition include: filtration liquid, general viscosity, flow rate per hour, filtration rate in micron,operation pressure and operation temprature….
We will provide you most suitable model and dimension drawing.
2.Q: Can you offer video demonstrations illustrating the product's operation?
A: Absolutly, we can provide the working principle video, as well as the real photos
3.Q: Do you facilitate live video consultations to inspect the factory in real-time?
A: Surely. We can show our warehouse, machining workshop, assembly workshop, inspection and packing workshop via video call.And we welcome you to visit our factory at site at any time.
4. Q:What are our advantages compared to others?
A: Ⅰ. Never shirk responsibility, to solve problems at the first time.
Ⅱ. The source of raw materials is well-known manufacturers,
ensuring the quality of steel.
Ⅲ. Various material: Hastelloy C276, Ti alloy, Monel 400 alloy, Super duplex stainless steel 2507,
duplex stainless steel 2205, SS904L, SS321, SS316H, SS316T, SS316L, SS304L, SS304
Ⅳ.Complete machining equipment and strong
processing capabilities, ensuring machining accuracy.
5.Q:What is the warranty period?
A: After-sale service: The warranty period is 12 months. Meantime, we provide free online technical support. The technical response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.
Похожие товары
Ведущий производитель гарантированного качества высокопроизводительное промышленное оборудование для фильтрации жидкости Перистальтические Насосы
7 410,00 $
Hydwell 54509427 заводская цена воздушный компрессор запасные части маслоотделитель фильтр
109,00-121,50 $
Полипропиленовый мешок для фильтров 150 200 250 микрон
2,98-12,56 $
Фильтрующий элемент для природного газа объединяющий фильтрующий P-DLS-MT90 газа/150/735 90/736 90/838 90/1104
68,00-75,00 $

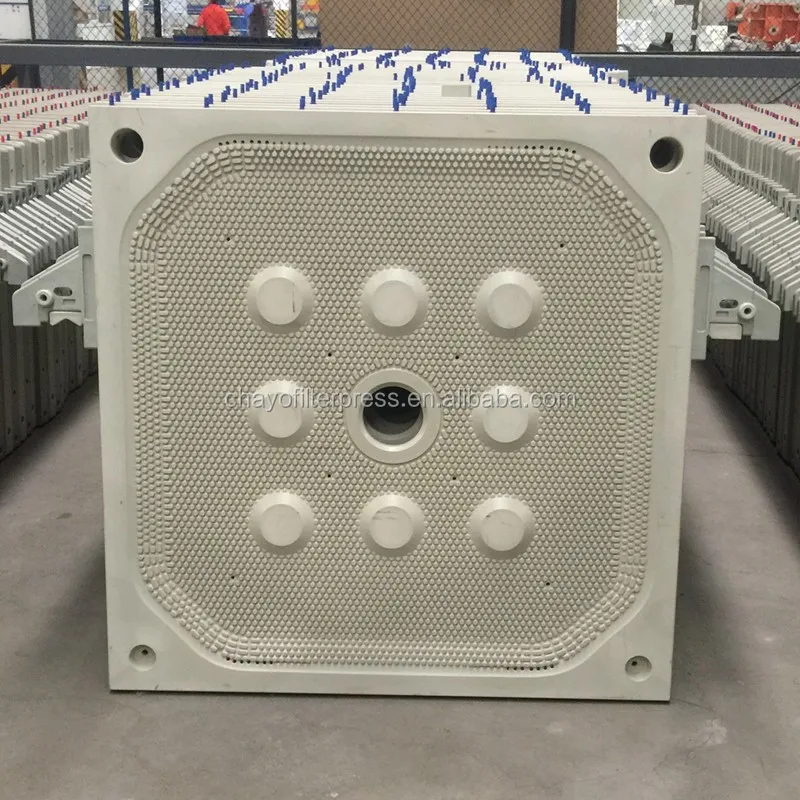

Поставка различных размеров камеры/мембранные фильтрующие пластины для пресс-фильтра
130,00-389,00 $
Промышленное удаление пыли PTFE мембрана арамидный фильтр мешок
5,00-6,00 $

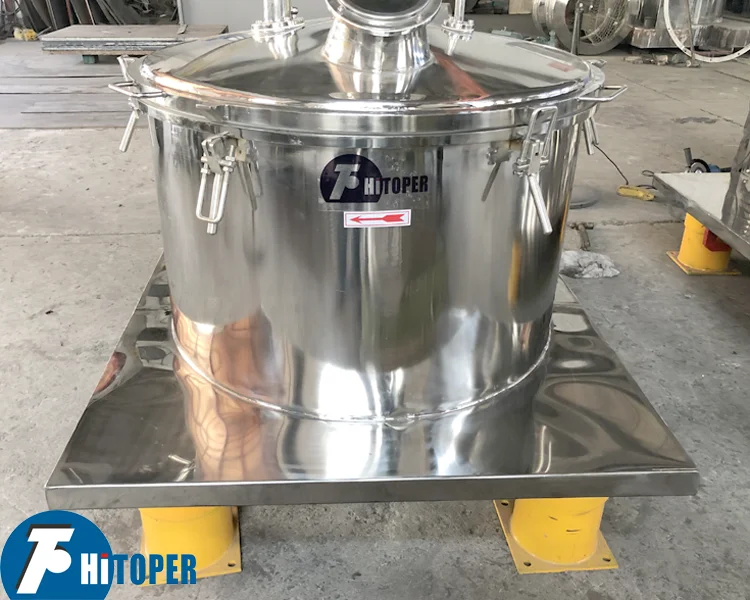

Центрифуга для разделения твердых жидкостей по оптовой цене
