Гусеничный экскаватор
2 134 953,00-2 372 170,00 ₽

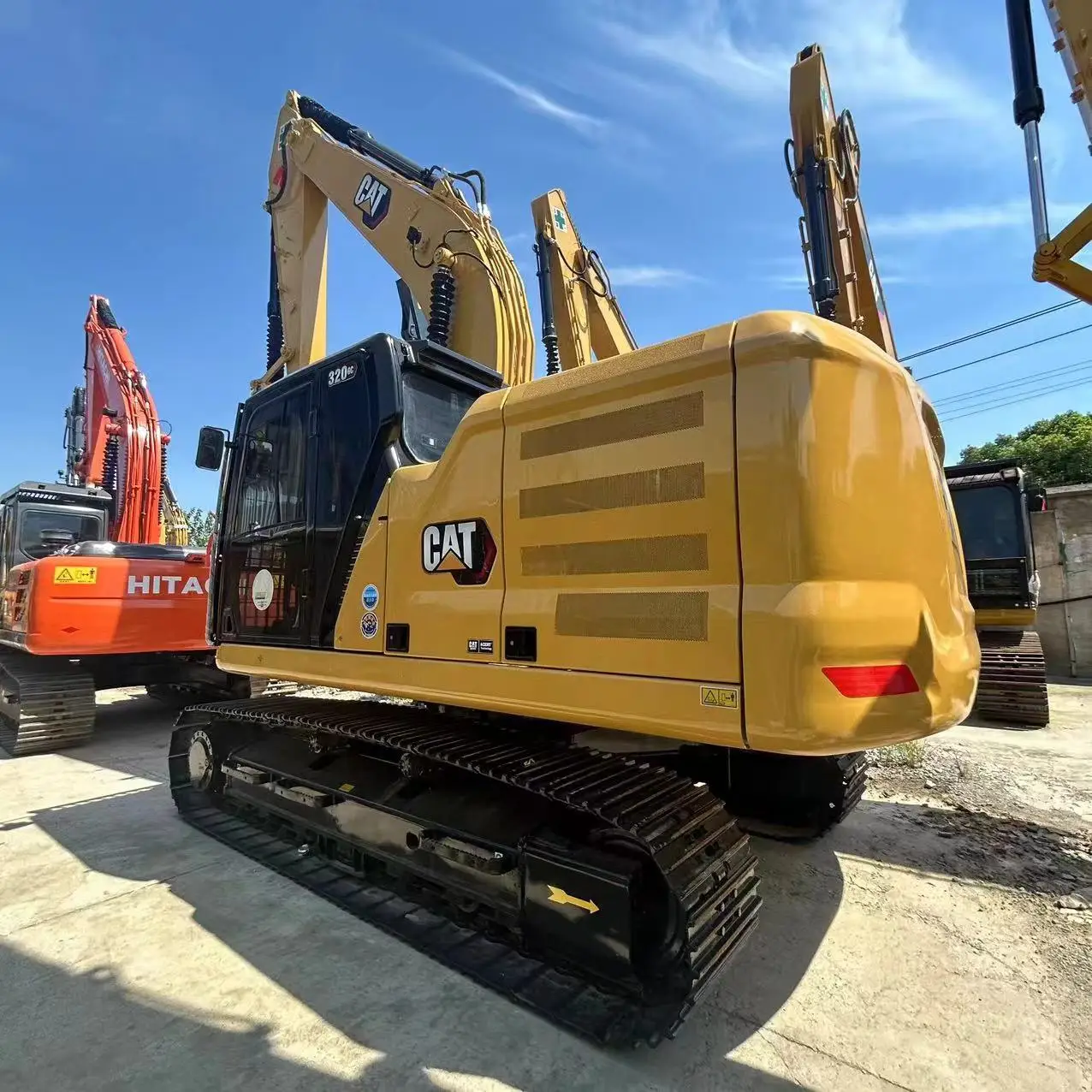

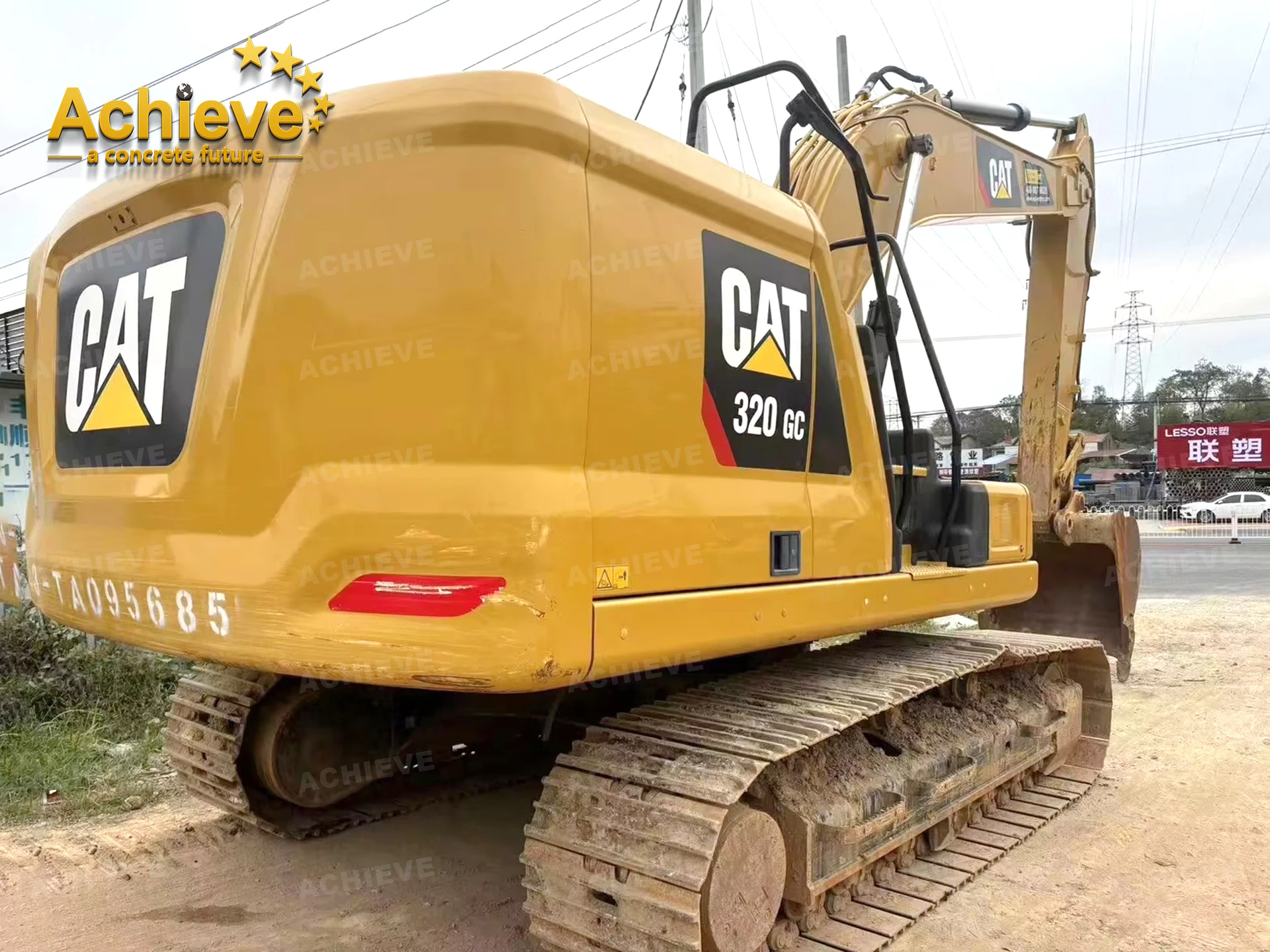

Экскаватор 2019 Cat 320GC с 3253 часами качественная б/у машина низкая цена автоматический двигатель и насос в качестве основных компонентов
- Категория: >>>
- Поставщик: Achieve Development Co. Ltd.Achieve Ltd.
Сохранить в закладки 1601285663841:
Описание и отзывы
Характеристики
Medium Excavator 320 GC
Moving the Standard Higher
The Cat® 320 raises the bar for efficiency and fuel economy in this size class. With the industry’s highest level of standard factory technology, a cab focused on operator comfort, plus low fuel and maintenance costs, the 320 will set a new pace for productivity and profit in your operation.
The Cat® 320 raises the bar for efficiency and fuel economy in this size class. With the industry’s highest level of standard factory technology, a cab focused on operator comfort, plus low fuel and maintenance costs, the 320 will set a new pace for productivity and profit in your operation.
Reliable performance and low hourly operating cost
The Cat® 320 GC offers an excellent balance of reliable performance, operator productivity features and reduced costs. The 320 GC is equipped with a C4.4 engine and an aftertreatment system that eliminates downtime and diesel exhaust fluid (DEF) and meets China National IV non-road emission standards.
Net Power - ISO 9249
109.1 kW
Operating Weight
20600 kg
Maximum digging depth
6630 mm
Up to 20% reduction in fuel consumption
A precise combination of low engine speed and a large hydraulic pump delivers class-leading performance while reducing fuel consumption.
Improved reliability and efficiency
The advanced electro-hydraulic system provides an excellent balance of power and efficiency while giving you the control you need for your precise digging requirements.
Up to 20% reduction in maintenance costs
Service intervals are extended and more synchronized than previous models, so you can get more work done at a lower cost.
Medium Excavator | 320 GC | |
engine | Net Power - ISO 9249 | 109.1 kW |
Stick | Net Power - ISO 9249 (DIN) | 148 hp (Metric) |
Bucket | engine model | Cat C4.4 |
Maximum ground reach | Engine Power - ISO 14396 | 110 kW |
Maximum cut height | Engine power - ISO 14396 (DIN) | 150 hp (Metric) |
Maximum loading height | Cylinder diameter | 105 mm |
Minimum loading height | stroke | 127 mm |
2440 mm (8 ft) maximum cut depth with flat bottom | Displacement | 4.4 l |
Maximum vertical wall digging depth | Biodiesel Performance | Up to B20 grade can be used¹ |
Bucket Breakout Force - ISO | emission | Meets China's National IV non-road emission standards. |
Stick Breaking Force - ISO | Note (1) | Net power advertised is the power available at the flywheel at 2000 rpm when the engine is equipped with fan, intake system, exhaust system and alternator. The power advertised is tested to the specified standard in effect at the time of manufacture. |
Note (2) | ¹Cat diesel engines require ULSD (Ultra-Low Sulfur Diesel, 15 ppm or less) or blends of ULSD with the following lower carbon intensity fuels**: up to 20% biodiesel FAME (Fatty Acid Methyl Ester)* or up to 100% renewable diesel, HVO (Hydrotreated Vegetable Oil) and GTL (Gas-to-liquid) fuels. Refer to guidelines for successful application. Consult your Cat dealer or Caterpillar Machine Oil Recommendations (SEBU6250) for details. *Engine without aftertreatment equipment can use up to 100% biodiesel blends (for blends above 20% biodiesel, consult your Cat dealer). **Tailpipe greenhouse gas emissions of lower carbon intensity fuels are similar to conventional fuels. | |
Hydraulic system | Main System – Maximum Flow | 429 l/min（113 gal/min） |
Maximum Pressure - Equipment | Maximum Pressure - Equipment | 35000 kPa |
Maximum Pressure - Travel | Maximum Pressure - Travel | 34300 kPa |
Maximum Pressure - Swing | Maximum Pressure - Swing | 25000 kPa |
Rotating mechanism | Swing speed | 11.3 r/min |
Maximum rotation torque | 74.4 kN·m | |
weight | Operating Weight | 20600 kg |
Note | Medium undercarriage, reach boom, R2.9 (9'6") stick, General Duty (GD) 1.1 m³ (1.44 yd³) bucket, 600 mm (24") triple grouser shoes and 3700 kg (8,200 lb) counterweight. | |
Maintenance refill capacity | Fuel tank capacity | 345 l |
cooling system | 25 l | |
Engine oil | 15 l | |
Slewing Drive - Each | 12 l | |
Final Drives - Each | 4 l | |
Hydraulic system - including tank | 234 l | |
Hydraulic tank | 115 l | |
size | Boom | Reach 5.7 m (18'8") |
Stick | Reach 2.9 m (9'6") | |
Bucket | 1 m³（1.31 yd³） | |
Shipping Height – Top of Cab | 2960 mm | |
Armrest height | 2950 mm | |
Shipping Length | 9530 mm | |
Tail turning radius | 2830 mm | |
Counterweight clearance | 1050 mm | |
Ground clearance | 470 mm | |
Track length | 4250 mm | |
Center distance of track rollers | 3450 mm | |
Track gauge | 2380 mm | |
Transport width | 2980 mm | |
Working range and force | Maximum digging depth | 6630 mm |
Boom | Reach 5.7 m (18'8") | |
Stick | Reach 2.9 m (9'6") | |
Bucket | 1 m³（1.31 yd³） | |
Maximum ground reach | 9770 mm | |
Maximum cut height | 9440 mm | |
Maximum loading height | 6580 mm | |
Minimum loading height | 2260 mm | |
2440 mm (8 ft) maximum cut depth with flat bottom | 6460 mm | |
Maximum vertical wall digging depth | 6010 mm | |
Bucket Breakout Force - ISO | 129 kN | |
Stick Breaking Force - ISO | 99 kN |
Latest Features
* Cab monitor improvements.
1. The continually improved user interface allows for intuitive navigation, minimizing performance impact through easy-to-use touchscreen menus.
2. Quickly identify applications with the help of grid list view, abbreviated application names, and categorized menu options.
3. The Notification Center allows operators to view important information at all times and displays messages without reducing the camera view.
4. Color-coded notifications distinguish critical messages from others.
5. Learn about the machine and technical features with a full set of “how to” videos using the QR code inside the monitor.
* Standard integrated vehicle health management system provides operators with maintenance instructions and required parts to improve uptime.
1. The continually improved user interface allows for intuitive navigation, minimizing performance impact through easy-to-use touchscreen menus.
2. Quickly identify applications with the help of grid list view, abbreviated application names, and categorized menu options.
3. The Notification Center allows operators to view important information at all times and displays messages without reducing the camera view.
4. Color-coded notifications distinguish critical messages from others.
5. Learn about the machine and technical features with a full set of “how to” videos using the QR code inside the monitor.
* Standard integrated vehicle health management system provides operators with maintenance instructions and required parts to improve uptime.
Low fuel consumption, high performance
* The 320 GC complies with China National IV non-road emission standards.
* This excavator uses up to 20% less fuel than the 320D2 GC in similar applications.
* Use Power mode to match the excavator to the job; and Intelligent mode automatically matches engine and hydraulic power to your digging conditions.
* The advanced hydraulic system provides an excellent balance of power and efficiency while giving you the control you need for your precise digging requirements.
* Valve priority sets hydraulic pressure and flow at your command, enabling fast low- to medium-duty cycle times.
* Add auxiliary hydraulics to get more done with a variety of Cat implements.
* This excavator uses up to 20% less fuel than the 320D2 GC in similar applications.
* Use Power mode to match the excavator to the job; and Intelligent mode automatically matches engine and hydraulic power to your digging conditions.
* The advanced hydraulic system provides an excellent balance of power and efficiency while giving you the control you need for your precise digging requirements.
* Valve priority sets hydraulic pressure and flow at your command, enabling fast low- to medium-duty cycle times.
* Add auxiliary hydraulics to get more done with a variety of Cat implements.
Reduced maintenance costs
* Expect up to 20% reduction in maintenance costs compared to a 320D2 GC (savings based on 12,000 machine hours).
* Perform all routine maintenance work at ground level.
* Check engine oil level quickly and safely with the ground-level engine dipstick; fill and check engine oil from the top of the machine with a second dipstick easily accessible.
* Track your excavator's filter life and service intervals via the in-cab monitor.
* The Cat Clean Emission Module requires no maintenance.
* Using genuine Cat oils and filters with typical S∙O∙S monitoring can extend current service intervals to 1,000 hours, twice as long as before, giving you more uptime to get more work done.
* New hydraulic oil filters provide better filtration, a drain valve to keep the oil clean between filter changes, and longer life with up to 3,000 hours between changes — 50% longer than previous filter designs.
* The high-efficiency electric cooling fan operates only when needed and can be reversed to keep the core free of debris.
* S·O·S sampling ports simplify maintenance and allow quick and easy extraction of samples for oil analysis.
* Perform all routine maintenance work at ground level.
* Check engine oil level quickly and safely with the ground-level engine dipstick; fill and check engine oil from the top of the machine with a second dipstick easily accessible.
* Track your excavator's filter life and service intervals via the in-cab monitor.
* The Cat Clean Emission Module requires no maintenance.
* Using genuine Cat oils and filters with typical S∙O∙S monitoring can extend current service intervals to 1,000 hours, twice as long as before, giving you more uptime to get more work done.
* New hydraulic oil filters provide better filtration, a drain valve to keep the oil clean between filter changes, and longer life with up to 3,000 hours between changes — 50% longer than previous filter designs.
* The high-efficiency electric cooling fan operates only when needed and can be reversed to keep the core free of debris.
* S·O·S sampling ports simplify maintenance and allow quick and easy extraction of samples for oil analysis.
Stable, reliable and trustworthy
* Operates at altitudes up to 3000 m (9840 ft) without derating.
* The standard configuration allows operation in ambient temperatures up to 52°C (125º F) and cold start capability down to -32°C (-25° F).
* Automatic preheat feature heats hydraulic oil faster in cold weather and helps extend component life.
* Three-stage fuel filtration protects the engine from dirty diesel fuel.

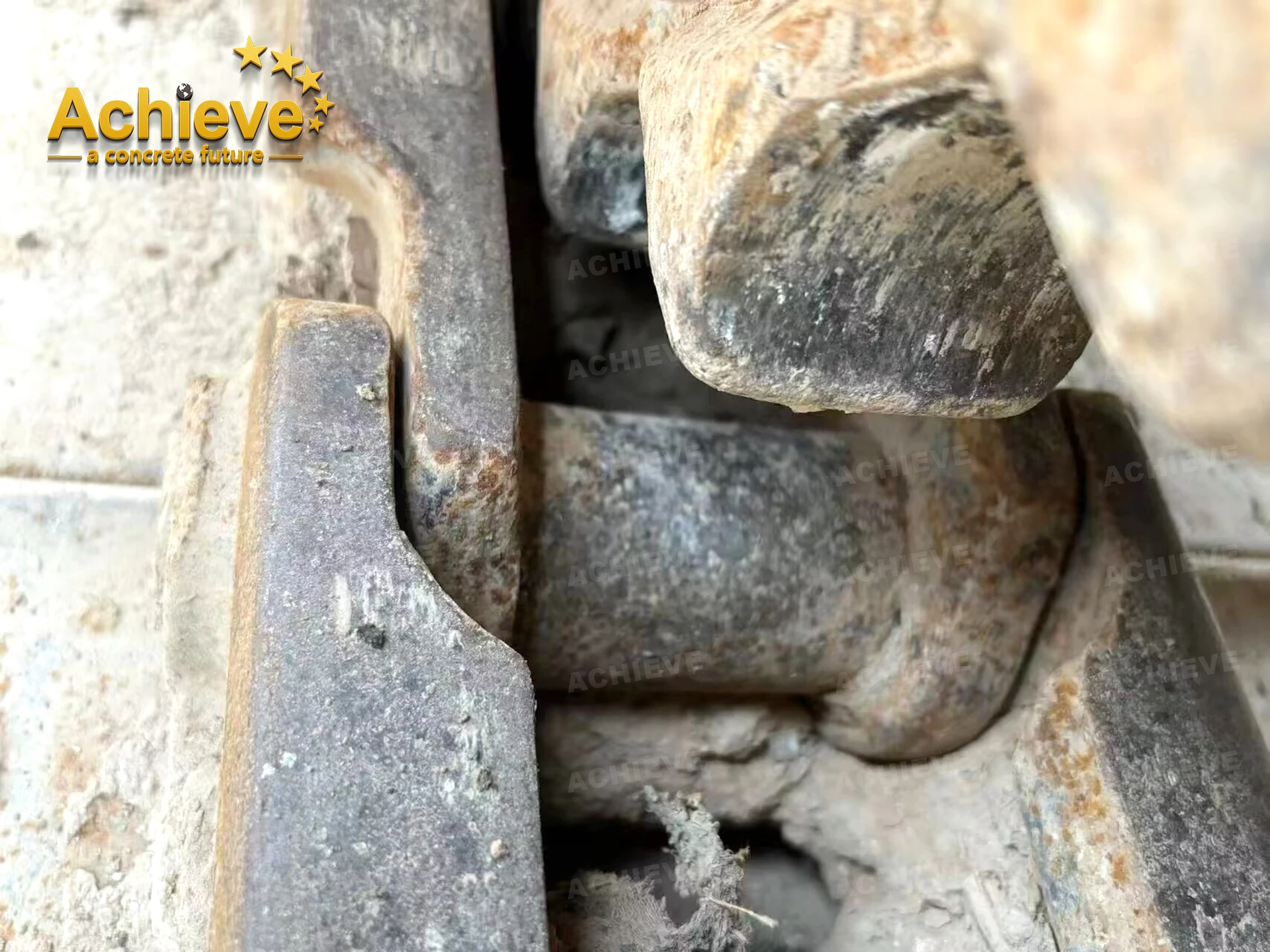

* Grease-sealed track pins and bushings reduce travel noise and keep debris out, extending undercarriage life.
* Center track guiding guards help keep the excavator tracks aligned when traveling and working on slopes.
* Sloped track frames prevent mud and debris buildup, helping reduce the risk of track damage.
* The standard configuration allows operation in ambient temperatures up to 52°C (125º F) and cold start capability down to -32°C (-25° F).
* Automatic preheat feature heats hydraulic oil faster in cold weather and helps extend component life.
* Three-stage fuel filtration protects the engine from dirty diesel fuel.
* Grease-sealed track pins and bushings reduce travel noise and keep debris out, extending undercarriage life.
* Center track guiding guards help keep the excavator tracks aligned when traveling and working on slopes.
* Sloped track frames prevent mud and debris buildup, helping reduce the risk of track damage.
easy to use
* The engine can be started via a push button, Bluetooth® key fob or the unique operator ID feature.
* Program each joystick button with an operator ID, including responses and modes; it also remembers settings for the climate control fan and radio.
* Navigation is fast with the high-resolution 203 mm (8 in) standard touchscreen monitor or rotary knob controls.
* Protects your hammer tools from overheating and wear. The hammer auto-stop feature warns you after 15 seconds of continuous dry-hitting and automatically shuts off the hammer after 30 seconds, extending tool life.
* Don’t know how a feature works or how to maintain your excavator? Access the operator’s manual at any time with just a tap on the touchscreen monitor.
* Learn about the machine and technical features with a full set of “how to” videos using the QR code inside the monitor.
* Program each joystick button with an operator ID, including responses and modes; it also remembers settings for the climate control fan and radio.
* Navigation is fast with the high-resolution 203 mm (8 in) standard touchscreen monitor or rotary knob controls.
* Protects your hammer tools from overheating and wear. The hammer auto-stop feature warns you after 15 seconds of continuous dry-hitting and automatically shuts off the hammer after 30 seconds, extending tool life.
* Don’t know how a feature works or how to maintain your excavator? Access the operator’s manual at any time with just a tap on the touchscreen monitor.
* Learn about the machine and technical features with a full set of “how to” videos using the QR code inside the monitor.
You can work safely and return home safely every day
* All daily maintenance points are accessible at ground level—no need to climb on top of the excavator.
* The Rollover Protective Structure (ROPS) cab complies with ISO12117-2:2008 requirements.
* Secure your excavator with an operator ID. Use a PIN code on the monitor to enable push-button start.
* The operator has excellent visibility inside the ditch, in each swing direction and behind the operator thanks to the smaller cab pillars and large windows.
* A rearview camera is standard, and a right-side camera is optional.
* The latest right-side maintenance platform design allows easy, safe and quick access to the upper maintenance platform; the maintenance platform steps use non-slip perforated plates to prevent slipping.
* Improve productivity with proactive maintenance reminders. Integrated vehicle health management system provides operators with step-by-step maintenance instructions and required parts, helping to avoid unnecessary downtime.
* The Rollover Protective Structure (ROPS) cab complies with ISO12117-2:2008 requirements.
* Secure your excavator with an operator ID. Use a PIN code on the monitor to enable push-button start.
* The operator has excellent visibility inside the ditch, in each swing direction and behind the operator thanks to the smaller cab pillars and large windows.
* A rearview camera is standard, and a right-side camera is optional.
* The latest right-side maintenance platform design allows easy, safe and quick access to the upper maintenance platform; the maintenance platform steps use non-slip perforated plates to prevent slipping.
* Improve productivity with proactive maintenance reminders. Integrated vehicle health management system provides operators with step-by-step maintenance instructions and required parts, helping to avoid unnecessary downtime.
Comfortable work
* All daily maintenance points are accessible at ground level—no need to climb on top of the excavator.
* The Rollover Protective Structure (ROPS) cab complies with ISO12117-2:2008 requirements.
* Secure your excavator with an operator ID. Use a PIN code on the monitor to enable push-button start.
* The operator has excellent visibility inside the ditch, in each swing direction and behind the operator thanks to the smaller cab pillars and large windows.
* A rearview camera is standard, and a right-side camera is optional.
* The latest right-side maintenance platform design allows easy, safe and quick access to the upper maintenance platform; the maintenance platform steps use non-slip perforated plates to prevent slipping.
* Improve productivity with proactive maintenance reminders. Integrated vehicle health management system provides operators with step-by-step maintenance instructions and required parts, helping to avoid unnecessary downtime.
* The Rollover Protective Structure (ROPS) cab complies with ISO12117-2:2008 requirements.
* Secure your excavator with an operator ID. Use a PIN code on the monitor to enable push-button start.
* The operator has excellent visibility inside the ditch, in each swing direction and behind the operator thanks to the smaller cab pillars and large windows.
* A rearview camera is standard, and a right-side camera is optional.
* The latest right-side maintenance platform design allows easy, safe and quick access to the upper maintenance platform; the maintenance platform steps use non-slip perforated plates to prevent slipping.
* Improve productivity with proactive maintenance reminders. Integrated vehicle health management system provides operators with step-by-step maintenance instructions and required parts, helping to avoid unnecessary downtime.
Sustainability
* The comfort cab features a wide seat that can be adjusted to fit operators of all sizes.
* Easy-to-reach controls are located in front of the operator, allowing the operator to comfortably control the excavator.
* Standard automatic climate control ensures a comfortable temperature is maintained throughout the entire operation.
* Advanced viscous mounts reduce cab vibrations by up to 50 percent compared to previous excavator models.
* With ample cab storage space under and behind the seat, overhead and in the console, it's easy to store your gear. Cup holders, document holders, bottle holders and coat hooks are also provided.
* Connect personal devices using the standard radio's USB port and Bluetooth® technology.
* Easy-to-reach controls are located in front of the operator, allowing the operator to comfortably control the excavator.
* Standard automatic climate control ensures a comfortable temperature is maintained throughout the entire operation.
* Advanced viscous mounts reduce cab vibrations by up to 50 percent compared to previous excavator models.
* With ample cab storage space under and behind the seat, overhead and in the console, it's easy to store your gear. Cup holders, document holders, bottle holders and coat hooks are also provided.
* Connect personal devices using the standard radio's USB port and Bluetooth® technology.
★ Achieve Development (Changsha) Co., Ltd., headquartered in Changsha, which is the construction machinery center in China, the same city as ZOOMLION & SANY & SUNWARD.
★ Achieve Development, is a professional supplier of High Standard Reconditioned Excavators & Bulldozers & High Quality parts of world class brands.
★ We cooperated with CAT & Komatsu & Shantui official partners to make sure the recondition quality, we are in this industry more than 15 years, familiar with the best parts supply chain in China, know how to guaranty the quality with the lowest cost, save money for our partners.
★ We provide our partners with products that are more valuable than the price.
★ Achieve Development, is a professional supplier of High Standard Reconditioned Excavators & Bulldozers & High Quality parts of world class brands.
★ We cooperated with CAT & Komatsu & Shantui official partners to make sure the recondition quality, we are in this industry more than 15 years, familiar with the best parts supply chain in China, know how to guaranty the quality with the lowest cost, save money for our partners.
★ We provide our partners with products that are more valuable than the price.
Q1:Are you a manufacture or a trading company?
A1:We are a trading company with joint-venture factory since 2018 Year.
Q2:What is your advantage? More than a decade,We have been focusing on CAT、KOMATSU、SHANTUI.
A2:-Professionally and Highly remanufactured standard for used Excavators、Bulldozers、Wheel-Loaders.
A1:We are a trading company with joint-venture factory since 2018 Year.
Q2:What is your advantage? More than a decade,We have been focusing on CAT、KOMATSU、SHANTUI.
A2:-Professionally and Highly remanufactured standard for used Excavators、Bulldozers、Wheel-Loaders.
-Providing competitive price for customer.
-Professional sales service availably.
Q3:What is your main products?
A3:Excavators、Bulldozers、Wheel-Loaders and quality spare parts. We have the whole series products you need.
Q4: What payment terms are acceptable?
A4: Usually we can adopt T/T or L/C payment.
Q5:What about the deliverv time?
A5: 7-30 days after receiving the deposit.
Q6: How about the warranty time?
A6: 12 months or 2000 working hours after shipment.
Q7: What is the minimum order quantity?
A7: The minimum order quantity is 1 piece.
Q3:What is your main products?
A3:Excavators、Bulldozers、Wheel-Loaders and quality spare parts. We have the whole series products you need.
Q4: What payment terms are acceptable?
A4: Usually we can adopt T/T or L/C payment.
Q5:What about the deliverv time?
A5: 7-30 days after receiving the deposit.
Q6: How about the warranty time?
A6: 12 months or 2000 working hours after shipment.
Q7: What is the minimum order quantity?
A7: The minimum order quantity is 1 piece.
Похожие товары
Экскаватор гусеничный 325Bl 20 тонн экскаватор cat 320 б/у 320cl
1 779 008,90-3 008 741,82 ₽
Экскаватор CAT320GC 20 тонн промышленный гидравлический гусеничный экскаватор caterpillar cat320gc
5 218 774,00-5 693 208,00 ₽

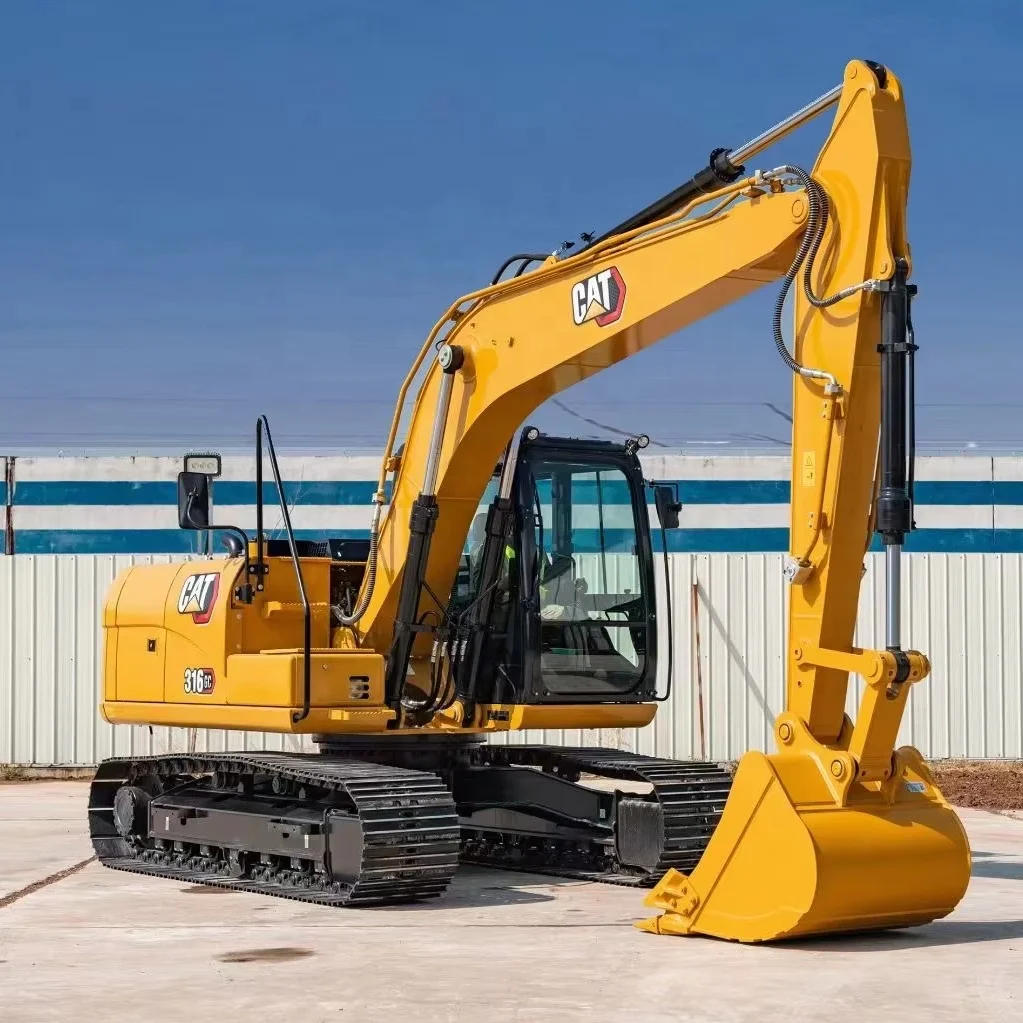

Б/у экскаватор кошка 316gc б/у картерпиляр 316
2 075 648,75-2 253 561,50 ₽

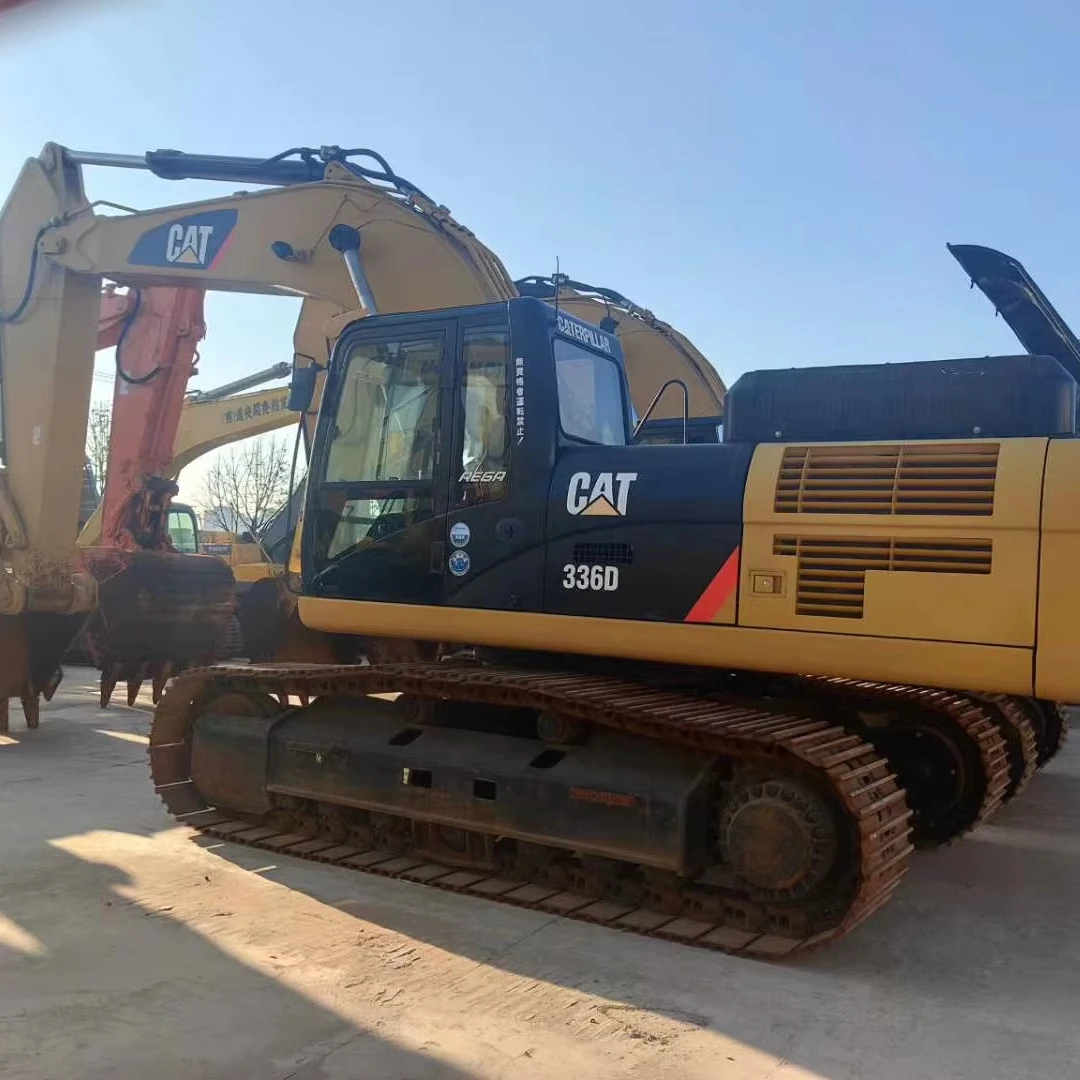

Cat 36ton 336G 336GC Подержанный 336 экскаватор для гусеничных экскаваторов
4 151 297,50-4 625 731,50 ₽
Экскаваторы б/у гусеничный экскаватор для 307 с 0 22 Cbm оборудование копания ковша
830 259,50-2 016 344,50 ₽

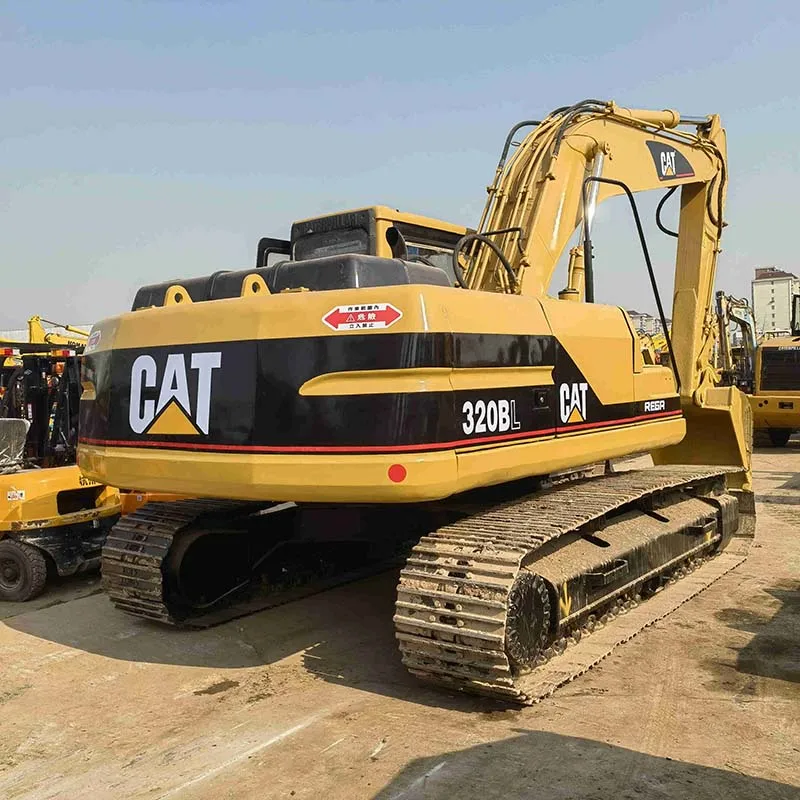

Б/у Cat 320bl экскаватор б/у
2 099 370,45-2 134 953,00 ₽

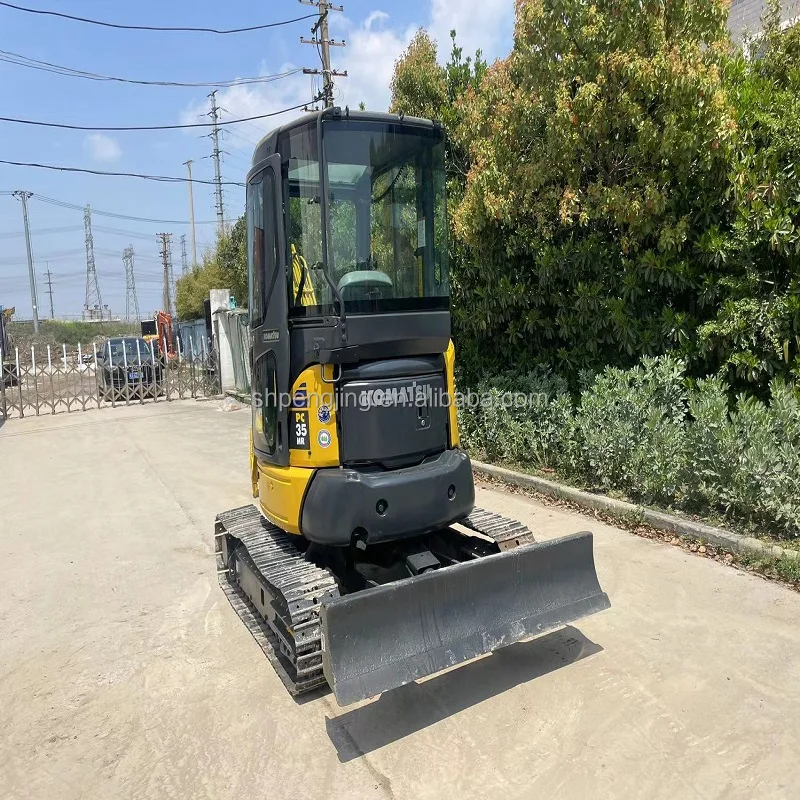

Экскаватор-погрузчик Komatsu pc35 mini 3ton японский гидравлический гусеничный экскаватор дешевый землеройный komatsu pc35mr для продажи
450 712,30-687 929,30 ₽
Новые поступления
Новинки товаров от производителей по оптовым ценам
Светлая Золотая морская солнечная энергия ландшафтное украшение постмодерн минималистский стиль чистая ручная роспись маслом 24x3 1 дюйм/60x80
35-53 $
Европейские антикварные простой Последние двойной металлической кровати
Автоматизированная складская система автоматического хранения в Гуанчжоу Eyda с эффективными стеллажами и
10 000-35 000 $
Декоративный чехол для PS5 Сменный Чехол консоли пластины Playstation5 пылезащитный с защитой от царапин
7,50-7,70 $
Лучшее качество детские подгузники для сухих подгузников новорожденных размер 2 4 и большие доставка или
3 $
Выключатель для формованного корпуса Schneider NSX100N 50KA AC 3P3D 25A TMD новая модель C10N3TM025
Буф2-.. М .. Краны
Оптовая продажа высококачественный сублимированный клубничный порошок Заводская поставка
5,50-6,40 $
