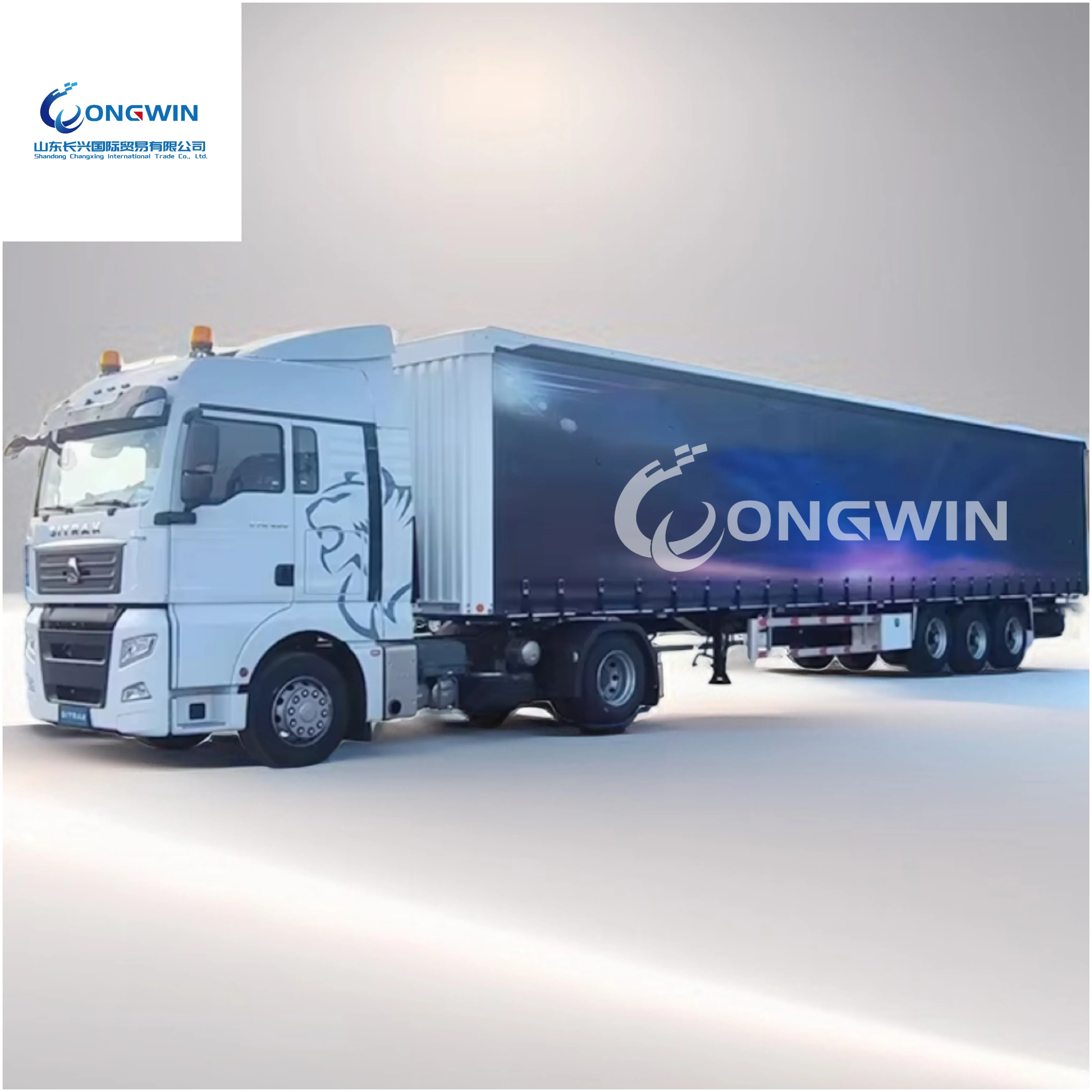

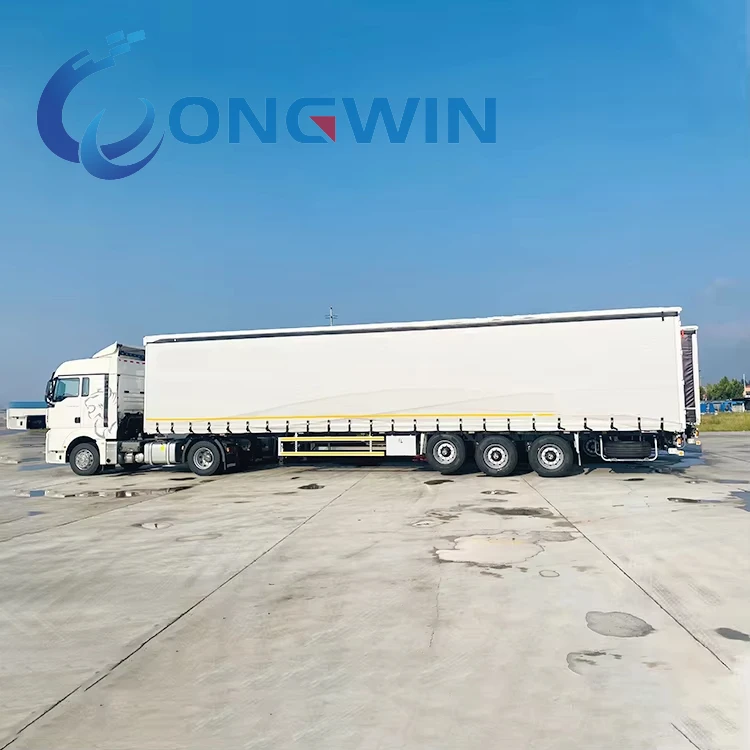

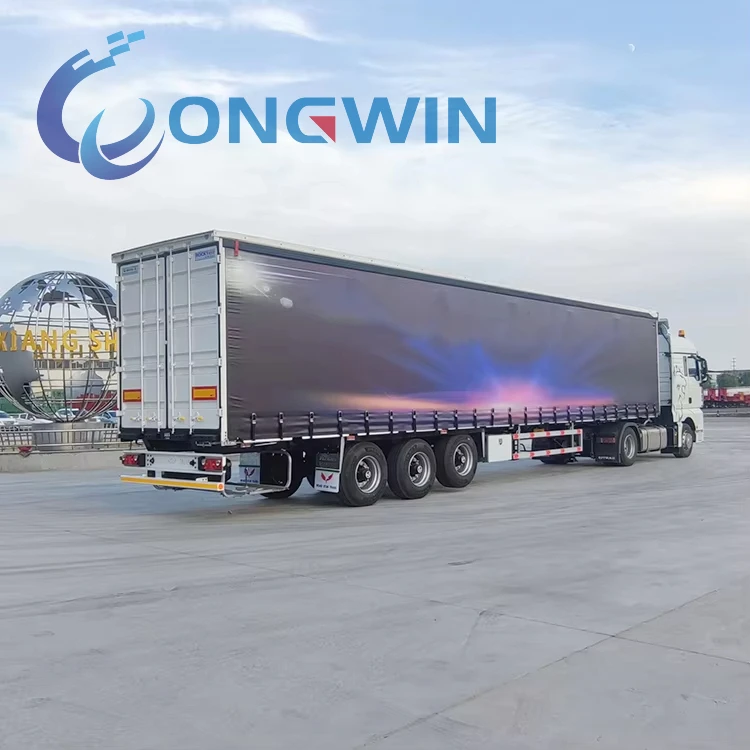

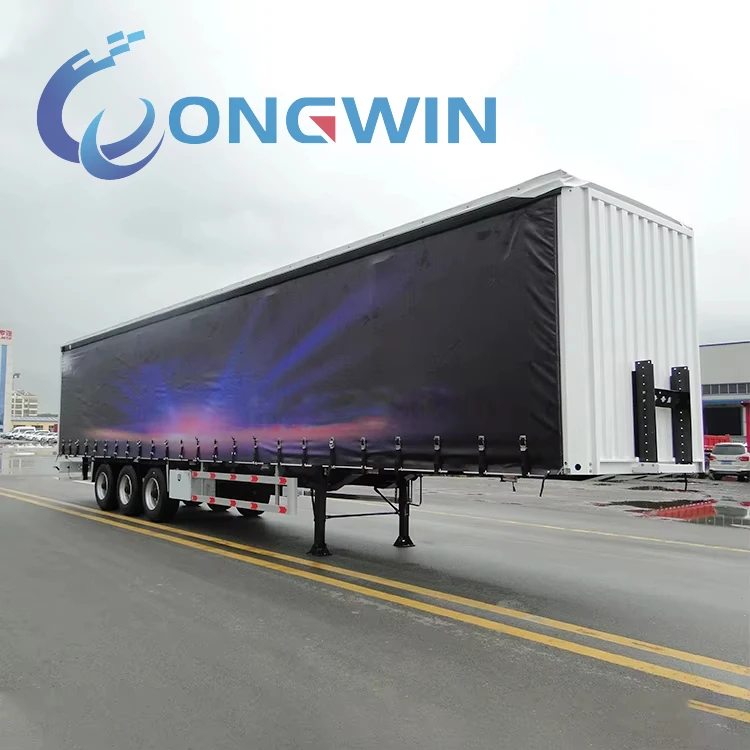

Горячая распродажа стальной брезент с ПВХ покрытием для боковой занавески прицепа грузовик прицеп занавес
- Категория: >>>
- Поставщик: Shandong Changxing International Trade Co. Ltd.Shandong Ltd.
Сохранить в закладки 1601285778492:
Описание и отзывы
Характеристики
Products Description

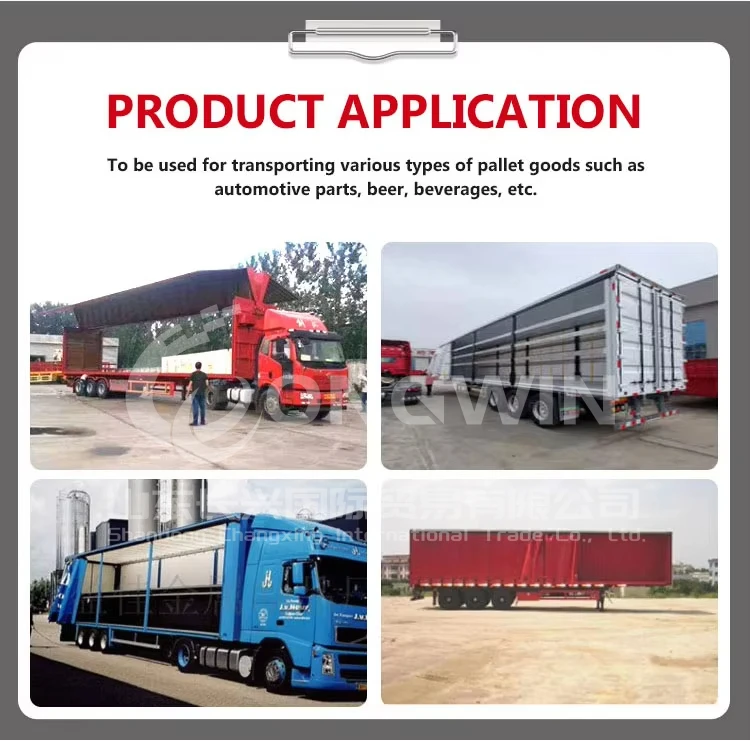

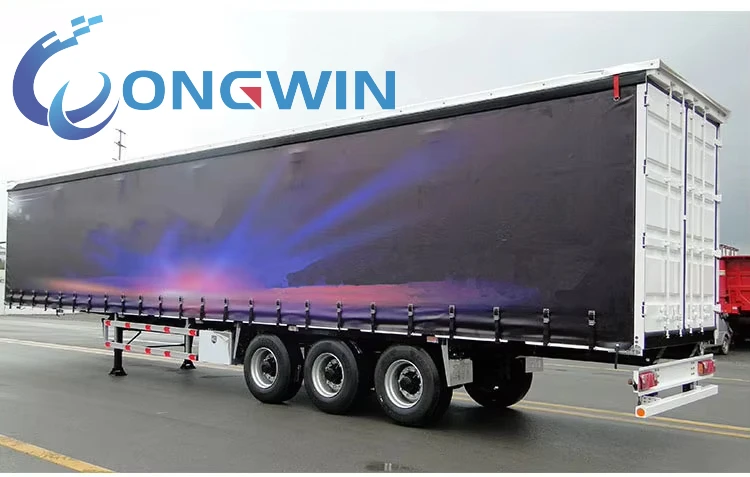

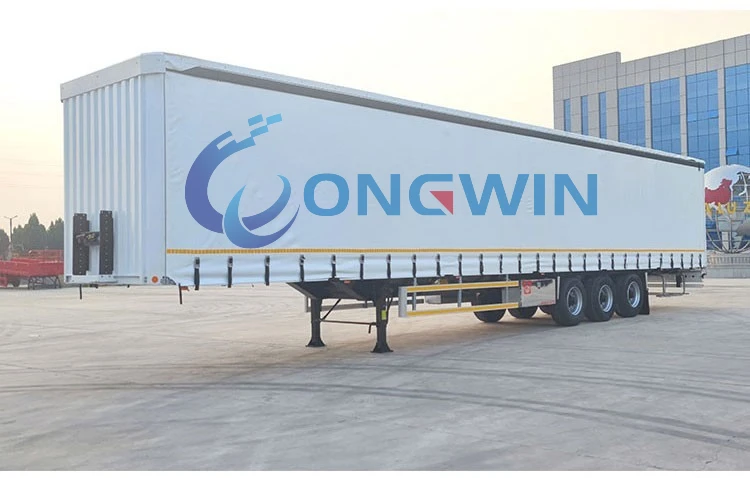

The Side curtain semi trailer is a form of the van semi-trailer. The curtain van semi-trailer is mainly used to transport all kinds of pallet goods such as auto parts, beer and beverages. When loading and unloading goods, the curtains on both sides can be quickly opened, which can be used by forklifts. Loading and unloading goods on both sides at the same time, generally within 5 minutes can load or unload the whole truck, is currently one of the fastest loading and unloading cargo transportation tools, at the same time, the car also has the rain and dustproof of the van Features. Side Curtain trailers can load goods efficiently, not only because multiple forklifts can operate at the same time after the side curtains of the truck are unfolded, but more importantly, the use of standardized pallets to optimize the loading steps, and through the mutual combination of standardized pallets, The utilization rate of the container volume is maximized. In addition, reasonable cargo layout also helps to average vehicle axle loads, which can effectively improve vehicle driving safety while reducing vehicle wear and tear. |

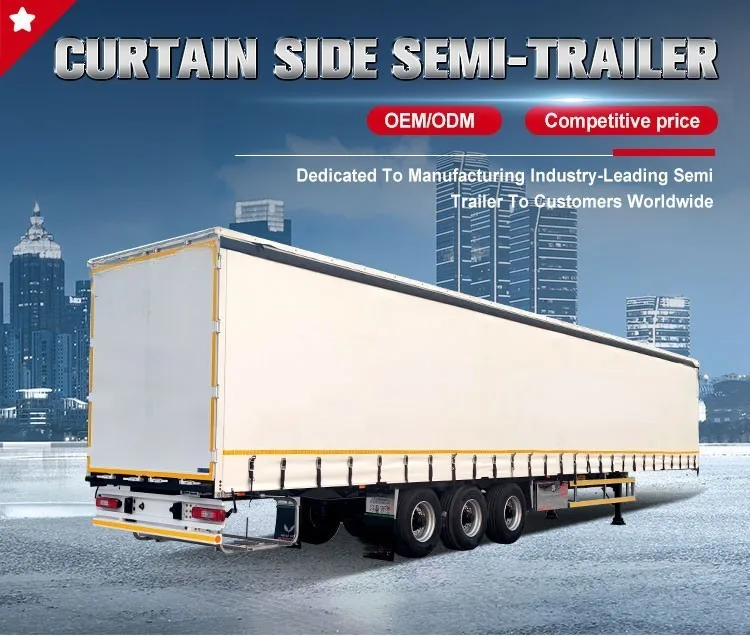

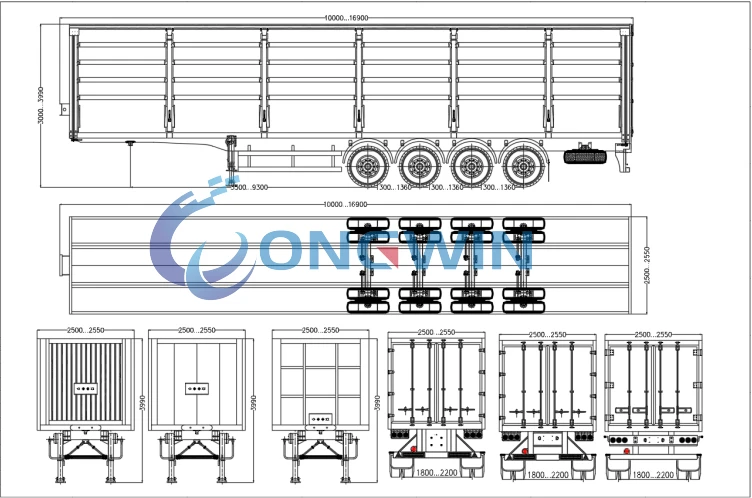

Curtain Side Semi Trailer | |

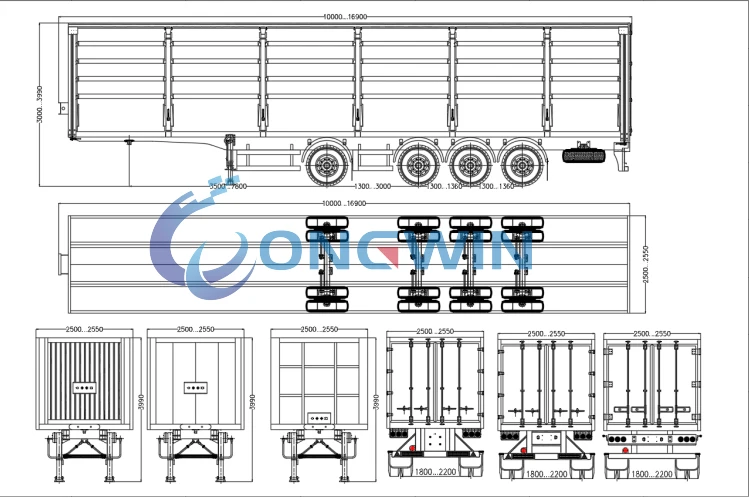

Overall Dimension (Lx W x H)(mm) | 13900*2500*4000 (customized) |
Tare Weight | 7000KG |
Loading Weight | 40000KG |
Total Weight | 50000KG |
Axle Brand | FuWa,BPW,SAF Brand |
Wheelbase | 7450*1310*1310mm |
Suspension system | Common Mechanical Suspension/Air Suspension |
Steel Spring | 10/10/10 leaf spring suspension |
The material of Main beam | The height of the beam is 500mm, upper plate is14mm down plate is 16mm middle plate is 8mm |
Side Beam | 18mm |
Platform plate | 3mm Diamond plate |
Curtain Height | 2000mm |
Slider | Manual operation |
Tire Type | 8.25R20/8.25R16/11.00R22.5/12.00R22.5/10.00R20/11.00R20/12.00R20/385/65R22.5 |
Traction Pin | 50MM or 90MM |
Spare Wheel Bracket | 2 pieces |
Tool Box | 1 Standard |
Landing Gear | 28ton |
Painting | Color as customer's requirement |
Pictures and configuration information are for reference only.The final product can be made according to specific requirements. | |
Above Information are LONGWIN Standard Spec.If customer want to change Spec.Please Let us know. Want to know more details,please contact us directly. | |

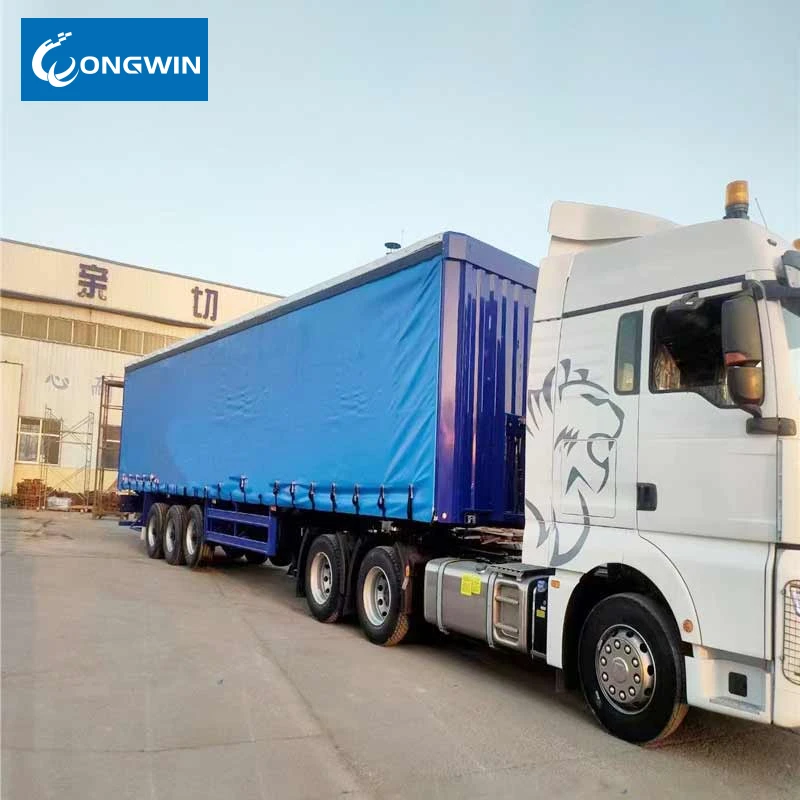

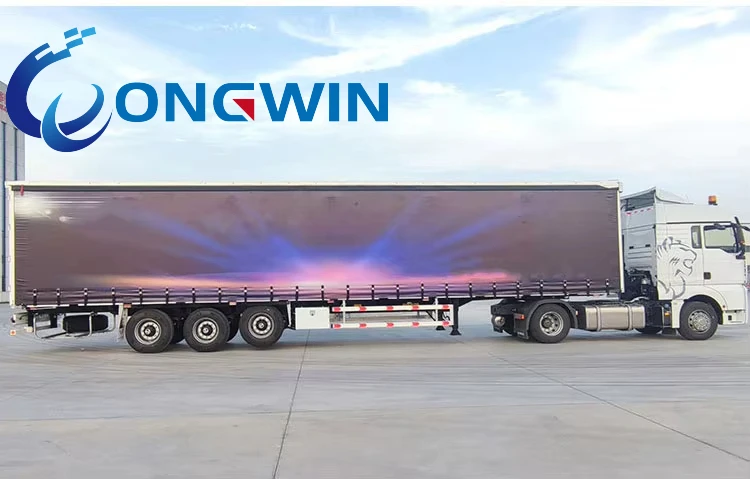

Product Presentation
Both sides are made of soft tarpaulin flexible materials, with guide rails on top and locking structures on the bottom. The curtain can be quickly pulled open during loading and unloading, making it convenient to use forklift pallets for loading and unloading goods, with high loading and unloading efficiency. |
Due to the significantly lighter weight of the side curtains compared to the hard side panels, the entire vehicle is 1000kg-1500kg lighter than a box car, with a lighter weight and significantly higher loading capacity |
The compartment is completely enclosed, able to prevent rain and dust, and provide all-weather protection for the goods; The volume of the compartment is completely determined, which can effectively prevent overloading and exceeding the limit. |
The side of the side curtain trailer is made of curtain fabric, which can be customized and printed with extremely exquisite patterns, which has an excellent promotional effect on the brand image of the transporter. |

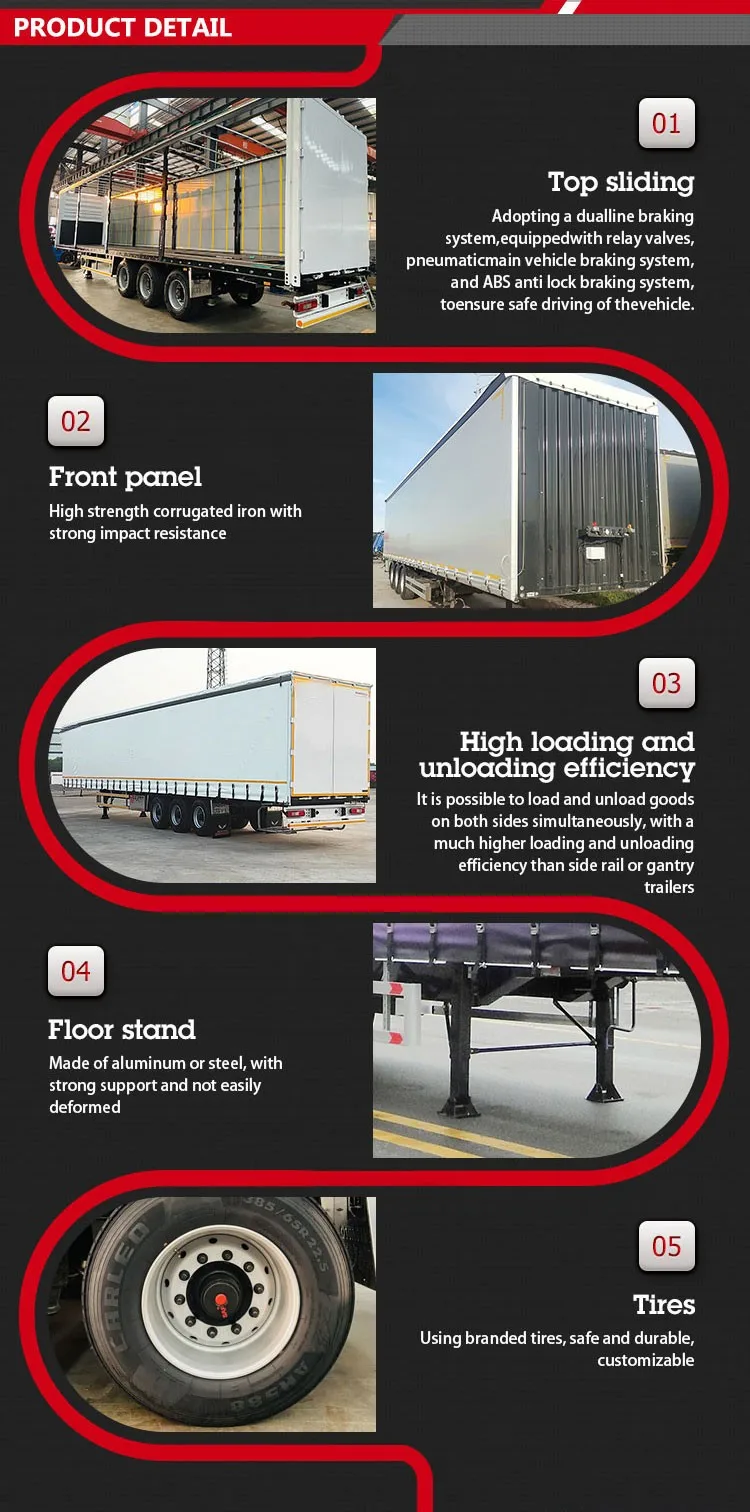

Product Detail
Production Process
Packaging & Shipping
Company Profile
Shandong Fuyuan Special Purpose Vehicle Manufacturing Co., Ltd. Shandong Fuyuan Special Purpose Vehicle Manufacturing Co., Ltd.is a manufacturer of semi-trailers and special purpose vehicles approved by the Ministry of Industry and Information Technology of the People's Republic of China, and a supplier of logistics and energy equipment in the same field of the industry, with products covering six series of manufacturing and research and development, including railroad semi-trailers, barbed semi-trailers, container trucks, vans The company's products cover six series, more than one hundred kinds of products, such as railroad semi-trailer, container truck, van-type semi-trailer, flatbed tipper semi-trailer, special vehicle and semi-trailer for powder and granular material transportation. The company is located in the famous hometown of Water Margin, east of Beijing-Hangzhou Grand Canal, west of Beijing-Kowloon Railway, south of the peony town of Heze, north of the Yellow River, adjacent to the 220 national highway Jiehe high-speed exit, convenient transportation, pleasant scenery. The company covers an area of 120 acres, is a collection of scientific research and development, production and sales in one of the specialized production enterprises, advanced production equipment, testing equipment, the company's products through the National Certification and Accreditation Administration Commission acceptance of the national mandatory 3c certification, the product performance of domestic and foreign similar products to meet the indicators. The company's brand “LUXI”, its production of “LUXI” brand is in the semi-trailer industry enjoys a certain degree of visibility, and has a good reputation in the industry. The company's sales network throughout the country, provinces, cities and municipalities directly under the Central Government and Russia, Vietnam and other export business, and strictly adhering to the customer-centered, customer-satisfaction service ideas, in order to better and faster for the customer to do a good job in good faith service. |
Certifications
FAQ
1. How long I can receive? Kindly let us know your destination port, usually Asian countries seashipping time 3-20 days. Europe countries 30-45 days. Africa countries 40- 60 days. American countries 25-40 days. 2. Can we inspect your factory? Yes, welcome to visit our factory! We're in Jining, Shandong, China. 3. Can we customize? Yes, we are factory and provide OEM service. Please send your trailer specification for our confirmation. 4. Can I pick up goods at your factory? Yes, we will quote EXW price for you. When goods are ready, you can arrange picking up. 5. Can you ship to my China forwarder/shipping agent? Yes, kindly send us the contact info and detailed address. 6. What's your lead time? It depends on trailer/trailer parts type, and the quantity. 7. How many units for 1 Container? After confirming specifications, the accurate units will be provided. 8. Are you still looking for distributors? Yes, we're looking for building cooperation with distributors Worldwide. Our factory will provide you with the highest quality service, best price and high cost - effective products. |
