HEPA panel mini pleated air filter for building filtration system
4 821,59-5 280,79 ₽
Лидер продаж фильтр для воздушного фильтра плиссированный дизайн кондиционеров Фильтры HEPA новое состояние
- Категория: >>>
- Поставщик: Air Filter (Hebei) Technology Co. Ltd.Air Ltd.
Сохранить в закладки 1601285829747:
Описание и отзывы
Характеристики
1：Large dust-holding capacity
2：Long service life Large filtration area
3：High efficiency stable performance

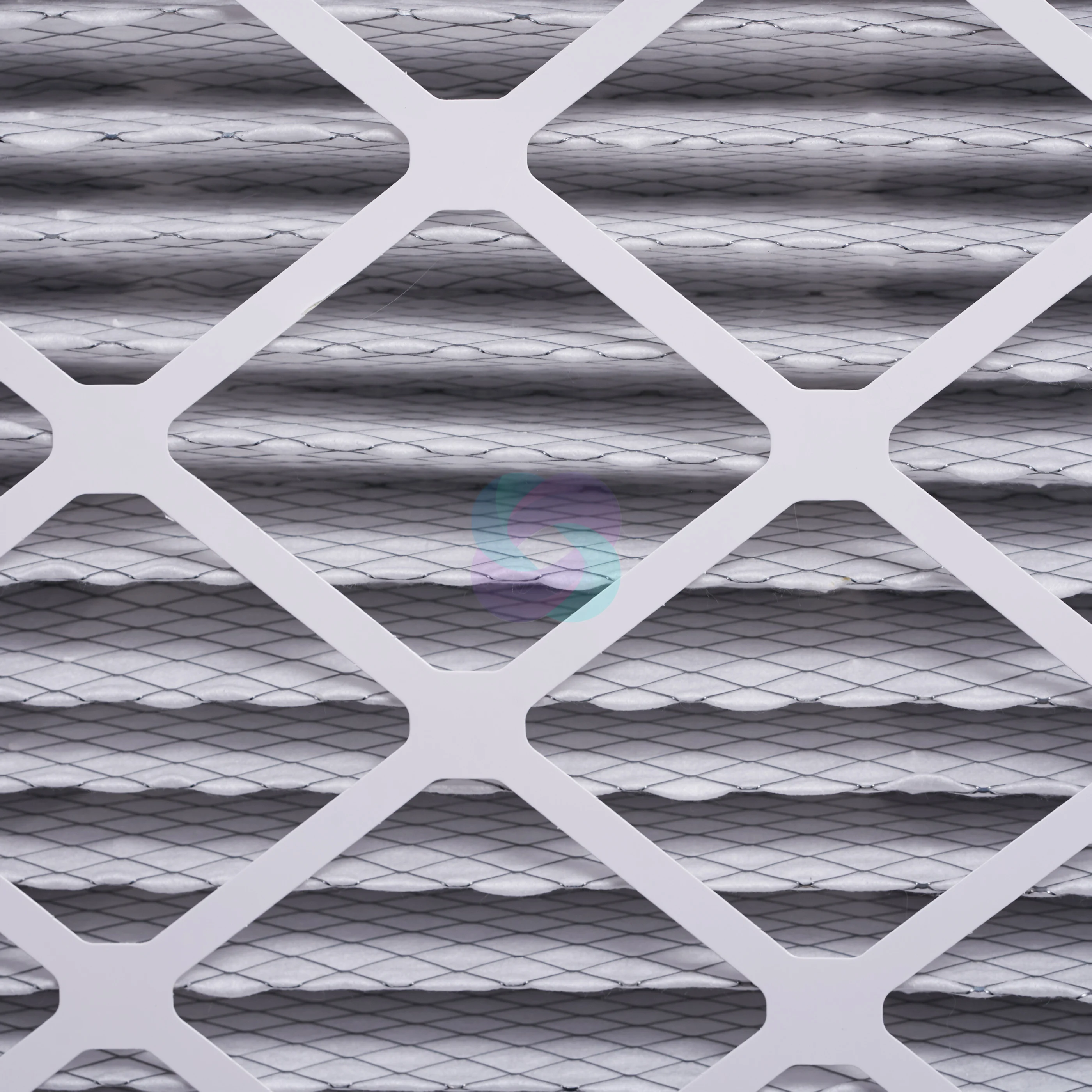

4：The welded wire backing holds the pleats in a “V” shape which maximizes surface area for long life and lowers resistance toairflow.
5：Features a high-strength cardboard frame to form a robust filter pack.
6：Has a welded wire media grid backing, treated for corrosion resistance, preventing media oscillation or filter pack failure asfilter pressure drop increases.
7：Tolerances in accordance with ARI Standard 850
8：Strict quality control guarantees 100% inspection
2：Long service life Large filtration area
3：High efficiency stable performance
4：The welded wire backing holds the pleats in a “V” shape which maximizes surface area for long life and lowers resistance toairflow.
5：Features a high-strength cardboard frame to form a robust filter pack.
6：Has a welded wire media grid backing, treated for corrosion resistance, preventing media oscillation or filter pack failure asfilter pressure drop increases.
7：Tolerances in accordance with ARI Standard 850
8：Strict quality control guarantees 100% inspection
Material：synthetic fibre
Maximum Temperature ：80°C
Max Humidity：100%
Recommended final pressure drop：
2x Initial pressure drop
All materials can be customized：MERV8~MERV16
Executive standard：（ASHRAE 52.2. ）
All materials can be customized：MERV8~MERV16
Executive standard：（ASHRAE 52.2. ）
(EN1822-1:2019)
Art. No. | Nominal Size (inches) | Actual Size(inches) | AirflowCapacity (cfm) | InitialResistance(inchesw.g.) | Pleats per linear foot | ||||
Art. No. | Nominal Size (inches) | Depth | Height | Width | |||||
ML-AC41 | 16x25 | 3.75 | 15.5 | 24.5 | 1390 | 0.21 | 9 | ||
ML-AC42 | 20x16 | 3.75 | 19.5 | 15.5 | 1110 | ||||
ML-AC43 | 20x20 | 3.75 | 19.5 | 19.5 | 1390 | ||||
ML-AC44 | 20x24 | 3.75 | 19.5 | 23.5 | 1665 | ||||
ML-AC45 | 24x16 | 3.75 | 23.5 | 15.5 | 1335 | ||||
ML-AC46 | 24x18 | 3.75 | 23.5 | 17.5 | 1500 | ||||
ML-AC47 | 24x20 | 3.75 | 23.5 | 19.5 | 1665 | ||||
ML-AC48 | 24x24 | 3.75 | 23.5 | 23.5 | 2000 | ||||
ML-AC49 | 25x16 | 3.75 | 25.5 | 15.5 | 1390 | ||||
ML-AC450 | 25x18 | 3.75 | 24.5 | 17.5 | 1565 | ||||
ML-AC451 | 25x20 | 3.75 | 24.5 | 19.5 | 1735 | ||||
ML-AC452 | 25x25 | 3.75 | 24.5 | 24.5 | 2170 | ||||
