Products Description
The main products include Turning tools, Boring tools, Threading tools, Grooving tools.
Common models are in stock and support customization of non-standard turning tools.
Common models are in stock and support customization of non-standard turning tools.

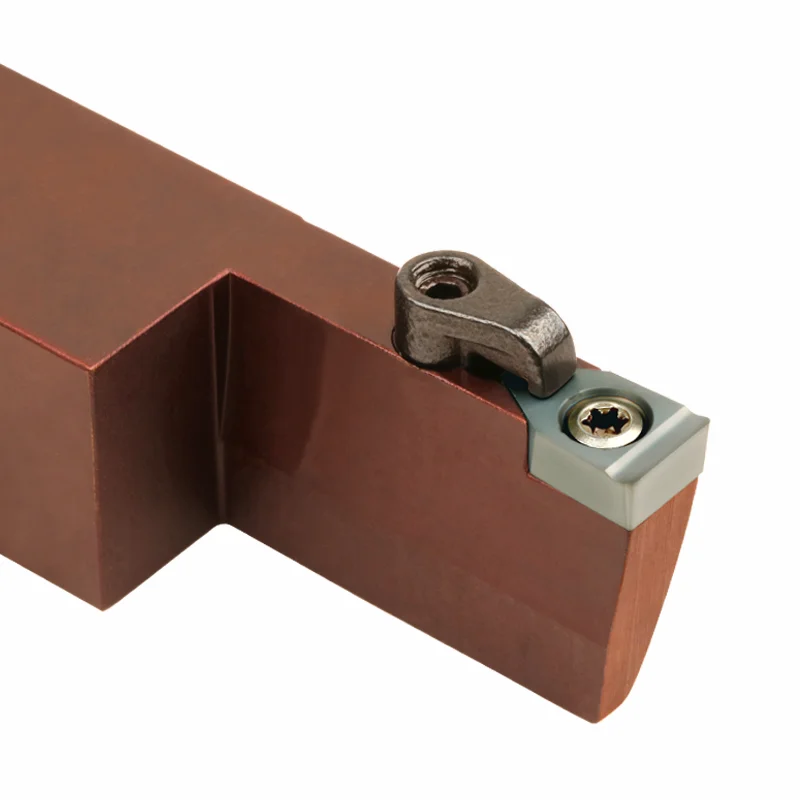

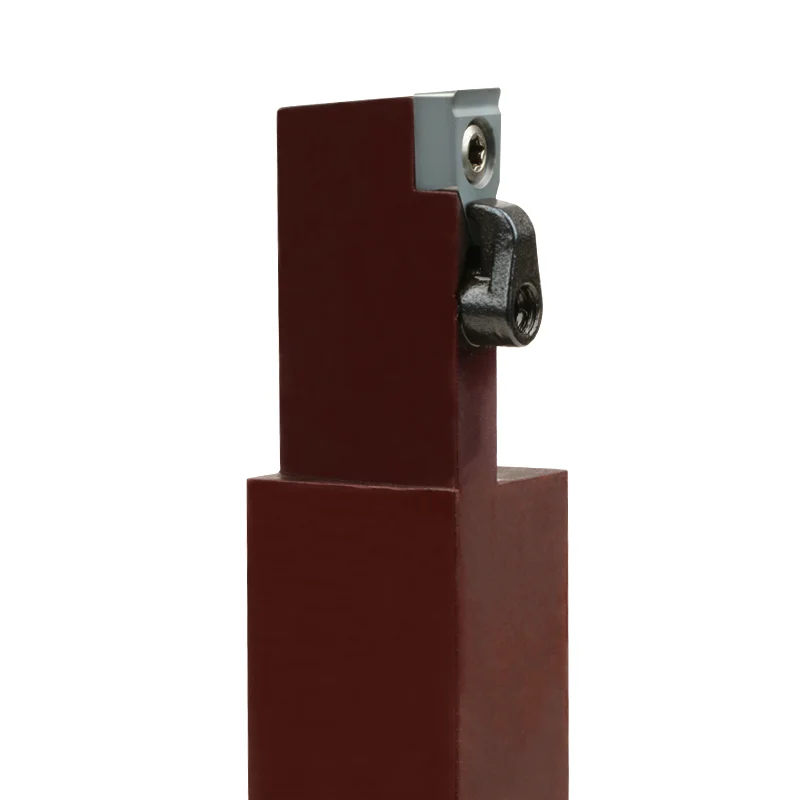

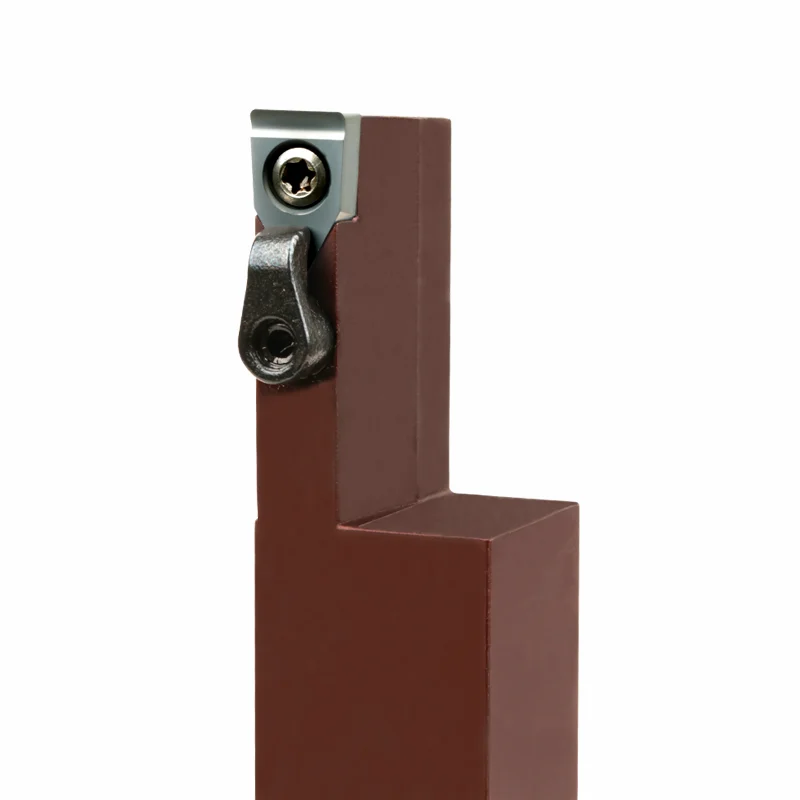

This product is an end face grooving toolholder.
If you need an external grooving toolholder, please click.
For custom sizes, please click or Chat Now↓↓↓

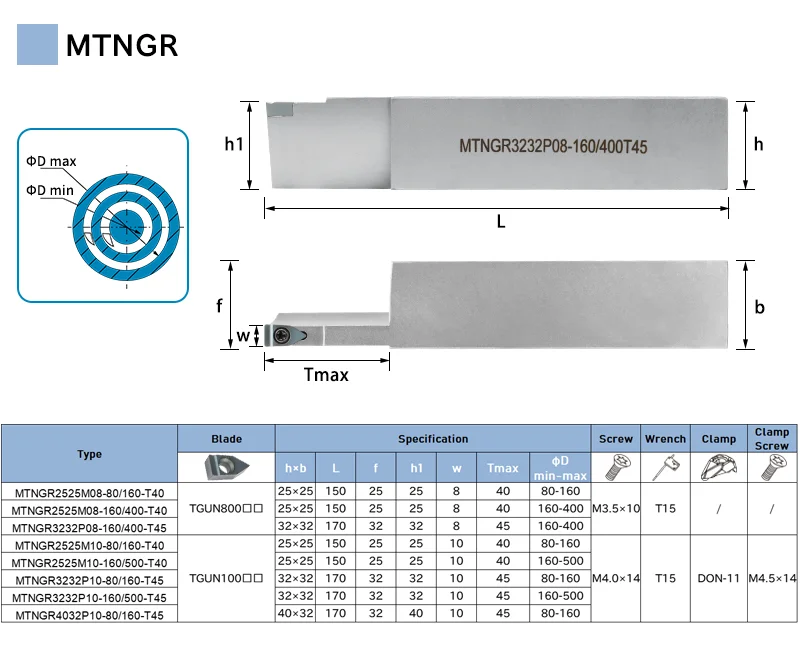

END FACE GROOVING SPRING STEEL TOOL HOLDERS | ||
Use: | Face grooving | |
Materials: | The toolholder is made of imported spring steel, with high anti-vibration and stable processing. | |

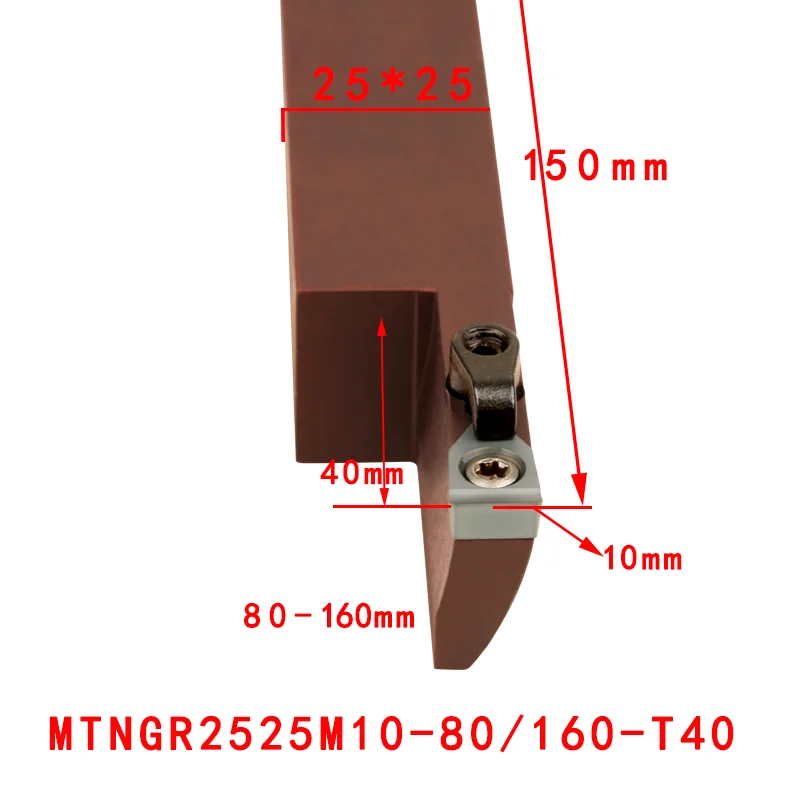

Toolholder Size: | The toolholder size are 25*25mm, 32*32mm (Right toolholders in stock, left toolholders needs to be customised) | |
Insert Size: | The insert thickness are 8mm, 10mm and the maximum depth of cut is 45mm. | |
Custom: | The following sizes are available from stock and can be customised to meet all types of machining requirements. | |
>>The 10mm width toolholder with large clamp to support large allowance machining and provides efficient and stable cutting.
>>The 8mm width holder has a clamp-less design for less cutting resistance and uses a high-strength screw to lock the insert.
Super stable
Large chip breaker>>
Large allowance machining
Parting off & Deep grooving Carbide Insert
>>Exclusive design of special chip breaker. High surface finish, good chipping resistance, increased process stability and reduced processing times.
>>The blades are coated with imported PVD and can process stainless steel, carbon steel, modulated steel, cast iron and other materials.
8mm WIDTH INSERTS
10mm WIDTH INSERTS
Our Services
Services
We can provide you with a professional quote and can send out the items within 5 days of final payment.
We accept OEM/ODM and can be customized with or without markings according to customer requirements.
We can provide professional cutting parameters and advice.
Common models are in stock and free samples can be provided.
We have our own factory and can accept custom-made tools.
We accept OEM/ODM and can be customized with or without markings according to customer requirements.
We can provide professional cutting parameters and advice.
Common models are in stock and free samples can be provided.
We have our own factory and can accept custom-made tools.
FAQ
FAQ
1. Are you manufacturer? Do you have factory?
We are professional manufacturer,have more than 18 years experience in this field.
2.What types of tools do you offer?
turning tools, threaded tools, boring tools, cutting tools, grooving tools
3. Can you send products to our Forwarder in China?
Yes,if you have Forwarder in China,we will glad to send products to him/her.
4.Can you produce Special carbide Tools ?
Yes We can. We have a factory and special tools according to your drawing and sample.
5.What is your delivery time ?
It depends on your order. When in stock, items are usually shipped out within 2-5 days.
We are professional manufacturer,have more than 18 years experience in this field.
2.What types of tools do you offer?
turning tools, threaded tools, boring tools, cutting tools, grooving tools
3. Can you send products to our Forwarder in China?
Yes,if you have Forwarder in China,we will glad to send products to him/her.
4.Can you produce Special carbide Tools ?
Yes We can. We have a factory and special tools according to your drawing and sample.
5.What is your delivery time ?
It depends on your order. When in stock, items are usually shipped out within 2-5 days.
Packing
Packing
Each tool is individually packaged, protected with bubble wrap and placed in a thickened cardboard box.
