Буровая установка с верхним приводом для молотка/Встроенная буровая молотком
32 806 424,00 ₽
Буровая установка опорная силовая головка приводной вал буровой установки
- Категория: >>>
- Поставщик: Henan Dh Machinery Equipment Co. Ltd.Henan Ltd.
Сохранить в закладки 1601285939568:
Описание и отзывы
Характеристики
Dear bo's's thank you for asking us about water well drilling rigs. Check out the following plans and product presentations. If you have any questions about this listing plan and investment income, we can continue to negotiate and discuss.

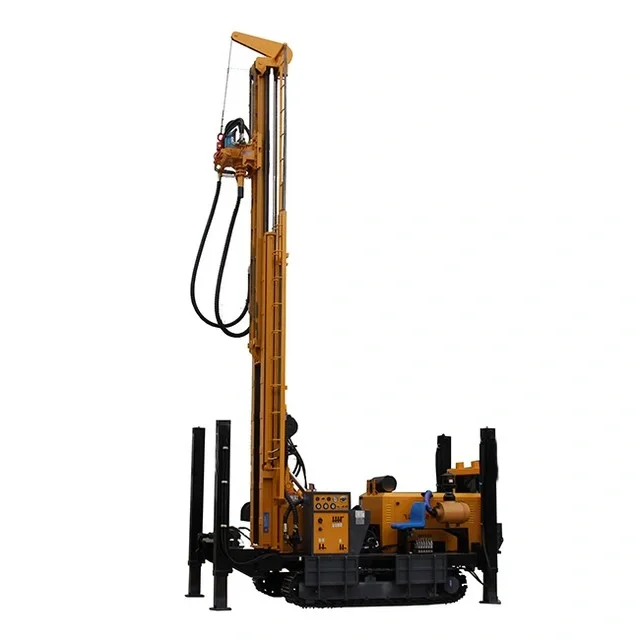

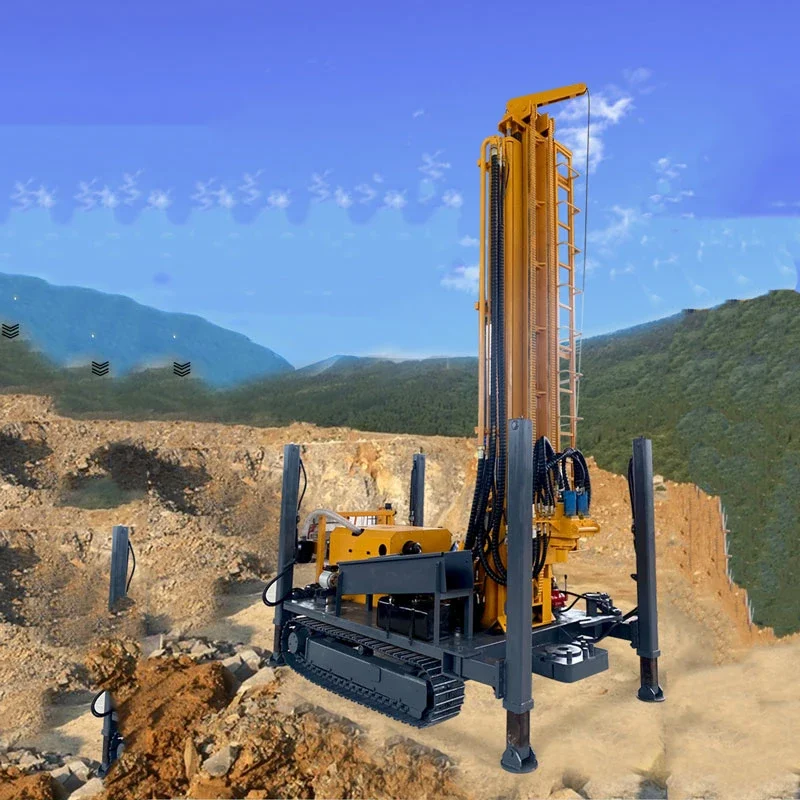

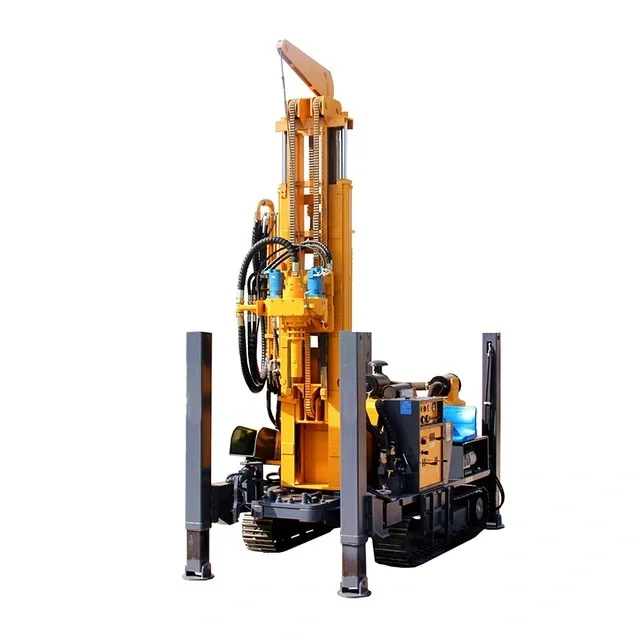

The pneumatic crawler water well drilling rig is a lightweight, efficient and multi-functional crawler type fully hydraulic drilling rig. It has the characteristics of advanced structure, easy operation, standardized configuration, short support time, fast rock drilling speed and low failure rate. It is widely used in water well drilling. , well monitoring and other exploration projects, especially suitable for drilling air conditioning holes with ground source heat pumps in urban buildings. This series of drill rigs uses compressed air for core drilling and has a high drilling speed in rocks with a Platts hardness range of f620, with a maximum drilling depth of 50 meters (300 feet) per hour.
The pneumatic crawler water well drilling rig is a lightweight, efficient and multi-functional crawler type fully hydraulic drilling rig. It has the characteristics of advanced structure, easy operation, standardized configuration, short support time, fast rock drilling speed and low failure rate. It is widely used in water well drilling. , well monitoring and other exploration projects, especially suitable for drilling air conditioning holes with ground source heat pumps in urban buildings. This series of drill rigs uses compressed air for core drilling and has a high drilling speed in rocks with a Platts hardness range of f620, with a maximum drilling depth of 50 meters (300 feet) per hour.
Product Paramenters \\uD83D\\uDC4D\\uD83D\\uDCAF
Specification
Model | DH180 | DH200 | DH300 | DH350 |
Weight(Ton) | 4.5 | 5.5 | 9 | 7 |
Drilling Diameter(mm) | 140~254 | 140~305 | 140~325 | 140~325 |
Drilling Depth(Meter) | 180 | 200 | 300 | 260 |
Walking Speed(Km/h) | 2.5 | 2.5 | 2.5 | 2.5 |
Climbing Angles | 30 | 30 | 30 | 30 |
Power(Kw) | 55 | 65 | 84 | 75.8 |
Pressure(Mpa) | 1.45~2.5 | 1.7~3.0 | 1.7~3.3 | 1.7~3.0 |
Air Consumption(m³/Min) | 17~31 | 17~30 | 17~35 | 17~35 |
Drilling Pipe Diameter(mm) | 76/89 | 76/89/102 | 89/102 | 76/89/102 |
Drilling Pipe Length(M) | 1.5/2.0/3.0 | 1.5/2.0/3.0 | 1.5/2.0/3.0 | 1.5/2.0/3.0 |
Rig Lifting Force(T) | 12 | 18 | 28 | 24 |
Swing Speed(Rpm) | 45~65 | 50~70 | 55~115 | 40~70 |
Swing Torque(N.M) | 3200~4600 | 5000~6500 | 7200~9500 | 7000~9000 |
Dimension | 3800*1500*2200 | 3800*1700*2350 | 5500*1950*2780 | 5600*1900*2600 |
Products Description \\uD83E\\uDD70✌️
1 chassis
Tracked chassis, steel shoes (rubber blocks can be added). The hydraulic plunger motor drives the built-in displacement reducer to achieve displacement.
2. Frame
The frame of the welded structure is welded to the track chassis and when the carriage is erected, it can be connected to the frame with bolts to improve the rigidity of the carriage.
3. Advance part
The propulsion part consists of propulsion cylinder, chain, skateboard, etc. When the piston rod of the drive cylinder extends and retracts, it drives the pulley block and causes the sliding plate to slide up and down on the carriage through the chain, thus completing the advancement and lifting of the tool drilling. The skateboard adopts a resin sliding structure to effectively reduce the wear of the guide. Axial pressure can be adjusted during deep drilling.
4.Console
The control panel consists of control frame, manual reversing valve, pressure reducing valve, speed control valve, oil pressure gauge, various pipes, engine instruments, throttle cable, shutdown cable, valve control of air, etc. All control functions are concentrated on the console, which is easy to operate and saves time and effort. The operator can stand on the pedal with enough area to operate.
5.Hydraulic system
The hydraulic system consists of hydraulic oil tanks, hydraulic oil pumps (triple pumps), hydraulic motors, hydraulic valves, high pressure oil pipes, oil filters, pressure gauges and other hydraulic components. This system has simple structure, reliable function and easy use. The hydraulic oil is compressed by the oil pump, the system pressure is adjusted with the relief valve, and the reversing controls the operating direction of the oil cylinder or the direction of the hydraulic motor to complete various actions required by the drilling rig. . The advancement and rapid withdrawal of the drilling tool is completed by the confluence of the two pumps. ,turn. Adjust the speed regulating valve to determine the rotation speed to ensure the rotation speed of the drilling tool during drilling; Adjust the pressure reducing valve to determine the propulsion pressure to ensure that the axial pressure on the impactor is the optimal value during drilling and safety valve. The set pressure is greater than the system pressure value.
6. Power system
It consists of motor, coupling, oil pump connection plate and air filter. The air filter consists of an air pre-cleaner and a three-stage fine air filter. It can effectively protect the motor from normal use in harsh working conditions.
Tracked chassis, steel shoes (rubber blocks can be added). The hydraulic plunger motor drives the built-in displacement reducer to achieve displacement.
2. Frame
The frame of the welded structure is welded to the track chassis and when the carriage is erected, it can be connected to the frame with bolts to improve the rigidity of the carriage.
3. Advance part
The propulsion part consists of propulsion cylinder, chain, skateboard, etc. When the piston rod of the drive cylinder extends and retracts, it drives the pulley block and causes the sliding plate to slide up and down on the carriage through the chain, thus completing the advancement and lifting of the tool drilling. The skateboard adopts a resin sliding structure to effectively reduce the wear of the guide. Axial pressure can be adjusted during deep drilling.
4.Console
The control panel consists of control frame, manual reversing valve, pressure reducing valve, speed control valve, oil pressure gauge, various pipes, engine instruments, throttle cable, shutdown cable, valve control of air, etc. All control functions are concentrated on the console, which is easy to operate and saves time and effort. The operator can stand on the pedal with enough area to operate.
5.Hydraulic system
The hydraulic system consists of hydraulic oil tanks, hydraulic oil pumps (triple pumps), hydraulic motors, hydraulic valves, high pressure oil pipes, oil filters, pressure gauges and other hydraulic components. This system has simple structure, reliable function and easy use. The hydraulic oil is compressed by the oil pump, the system pressure is adjusted with the relief valve, and the reversing controls the operating direction of the oil cylinder or the direction of the hydraulic motor to complete various actions required by the drilling rig. . The advancement and rapid withdrawal of the drilling tool is completed by the confluence of the two pumps. ,turn. Adjust the speed regulating valve to determine the rotation speed to ensure the rotation speed of the drilling tool during drilling; Adjust the pressure reducing valve to determine the propulsion pressure to ensure that the axial pressure on the impactor is the optimal value during drilling and safety valve. The set pressure is greater than the system pressure value.
6. Power system
It consists of motor, coupling, oil pump connection plate and air filter. The air filter consists of an air pre-cleaner and a three-stage fine air filter. It can effectively protect the motor from normal use in harsh working conditions.
packaging and ship \\uD83D\\uDEA2\\uD83D\\uDE9A
solid packaging To better ensure the safety of your goodsprofessional, environmentally friendly, convenient and efficient
packaging services will be provided.
packaging services will be provided.
We also support air/sea/railway/automobile/bulk carrier, etc.;
Support from anywhere in China to anywhere in the world;
We can also help you to handle shipping/customs clearance/pay duties/delivery to your company and other services.\\uD83D\\uDE00
Our Services for you \\uD83E\\uDD1D❤
1.Whole process guidance With more than 15 years of service experience, we will spare no effort to provide support in selecting equipment, customizing production lines, improving supply chain, and post-optimization etc.
2.Provide a full set of construction method and equipment training Provide design and construction solutions in terms of cost budget / progress improvement / quality control / safety management.
3.After-sales service system Fully track the service system, focus on customer needs, first-class speed, skills, attitude, and provide support for customer
4.Support customization Relying on our powerful flexible production line, we can give you the right to fully choose the mold,drive method, accessories upgrade, shell material, appearance color and Logo etc.
5.Extensive spare parts service The spare parts warehouse of more than 50,000 square meters can meet the timely replacement and supplement of any wearing parts.
6.Support sea, land and air transportation We can ship products to every corner of the world. If you need, we also support a series of tedious tasks such as customs clearance and tail end delivery.
Company Profile \\uD83C\\uDFED\\uD83D\\uDC77♂️\\uD83D\\uDCAA
Henan DH Machinery Co., Ltd., located in Zhengzhou city, Henan, China, gains its rapid development as a reputable machinery manufacturer. We develop from a small company with only 6 people to a company with over 100 people thanks to the trust of our customers and innovation of ourselves. We always insist that only quality can make us successful, and only innovation creates wider development direction for us.
Thanks to complete after-sale services and guaranteed quality of the machines, we have won a good reputation in our customers domestic and abroad. Up to now, we have exported our machinery to many countries around the world, such as Russia, America, South Africa, Pakistan, Guinea, Canada, Lebanon, Zambia, Ethiopia, etc.
The development principle of DH machinery company is "Quality First, Reputation First, Be Innovative, Be Excellent". Guided by this principle, staff in company and factory dedicate to manufacture top quality products to meet the needs of customers. From the technical design to the procurement of raw materials, and from the precision processing and manufacturing to the strict inspection of quality, all machines in DH meets the requirements of ISO9001.
We rely on top quality,Competitive priceand good service to offer metallurgy,coal,hydroelectric,railway,highway,mine etc,we quicklyOccupied the Market,Achieved remarkable results.Insist on"offer excellent service for customerscreate development chance for employees"as operation principle and take"keep forging aheadenjoy great success"as enterprise spirit,we sincerely welcome friends from home and abroad tovisit us for business,Let us create great undertaking and brilliant together!
Thanks to complete after-sale services and guaranteed quality of the machines, we have won a good reputation in our customers domestic and abroad. Up to now, we have exported our machinery to many countries around the world, such as Russia, America, South Africa, Pakistan, Guinea, Canada, Lebanon, Zambia, Ethiopia, etc.
The development principle of DH machinery company is "Quality First, Reputation First, Be Innovative, Be Excellent". Guided by this principle, staff in company and factory dedicate to manufacture top quality products to meet the needs of customers. From the technical design to the procurement of raw materials, and from the precision processing and manufacturing to the strict inspection of quality, all machines in DH meets the requirements of ISO9001.
We rely on top quality,Competitive priceand good service to offer metallurgy,coal,hydroelectric,railway,highway,mine etc,we quicklyOccupied the Market,Achieved remarkable results.Insist on"offer excellent service for customerscreate development chance for employees"as operation principle and take"keep forging aheadenjoy great success"as enterprise spirit,we sincerely welcome friends from home and abroad tovisit us for business,Let us create great undertaking and brilliant together!
FAQ ❤ \\uD83D\\uDE42
7*24 hours
Consultation and after-sales consultation hotline (Te*l/ wha..spp)
86-151 3617 1810
Q1. What is your terms of payment?
Ans.: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q2. What is your terms of delivery?
Ans.: EXW, FOB, CFR, CIF.
Q3. How about your delivery time?
Ans.: Generally, it will take 7 -10 working days after receiving your advance payment.
The specific delivery time depends on the items and the quantity of your order.
Q4. What is the warranty of our machine?
Ans.:Our main machine enjoys a 2 year warranty, during this time all accessories.broken can be changed for a new one.And we provide videos for machine install and operation.
Q5. What is your terms of packing?
Ans.: Generally, we use standard exported wooden case for LCL goods, and fixed well for FCL goods.
Q6. Do you test all your goods before delivery?
Ans.: Yes, we have 100% test before delivery.And we will attach our inspect report for every machine.
Q7.Do you provide wear parts for transacted clients?
Ans.: Yes, and will prefer provid ing accessories to clients.
Похожие товары
Горячая распродажа буровая установка диаметром 65-225 мм с твердым перфоратором в сочетании RC-молотком и Rc-буровой установкой
339 376,80-565 628,00 ₽
DTH буровая установка малогабаритная машина вращающаяся головка для буровой установки
124 438,16-140 502,00 ₽
Китай лидер продаж KT15 кабина встроенная буровая установка dth скважинная
21 527 801,68-21 626 220,96 ₽
Китай Заводская Вращающаяся головка для буровой установки DTH молоток и буровое оборудование
2 149 386,40-2 545 326,00 ₽

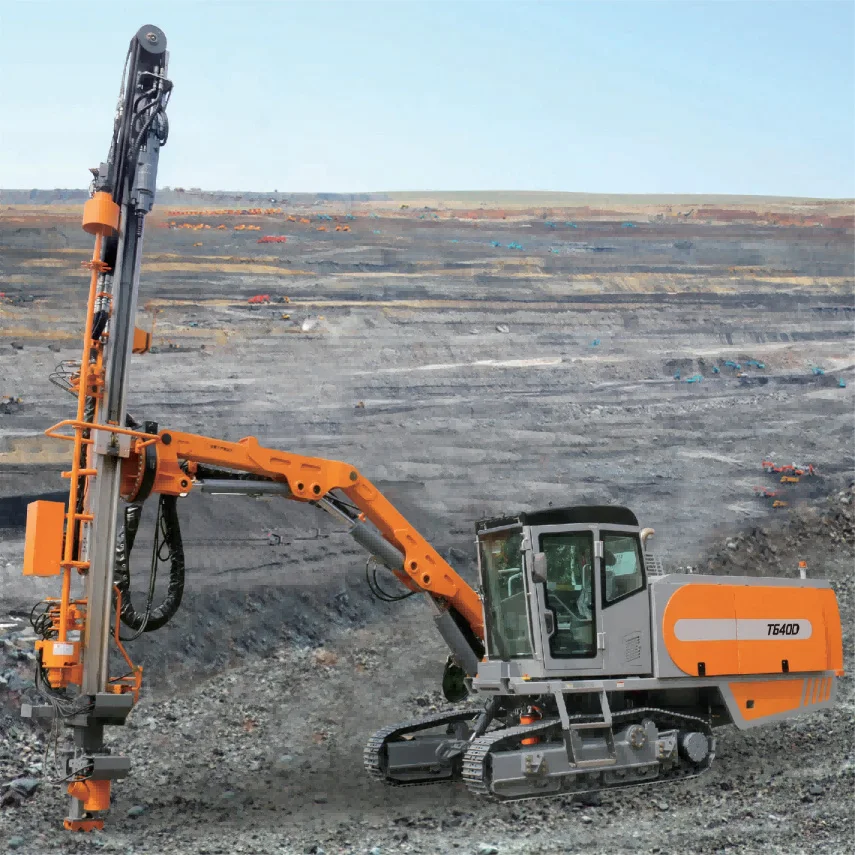

T640D сверлильный станок с верхним приводом
