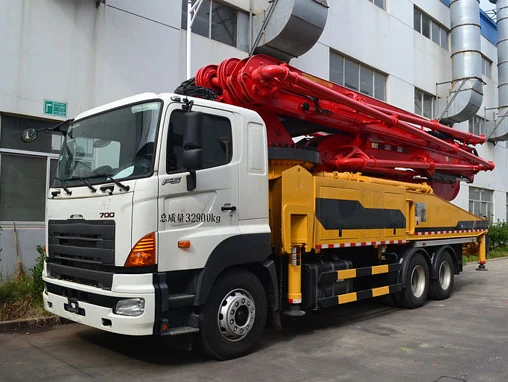

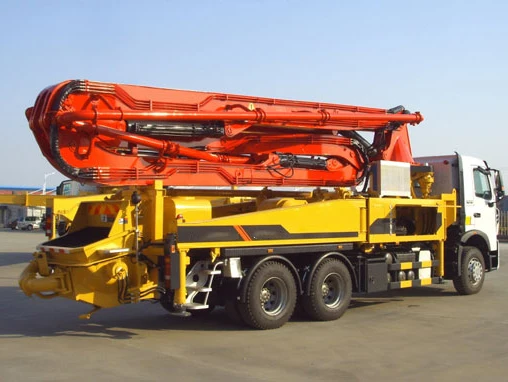

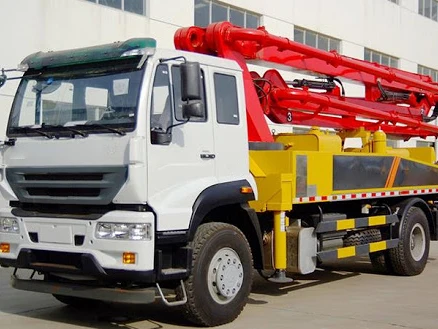

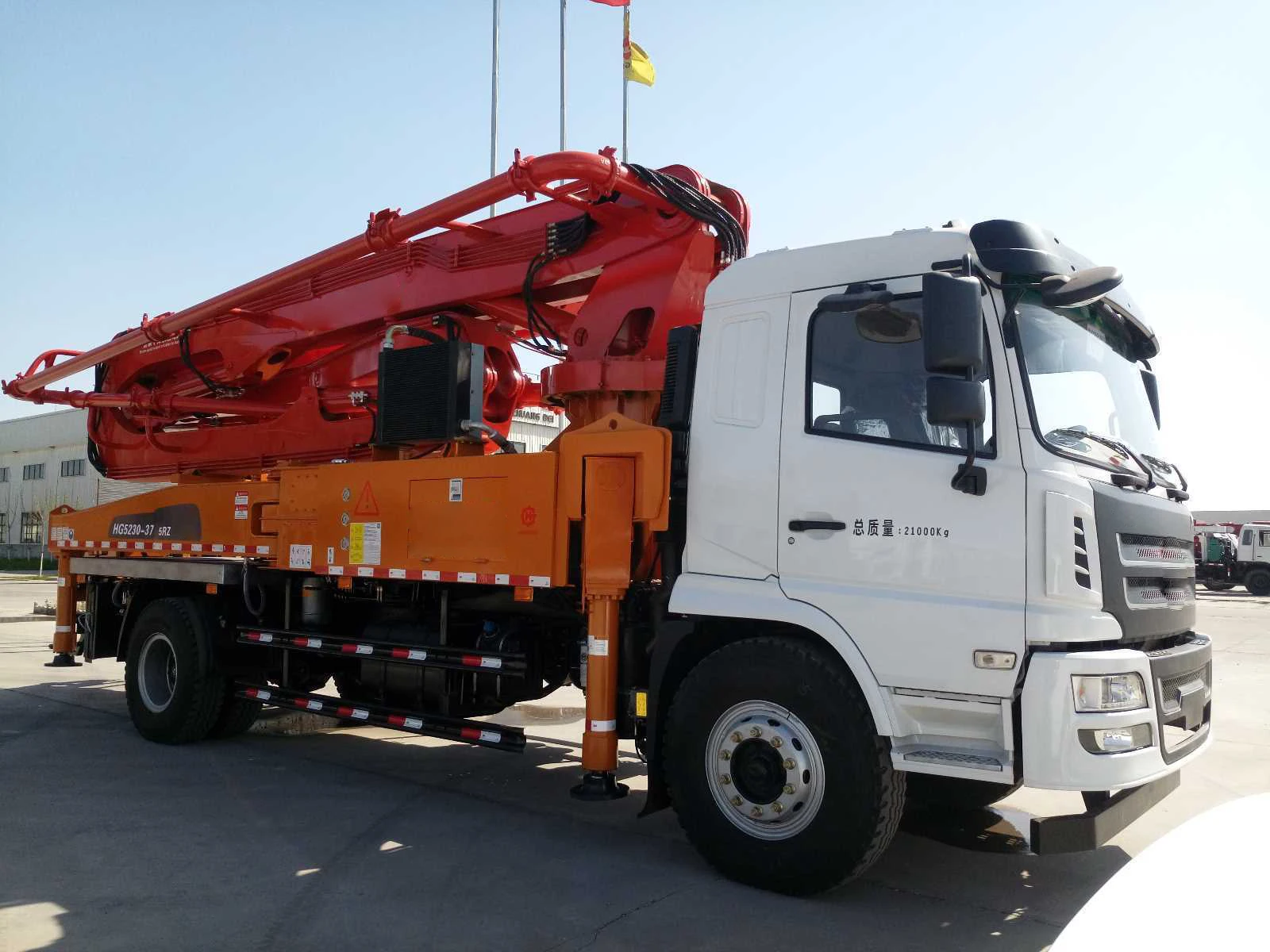

HDL5400THB47 бетононасос машина 47 м с простой в эксплуатации и гидравлической системой

Сохранить в закладки 1601286126516:


Цена:10 446 206,40 ₽ - 10 558 531,20 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики



Company Profile






   SKYMARD
   PRODUCTS

We have strong capabilities in China and offer a wide range of products. If you are interested, please feel free to contact me






Specification



Excellent performance
Strong breakout force and traction ensures the outstanding adaption to the tough working condition.
Low emission engine features more perfect monitoring and diagnosis function.
Intelligent control independent ventilation system and drive axle ventilation system ensure that the machine is in the best heat balance temperature.
Load sensing hydraulic system controls accurately and saves the energy and lowers the consumption.
The drive axle features strong carrying capacity, adapting to various kinds of dangerous working conditions.
High efficiency
Fast operation: cutting force and speed are distributed reasonably to ensure the fast and efficient operation.
Flexible steering: load sensing steering system, flexible and efficient.
Sufficient power: dual-pump combination, the power is used sufficiently. The steering pump flow is delieverd to the steering system preferentially, and the surplus flow is delivered to the working system to achieve the dual-pump combination, decreasing the working pump displacement and improving the reliability, saving the energy and accelerating the movement speed.


Max. size aggregate
mm
40
Max. concrete pressure(L/H)
MPa
7/12
Hydraulic system pressure
MPa
32
Main hydraulic pump displacement
ml/r
190
Concrete cylinder bore & stroke
mm
Φ230×1800
Main hydraulic cylinder stroke
mm
1800
Concrete valve type
/
S-Valve
High/Low pressure
/
AUTO
Hydraulic tank capacity
L
400
Hopper charging height
mm
≤1500
Hopper capacity
m3
0.7
Water tank capacity
L
285
Concrete slump
mm
120-230
Concrete pipeline bore
mm
Φ125
Max. horizontal reach
m
19.1
Max. pumping depth
m
12.2
Boom unfolding height
mm
6750
Boom unfolding angle
(°)
90/180/256
Section lenght
mm
7300/5950/5910
Slewing range
(°)
±365
Outrigger longitudinal span
mm
5510
Front outriggers transverse span
mm
4880
Rear outriggers transverse span
mm
2280
Chassis engine power
kW/hp
228/310
Emission stage
CHINA IV
Running speed
km/h
≤85
Min.turnning radius
m
8.8m
Approach & Departure angle
(°)
20.5/10.5


Product Description
