High Speed Economic Price Metal Stainless Steel Carbon Fiber Laser Cutting Machine 1.5KW 2KW 3KW
- Категория: >>>
- Поставщик: Liaocheng Ray Fine Technology Co. Ltd.Liaocheng Ltd.
Сохранить в закладки 1601286714315:
Описание и отзывы
Характеристики
Product Description

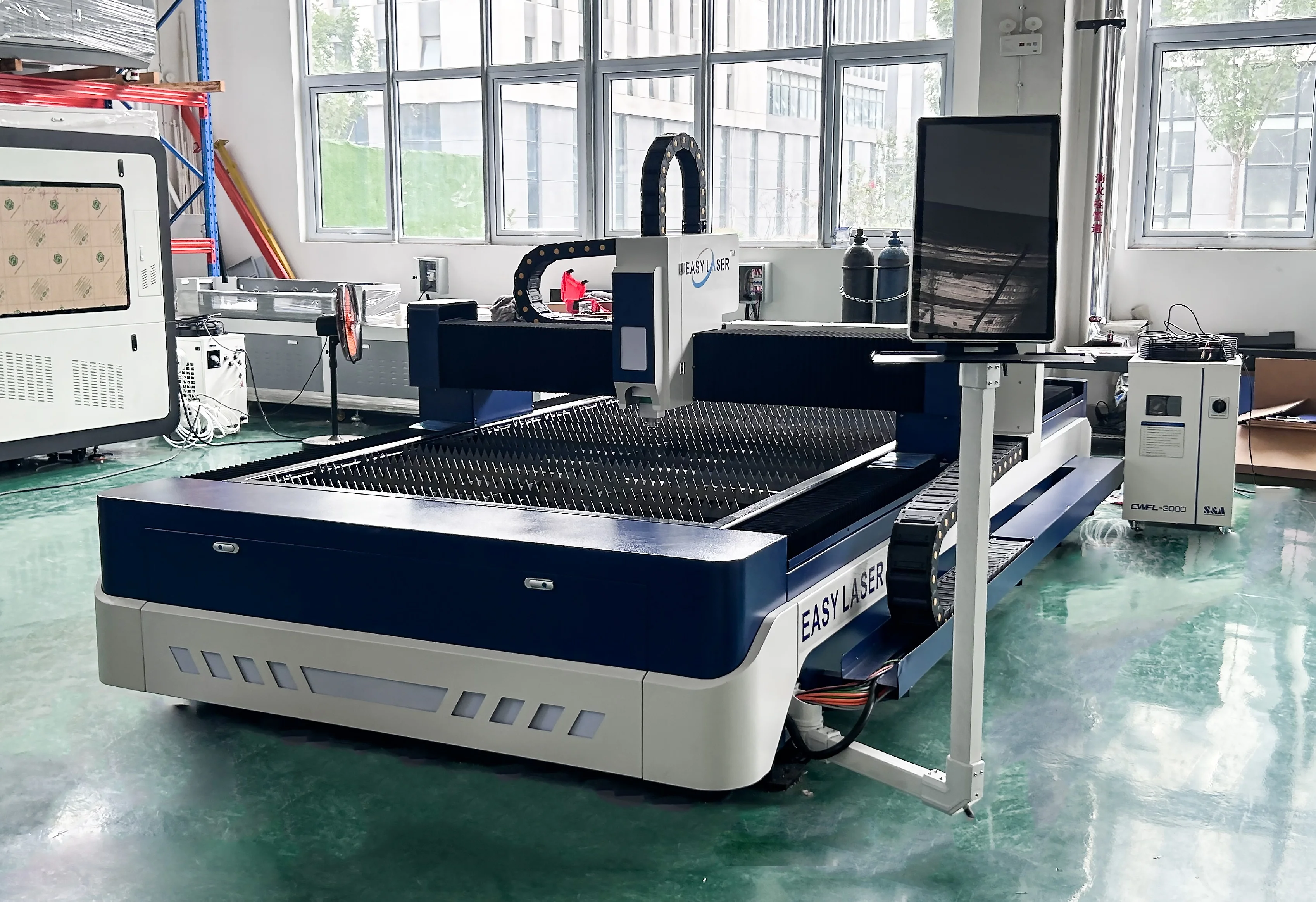

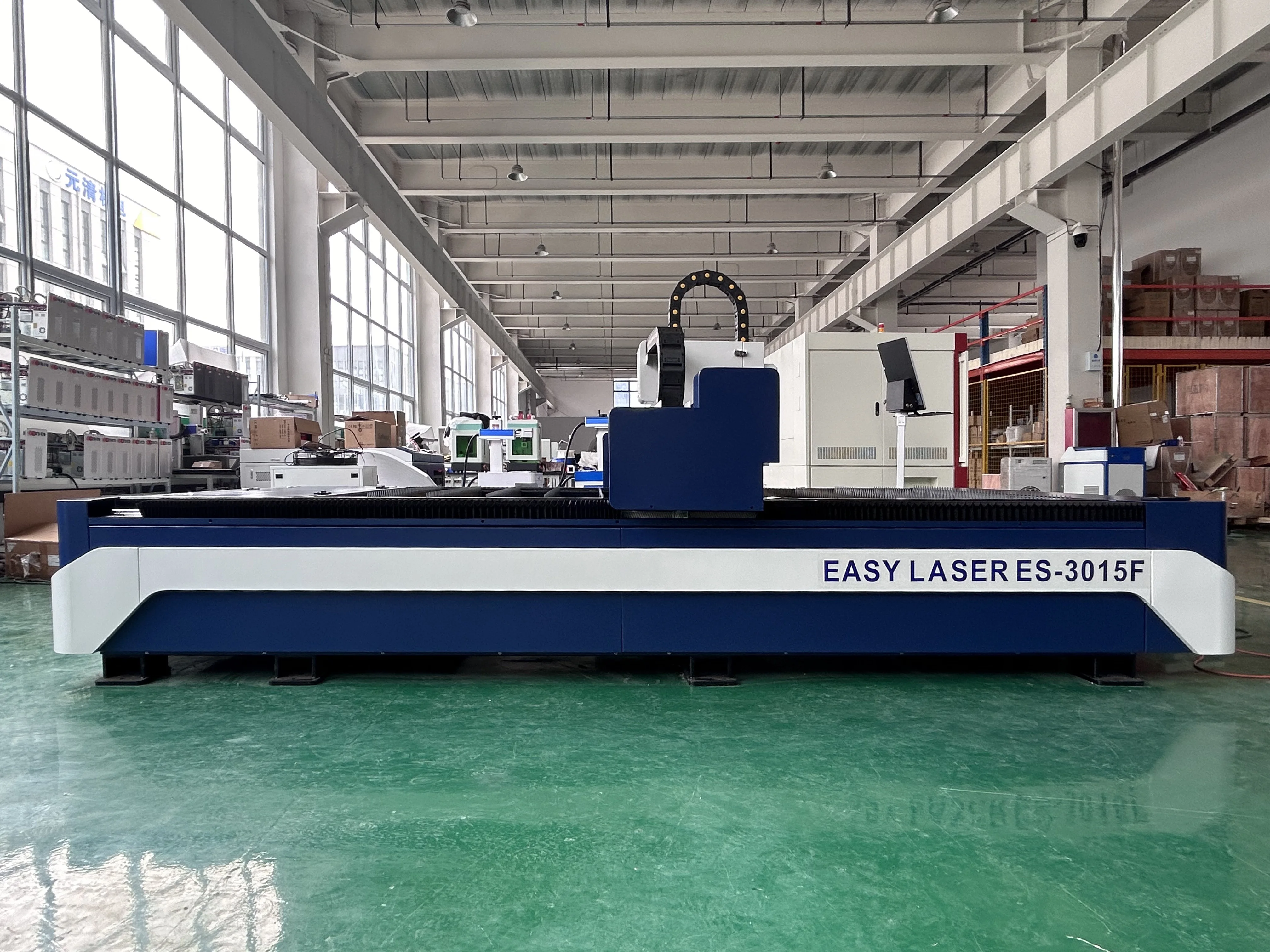

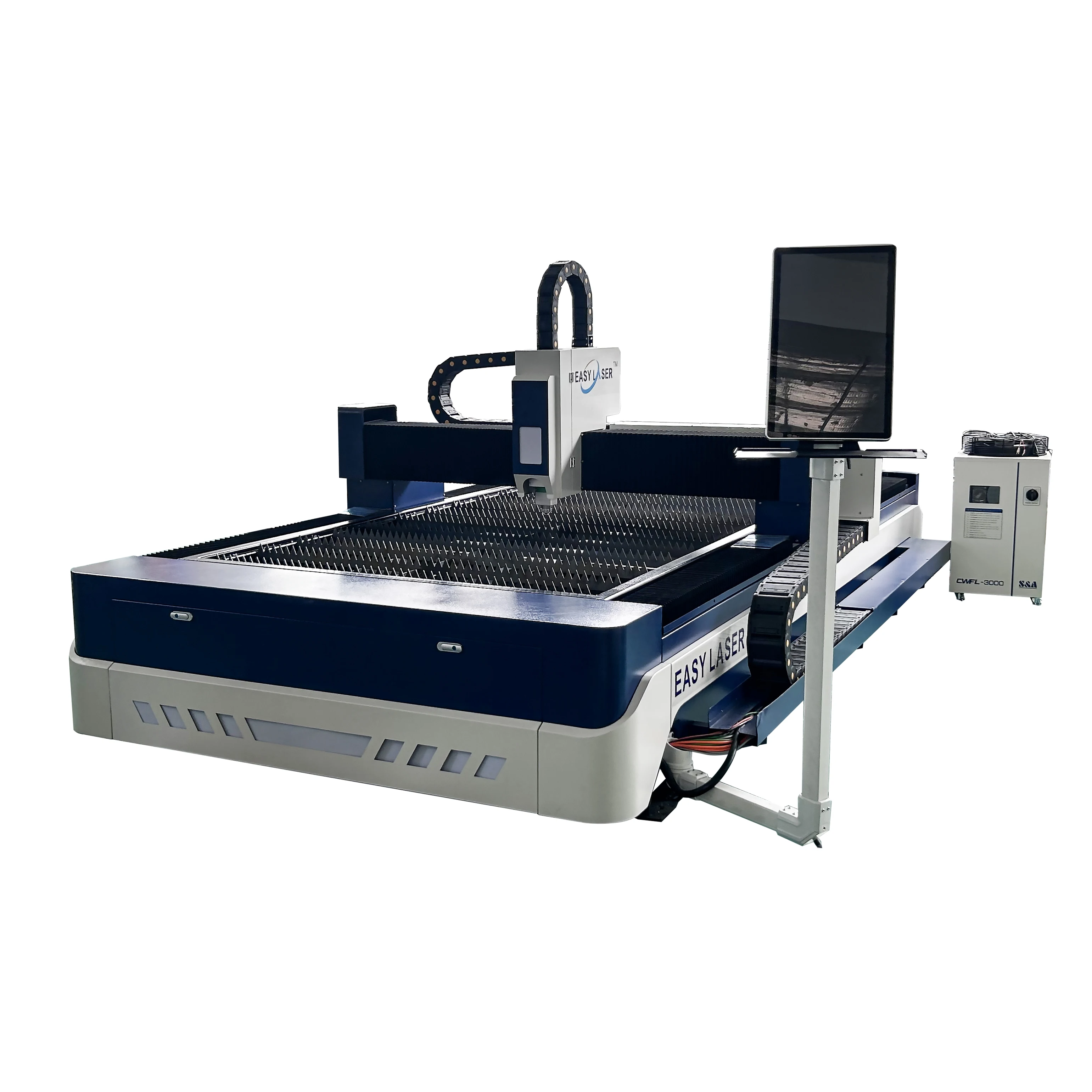

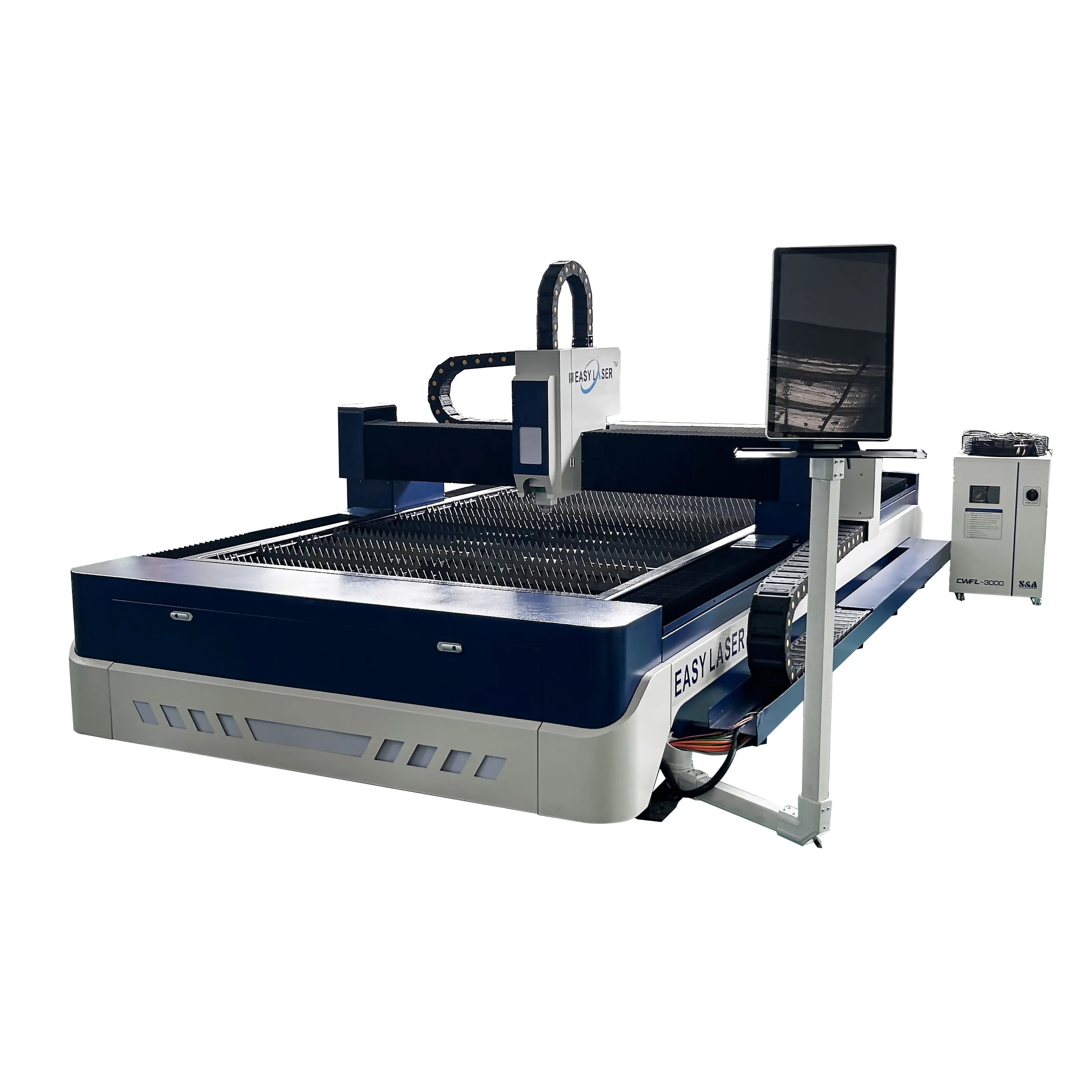

RF-3015 Fiber Laser Cutting Machine
3015 Fiber laser cutting machine is a high-performance laser cutting machine specially developed and designed for users in various industries of medium and thin plate processing. It has many technical advantages such as high configuration, high cutting efficiency, low operating cost, and stable performance. The thickest cutting thickness: Carbon steel 16mm, stainless steel 10mm; the fastest cutting speed: 42 m/min; the cutting line is finer, the cutting speed is faster, the work efficiency is higher, and the processing quality is better.
fiber laser cutting machine advantage:
1.High precision, fast speed, narrow slit, minimum heat-affected zone, smooth cutting surface without burrs.
2. The laser cutting head will not touch the surface of the material and will not scratch the workpiece.
3. The slit is the narrowest, the heat-affected zone is the smallest, the local deformation of the workpiece is extremely small, and there is no mechanical deformation.
4. Good processing flexibility, can process arbitrary graphics, and can also cut pipes and other special-shaped materials.
5. It can cut any hard material such as steel plate, stainless steel, aluminum alloy plate, and hard alloy without deformation.
2. The laser cutting head will not touch the surface of the material and will not scratch the workpiece.
3. The slit is the narrowest, the heat-affected zone is the smallest, the local deformation of the workpiece is extremely small, and there is no mechanical deformation.
4. Good processing flexibility, can process arbitrary graphics, and can also cut pipes and other special-shaped materials.
5. It can cut any hard material such as steel plate, stainless steel, aluminum alloy plate, and hard alloy without deformation.
Details of the machine
Specification
working area | 1500*3000mm |
laser power | 1000W/1500W/2000W/3000W/6000W |
laser wave length | 1064nm |
cutting thickness | 0.5-16mm |
repeated precision | ±0.01mm |
Life-span of fiber laser module | 100000hours |
Max. Idle Running Speed | 80-110M/MIN |
Focus Spot Diameter | <0.01mm |
Lubrication System | Electrical Motored |
Cooling mode | water cooling and protection system |
Power Input | 220V or 380V, 50/60hz |
Graphic format supported | BMP, PCX, TGA,TIF,PLT ,CDR, etc |
Auxiliary Gas for cutting | Oxygen, Nitrogen, Compressed Air |
Sample show
Application industry
Used in sheet metal processing, aviation, aerospace, electronics, electrical appliances, subway accessories, automobiles, grain machinery, textile machinery, engineering machinery, precision accessories, ships, metallurgical equipment, elevators, household appliances, craft gifts, tool processing, decoration, advertising , metal external processing, kitchen utensils processing and other manufacturing and processing industries.
Processing material
Cutting of stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized sheet, galvanized sheet, pickling sheet, copper, silver, gold, titanium and other metal sheets and pipes.
Packing & Delivery
Plywood Package.
We can delivered the machine to you By DHL,FedEx,Air Transport,and Ocean Shipping.
Company Profile
After-sales Service
After-sale service
* We provide free YouTube operation videos and PDF English manuals.
* We have professional after-sales technicians who can assist through WeChat, Email, WhatsApp,Video, Teamviewer.
* Before the machine is packaged in our Chinese factory, we will do a 24hour Continuity test, and all the engrave parameters will
be saved in the USB disk. When you receive the machine, connect to the computer and you can use the laser directly.
* We have professional after-sales technicians who can assist through WeChat, Email, WhatsApp,Video, Teamviewer.
* Before the machine is packaged in our Chinese factory, we will do a 24hour Continuity test, and all the engrave parameters will
be saved in the USB disk. When you receive the machine, connect to the computer and you can use the laser directly.
