Высокопроизводительный 4 '8' мягкое сиденье из ковкого чугуна корпус CF8/CF8M дисковая ручка рычажный Клапан-Бабочка
8,00-10,00 $

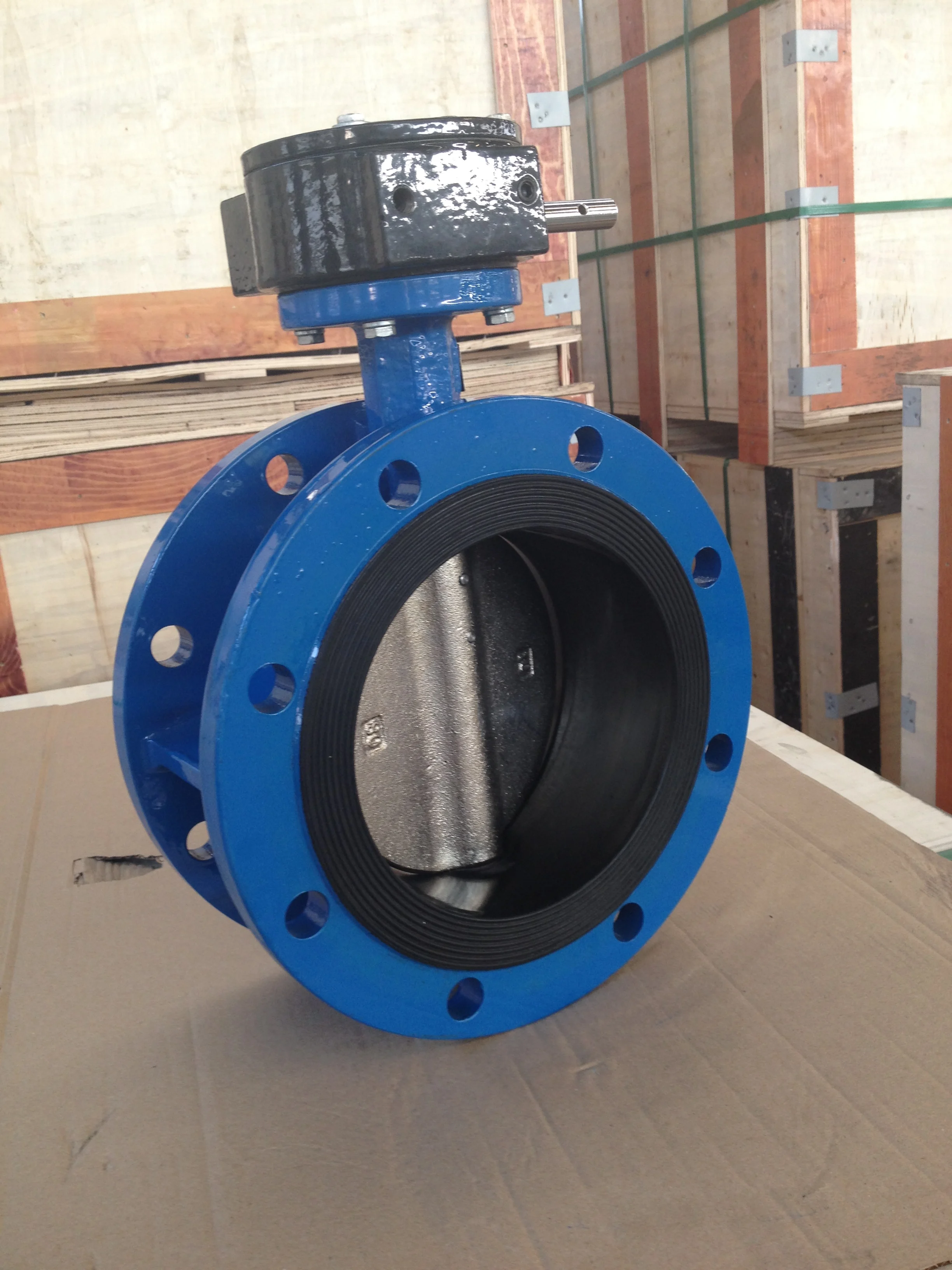

Китайский производитель Oem с резиновой подкладкой двухфланцевый клапан бабочка для воды
- Категория: >>>
- Поставщик: Anhui Yfa Fluid Technology Co. Ltd.Anhui Ltd.
Сохранить в закладки 1601286835064:
Описание и отзывы
Характеристики
Product Description
Specification
Product Name | Double Flange Butterfly Valve |
Port Size | DN50~DN1200 |
Temperature of Media | Normal Temperature |
Media | Water |
Design Standard | API1609,BS5155,MSS-67-1982 |
Face to face | AP1598 |
Inspection and test | AP1598,ISO5208-1982 |
Driving style | Lever,gear,actuator,pneumatic |
Body material | ductile iron/cast iron |
Connection | Flange Ends |
Color | Blue |
Size | Standard Size |
Applicable medium | Water Gas Oil Air |
Details Images
Specifications:
* Size: DN50-DN1200
* Pressure: PN10/PN16
* Standard: ISO5211, DIN2501 PN10/PN16, DIN3202
Materials:
* Body : Cast Iron/Ductile iron
* Seal : WCB+EPDM
* Stem : Stainless Steel 416
Characteristic:
* Medium: Water, Waste Water, Air, Oil
* Temperature: -20 to 100℃
* Size: DN50-DN1200
* Pressure: PN10/PN16
* Standard: ISO5211, DIN2501 PN10/PN16, DIN3202
Materials:
* Body : Cast Iron/Ductile iron
* Seal : WCB+EPDM
* Stem : Stainless Steel 416
Characteristic:
* Medium: Water, Waste Water, Air, Oil
* Temperature: -20 to 100℃
Company Profile
Anhui YFA Fluid Technology Co., Ltd. is a professional valve manufacturer with high quality products and internal management standards. It has a high reputation in the foundry industry. Our company has a modern factory, advanced manufacturing processing and testing equipment, strong technical force.
We have More than 100 employees, more than 40 years of professional experience, skilled technicians and operators, the products passed ISO 9001:2015 and CE and WRAS certification, our main products are metal and soft seat gate valve, eccentric butterfly valve, triple-eccentric butterfly valve, concentric butterfly valve,ball valve,check valve,globe valve, Y-strainer, rubber joints, etc. With product quality and perfect service system, it is sold in dozens of countries and regions such as Europe, America, Southeast Asia, Middle East, Australia, North Africa, South Korea and so on.
Our company's purpose is: professional and technical support, perfect after-sales service! We welcome you to contact us for more information and look forward to working with you!
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Why Choose Us
FAQ
Q: Can I have your samples?
A: Yes, You should pay for the samples first, after order finished we will refund the sample cost to you.
Q: Can you accept OEM service?
A: Yes, we can produce the cargo completely according to your own drawing, also we accept your own logo to be casted on valve body, and we accept customized color you want to be painted.
Q:What's your payment term?
A:We accept T/T(RMB,USD,EUR), L/C, Alibaba Trade Assurance Order.
Q:How is the transportation?
A: By Sea, by Railway, by Air, by DHL,TNT,UPS,FEDEX and so on.
Q: When will make delivery ?
A: We have small quantity stock for standard products. As usually, the delivery time is according to the quantity of the order.
Q:After-sales Service
A: 1 year warranty for all kinds of products; As an experienced manufacturer, you can rest assured of the quality and after-sales service.
Q. Why choose us?
A:1. YF products with excellent quality and competitive price.
2.Cooperating with customers all over the world from more than 60 countries and regions, knowing the markets very well.
3.We have been specializing in flow control area for more than 35 years. Everyone can be rest assured working with us.
4.After-sale services will be highly-satisfying. Any problem and feed backs will be answered in short time.
Q: Can you accept OEM service?
A: Yes, we can produce the cargo completely according to your own drawing, also we accept your own logo to be casted on valve body, and we accept customized color you want to be painted.
Q:What's your payment term?
A:We accept T/T(RMB,USD,EUR), L/C, Alibaba Trade Assurance Order.
Q:How is the transportation?
A: By Sea, by Railway, by Air, by DHL,TNT,UPS,FEDEX and so on.
Q: When will make delivery ?
A: We have small quantity stock for standard products. As usually, the delivery time is according to the quantity of the order.
Q:After-sales Service
A: 1 year warranty for all kinds of products; As an experienced manufacturer, you can rest assured of the quality and after-sales service.
Q. Why choose us?
A:1. YF products with excellent quality and competitive price.
2.Cooperating with customers all over the world from more than 60 countries and regions, knowing the markets very well.
3.We have been specializing in flow control area for more than 35 years. Everyone can be rest assured working with us.
4.After-sale services will be highly-satisfying. Any problem and feed backs will be answered in short time.
Похожие товары
DN250 клапан-бабочка из алюминиевого сплава соединение с Pn10/Pn16/Cl125/Cl150/JIS 10K
Дроссельная задвижка из нержавеющей стали с 316
Тип пластины PN16 из нержавеющей стали с регулировкой маховика пневматический привод регулирующий клапан-бабочка

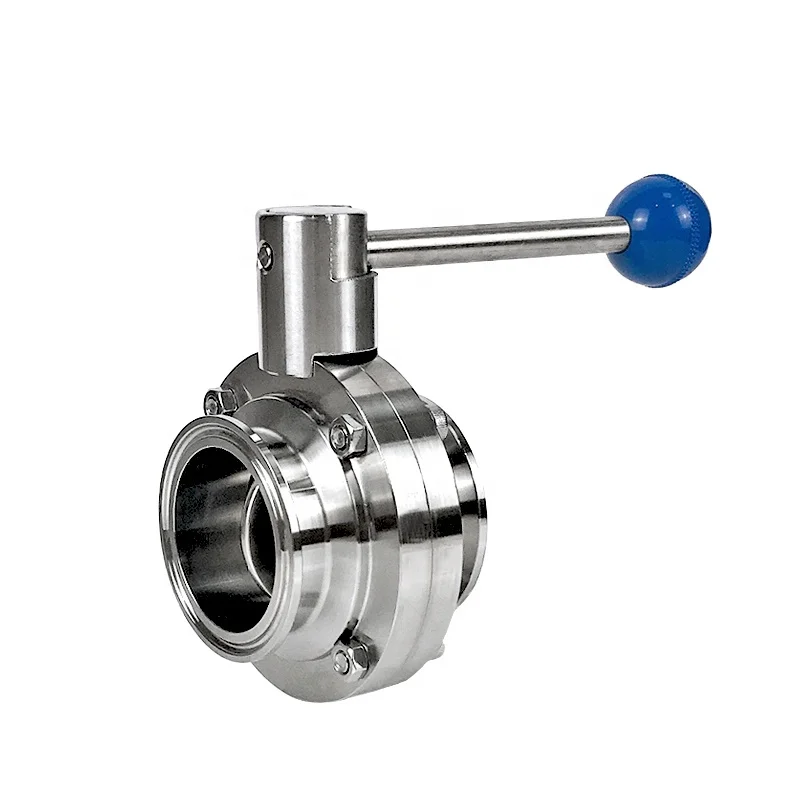

Пищевой клапан-бабочка из нержавеющей стали сварной Клапан-Бабочка
