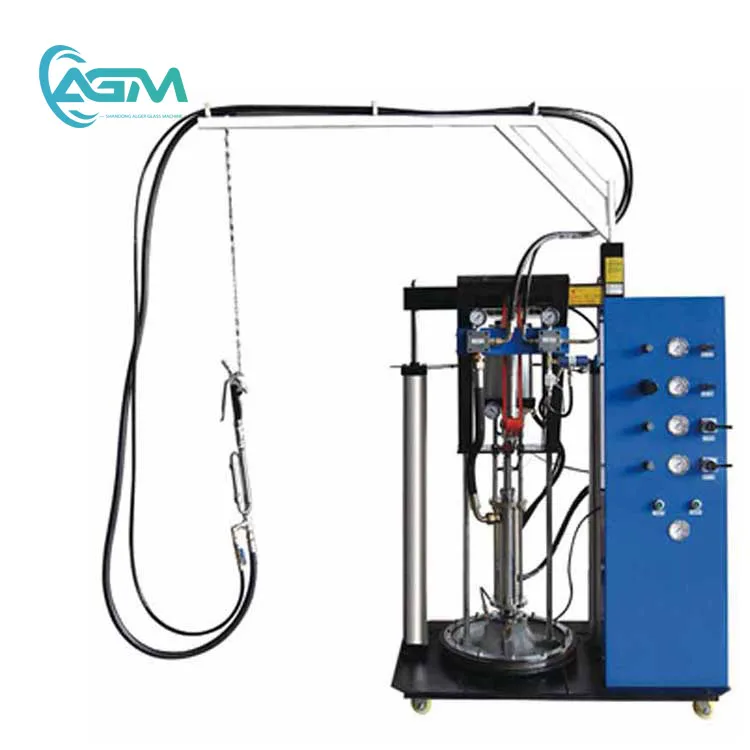

Новое производство двухкомпонентная машина для раздачи силиконового клея изоляционного стекла
- Категория: >>>
- Поставщик: Liaoning Alger Building Material Industrial Co. Ltd.Liaoning Ltd.
Сохранить в закладки 1601287813288:
Описание и отзывы
Характеристики
Product introduction

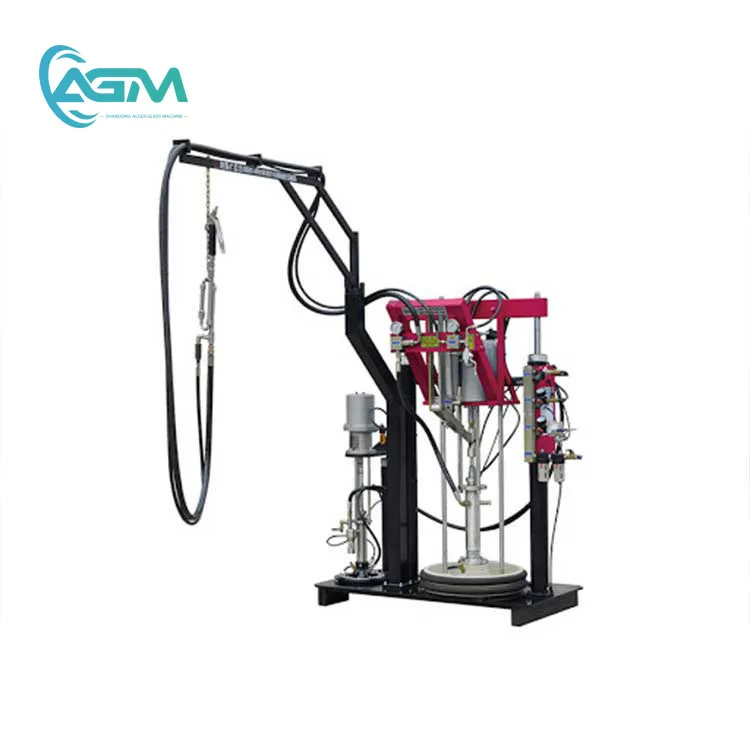

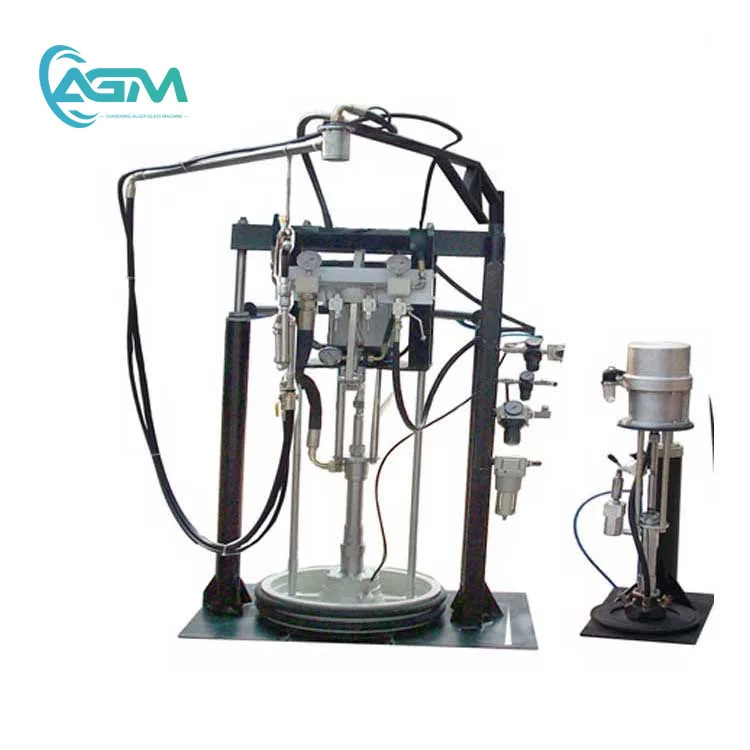

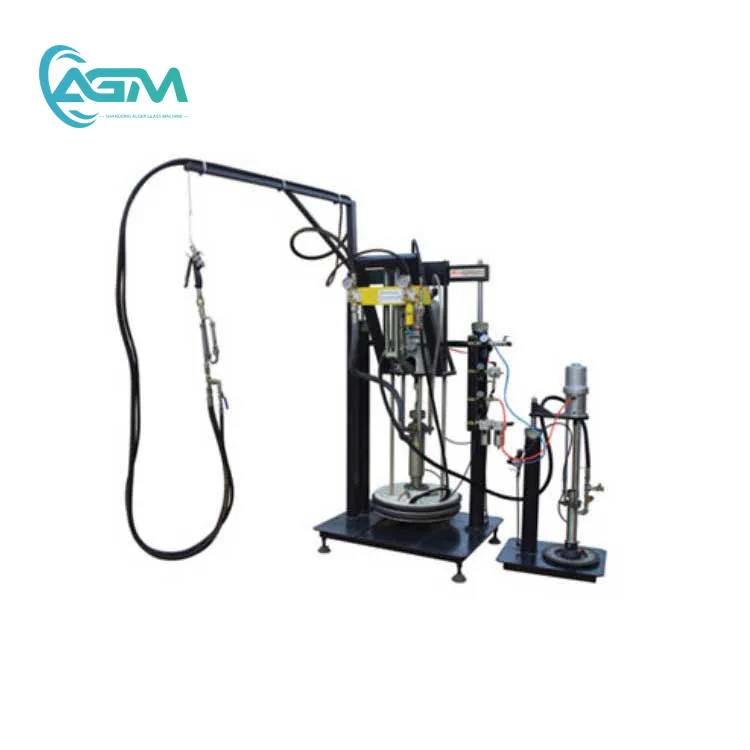

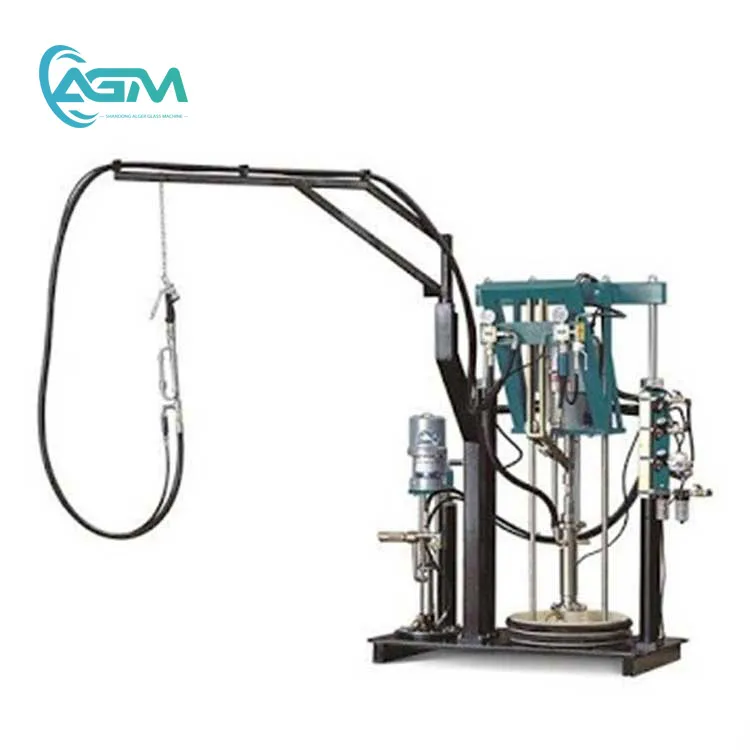

Two - component silicone sealant Extruder machine
1. Description:
It is composed of raw material pump, solidification pharmaceutical pump, proportional pump, sealant-mixture system, hydraulic pressure system, electric system and so on. Raw material pump, solidification pharmaceutical pump and proportional pump adopt the special high-pressure filling pump and the materials can be supported equivalently in two-way. The raw material pump is compelled by the hydraulic pressure sysem while the solidification pharmaceutical pump is compelled by the pheumatic motor. There are high-pressure valves in the underpart entrance of solidification Pharmaceutitcal filter and material-feeding place of the mixing device and one-way valve is set in the mixing device so as to prevent two-components from fleeing each other. Rising and falling system is controlled by hand valve and the proportion of the two-components can be changed by adjusting the
slipper in the swinging pole. Tighening the nut once the demanding scale is reached.
2. Technical Parameter:
1. Description:
It is composed of raw material pump, solidification pharmaceutical pump, proportional pump, sealant-mixture system, hydraulic pressure system, electric system and so on. Raw material pump, solidification pharmaceutical pump and proportional pump adopt the special high-pressure filling pump and the materials can be supported equivalently in two-way. The raw material pump is compelled by the hydraulic pressure sysem while the solidification pharmaceutical pump is compelled by the pheumatic motor. There are high-pressure valves in the underpart entrance of solidification Pharmaceutitcal filter and material-feeding place of the mixing device and one-way valve is set in the mixing device so as to prevent two-components from fleeing each other. Rising and falling system is controlled by hand valve and the proportion of the two-components can be changed by adjusting the
slipper in the swinging pole. Tighening the nut once the demanding scale is reached.
2. Technical Parameter:
Mixing ration proportion of mixture: 6: 1-14: 1
Raw material barrel: 55Gallon(200L)
Solidification pharmaceutical barrel: 5Gallon(20L)
Max. Air-consumption volume: 0.5m3/min
Max. Squeeze pressure: 20Mpa
Air source presure: 0.5-0.8Mpa
Raw material barrel: 55Gallon(200L)
Solidification pharmaceutical barrel: 5Gallon(20L)
Max. Air-consumption volume: 0.5m3/min
Max. Squeeze pressure: 20Mpa
Air source presure: 0.5-0.8Mpa
Product name | Insulating Glass Two Component Sealant spreading machine |
MOQ | 1SET |
Glass thickness | 3-18mm |
Glue gun | single or double |
Package | films or wooden case |
key words | two component sealing sealant |
logo | Can be customized |
Related products
Automatic Vertical Glass Washing And Drying Machine
Butyl Sealant Extruder Machine for Aluminum Spacer Bar
Packing & Delivery
Why choose us?
Our Services & Strength
1.Carton minumum order
2.Delivery on time
3.Free samples
4.24*7Hours online service
5.Flexiable&Secured payment
6.0 Worry about quality
7.Our team are young but professional
2.Delivery on time
3.Free samples
4.24*7Hours online service
5.Flexiable&Secured payment
6.0 Worry about quality
7.Our team are young but professional
Company Introduction
Liaoning Alger Building Materials And Machine Co.,LTD locates in Bayuquan, Yingkou,Liaoning province, a beautiful coastal city. Alger was established in 2008.
Alger is committed to produce and provide environmental energy-saving building materials and advanced intelligent efficiency machineries with better technical support and service. We own several subsidiaries to manufacture materials.
Our main products scope :
I.Insulating Glass Sealing Materials
II.Adhesive Composition
III.Glass Deep Processing Equipments
IV.Fittings
VI.Hardware for Door and Window
Our team is young in average age but with mordern spirit of high technology.The products are widely recognized and trusted by users and can meet continuously changing economic and social needs. We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success.
Exhibition
FAQ
1.Q:Are you a factory or trading company?
A: No, We are Factory.
2.Q:Is it OK to print my logo on carton?
A:Yes,Please inform us formally before our production and confirm the design.
3.Q:Do you accept credit card payment?
A:According Alibaba regulation,we accept TT/Western Union/MoneyGram. Different payment would have different require of customer.
4.Q:Can I have a sample?
A:Yes, but you should pay the freight.
5.Q:How do you make our business long-term and good relationship?
A:We will always keep the best quality product and the most competive price to ensure our clients the best interests. Also we will regard you as our good friend in life and a reliable partner in business cooperation.
Похожие товары

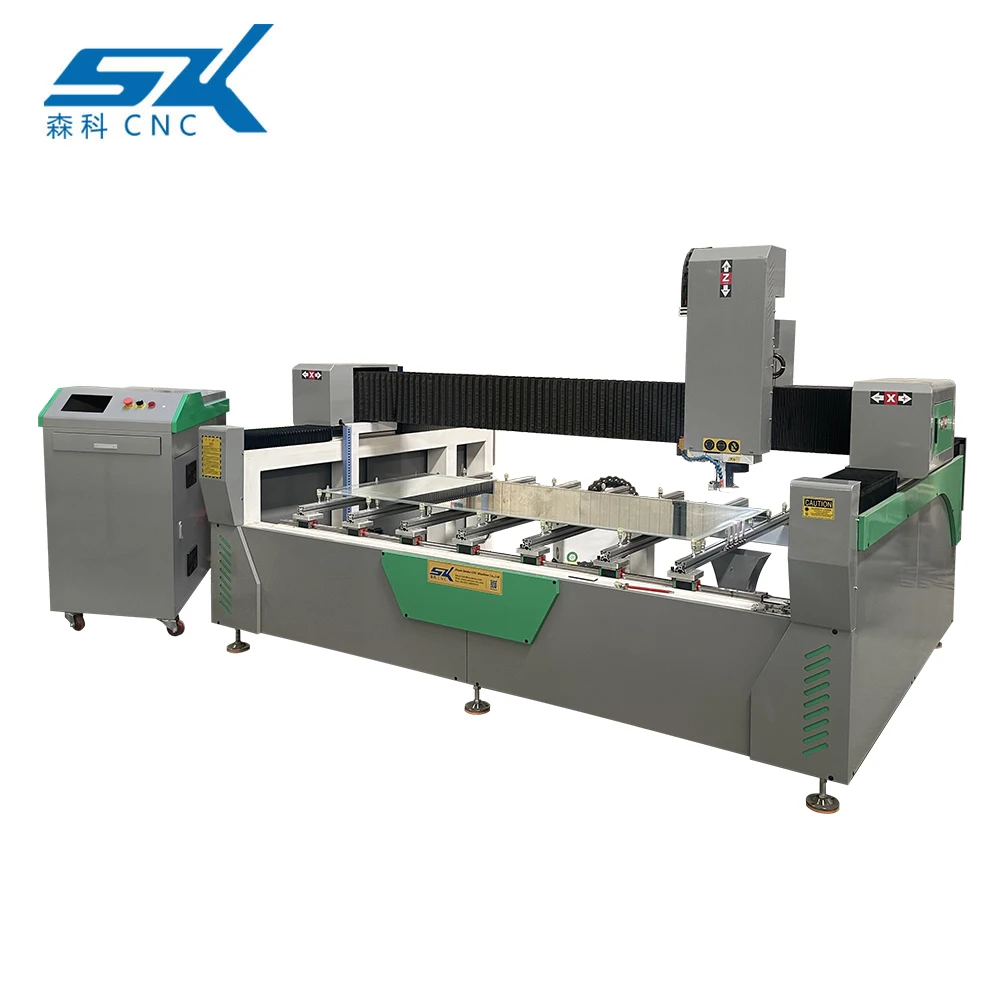

Mornsun ЧПУ Лазерная пескоструйная глазурь на зеркало с функцией удаления краски и сверления
3 000 330,48-3 361 816,08 ₽
Высокоскоростная автоматическая прокладка гибочная машина для алюминиевых прокладок несколько режимов изгиба стекольной промышленности
2 168 913,60 ₽
По индивидуальному заказу стеклянный вакуумный подъемник
783 218,80-1 626 685,20 ₽

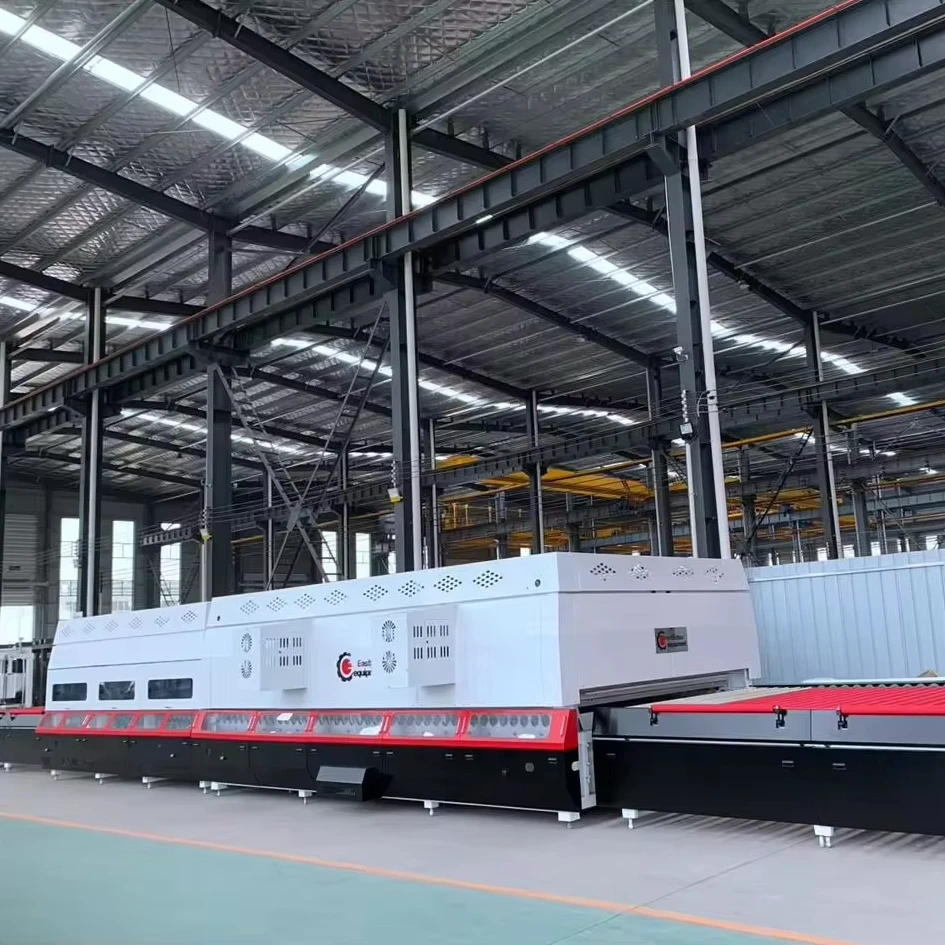

Новое состояние высокое качество машина для Закалки плоского стекла закаленное стекло закаленного
2 289 408,80-7 109 216,80 ₽
120 Вт волоконно-лазер для ванной комнаты серебряное прозрачное зеркало удаления покрасочной живописи пескоструйная маркировочная сверлильная машина
301 238,00 ₽

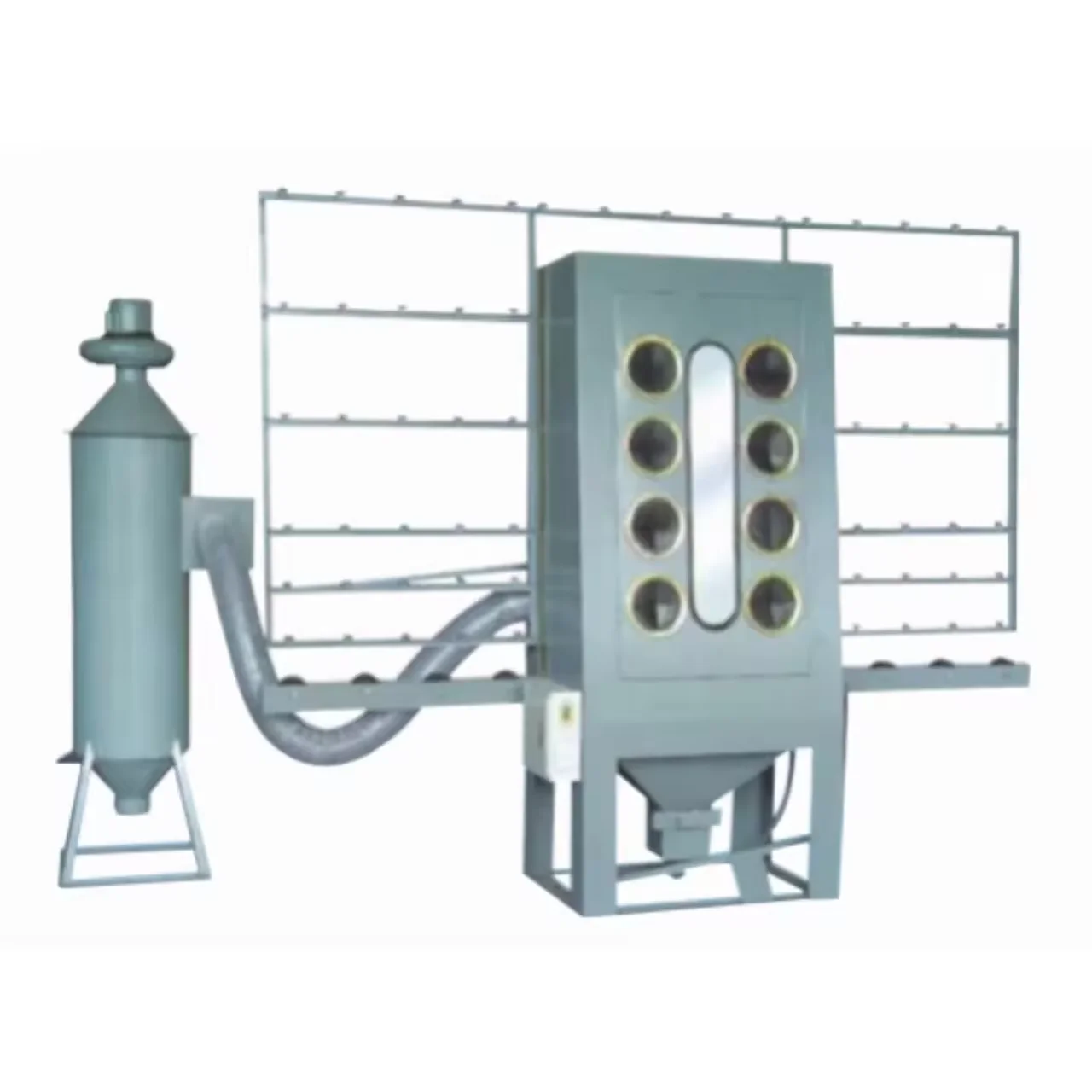

Ручной Пескоструйный станок для вертикального стекла
180 742,80-192 792,32 ₽

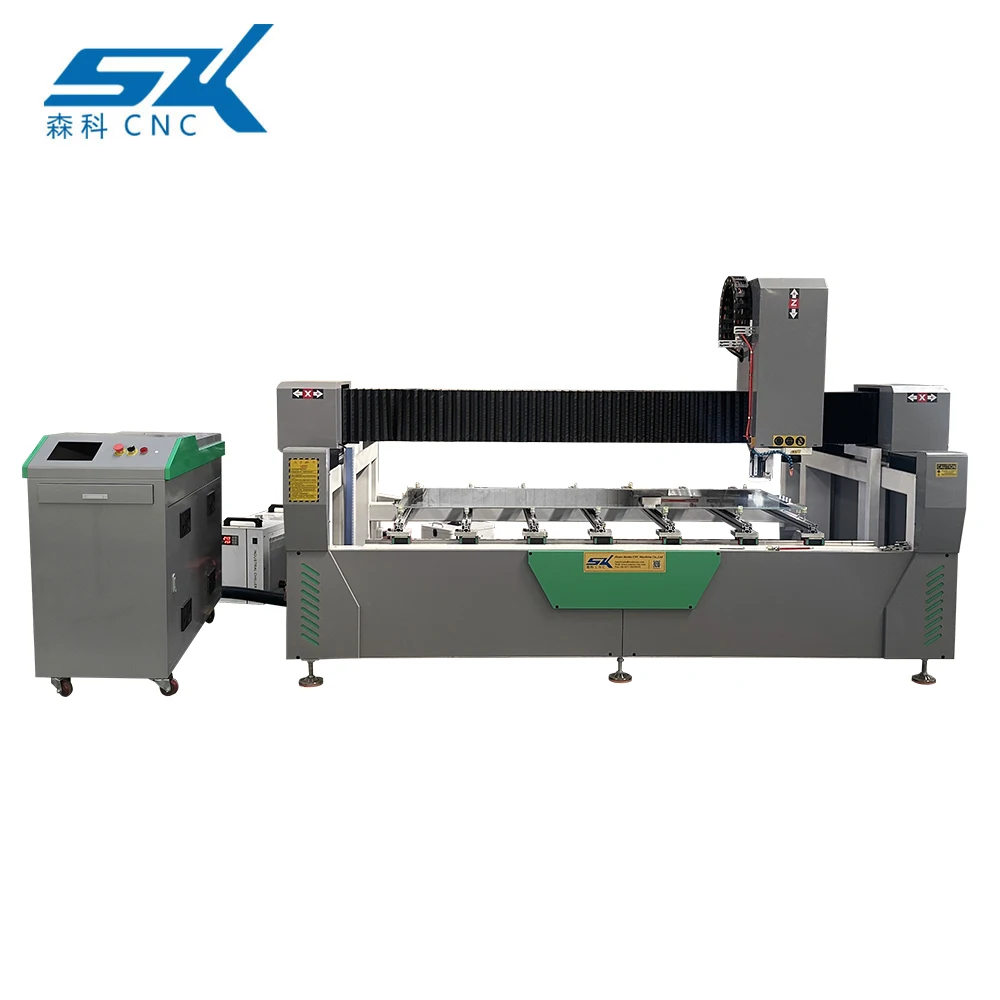

1325 2010 зеркальная поверхность стекла ЧПУ Волоконно-Лазерная краска для удаления глазури пескоструйная гравировальная маркировочная машина
