DC18SF четыре порта зарядки для Makitas 14 4 В 18 литиевая батарея BL1860B BL1460B зарядное устройство с USB 12A
3 145,10 ₽ - 3 369,75 ₽
Водонепроницаемый литий ионный LiFePO4 12 В 14 6 10A многоразовый выход серии 4 банка 4 канальный аккумулятор зарядное устройство
- Категория: >>>
- Поставщик: Shenzhen OSN Power Tech Co. Ltd.
Сохранить в закладки 1601287861164:
Описание и отзывы
Характеристики
Product Description

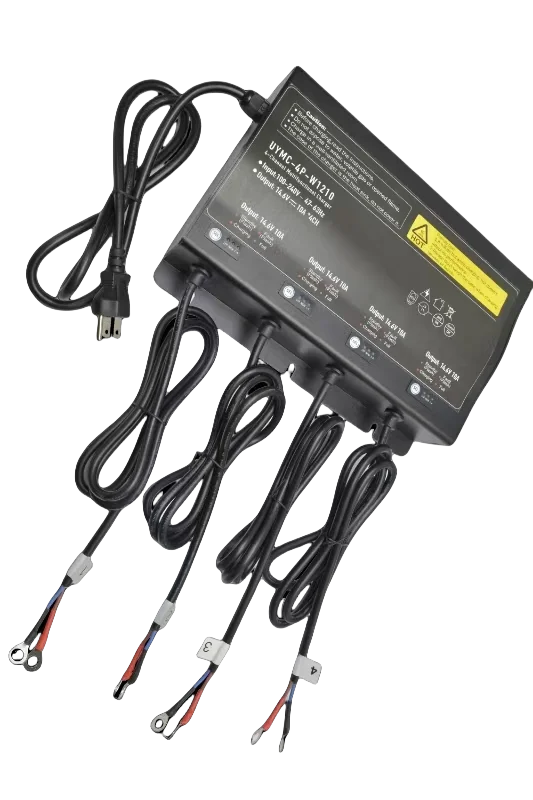

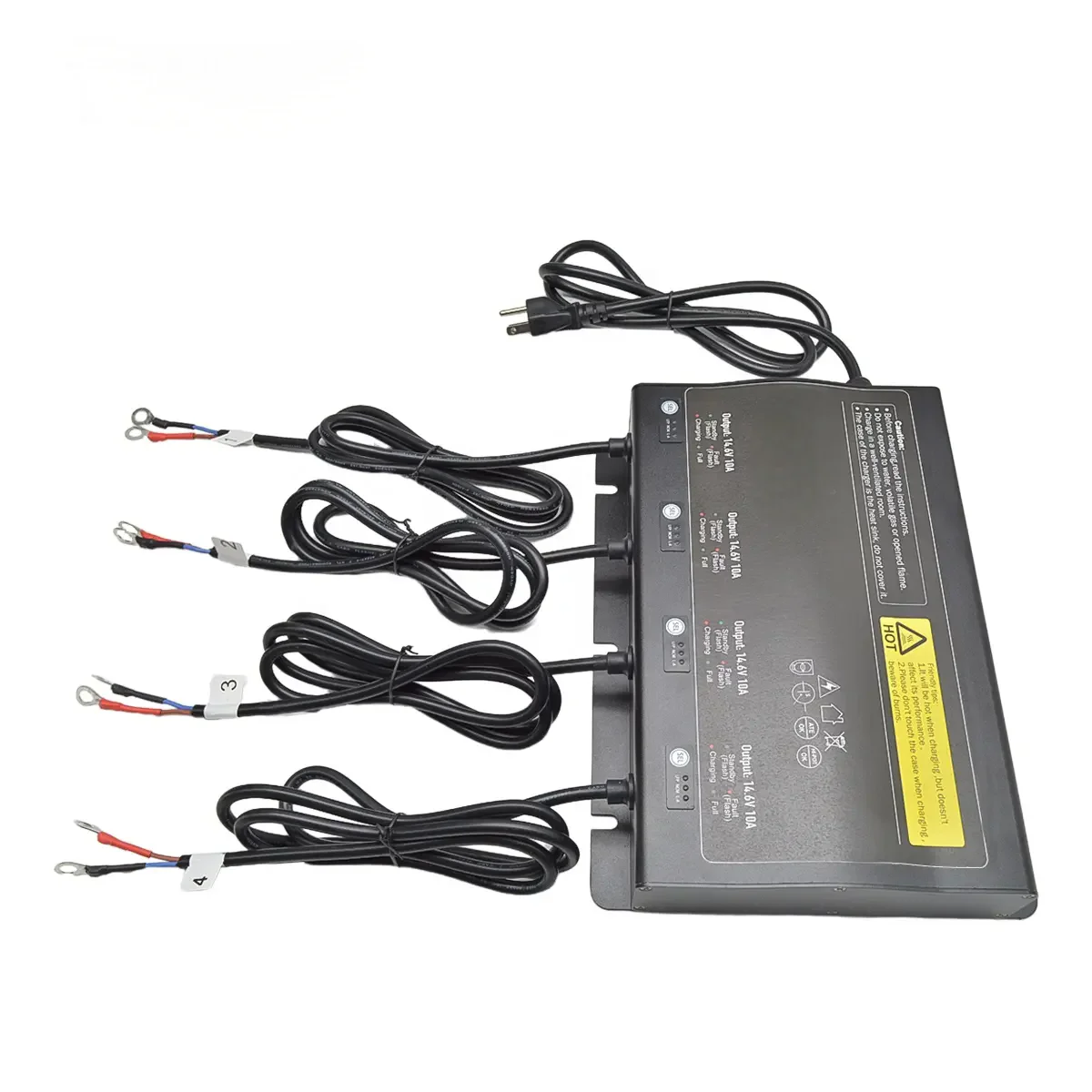

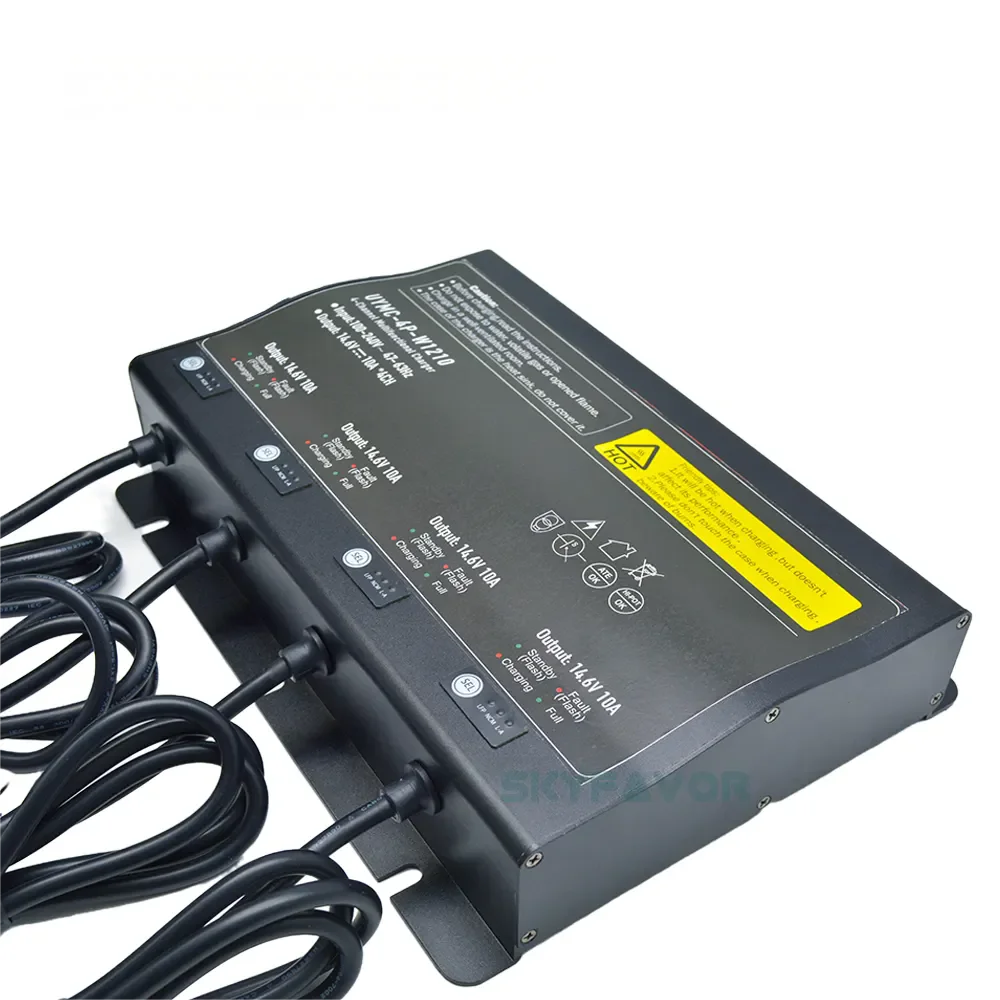

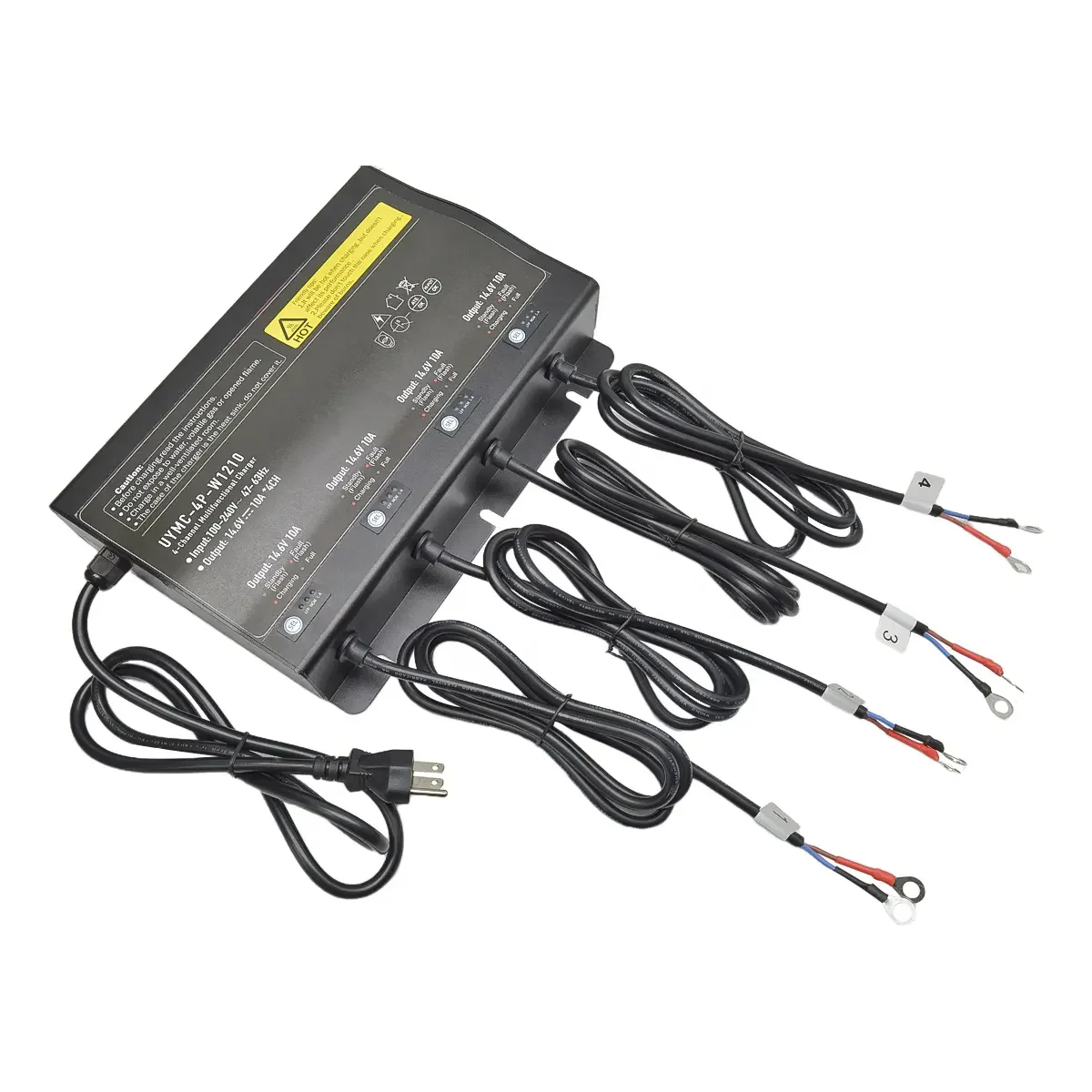

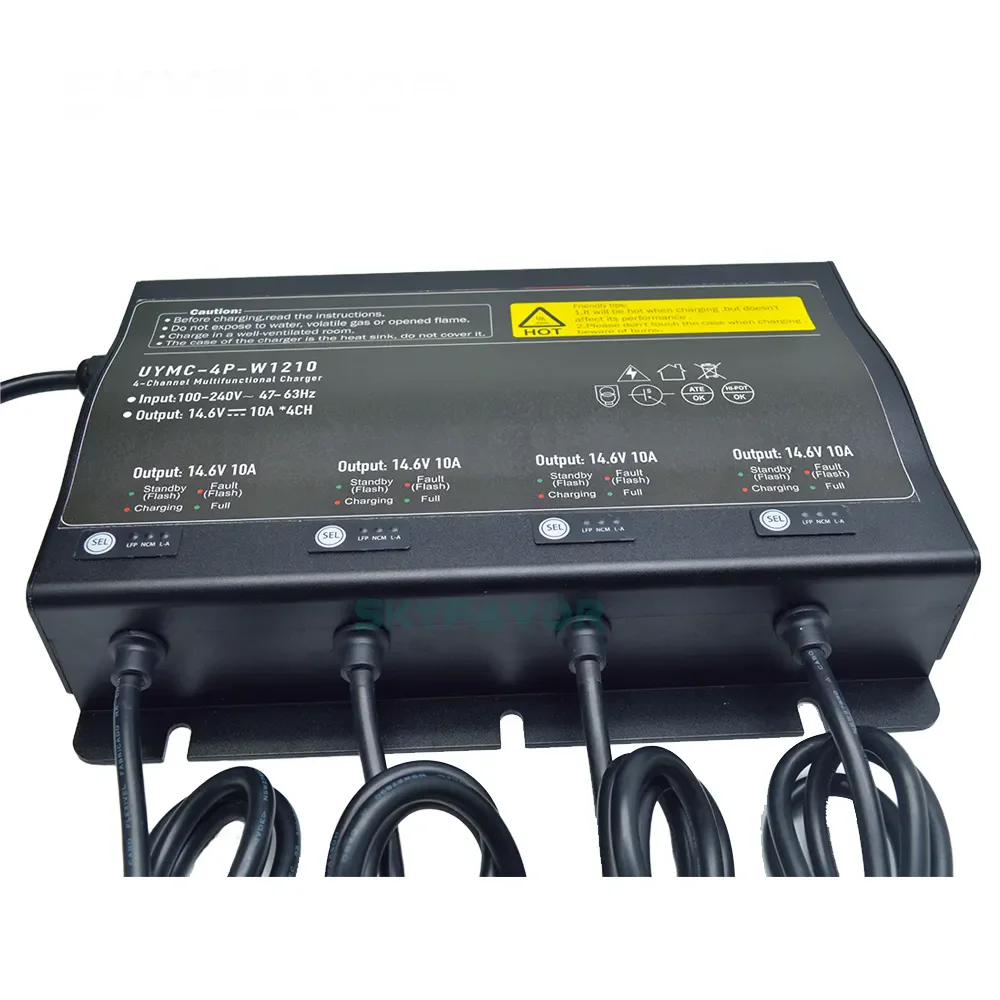

Waterproof Lithium ion LiFePO4 12v 14.6V 10A Multi-output Series 4 Bank 4 Channel Battery Charger
This series charger belongs to the multi-output power supply, which can meet different needs and has high power to ensure that each device can be fully charged. It has good stability, which can avoid problems such as short circuit, overload, and overvoltage, while ensuring efficiency and safety. Users can choose products suitable for different usage scenarios. Based on this series charger, this product extends the button function, making it convenient for users to use our products in specific situations
Specification
Items | Parameter | |
OutPut | LFP charging voltage | 14.6V*4 |
NCM charging voltageModel Number | NCM charging voltage | 16.8V*4 |
L-A charging voltage 14.7V*4Place of Origin | Lead acid charging voltage | 14.7V*4 |
Max power | 672W | |
Material | Float voltage | 13.8V(only Lead) |
voltage fluctuationProduct name | voltage fluctuation | ±0.3V |
Input | Constant charge current | 10A ±5% |
Turning Lamp CurrentOutput | Turning Lamp Current | Lead 2.5A/Lithium 0.8A |
InPut | Voltage range | 90V~260VAC |
Function | Frequency range | 47~63Hz |
Application | Power factor | PF>0.98/115VAC, PF>0.95/230VAC at full load |
Application2 | Efficiency | ≥87% |
Application3 | Input current(type) | 4A/115VAC 2A/230VAC |
Application4 | Vomit (type) | COLD START ≤50A at 230VAC |
Color | Leakage Current | ＜0.75m A |
Feature
4-Channel multifunctional Battery Charger
1.LLC+Active PFC.
2. Support wide voltage (90~260Vac) input, high efficiency.
3. Charge 4 groups of batteries at the same time.
4. Charger with button function, according to the button to switch to adapt to different types of batteries.(LFP/NCM/L-A)
Better adaptability than conventional chargers.
Better adaptability than conventional chargers.
Over-voltage protection: If the voltage at the output of the charger exceeds 15V (3.75V/Cell), the charger will disconnect the internal relay to cut off the output circuit, and will automatically return to normal operation after troubleshooting.
Over-current protection: If the charger output current exceeds 12A (120% of the maximum charging current), the charger will enter into over-current protection and disconnect the internal relay to cut off the output circuit. Normal operation will be restored automatically after troubleshooting.
Short-circuit protection: If the positive and negative terminals of the charger output are short-circuited, the charger will
disconnect the internal relay to cut off the output circuit. It can be restored automatically after troubleshooting.
Reverse connection protection: If the positive and negative terminals of the charger output are reversed with the positive and negative terminals of the battery pack, the internal relay will not close and the charging circuit will be disconnected. Normal operation can be restored after the battery is properly connected.
Over-current protection: If the charger output current exceeds 12A (120% of the maximum charging current), the charger will enter into over-current protection and disconnect the internal relay to cut off the output circuit. Normal operation will be restored automatically after troubleshooting.
Short-circuit protection: If the positive and negative terminals of the charger output are short-circuited, the charger will
disconnect the internal relay to cut off the output circuit. It can be restored automatically after troubleshooting.
Reverse connection protection: If the positive and negative terminals of the charger output are reversed with the positive and negative terminals of the battery pack, the internal relay will not close and the charging circuit will be disconnected. Normal operation can be restored after the battery is properly connected.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
OSN Power Tech Limited (website www.osnpower.com) has grown to the leading manufacturer of lithium battery packs with 10 years of experience. We boast of more than 300 trained workers,36 experienced engineers and technicians in lithium battery R&D solution and efficient sales teams to meet customers specific battery requirement Power Tech Limited develops and manufactures high power and superior performance N C M/ L F P /L T O lithium-ion battery packs which are widely used in electric bikes,electric-scooters,motorcycles,energy storage system.Especially in high-end smart e-scooter field,we supply battery packs for stable demands of customers from all over the world.We cooperate with customers from all over the world,providing total solutions for the customers from project evaluation,design,production,inspection,logistics,insurance to after-sales services.
