ISG Вертикальная турбина центробежный трубопровод тестирование давления водяной насос
91,00-107,00 $
Хорошая цена новый продукт горное оборудование контроль пыли обезвоживающий шламовый вакуумный насос для минеральной экстракции
- Категория: >>>
- Поставщик: Kaspar Intelligent Equipment (dongguan) Co. Ltd.Kaspar Ltd.
Сохранить в закладки 1601288312138:
Описание и отзывы
Характеристики
Products Description
Product Description

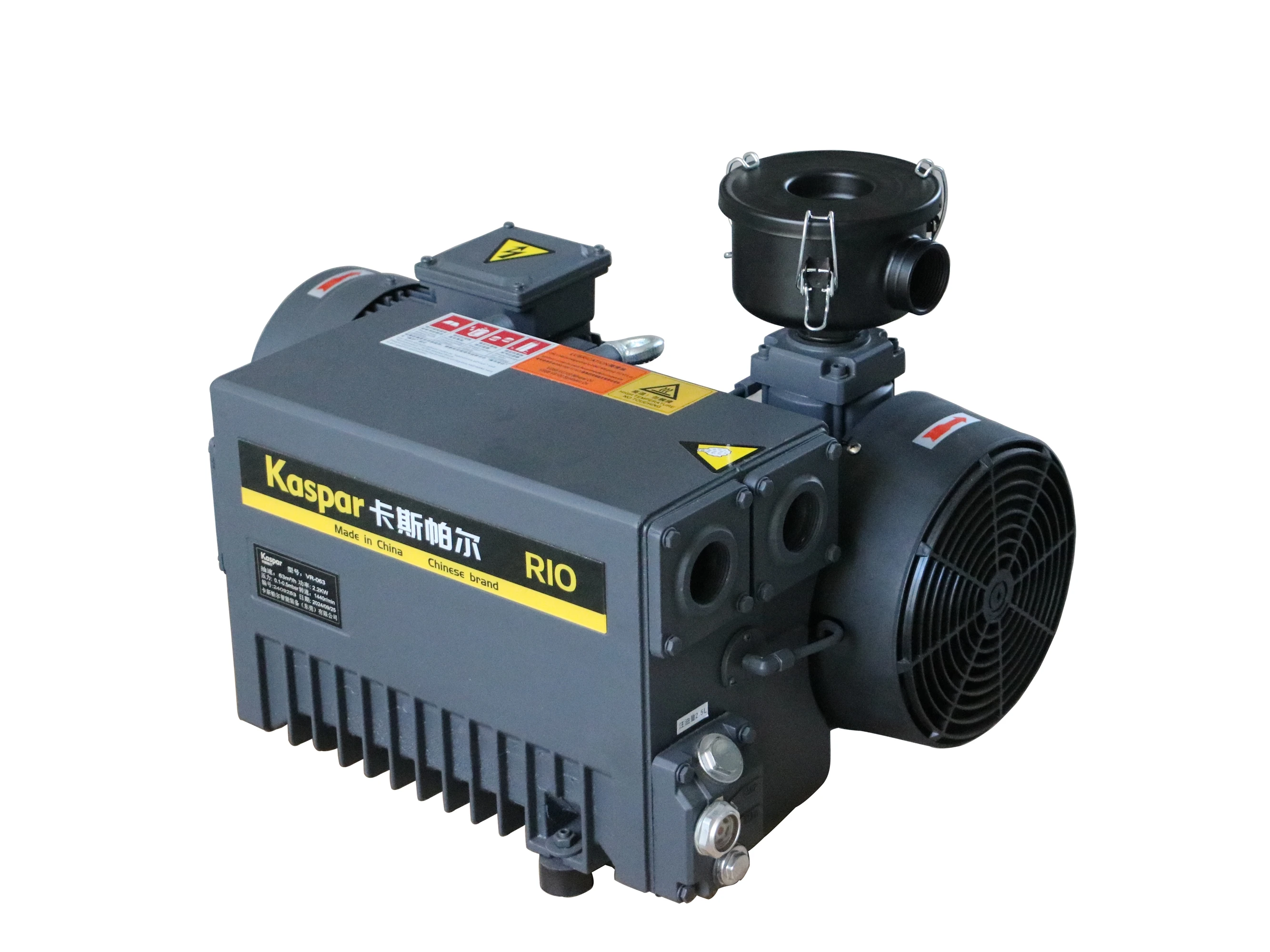

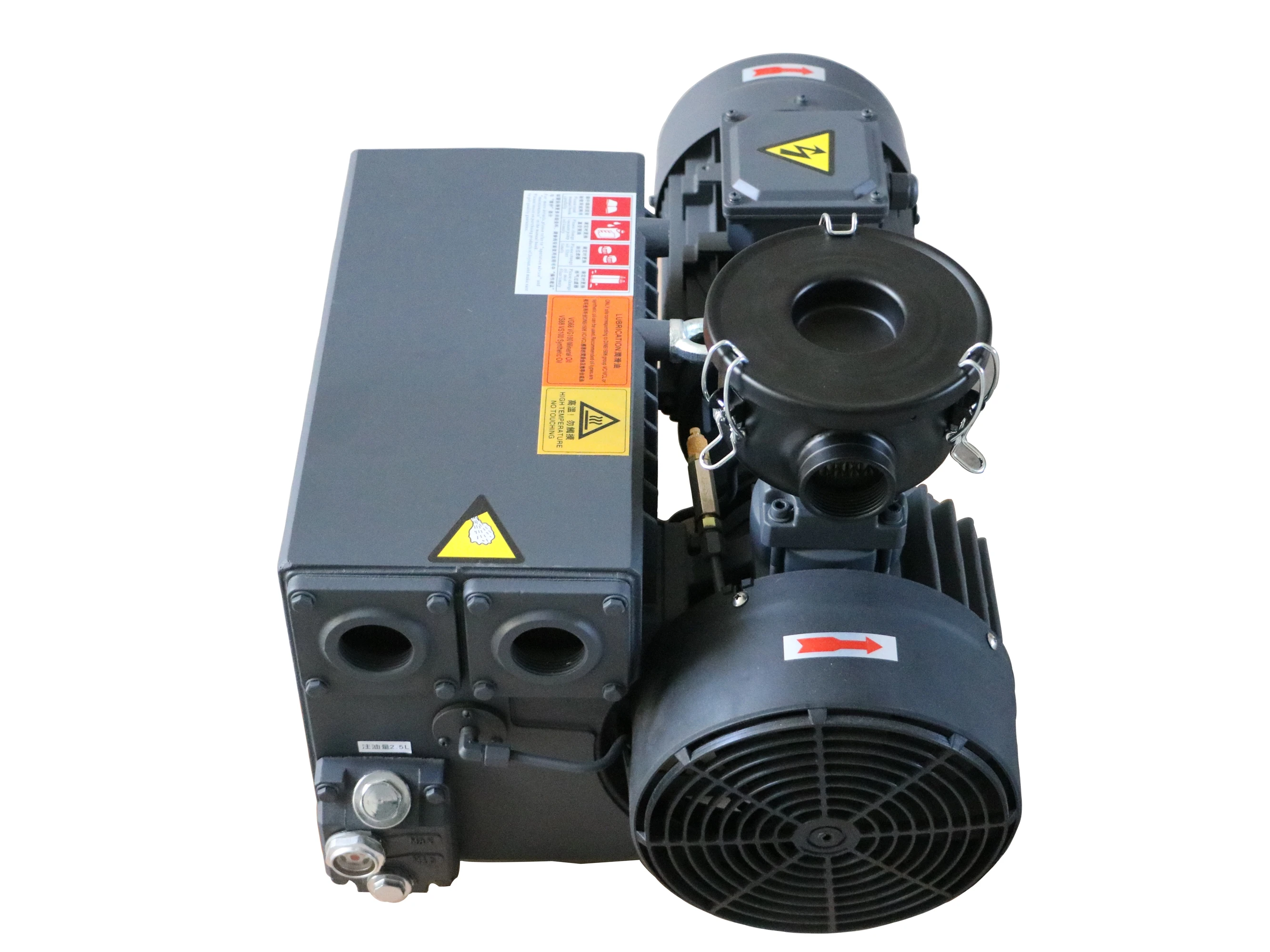

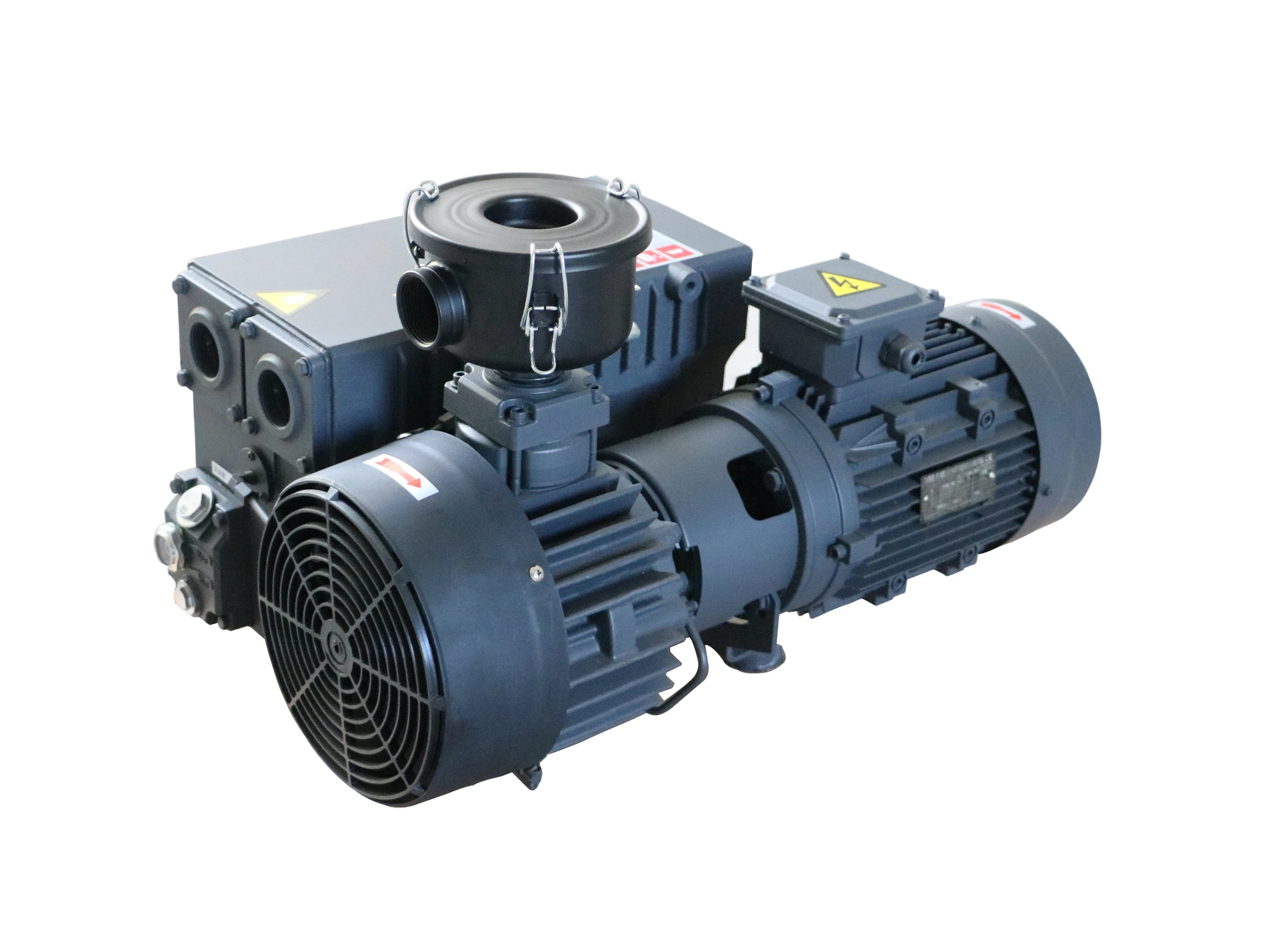

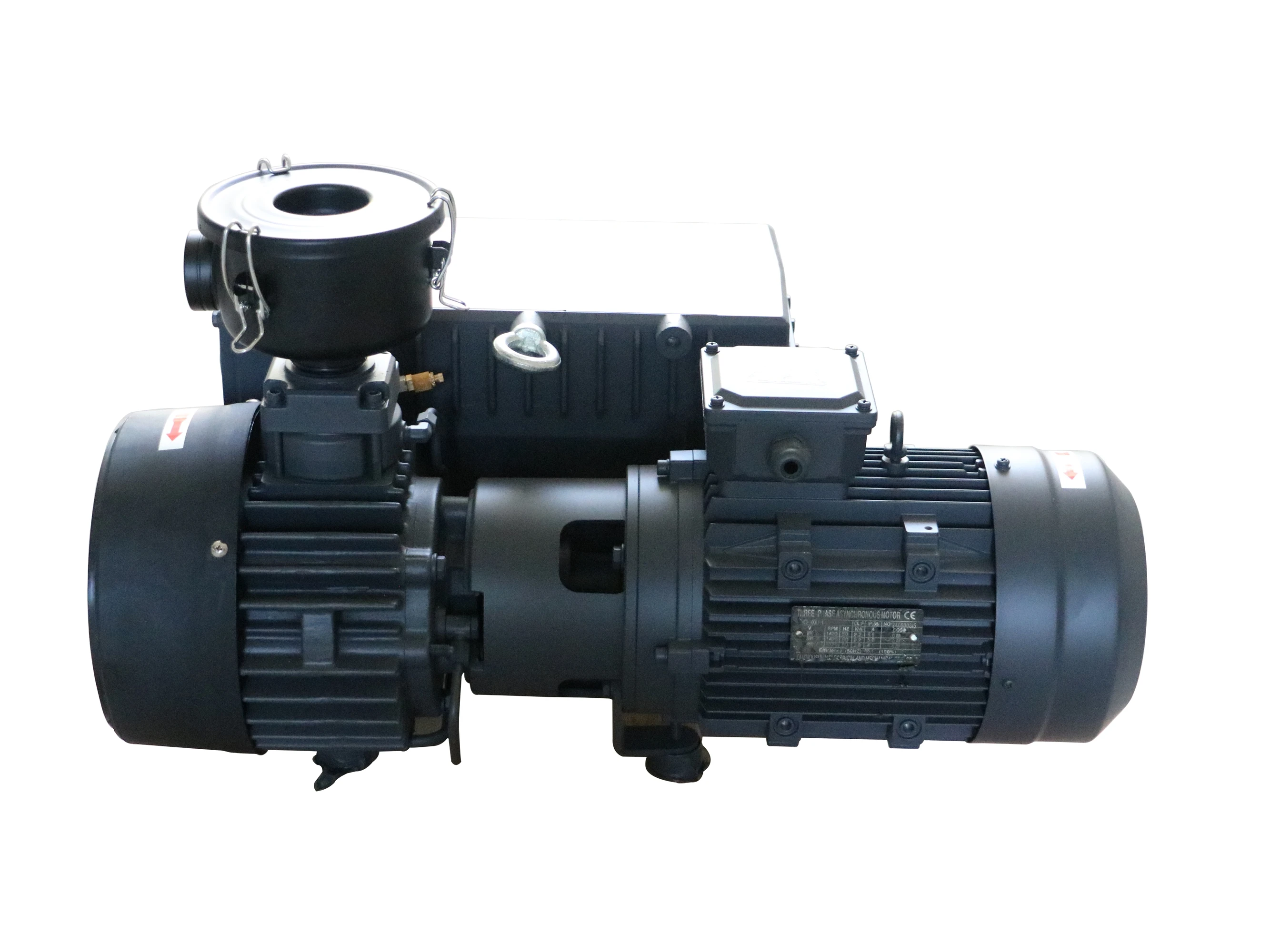

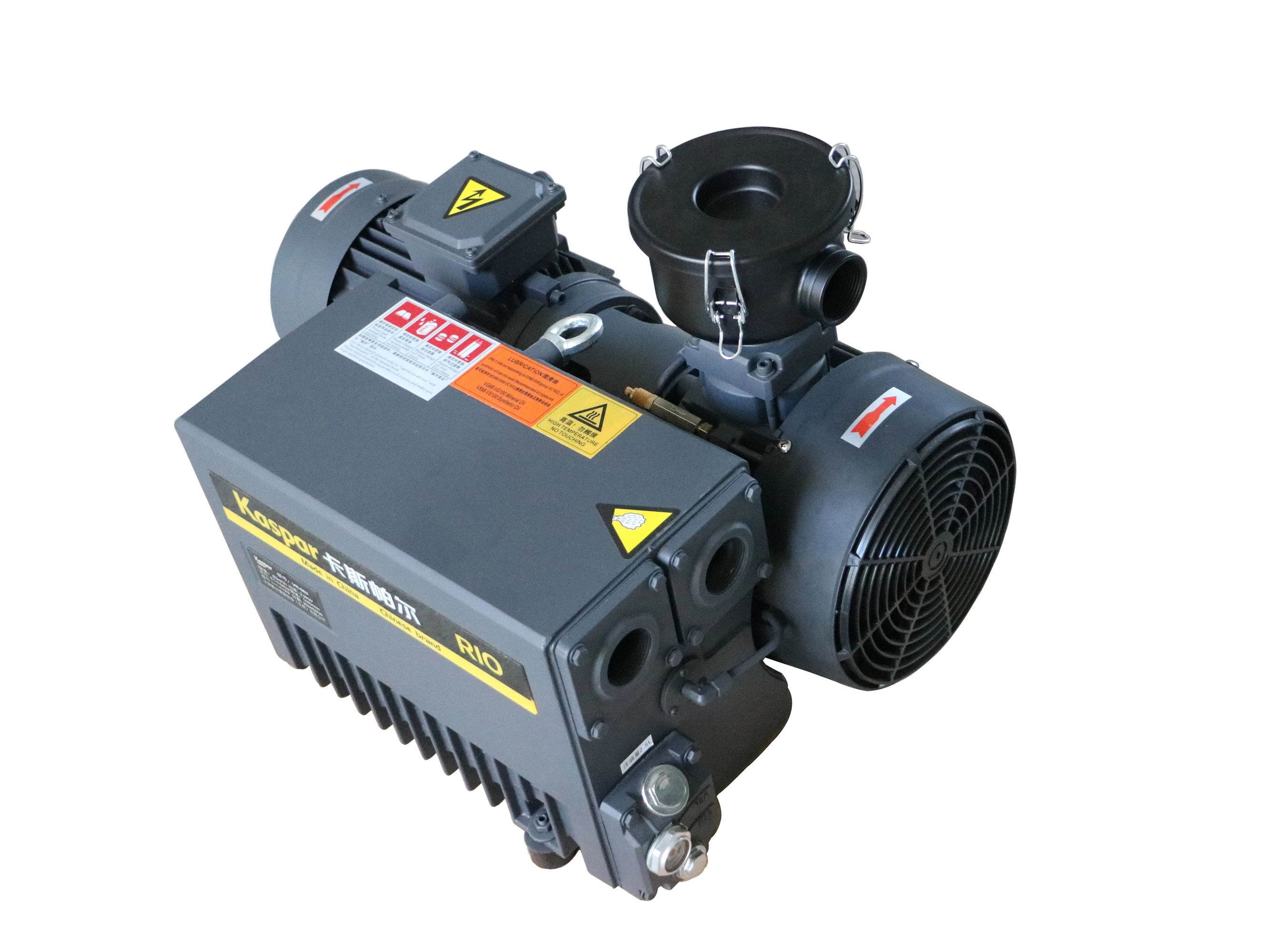

V series vacuum pump is a single-stage rotary vane oil-sealed vacuum pump, which is suitable for low and medium vacuum fields, mainly used for pumping out air and other dry gases. It is one of the main equipments for low and medium vacuum, and can be used alone or be the pre-stage pump for other vacuum pumps.
Product features
Standard motor direct drive, can be customised for special requirements motor structure is compact and lightweight, especially suitable for equipment matching suction and exhaust ports with standard threads, easy to connect with high-efficiency oil and gas separation device, clean exhaust, smooth and quiet operation, no need for special fixing or vibration damping devices Reliable oil circulation structure is suitable for long term continuous operation easy installation and maintenance and low running costs. Reliable running performance, low vibration, low noise, high efficiency.
Typical applications
* Thermoforming (Blister, Pressure Air, Foam) moulding
* Vacuum packaging equipment and food processing technology
* Vacuum degassing, defoaming, infiltration, concentration, drying
* Vacuum adsorption, clamps, spreaders, suction cups
* Vacuum lamination, moulding, laminating
* Vacuum crystallisation, distillation, injection, cooling
Suitable industries
* Vacuum packaging and food processing machinery
* Vacuum moulding and shaping equipment
* Vacuum drying and filtration equipment
* Material degassing and leaching equipment
* Vacuuming of mould cavities
* Vacuum manipulators or tables, etc.
* Small and medium-sized mobile vacuum stations
V series vacuum pump is a single-stage rotary vane oil-sealed vacuum pump, which is suitable for low and medium vacuum fields, mainly used for pumping out air and other dry gases. It is one of the main equipments for low and medium vacuum, and can be used alone or be the pre-stage pump for other vacuum pumps.
Product features
Standard motor direct drive, can be customised for special requirements motor structure is compact and lightweight, especially suitable for equipment matching suction and exhaust ports with standard threads, easy to connect with high-efficiency oil and gas separation device, clean exhaust, smooth and quiet operation, no need for special fixing or vibration damping devices Reliable oil circulation structure is suitable for long term continuous operation easy installation and maintenance and low running costs. Reliable running performance, low vibration, low noise, high efficiency.
Typical applications
* Thermoforming (Blister, Pressure Air, Foam) moulding
* Vacuum packaging equipment and food processing technology
* Vacuum degassing, defoaming, infiltration, concentration, drying
* Vacuum adsorption, clamps, spreaders, suction cups
* Vacuum lamination, moulding, laminating
* Vacuum crystallisation, distillation, injection, cooling
Suitable industries
* Vacuum packaging and food processing machinery
* Vacuum moulding and shaping equipment
* Vacuum drying and filtration equipment
* Material degassing and leaching equipment
* Vacuuming of mould cavities
* Vacuum manipulators or tables, etc.
* Small and medium-sized mobile vacuum stations
Model number | VR-020 | VR-025 | VR-040 | VR-063 | VR-100 |
Pumping rate (m³/h) | 20 | 25 | 40 | 63 | 100 |
Limit pressure (mbar) | 0.1~0.5 | 0.1~0.5 | 0.1~0.5 | 0.1~0.5 | 0.1~0.5 |
Motor power (kW) | 0.75 | 0.75 | 1.5 | 2.2 | 3 |
Motor speed (r/min) | 2880 | 1440 | 1440 | 1440 | 1440 |
Noise (dB) | ≤62 | ≤62 | ≤65 | ≤65 | ≤67 |
Allowable pressure of water vapour (mbar) | 40 | 40 | 40 | 40 | 40 |
Water vapour extraction (kg/h) | 0.3 | 0.3 | 0.6 | 1 | 1.6 |
Operating temperature (℃) | 82 | 82 | 80 | 80 | 84 |
Inlet size (mm) | G1/2'' | G3/4'' | G1 1/4'' | G1 1/4'' | G1 1/4'' |
Oil filling capacity (L) | 0.5 | 0.5 | 1.5 | 2.5 | 2.5 |
Pump weight (kg) | 20 | 22 | 45 | 70 | 85 |
Overall dimensions Length*Width*Height (mm) | 330*220*195 | 330*220*195 | 660*290*260 | 665*410*295 | 715*410*295 |
Model number | VR-160 | VR-202 | VR-250 | VR-302 | VR-630 |
Pumping rate (m³/h) | 160 | 200 | 250 | 300 | 630 |
Limit pressure (mbar) | 0.1~0.5 | 0.1~0.5 | 0.1~0.5 | 0.1~0.5 | 0.1~0.5 |
Motor power (kW) | 4 | 4.5 | 5.5 | 7.5 | 18.5 |
Motor speed (r/min) | 1440 | 1440 | 1440 | 1440 | 960 |
Noise (dB) | ≤72 | ≤72 | ≤73 | ≤75 | ≤80 |
Allowable pressure of water vapour (mbar) | 40 | 40 | 40 | 40 | 40 |
Water vapour extraction (kg/h) | 4 | 4 | 4.5 | 5 | 7 |
Operating temperature (℃) | 95 | 95 | 81 | 83 | 85 |
Inlet size (mm) | G2'' | G2'' | G2'' | G2'' | G3'' |
Oil filling capacity (L) | 5 | 5 | 7.5 | 7.5 | 25 |
Pump weight (kg) | 150 | 150 | 195 | 211 | 650 |
Overall dimensions Length*Width*Height (mm) | 850*490*430 | 850*490*430 | 980*560*430 | 1000*535*430 |
Why Choose Us
Product Classification
Company Profile
Our Advantages
Transportation
Похожие товары
Гильза для шламового насоса
680,00-698,00 $
Minya поршневой насос Дайвинг надувные бутылки ручной
Воздушный гидравлические насосы для замены шин легковых автомобилей
100,00-180,00 $
Ручной поворотный ручной насос серии SY
18,00-20,00 $

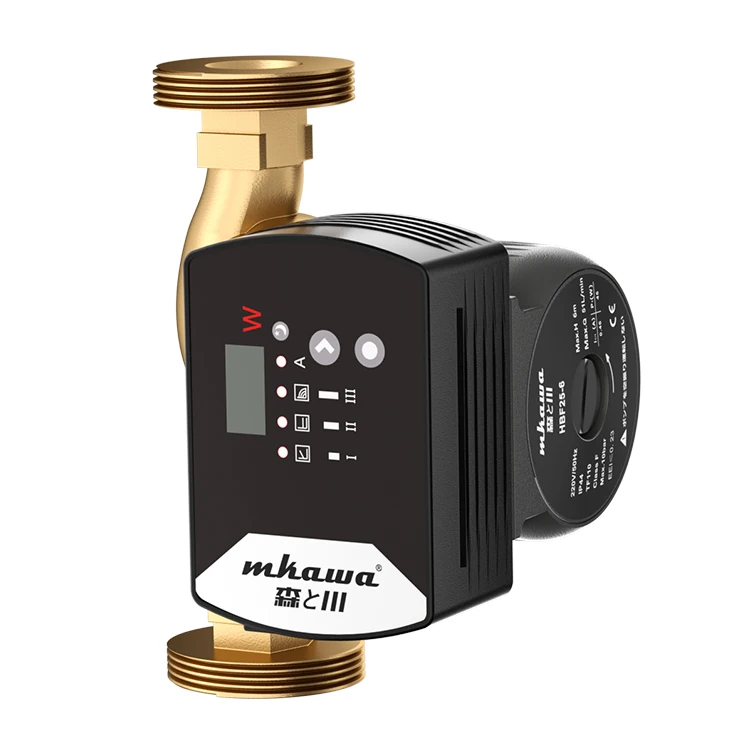

Магнитный ротор с низким энергопотреблением циркулятор высокого давления Электрический автоматический бустер-насос для дома ванной комнаты
