Высокая емкость для хранения грязи микронный нейлоновый мешок жидкого фильтра промышленный фетровый Фильтрующий фильтрации воды
307,20-473,25 ₽
Промышленный 50 сетчатый Многофункциональный фильтр для кукурузного сиропа
- Категория: >>>
- Поставщик: Shanghai Junyi Filter Equipment Co. Ltd.Shanghai Ltd.
Сохранить в закладки 1601288574810:
Описание и отзывы
Характеристики
Products Description

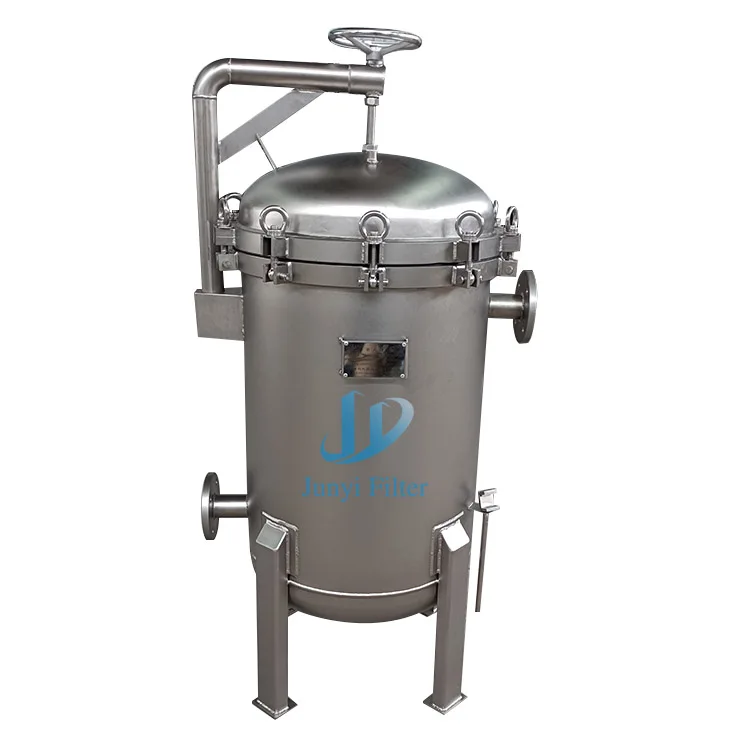

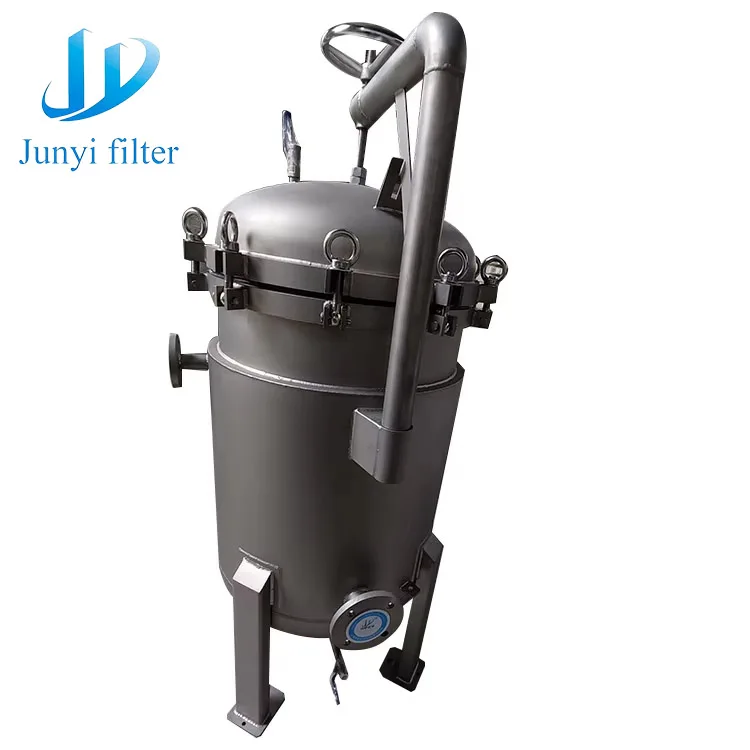

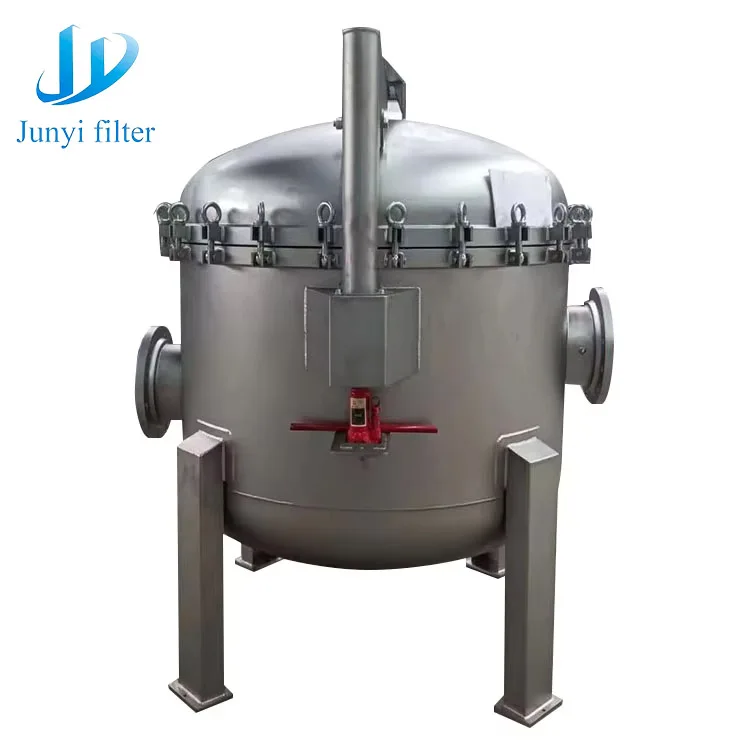

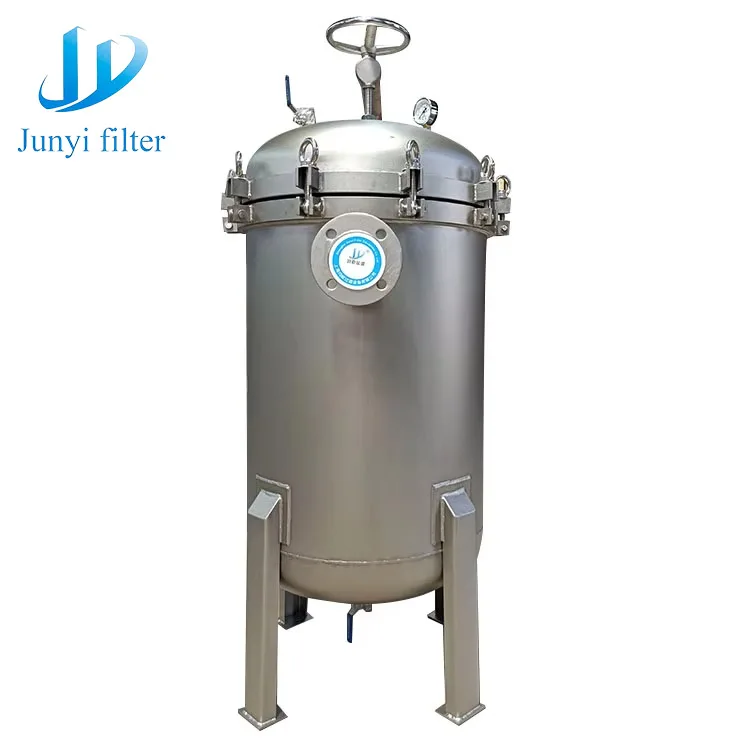

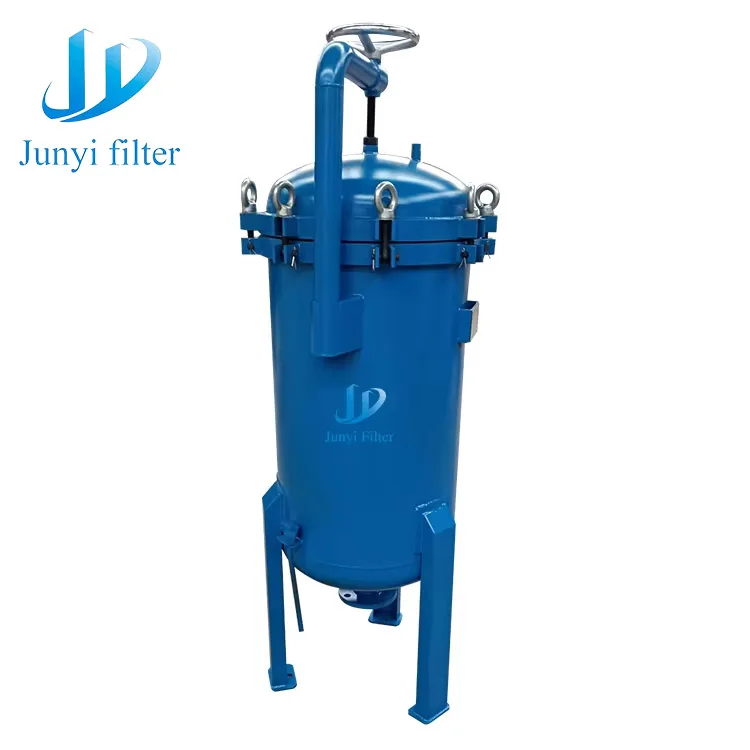

Multi-bag Filter
Multi-bag filter is a multi-purpose filtering equipment with novel structure, small volume, simple and flexible operation, energy saving, high efficiency, closed work and strong applicability.The metal basket inside the filter supports the filter bag. The liquid flows in from the inlet and out from the outlet after the bag filtration. The impurities are intercepted in the filter bag.
Structure
Product Details
Products Show
Specification
Model | Area （㎡） | InIet/Outlet(mm) | Working Pressure | Max. Flow rate(1 centipoise viscosity) | ||
JYMF-2P | Multi bag filter P: number of filter bag 2# Filter bag | 1.0 | DN 65 | Conventional Bag Filter ≤0.6MPA（design pressure: 1.0 MPA） High Presssure ≤1.0 MPA（design pressure: 1.6 MPA） | 80m³/h | |
JYMF-3P | 1.5 | DN 80 | 120m³/h | |||
JYMF-4P | 2.0 | DN 100 | 160m³/h | |||
JYMF-5P | 2.5 | DN 150 | 200m³/h | |||
JYMF-6P | 3.0 | DN 200 | 240m³/h | |||
JYMF-7P | 3.5 | 280m³/h | ||||
JYMF-8P | 4.0 | DN 250 | 320m³/h | |||
JYMF-9P | 4.5 | 360m³/h | ||||
JYMF-10P | 5.0 | 400m³/h | ||||
JYMF-12P | 6.0 | DN 300 | 480m³/h | |||
JYMF-16P | 8.0 | 640m³/h | ||||
JYMF-18P | 9.0 | DN350-500 | 720m³/h | |||
JYMF-20P | 10.0 | 800m³/h | ||||
JYMF-20P | 11.0 | 880m³/h | ||||
JYMF-24P | 12.0 | 960m³/h | ||||
Company Profile
Shanghai Junyi Filter Equipment Co., Ltd. specializes in the manufacturing and sales of filter equipment. We have professional and experienced technical team, production team and sales team, provide good service before and after sales. Adhering to the modern management mode, we always make the precision manufacturing, explore new opportunity and make the innovation.
After years of hard exploration, we has established a complete and effective service system and built an experienced service team, which not only provides customers with site planning and drawing of the layout and flow chart, but also can send our technical personnel to the site to guide the installation and commission for our customers.
We have a very strict and complete quality control system, which promises that goods we produced are always of the best quality, the enough inspectors to ensure that each product can meet the quality requirements of customers. We always final Inspection before shipment.
We produce more than 200 different models of the filter. The main products are the Press Filter / Bag Filter Housing / Automatic self cleaning filter / Basket filter / Magnetic filter / Candle filter / Leaf filter / Cartridge filter housing / Filter Plate / Filter Cloth/ Filter Cartridge /Filter Bag, also matched tanks, conveyors, etc. These equipment are widely used for the solid-liquid separation process in the industrial of mineral processing, petroleum, chemical industry, dyestuff, metallurgy, food, coal and carbon, inorganic salts, alcohol, light industry, textiles, environmental protection, energy and so on.
Packing & Shipping
FAQ
Q: Are you manufacturer?
Q: How to select the type you needed?
A: Yes. We are experienced manufacturer of filter equipment.
Q:What products you provide?
A: We produce more than 200 different models of the filter. The main products are the Press Filter/Bag Filter Housing/Automatic self cleaning filter/Basket filter/Magnetic filter/ Candle filter/Leaf filter/Cartridge filter housing/Filter Plate/Filter Cloth/ Filter Cartridge /Filter Bag, also matched tanks, conveyors, etc.
Q: How to select the type you needed?
A: We will ask you some information: solid liquid kind, usage, flow rate, solid content
percentage, working temperature & pressure, etc. We have professional technical team which will work together with our sales to help you choose the suitable machine for you.
percentage, working temperature & pressure, etc. We have professional technical team which will work together with our sales to help you choose the suitable machine for you.
Q.Is it easy to operate for the new user ?
A: Yes. We offer you manual book and operating video. When you have any questions during using, we will answer you within 24 hours. For large projects, we can also send our engineers to your site for commissioning and training.
Q: What's MOQ?
A: 1 PCS.
Q: Do you accept OEM?
A: Yes.
Q:What's the payment terms ?
A: T/T, Western Union, L/C , Alibaba trade order or others. Generally 50% in advance, 50% before shipping.
Q:Quality Warranty.
A:12 months after the installation and commission or 18 months after it has been delivered to the site of the customer.
