50Tph горно-восстановление мобильный речная Песочная транспортная золото benifition грохот экран стиральная завод по переработке Машина
3 030,00 $
Магнитный магнитный сепаратор для удаления магнетита
- Категория: >>>
- Поставщик: Jiangxi Hengchang Mining Machinery Manufacturing Co. Ltd.Jiangxi Ltd.
Сохранить в закладки 1601289030045:
Описание и отзывы
Характеристики
Titanium Iron Ore Strong Magnetic Wet Magnetic Separator Magnetite Iron Remover Permanent Magnet Magnetic Separation Equipment
Jiangxi Hengchang mining machinery is devoting to provide turnkey solution with worldwide clients for mineral processing plant including research, design, manufacture,installation and commissioning, personnel training, after-sale service and management of processing plant. Up to now, we have developed some major product lines: they are mining feeding machine, mining crushing machine,mining milling machine, mining screening equipment, mining classifying separator, mining magnetic separator, mining flotation machine and the mining gravity separator. If you want to buy mining equipment, choose Hengchang, we must ensure that you are satisfied.
Products Description

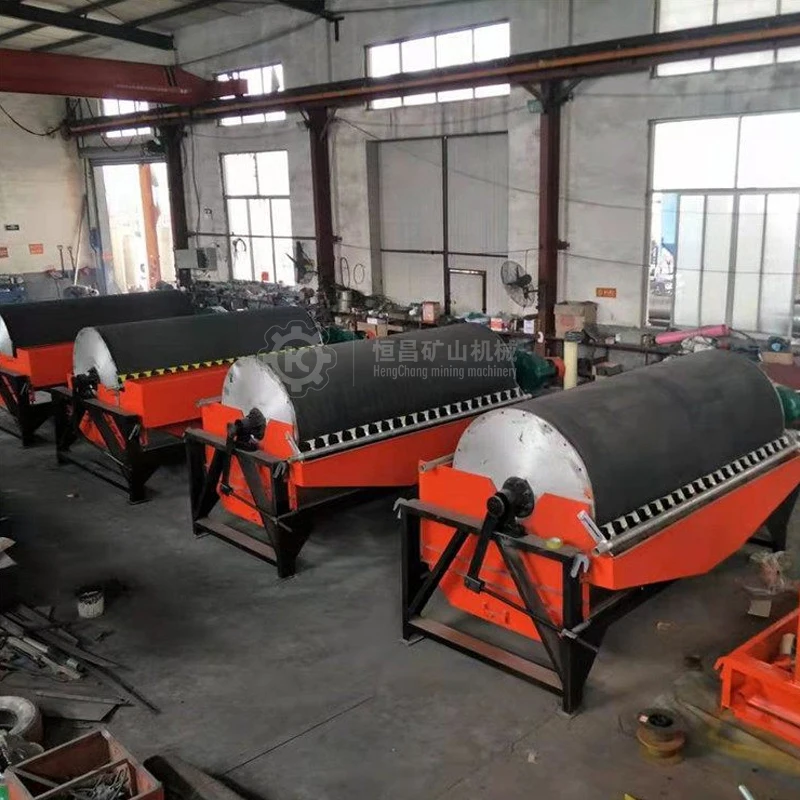

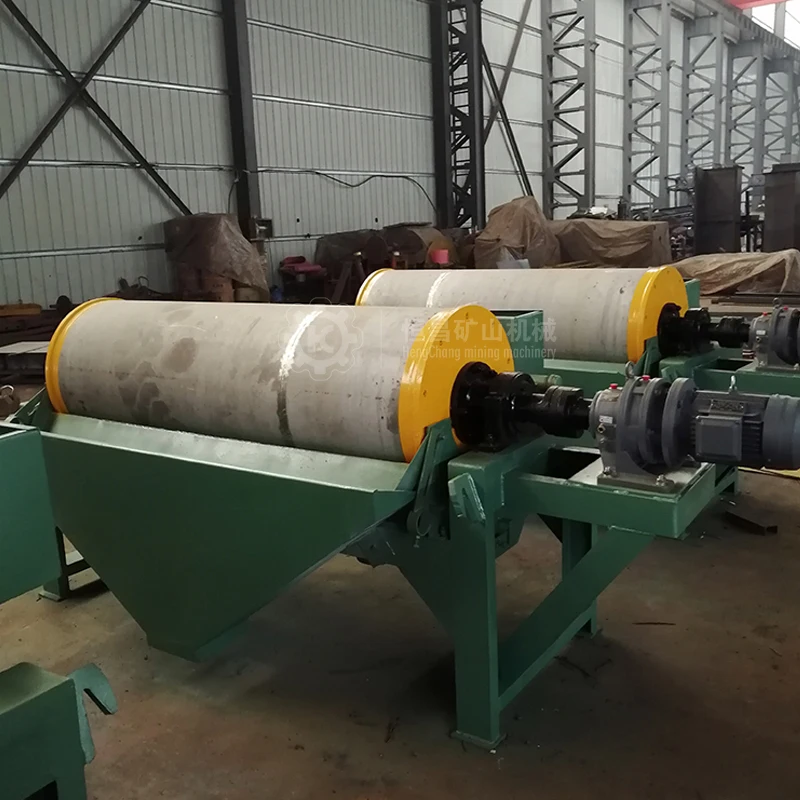

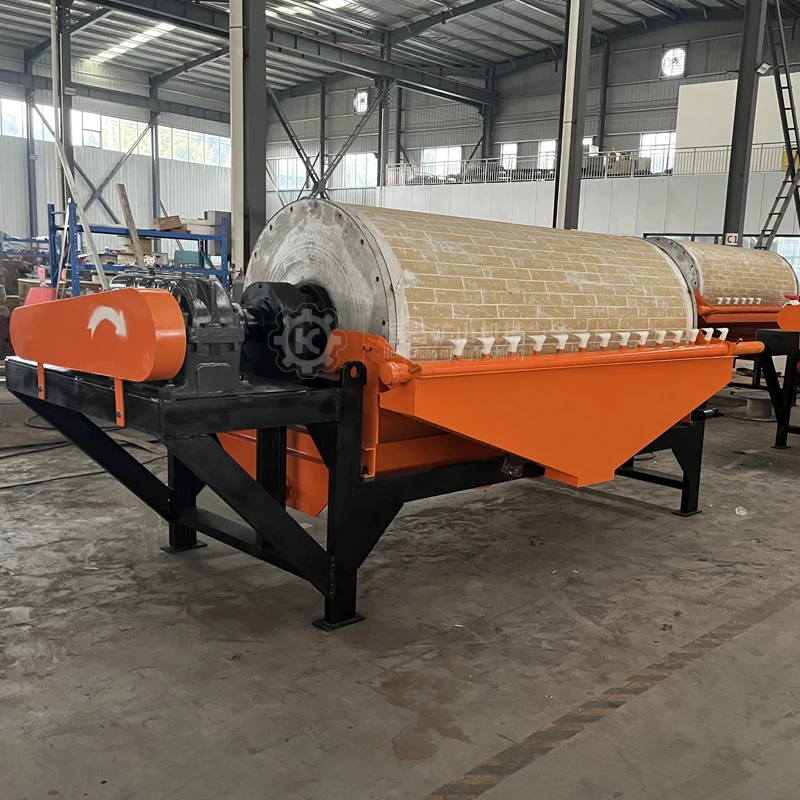

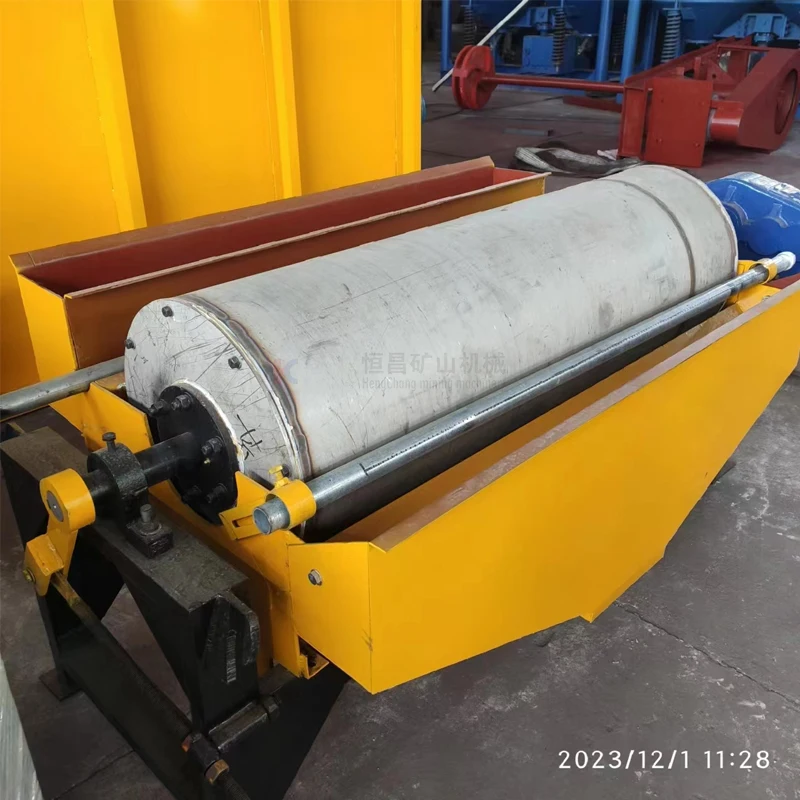

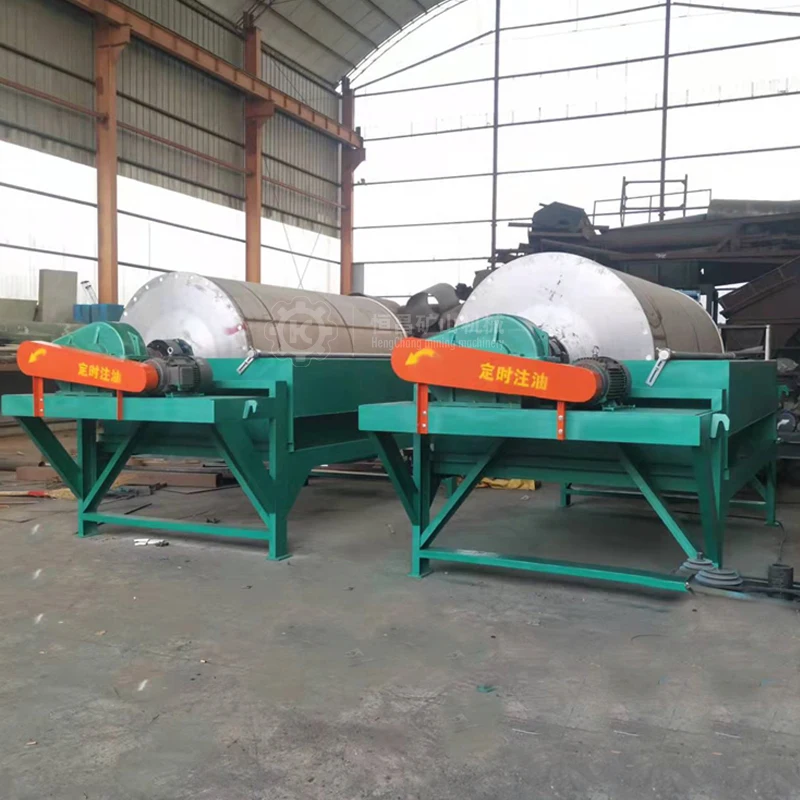

Dry Drum Magnetic Separator of Introduction
Dry Drum Magnetic Separator is suitable for materials with magnetic difference, which is widely used for resource recovery, timber industry, mining industry, ceramics industry, chemical industry, food,etc.. Magnetic separator is suitable for wet separating of materials with below 5mm sizes, such as magnetite, pyrrhotite, roasted ore, ilmenite and other materials. It is also used to remove iron from coal, non-metallic minerals, building materials,etc.. it is one of the most extensive and high versatility devices.
Widely Application of Dry Drum Magnetic Separator
1.Used for pre-concentration in the magnetic separation mill, remove the waste stones out of the ore and restore grade.
2.Used for stope to recover iron ore from the tailings and increase the utilization rate of ore resources.
3.Used for the iron and steel factories. Handle the discarded steel slag and mill scales to recover the iron.
4.Used for the garbage handling. Recover the useful metals and improve the quality of environment.
Working Principle of Dry Drum Magnetic Separator
When the raw materials flow into the tank body of the wet drum magnetic separator, firstly, the flowing direction of the raw materials is the same as the rotary direction of the magnetic drum, the iron magnetite materials are attracted to the surface of drum. This is the first separation. In the second step, the flushing water below flush the raw materials back for the second separation. This time the flowing direction of the raw materials is opposite to the rotary direction of the magnetic drum. Then along with the rotation of drum, the iron magnetite materials on the surface of drum will finally leave the magnetic field and
fall to the ore concentrate box under gravity. Also, the flushing water above helps to flush the iron magnetite into the ore concentrate box. The weak magnetic and non-magnetic materials can not be attracted and will flow to the discharge pipe for tailings.
Dry Drum Magnetic Separator is suitable for materials with magnetic difference, which is widely used for resource recovery, timber industry, mining industry, ceramics industry, chemical industry, food,etc.. Magnetic separator is suitable for wet separating of materials with below 5mm sizes, such as magnetite, pyrrhotite, roasted ore, ilmenite and other materials. It is also used to remove iron from coal, non-metallic minerals, building materials,etc.. it is one of the most extensive and high versatility devices.
Widely Application of Dry Drum Magnetic Separator
1.Used for pre-concentration in the magnetic separation mill, remove the waste stones out of the ore and restore grade.
2.Used for stope to recover iron ore from the tailings and increase the utilization rate of ore resources.
3.Used for the iron and steel factories. Handle the discarded steel slag and mill scales to recover the iron.
4.Used for the garbage handling. Recover the useful metals and improve the quality of environment.
Working Principle of Dry Drum Magnetic Separator
When the raw materials flow into the tank body of the wet drum magnetic separator, firstly, the flowing direction of the raw materials is the same as the rotary direction of the magnetic drum, the iron magnetite materials are attracted to the surface of drum. This is the first separation. In the second step, the flushing water below flush the raw materials back for the second separation. This time the flowing direction of the raw materials is opposite to the rotary direction of the magnetic drum. Then along with the rotation of drum, the iron magnetite materials on the surface of drum will finally leave the magnetic field and
fall to the ore concentrate box under gravity. Also, the flushing water above helps to flush the iron magnetite into the ore concentrate box. The weak magnetic and non-magnetic materials can not be attracted and will flow to the discharge pipe for tailings.
Product Working Principle
When the ore pulp folw into the magnetic field, the strong magnetic minerals are adsorbed on the surface of the drum. The weak
magnetic and non-magnetic minerals are cast off and discharged, while the strong magnetic minerals on the surface of the drum
rotate with the drum and will be brought out of magnetic field to complete the sorting operation.
magnetic and non-magnetic minerals are cast off and discharged, while the strong magnetic minerals on the surface of the drum
rotate with the drum and will be brought out of magnetic field to complete the sorting operation.
Product Paramenters
Model | Cylindrical dimensions (D×L)(mm) | Belt width (mm) | Magnetic field intensity of cylinder surface | Input size (mm) | Processing capacity (t/h) |
CTB465 | 400×650 | 500 | Customized range :1600-4500 gauss | <70 | 5 |
CTB565 | 500×650 | 500 | <70 | 10 | |
CTB665 | 600×650 | 500 | <70 | 15 | |
CTB68 | 600×800 | 650 | <80 | 20 | |
CTB758 | 750×800 | 650 | <80 | 25 | |
CTB795 | 750×950 | 800 | <80 | 30 | |
CTB995 | 900×950 | 800 | <80 | 150-210 | |
CTB1015 | 1000×1150 | 1000 | <80 | 350-430 |
Company Profile
FAQ
Q1: Are you manufacturer or trade company?
A1: We are manufacturer with CE certificate. Our factory has more than 25 years history.
Q2: Where your products have been exported before?
A2: Our products have been sold to Southeast Asia, Africa, North America, Oceania, South America, Middle East and so on.
Q3: How will you help the customer to install the equipment?
#1 Our senior engineer will supply installation and training service on-line or on-site.
#2 We have engineer in Southeast Asia and Africa, we can supply 7*24 service.
Q4: How about the wear parts supply?
A4: We will supply the wear parts with factory price. You can buy them from our factory in China.
Q5: What about after-sale service?
A5:12 months warranty for all kinds of products.
Q6: How to get the free solution and quotation?
A6: Please send inquiry to us ,leave your whatsapp and email address, our sales manager will contact you within 1 hours.
A1: We are manufacturer with CE certificate. Our factory has more than 25 years history.
Q2: Where your products have been exported before?
A2: Our products have been sold to Southeast Asia, Africa, North America, Oceania, South America, Middle East and so on.
Q3: How will you help the customer to install the equipment?
#1 Our senior engineer will supply installation and training service on-line or on-site.
#2 We have engineer in Southeast Asia and Africa, we can supply 7*24 service.
Q4: How about the wear parts supply?
A4: We will supply the wear parts with factory price. You can buy them from our factory in China.
Q5: What about after-sale service?
A5:12 months warranty for all kinds of products.
Q6: How to get the free solution and quotation?
A6: Please send inquiry to us ,leave your whatsapp and email address, our sales manager will contact you within 1 hours.
