P1.86 светодиодная большая настенная видеопанель для отеля рекламный баннер торговый центр ночной клуб Офисная вывеска художественная доска большой светодиодный фотоэкран
154,00-184,00 $
Малый шаг COB дисплей экран поставщик ODM высокая яркость цифровой ЗНАК НАРУЖНОГО ТВ и рекламы XGL P1.25 мм
- Категория: >>>
- Поставщик: Dongguan Xinguanglian Optoelectronics Technology Co. Ltd.Dongguan Ltd.
Сохранить в закладки 1601289033419:
Описание и отзывы
Характеристики
Products Description
Project Case
Product Paramenters
Full Flip-Chip COB XGL | COB All-in-One |

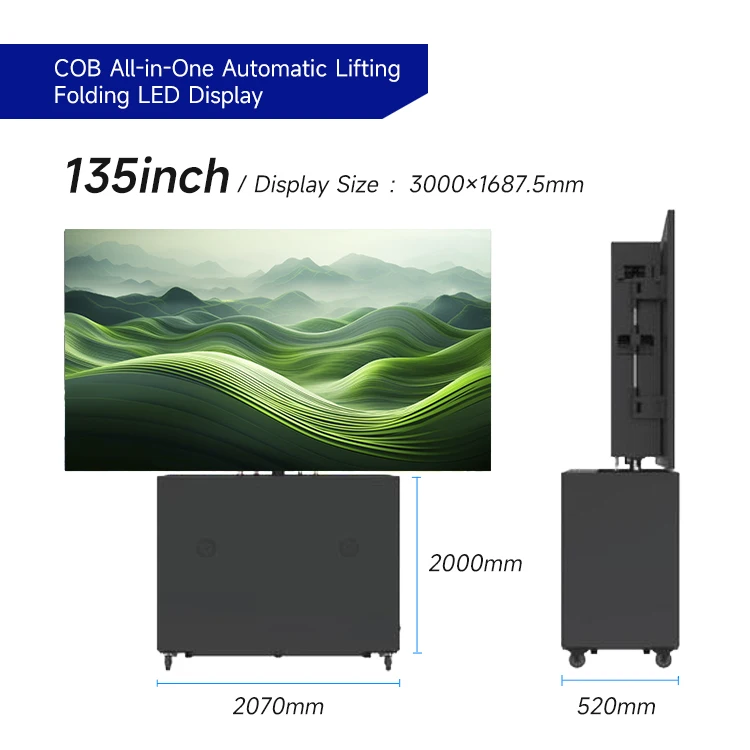

Product size | 135 Inch |
Pixel Configuration | Full Flip-Chip COB |
Pixel Pitch (mm) | 1.25mm |
Display Size (mm)(W*H) | 3000*1687.5 |
Overall Size (mm)(W*H*D) | 2070*2000*520 |
Overall Weight (KG) | 520 |
Resolution (W*H) | 3840*2160 |
Max. Power Consumption(M) | 2125 |
Avg. Power Consumption(W) | 710 |
Module Size(width x height) (mm) | 150×168.75 |
Module Resolution(width x height) (pixels) | 120X135 |
Flatness between modules | ≤0.15mm |
Panel Size (mm) | 600×337.5×42mm |
Panel Resolution(width x height) (pixels) | 480x270 |

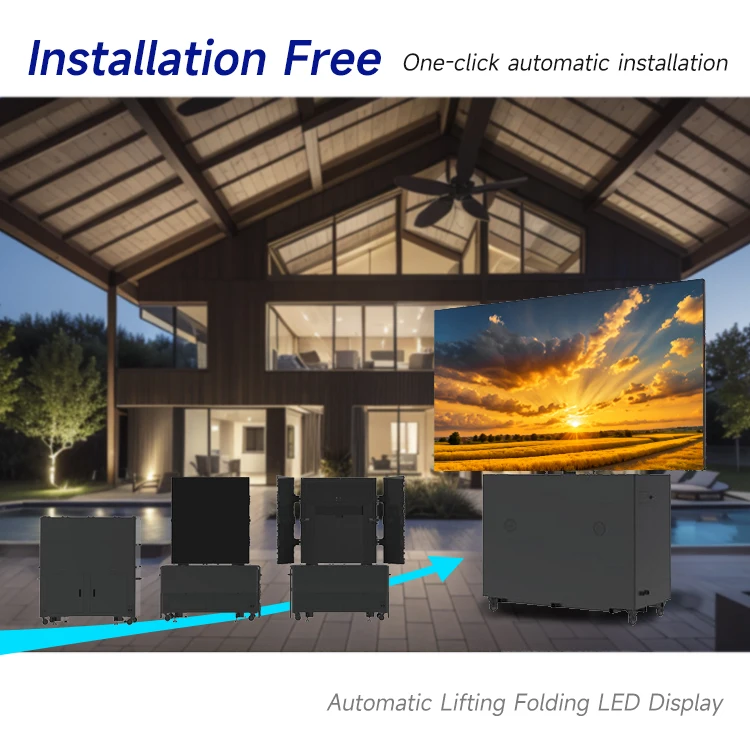

Installation method | Hoisting/Mounting/wall hanging |
Brightness(cd/m2) | 600/1000 |
Pixel Density | 640000 dots/m² |
Flatness | ≤0.15mm |
Viewing Angle | 160° |
Highest contrast | 12000:1 |
Driving method | Common cathode |
Contrast Ratio | 1000000:1 |
Max power consumption (W/m2) | 280 |
Avg power consumption (W/m2) | 95 |
Frame Change Frequently (Hz) | 50/60 |
Signal Color Processing Bits | ≥13bit |
Brightness adjustment | Manual/automatic/program-controlled |
Control method | Sync control |
Pixel Correction | Equipped with brightness and color point by point correction |
Control distance | Category 5e twisted pair network cable, optical fiber transmission over 100 meters (optional) |
Software interface | WindowsXP/7/8/10 |
Refresh Frequency (Hz) | ≥3840 |
Color Temperature (K) | 9300K adjustable |
Signal input | HDMI、DVI |
Continuous working time | ≥7×24hrs, support continuous uninterrupted display |
Voltage | AC：100V~240V |
Operation Temp | -10℃～40℃ |
Storage Temp | -25℃～60℃ |
Operating Humidity Range | 10%RH～80%RH |
Blind Spot Rate | ≤0.0001, 0 at factory |
LED Lifetime (h) | 100000 hours |
Company Profile
Exhibition
Why Choose Us
Packaging & Logistics
FAQ
Q1:What is the Minimum Order Quantity(MOQ)for XGL OPTO's COB LED displays?
A:The MOQ for our COB LED displays is 1 panel.However,for an enhanced visual experience,we recommend ordering larger video walls.
Q2:Does XGL OPTO include a video processor with the COB LED display?
A:Yes,we include a video processor from renowned brands like Brompton and Colorlight Novastar with our COB LED displays to ensure optimal performance.
Q3:How can XGL OPTO's COB LED displays be installed for rental purposes?
A:Our COB LED displays are designed for easy installation,suitable for both hanging and stacking methods commonly used in rental applications.
Q4:Does XGL OPTO provide installation structures for the COB LED displays?
A:Absolutely,we offer hanging beams for suspended installations and back brackets for stacking installations to facilitate various setup needs.
Q5:Is there a quality check before delivery of the COB LED displays?
A:Yes,we conduct a 100%quality test for 72 hours before delivery to ensure each unit meets our stringent quality standards.
Q6:What is the warranty period for XGL OPTO's COB LED displays?
A:We offer a 2-year warranty.During this period,we are responsible for the free repair or replacement of any defective parts.
Q7:What support does XGL OPTO provide if we encounter issues with installation,configuration,or usage?
A:Our dedicated after-sales service team is on standby to resolve any issues related to installation,configuration,or usage,ensuring your screen operates optimally.
Q8:What are XGL OPTO's payment terms for COB LED displays?
A:We require a 50%deposit,with the remaining 50%due before delivery.We will provide photos of the products and packaging for your approval before the final payment.
Q9:What are XGL OPTO's delivery terms for COB LED displays?
A:We offer flexible terms including EXW,FOB,CIF,CFR,DDP,DDU,and can work with customer-specified freight forwarders or negotiate the mode of transport.
Q10:How long is the delivery time for XGL OPTO's COB LED displays?
A:The standard delivery time is 15-20 days after receiving the deposit.However,the exact delivery time may vary based on the order quantity.
A:The MOQ for our COB LED displays is 1 panel.However,for an enhanced visual experience,we recommend ordering larger video walls.
Q2:Does XGL OPTO include a video processor with the COB LED display?
A:Yes,we include a video processor from renowned brands like Brompton and Colorlight Novastar with our COB LED displays to ensure optimal performance.
Q3:How can XGL OPTO's COB LED displays be installed for rental purposes?
A:Our COB LED displays are designed for easy installation,suitable for both hanging and stacking methods commonly used in rental applications.
Q4:Does XGL OPTO provide installation structures for the COB LED displays?
A:Absolutely,we offer hanging beams for suspended installations and back brackets for stacking installations to facilitate various setup needs.
Q5:Is there a quality check before delivery of the COB LED displays?
A:Yes,we conduct a 100%quality test for 72 hours before delivery to ensure each unit meets our stringent quality standards.
Q6:What is the warranty period for XGL OPTO's COB LED displays?
A:We offer a 2-year warranty.During this period,we are responsible for the free repair or replacement of any defective parts.
Q7:What support does XGL OPTO provide if we encounter issues with installation,configuration,or usage?
A:Our dedicated after-sales service team is on standby to resolve any issues related to installation,configuration,or usage,ensuring your screen operates optimally.
Q8:What are XGL OPTO's payment terms for COB LED displays?
A:We require a 50%deposit,with the remaining 50%due before delivery.We will provide photos of the products and packaging for your approval before the final payment.
Q9:What are XGL OPTO's delivery terms for COB LED displays?
A:We offer flexible terms including EXW,FOB,CIF,CFR,DDP,DDU,and can work with customer-specified freight forwarders or negotiate the mode of transport.
Q10:How long is the delivery time for XGL OPTO's COB LED displays?
A:The standard delivery time is 15-20 days after receiving the deposit.However,the exact delivery time may vary based on the order quantity.
Похожие товары

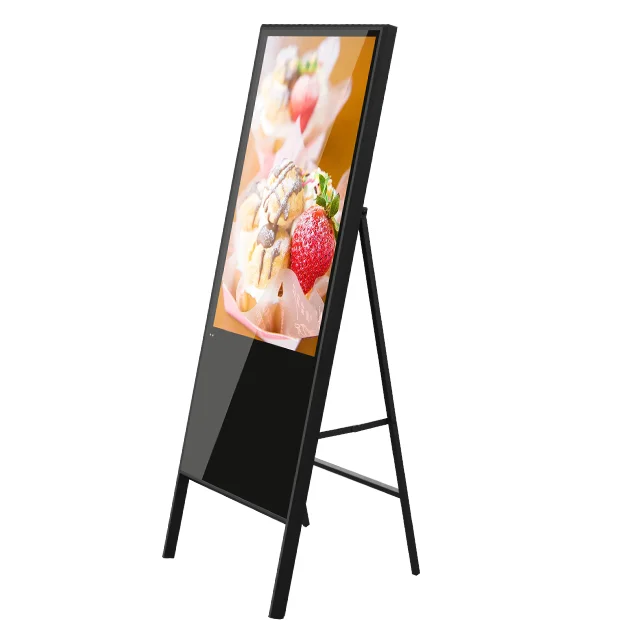

2023 Прямая Заводская цена 32-дюймовый сетевой Wi-Fi Android портативный рюкзак вертикальный ЖК-рекламный ТВ-дисплей экраны
301,00-330,00 $

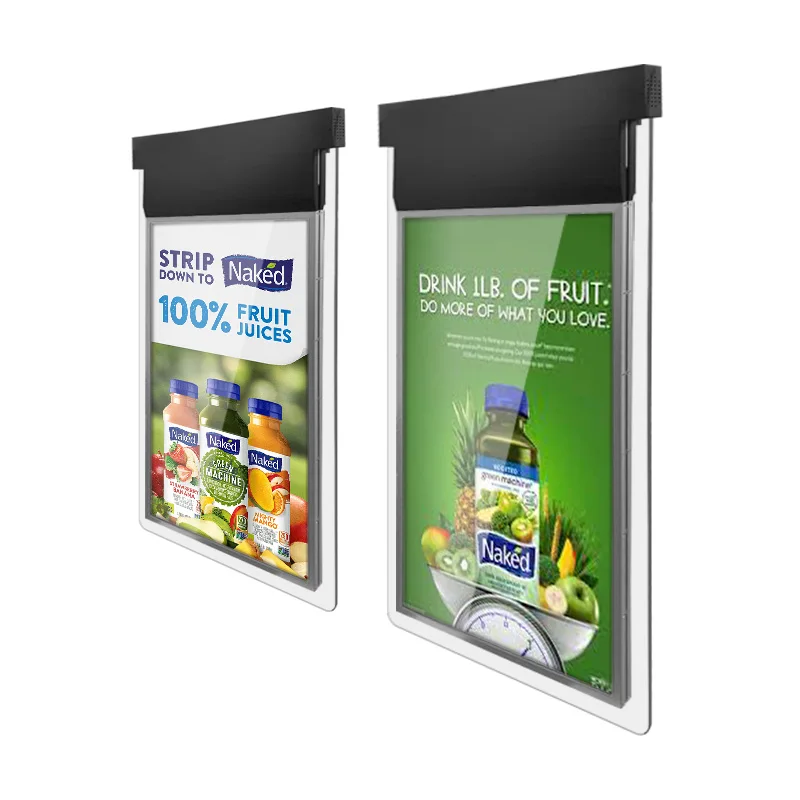

32-дюймовый ЖК-монитор для окон
345,00-375,00 $

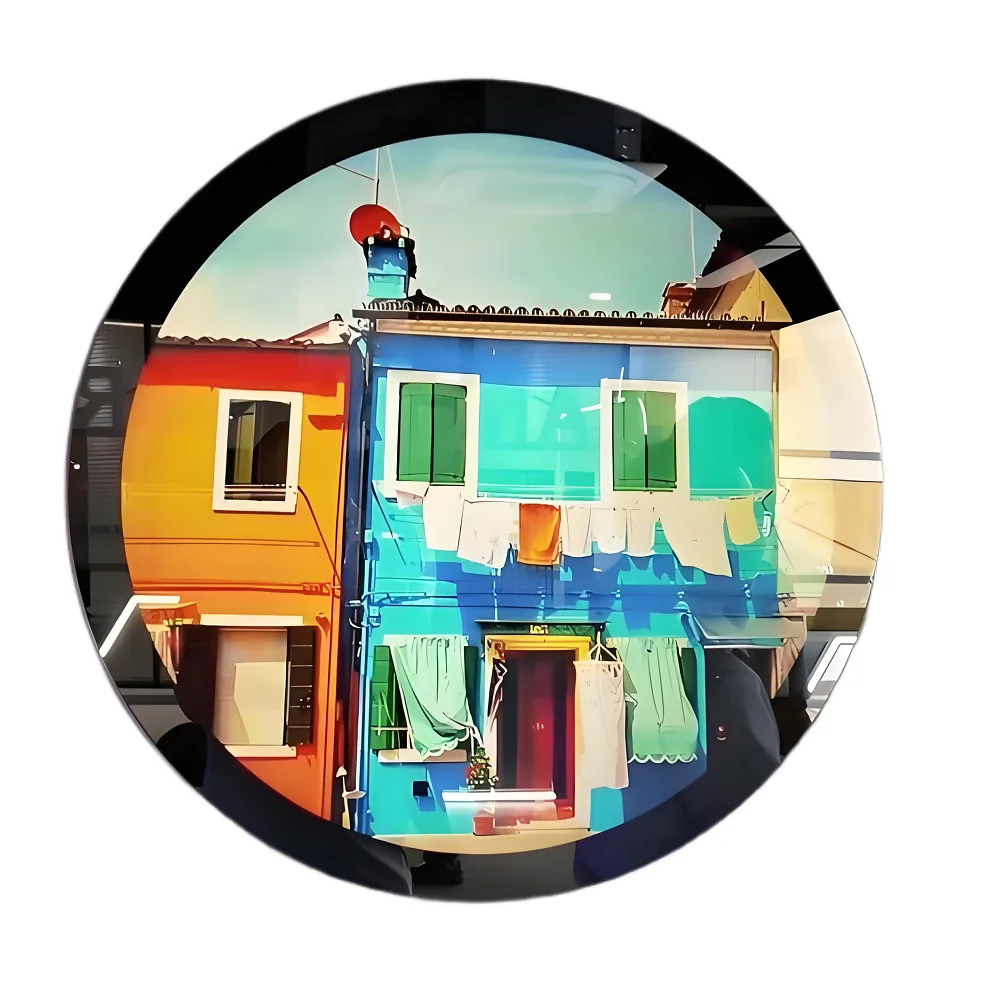

Высокая яркость 23 6 дюймов круглый ЖК-дисплей Digital Signage круговой формы рекламный экран медиаплеер
399,00-699,00 $

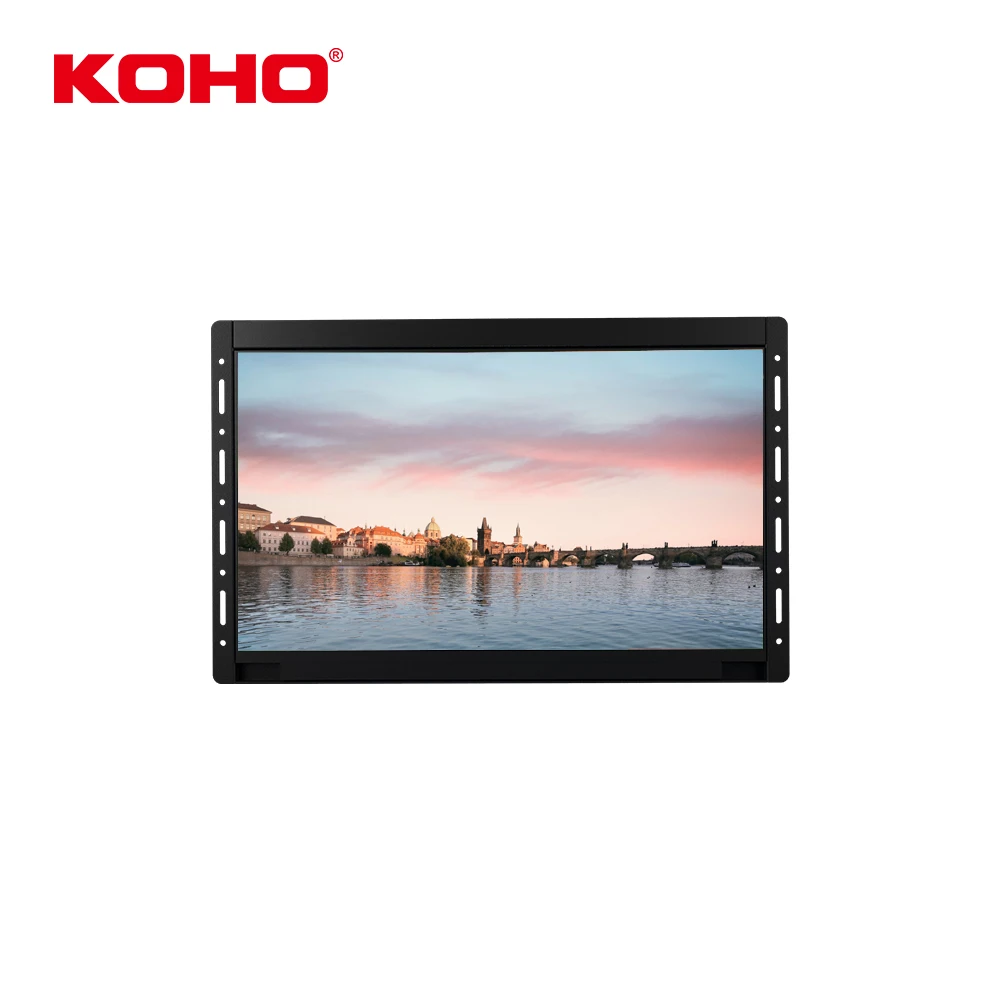

13 3 дюймовый ЖК Портативный рекламный дисплей цифровая открытая рамка
190,00-219,00 $

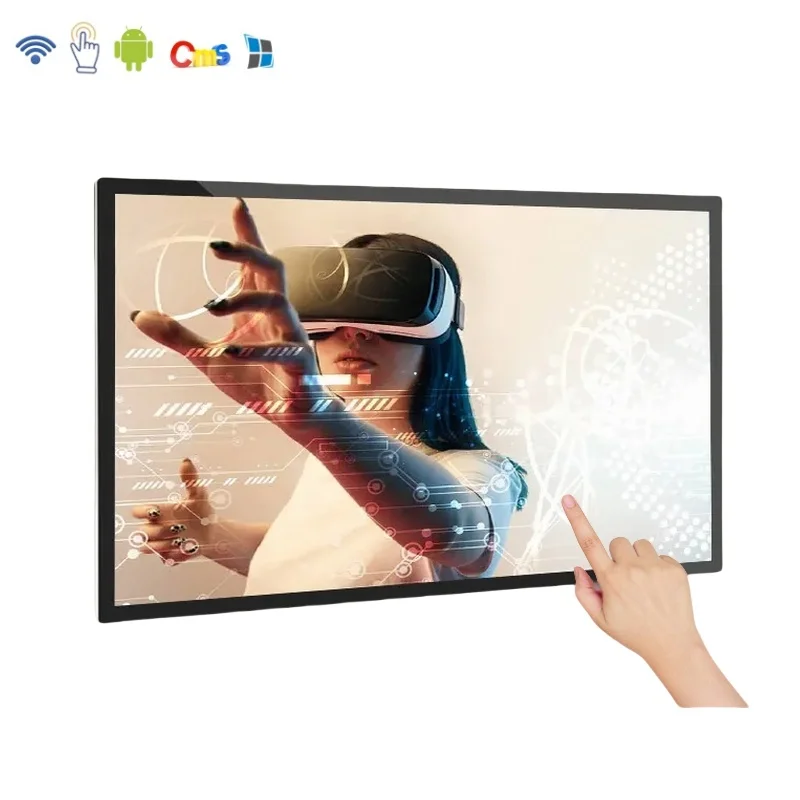

Смарт-дисплей на Android 15 6 дюймов небольшой размер цифровой плеер рекламный экран медиаплеер сенсорный реклама настенный
Ультра-высокая яркость цифровые окна дисплеи 24/7 операции двухсторонний экран рекламы недвижимости витрины вывесок
780,00-985,00 $

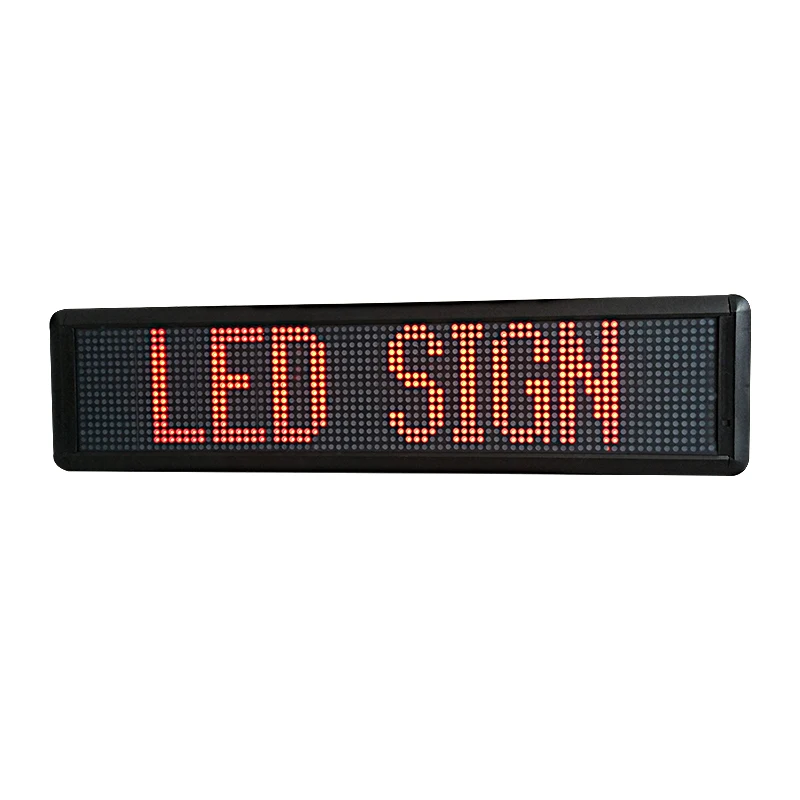

Внутренняя светодиодная Информационная панель мини вывеска P4 светодиодный модуль видеостена [honghao] электронный дисплей 12 В 5 мм 100000
